3M DBI-SALA RoofSafe Anchor Operator's manual

www.3M.com/FallProtection
Form No: 5903917 Rev: D
Always read and follow the warnings and instructions for use.
3M™DBI-SALA®
RoofSafe Anchor
and Cable System.
User Instruction Manual.

2Form No: 5903917 Rev: D
3M™ DBI-SALA®RoofSafe Anchor and Cable System
Index
1.0 Foreword (Anchor) 3
2.0 The RoofSafe Anchor 4 - 5
3.0 System Design, Installation And Other Characteristics (Anchor) 6
4.0 Regulations, Quality, Precautions And Exclusions (Anchor) 7
5.0 Inspection, Maintenance, Servicing And Warranty (Anchor) 8
6.0 Pre-Use & In Use Checks (Anchor) 9 - 11
7.0 Following Installation (Anchor) 12
8.0 Typical Anchors (Anchor) 13
9.0 Maintenance Check List (Anchor) 14
10.0 Foreword (Cable) 15
11.0 The RoofSafe Cable System 16
12.0 System Design, Installation And Fixings (Cable) 17
13.0 Precautions, Requirements & Exclusions (Cable) 18
14.0 Inspection, Maintenance, Servicing And Warranty (Cable) 19
15.0 Pre-Use & In Use Checks (Cable) 20
16.0 Using The System (Cable) 21 - 22
17.0 Following Installation (Cable) 23
18.0 System Layout (Cable) 24
19.0 System Components (Cable) 25
20.0 Maintenance Check List (Cable) 26
21.0 Rescue & Emergency Procedure 27
For more information about our range of equipment
visit our website at 3M.com/FallProtection

3Form No: 5903917 Rev: D
3M™ DBI-SALA®RoofSafe Anchor and Cable System
Foreword (Anchor)
Section 1.0
Thank you for purchasing a 3M™ DBI-SALA®RoofSafe Anchor.
The RoofSafe Anchor is designed to eliminate or substantially reduce the risk of a fall which would otherwise lead to injury
or death to operatives working at height. Therefore it is vitally important that it is installed, maintained and used correctly.
The Anchor has been designed as a roof top anchorage which will arrest a fall from height. Therefore consideration should
be given to the user’s age, fitness and any physical or mental disorders they may have.
The personal protection equipment (PPE) which is selected will form an essential part of the system.
Installation of the Anchor should be conducted by a 3M Fall Protection certified Installer or competent persons trained
by 3M Fall Protection or 3M Fall Protection’s representative and must be in accordance with 3M Fall Protection’s technical
instructions and all prevailing national standards.
The manufacturer of the 3M DBI-SALA RoofSafe Anchor is 3M Fall Protection.
All users of the anchor, as well as those who manage its use and maintenance, should be familiar with the user checks,
limitations, precautions, operation and general requirements of the system. Users should be competent personnel who
have read and understood this manual and have been trained by an authorised trainer.
3M Fall Protection recommends that working at height should not be conducted by a lone operative for reasons of safety
and that proper consideration is given to rescue procedures in the event of a fall or accident.
This manual must be provided in the official language of the country in which the system is to be used.
On no account should children or pregnant women use a fall arrest or work restraint system.

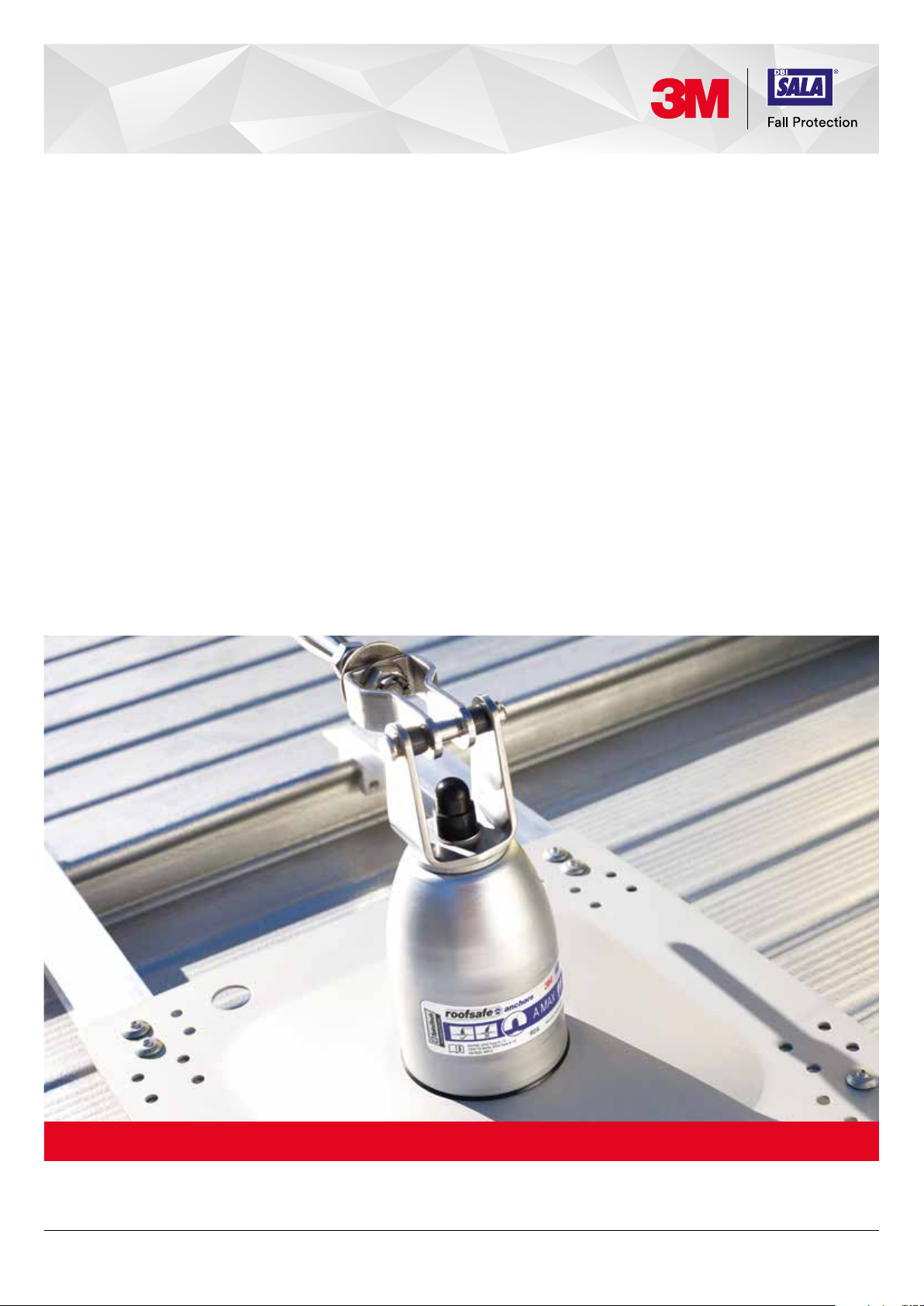

Product Application

4Form No: 5903917 Rev: D
3M™ DBI-SALA®RoofSafe Anchor and Cable System
The RoofSafe Anchor
Section 2.0
2.1 The 3M™ DBI-SALA®RoofSafe Anchor
The 3M DBI-SALA RoofSafe Anchor provides a secure anchor point for a worker at height, close to an exposed edge
or other fall hazards, when used in conjunction with associated PPE, such as a full body harness and safety lanyard.
There are two types of Anchors within the range, the SpiraTech Anchor (CE only) and the Tip Over Anchor.
Both Anchors are modular in design allowing for speed of fitting and use.
The Anchors have been tested and conforms to the requirements of:
• EN795 2012 TYPE A
• CEN TS 16415:2013 Type A
• OSHA 1926.502 M
• ANSI Z359.1 2007
• AS / NZS 1891.2
The 3M DBI-SALA RoofSafe Anchors have been designed to re-orientate and deploy an energy absorber in the event of a fall,
there by reducing the load transferred to the roofing system as compared to a rigid anchor. The Anchors can be used for both fall
arrest and work restraint applications.
The Anchors can be installed on standing seam, bituminous and PVC membrane, composite / built up and membrane and fragile
roofing systems.
Both Anchors allow the user to walk 360 degrees around the Anchor without needing to reorientate the lanyard or connectors.
The Anchor incorporates full weather sealing to combat water ingress, and allows different roof membranes to be fitted
and sealed around the Anchors for true weather proofing.

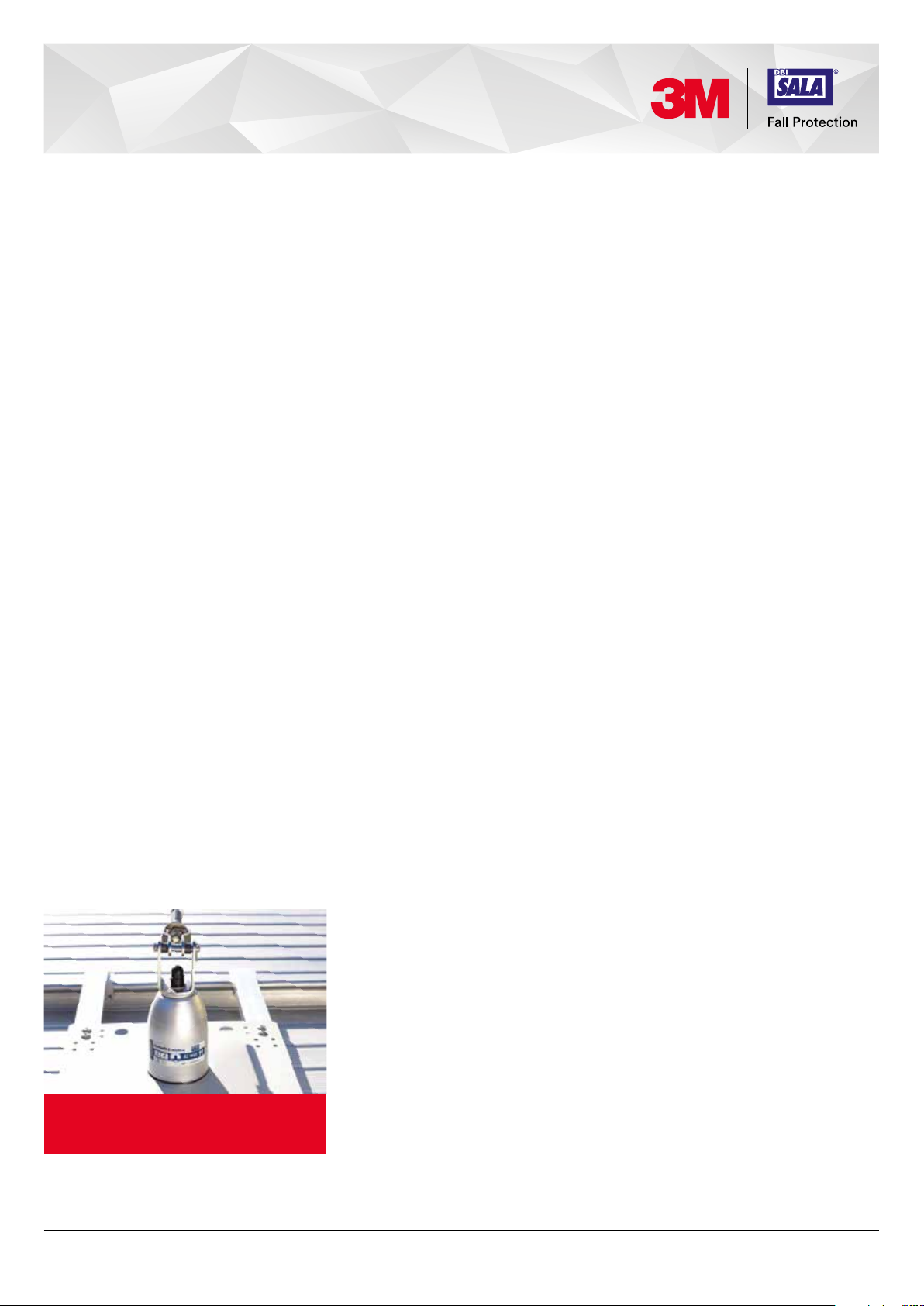

SpiraTech Anchor Single Point Tip
Over Anchor
Can be used as a single point
Anchor for up to two users.
CE Only.
Can be used as a single point
Anchor for one user. (to conform
to ANSI please use RA Single
Point Eye AM,7241168).
Form No: 5903917 Rev: D

5Form No: 5903917 Rev: D
3M™ DBI-SALA®RoofSafe Anchor and Cable System
The RoofSafe Anchor
Section 2.0
2.2 Positioning of the 3M™ DBI-SALA®RoofSafe Anchor
When positioning the 3M DBI-SALA RoofSafe Anchor System there are two styles of placement to consider.
2.3 Anchor Activation
If a fall does occur, the anchor will deploy. Once deployed, the Anchor must be removed from the roof and the roof inspected
for damage or signs of structural weakening. Only once the roof has been passed as fit for purpose can another Anchor
be installed.

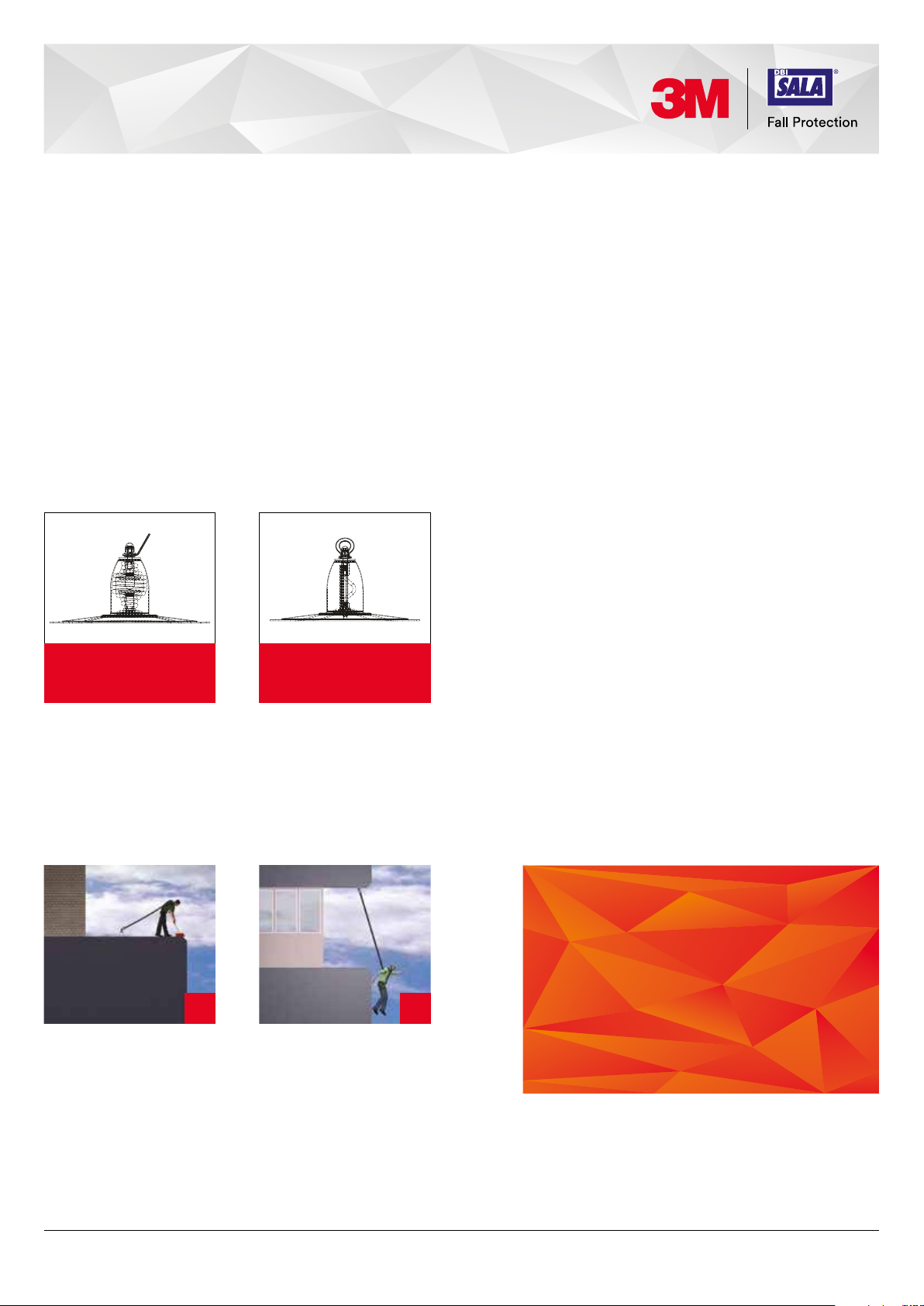

Work Restraint
A Restraint System is designed
to prevent a user accessing
risk areas (such as roof edges),
thereby preventing a fall.
Fall Arrest
A Fall Arrest System allows
access to a fall hazard and is
designed to safely arrest the
operative in the event of a fall.
01 02

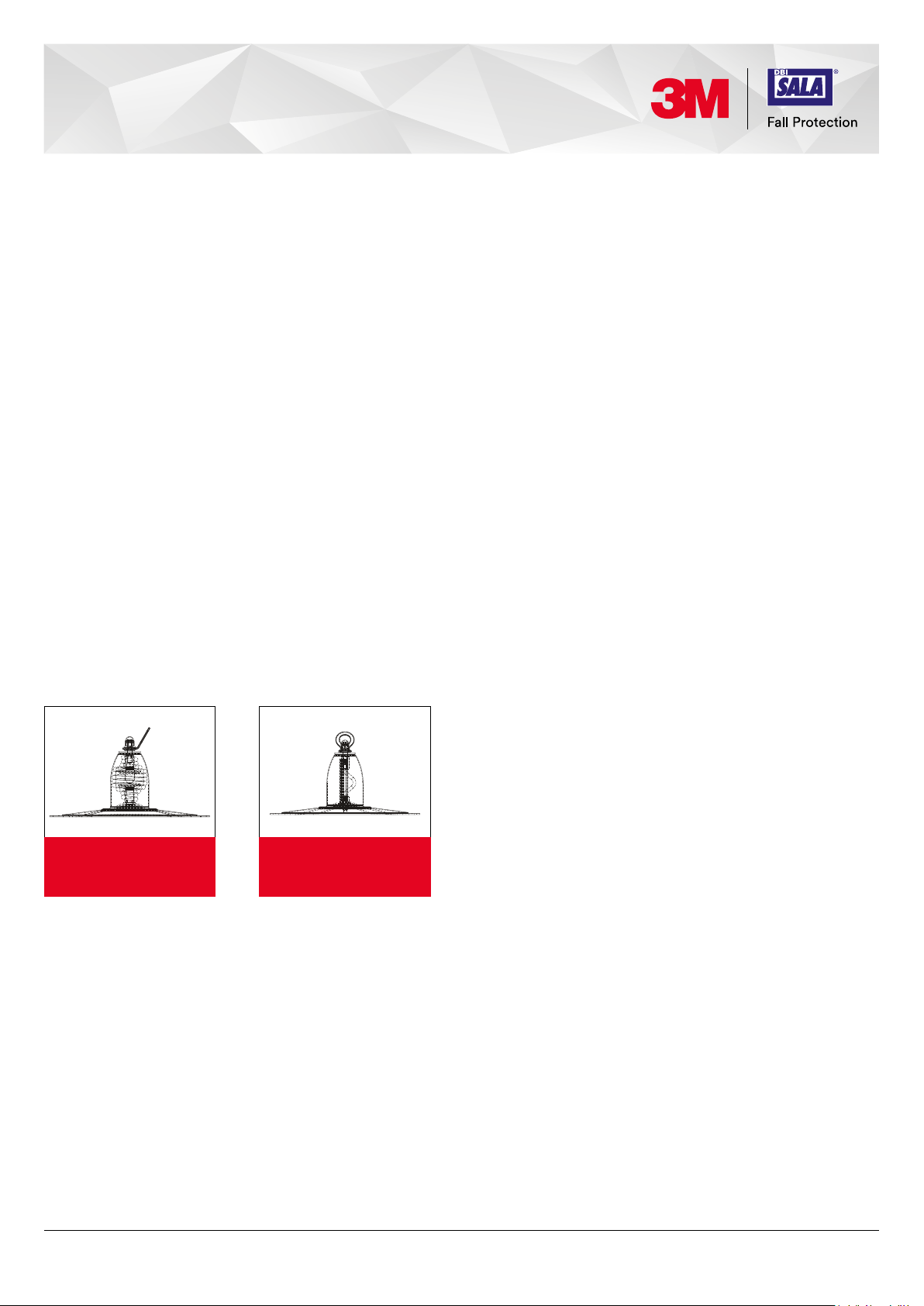

Pre-deployed Deployed- Report to an certified
3M Fall Protection Installer and
do not use.
Important Note.
Whilst all Anchor installations must be designed for
Fall Arrest in case of accidental misuse, it is recommended
that the positioning of the Anchor should be located for
Work Restraint. Restraint enables a user to access their
work area whilst being prevented from gaining access
to a fall hazard and will reduce risk and mitigate against
the consequences of a fall.
Form No: 5903917 Rev: D

6Form No: 5903917 Rev: D
3M™ DBI-SALA®RoofSafe Anchor and Cable System
System Design, Installation And Other Characteristics
Section 3.0
3.1 System Design
The Anchor(s) will be positioned to suit your specific requirements and local site conditions. The certified 3M Fall Protection Installer
will have verified all the necessary parameters before commencing installation to ensure the safety of your product when it is in use.
Position is determined by some of the following factors:
• The requirement for access and task to be performed
• Availability of structural anchors
• Ground clearance
• Obstacles beneath the work area
• Type of PPE to be used.
The user must always access the Anchor from a position of safety therefore an additional fall protection system may be required.
If possible, this system should restraint rather than fall arrest. For this reason it is necessary that persons only use the personal
protection equipment specified for use with the Anchor.
Do not detach from an Anchor unless you are in a position of safety.
3.2 Installation
Lives are at risk if the Anchor(s) is not installed correctly. 3M Fall Protection Certified Installers are highly trained in design,
installation, certification and maintenance. Certified Installers are certified by 3M Fall Protection and records of trained personnel are
kept by our company. Customers should not attempt an installation on their own unless they have received approval and training by
3M Fall Protection. Customers must have access to all the tools and information required to successfully install and test the product.
Included in this manual is a checklist of the minimum amount of information that should be supplied by the installer following the
installation of your Anchor(s).
3.3 Fixings
It is imperative that the supporting structure is capable of withstanding at least twice the loads that will be generated in the event
of a fall. A structural engineer should verify this is the case before a system is installed.
Furthermore, fixings and the interface of components with the structure must be such that they do not permit dissimilar materials
to come into direct contact. The position of the base plate and number of fixings that hold the anchor down to the roof are critical
to the products safety and should never be altered.
All fixings must be correctly installed in accordance with 3M Fall Protection’s Installation Instructions.
3.4 Packaging
All equipment leaving 3M Fall Protection is packaged to prevent damage and / or deterioration during transportation. Any concerns
or claims regarding the condition of the equipment should first be addressed to the installer. All parts of the packaging can be recycled.
3.5 Quality
3M Fall Protection operates a quality system to ISO9001 and offers full product traceability for all components.
All 3M Fall Protection products are tested in accordance with current regulations and verified by an authorised testing laboratory.
All 3M Fall Protection Certified Installers are comprehensively trained, regularly audited and provide method statements and risk
assessments. Testing is verified by European notified body Dekra Exam BBF (CE 0158) and the product is the subject of annual
surveillance by the Notified Body.
Form No: 5903917 Rev: D

7Form No: 5903917 Rev: D
3M™ DBI-SALA®RoofSafe Anchor and Cable System
Regulations, Quality, Precautions And Exclusions
Section 4.0
The integrity of the Anchor(s) is only ensured if the user wears the recommended personal protective equipment (PPE). This should be
certified and marked in accordance with the relevant national standard. Using the wrong PPE or lanyards of incorrect length can result
in injury or death. Each system installed should be supplied with specifications of a full body harness, lanyards and shock absorbing
device. The following precautions, requirements and exclusions apply to the RoofSafe Anchor:
• The anchor must be installed by an Certified 3M Fall Protection Installer or competent person trained by 3M Fall Protection
or 3M Fall Protection’s representative
• A recorded inspection must be conducted at least once a year by a Certified 3M Fall Protection Installer
• Do not attempt to test systems with dynamic or static loads. 3M Fall Protection Certified Installers carry the appropriate
test equipment for testing the Anchor and fixings
• The Anchor(s) must not be used as a lifting system
• Do not use the Anchor for equipment tie back
• Never exceed the recommended number of users on the Anchor (See label on product or system tag)
• Never attempt to repair, tamper with or change the Anchor(s)
• Do not use the system if it appears to be damaged or appears to have parts missing
• The equipment should not be used outside of its limitations, nor shall it be used for any other purpose than that intended
• Each user should weigh no more than the maximum rated load for the energy absorbing fall arrest system (e.g. a lanyard)
and that the fall arrest system shall be capable of limiting the fall arrest loads to less than 6 kN (1350 lbs)
• DO NOT attempt to clean the system with aggressive cleaning chemicals and abrasive products
• DO NOT use external systems in the event of a electrical storm
• Only personnel trained to work at height and in the correct operation of the systems should be permitted to use it
• In the unlikely event that a fall does occur the Anchor should be replaced
• Do not use the Anchor(s) if it is not clearly labelled.
Form No: 5903917 Rev: D

8Form No: 5903917 Rev: D
3M™ DBI-SALA®RoofSafe Anchor and Cable System
Inspection, Maintenance, Servicing And Warranty
Section 5.0
5.1 Inspection and General Maintenance
The 3M™ DBI-SALA®RoofSafe Anchor has been designed to be used under a variety of conditions. It uses high-grade components
that are corrosion resistant. However, the Anchors working life depends on factors such as correct care and maintenance and the
environment in which the system is installed. Before each occasion of use a visual check must be conducted to ensure the Anchor
is fit for purpose.
The Anchor attachment eye should be free to rotate and all the fixing should be firmly secure. If the anchor is bent or deformed
in a way which is uncharacteristic of the Anchor you should not use it. Report the faults to the 3M Fall Protection Certified Installer
and schedule a maintenance visit.
DO NOT attempt to repair the Anchor(s) yourself, as this may invalidate performance warranties and put personnel in danger.
The 3M DBI-SALA RoofSafe Anchor is virtually maintenance free dependent on environment. Occasionally the Anchor may need
cleaning. This should be done with a soft brush, warm water and a mild detergent. Ensure the parts are thoroughly rinsed with plenty
of clean water. Although highly resistant to chemicals and environmental conditions, take all precautions to avoid contaminating the
Anchor(s) with acids, bitumen, cement, chloride, paint or aggressive cleaning fluids.
Stainless Steel parts are particularly susceptible to pitting corrosion from chlorine, so avoid exposure in this type of environment.
If the system is likely to be contaminated, please contact your 3M Fall Protection Certified Installer or 3M Fall Protection for advice.
5.2 Servicing
In accordance with manufacturers recommendations and current national standards, an Anchor that is in regular use should be
inspected at least once a year by an Certified 3M Fall Protection Installer. In very high use applications or aggressive environments
the servicing interval should be more frequent as determined by the installer. The Anchor(s) is unlike other anchorages and has
many unique features, therefore only Certified 3M Fall Protection Installers who have been trained and certified should inspect
this product.
A maintenance checklist is provided to our Approved Installers to use during annual inspections. Please see Section 9.0 in this manual.
If the Anchor(s) has sustained a fall arrest impact, has been damaged, or is defective in any way, it must be immediately categorised
as unfit for use. The use of the system must be discontinued, and servicing should be arranged as soon as possible. All servicing
requirements should be directed to 3M Fall Protection or their Certified Installer.
5.3 Warranty
Full details of the warranty terms and exclusions are available under the 3M DBI-SALA RoofSafe Cable System warranty,
which is available as a separate document.
Form No: 5903917 Rev: D

9Form No: 5903917 Rev: D
3M™ DBI-SALA®RoofSafe Anchor and Cable System
Pre-Use & In Use Checks
Section 6.0
6.1 Harnesses and Lanyards
Equipment should be certified and marked to the appropriate national standard, always refer to the manufactures instructions
for use. Always wear a full body harness. Examine harnesses, lanyards, self-retracting lifelines or controlled rate descent devices
in accordance with their manufacturer’s instructions to ascertain if they are serviceable. If in doubt do not use them. If these items
have been subjected to a fall they must be serviced or discarded. When not in use these articles need to be stored in a clean, cool,
dry area, free from chemical fumes or corrosive elements. Direct sunlight, heat, steam, undue vibration and sharp implements must
also be avoided. Preferably, fall arrest equipment like this should, when not required for use, be kept in dedicated cabinets which
permit adequate ventilation.
6.2 The Anchor
Carry out a visual inspection to check that the Anchor(s) components have not been subjected to damage between periods of use.
• Check for any obvious damage such as cracks, heavy indentations, deformation or severe corrosion.
(Deformation and indentations may be evidence that a fall has occurred
• Check for chemical contamination (e.g. discolouration) and heat damage, (e.g. weld splatters)
• Check for loose fixings
• Check the maximum number of users
• Check that the Anchor certification is valid
• Check that the anchor has not been deployed
• Check that the ground clearance is still the same as detailed on installation and that there is no risk of collision in the event
of a fall - including swing fall (pendulum fall) hazards.
If any of the above is questionable do not use the Anchor and report to a Certified 3M Fall Protection Installer.
3M™ DBI-SALA®ExoFit NEX™ Harness 3M™ DBI-SALA®RoofSafe Single Point
Anchor installed on a Standing Seam Roof
Form No: 5903917 Rev: D

10Form No: 5903917 Rev: D
3M™ DBI-SALA®RoofSafe Anchor and Cable System
Pre-Use & In Use Checks
Section 6.0
6.3 Compatibility of Components
If the connecting element such as a snap hook or carabiner is undersized or irregular in shape, a situation could occur where the
connecting element applies a force to the gate of the snap hook or carabiner. This force may cause the gate (of either a self-locking
or a non-locking snap hook) to open, allowing the snap hook or carabiner to disengage from the connection point.
Suitable carabiners or snap hooks are considered to be compatible with connecting elements as long as their sizes and shapes
do not cause their gate mechanisms to inadvertently open regardless of how they become oriented.
Only use connectors that are suitable to each application. Ensure all connections are compatible in size, shape and strength.
Do not use equipment that is not compatible. Contact 3M Fall Protection if you have any questions about compatibility.
3M Fall Protection connectors (snap hooks and carabiners) are designed to be used only as specified in each product’s user’s
instructions. See Fig 4 for inappropriate connections. Snap hooks and carabiners should not be connected:
A. To a D-ring to which another connector is attached.
B. In a manner that would result in a load on the gate.
Note.
Large throat opening snap hooks should
not be connected to standard size D-rings
or similar objects which will result in a load
on the gate if the hook or D-ring twists
or rotates. Large throat snap hooks are
designed for use on fixed structural elements
such as rebar or cross members that are
not shaped in a way that can capture the
gate of the hook.
03
04
1. Force is applied to the snap hook 2. The gate presses against the connecting ring 3. The gate opens allowing the snap hook to slip off
Form No: 5903917 Rev: D

11Form No: 5903917 Rev: D
3M™ DBI-SALA®RoofSafe Anchor and Cable System
Pre-Use & In Use Checks
Section 6.0
6.4 Attaching to the Anchor
Access to the Anchor should be gained from a position of safety. If necessary the user should use other safety equipment, such as
a twintailed lanyard or access platform, to facilitate safe access to the safety system. The user should attach their fall protection
system (e.g. an energy absorbing lanyard) to the rear ‘D’ ring of the harness. This prevents the lanyard getting in the way during use.
Always ensure make compatible connection only.
Always ensure that the locking mechanism of the carabiner is properly closed before proceeding. If an additional delta link is used
make sure the nut is securely fastened.
01 02 03
Inspect the Anchor to ensuring that it
is secure and the attachment eye is free
to turn.
Attach your carabiner and fall protection
system (e.g. an energy absorbing lanyard)
to the Anchor via the connection eye.
Ensure the carabiner is locked and secure.
You are now safely attached to the Anchor.
Form No: 5903917 Rev: D

12Form No: 5903917 Rev: D
3M™ DBI-SALA®RoofSafe Anchor and Cable System
Following Installation
Section 7.0
7.1 Completed Installations
On completion of the installation, the installer should provide as a minimum:
• A signed certificate commissioning the system / Anchor
• A User Instruction Manual
• A serial number or reference number for the installation / Anchor
• Details of the products guarantee and a registration card
• Recorded and indicated the minimum ground clearance
• Provided the contact details of 3M Fall Protection
• Provided the contact details of the Installation company
• The maximum number of users permitted to use the on the Anchor and where this information can be found
• The next service date.
7.2 Training
The Certified 3M Fall Protection Installer should provide the end user with training on how to use the Anchor and user equipment.
This may involve an additional cost.
The Anchor should not be used by anyone that has not received instruction or who has not been trained to work safely at height.
Form No: 5903917 Rev: D

13Form No: 5903917 Rev: D
3M™ DBI-SALA®RoofSafe Anchor and Cable System
Typical Anchors
Section 8.0
Standing Seam Roof Anchor
Bituminous / Membrane Roof
Composite / Built Up Roof
PVC Membrane Roof
Form No: 5903917 Rev: D

14Form No: 5903917 Rev: D
3M™ DBI-SALA®RoofSafe Anchor and Cable System
Maintenance Check List
Section 9.0
Maintenance Check Sheet
CHECKLIST NOTES
ALL SYSTEMS
Visual inspection. Check system for signs of a fall event
Check system ID Tag is present and legilble
Check all components for signs of damage, rusting or severe corrosion
Check all components are isolated from disimilar metals
Check integrity of structure
Check split pins present and in good condition
Check that Unieyes/End Anchorages are correctly orientated and in good condition
Check fasteners are correctly tightened. Use Torque Wrench as required
Proof load test concrete fixings to 6kN
Clean system as necessary
Check Attachment Devices operate correctly
CABLE SYSTEMS
Uni 16™ Only. Check finishing kit elements are present and intact
Check cable condition for fretting, corrosion, signs of contamination and damage
Cable tension OK
Check Uni 8™ Tensioners for correct thread engagement and ensure lock nuts are tight
Check inline energy absorbing elements are intact
Check intermediate brackets are not deployed and nylon shear pins are intact
RoofSafe™ Anchors
Check energy absorbing elements are not deployed
Ensure all waterproofing elements are present and intact
Check standing seam clamps with a torque wrench
RAIL SYSTEMS
Check system, carriage and end stops are securely fixed
Check system for cracks in rail
Check rail for signs of deformation
Roofsafe rivets hand checked for secure fixing - tug anchorage at each section
Check all joints are securely fixed
RoofSafe™ - Check spreader plate correctly riveted in X pattern
RoofSafe™ - Check grub screws in corners are secure. Torque to 5Nm
Site Name:
Site Address:
System in good condition and cleared for use System not acceptable, further action required
Inspector’s Print Next Inspection
Signature Name Due Date
NOTES AND IMPORTANT OBSERVATIONS
CUSTOMER INFORMATION INSPECTOR INFORMATION INSPECTION INFORMATION
3M Fall Protection ID No:
Name:
Address:
Telephone:
Inspection Date:
System Type: Stand Seam RA Top Fix RA Single Ply RA Secret Fix RA
Bituminous RA Uni 8™ 7x7 Uni 16™ Uni 8™ Overhead UniRail™
RoofSafe™ Cabloc™ Cabloc™ Pro Other
System ID/Reference No:
ALL CHECKS MUST BE CARRIED OUT IN ACCORDANCE WITH CURRENT TECHNICAL DOCUMENTATION AND INSTRUCTIONS.
Form No: 5903917 Rev: D

15Form No: 5903917 Rev: D
3M™ DBI-SALA®RoofSafe Anchor and Cable System
Foreword (Cable)
Section 10.0
Thank you for purchasing a 3M™ DBI-SALA®RoofSafe Cable System.
The 3M DBI-SALA RoofSafe Cable System is designed to eliminate or substantially reduce the risk of a fall which would
otherwise lead to injury or death to operatives working at height. Therefore it is vitally important that it is installed,
maintained and used correctly.
The System has been designed as a roof top anchorage which will arrest a fall from height. Therefore consideration should
be given to the user’s age, fitness and any physical or mental disorders they may have.
The personal protection equipment (PPE) which is selected will form an essential part of the system.
Installation of the System should be conducted by a 3M Fall Protection certified Installer or competent persons trained by
3M Fall Protection or 3M Fall Protection’s representative and must be in accordance with the 3M Fall Protection’s technical
instructions and all prevailing national standards.
The manufacturer of the 3M DBI-SALA RoofSafe Cable System is 3M Fall Protection.
All users of the System, as well as those who manage its use and maintenance, should be familiar with the user checks,
limitations, precautions, operation and general requirements of the system. Users should be competent personnel who
have read and understood this manual and have been trained by an authorised trainer.
3M Fall Protection recommends that working at height should not be conducted by a lone operative for reasons of safety
and that proper consideration is given to rescue procedures in the event of a fall or accident.
On no account should pregnant women or children use a fall arrest or work restraint system.
SpiraTech End Corner Anchor on a standing seam roof
Form No: 5903917 Rev: D

16Form No: 5903917 Rev: D
3M™ DBI-SALA®RoofSafe Anchor and Cable System
The RoofSafe Cable System
Section 11.0
11.1 The 3M™ DBI-SALA®RoofSafe Cable System
The 3M DBI-SALA RoofSafe Cable System consists of a 8 mm (5 / 16”) Stainless Steel horizontal mounted lifeline. The system
is fixed to the structure via 3M DBI-SALA RoofSafe Anchors. The lifeline may be supported at regular intervals by intermediate
brackets. The intermediate brackets help to reduce the loads in the event of a fall and allow for longer single installations.
The System offers both fall arrest and restraint capabilities. The System allows users to attach and detach at any point
on the cable and move over the Corner / intermediate brackets without interruption.
The Cable has a minimum breaking strength of 38 kN (8,550 lbs) and can span up to 15 metres (48.2 ft) between
intermediate supports.
The 3M DBI-SALA RoofSafe Cable System is designed to provide a facility to enable safe working at heights in accordance
with current regulations.
The System has been tested and conforms to the requirements of: EN 795:2012 TYPE C, TS 16415:2013 TYPE C, AS / NZS 1891.2
and is OSHA Compliant.
SpiraTech Anchor Single Point Tip
Over Anchor
Used as a an End / corner
Anchor with the system.
Used as a an Intermediate
Anchor only. Must not be used
as an end / corner anchor.
11.2 Positioning the 3M DBI-SALA RoofSafe Cable System
When positioning the 3M DBI-SALA RoofSafe Cable System there are two styles of placement to consider.
Work Restraint
A Restraint System is designed
to prevent a user accessing
risk areas (such as roof edges),
thereby preventing a fall.
Fall Arrest
A Fall Arrest System allows
access to a fall hazard and is
designed to safely arrest the
operative in the event of a fall.
01 02
Important Note.
Whilst all System installations must be designed
for Fall Arrest in case of accidental misuse, it is
recommended that the positioning of the System
should be located for Work Restraint. Restraint
enables a user to access their work area whilst
being prevented from gaining access to a fall
hazard and will reduce risk and mitigate against
the consequences of a fall.
Form No: 5903917 Rev: D

17Form No: 5903917 Rev: D
3M™ DBI-SALA®RoofSafe Anchor and Cable System
System Design, Installation and Fixings
Section 12.0
12.1 System design
The System will be positioned to suit your specific requirements and local site conditions. The certified 3M Fall Protection Installer
will have verified all the necessary parameters before commencing installation to ensure the safety of your product when it is in use.
Position is determined by some of the following factors:
• The requirement for access and task to be performed
• Availability of structural anchors
• Ground clearance
• Obstacles beneath the work area
• Type of PPE to be used.
The user must always access the System from a position of safety therefore an additional fall protection system may be required.
Do not detach from the system unless you are in a position of safety.
12.2 Installation
Lives are at risk if the Anchor(s) is not installed correctly. 3M Fall Protection Certified Installers are highly trained in design,
installation, certification and maintenance. Certified Installers are certified by 3M Fall Protection and records of trained personnel are
kept by our company. Customers should not attempt an installation on their own unless they have received approval and training by
3M Fall Protection. Customers must have access to all the tools and information required to successfully install and test the product.
Included in this manual is a checklist of the minimum amount of information that should be supplied by the installer following
the installation of your Anchor(s).
12.3 Fixings
It is imperative that the supporting structure is capable of withstanding at least twice the loads that will be generated in the event
of a fall. A structural engineer should verify this is the case before a system is installed.
Furthermore, fixings and the interface of components with the structure must be such that they do not permit dissimilar materials
to come into direct contact. The position of the base plate and number of fixings that hold the anchor down to the roof are critical
to the products safety and should never be altered.
All fixings must be correctly installed in accordance with 3M Fall Protection’s Installation Instructions.
12.4 Packaging
All equipment leaving 3M Fall Protection is packaged to prevent damage and / or deterioration during transportation. Any concerns
or claims regarding the condition of the equipment should first be addressed to the installer. All parts of the packaging can be recycled.
12.5 Quality
3M Fall Protection operates a quality system to ISO9001 and offers full product traceability for all components. All 3M Fall Protection
products are tested in accordance with current regulations and verified by an authorised testing laboratory. All 3M Fall Protection
Certified Installers are comprehensively trained, regularly audited and provide method statements and risk assessments.
The product is the subject of annual surveillance by the Notified Body.
Form No: 5903917 Rev: D

18Form No: 5903917 Rev: D
3M™ DBI-SALA®RoofSafe Anchor and Cable System
Precautions, Requirements & Exclusions
Section 13.0
The integrity of the System is only ensured if the user wears the recommended personal protective equipment (PPE). This should be
certified and marked in accordance with the relevant national standard. Using the wrong PPE or lanyards of incorrect length can result
in injury or death. Each system installed should be supplied with specifications of a full body harness, lanyards and shock absorbing
device. The following precautions, requirements and exclusions apply to the 3M™ DBI-SALA®RoofSafe Cable System:
• The System must be installed by an Certified 3M Fall Protection Installer or competent person trained by the manufacturer
or manufacturer’s representative
• A recorded inspection must be conducted at least once a year by a Certified 3M Fall Protection Installer
• Do not attempt to test systems with dynamic or static loads. 3M Fall Protection Certified Installers carry the appropriate test
equipment for testing the Anchor and fixings
• The System must not be used for lifting
• Do not use the system for equipment tie back
• Never exceed the recommended number of users on the system (See label on product or system tag)
• Never attempt to repair, tamper with or change the System
• Do not use the system if it appears to be damaged or appears to have parts missing
• The equipment should not be used outside of its limitations, nor shall it be used for any other purpose than that intended.
• Each user should weigh no more than the maximum rated load for the energy absorbing lanyard. The lanyard shall be capable
of limiting the fall arrest load to less than 6 kN (1350 lbs)
• DO NOT attempt to clean the system with aggressive cleaning chemicals and abrasive products
• DO NOT use external systems in the event of a electrical storm
• Only personnel trained to work at height and in the correct operation of the systems should be permitted to use it
• In the unlikely event that a fall does occur the system should not be used until it has been inspected by a 3M Fall Protection
certified Installer
• Do not use the Anchor(s) if it is not clearly labelled
• If the cable is damaged, or if the cable is kinked, don’t use the system.
Form No: 5903917 Rev: D

19Form No: 5903917 Rev: D
3M™ DBI-SALA®RoofSafe Anchor and Cable System
Inspection, Maintenance, Servicing And Warranty
Section 14.0
14.1 Inspection and General Maintenance
The 3M™ DBI-SALA®RoofSafe Cable System has been designed to be used under a variety of conditions. It uses high-grade
components that are corrosion resistant. However, the System’s working life depends on factors such as correct care and
maintenance and the environment in which the system is installed. Before each occasion of use a visual check must be conducted
to ensure the Anchor is fit for purpose.
If the System is deformed in a way which is uncharacteristic of the System you should not use it. Report the faults to the
3M Fall Protection Certified Installer and schedule a maintenance visit.
DO NOT attempt to repair the System yourself, as this may invalidate performance warranties and put personnel in danger.
The 3M DBI-SALA RoofSafe Cable System is virtually maintenance free dependent on environment. Occasionally the System may
need cleaning. This should be done with a soft brush, warm water and a mild detergent. Ensure the parts are thoroughly rinsed
with plenty of clean water. Although highly resistant to chemicals and environmental conditions, take all precautions to avoid
contaminating the system with acids, bitumen, cement, chloride, paint or aggressive cleaning fluids.
Stainless Steel parts are particularly susceptible to pitting corrosion from chlorine, so avoid exposure in this type of environment.
If the system is likely to be contaminated, please contact your 3M Fall Protection Certified Installer or 3M Fall Protection for advice.
14.2 Servicing
In accordance with current national standards and 3M Fall Protection’s recommendations, an Anchor that is in regular use should be
inspected at least once a year by an Certified 3M Fall Protection Installer. In very high use applications or aggressive environments
the servicing interval should be more frequent as determined by the installer. The System has many unique features, therefore only
Certified 3M Fall Protection Installers who have been trained and certified should inspect this product.
A maintenance checklist is provided to our Approved Installers to use during annual inspections. Please see Section 20.0
in this manual.
If the System has sustained a fall arrest impact, has been damaged, or is defective in any way, it must be immediately categorised
as unfit for use. The use of the system must be discontinued, and servicing should be arranged as soon as possible. All servicing
requirements should be directed to 3M Fall Protection or their Certified Installer.
14.3 Warranty
Full details of the warranty terms and exclusions are available under the 3M DBI-SALA RoofSafe Cable System warranty,
which is available as a separate document.
SpiraTech End Corner Anchor
on a standing seam roof
Form No: 5903917 Rev: D

20Form No: 5903917 Rev: D
3M™ DBI-SALA®RoofSafe Anchor and Cable System
Pre-Use & In Use Checks
Section 15.0
15.1 Personal Protective Equipment
Equipment should be certified and marked to the appropriate national standard, always refer to the manufactures instructions for use.
Always wear a full body harness. Examine harnesses, lanyards, self-retracting lifelines or controlled rate descent devices in accordance
with their manufacturer’s instructions to ascertain if they are serviceable. If in doubt do not use them. If these items have been subjected
to a fall they must be serviced or discarded. When not in use these articles need to be stored in a clean, cool, dry area, free from chemical
fumes or corrosive elements. Direct sunlight, heat, steam, undue vibration and sharp implements must also be avoided. Preferably, fall
arrest equipment like this should, when not required for use, be kept in dedicated cabinets which permit adequate ventilation.
15.2 3M™ DBI-SALA®RoofSafe Cable System Grab
Check the UniGrab before use for any damage. Any damage should be reported to the Installer and the device removed from service
until it has been inspected. If a fall has occurred on the UniGrab, the device should be removed from service until it has been inspected.
The UniGrab can only be put back in to service after it has been approved in writing by a 3M Fall Protection certified Installer
3M Fall Protection recommend that only the supplied 3M Fall Protection carabiner be used with the UniGrab.
Before attaching to the 3M DBI-SALA RoofSafe Cable system:
1. Check that the slot does not exceed 6.1 mm.
2. Check that the UniGrab cannot be opened when the carabiner is attached to the UniGrab.
4.5 mm to 6.1 mm
If in doubt.
Ask.
UniGrab
15.3 Compatibility of Components
Prior to accessing the system the user should always inspect the system label and certificate in order to confirm:
• The correct user equipment is being used (including lanyard length)
• The maximum number of users is not exceeded
• The system certification is valid. The system should be certified yearly. If this has not been done the user should not use the system
• Check that the ground clearance is still the same as detailed on the system label and that there is no risk of collision in the event
of a fall – including swing fall (pendulum fall) hazards.
If possible before attaching to the system, carry out a visual inspection. Check that there are no obvious signs of damage to the system,
such as breaks, kinks or excessive sag in the cable or damaged brackets. Turn the disc attached to the tensioner. If the disk does not
turn, contact your Installer for advice. Check the legibility of all markings on any part of the system and the users PPE.
If any of the above is questionable do not use the System and report to a Certified 3M Fall Protection Installer.
Only use connectors that are suitable to each application. Ensure all connections are compatible in size, shape and strength.
Do not use equipment that is not compatible. Contact 3M Fall Protection if you have any questions about compatibility.
Form No: 5903917 Rev: D
