ABB Welcome User manual

Door Communication
ABB-Welcome
User Manual

The front door is the gateway between
the outside world and your private living
space. The modern door communication
of ABB-Welcome now opens new
possibilities for both sides – overall comfort,
greater safety and stylistically matching
design. The system harmoniously adapts
to the architecture outdoors. In the
interior area it can be uniformly matched
with light switches and socket outlets.

User Manual ABB-Welcome | 3

4 | User Manual ABB-Welcome
Most welcome.
Intelligence with system.

ABB-Welcome. The new door communication from ABB, the
leading brand with in home technology and innovative solutions
for intelligent building automation. The new product range
ABB-
Welcome
supplements the comprehensive range in a practical
way. It sets new standards as a holistic system. It combines
perfect design, comfort, efficiency and security. Living space
can now be consistently and uniformly designed.
From the light
switch up to door communication. Inside and outside.
User Manual ABB-Welcome | 5

02
01
The right solution for every requirement. With the wide range
of
well-designed products, optimum door communication can
be made a reality
for all types of buildings. Without great effort
due to the 2-wire bus technique.
And always with high-quality
materials that are carefully matched.
This makes ABB-Welcome
ideal for use in new buildings as well as the later integration
during the modernization of all types of real estate.
Door to door.
Technology and progress.
6 | User Manual ABB-Welcome

04
03

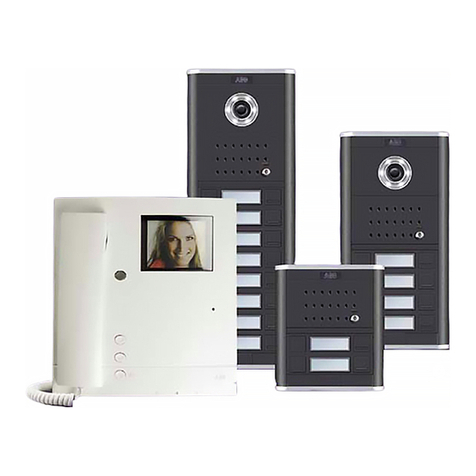

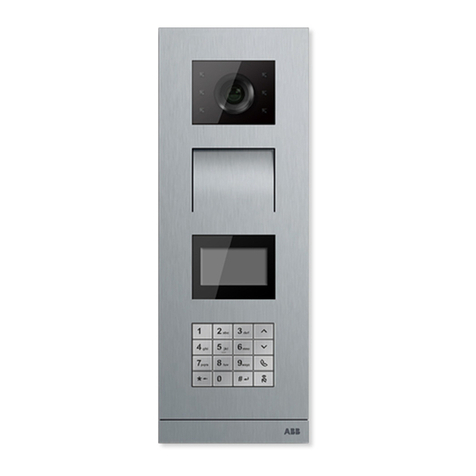

01 ABB-Welcome Video outdoor station
02 ABB-WelcomeTouch
03 ABB-Welcome audio indoor station with handset

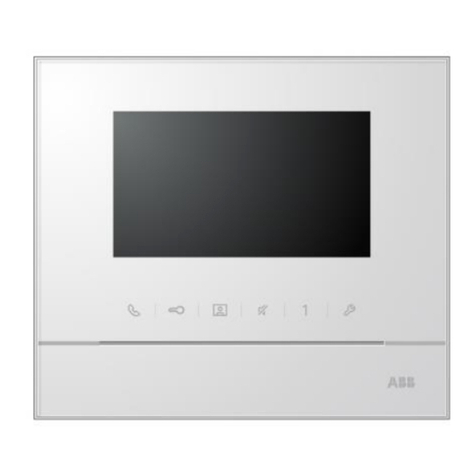

04 ABB-Welcome audio indoor station with display
User Manual ABB-Welcome | 7

8 | User Manual ABB-Welcome

01 Examples for typical ABB-Welcome systems 10
02 Planning ABB-Welcome systems 14
03 Installation 30
04 Commissioning 36
05 Operation 42
06 Overview of product range 44
07 Connection diagrams 52
Legend 56
Contents
User Manual ABB-Welcome | 9

Multifamily house, audio Fig. 2
Retrofitting an ABB-Welcome system in a multifamily house
with existing wiring is very easy. Even a plain bell system
can be converted to audio or video. Depending on the local
circumstances, an installation with recourse to a rising mains,
as shown in Figure 2, is recommended. The wires branch off
on each floor where the existing apartments are located –
to where an audio indoor station with handset is mounted.
There the user can answer incoming calls, open the door and
switch on the lights in the stairwell. Also floor call buttons can
be used. These are connected to the indoor station.
One-family house, audio/video Fig. 1
ABB-Welcome systems consist at least of a system controller,
outdoor station and indoor station. In Fig. 1 three indoor
stations are installed in the one house. When a visitor rings
the bell at the ABB-Welcome video outdoor station, the call
can be answered either at the ABB-WelcomeTouch, at the
ABB-Welcome audio indoor station with display or the ABB-
Welcome audio indoor station with handset.
0201
01 One-family house
02 Multifamily house
01
The ideal system for every building
More is possible. ABB-Welcome systems offer flexible
solutions. Planning is made as simple for you as are installation
or commissioning. The 2-wire bus technique makes possible
the suitable layout – to fully meet the requirements of the user.
10 Examples for typical ABB-Welcome systems | User Manual ABB-Welcome
