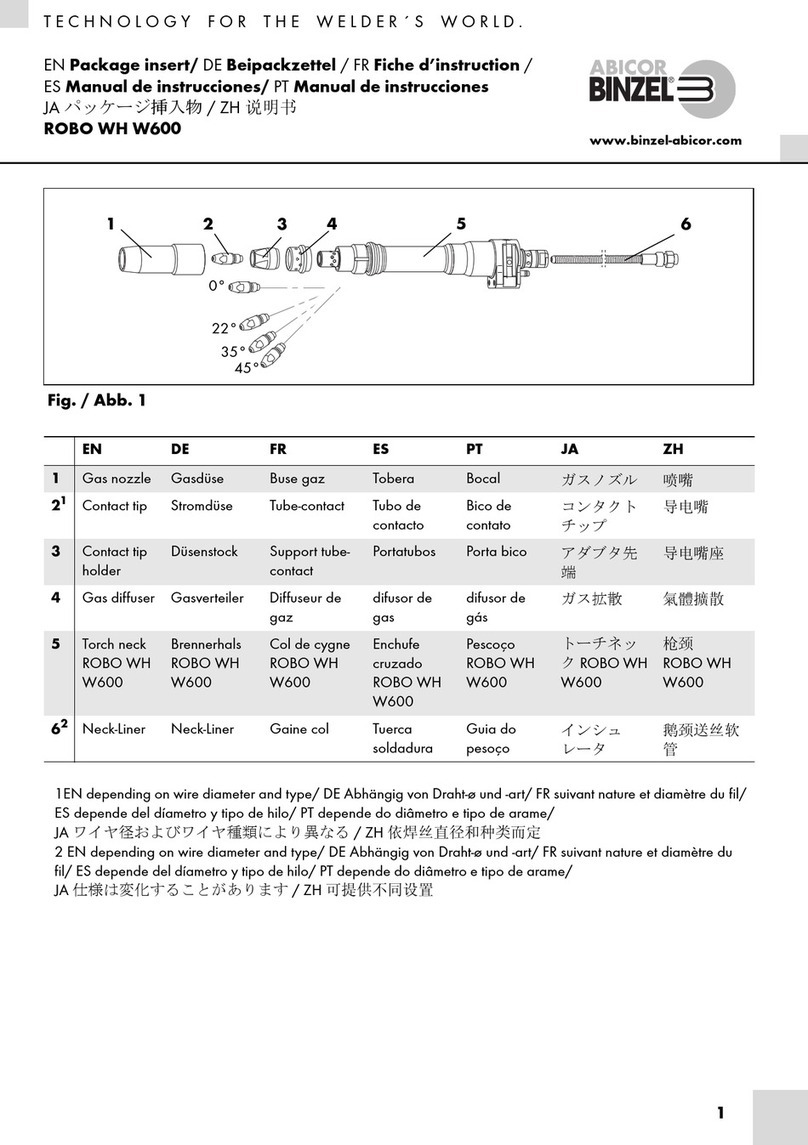

Abicor Binzel ROBO WH W600 User manual

Abicor Binzel

Abicor Binzel ROBO WH W600 User manual

Abicor Binzel xFUME FLEX 115V CSA User manual

Abicor Binzel

Abicor Binzel xFUME FLEX 115V CSA User manual

Abicor Binzel MB GRIP Manual

Abicor Binzel

Abicor Binzel MB GRIP Manual

Abicor Binzel ABICOOLER 2000 advanced User manual

Abicor Binzel

Abicor Binzel ABICOOLER 2000 advanced User manual

Abicor Binzel ALPHA FLUX 350 User manual

Abicor Binzel

Abicor Binzel ALPHA FLUX 350 User manual

Abicor Binzel ABICAR ADVANCED User manual

Abicor Binzel

Abicor Binzel ABICAR ADVANCED User manual

Abicor Binzel ABI-CAR E-1200 User manual

Abicor Binzel

Abicor Binzel ABI-CAR E-1200 User manual

Abicor Binzel ABITIG WH User manual

Abicor Binzel

Abicor Binzel ABITIG WH User manual

Abicor Binzel iROB 420 User manual

Abicor Binzel

Abicor Binzel iROB 420 User manual

Abicor Binzel MIG User manual

Abicor Binzel

Abicor Binzel MIG User manual

Abicor Binzel ABIPLAS CUT 200 W/MT User manual

Abicor Binzel

Abicor Binzel ABIPLAS CUT 200 W/MT User manual

Abicor Binzel ABIROB A360 User manual

Abicor Binzel

Abicor Binzel ABIROB A360 User manual

Abicor Binzel MFS-V3 M-Drive User manual

Abicor Binzel

Abicor Binzel MFS-V3 M-Drive User manual

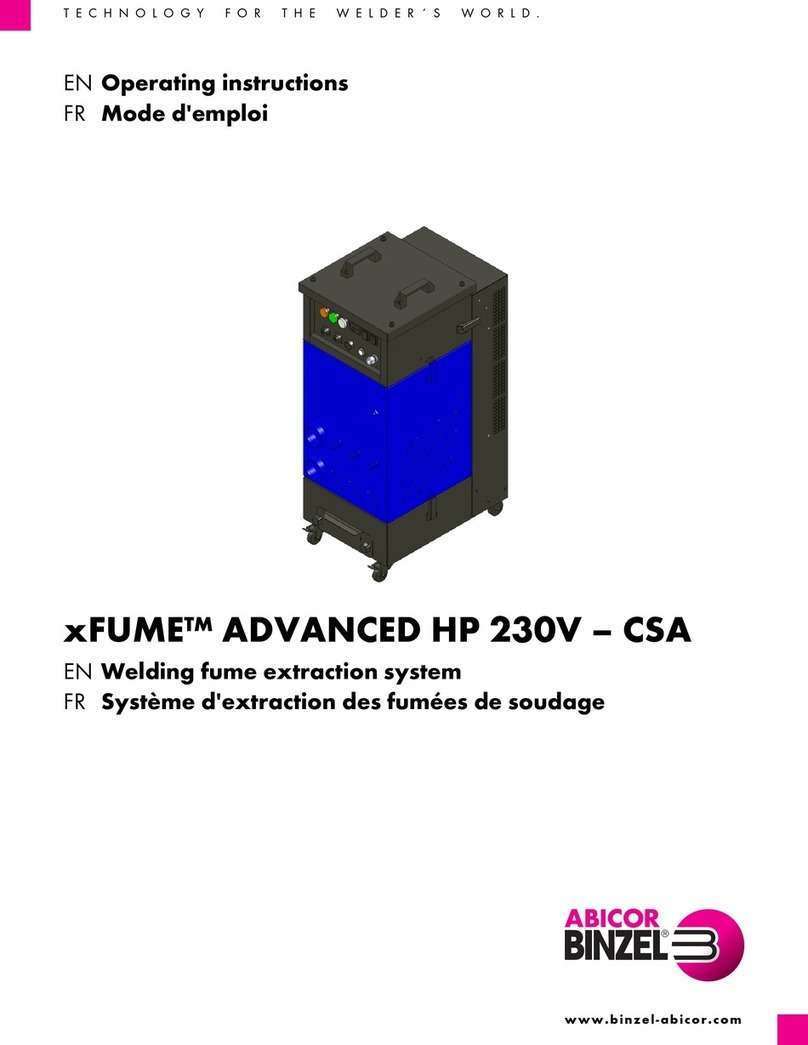

Abicor Binzel xFUME ADVANCED HP 230V-CSA User manual

Abicor Binzel

Abicor Binzel xFUME ADVANCED HP 230V-CSA User manual

Abicor Binzel iMIG POWER 400 User manual

Abicor Binzel

Abicor Binzel iMIG POWER 400 User manual

Abicor Binzel ABITIG Little 9 User manual

Abicor Binzel

Abicor Binzel ABITIG Little 9 User manual

Abicor Binzel iROB 401 AC/DC User manual

Abicor Binzel

Abicor Binzel iROB 401 AC/DC User manual

Abicor Binzel ABIDRIVE CW User manual

Abicor Binzel

Abicor Binzel ABIDRIVE CW User manual

Abicor Binzel ABITIG GRIP 150 2 User manual

Abicor Binzel

Abicor Binzel ABITIG GRIP 150 2 User manual

Abicor Binzel PP Plus 36D User manual

Abicor Binzel

Abicor Binzel PP Plus 36D User manual

Abicor Binzel ABICAR 1200 PRO User manual

Abicor Binzel

Abicor Binzel ABICAR 1200 PRO User manual

Abicor Binzel iROB 501 User manual

Abicor Binzel

Abicor Binzel iROB 501 User manual

Abicor Binzel AB20 User manual

Abicor Binzel

Abicor Binzel AB20 User manual

Abicor Binzel SR/ABITIGL ABITIG GRIP User manual

Abicor Binzel

Abicor Binzel SR/ABITIGL ABITIG GRIP User manual

Popular Welding System manuals by other brands

Razorweld RAZORCUT45 instruction manual

Razorweld

Razorweld RAZORCUT45 instruction manual

Lincoln Electric Fleet 500 Operator's manual

Lincoln Electric

Lincoln Electric Fleet 500 Operator's manual

Migatronic OMEGA 220 quick guide

Migatronic

Migatronic OMEGA 220 quick guide

Magmaweld ID 300T DC user manual

Magmaweld

Magmaweld ID 300T DC user manual

Sealey POWERMIG Series instructions

Sealey

Sealey POWERMIG Series instructions

Defort 98291254 user manual

Defort

Defort 98291254 user manual

Hobart Welding Products AirForce 375 owner's manual

Hobart Welding Products

Hobart Welding Products AirForce 375 owner's manual

GF MSA 330 instruction manual

GF

GF MSA 330 instruction manual

Hakko Electronics FX-888D instruction manual

Hakko Electronics

Hakko Electronics FX-888D instruction manual

EWM Taurus 355 Basic TDM operating instructions

EWM

EWM Taurus 355 Basic TDM operating instructions

Thermal Dynamics PakMaster 100 XL plus operating manual

Thermal Dynamics

Thermal Dynamics PakMaster 100 XL plus operating manual

Berner PLASMACUT 54 instruction manual

Berner

Berner PLASMACUT 54 instruction manual

Pro Spot PR-155 Assembly instructions

Pro Spot

Pro Spot PR-155 Assembly instructions

Forney 210 operating manual

Forney

Forney 210 operating manual

Thermal Arc 400S operating manual

Thermal Arc

Thermal Arc 400S operating manual

Lincoln Electric HANDYMIG 170I Operator's manual

Lincoln Electric

Lincoln Electric HANDYMIG 170I Operator's manual

GYS PROTIG 201 AC/DC Original instructions

GYS

GYS PROTIG 201 AC/DC Original instructions

TECNA 4660N Installation and use manual

TECNA

TECNA 4660N Installation and use manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.

TECHNOLOGY FOR THE WELDER’S WORLD.
www.binzel-abicor.com
ABICOR BINZEL Corporation
650 Medimmune Court, Suite 110
Frederick, MD 21703
Phone: (301) 846-4196
Fax: (301) 846-4497
ABIROB W Liner Instructions
SI4-XXX Series Liners
LINCOLN DIRECT TORCHES
1. Position the torch cable as straight as possible.
2. With the torch neck and consumables fitted, insert the liner into the rear of the torch until it bottoms in the tip
holder/tip or wire-brake if fitted.
3. At the rear end of the torch measure the distance from the feeder plug to the end of the liner collet (Fig. 1). This is
dimension “X”.
4. Remove the liner from the torch and remove the dimension “X” from the front end of the liner (Fig. 2).
5. At the rear end of the liner, you must trim the excess liner which protrudes from the liner collet. Measure 4mm
past the collet and cut the excess off (Fig. 3). Note: When cut properly the liner should be flush to 1mm recessed in
the liner nut.
6. Apply O-ring grease. Install the liner into the torch and tighten the liner retention nut (Fig. 4).
Fig. 1
Fig. 2
Fig. 3
Fig. 4
liner liner collet
X
4mm
liner retention nut
X
cut
INT.9034 ABIROB W Liner Instructions - Lincoln • 04-14 © 2014 Alexander Binzel Corporation • Printed in USA
Feeder plug
(Miller Direct Torches
on back...)
TECHNOLOGY FOR THE WELDER’S WORLD.
www.binzel-abicor.com
ABICOR BINZEL Corporation
650 Medimmune Court, Suite 110
Frederick, MD 21703
Phone: (301) 846-4196
Fax: (301) 846-4497
ABIROB W Liner Instructions
SI4-XXX Series Liners
MILLER DIRECT TORCHES
1. Position the torch cable as straight as possible.
2. With the torch neck and consumables fitted, insert the liner into the rear of the torch until it bottoms in the tip
holder/tip or wire-brake if fitted.
3. At the rear end of the torch measure the distance from the feeder plug to the end of the liner collet (Fig. 1) and
subtract 5mm. This is dimension “X”.
4. Remove the liner from the torch and remove the dimension “X” from the front end of the liner (Fig. 2).
5. At the rear end of the liner, you must trim the excess liner which protrudes from the liner collet. Measure 7mm
past the collet and cut the excess off (Fig. 3). Note: When cut properly the liner should protrude from the liner collet
by approximately 2mm or two coils.
6. Apply O-ring grease. Install the liner into the torch and tighten the liner retention nut (Fig. 4).
Fig. 1
Fig. 2
Fig. 3
Fig. 4
liner liner collet
X
7mm
liner retention nut
L
cut
2mm
(L - 5mm = X)
INT.9034 ABIROB W Liner Instructions - Miller • 04-14 © 2014 Alexander Binzel Corporation • Printed in USA
Feeder plug
(Lincoln Direct Torches
on back...)
