ACME GLORV FRAMING XP-5000SZF User manual

CONTENTS
1. Safety Instruction ................................................................................................... 2
2. Technical Specification ........................................................................................... 4
3. Control Panel ......................................................................................................... 6
4. Gobo Wheel and Lamp........................................................................................... 7
4.1 Gobo Wheel ..................................................................................................... 7
4.2 Lamp ................................................................................................................ 7
4.3 Change The Lamp............................................................................................. 8
5. How To Set The Unit............................................................................................... 9
5.1 Main Function .................................................................................................. 9
5.2 Home Position Adjustment............................................................................. 18
6. Control By Universal DMX Controller.................................................................... 23
6.1 DMX Connections........................................................................................... 23
6.2 Channel Mode Setting.................................................................................... 24
6.3 Address Setting .............................................................................................. 25
6.4 DMX 512 Configuration .................................................................................. 25
7. Troubleshooting ................................................................................................... 35
8. Fixture Cleaning ................................................................................................... 36
1C

1. Safety Instruction
WARNING
Please keep this User Manual for future consultation. If you sell the unit to another user, be sure
that they also receive this instruction manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The dealer
will not accept liability for any resulting defects or problems.
Unpack and check carefully that there is no transportation damage before using the unit.
The unit is for indoor use only. Use only in a dry location.
Do install and operate by qualified operator.
Do not allow children to operate the fixture.
Use safety chain when fixing the unit. Handle the unit by carrying its base instead of head only.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces.
Be sure that no ventilation slots are blocked; otherwise the unit will be overheated.
Before operating, ensure that the voltage and frequency of power supply matches the power
requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
Maximum ambient temperature TA: 40℃,maximum ambient temperature TA: 0℃.
Don’t connect the device to any dimmer pack.
During initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective, and it will decrease gradually within 15 minutes.
Make sure there are no flammable materials close to the unit while operating to avoid fire
hazard.
Examine the power wires carefully; replace them immediately if there is any damage.
Unit’s surface temperature may reach up to 85℃. Don’t touch the housing bare-handed during
its operation, and allow about 15 minutes for cooling the unit down before replacing bulb or
maintenance as it could be very hot.
Avoid any inflammable liquids, water or metal objects entering the unit. Once it happens, cut
Please read the instruction manual carefully which includes important
information about the installation, usage and maintenance.
2C

off the mains power immediately.
Do not operate in dirty or dusty environment; do clean the fixture regularly.
Do not touch any wire during operation as there might be a hazard of electric shock.
Avoid power wires twist other cables.
The minimum distance between light output and the illuminated surface must be more than 12
meters.
Disconnect mains power before fuse/lamp replacement or servicing.
Replace fuse/lamp only with the same type.
In the event of serious operating problem, stop using the unit immediately.
Never turn on and off the unit time after time.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
Do not open the unit as there are no user serviceable parts inside.
Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to
damage or malfunction. Please contact the nearest authorized technical assistance center if
needed.
Disconnect the mains power if the fixture is has not been used for a long time.
Do use the original packing materials before transporting it once again.
To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or
moisture.
Hot lamp explosion hazard. Do not open the unit within 15 minutes after switching off.
Do replace the bulb once it is damaged, deformed or life-expired.
Do not look directly at the light while the bulb is on.
Never touch bulb with bare fingers, as it is very hot after using.
Do not start on the unit without bulb enclosure or when housing is damaged.
Caution:
To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or
moisture.
Hot lamp explosion hazard. Do not open the unit within 15 minutes after switching off.
Do replace the bulb once it is damaged, deformed or life-expired.
Do not look directly at the light while the bulb is on.
Never touch bulb with bare fingers, as it is very hot after using.
Do not start on the unit without bulb enclosure or when housing is damaged.
3C

2. Technical Specification

Power Voltage:
AC 230V, 50/60Hz

Power Consumption:
1790W

Light Source:
Osram HTI 1400W

Color Temperature:
6000K

CRI:
≥90

Zoom Range:
9°~61°

Movement:
Pan: 540°
Tilt: 270°
Pan/Tilt Resolution: 16 bit
Fixation: Pan/Tilt lock

Dimmer/Shutter:
0~100% smooth dimming, various strobe speeds

Color wheel:
6 colors plus open with rainbow effect

Gobo wheel:
1 rotating gobo wheel with 5 gobos plus open

Animation Wheel:
Perfect water wave and flame effects, rotatable and replaceable
4C


Control
DMX Channel: 34/40/25 channels
Control Mode: DMX, Art-Net, RDM
Firmware Upgrade: Update via DMX link

Construction:
Display: LCD display
Battery backup for user operation without connecting to the mains
Data In/Out: 3-pin and 5-pin XLR
Power In/Out: Power Connector in
Protection Rating: IP20

Features:
Motorized focus
CMY color mixing + linear CTO
Excellent color macro effect
4 fast and smooth framing shutters, each shutter blade position and angle can be controlled
individually; Each shutter blade can block out light completely, the framing module can be rotated
at ± 45°
Motorized linear iris
4 facets prism rotating in both directions
Independent frost effect

Dimension/Weight:
454x424x811mm, 40kgs
17.9"x16.7"x31.9"in, 88.2lbs
Photometric Diagram:
Distance(m) 5 10 15 20
9 Lux 55000 13500 6000 3500
61 Lux 1300 360 98 60
Diameter(m) 0.78 1.6 2.14 3.15
Diameter(m) 5.85 11.7 17.6 23.4
61 9
454mm
424mm
811mm
5C

3. Control Panel
1. DISPLAY:
Shows the various menus and the selected functions
BUTTON:
MENU
To select the programming functions
UP
To go backward in the selected functions
DOWN
To go forward in the selected functions
ENTER
To confirm the selected functions
2. ETHERNET:
Transfers fixture’s information to a main controller
3. DMX IN:
DMX 512 operation, use 3-pin/5-pin XLR cable to link the unit and DMX controller
4. DMX OUT:
DMX 512 operation, use 3-pin/5-pin XLR cable to link the next units
5. FUSE (T 15A):
Protect the unit from damage of over voltage or short circuit
6. POWER:
Connect to the mains supply
7. BATTERY DISPLAY:
Shows the battery status
8. POWER SWITCH:
Turns On/Off the power
6C

4. Gobo Wheel and Lamp

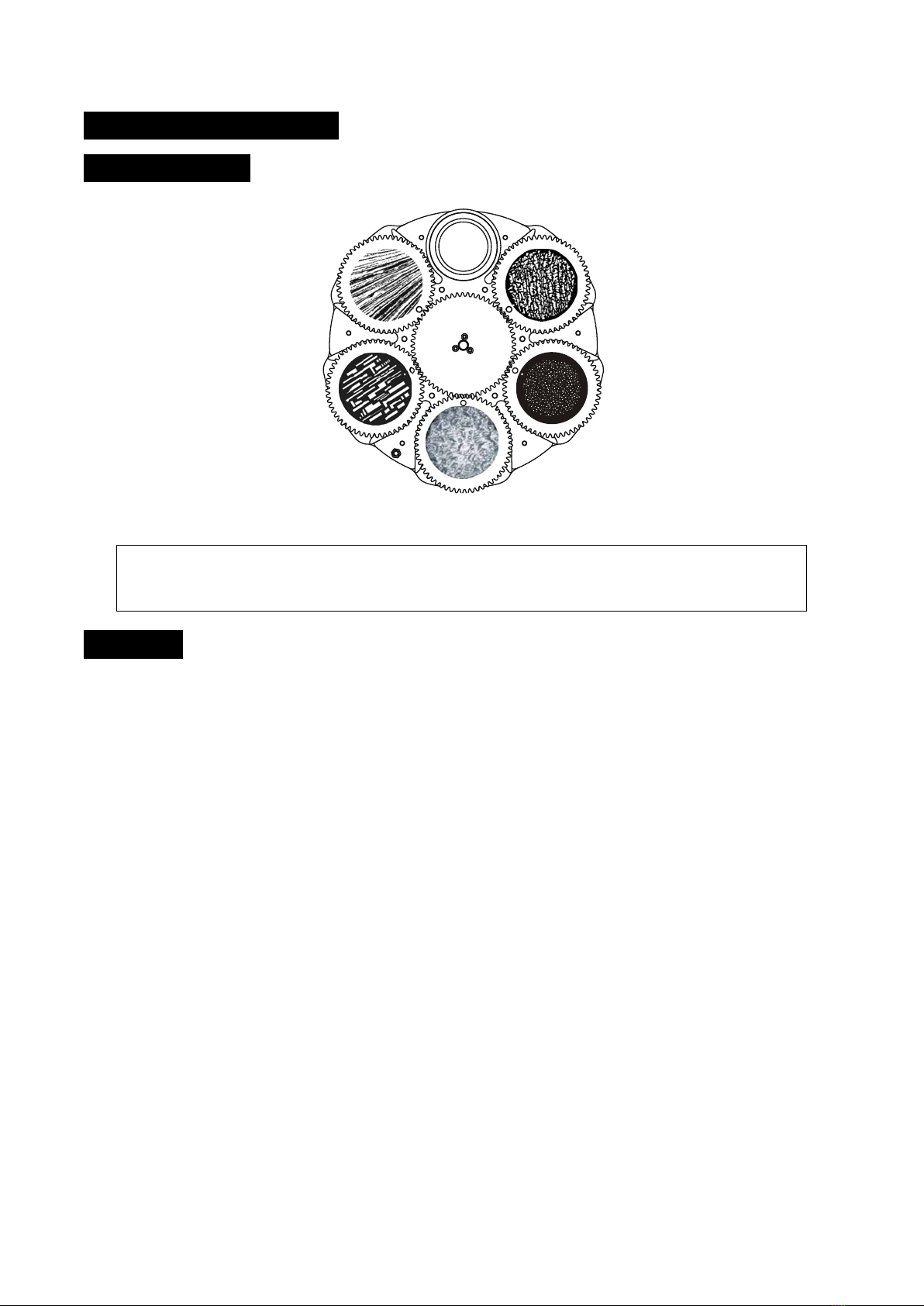

4.1 Gobo Wheel
Rotation gobo wheel
4.2 Lamp
Osram HTI 1400W
1. Because of its high internal pressure, there might be a risk that the Discharge lamp would
explode during operation. The lamp emits intense UV radiation which is harmful to the eyes and
skin. The high luminance of the arc can cause severe damage to the retina if you take a close
look at the lamp.
2. To protect the lamp, always turn off the lamp first (via control panel or DMX controller) and
let the unit run at least five minutes to cool down before switching off the mains supply. Never
handle the lamp or luminary when it is hot.
3. Do not touch the bulb with bare hands. If this happens, clean the lamp with denatured
alcohol and wipe it with a lint free cloth before installation.
4. The lamp generates UV radiation. Never operate the lamp without appropriate shielding.
5. When ling up, the lamp operates at high pressure and there is a slight risk of arc tube rupture.
The risk increases with age, temperature and improper handling of the lamp. Do not use the lamp
longer than its lifespan.
6. Make sure the lamp is located in the center of the reflector for the best projection.
DANGER!
Install/change the gobo-wheel with the device switched off only.
7C

4.3 Change The Lamp
Loosen the screw at the rear side of the fixture and open the lamp compartment cover.
Remove the old lamp and turn the lamp left in order to take the lamp out, put a new lamp that
must be the same type as the old one. And then place the new lamp into the lamp holder and
turn the lamp right in order to fix. Finally reinstall the lamp compartment cover, fastening it
securely before turning on power.
8C

5. How To Set The Unit
5.1 Main Function
Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until
the required function is shown on the monitor. Select the function by the ENTER button. Use the
UP/DOWN button to choose the submenu, press the ENTER button to store and automatically
return to the last menu. Press the MENU button or let the unit idle one minute to exit menu mode.
The main functions are shown below:
9C

10C

DMX Settings
To select DMX Settings, press the ENTER button to confirm, use the UP/DOWN button to select
DMX Address,Channel Mode,Connect To,Device ID, IP Address, Art-Net Settings, DMX
Retransmit or View DMX Value.
DMX Address
To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust
the address from 1to 512, press the ENTER button to store. Press the MENU button back to the
last menu or let the unit idle one minute to exit menu mode.
Channel Mode
To select Channel Mode, press the ENTER button to confirm. Use the UP/DOWN button to
select Mode1 (34), Mode2 (40) or Mode3 (25) Channel mode, press the ENTER button to store.
Press the MENU button back to the last menu or let the unit idle one minute to exit menu
mode.
Connect To
To select Connect To, press the ENTER button to confirm. Use the UP/DOWN button to select
Auto, DMX or Ethernet, press the ENTER button to store. Press the MENU button back to the
last menu or let the unit idle one minute to exit menu mode.
11C

Device ID
To select Device ID, press the ENTER button to confirm. Use the UP/DOWN button to select
Auto or Manual, press the ENTER button to store. Press the MENU button back to the last
menu or let the unit idle one minute to exit menu mode.
IP Address
To select IP Address, press the ENT ER button to confirm and the display will show the current
IP Address of the unit. To go back to the functions press the MENU button again. Hold and press
the MENU button about one second or wait for one minute to exit the menu mode.
Art-net Settings
To select Art-net Settings, press the ENTER button to confirm. Use the UP/DOWN button to
select Universe or Net, press the ENTER button to store. Press the MENU button back to the
last menu or let the unit idle one minute to exit menu mode.
DMX Retransmit
To select DMX Retransmit, press the ENTER button to confirm. Use the UP/DOWN button to
select No (normal) or Yes (DMX Retransmit), press the ENTER button to store. Press the MENU
button back to the last menu or let the unit idle one minute to exit menu mode.
View DMX Value
To select View DMX Value, press the ENTER button to confirm. Use the UP/DOWN button to
view the DMX channel value. Press the MENU button back to the last menu or let the unit idle
one minute to exit menu mode.
Fixture Settings
To select Fixture Settings, press the ENTER button to confirm, use the UP/DOWN button to select
Pan Inverse,Tilt Inverse,P/T Feedback, P/T Speed,Focus Compensate, Bl.O. P/T Moving,Bl.O.
Color Change, Bl.O. Gobo Change or Dimmer Curve.
Pan Inverse
To select Pan Inverse, press the ENTER button to confirm. Use the UP/DOWN button to select
No (normal) or Yes (pan inverse), press the ENTER button to store. Press the MENU button back
to the last menu or let the unit idle one minute to exit menu mode.
12C

Tilt Inverse
To select Tilt Inverse, press the ENTER button to confirm. Use the UP/DOWN button to select
No (normal) or Yes (tilt inverse), press the ENTER button to store. Press the MENU button back
to the last menu or let the unit idle one minute to exit menu mode.
P/T Feedback
To select P/T Feedback, press the ENTER button to confirm. Use the UP/DOWN button to select
No (Pan or tilt’s position will not feedback while out of step) or Yes (Feedback while pan/tilt out
of step), press the ENTER button to store. Press the MENU button back to the last menu or let
the unit idle one minute to exit menu mode.
P/T Speed
To select P/T Speed, press the ENTER button to confirm. Use the UP/DOWN button to select
Fast, Medium or Slow, press the ENTER button to store. Press the MENU button back to the
last menu or let the unit idle one minute to exit menu mode.
Focus Compensate
To select Focus Compensate, press the ENTER button to confirm. Use the UP/DOWN button to
select Disable, Near, Medium or Far, press the ENTER button to store. Press the MENU button
back to the last menu or let the unit idle one minute to exit menu mode.
Bl.O. P/T Moving —Blackout while pan/tilt moving
To select Bl.O. P/T Moving, press the ENTER button to confirm. Use the UP/DOWN button to
select No (normal while pan/tilt moving) or Yes (blackout while pan/tilt moving), press the
ENTER button to store. Press the MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
Bl.O. Color Change — Blackout while color changing
To select Bl.O. Color Change, press the ENTER button to confirm. Use UP/DOWN button to
select No (normal while changing color) or Yes (blackout while color changing), press the ENTER
button to store. Press the MENU button back to the last menu or let the unit idle one minute to
exit menu mode.
Bl.O. Gobo Change — Blackout while gobo changing
To select Bl.O. Gobo Change, press the ENTER button to confirm. Use the UP/DOWN button to
select No (normal while changing gobo) or Yes (blackout while gobo changing), press the ENTER
button to store. Press the MENU button back to the last menu or let the unit idle one minute to
exit menu mode.
13C

Dimmer Curve
To select Dimmer Curve, press the ENTER button to show the DIMMER CURVE on the display,
use the UP/DOWN button to select Square Law, Inv SQ Law,Lineror S Curve. Once selected,
press the ENTER button to store. Press the MENU button back to the last menu or let the unit
idle one minute to exit menu mode.
Square Law: Light intensity control is finer at low levels and coarser at high levels.
Inverse Square Law: Light intensity control is coarser at low levels and finger at high levels.
Linear: The increase in light intensity appears to be linear as DMX value is increased.
S-cure: Light intensity control is finger at low levels and high levels and coarser at medium levels.
Lamp Settings
To select Lamp Settings, press the ENTER button to confirm, use the UP/DOWN button to select
Lamp On/Off,State/Power on or Cooling Mode.
Lamp On/Off
To select Lamp On/Off, press the ENTER button to confirm. Use the UP/DOWN button to select
Off (lamp off) or On (lamp on), press the ENTER button to store. Press the MENU button back
to the last menu or let the unit idle one minute to exit menu mode.
State/Power On
To select State/Power On, press the ENTER button to confirm. Use the UP/DOWN button to
select Off (Lamp off while power on) or On (Lamp on while power on), press the ENTER button
to store. Press the MENU button back to the last menu or let the unit idle one minute to exit
menu mode.
14C

Cooling Mode
To select Cooling Mode, press the ENTER button to confirm. Use the UP/DOWN button to
select Auto, Fast or Quiet, press the ENTER button to store. Press the MENU button back to the
last menu or let the unit idle one minute to exit menu mode.
Display Settings
To select Display Settings, press the ENTER button to confirm, use the UP/DOWN button to select
Display Inverse,Backlight Intensity or Temperature.
Display Inverse
To select Display Inverse, press the ENTER button to confirm. Use the UP/DOWN button to
select No (normal) or Yes (display inverse), press the ENTER button to store. Press the MENU
button back to the last menu or let the unit idle one minute to exit menu mode.
Backlight Intensity
To select Backlight Intensity, press the ENTER button to confirm. Use the UP/DOWN button to
adjust the value from 1to 10, press the ENTER button to store. Press the MENU button back to
the last menu or let the unit idle one minute to exit menu mode.
Temperature Unit
To select Temperature Unit, press the ENTER button to confirm. Use the UP/DOWN button to
select
℃
or
℉
, press the ENTER button to store. Press the MENU button back to the last
menu or let the unit idle one minute to exit menu mode.
Fixture Test
To select F ixtu re Test, press the ENTER button to confirm, use the UP/DOWN button to select Auto
Test or Manual Test
Auto Test
To select Auto Test, press the ENTER button to confirm, the unit will run built-in programs to
automatically test pan, tilt, shutter, dimmer, color, gobo, gobo rotation, prism, prism rotation,
zoom, focus, etc. Press the MENU button back to the last menu or exit menu mode after auto
test.
15C

Manual Test
To select Manual Test, press the ENTER button to confirm, the present channel will show on the
display, use the UP/DOWN button to select channel, press the ENTER button to confirm, then
use the UP/DOWN button to adjust the value, press the ENTER button to store, the fixture will
run as the channel value indicates. Press the MENU button back to the last menu or exit menu
mode idling one minute.
(All channels value will become 0 after exiting Manual Test menu)
Fixture Information
To select Fixture Information, press the ENTER button to confirm, use the UP/DOWN button to
select Fixture Use Hour,Lamp Use Hour, Temperature, Fan State or Firmware Version.
Fixture Use Hour
Select Fixture Use Hour, press the ENTER button to confirm, fixture use time will show on the
display, press the MENU button to exit.
Lamp Use Hour
To select Lamp Use Hour, press the ENTER button to confirm, lamp on time will show on the
display, press the ENTER button to confirm, use the UP/DOWN button to select Exit or Reset
Time, press the ENTER button to confirm. Press the MENU button back to the last menu or exit
menu mode idling one minute.
Temperature
Select Temperature, press the ENTER button to confirm, fixture temperature will show on the
display, press the MENU button to exit.
Fan State
Select Fan State, press the ENTER button to confirm, fan state will show on the display, press
the MENU button to exit.
Firmware Version
To select Firmware Version, press the ENTER button to confirm, firmware version will show on
the display, press the MENU button back to exit.
16C

Reset Functions
To select Reset Functions, press the ENTER button to confirm, use the UP/DOWN button to select
Pan & Tilt,Effect or All.
Pan & Tilt —Reset Pan & Tilt
To select Pan & Tilt, press the ENTER button to confirm, use the UP/DOWN button to select No
or Yes (the unit will run built-in program to reset pan and tilt to their home positions), press the
ENTER button to store. Press the MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
Effect
To select Effect, press the ENTER button to confirm, use the UP/DOWN button to select No or
Yes (the unit will run built-in program to reset effect to their home positions), and press the
ENTER button to store. Press the MENU button to exit.
All — Reset All
To select All, press the ENTER button to confirm, use the UP/DOWN button to select No or Yes
(the unit will run built-in program to reset all motors to their home positions), press ENTER
button to store. Press the MENU button to exit.
Special Functions
To select Special Functions, press the ENTER button to confirm and select Factory Settings.
Factory Settings
Select Factory Settings, press the ENTER button to confirm, use the UP/DOWN button to select
No (normal) or Yes (the fixture will reset to factory settings), press ENTER button to store. Press
the MENU button to exit.
17C

RDM FUNCTIONS
Select the MANUFACTURER menu to display the manufacturer of the fixture.
Select the SOFTWARE VERSION menu and the program version number of the fixture will be
displayed.
Select the DMX START ADDRESS menu to change the DMX 512 address (001-512).
Select the DEVICE MODEL DESCRIPTION menu to display the model of the fixture.
Select the DEVICE LABEL menu to change the model of the fixture.
Select the DMX PERSONALITY menu to set the channel mode of the fixture (34/40/25 channel).
Select the DMX PERSONALITY DESCRIPTION menu to display the current channel mode of the
fixture.
Select the DEVICE HOURS menu to display the running time of the fixture.
Select the LAMP HOURS menu to display the running time of the lamp.
Select the LAMP STATE menu to turn on/off the lamp.
Select the PAN INVERT menu and the fixture will run the pan invert mode.
Select the TILT INVERT menu and the fixture will run the tilt invert mode.
Select the RESET DEVICE menu, the WARM RESET/COLD RESET option will be displayed. When
WARM RESET is selected, the fixture will start a warm reset, and exit when COLD RESET is selected.
5.2 Home Position Adjustment
Press the MENU button into menu mode, then press and hold the ENTER button for about 3
seconds into offset mode to adjust the home position. Select the function by the ENTER button. Use
the UP/DOWN button to select the submenu, press the ENTER button to store and automatically
return to the last menu. Press the MENU button to exit.
18C

19C
