ACME Spartan Hybrid User manual

- 1 -
CONTENTS
01/ Safety Instructions.................................................................................................. 2
02/ Technical Specifications ........................................................................................ 5
03/ Control Panel........................................................................................................... 7
04/ Effect Wheels & Lamp ........................................................................................... 8
4.1 Effect Wheels................................................................................................... 8
4.2 Light Source...................................................................................................... 9
4.3 Lamp Replacement.......................................................................................... 9
05/ How To Set The Unit............................................................................................ 11
5.1 Main Functions .............................................................................................. 11
5.2 Home Position Adjustment ......................................................................... 22
06/ Control By Universal DMX Controller.............................................................. 27
6.1 DMX512 Connection................................................................................... 27
6.2 Address Setting.............................................................................................. 28
6.3 DMX512 Configuration............................................................................... 28
07/ Error Information .................................................................................................. 47
08/ Troubleshooting ....................................................................................................55
09/ Fixture Cleaning....................................................................................................56

- 2 -
01/ Safety Instructions
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be
sure that they also receive this instruction manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The dealer
will not accept liability for any resulting defects or problems.
Unpack and check carefully to ensure that there is no transportation damage before
using the unit.
This product is for indoor use only. Use only in a dry location.
DO install and operate by qualified operator.
DO NOT allow children to operate the fixture.
Use safety chain when fixing the unit. Handle the unit by carrying its base instead of
head only.
The unit must be installed in a location with adequate ventilation, at least 50cm from
adjacent surfaces.
Be sure that no ventilation slots is blocked, otherwise the unit will be overheated.
Before operation, ensure that you are connecting this product to the proper voltage in
accordance with the specifications in this manual or on the product’s specification label.
It’s important to ground the yellow/green conductor to earth in order to avoid electric
shock.
Minimum ambient temperature TA: 0℃. Maximum ambient temperature TA: 40℃. Do
not operate this product at a lower or higher temperature.
DO NOT connect the device to any dimmer pack.
During initial start-up some smoke or smell may arise. This is a normal process and does
not necessarily mean that the device is defective, and it will decrease gradually within 15
minutes.
Keep flammable materials away from the fixture while operating to avoid fire hazard.
Make sure the power cord is not crimped or damaged; replace it immediately if damaged.
Please read the instruction carefully which includes important information
about the installation, usage and maintenance.

- 3 -
Unit’s surface temperature may reach up to 90 ℃. DO NOT touch the housing
bare-handed during its operation.
Avoid any flammable liquids, water or metal from entering the unit. Once it happens, cut
off the mains power immediately.
DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.
DO NOT touch any wire during operation as there might be a hazard of electric shock.
Avoid entanglement of the power cord with other wires.
The minimum distance to objects/surface must be more than 18 meters.
Disconnect mains power before fuse/lamp replacement or servicing.
Replace fuse/lamp only with the same type.
In the event of serious operating problem, stop using the unit immediately.
Never turn on and off the unit time after time.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly
damaged.
DO NOT open the housing as there are no user serviceable parts inside.
DO NOT attempt to operate this unit if it becomes damaged. DO NOT attempt any
repairs yourself. Repairs carried out by unskilled people can lead to damage or
malfunction. Please contact the nearest authorized technical assistance center if needed.
Disconnect this product from its power source before servicing.
DO use the original packaging if the device is to be transported.
Hot lamp explosion hazard. DO NOT open the unit within 15 minutes after switching off.
DO replace the bulb once it is damaged, deformed or life-expired.
Avoid direct eye exposure to the light source while the product is on.
Never touch bulb with bare fingers, as it is very hot after using.
DO NOT operate this product if you see damage on the housing, shields, or cables. Have
the damaged parts replaced by an authorized technician at once.

- 4 -
Installation:
DO install and operate by qualified operator. Fixture(s) should be installed in areas
outside walking paths, seating areas, or away from areas were unauthorized personnel
might reach the fixture by hand. NEVER stand directly below the fixture(s) when rigging,
removing or servicing.
Always ensure that the unit is firmly fixed to avoid vibration and slipping off during
operation. Ensure that the trussing or area of installation must be able to hold 10 times
the weight without any deformation. Always attach a safety cable that can hold at least
12 times the weight of the fixture whenever installing this fixture in a suspended
environment to ensure that the fixture will not fall if the clamp fails.

- 5 -
02/ Technical Specifications
Power Voltage
100-240V~ 50/60Hz
Power Consumption
660W
Light Source
Philips MSD Platinum 20 R
Color Temperature
7800K
Zoom Range
2°-7° (Beam Mode)
5°-32° (Spot Mode)
8°-70° (Wash Mode)
Dimmer/Strobe
0-100% smooth dimming; outstanding strobe effect with variable
speed
Color Wheel
3 color wheels, each wheel has 5 colors plus open, with rainbow
effect
Gobo Wheel
Static Gobo Wheel
18 gobos plus open
Rotating Gobo Wheel
7 gobos plus open, convenient replacement
Movement
Pan
540°
Tilt
270°
Pan/Tilt Resolution
16 bit
Automatic pan/tilt position correction
Fixation
Tilt lock
Control
DMX Channel
34/30/27/24 Channels
Control Mode
DMX512
RDM
Wireless Control (optional)
Firmware Upgrade
Firmware Upgrade via DMX link
Construction
Display
LCD display
Battery backup for user setup without mains connection
Data In/Out
3-pin/5-pin XLR
Power In/Out
Power Cord in
Protection Rating
IP20

- 6 -
Features
Linear CMY color mixing
Motorized focus
Independent frost effect
2 x prisms:
6-facets prism + 8-facets prism, capable of bidirectional rotation
and superposition
Dimensions
399.5x335x666.5mm
15.7"x13.2"x26.2"in
Weight
27kgs
59.5lbs
Photometric Diagram:

- 7 -
03/ Control Panel
1. Display
To show the various menus and the selected function
2. Buttons
MENU
To enter into move backward or leave the menu
UP
To go backward to move up in the menu
DOWN
To go forward to move down in the menu
ENTER
To perform the desired functions
3. BATTERY DISPLAY
4. DMX IN
For DMX512 link, use 3/5-pin XLR cable to link the unit and DMX
controller to input DMX signal
5. DMX OUT
For DMX512 link, use 3/5-pin XLR cable to link the next units to
output DMX signal
6. POWER
To connect to supply power
7. FUSE(T 10A)
Protects the unit from damage of over-voltage or short circuit
8. POWER
SWITCH
Turns on/off the power

- 8 -

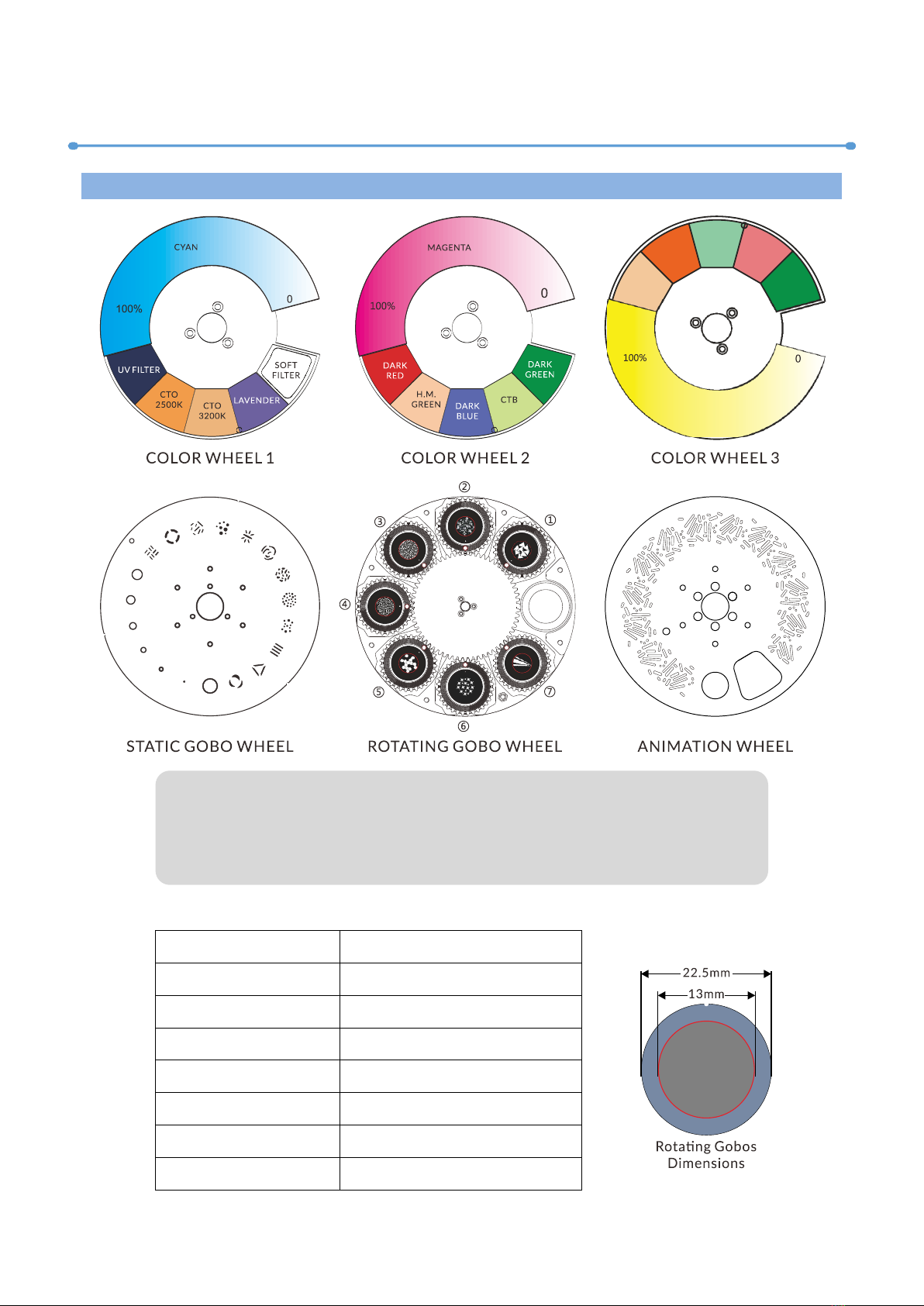

04/ Effect Wheels & Lamp
4.1 Effect Wheels
YELLOW
LIGHT
GREEN
PINK
AQUA
MARINE
DARK
ORANGE
LIGHT
ORANGE
R-Gobos
Part Number
①Gobo1
3011000675
②Gobo2
3011000678
③Gobo3
3011000834
④Gobo4
3011000673
⑤Gobo5
3011000672
⑥Gobo6
3011000726
⑦Gobo7
3011000674
DANGER!
Install the rotating gobos with the device switched off only.
Unplug from mains before changing the rotating gobos!

- 9 -
4.2 Light Source
Philips MSD Platinum 20 R
Because of its high internal pressure, there might be a risk that the discharge lamp would
explode during operation. The lamp emits intense UV radiation which is harmful to the eyes
and skin. The high luminance of the arc can cause severe damage to the retina if you take a
close look at the lamp.
To protect the lamp, always turn off the lamp first (via control panel or DMX controller)
and let the unit run at least five minutes to cool down before switching off the mains
supply. Never handle the lamp or luminary when it is hot.
Do not touch the bulb with bare hands. If this happens, clean the lamp with denatured
alcohol and wipe it with a lint free cloth before installation.
The lamp generates UV radiation. Never operate the lamp without appropriate shielding.
When lighting up, the lamp operates at high pressure and there is a slight risk of arc tube
rupture. The risk increases with age, temperature and improper handling of the lamp. Do
not use the lamp longer than its lifespan.
Make sure the lamp is located in the center of the reflector for the best projection.
4.3 Lamp Replacement
Do not use this lamp more than 1500 hours, using the lamp any longer than its set life could
seriously damage the fixture. Periodically checking the lamp running time, when the lamp
reaches the 1500 hour mark, or close to it, we strongly suggest you switch the lamp out.
Reset the lamp time after you have replaced the lamp.
To replace the lamp:
Ensure that the fixture is detached from power and has cooled down completely. It is a good
idea to allow the fixture to run for 15 minutes after the lamp has been turned off, so that the
cooling fans have time to works.
ATTENTION
The entire light path and lens of the luminaire must be thoroughly cleaned
before replacing the lamp.

- 10 -
Loosen the screws on the head of the fixture and open the fixture head covers.
Unplug the leads of the lamp and lift the lamp out of its recess, disconnect the lamp and
connect a new lamp that must be the same type with the old one. And then place the new
lamp into the lamp recess.
Finally reinstall the head cover, fastening it securely before reapplying power.
ATTENTION
Damages caused by the failure to replace the bulb in time are not subject to warranty.
The installing direction of lamp:

- 11 -
05/ How To Set The Unit
5.1 Main Functions
To access the control menus, press the [MENU] button.
Navigate the menu structure, using the [ENTER], [UP] and [DOWN] buttons.
To select a menu option or to confirm a selection, press the [ENTER] button.
To return to a higher level in the menu structure without making a change, press the
[MENU] button, or wait 30 seconds.
The main functions are shown below:
MENU
SUBMENU
OPTIONS
DMX Settings
DMX Address
1-479 (34 CH)
(Default=1)
1-483 (30 CH)
1-486 (27 CH)
1-489 (24 CH)
Channel Mode
Mode 1 (34)
Mode 2 (30)
Mode 3 (27)
Mode 4 (24)
View DMX Value
Fixture Settings
Pan Inverse
No
Yes
Tilt Inverse
No
Yes
P/T Feedback
No
Yes
P/T Speed
Fast
Slow
Focus Compensate
Disable
Near
Medium
Far
Bl.o. P/T Moving
No
Yes
Bl.o. Color Change
No
Yes

- 12 -
MENU
SUBMENU
OPTIONS
Bl.o. Gobo Change
No
Yes
Dimmer Curve
Square Law
Inv SQ Law
Linear
S Curve
Soft Filter
Auto
Disable
Enable
Lamp Settings
Lamp On/Off
Off
On
State/Power On
Off
On
Display Settings
Display Inverse
No
Yes
Backlight Auto Off
No
Yes
Backlight Intensity
1-10
(Default=10)
Temperature Unit
°C
°F
Language
English
Chinese
Fixture Test
Auto Test
Manual Test
Fixture Information
Fixture Use Hour
Lamp Use Hour
Exit
Reset Time
Temperature
Lamp State
Fan State
Firmware Version
Error Logs
Fixture Errors
Reset Error Log
No
Yes
Password=050

- 13 -
MENU
SUBMENU
OPTIONS
Reset Functions
Pan & Tilt
No
Yes
Effect
No
Yes
All
No
Yes
Special Functions
Factory Settings
No
Yes
DMX Settings
Enter the control menu and select DMX Settings, press ENTER. Use the UP/DOWN button
to select DMX Address, Channel Mode or View DMX Value.
DMX Address
Channel Mode
Select Channel Mode, press ENTER.
Use UP/DOWN button to select between Mode 1 (34), Mode 2 (30),
Mode 3 (27) and Mode 4 (24), confirm your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select DMX Address, press ENTER.
Use UP/DOWN button to select an address, confirm your selection with
ENTER.
CHANNEL MODE
DMX ADDRESS
Mode 1 (34)
1-479
Mode 2 (30)
1-483
Mode 3 (27)
1-486
Mode 4 (24)
1-489
To exit the menu, press MENU, or wait 30 seconds.

- 14 -
View DMX Value
Fixture Settings
Enter the control menu and select Fixture Settings, press ENTER. Use the UP/DOWN button
to select Pan Inverse, Tilt Inverse, P/T Feedback, P/T Speed, Focus Compensate, Bl.o. P/T
Moving, Bl.o. Color Change, Bl.o. Gobo Change, Dimmer Curve or Soft Filter.
Pan Inverse
Tilt Inverse
P/T Feedback
Select View DMX Value, press ENTER.
Use UP/DOWN button to select the desired DMX channel, for which the
value is to be displayed.
To exit the menu, press MENU, or wait 30 seconds.
Select Pan Inverse, press ENTER.
Use UP/DOWN button to select No (pan invert deactivated) or Yes (pan
invert activated), confirm your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select P/T Feedback, press ENTER.
Use UP/DOWN button to select No (pan/tilt feedback deactivated) or
Yes (pan/tilt feedback activated), confirm your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Tilt Inverse, press ENTER.
Use UP/DOWN button to select No (tilt invert deactivated) or Yes (tilt
invert activated), confirm your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.

- 15 -
P/T Speed
Focus Compensate
Bl.o. P/T Moving
Bl.o. Color Change
Bl.o. Gobo Change
Select Bl.o. Gobo Change, press ENTER.
Use UP/DOWN button to select No (blackout when gobo changing
deactivated) or Yes (blackout when gobo changing activated), confirm
your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Bl.o. Color Change, press ENTER.
Use UP/DOWN button to select No (blackout when color changing
deactivated) or Yes (blackout when color changing activated), confirm
your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Bl.o. P/T Moving, press ENTER.
Use UP/DOWN button to select No (blackout when pan/tilt moving
deactivated) or Yes (blackout when pan/tilt moving activated), confirm
your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Focus Compensate, press ENTER.
Use UP/DOWN button to select Disable, Near, Medium or Far, confirm
your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select P/T Speed, press ENTER.
Use UP/DOWN button to select Fast or Slow, confirm your selection
with ENTER.
To exit the menu, press MENU, or wait 30 seconds.

- 16 -
Dimmer Curve
Soft Filter
Lamp Settings
Enter the control menu and select Lamp Settings, press ENTER. Use the UP/DOWN button
to select Lamp On/Off or State/Power On.
Lamp On/Off
State/Power On
Select Soft Filter, press ENTER.
Use UP/DOWN button to select Auto, Disable or Enable, confirm your
selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Dimmer Curve, press ENTER.
Use UP/DOWN button to select Square Law, Inv SQ Law, Linear or S
Curve, confirm your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select State/Power On, press ENTER.
Use UP/DOWN button to select Off (lamp off while power on) or On
(lamp on while power on), confirm your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Lamp On/Off, press ENTER.
Use UP/DOWN button to select Off (lamp off) or On (lamp on), confirm
your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.

- 17 -
Display Settings
Enter the control menu and select Display Settings, press ENTER. Use the UP/DOWN button
to select Display Inverse, Backlight Auto Off, Backlight Intensity, Temperature Unit or
Language.
Display Inverse
Backlight Auto Off
Backlight Intensity
Temperature Unit
Language
Select Backlight Auto Off, press ENTER.
Use UP/DOWN button to select No or Yes, confirm your selection with
ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Temperature Unit, press ENTER.
Use UP/DOWN button to select °C or °F, confirm your selection with
ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Language, press ENTER.
Use UP/DOWN button to select English or Chinese, confirm your
selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Backlight Intensity, press ENTER.
Use UP/DOWN button to select a value between 1(dark) and 10
(bright), confirm your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.
Select Display Inverse, press ENTER.
Use UP/DOWN button to select No (display normal) or Yes (display
inverted), confirm your selection with ENTER.
To exit the menu, press MENU, or wait 30 seconds.

- 18 -
Fixture Test
Enter the control menu and select Fixture Test, press ENTER. Use the UP/DOWN button to
select Auto Test or Manual Test.
Auto Test
Manual Test
Fixture Information
Enter the control menu and select Fixture Information, press ENTER. Use the UP/DOWN
button to select Fixture Use Hour, Lamp Use Hour, Temperature, Lamp State, Fan State,
Firmware Version or Error Logs.
Fixture Use Hour
Select Manual Test, press ENTER.
Use UP/DOWN button to select the channel for which the manual test
is to be performed, confirm your selection with ENTER.
Use UP/DOWN button to select a value, confirm your selection with
ENTER.
To exit the menu, press MENU, or wait 30 seconds.
(All channels value will become 0 after exiting Manual Test menu)
Select Fixture Use Hour, press ENTER.
The operating hours is displayed.
To exit the menu, press MENU, or wait 30 seconds.
Select Auto Test, press ENTER.
The device immediately performs an automatic self-test.
To end the automatic self-test and exit the menu, press MENU, or wait
30 seconds.

- 19 -
Lamp Use Hour
Temperature
Lamp State
Fan State
Firmware Version
Select Temperature, press ENTER.
The device temperature is displayed.
To exit the menu, press MENU, or wait 30 seconds.
Select Fan State, press ENTER.
The fan status is displayed.
To exit the menu, press MENU, or wait 30 seconds.
Select Lamp Use Hour, press ENTER.
The lamp operating hours is displayed.
Press ENTER.
If you wish to reset the lamp time, select Reset Time. If you do not wish
to reset anything, select Exit. Confirm your selection with ENTER.
If you select Reset Time, confirm your selection with ENTER. The lamp
time is reset.
To exit the menu, press MENU, or wait 30 seconds.
Select Firmware Version, press ENTER.
The firmware version is displayed.
To exit the menu, press MENU, or wait 30 seconds.
Select Lamp State, press ENTER.
The lamp status is displayed.
To exit the menu, press MENU, or wait 30 seconds.
