ACME SABER HYBRID PRO User manual

CONTENTS
1. Safety Instructions ......................................................................................... 2
2. Technical Specifications ................................................................................. 4
3 Control Panel .................................................................................................. 6
4. Color/Gobo and Lamp.................................................................................... 7
4.1 Color/Gobo .............................................................................................. 7
4.2 Light Source ............................................................................................. 7
4.3 Change The Lamp..................................................................................... 8
5. How To Set The Unit....................................................................................... 9
5.1 Main Function.......................................................................................... 9
5.2 Home Position Adjustment .................................................................... 17
6. Control By Universal DMX Controller ........................................................... 20
6.1 DMX512 Connection.............................................................................. 20
6.2 Address Setting ...................................................................................... 21
6.3 DMX512 Configuration........................................................................... 22
7. Troubleshooting........................................................................................... 29
8. Fixture Cleaning ........................................................................................... 29
1C

1. Safety Instructions
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that
they also receive this instruction manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The dealer will
not accept liability for any resulting defects or problems.
Unpack and check carefully that there is no transportation damage before using the unit.
This product is for indoor use only. Use only in a dry location.
DO install and operate by qualified operator.
DO NOT allow children to operate the fixture.
Use safety chain when fixing the unit. Handle the unit by carrying its base instead of head only.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces.
Be sure that no ventilation slots are blocked, otherwise the unit will be overheated.
Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
Minimum ambient temperature TA: 0℃. Maximum ambient temperature TA: 40℃.
DO NOT connect the device to any dimmer pack.
During initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective, and it will decrease gradually within 15 minutes.
Make sure there are no flammable materials close to the unit while operating to avoid fire
hazard.
Examine the power wires carefully; replace them immediately if there is any damage.
Unit’s surface temperature may reach up to 85℃. DO NOT touch the housing bare-handed
during its operation.
Avoid any inflammable liquids, water or metal objects entering the unit. Once it happens, cut
Please read the instruction carefully which includes important information about
the installation, usage and maintenance.
2C

off the mains power immediately.
DO NOT operate in dirty or dusty environment, do clean fixtures regularly.
DO NOT touch any wire during operation as there might be a hazard of electric shock.
Avoid power wires together twist other cables.
The minimum distance between light output and the illuminated surface must be more than 12
meters.
Disconnect mains power before fuse/lamp replacement or servicing.
Replace fuse/lamp only with the same type.
In the event of serious operating problem, stop using the unit immediately.
Never turn on and off the unit time after time.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
DO NOT open the unit as there are no user serviceable parts inside.
Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to
damage or malfunction. Please contact the nearest authorized technical assistance center if
needed.
Disconnect the mains power if the fixture is has not been used for a long time.
DO use the original packing materials before transporting it again.
Hot lamp explosion hazard. DO NOT open the unit within 15 minutes after switching off.
DO replace the bulb once it is damaged, deformed or life-expired.
DO NOT look directly at the light while the bulb is on.
Never touch bulb with bare fingers, as it is very hot after using.
DO NOT start on the unit without bulb enclosure or when housing is damaged.
Installation:
The fixture should be mounted via its Omega Quick Release Clamp bracket. Always ensure that the
unit is firmly fixed to avoid vibration and slipping while operating and make sure that the structure
to which you are attaching the unit is secure and is able to support a weight of 10 times of the
fixtures weight. Always use a safety cable that can hold 12 times of the weight of the fixture when
installing.
The equipment must be installed by professionals. It must be installed in a place where is out of the
reach of people and no one can pass by or under it.
3C

2. Technical Specifications
Power Voltage:
AC 100~240V, 50/60Hz
Power Consumption:
535W
Light Source:
Philips MSD Platinum 16R
Color Temperature:
8000K
Beam Angle:
Beam Mode: 2.3°~8°
Spot Mode: 6°~22°
Wash Mode: 22°~63°
Movement:
Pan: 540°
Tilt: 270°
Pan/Tilt Resolution: 16 bit
Dimmer/Shutter:
Smooth dimming from 0-100%; various strobe speeds
Color Wheel:
9 fixed colors plus open with rainbow effect
Gobo Wheel:
1 Static gobo wheel with 15 gobos plus open
1 Rotating gobo wheel with 9 gobos plus open
Control:
DMX Channel: 23/25 Channels
Control Mode: DMX512, RDM
Firmware Upgrade: Update via DMX link & USB
4C

Construction:
Display: LCD display
Date In/Out: 3-pin&5-pin XLR
Power In/Out: Power Connector in
Protection Rating: IP20
Features:
Motorized focus
Linear CMY color mixing
8 facet prism+ 16 facet prism, both of them can rotate in both directions and overlay each other
Outstanding color macro effect
Independent frost effect
Integrated three features: beam, spot, and wash
Dimension/Weight:
435x343x651mm, 23kgs
17.1"x13.5"x25.6"in, 50.7lbs
651 mm
435 mm 343 mm
5C

3 Control Panel
1
23567
8
4
1. Display: To show the various menus and the selected function
2. LED:
POWER
On
Power On
DMX On DMX input present
3. Button:
MENU
To enter into move backward or leave the menu
UP
To go backward to move up in the menu
DOWN
To go forward to move down in the menu
ENTER
To perform the desired functions
4. FIRMWARE UPGRADE
5. DMX IN/OUT:
DMX 512 link, use 3-pin & 5-pin XLR cable to link the unit and DMX controller to input/output
DMX signal
6. POWER:
To connect to supply power
7. FUSE(T 10A):
Protects the unit from over-voltage or short circuit
8. POWER SWITCH:
Turns on/off the power
6C

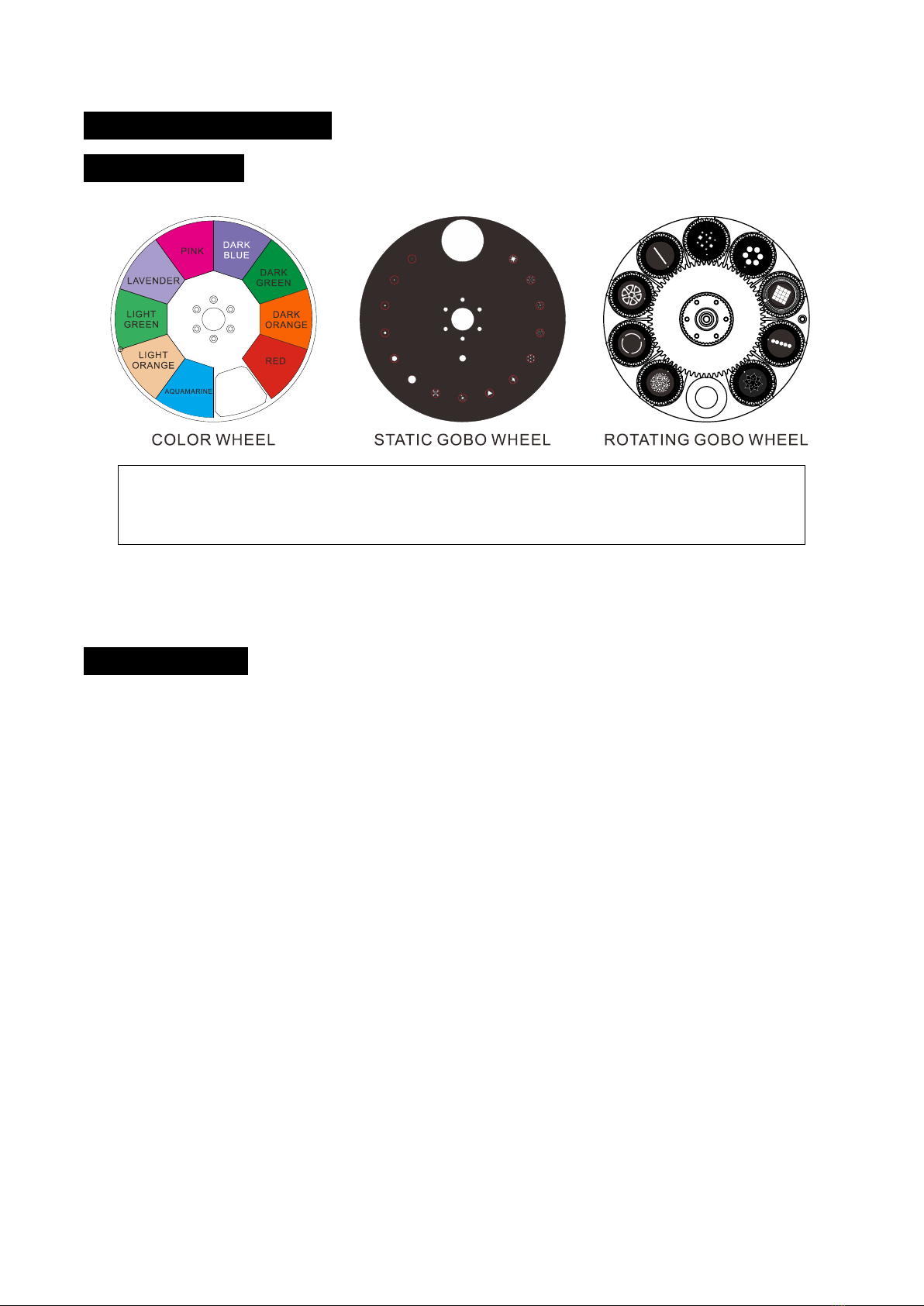

4. Color/Gobo and Lamp
4.1 Color/Gobo
DANGER!
Install the color wheel/gobo wheels with the device switched off only.
Unplug from mains before changing the color wheel/gobo wheels!
CAUTION: Never unscrew the screws of the rotating gobo as the ball bearing will otherwise be
opened!
4.2 Light Source
Philips MSD Platinum 16R
Because of its high internal pressure, there might be a risk that the Discharge lamp
would explode during operation. The lamp emits intense UV radiation which is harmful
to the eyes and skin. The high luminance of the arc can cause severe damage to the
retina if you take a close look at the lamp.
To protect the lamp, always turn off the lamp first (via control panel or DMX controller)
and let the unit run at least five minutes to cool down before switching off the mains
supply. Never handle the lamp or luminary when it is hot.
Do not touch the bulb with bare hands. If this happens, clean the lamp with denatured
alcohol and wipe it with a lint free cloth before installation.
The lamp generates UV radiation. Never operate the lamp without appropriate shielding.
When lighting up, the lamp operates at high pressure and there is a slight risk of arc tube
rupture. The risk increases with age, temperature and improper handling of the lamp. Do not
use the lamp longer than its lifespan.
Make sure the lamp is located in the center of the reflector for the best projection.
7C

4.3 Change The Lamp
Do not use this lamp more than 1000 hours, using the lamp any longer than its set life could
seriously damage your unit. Periodically checking the lamp running time, when the lamp reaches
the 1000 hour mark, or close to it, we strongly suggest you switch the lamp out. Clear the RESET
TIME after you have replaced the lamp.
To replace the lamp:
1. Ensure that the fixture is detached from power and has cooled down completely. It is a good
idea to allow the fixture to run for 10 minutes after the lamp has been turned off, so that the
cooling fans have time to works.
2. Loosen the screws on the head of the fixture and open the fixture head covers.
3. Loosen the screw that holds the lamp in place. Unplug the leads of the lamp and lift the lamp
out of its recess, disconnect the lamp and connect a new lamp that must be the same type with
the old one. And then place the new lamp into the lamp recess.
Finally reinstall the head cover, fastening it securely before reapplying power.
8C

Warning:
The installing direction of lamp:
5. How To Set The Unit
5.1 Main Function
Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until
the required function is shown on the monitor. Select the function by the ENTER button. Use the
UP/DOWN button to choose the submenu, press the ENTER button to store and automatically
return to the last menu. Press the MENU button or let the unit idle one minute to exit menu mode.
The main functions are shown below:
9C

10C

DMX Functions
To select DMX Functionspress the ENTER button to confirm, use the UP/DOWN button to select
DMX Address,DMX Channel Mode, DMX State or View DMX Value.
DMX Address —DMX512 address setting
To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust
the address from 001 to 512, press the ENTER button to store. Press the MENU button back to
the last menu or let the unit idle one minute to exit menu mode.
DMX Channel Mode — DMX channel mode
To select DMX Channel Mode, press the ENTER button to confirm. Use the UP/DOWN button
to select Mode1 (23) channels mode or Mode2 (25) channels mode, press the ENTER button to
store. Press the MENU button back to the last menu or let the unit idle one minute to exit
menu mode.
DMX State —fixture state while DMX single stops
To select DMX State, press the ENTER button to confirm. Use the UP/DOWN button to select
BlackOut(fixture blacks out if DMX signal stops) or Hold(fixture continues to obey the last
command it received Via DMX if DMX signal stops), press the ENTER button to store. Press the
MENU button back to the last menu or let the unit idle one minute to exit menu mode.
View DMX Value
To select View DMX Value, press the ENTER button to confirm. Use the UP/DOWN button to
view the DMX channel value. Press the MENU button back to the last menu or let the unit idle
one minute to exit menu mode.
Fixture Settings
To select Fixture Settings, press the ENTER button to confirm, use the UP/DOWN button to select
Pan Inverse, Tilt Inverse,P/T Feedback, Bl.o. P/T Moving, Bl.o. Color Change or Bl.o. Gobo
Change.
11C

Pan Inverse
To select Pan Inverse, press the ENTER button to confirm. Use the UP/DOWN button to select
No (normal) or Yes (pan inverse), press the ENTER button to store. Press the MENU button back
to the last menu or let the unit idle one minute to exit menu mode.
Tilt Inverse
To select Tilt Inverse, press the ENTER button to confirm. Use the UP/DOWN button to select
No (normal) or Yes (tilt inverse), press the ENTER button to store. Press the MENU button back
to the last menu or let the unit idle one minute to exit menu mode.
P/T Feedback
To select P/T Feedback, press the ENTER button to confirm. Use the UP/DOWN button to select
No (Pan or tilt’s position will not feedback while out of step) or Yes (Feedback while pan/tilt out
of step), press the ENTER button to store. Press the MENU button back to the last menu or let
the unit idle one minute to exit menu mode.
Bl.o. P/T Moving
To select Bl.o. P/T Moving, press the ENTER button to confirm. Use the UP/DOWN button to
select No or Yes, press the ENTER button to store. Press the MENU button back to the last
menu or let the unit idle one minute to exit menu mode.
Bl.o. Color Change
To select Bl.o. Color Change, press the ENTER button to confirm. Use the UP/DOWN button to
select No or Yes, press the ENTER button to store. Press the MENU button back to the last
menu or let the unit idle one minute to exit menu mode.
Bl.o. Gobo Change
To select Bl.o. Gobo Change, press the ENTER button to confirm. Use the UP/DOWN button to
select No or Yes, press the ENTER button to store. Press the MENU button back to the last
menu or let the unit idle one minute to exit menu mode.
12C

Lamp Settings
To select Fixture Settings, press the ENTER button to confirm, use the UP/DOWN button to select
Lamp On/Off or State/Power on.
Lamp On/Off —Turn on/off the lamp
To select Lamp On/Off, press the ENTER button to confirm. Use the UP/DOWN button to select
On(lamp on) or Off(lamp off), press the ENTER button to store. Press the MENU button back to
the last menu or let the unit idle one minute to exit menu mode.
State/Power On — Lamp state while power on
To select State/Power On, press the ENTER button to confirm. Use the UP/DOWN button to
select On(Lamp on while power on) or Off(Lamp off while power on), press the ENTER button
to store. Press the MENU button back to the last menu or let the unit idle one minute to exit
menu mode.
Display Setting
Enter menu mode, select Display Setting, press the ENTER button to confirm, use the UP/DOWN
button to select Display Inverse, Backlight Intensity or Temperature Unit.
Display Inverse
Select Display Inverse, press the ENTER button to confirm, present mode will blink on the
display, use the UP/DOWN button to select No (normal display) or Yes (inverse display), press
the ENTER button to store. Press the MENU button back to the last menu or let the unit idle
one minute to exit menu mode.
Backlight Intensity
Select Backlight Intensity, press the ENTER button to confirm, present mode will blink on the
display, use the UP/DOWN button to adjust backlight intensity from 1 (dark) to 10 (bright),
press the ENTER button to store. Press the MENU button back to the last menu or let the unit
idle one minute to exit menu mode.
13C

Temperature Unit
Select Temperature Unit, press the ENTER button to confirm, present mode will blink on the
display, use the UP/DOWN button to select
℃
or
℉
, press the ENTER button to store. Press
the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
F ixture Test
Enter menu mode, select F ixture Test, press the ENTER button to confirm, use the UP/DOWN
button to select Auto Test or Manual Test
Auto Test
Select Auto Test, press the ENTER button to confirm, the unit will run built-in programs to
automatically test pan, tilt, shutter, color, gobo, gobo rotation, prism, prism rotation, frost, and
focus. Press the MENU button back to the last menu or exit menu mode after auto test.
Manual Test
Select Manual Test, press the ENTER button to confirm, the present channel will show on the
display, use the UP/DOWN button to select channel, press the ENTER button to confirm, then
use the UP and DOWN button to adjust the value, press the ENTER button to store, the fixture
will run as the channel value indicates. Press the MENU button back to the last menu or exit
menu mode idling one minute.
(All channels value will become 0 after exiting Manual Test menu)
Fixture Information
Enter menu mode, select Fixture Information, press the ENTER button to confirm, use the
UP/DOWN button to select Fixture Use Hour, Light On Time, Temperature, Fan State, USB
Upgrade File or Firmware Version.
Fixture Use Hour
Select Fixture Use Hour,press the ENTER button to confirm, fixture use time will show on the
display, press the MENU button to exit.
14C

Light On Time
Select Light On Time, press the ENTER button to confirm, present mode will blink on the display,
use the UP/DOWN button to select Exit or Reset time.Press the MENU button back to the last
menu or let the unit idle one minute to exit menu mode.
Temperature
Select Temperature, press the ENTER button to confirm, fixture temperature will show on the
display, press the MENU button to exit.
Fan State
Select Fan State, press the ENTER button to confirm, fan state will show on the display, press
the MENU button to exit.
USB Upgrade File
Select USB Upgrade File, press the ENTER button to confirm, USB upgrade file will show on the
display, press the MENU button to exit.
Firmware Version
Select Firmware Version, press the ENTER button to confirm, firmware version will show on the
display, press the MENU button back to exit.
Reset Functions
Enter menu mode, select Reset Functions, press the ENTER button to confirm, use the UP/DOWN
button to select Pan & Tilt, Effect or All.
Pan & Tilt —Reset Pan/Tilt
Select Pan & Tilt, press the ENTER button to confirm, use the UP/DOWN button to select Yes
(the unit will run built-in program to reset pan and tilt to their home positions) or No(normal),
press the ENTER button to store. Press the MENU button back to the last menu or let the unit
idle one minute to exit menu mode.
15C

Effect —Reset Effect
Select Effect, press the ENTER button to confirm, use the UP/DOWN button to select Yes (the
unit will run built-in program to reset effect to their home positions) or No, press the ENTER
button to store. Press the MENU button back to the last menu or let the unit idle one minute to
exit menu mode.
All — Reset All
Select All, press the ENTER button to confirm, use the UP/DOWN button to select Yes (the unit
will run built-in program to reset all motors to their home positions) or No, press ENTER button
to store. Press the MENU button to exit.
Special Functions
Factory
Select Factory, press the ENTER button to confirm, use the UP/DOWN button to select Yes (the
fixture will reset to factory settings)or No (normal), press ENTER button to store. Press the
MENU button to exit.
RDM FUNCTIONS
Select the MANUFACTURER menu to display the manufacturer of the fixture.
Select the SOFTWARE VERSION menu and the program version number of the fixture will be
displayed.
Select the DMX START ADDRESS menu to change the DMX 512 address (001-512).
Select the DEVICE MODEL DESCRIPTION menu to display the model of the fixture.
Select the DEVICE LABEL menu to change the model of the fixture.
Select the DMX PERSONALITY menu to set the channel mode of the fixture (23/25 channel).
Select the DMX PERSONALITY DESCRIPTION menu to display the current channel mode of the
fixture.
Select the DEVICE HOURS menu to display the running time of the fixture.
Select the LAMP HOURS menu to display the running time of the lamp.
Select the LAMP STATE menu to turn on/off the lamp.
16C

Select the PAN INVERT menu and the fixture will run the pan invert mode.
Select the TILT INVERT menu and the fixture will run the tilt invert mode.
Select the RESET DEVICE menu, the WARM RESET/COLD RESET option will be displayed. When
WARM RESET is selected, the fixture will start a warm reset, and exit when COLD RESET is selected.
5.2 Home Position Adjustment
Press the MENU button into menu mode, then press the ENTER button for about 3 seconds into
offset mode to adjust the home position. Select the function by the ENTER button. Use the
UP/DOWN button to choose the submenu, press the ENTER button to store and automatically
return to the last menu. Press MENU button to exit.
Soften
Cyan
Magenta
Yellow
17C

Pan—pan home position adjustment
Enter offset mode, Select Pan, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button
to store. Press the MENU button to exit.
Tilt—Tilt home position adjustment
Enter offset mode, Select Tilt, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button
to store. Press the MENU button to exit.
Shutter—Shutter home position adjustment
Enter offset mode, Select Shutter, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button
to store. Press the MENU button to exit.
Soften—Soften home position adjustment
Enter offset mode, Select Soften, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button
to store. Press the MENU button to exit.
Cyan—Cyan home position adjustment
Enter offset mode, Select Cyan, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER
button to store. Press the MENU button to exit.
Magenta—Magenta home position adjustment
Enter offset mode, Select Magenta, press the ENTER button to confirm, the present position will
blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the
ENTER button to store. Press the MENU button to exit.
Yellow—Yellow home position adjustment
Enter offset mode, Select Yellow, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER
button to store. Press the MENU button to exit.
Color—Color home position adjustment
Enter offset mode, Select Color, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER
button to store. Press the MENU button to exit.
18C

Gobo1—Gobo1 home position adjustment
Enter offset mode, Select Gobo1, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER
button to store. Press the MENU button to exit.
Gobo2—Gobo2 home position adjustment
Enter offset mode, Select Gobo2, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER
button to store. Press the MENU button to exit.
R-Gobo2—R-Gobo2 home position adjustment
Enter offset mode, Select R-Gobo2, press the ENTER button to confirm, the present position will
blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the
ENTER button to store. Press the MENU button to exit.
Prism—Prism home position adjustment
Enter offset mode, Select Prism, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button
to store. Press the MENU button to exit.
R-Prism—Prism rotation home position adjustment
Enter offset mode, Select R-Prism, press the ENTER button to confirm, the present position will
blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the
ENTER button to store. Press the MENU button to exit.
Prism 2—Prism 2 home position adjustment
Enter offset mode, Select Prism 2, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button
to store. Press the MENU button to exit.
R-Prism 2—Prism 2 rotation home position adjustment
Enter offset mode, Select R-Prism 2, press the ENTER button to confirm, the present position will
blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the
ENTER button to store. Press the MENU button to exit.
Frost—Frost home position adjustment
Enter offset mode, Select Frost, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button
to store. Press the MENU button to exit.
19C
