ACME Stage Par 220MP-220 User manual

15-
Innovation, Quality, Performance
Stage Par 220
MP-220
UserManual
Pleasereadtheinstructionscarefullybeforeuse

1-
TABLE OF CONTENTS
1. Safety Instructions
2. Technical Specifications
3. How To Set The Fixture
4. How To Control The Fixture
5. DMX 512 Configuration
6. DMX 512 Connections
7. Troubleshooting
8. Fixture Cleaning
14-
7. Troubleshooting
Following are a few common problems that may occur during operation. Here are some
suggestions for easy troubleshooting:
A. The fixture does not work, no light
1. Check the connection of power and main fuse.
2. Measure the mains voltage on the main connector.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly.
2. If the DMX LED is on and no response to the channel, check the address settings and
DMX polarity.
3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB
of the fixture or the previous one.
4. Try to use another DMX controller.
5. Check if the DMX cables run near or run alongside to high voltage cables that may
cause damage or interference to DMX interface circuit.
1. Wrong DMX address in the fixture. Set the proper address.
D. No response to the sound
1. Make sure the fixture does not receive DMX signal.
2. Check microphone to see if it is good by tapping the microphone.
8. Fixture Cleaning
The cleaning of internal must be carried out periodically to optimize light output. Cleaning
frequency depends on the environment in which the fixture operates: damp, smoky or
particularly dirty surrounding can cause greater accumulation of dirt on the fixture’s optics.
yClean with soft cloth using normal glass cleaning fluid.
yAlways dry the parts carefully.
yClean the external optics at least every 20 days. Clean the internal optics at least every
30/60 days.

13-
6. DMX512 Connections
The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels.
1. Connect the fixture together in a “daisy chain” by XLR plug cable from the output of the
fixture to the input of the next fixture. The cable cannot be branched or split to a “Y”
cable. Inadequate or damaged cables, soldered joints or corroded connectors can
easily distort the signal and shut down the system
2. The DMX output and input connectors are pass-through to maintain the DMX circuit
when one of the units’ power is disconnected.
3. At last fixture, the DMX cable has to be terminated with a terminator to reduce signal
errors. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a
3-pin XLR-plug and plug it in the DMX-output of the last fixture.
4. Each lighting fixture needs to have an address set to receive the data sent by the
controller. The address number is between 0-511 (usually 0 & 1 are equal to 1).
5. 3 pin XLR connectors are more popular than 5 pins XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+),
Pin4/5: not used
2-
1.Safety Introductions
WARNING
yPlease keep this User Guide for future consultation. If you sell the unit to another user,
be sure that they also receive this instruction booklet.
yAll fixtures are intact from the manufacturer, please operate follow up the user manual,
artificial fault are not under guarantee repair.
yUnpack and check carefully that there is no transportation damage before using the
unit.
yThe unit is for indoor use only. Use only in a dry location.
yDo install and operate by operator.
yUse safety chain when fixes the unit. Don’t handle the unit by taking its head only, but
always by taking its base.
yThe unit must be installed in a location with adequate ventilation, at least 50cm from
adjacent surfaces.
yBe sure that no ventilation slots are blocked, otherwise the unit will be overheated.
yBefore operating, ensure that the voltage and frequency of power supply match the
power requirements of the unit.
yIt’s important to ground the yellow/green conductor to earth in order to avoid electric
shock.
yMaximum ambient temperature TA : 40 . Don’t operate it where the temperature is℃
higher than this.
yDon’t connect the device to any dimmer pack.
yFirst run, there will be smoke or smells, and all disappearing a few minutes later.
yMake sure there are no flammable materials close to the unit while operating, as it is
fire hazard.
yLook over power wires carefully, replace immediately if there is any damage.
yNever run on for a long time lest shortening lifespan.
yAvoid any inflammable liquids, water or metal objects entering the unit. Once it happen,
cut off the mains power immediately.
yDo not operate in dirty and dusty environment, also cleaning fixtures regularly.
Please read the instructions carefully which includes important
information about the installation, operation and maintenance.

3-
yDo not allow children to operate the fixture.
yDo not touch any wire during operation as there might be a hazard of electric shock.
yAvoid power wires together around other cables.
yDisconnect mains power before fuse/lamp replacement or servicing.
yReplace fuse only with the same type.
yIn the event of serious operating problem, stop using the unit immediately.
yNever turn on and off the unit time after time.
yThe housing, the lenses, or the ultraviolet filter must be replaced if they are visibly
damaged.
yDo not open the unit as there are no user serviceable parts inside.
yNever try to repair the unit by yourself. Repairs carried out by unskilled people can lead
to damage or malfunction. Please contact the nearest authorized technical assistance
center.
yDisconnect the mains power if the fixture is not used for a long time.
yDo use original packing materials once transport it again.
yDo not look directly at the LED light beam while the fixture is on.
yPossibly hazardous optical radiation emitted from this product.
Installation
The unit should be mounted via its screw holes on the bracket. Always ensure that the unit
is firmly fixed to avoid vibration and slipping while operating. Always ensure that the
structure to which you are attaching the unit is secure and is able to support a weight of 10
times of the unit’s weight. Also always use a safety cable that can hold 12 times of the
weight of the unit when installing the fixture.
The equipment must be fixed by professionals. And it must be fixed at a place where is out
of the touch of people and has no one pass by or under it.
12-
5. DMX512 Configuration
Mode 4&5；
Mode 7:

11-
4. How To Control The Unit
You can operate the unit in three ways:
1. By master/slave built-in preprogram function
2. By DMX controller
There is no need to turn the unit off when you change the DMX address, as new DMX
address setting will be effected at once. Every time you turn the unit on, it will show “ ”
on the display and move all the motors to their ‘home’ position. After that the unit will be
ready to receive DMX signal or run the built in programs.
4.1 Master/Slave Built In Preprogrammed Function
By linking the units in master/slave connection, the first unit will control the other units to
give an automatic, sound activated, synchronized light show. This function is good when you
want an instant show.
2-light show
In slave mode, Master means the unit runs as the master unit, Slave1 or Slave 2 means
2-light show. In order to create a great light show, you can set Slave1 or Slave 2 on the
second unit to get contrast movement to each other, even if you have two units only.
4.2 DMX Controller
Use universal DMX controller to control the units, you have to set DMX address from 1 to
512 channel so that the units can receive DMX signal.
Press the MENU button up to when is showing on the display. Pressing ENTER
button and the display will blink. Use DOWN and UP button to change the DMX512 address.
Once the address has been selected, press and keep ENTER button pressed up to when
the display stops blinking or storing automatically one minute later. To go back to the
functions without any change press the MENU button again. If you use please refer to the
following diagram to address your DMX512 channel for the first 4 units.
4 channels：
5 channels:
7 channels:
4-

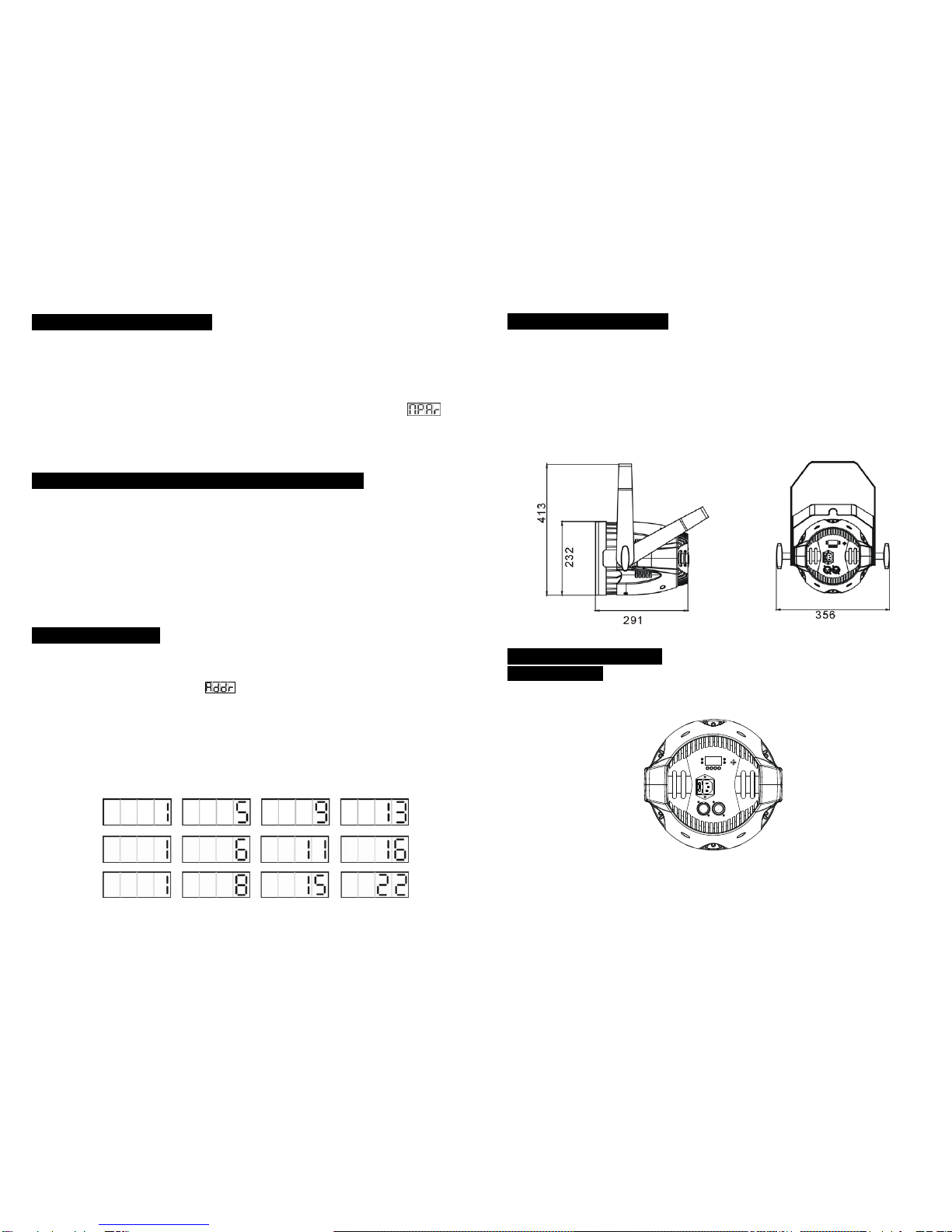

2. Technical Specifications
yVoltage:100-240V~ 50/60Hz
yLED: 10W RGBW LED x 22pcs
yFuse: T 6.3A
yPower consumption:283W
yDimension: 291 x 356 x 413 mm
yWeight: 7.8kg
3. How To Set The Fixture
3.1 Control Panel
○
1 Display:To show the various menus and the selected functions

5-
○
2 LED:
DMX On DMX input present
MASTER On Master Mode
SLAVE On Slave Mode
SOUND Flashing Sound activation
○
3 Button:
MENU To select the programming functions
DOWN To go backward in the selected functions
UP To go forward in the selected functions
ENTER To confirm the selected functions
○
4 Microphone: Receive music for the sound active.
○
5 DMX output: For DMX512 link, use 3/5-pin XLR plug cable to link the next unit.
○
6 DMX input: For DMX512 link, use 3/5-pin XLR plug cable to input DMX signal
○
7 Mains input: Connect to supply mains power for the next unit.
3.2 Main Function
To select any functions, press the MENU button until the required one is shown on the
display. Select the function pressing the ENTER button and the display will blink. Use the
DOWN and UP button to change the mode. Once the required mode has been selected,
press the ENTER button to setup or it will automatically return to the main functions without
any change after idling one minute. Back to the functions without any change press the
MENU button. The main functions are shown below:
10-
change press the MENU button.
Manual setting color
Press the MENU button up to when is shown on the display. Pressing the ENTER
button, and use the DOWN and UP buttons to select , or …or
(strobe), press the ENTER button to confirm and use the DOWN and UP buttons to adjust
the value between 0 and 255, once selected, press the ENTER button to setup or
automatically exit menu mode without any change after one minute. To go back to the last
function without any change press the MENU button.
Self-Test
Press the MENU button up to when the is blinking on the display. Pressing the
ENTER button and the unit will run the built-in programmer for self-test. To go back to the
functions press the MENU button.
Temperature Test
Press the MENU button up to when is blinking on the display. Pressing the ENTER
button and the display will show the temperature of the unit. To go back to the functions
press the MENU button again.
Fixture Hours
Press the MENU button up to when is blinking on the display. Pressing the ENTER
button and the display will show the number of working hours of the unit. To go back to the
functions press the MENU button.
Software version
Press the MENU button up to when is blinking on the display. Pressing the ENTER
button and the display will show the version of software of the unit. To go back to the
functions press the MENU button again.

9-
Sensitivity
Press the MENU button up to when is shown on the display. Pressing the ENTER
button and the display will blink. Use DOWN and UP buttons to adjust sensitivity of the
sound control from 0 to 100. Once selected, press the ENTER button to setup or
automatically exit menu mode without any change after one minute. Back to the previous
functions without any change press the MENU button.
Blackout mode
Press the MENU button up to when is shown on the display. Pressing the ENTER
button, Use the DOWN and UP buttons to select the (blackout) or
(normal). Once selected, press the ENTER button to setup or automatically exit menu mode
without any change after one minute. To go back to the functions without any change press
the MENU button
LED display
Press the MENU button up to when is shown on the display. Pressing the ENTER
button and the display will blink. Use the DOWN and UP buttons to select (display
always on) or (display off 20 seconds after exit menu) mode. Once selected, press
the ENTER button to setup or exit menu mode without any change after one minute. Back to
the functions without any change press the MENU button again.
Display Inverse
Press the MENU button until is blinking on the display. Use the DOWN and UP
buttons to select (display normal) or (display inverse), press the ENTER
button to setup. Back to the functions without any change press the MENU button.
White Balance
Press the MENU button up to when is shown on the display. Pressing the ENTER
button, and use DOWN and UP buttons to select , or , press the
ENTER button to confirm and use the DOWN and UP buttons to adjust the value between
125 and 255, once selected, press the ENTER button to setup or automatically exit menu
mode without any change after one minute. To go back to the last function without any
6-

7-
DMX 512 Address Setting
Press the MENU button up to when is shown on the display. Pressing the ENTER
button and the display will blink. Use the DOWN and UP buttons to change the DMX 512
address. Once the address has been selected, press the ENTER button to setup or
automatically exit menu mode without any change after one minute. Back to the previous
functions without any change press the MENU button.
Channel Mode
Press the MENU button up to when is shown on the display. Pressing the ENTER
button and the display will blink. Use the DOWN and UP buttons to select the (4
channels mode) or (5 channels mode) or (7 channels mode). Once the
mode has been selected, press the ENTER button to setup or automatically exit menu mode
without any change after one minute. To go back to the functions without any change press
the MENU button.
Slave Mode
Press the MENU button up to when is showing on the display. Pressing the ENTER
button and the display will blink. Use the DOWN and UP buttons to select the
(Master) (Slave 1) or (Slave 2) mode. Once the mode has been selected,
press the ENTER button to setup or automatically return to the main functions without any
change after one minute. To go back to the functions without any change press the MENU
button again.
Show Mode
Press the MENU button up to when is shown on the display. Pressing the ENTER
button, Use DOWN and UP buttons to select the (Random show) or (color)
or (fade), if you select the color or fade mode, press the ENTER button to confirm,
and use the DOWN and UP buttons to select color 1-10 or fade speed (speed 1: slow, speed
2: middle, speed 3: fast). Once selected, press the ENTER button to setup or automatically
exit menu mode without any change after one minute. To go back to the last function without
any change press the MENU button.
8-
Dimmer Mode
Press the MENU button up to when is showing on the display. Pressing the ENTER
button and the display will blink. Use the DOWN and UP buttons to select the
(Dimmer Mode 1: Optically Linear) or (Dimmer mode 2: Square Law) or
(Dimmer mode 3: Inverse Square Law) or (Dimmer mode 4: S-cure) mode. Once
the mode has been selected, press the ENTER button to setup or automatically return to the
main functions without any change after one minute. To go back to the functions without any
change press the MENU button again.
Optically Linear: The increase in light intensity appears to be linear as DMX value is
increased.
Square Law: Light intensity control is finer at low levels and coarser at high levels.
Inverse Square Law: Light intensity control is coarser at low levels and finger at high levels.
S-cure: Light intensity control is finger at low levels and high levels and coarser at medium
levels.
Sound
Press the MENU button up to when is shown on the display. Pressing the ENTER
button, Use the DOWN and UP buttons to select the (sound on) or (sound
off). Once selected, press the ENTER button to setup or automatically exit menu mode
without any change after one minute. To go back to the functions without any change press
the MENU button
