ACME LIGHT PANEL 1000 User manual

CONTENTS
1. Safety Introductions....................................................................................... 2
2. Technical Specifications ................................................................................. 4
3. How To Set The Unit....................................................................................... 6
3.1 Control Panel ........................................................................................... 6
3.2 The Plate for Barn Door Installation ......................................................... 7
3.3 Main Function.......................................................................................... 7
4. How To Control The Unit.............................................................................. 13
4.1 Primary/Secondary Function ................................................................. 13
4.2 DMX Controller ...................................................................................... 14
4.3 DMX512 Configuration........................................................................... 14
4.4 DMX512 Connections ............................................................................ 17
5. Troubleshooting........................................................................................... 18
6. Fixture Cleaning........................................................................................... 18
1E

1. Safety Introductions
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure
that they also receive this instruction manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The dealer
will not accept liability for any resulting defects or problems.
Unpack and check carefully to ensure that there is no transportation damage before using the
unit.
This product is for indoor use only. Use only in a dry location.
DO install and operate by qualified operator.
DO NOT allow children to operate the fixture.
Use safety chain when fixing the unit. Handle the unit by carrying its base instead of head
only.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces.
Be sure that no ventilation slots is blocked, otherwise the unit will be overheated.
Before operation, ensure that you are connecting this product to the proper voltage in
accordance with the specifications in this manual or on the product’s specification label.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
Minimum ambient temperature TA: 0℃. Maximum ambient temperature TA: 40℃.Do not
operate this product at a lower or higher temperature.
DO NOT connect the device to any dimmer pack.
Keep flammable materials away from the fixture while operating to avoid fire hazard.
Make sure the power cord is not crimped or damaged; replace it immediately if damaged.
Avoid any flammable liquids, water or metal from entering the unit. Once it happens, cut off
the mains power immediately.
Please read the instruction carefully which includes important information
about the installation, usage and maintenance.
2E

DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.
DO NOT touch any wire during operation as there might be a hazard of electric shock.
Avoid entanglement of the power cord with other wires.
Disconnect mains power before fuse replacement or servicing.
Replace fuse only with the same type.
In the event of serious operating problem, stop using the unit immediately.
Never turn on and off the unit time after time.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
DO NOT open the housing as there are no user serviceable parts inside.
DO NOT attempt to operate this unit if it becomes damaged. DO NOT attempt any repairs
yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please
contact the nearest authorized technical assistance center if needed.
Disconnect this product from its power source before servicing.
DO use the original packaging if the device is to be transported.
Avoid direct eye exposure to the light source while the product is on.
DO NOT operate this product if you see damage on the housing, shields, or cables. Have the
damaged parts replaced by an authorized technician at once.
Installation:
The fixture should be fixed on the clamp. Always ensure that the unit is firmly fixed to avoid
vibration and slipping off during operation. Ensure that the trussing or area of installation must be
able to hold 10 times the weight without any deformation. Always install a safety cable that can
hold at least 12 times the weight of the fixture when installing.
DO install and operate by qualified operator. It must be installed in a place where there is out of
the reach of people.
3E

2. Technical Specifications
Power Voltage:
AC 100~240V, 50/60Hz
Power Consumption:
100W
Light Source:
240 pcs 0.5W CW LED + 240 pcs 0.5W WW LED
Color Temperature:
3200±150K~5600±250K
Beam Angle:
110°
Optical:
CRI: VW≥94
CQS: VW≥94
TLCI: VW≥95
Control:
DMX Channel: 2/3A/3B/4/5/6 Channels
Control Mode: DMX512, RDM, Primary/Secondary, Art-Net
Firmware Upgrade: Update via DMX link
Construction:
Display: LCD display
Data In/Out: 5-pin XLR (3-pin XLR is optional)
Power In/Out: Power Connector in
Protection Rating: IP20
Features:
With outstanding floodlight and soft light, TV LIGHT PANEL 1000 are widely applied to
photographic studio, TV station, conference room, shopping mall; Access to buttery.
4E

Dimension/Weight:
673x144x306mm, 9.2kgs
26.5"x5.7"x12"in, 20.3lbs

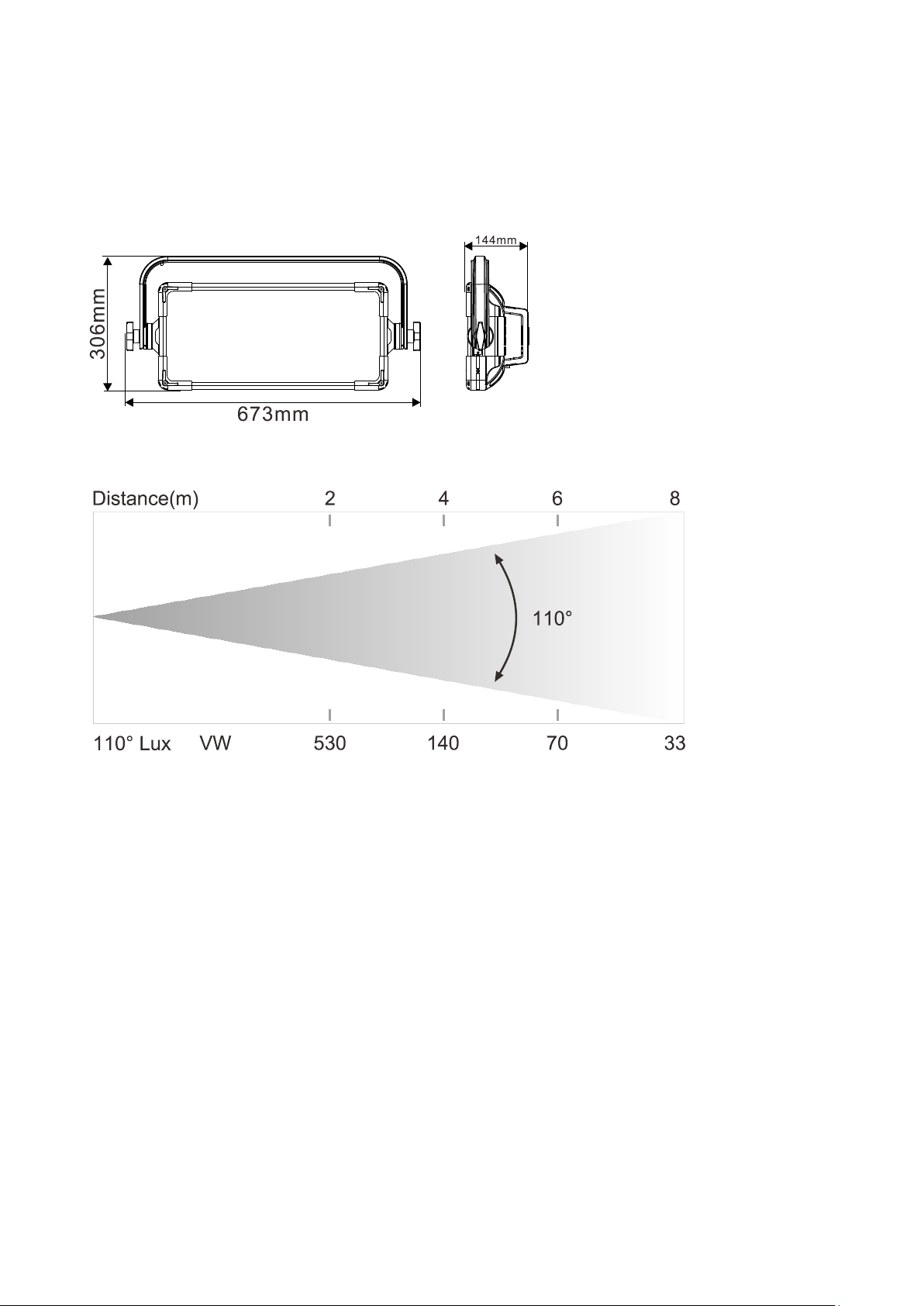

Photometric Diagram:
5E

3. How To Set The Unit
3.1 Control Panel
1
2345 6789
1. DISPLAY: Shows the various menus and the selected functions
2. Button:
MENU To select the programming functions
UP To go backward in the selected functions
DOWN To go forward in the selected functions
ENTER To confirm the selected functions
3. DIMMER: Adjust the dimmer
4. COLOR TEMPERATURE: Adjust the color temperature
5. MAINS IN: Connects to supply power
6. FUSE(T 2A): To protect the unit from damage of over current
7. BATTERY(DC 48V): Connects to external battery
8. DMX IN/OUT: For DMX512 link, use 5-pin XLR cable to link the unit to a DMX controller or the
next units to input/output DMX signal
9. ETHERNET: Transfers fixture’s information to a main controller
6E

3.2 The Plate for Barn Door Installation
At first, please push the barn door by hand.
Screw
Secondly, please put the Barn Door into the unit, to fasten the screws of the slot, then finish the
barn door installation.
3.3 Main Function
Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until
the required function is shown on the monitor. Select the function by pressing the ENTER button.
Use the UP/DOWN button to choose the submenu, press the ENTER button to store and
automatically return to the last menu. Press the MENU button or let the unit idle 30 seconds to
exit menu mode.
The main functions are shown below:
7E

8E

DMX Setting
Select the DMX Setting, press the ENTER button to confirm. Use the UP and DOWN button to
select DMX Address, Art-Net Setup or Channel Mode.
DMX Address
Select the DMX Address, press the ENTER button to confirm, the display will show the present
address. Use the UP and DOWN button to select 1to 512, press the ENTER button to store. Press
the MENU button back to the last menu or idling 30 seconds to exit menu mode.
Art-Net Setup
Select the Art-Net Setup, press the ENTER button to confirm. Use the UP and DOWN button to
select the EtherNet IP Setup or ArtNet Port Setup,press the ENTER button to store. Press the
MENU button back to the last menu or idling 30 seconds to exit menu mode.
Channel Mode
Select the Channel Mode, press the ENTER button to confirm, the display will show the present
channel mode. Use the UP and DOWN button to select 2 CH, 3A CH, 3B CH, 4 CH, 5 CH or 6 CH,
press the ENTER button to store. Press the MENU button back to the last menu or idling 30
seconds to exit menu mode.
Dimmer Speed
Select the Dimmer Speed, press the ENTER button to confirm, use the UP and DOWN button to
select the Smooth or Fast, press the ENTER button to store. Press the MENU button back to the
last menu or idling 30 seconds to exit menu mode.
Dimmer Curve Setting
Select Dimmer Curve Setting, press the ENTER button to confirm. Use the DOWN/UP button to
select the Linear Curve, Sq. Law Curve, Invert Sq. Law Curve or S Curve, press the ENTER button
to store. Press the MENU button back to the last menu or idling 30 seconds to exit menu mode.
9E

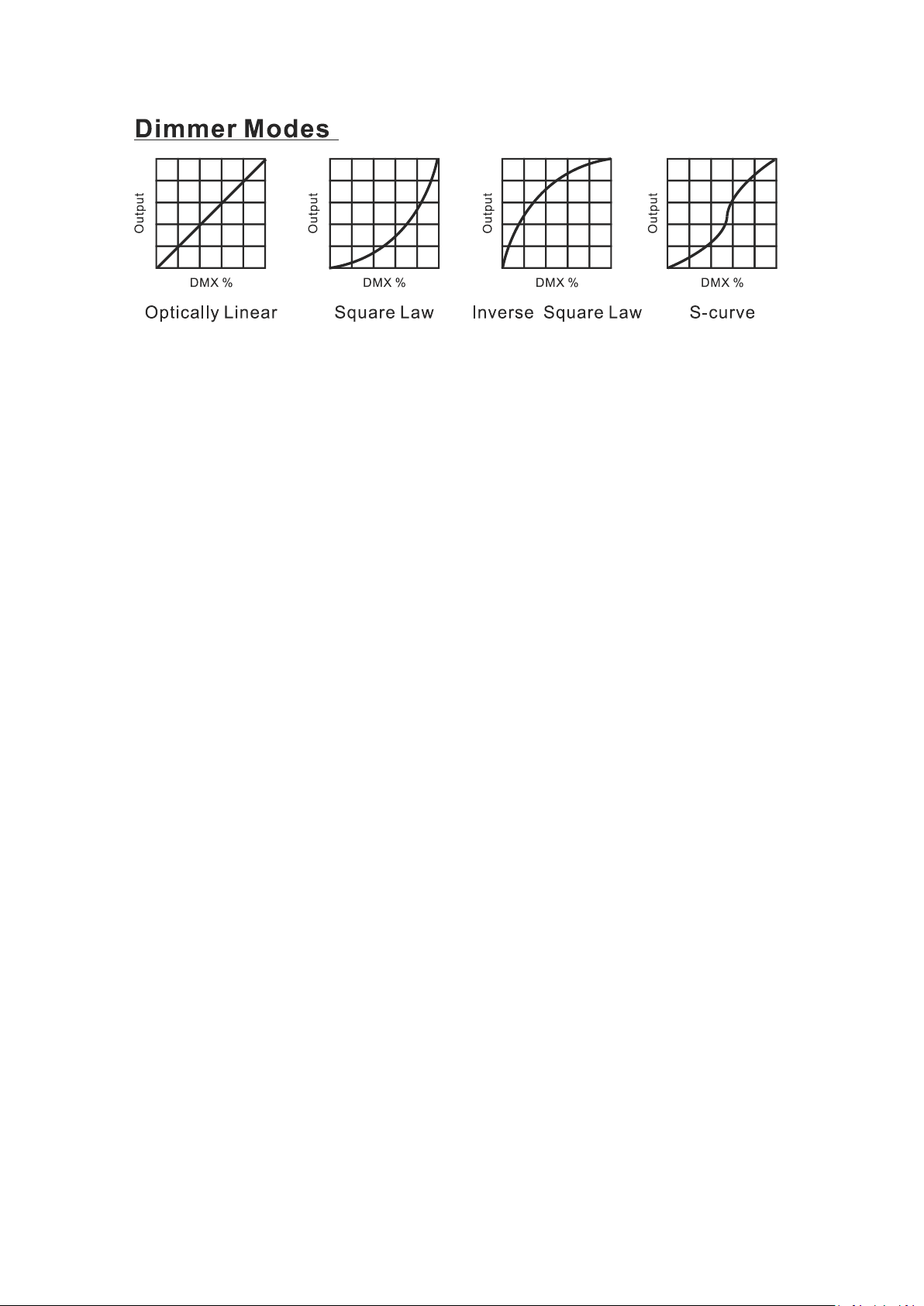

Optically Linear: The increase in light intensity appears to be linear as DMX value is increased.
Square Law: Light intensity control is finer at low levels and coarser at high levels.
Inverse Square Law: Light intensity control is coarser at low levels and finger at high levels.
S-Curve: Light intensity control is finger at low levels and high levels and coarser at medium levels.
Pri./Sec. Mode
Select the Pri./Sec. Mode, press the ENTER button to confirm, use the UP and DOWN button to
select the Primary or Secondary, press the ENTER button to store. Press the MENU button back to
the last menu or idling 30 seconds to exit menu mode.
DMX Last State
Select DMX Last State, press the ENTER button to confirm, the present mode will blink on the
display, use the UP and DOWN button to select Pri. Sec., Blackout or Hold,press the ENTER
button to store. Press the MENU button back to the last menu or idling 30 seconds to exit menu
mode.
Frequency
Select Frequency, press the ENTER button to confirm, the present mode will blink on the display,
use the UP and DOWN button to select 900hz, 1000hz, 1100hz, 1200hz, 1300hz, 1400hz, 1500hz,
2500hz, 4000hz, 5000hz, 10000hz, 15000hz, 20000hz or 25000hz,press the ENTER button to store.
Press the MENU button back to the last menu or idling 30 seconds to exit menu mode.
10E

White Balance
Select White Balance, press the ENTER button to confirm, the present mode will blink on the
display, use the UP and DOWN button to select Warm White or Cool White and adjust the value
from 50 to 100, press the ENTER button to store. Press the MENU button back to the last menu or
idling 30 seconds to exit menu mode.
Display Setting
Select Display Setting, press the ENTER button to confirm, use the UP and DOWN button to select
Contrast Ratio, Backlight Auto off, Invert Display or Language.
Contrast Ratio
Select Contrast Ratio, press the ENTER button to confirm, the present mode will blink on the
display, use the UP and DOWN button to adjust from 1 to 30,press the ENTER button to store.
Press the MENU button back to the last menu or idling 30 seconds to exit menu mode.
Backlight Auto Off
Select Backlight Auto Off, press the ENTER button to confirm, the present mode will blink on the
display, use the UP and DOWN button to select No or Yes,press the ENTER button to store. Press
the MENU button back to the last menu or idling 30 seconds to exit menu mode.
Invert Display
Select Invert Display, press the ENTER button to confirm, the present mode will blink on the
display, use the UP and DOWN button to select No or Yes,press the ENTER button to store. Press
the MENU button back to the last menu or idling 30 seconds to exit menu mode.
Language
Select Language, press the ENTER button to confirm, the present mode will blink on the display,
use the UP and DOWN button to select English or Chinese,press the ENTER button to store. Press
the MENU button back to the last menu or idling 30 seconds to exit menu mode.
11E

Manual Mode
Select Manual Mode, press the ENTER button to confirm, the present mode will blink on the
display, use the UP and DOWN button to select the Warm White or Cool White,press the ENTER
button and use the UP and DOWN button to adjust the value from 0to 255, press the ENTER
button to store. Press the MENU button back to the last menu or idling 30 seconds to exit menu
mode.
Fixture Information
Select Fixture Information, press the ENTER button to confirm, use the UP and DOWN button to
select Fixture Time or Firmware Version.
Fixture Time
Select Fixture Time, press the ENTER button and the display will show the number of working hours
of the unit. To go back to the functions press the MENU button again.
Firmware Version
Select Firmware Version, press the ENTER button and the display will show the version of
firmware of the unit. To go back to the functions press the MENU button again.
Factory Setting
Select Factory Setting, press the ENTER button to confirm, the present mode will blink on the
display, use the UP and DOWN button to select the No or Yes,the fixture will back to factory
setting once select Yes.
12E

RDM FUNCTIONS
Select the MANUFACTURER menu to display the manufacturer of the fixture.
Select the SOFTWARE VERSION menu and the program version number of the fixture will be
displayed.
Select the DMX START ADDRESS menu to change the DMX 512 address (001-512).
Select the DEVICE MODEL DESCRIPTION menu to display the model of the fixture.
Select the DEVICE LABEL menu to change the model of the fixture.
Select the DMX PERSONALITY menu to set the channel mode of the fixture (2/3 A /3 B /4/5/6 channel).
Select the DMX PERSONALITY DESCRIPTION menu to display the current channel mode of the
fixture.
Select the DEVICE HOURS menu to display the running time of the fixture.
Select the RESET DEVICE menu, the WARM RESET/COLD RESET option will be displayed. When
WARM RESET is selected, the fixture will start a warm reset, and exit when COLD RESET is selected.
4. How To Control The Unit
You can operate the unit in three ways:
1. By primary/secondary function
2. By DMX controller
3. By multimedia software via ArtNet
No need to turn the unit off when you change the DMX address, as new DMX address setting will
be affected at once.
4.1 Primary/Secondary Function
By linking the units in primary/secondary connection, the first unit will be primary automatically.
You should set the primary unit effect via its knobs, then the other units (secondary) will lighting
as the same.
13E

4.2 DMX Controller
If you use a universal DMX controller to control the units, you have to set DMX address from 1 to
512 so that the units can receive DMX signal.
Press the MENU button to enter menu mode, select DMX Setting, press the ENTER button to
confirm, use the UP/DOWN button to select DMX Address, press the ENTER button to confirm, the
present address will blink in the display. Use the UP/DOWN button to adjust the address from 1 to
512, press the ENTER button to store. Press the MENU button back to the last menu or let the unit
idle 30 seconds to exit menu mode.
Please refer to the following diagram to set the address for the first 4 units.
Channel mode Unit 1
Address
Unit 2
Address
Unit 3
Address
Unit 4
Address
2 channels 1 3 5 7
3A channels 1 4 7 10
3B channels 1 4 7 10
4 channels 1 5 913
5 channels 1 6 11 16
6 channels 1 7 13 19
4.3 DMX512 Configuration
Please control the fixture by referring to the configurations below
Attentions:
1. The unit will maintain the last condition until reset if you cut-off the DMX signal.
2. For the channel Function, keep the value for about 3 seconds, then the corresponding
function will take into effect.
2 Channel Mode:
CHANNEL VALUE FUNCTIONS
1
000-255
COLOR TEMPERATURE
5600K

3200K
2
000-255
DIMMER
0%

100%
14E

3A Channel Mode:
CHANNEL VALUE FUNCTIONS
1
000-255
WW DIMMER
0%

100%
2
000-255
CW DIMMER
0%

100%
3
000-255
DIMMER
0%

100%
3B Channel Mode:
CHANNEL VALUE FUNCTIONS
1
000-255
COLOR TEMPERATURE
5600K

3200K
2
000-255
DIMMER
0%

100%
3 000-255 DIMMER FINE
4 Channel Mode:
CHANNEL VALUE FUNCTIONS
1
000-255
WW DIMMER
0%

100%
2
000-255
CW DIMMER
0%

100%
3
000-255
DIMMER
0%

100%
4 000-255 DIMMER FINE
15E

5 Channel Mode:
CHANNEL VALUE FUNCTIONS
1
000-255
WW DIMMER
0%

100%
2
000-255
CW DIMMER
0%

100%
3
000-031
032-063
064-095
096-127
128-159
160-191
192-223
224-255
STROBE
Off
On
Strobe: Slow to Fast
On
Strobe Pulse: Fast to Slow
On
Random Strobe
On
4
000-255
DIMMER
0%

100%
5 000-255 DIMMER FINE
6 Channel Mode:
CHANNEL VALUE FUNCTIONS
1
000-255
WW DIMMER
0%

100%
2
000-255
CW DIMMER
0%

100%
3 000
001-255
COLOR TEMPERATURE
Off
5600K

3200K
4
000-031
032-063
064-095
096-127
128-159
160-191
192-223
224-255
STROBE
Off
On
Strobe: Slow to Fast
On
Strobe Pulse: Fast to Slow
On
Random Strobe
On
5 DIMMER
16E

000-255
0%

100%
6 000-255 DIMMER FINE
4.4 DMX512 Connections
1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W
resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the
DMX-output of the last unit.
2. Connect the unit together in a “daisy chain” by XLR plug cable from the output of the unit to
the input of the next unit. The cable cannot be branched or split to a “Y” cable. DMX 512 is a very
high-speed signal. Inadequate or damaged cables, soldered joints or corroded connectors can
easily distort the signal and shut down the system.
3. The DMX output and input connectors are pass-through to maintain the DMX circuit, when
one of the units’ power is disconnected.
4. Each lighting unit needs to have a DMX address to receive the data by the controller. The
address number is between 1-512.
5. The end of the DMX 512 system should be terminated to reduce signal errors.
6. 3 pin XLR connectors are more popular than 5 pins XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin4, Pin5 not
used.
17E

5. Troubleshooting
Following are a few common problems that may occur during operation. Here are some
suggestions for troubleshooting:
A. The unit does not work, no light and the fan does not work
1. Check the connected power.
2. Measure the voltage.
3. Check the power indicator to see whether it can be lit up or not.
B. Not responding to the DMX controller
1. Check whether the DMX connectors and the DMX cables are connected correctly.
2. Check whether the DMX address is correctly set.
3. If the intermittent DMX signal problem occurs, check whether the XLR socket and the signal
cable are well connected.
4. Try it with another DMX controller.
5. Check whether the DMX cables run near or alongside to the high-voltage cables, which may
damage or interfere with the signal circuit.
C. One of the channels is not working well
1. The stepper motor might be damaged or the cable connected to the PCB might be broken.
2. The motor’s drive IC on the PCB might be out of condition.
6. Fixture Cleaning
It is absolutely essential that the fixture is kept clean to ensure the maximum light-output and allow
the fixture to function reliably throughout its life. The fixture must be cleaned regularly to avoid dust,
dirt and smoke-fluid residues building up on or within the fixture. The cleaning frequency depends on
the application environment. Clean the fixture immediately if the dust enters it to avoid damage to
the optical lens due to excessive dust.
A soft lint-free cloth moistened with any good glass cleaning fluid is recommended, under no
circumstances should solvents be used.
Always dry the parts carefully.
Clean the external optical lens at least every 20 days.
18E

Innovation, Quality, Performance
