Acme Spider fc User manual



LED‐FB8FC



UserManual

Pleasereadtheinstructioncarefullybeforeuse



CONTENTS



1.SafetyInstructions....................................................................................................2

2.TechnicalSpecifications ............................................................................................3

3.HowToSetTheUnit .................................................................................................4

3.1RearPanel...........................................................................................................4

3.2MainFunction ....................................................................................................5

4.HowtoControltheUnit .........................................................................................10

4.1Master/SlaveBuiltInPreprogrammedFunction ..............................................11

4.2EasyController..................................................................................................11

4.3DMXController.................................................................................................11

5.DMX512Configuration ...........................................................................................12

6.DMXConnection ....................................................................................................16

7.Troubleshooting......................................................................................................17

8.FixtureCleaning......................................................................................................18





1.SafetyInstructions



WARNING

yPLEASEkeepthisUserManualforfutureconsultation.Ifyousellthefixturetoanotheruser,

makesurethattheyalsoreceivethisinstructionbooklet.

yPLEASEunpackandcheckcarefullythereisnotransportationdamagebeforeusingthefixture.

yIt’simportanttogroundtheyellow/greenconductortoearthinordertoavoidelectricshock.

yPLEASEdisconnectmainpowerbeforeservicingandmaintenance.

yMaximumambienttemperatureisTa:40℃.DONOToperateitwherethetemperatureis

higherthanthis.

yUnit’ssurfacetemperaturemayreachupto85℃.DONOTtouchthehousingbare‐handed

duringitsoperation.

yIntheeventofseriousoperatingproblem,stopusingthefixtureimmediately.Nevertryto

repairthefixturebyyourself.Repairscarriedoutbyunskilledpeoplecanleadtodamageor

malfunction.Pleasecontactthenearestauthorizedtechnicalassistancecenter.Alwaysusethe

sametypespareparts.

yDONOTconnectthedevicetoanydimmerpack.

yDONOTtouchanywireduringoperationandtheremightbeahazardofelectricshock.

yTopreventorreducetheriskofelectricalshockorfire,donotexposethefixturetorainor

moisture.

yThehousingmustbereplacediftheyarevisiblydamaged.

Warning

yTopreventorreducetheriskofelectricalshockorfire,donotexposetheunittorainor

moisture.

yDONOTopentheunitwithinfiveminutesafterswitchingoff.

yThehousing,thelenses,ortheultravioletfiltermustbereplacediftheyarevisiblydamaged.



Pleasereadtheinstructionscarefullywhichincludesimportant

informationabouttheinstallation,operationandmaintenance.

Caution:

Therearenouserserviceablepartsinsidetheunit.DONOTopenthehousingorattemptany

repairsyourself.Intheunlikelyeventyourunitmayrequireservice,pleasecontactyournearest

dealer.



Installation:

Theunitshouldbemountedviaitsscrewholesonthebracket.Alwaysensurethattheunitis

firmlyfixedtoavoidvibrationandslippingwhileoperating.Andmakesurethatthestructureto

whichyouareattachingtheunitissecureandisabletosupportaweightof10timesoftheunit’s

weight.Alsoalwaysuseasafetycablethatcanhold12timesoftheweightoftheunitwhen

installingthefixture.

Theequipmentmustbefixedbyprofessionals.Anditmustbefixedataplacewhereisoutofthe

touchofpeopleandhasnoonepassbyorunderit.



2.TechnicalSpecifications

ySpider,aninnovative,versatilepixelmulti‐beameffects,deliveringoutstanding,sharpand

long‐throwbeams

yFeaturing2movableLEDbars,eachwith4pixelcontrolled8WLEDsforthebestlighting

performanceyoucaneverexcept

y3OperationModes:DMX,Mater/Slavemode,SoundActivation.

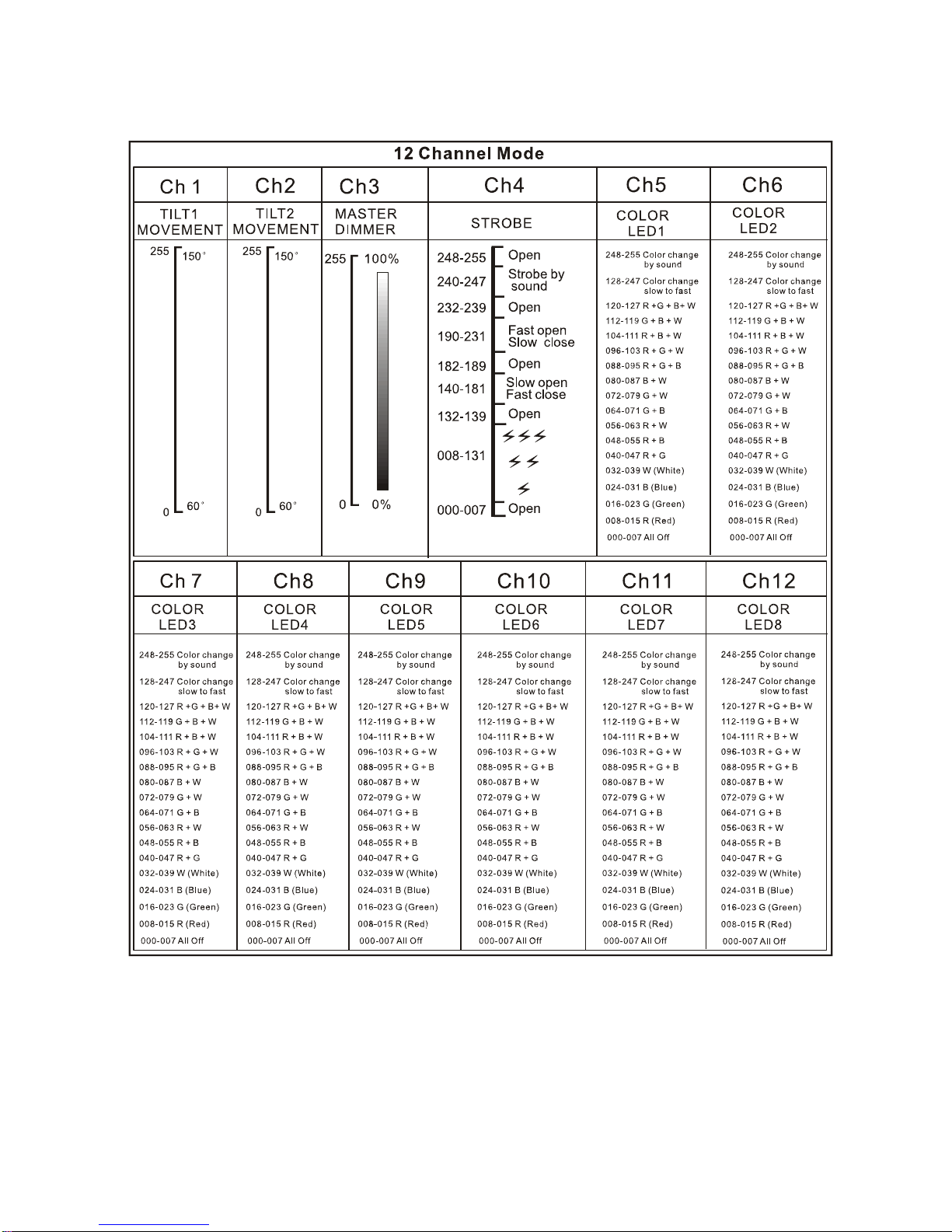

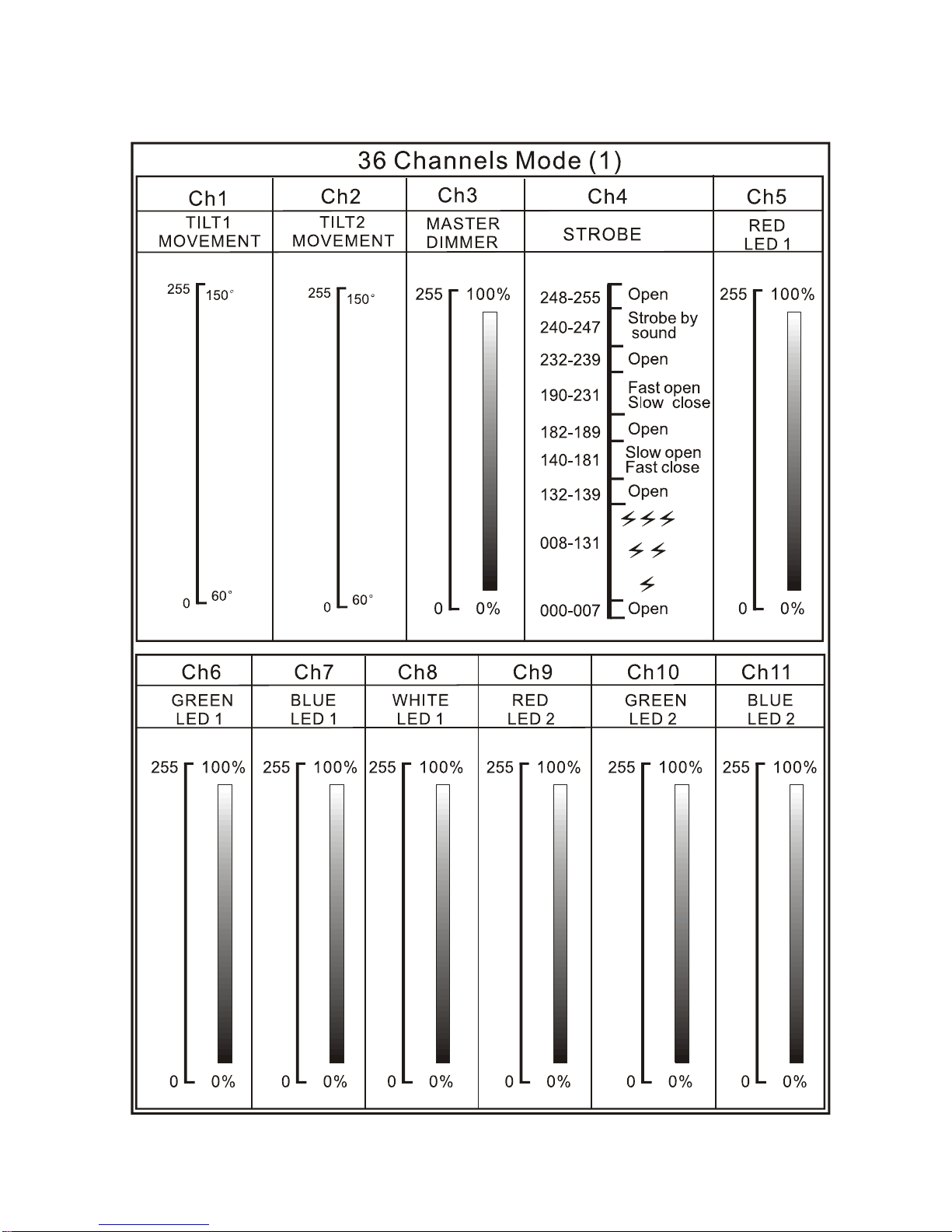

yDMXChannelmodes:1,6,12and36channels

yOptionaleasycontrollerCA‐8forinstantlightingshow.

yGreatbuilt‐inprogramsundermaster/slaveoperationtriggeredbymusic.

yElectronicdimmingandvariousstrobeeffects.

yIdealforpubs,clubs,bars,parties,MobileDJsandmore.



For230V50Hzpowersupply,maximumfixturesthatcanbeconnectedtogetherfromthesame

mainsoutletis10;

For120V60Hzpowersupply,maximumfixturesthatcanbeconnectedtogetherfromthesame

mainsoutletis6;

yPowerVoltage:AC100~240V,50/60Hz

yPowerConsumption:66.5W

yLEDSources:8x8WQuad‐color(4in1)LEDs

yWeight:5.5kgs

yDimension:395x234x180mm



3.HowToSetTheUnit

3.1RearPanel



1.POWERIN:Usedtoconnecttosupplypower;

2.POWEROUT:Usedtoconnecttosupplypowertothenextunit;

3.Fuse(T3.15A):Usedtoprotecttheunitfromthedamageoftheover‐current;

4.DMXIN/OUT:ForDMX512links,use3‐pinXLRplugcabletolinktheunittogether;

5.Onlyforremotecontrol:UsedtoconnecttotheCA‐8tocontroltheunitforStandby,

FunctionandModefunction;

6.Microphone:Usedtoreceivemusicforthesoundactivation;

7.LED:

DMXOnDMXinputpresent

MASTEROnMasterMode

SLAVEOnSlaveMode

SOUNDFlashingSoundactivation

8.Button:

MENUToselecttheprogrammingfunctions

DOWNTogobackwardintheselectedfunctions

UPTogoforwardintheselectedfunctions

ENTERToconfirmtheselectedfunctions

9.FunctionDisplay:Usedtoshowthevariousmenusandtheselectedfunctions.



3.2MainFunction

Toselectanyfunctions,presstheMENUbuttonuntiltherequiredfunctionisshowingonthe

display.SelectthefunctionbypressingtheENTERbuttonandthedisplaywillblink.Usethe

DOWNandUPbuttontochangethemode.Oncetherequiredmodehasbeenselected,pressthe

ENTERbuttontosetuptogobacktothefunctionswithoutanychangespresstheMENUbutton

again.HoldandpresstheMENUbuttonforonesecondorwaitforoneminutetoexitthemenu

mode.

Themainfunctionsareshownbelow:



DMX512ADDRESS

Toselectthe,presstheENTERbuttontoshowtheDMXADDRESSonthedisplay.Usethe

DOWN/UPbuttontoadjusttheaddressfrom1to512.Oncetheaddresshasbeenselected,press

theENTERbuttontosetup,togobacktothefunctionswithoutanychangespresstheMENU

buttonagain.HoldandpresstheMENUbuttonforonesecondorwaitforoneminutetoexitthe

menumode.



CHANNELMODE

Toselectthe,presstheENTERbuttontoshowtheDMXCHANNELMODEonthedisplay.

UsetheDOWN/UPbuttontoselectthe1,6,12,36channelmodes.Oncethemodehasbeen

selected,presstheENTERbuttontosetup,togobacktothefunctionswithoutanychangespress

theMENUbuttonagain.HoldandpresstheMENUbuttonforonesecondorwaitforoneminute

toexitthemenumode.



SLAVEMODE

Toselectthe,presstheENTERbuttontoshowtheSLAVEMODEonthedisplay.Usethe

DOWN/UPbuttontoselectthe  (MASTER),  (SLAVE1),  (SLAVE2)modes.

Oncethemodehasbeenselected,presstheENTERbuttontosetup,togobacktothefunctions

withoutanychangespresstheMENUbuttonagain.HoldandpresstheMENUbuttonforone

secondorwaitforoneminutetoexitthemenumode.



SHOWMODE

Toselectthe,presstheENTERbuttontoshowtheSHOWMODEonthedisplay.Usethe

DOWN/UPbuttontoselectthe  (Randomshow),  (Show1)or…or(Show

12)mode.Oncethemodehasbeenselected,presstheENTERbuttontosetup,togobacktothe

functionswithoutanychangespresstheMENUbuttonagain.HoldandpresstheMENUbuttonfor

onesecondorwaitforoneminutetoexitthemenumode.



SOUNDMODE

Toselectthe,presstheENTERbuttontoshowtheSOUNDMODEonthedisplay.Usethe

DOWN/UPbuttontoselectthe  (soundon)or  (soundoff)mode.Oncethemode

hasbeenselected,presstheENTERbuttontosetup,togobacktothefunctionswithoutany

changespresstheMENUbuttonagain.HoldandpresstheMENUbuttonforonesecondorwait

foroneminutetoexitthemenumode.



BLACKOUTMODE

Toselectthe,presstheENTERbuttontoshowtheBALCKOUTMODEonthedisplay.Use

theDOWN/UPbuttontoselectthe(blackout)or  (normal)mode.Oncethe

modehasbeenselected,presstheENTERbuttontosetup,togobacktothefunctionswithoutany

changespresstheMENUbuttonagain.HoldandpresstheMENUbuttonforonesecondorwait

foroneminutetoexitthemenumode.



LEDDISPLAY

Toselectthe,presstheENTERbuttontoshowtheLEDDISPLAYonthedisplay.Usethe

DOWN/UPbuttontoselectthe  (LEDon)or(LEDoff)mode.Oncethemodehas

beenselected,presstheENTERbuttontosetup,togobacktothefunctionswithoutanychanges

presstheMENUbuttonagain.HoldandpresstheMENUbuttonforonesecondorwaitforone

minutetoexitthemenumode.



DISPLAYINVERSE

Toselectthe,presstheENTERbuttontoshowtheDISPLAYonthedisplay.Usethe

DOWN/UPbuttontoselectthe  (normal)or  (inversion),pressENTERbuttonto

setup.BacktothefunctionswithoutanychangepressMENUbutton.



TILT1INVERSE

Toselectthe,presstheENTERbuttontoshowtheTILT1INVERSEonthedisplay.Usethe

DOWN/UPbuttontoselectthe  (tilt1inversion)or  (normal)mode.Oncethe

modehasbeenselected,presstheENTERbuttontosetup,togobacktothefunctionswithoutany

changespresstheMENUbuttonagain.HoldandpresstheMENUbuttonforonesecondorwait

foroneminutetoexitthemenumode.



TILT2INVERSE

Toselectthe,presstheENTERbuttontoshowtheTILT2INVERSEonthedisplay.Usethe

DOWN/UPbuttontoselectthe  (tilt2inversion)or  (normal)mode.Oncethe

modehasbeenselected,presstheENTERbuttontosetup,togobacktothefunctionswithoutany

changespresstheMENUbuttonagain.HoldandpresstheMENUbuttonforonesecondorwait

foroneminutetoexitthemenumode.



REVMODE

Toselectthe,presstheENTERbuttontoshowtheREVonthedisplay.UsetheDOWN/UP

buttontoselectthe  (theprojectorlenseswilllightuprighttoleft)or  (normal,

theprojectorlenseswilllightuprighttoleft)mode.Oncethemodehasbeenselected,pressthe

ENTERbuttontosetup,togobacktothefunctionswithoutanychangespresstheMENUbutton

again.HoldandpresstheMENUbuttonforonesecondorwaitforoneminutetoexitthemenu

mode.



AUTOTEST

Toselectthe,presstheENTERbuttontoshowtheTESTonthedisplayandtheunitwillrun

aself‐test.TogobacktothefunctionswithoutanychangespresstheMENUbuttonagain.Hold

andpresstheMENUbuttonforonesecondorwaitforoneminutetoexitthemenumode.



TEMPERATURE

Toselectthe,presstheENTERbuttontoshowtheTEMPERATUREonthedisplayandthe

displaywillshowthetemperatureoftheunit.Togobacktothefunctionswithoutanychanges

10A

presstheMENUbuttonagain.HoldandpresstheMENUbuttonforonesecondorwaitforone

minutetoexitthemenumode.



FIXTUREUSEHOURS

Toselectthe,presstheENTERbuttontoshowtheFIXTUREUSEHOURSonthedisplayand

thedisplaywillshowthenumberofworkinghoursoftheunit.Togobacktothefunctions

withoutanychangespresstheMENUbuttonagain.HoldandpresstheMENUbuttonforone

secondorwaitforoneminutetoexitthemenumode.



SOFTWAREVERSION

Toselectthe,presstheENTERbuttontoshowtheSOFTWAREVERSIONonthedisplayand

thedisplaywillshowtheversionofsoftwareoftheunit.Togobacktothefunctionswithoutany

changespresstheMENUbuttonagain.HoldandpresstheMENUbuttonforonesecondorwait

foroneminutetoexitthemenumode.



RESET

Toselectthe,presstheENTERbuttontoshowtheRESETonthedisplay.PresstheENTER

buttonandallchannelsoftheunitwillreturntotheirstandardposition.



4.HowtoControltheUnit

Youcanoperatetheunitinthreeways:

1.Bymaster/slavebuilt‐inpreprogramfunction

2.Byeasycontroller

3.ByDMXcontroller

NoneedtoturntheunitoffwhenyouchangetheDMXaddress,asnewDMXaddresssettingwill

beaffectedatonce.Eachtimeyouturntheuniton,itwillshow“ ”onthedisplay.After

thattheunitwillbereadytoreceiveDMXsignalorrunthebuiltinprograms.



11A

4.1Master/SlaveBuiltInPreprogrammedFunction

Bylinkingtheunitsinmaster/slaveconnection,thefirstunitwillcontroltheotherunitstogivean

automatic,soundactivated,synchronizedlightshow.Thisfunctionisgoodwhenyouwantan

instantshow.Youhavetosetthefirstunitinmastermode  andselect(random

show),  (show1)or…or  (show12).ItsDMXinputjackwillhavenothingplugged

intoit,anditsmasterLEDwillbeconstantlyonandsoundLEDwillflashtothemusic.Theother

unitswillhavetoselect  (normal)or  (2lightshow)mode,TheirDMXcablesplugged

intotheDMXinputjacks(daisychain)andtheslaveLEDlightswillbeconstantlyon.



2‐lightshow

Inslavemode,  meanstheunitworksasthemasterunitand  means2‐lightshow.

Inordertocreateagreatlightshow,youcanset  onthesecondunittogetcontrast

movementtoeachother,evenifyouhavetwounitsonly.



4.2EasyController

Theeasyremotecontrolisusedonlyinmaster/slavemode.Byconnectingtothe

1/4 ” microphonejackofthefirstunit,youwillfindthattheremotecontrolleronthe

firstunitwillcontrolalltheotherunitsforStandby,FunctionandModeselection.

.



4.3DMXController

UsingauniversalDMXcontrollertocontroltheunits,youhavetosetDMXaddressfrom1to512

channelsothattheunitscanreceiveDMXsignal.

PresstheMENUbuttonuptowhenthe  isshowingonthedisplay.PressENTERbuttonand

BlackoutBlackouttheunit

Function1.SoundStrobe(FullOn)

2.AutoStrobe(FullOn)

SelectShow

Show1‐12

ModeRandomShow

(LEDOFF)

Show

(LEDON)

12A

thedisplaywillblink.UseDOWNandUPbuttontochangetheDMX512address.Oncetheaddress

hasbeenselected,pressandkeepENTERbuttonpresseduptowhenthedisplaystopsblinkingor

storingautomatically7secondslater.Togobacktothefunctionswithoutanychangepressthe

MENUbuttonagain.



PleaserefertothefollowingdiagramtoaddressyourDMX512channelforthefirst4units.



5.DMX512Configuration

1/6 ChannelsMode:



13A

12ChannelsMode:



14A

36ChannelsMode:



15A



16A

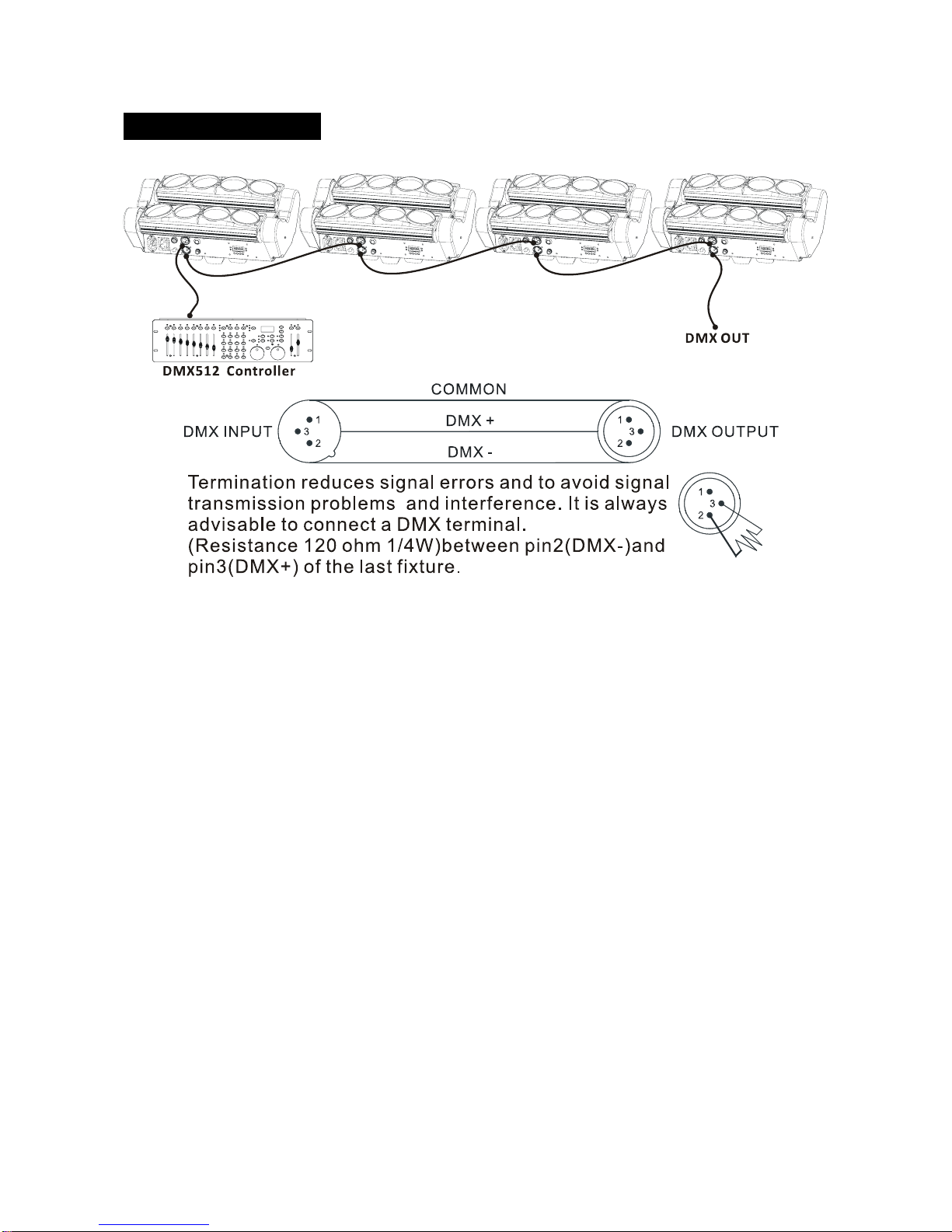

6.DMXConnection



1. Connectthefixturetogetherina“daisychain”byXLRplugcablefromtheoutputofthefixture

totheinputofthenextfixture.Thecablecannotbebranchedorsplittoa“Y”cable.

Inadequateordamagedcables,solderedjointsorcorrodedconnectorscaneasilydistortthe

signalandshutdownthesystem

2. TheDMXoutputandinputconnectorsarepass‐throughtomaintaintheDMXcircuitwhenone

oftheunits’powerisdisconnected.

3. Atlastfixture,theDMXcablehastobeterminatedwithaterminatortoreducesignalerrors.

Soldera120‐ohm1/4 W resistorbetweenpin2(DMX‐)andpin3(DMX+)intoa3‐pinXLR‐plug

andplugitintheDMX‐outputofthelastfixture.

4. Eachlightingfixtureneedstohaveanaddresssettoreceivethedatasentbythecontroller.

Theaddressnumberisbetween0‐511(usually0&1areequalto1).

5. 3pinXLRconnectorsaremorepopularthan5pinsXLR.

3pinXLR:Pin1:GND,Pin2:Negativesignal(‐),Pin3:Positivesignal(+)



17A

7.Troubleshooting



Followingareafewcommonproblemsthatmayoccurduringoperation.Herearesome

suggestionsforeasytroubleshooting:

A. Thefixturedoesnotwork,nolight

1. Checktheconnectionofpowerandmainfuse.

2. Measurethemainsvoltageonthemainconnector.

B.NotrespondingtoDMXcontroller

1. DMXLEDshouldbeon.Ifnot,checkDMXconnectors,cablestoseeiflinkproperly.

2. IftheDMXLEDisonandnoresponsetothechannel,checktheaddresssettingsandDMX

polarity.

3. IfyouhaveintermittentDMXsignalproblems,checkthepinsonconnectorsoronPCBofthe

fixtureorthepreviousone.

4. TrytouseanotherDMXcontroller.

5. CheckiftheDMXcablesrunnearorrunalongsidetohighvoltagecablesthatmaycause

damageorinterferencetoDMXinterfacecircuit.

C.Somefixturesdon’trespondtotheeasycontroller

1. YoumayhaveabreakintheDMXcabling.

2. ChecktheLEDfortheresponseofthemaster/slavemodesignal.

D.Noresponsetothesound

1. MakesurethefixturedoesnotreceiveDMXsignal.

2. Checkmicrophonetoseeifitisgoodbytappingthemicrophone.

E.Oneofthechannelsisnotworkingwell

1. ThesteppermotormightbedamagedorthecableconnectedtothePCBisbroken.

2. Themotor’sdriveIConthePCBmightbeoutofcondition.



18A

8.FixtureCleaning

Thecleaningmustbecarriedoutperiodicallytooptimizelightoutput.Cleaningfrequency

dependsontheenvironmentinwhichthefixtureoperates:moist,smokyorparticularlydirty

surroundingcancausegreateraccumulationofdirtonthefixture.

yCleanwithsoftclothusingnormalglasscleaningfluid.

yAlwaysdrythepartscarefully.

yCleantheexternalopticsatleastevery30days.



DeclarationofConformity



Wedeclarethatourproducts(lightingequipments)complywiththefollowing

specificationandbearsCEmarkinaccordancewiththeprovisionofthe

ElectromagneticCompatibility(EMC)Directive89/336/EEC.



EN55103‐1:2009;EN55103‐2:2009;EN62471:2008;

EN61000‐3‐2:2006+A1:2009+A2:2009;EN61000‐3‐3:2008.



&

HarmonizedStandard



EN60598‐1:2008+All:2009;EN60598‐2‐17:1989+A2:1991;EN62471:2008;EN

62493:2010

Safetyofhouseholdandsimilarelectricalappliances

Part1:Generalrequirements



Innovation,Quality,Performance

Table of contents

Other ACME Lighting Equipment manuals

Popular Lighting Equipment manuals by other brands

German Light Product

German Light Product Streamer user manual

Pilz

Pilz PSEN opII3H Series manual

Tranberg

Tranberg TEF 9980 user manual

Karma

Karma PAR117 instruction manual

Silvair

Silvair MESH-HBWD IP66 Series quick start guide

RAB

RAB SMSLES2X13 installation manual

Microh

Microh Ultra Sport 1200 user manual

Inspire

Inspire 3120-2C instruction manual

Lightmaxx

Lightmaxx Led Nano PAR user manual

Dometic

Dometic Midi Heki FL Installation and operating manual

American DJ

American DJ ColorPod 250 User instruction

Commercial Electric

Commercial Electric 56701111 Use and care guide

NOMA

NOMA Canvas CTI1513936 instruction manual

Chauvet

Chauvet COLORstrip Mini FX user manual

Rollei

Rollei Lumen Studio 150 manual

American DJ

American DJ Nitro User instructions

Beurer

Beurer TL 55 Instructions for use

Quoizel

Quoizel LWD8405MBK installation guide

ACME Spider FC User manual

Popular Lighting Equipment manuals by other brands
