ACME ENERGY SPOT XA-400 SPOT User manual

User Manual
Please read the instruc on carefully before use
XA-400 SPOT

CONTENTS
1. Safety Instructions..........................................................................................2
2. Technical Specifications..................................................................................3
3. How To Set The Unit.......................................................................................5
3.1 Control panel............................................................................................5
3.2 Main Function ..........................................................................................6
3.3 Home Position Adjustment.....................................................................11
4. Control By Universal DMX Controller ...........................................................14

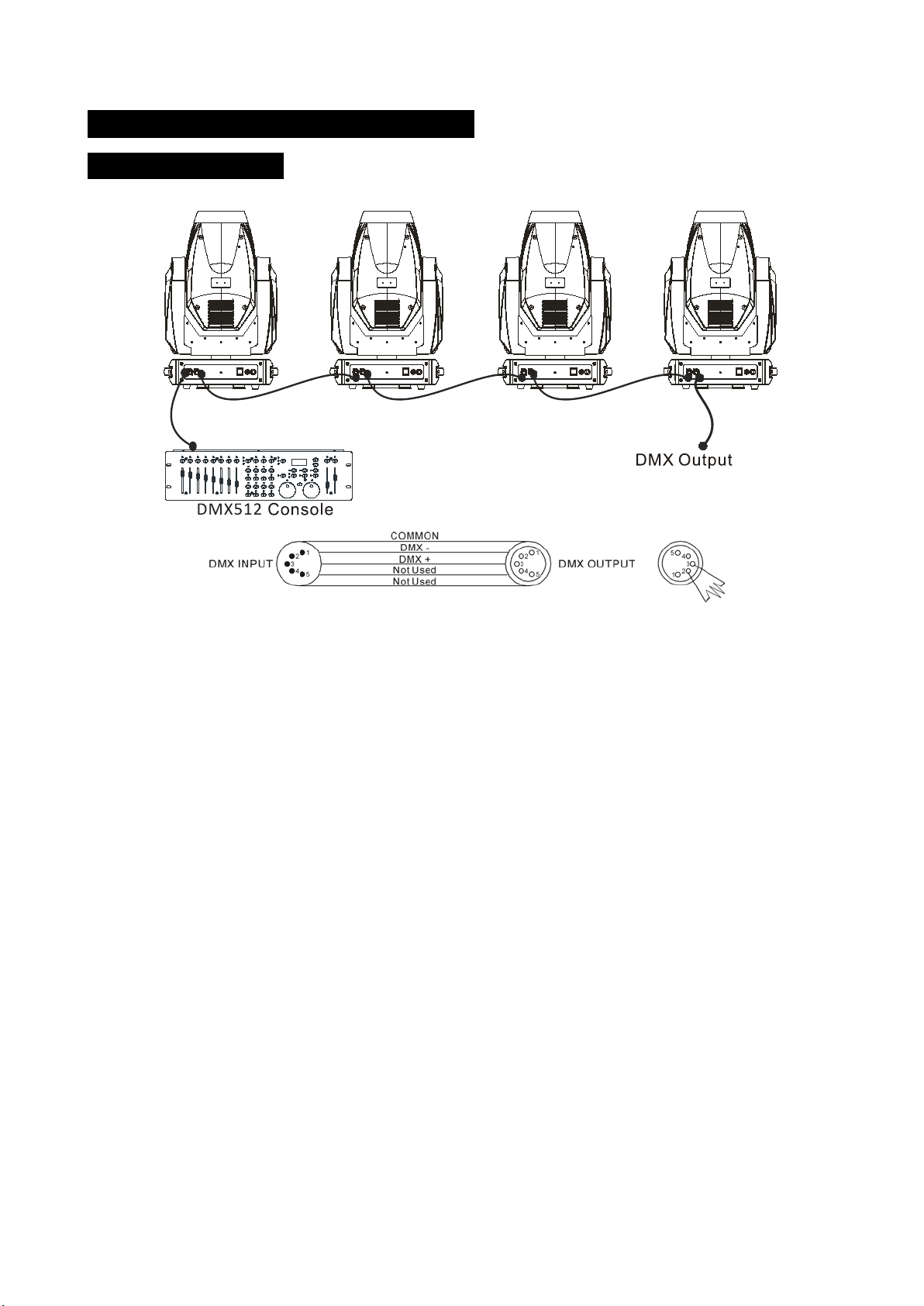

4.1 DMX Connection ....................................................................................14
4.2 Address Setting.......................................................................................15
4.3 DMX 512 Configuration..........................................................................15
5. Troubleshooting ...........................................................................................22
6. Fixture Cleaning ...........................................................................................23
1D

1. Safety Instructions
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure
that they also receive this instruction booklet.
Unpack and check carefully there is no transportation damage before using the unit.
Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
The unit is for indoor use only. Use only in a dry location.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces. Be sure that no ventilation slots are blocked.
Disconnect main power before replacement or servicing.
Make sure there are no flammable materials close to the unit while operating as it is fire hazard.
Use safety cable when fixes this unit. DO NOT handle the unit by taking its head only, but always
by taking its base.
Maximum ambient temperature is Ta: 40℃. DO NOT operate it where the temperature is higher
than this.
Unit surface temperature may reach up to 75℃. DO NOT touch the housing bare-hand during its
operation. Turn off the power and allow about 15 minutes for the unit to cool down before
replacing or serving.
In the event of serious operating problem, stop using the unit immediately. Never try to repair
the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction.
Please contact the nearest authorized technical assistance center. Always use the same type
spare parts.
DO NOT touch any wire during operation as high voltage might be causing electric shock.
Please read carefully the instruction, which includes important information
about the installation, usage and maintenance.
2D

Warning:
To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or
moisture.
DO NOT open the unit within five minutes after switching off.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
Caution:
There are no user serviceable parts inside the unit. DO NOT open the housing or attempt any
repairs yourself. In the unlikely event your unit may require service, please contact your nearest
dealer.
Installation:
The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is
firmly fixed to avoid vibration and slipping while operating. And make sure that the structure to
which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s
weight. Also always use a safety cable that can hold 12 times of the weight of the unit when
installing the fixture.
The equipment must be fixed by professionals. And it must be fixed at a place where is out of the
touch of people and has no one pass by or under it.
2. Technical Specifications
Power Voltage:
AC 100~240V, 50/60Hz
Power Consumption:
400W
Light Source:
300W LED
Color Temperature:
8000K
Zoom Angle:
7°~31°
Movement:
Pan: 540°
Tilt: 260°
Pan/Tilt Resolution: 16 bit
3D

Color Wheel:
2 color wheels, both of them have 7 colors plus open
Gobo Wheel:
1 static gobo wheel with 10 gobos plus open
1 rotating gobo wheel with 7 gobos plus open, easy to replace
Prism:
8 facet prism, rotating in both directions
Construction:
Display: LCD display
Data In/Out: 5-pin XLR
Power In/Out: Wire; PowerCon in
Protection Rating: IP20
Control:
DMX Channel: 19/22 channels
Control Mode: DMX512, RDM
Firmware Upgrade: Update via DMX link
Features:
Motorized linear zoom system with wash effect
1 linear iris
Various strobe speeds

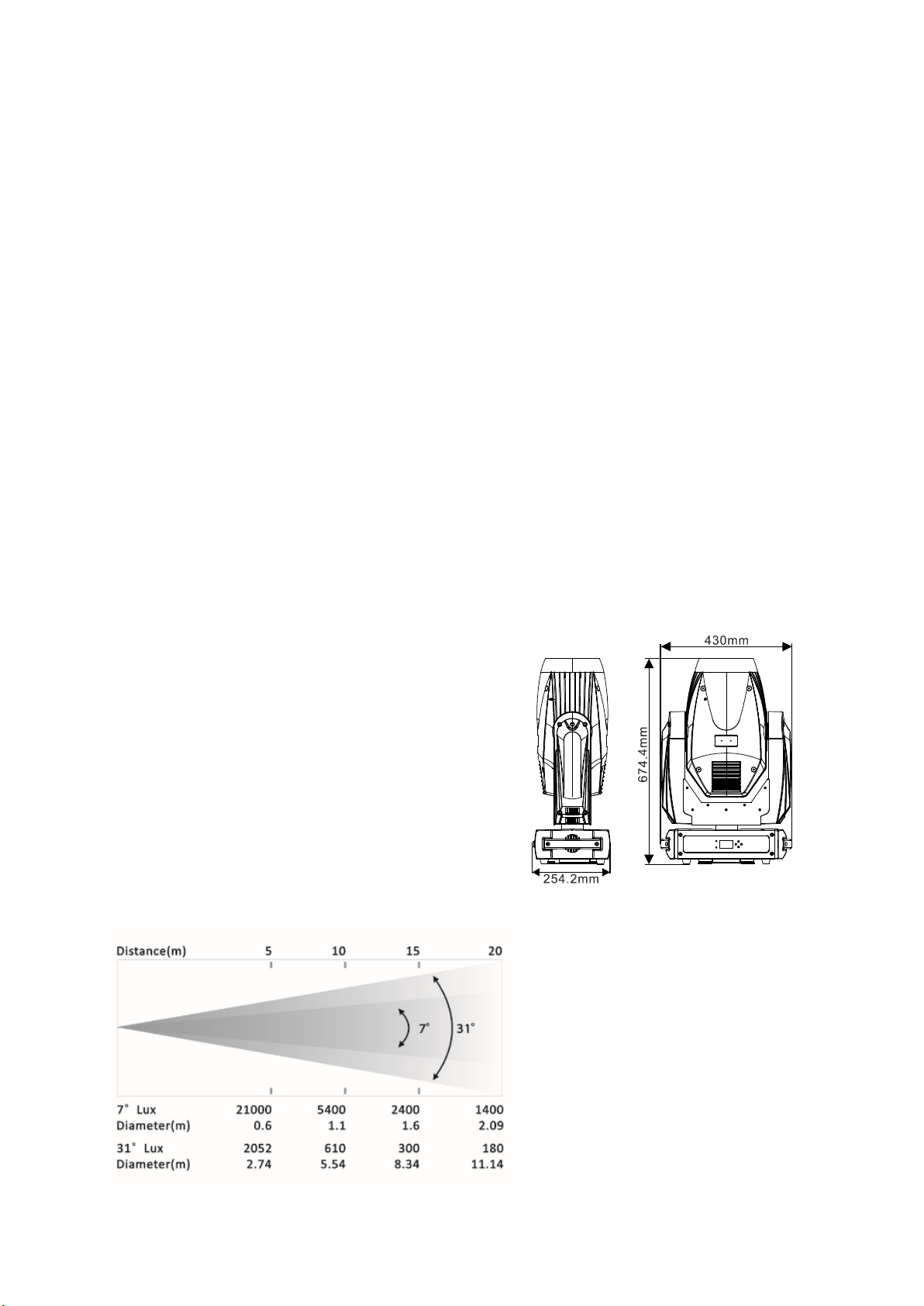

Dimensions/Weight:
430x254x674mm, 22.7kgs
16.9"x10"x26.5"in, 50lbs
Photometric Diagram:
4D

3. How To Set The Unit

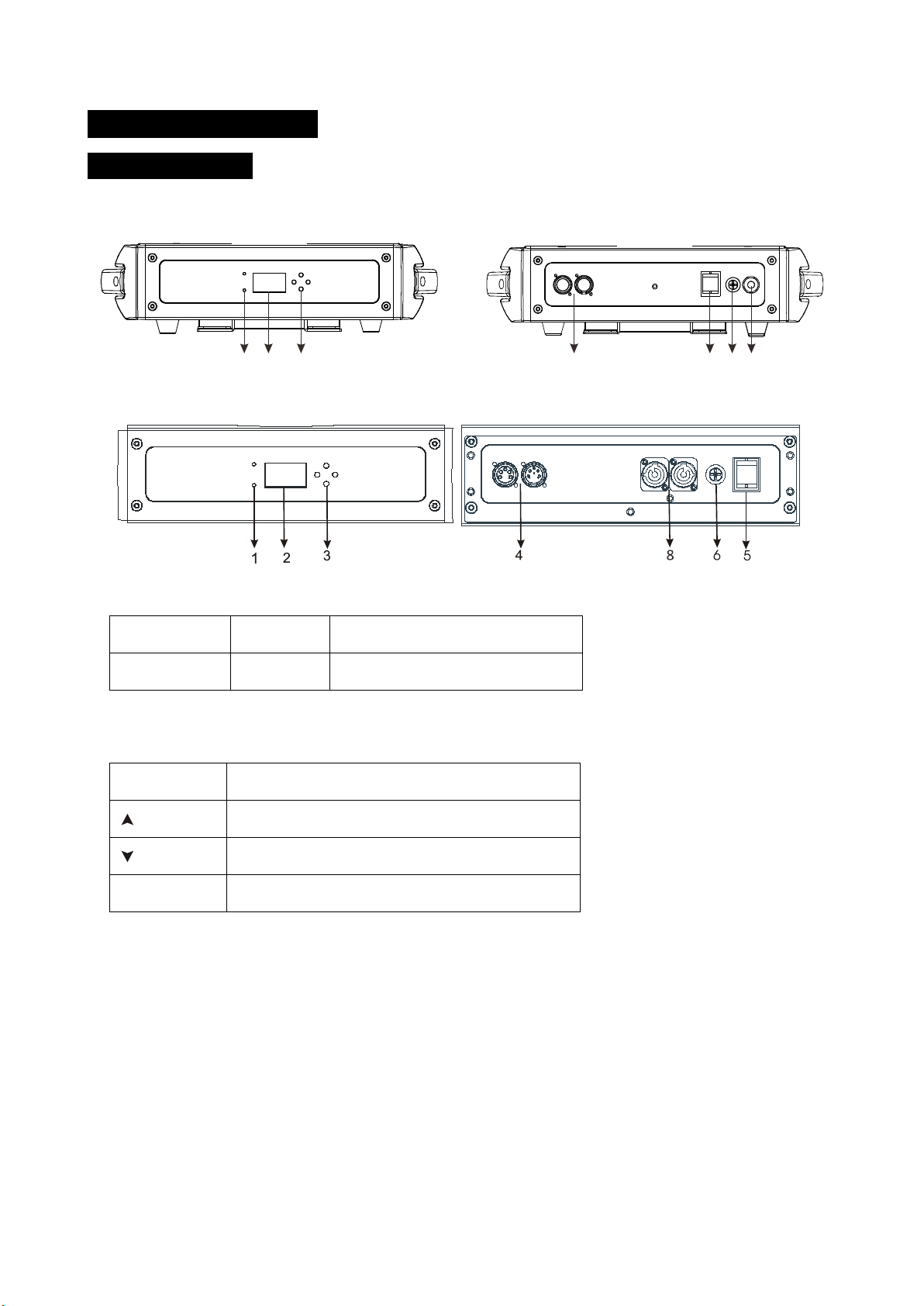

3.1 Control panel
Wire Version:
1234 5 67
POWERCON Version:
1. LED:
POWER On Power On
DMX On DMX input present
2. Display: Used to show the various menus and the selected function
3. Button:
MENU To select the programming functions
DOWN To go forward in the selected functions
UP To go backward in the selected functions
ENTER To confirm the selected functions
4. DMX IN/OUT: DMX 512 link, use XLR cable to link the unit and DMX controller to input/output
the DMX signal
5. POWER WITCH: Turn on/off the power
6. FUSE (T 6.3A): Protect the unit from damage of the overcurrent
7. POWER(Wire Version):To connect to supply power
8. POWER IN/POWER OUT(POWERCON Version):To connect to supply power/ To connect to the
next fixture
5D

3.2 Main Function
To select any of the given functions, press the MENU button up to when the required one is
showing on the display. Select the function by the ENTER button and the display will blink. Use the
DOWN and UP button to change the mode. Once the required mode has been selected, press the
ENTER button to setup, to go back to the functions without any change press the MENU button
again. Hold and press the MENU button about one second or wait for one minute to exit the menu
mode.

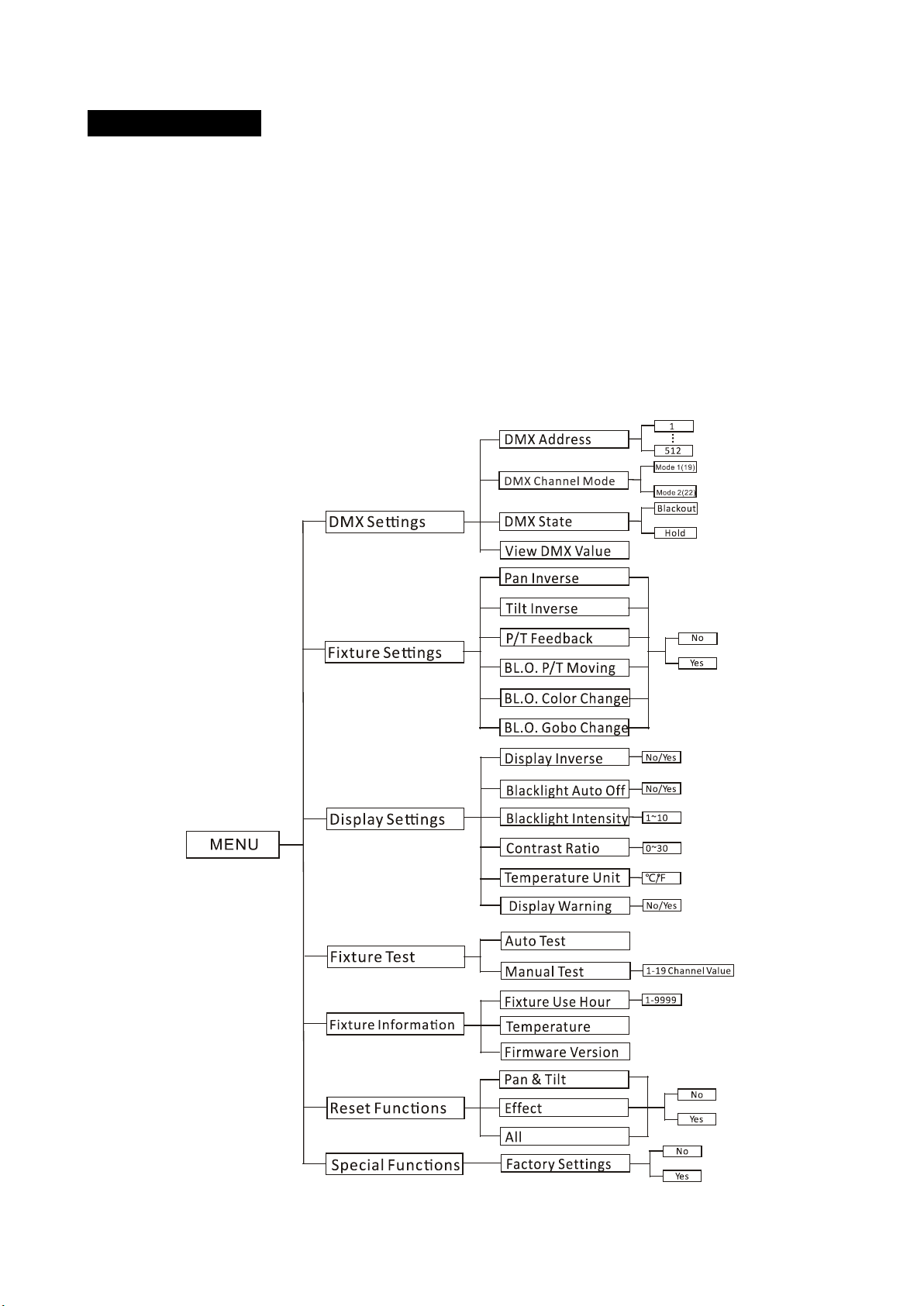

The main functions are showing below:
6D

DMX Settings
To select DMX Settings, press the ENTER button to confirm, use the UP/DOWN button to select
DMX Address, DMX Channel Mode, DMX State or View DMX Value.
DMX Address —DMX512 address setting
To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to
adjust the address from 001 to 512, press the ENTER button to store. Press the MENU button
back to the last menu or let the unit idle one minute to exit menu mode.
DMX Channel Mode
To select DMX Channel Mode, press the ENTER button to confirm. Use the UP/DOWN button
to select Mode 1(19) or Mode 2(22), press the ENTER button to store. Press the MENU button
back to the last menu or let the unit idle one minute to exit menu mode
DMX State —fixture state while DMX single stops
To select DMX State, press the ENTER button to confirm. Use the UP/DOWN button to select
Blackout (fixture blacks out if DMX signal stops) or Hold (fixture continues to obey the last
command it received Via DMX if DMX signal stops), press the ENTER button to store. Press the
MENU button back to the last menu or let the unit idle one minute to exit menu mode
View DMX Value
To select View DMX Value, press the ENTER button to confirm. Use the UP/DOWN button to
view the DMX channel value. Press the MENU button back to the last menu or let the unit idle
one minute to exit menu mode.
Fixture Settings
To select Fixture Settings, press the ENTER button to confirm, use the UP/DOWN button to select
Pan Inverse, Tile Inverse, P/T Feedback, BL.O. P/T Moving, BL.O. Color Change,BL.O. Gobo
Change.
Pan Inverse
To select Pan Inverse, press the ENTER button to confirm. Use the UP/DOWN button to select
No (normal) or Yes (pan inverse), press the ENTER button to store. Press the MENU button
back to the last menu or let the unit idle one minute to exit menu mode.
7D

Tilt Inverse
To select Tilt Inverse, press the ENTER button to confirm. Use the UP/DOWN button to select
No (normal) or Yes (tilt inverse), press the ENTER button to store. Press the MENU button back
to the last menu or let the unit idle one minute to exit menu mode.
P/T Feedback
To select P/T Feedback, press the ENTER button to confirm. Use the UP/DOWN button to
select No (Pan or tilt’s position will not feedback while out of step) or Yes (Feedback while
pan/tilt out of step), press the ENTER button to store. Press the MENU button back to the last
menu or let the unit idle one minute to exit menu mode.
BL.O. P/T Moving —Blackout while pan/tilt moving
To select BL.O. P/T Moving, press the ENTER button to confirm. Use the UP/DOWN button to
select No (normal while pan/tilt moving) or Yes (blackout while pan/tilt moving), press the
ENTER button to store. Press the MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
BL.O. Color Change — Blackout while change color
To select BL.O. Color Change, press the ENTER button to confirm. Use UP/DOWN button to
select No (normal while changing color) or Yes (blackout while change color), press the ENTER
button to store. Press the MENU button back to the last menu or let the unit idle one minute
to exit menu mode.
BL.O. Gobo Change — Blackout while change gobo
To select BL.O. Gobo Change, press the ENTER button to confirm. Use the UP/DOWN button
to select No (normal while changing gobo) or Yes (blackout while changing gobo), press the
ENTER button to store. Press the MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
Display Settings
Enter menu mode, select Display Settings, press the ENTER button to confirm, use the UP/DOWN
button to select Display Inverse, Backlight Auto Off, Backlight Intensity, Contrast Ratio,
Temperature Unit or Display Warning.
8D

Display Inverse
Select Display Inverse, press the ENTER button to confirm, present mode will blink on the
display, use the UP/DOWN button to select No (normal display) or Yes (inverse display), press
the ENTER button to store. Press the MENU button back to the last menu or let the unit idle
one minute to exit menu mode.
Backlight Auto Off
Select Backlight Auto Off, press the ENTER button to confirm, present mode will blink on the
display, use the UP/DOWN button to select No or Yes, press the ENTER button to store. Press
the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
Backlight Intensity
Select Backlight Intensity, press the ENTER button to confirm, present mode will blink on the
display, use the UP/DOWN button to adjust backlight intensity from 1 (dark) to 10 (bright),
press the ENTER button to store. Press the MENU button back to the last menu or let the unit
idle one minute to exit menu mode.
Contrast Ratio
Select Contrast Ratio, press the ENTER button to confirm, present mode will blink on the
display, use the UP/DOWN button to adjust value from 0to 30, press the ENTER button to
store. Press the MENU button back to the last menu or let the unit idle one minute to exit
menu mode.
Temperature Unit
Select Temperature Unit, press the ENTER button to confirm, present mode will blink on the
display, use the UP/DOWN button to select
℃
or
℉
, press the ENTER button to store. Press
the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
Display Warning
To select Display Warning, press the ENTER button to show the DISPLAY WARNING on the
display. Use the UP/DOWN button to select No (Normal) or Yes (display will show the error
warning when the unit went wrong), press the ENTER button to store. Press the MENU button
back to the last menu or let the unit idle one minute to exit menu mode.
9D

Fixture Test
Enter menu mode, select Fixture Test, press the ENTER button to confirm, use the UP/DOWN
button to select Auto Test or Manual Test
Auto Test
Select Auto Test, press the ENTER button to confirm, the unit will run built-in programs to
automatically test pan, tilt, shutter, color, CMY, gobo, gobo rotation, prism, prism rotation, iris,
frost, zoom, focus, dimmer and lamp on/off. Press the MENU button back to the last menu or
exit menu mode after auto test.
Manual Test
Select Manual Test, press the ENTER button to confirm, the present channel will show on the
display, use the UP/DOWN button to select channel, press the ENTER button to confirm, then
use the UP and DOWN button to adjust the value, press the ENTER button to store, the fixture
will run as the channel value indicates. Press the MENU button back to the last menu or exit
menu mode idling one minute.
(All channels value will become 0 after exiting Manual Test menu)
Fixture Information
Enter menu mode, select Fixture Information, press the ENTER button to confirm, use the
UP/DOWN button to select Fixture Use Hour, Temperature or Firmware Version.
Fixture Use Hour
Select Fixture Use Hour, press the ENTER button to confirm, fixture use time will show on the
display, press the MENU button to exit.
Temperature
Select Temperature, press the ENTER button to confirm, fixture temperature will show on the
display, press the MENU button to exit.
Firmware Version
Select Firmware Version, press the ENTER button to confirm, firmware version will show on
the display, press the MENU button back to exit.
10D

Reset Functions
Enter menu mode, select Reset Functions, press the ENTER button to confirm, use the UP/DOWN
button to select Pan&Tilt, Effect or All.
Pan
﹠
Tilt —Reset Pan/Tilt
Select Pan
﹠
Tilt, press the ENTER button to confirm, use the UP/DOWN button to select
No(normal) or Yes (the unit will run built-in program to reset pan and tilt to their home
positions), press the ENTER button to store. Press the MENU button back to the last menu or
let the unit idle one minute to exit menu mode.
Effect —Reset Effect
Select Effect, press the ENTER button to confirm, use the UP/DOWN button to select No or
Yes (the unit will run built-in program to reset effect to their home positions), press the ENTER
button to store. Press the MENU button back to the last menu or let the unit idle one minute
to exit menu mode
All — Reset All
Select All, press the ENTER button to confirm, use the UP/DOWN button to select No or Yes
(the unit will run built-in program to reset all motors to their home positions), press ENTER
button to store. Press the MENU button to exit.
Special Functions
Factory Settings
Select Factory Settings,press the ENTER button to confirm, use the UP/DOWN button to
select No (normal) or Yes (the fixture will reset to factory settings), press ENTER button to
store. Press the MENU button to exit.
3.3 Home Position Adjustment
Press the MENU button into menu mode, then press the ENTER button for about 3 seconds into
offset mode to adjust the home position. Select the function by the ENTER button. Use the
UP/DOWN button to choose the submenu, press the ENTER button to store and automatically
return to the last menu. Press MENU button to exit.
11D

Pan
Tilt
Color 1
Color 2
Gobo 1
Gobo 2
R-Gobo
Prism
Zoom
Focus
Iris
-128
127
0
255
Pan—pan home position adjustment
Enter offset mode, Select Pan, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER
button to store. Press the MENU button to exit.
Tilt—Tilt home position adjustment
Enter offset mode, Select Tilt, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER
button to store. Press the MENUbutton to exit.
Color 1—Color 1 home position adjustment
Enter offset mode, Select Color 1, press the ENTER button to confirm, the present position will
blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the
ENTER button to store. Press the MENU button to exit.
Color 2—Color 2 home position adjustment
Enter offset mode, Select Color 2, press the ENTER button to confirm, the present position will
blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the
ENTER button to store. Press the MENU button to exit.
Gobo 1—Gobo 1 home position adjustment
Enter offset mode, Select Gobo 1, press the ENTER button to confirm, the present position will
blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the
ENTER button to store. Press the MENU button to exit.
12D

Gobo 2—Gobo 2 home position adjustment
Enter offset mode, Select Gobo 2, press the ENTER button to confirm, the present position will
blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the
ENTER button to store. Press the MENU button to exit.
R-Gobo—R-Gobo home position adjustment
Enter offset mode, Select R-Gobo, press the ENTER button to confirm, the present position will
blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the
ENTER button to store. Press the MENU button to exit.
Prism—Prism home position adjustment
Enter offset mode, Select Prism, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER
button to store. Press the MENU button to exit.
Zoom—Zoom home position adjustment
Enter offset mode, Select Zoom, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER
button to store. Press the MENU button to exit.
Focus—Focus home position adjustment
Enter offset mode, Select Focus, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER
button to store. Press the MENU button to exit.
Iris—Iris home position adjustment
Enter offset mode, Select Iris, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER
button to store. Press the MENU button to exit.
13D

4. Control By Universal DMX Controller
4.1 DMX Connection
1. Connect the fixture together in a “daisy chain” by XLR plug cable from the output of the fixture
to the input of the next fixture. The cable cannot be branched or split to a “Y” cable.
Inadequate or damaged cables, soldered joints or corroded connectors can easily distort the
signal and shut down the system
2. The DMX output and input connectors are pass-through to maintain the DMX circuit when one
of the units’ power is disconnected.
3. At last fixture, the DMX cable has to be terminated with a terminator to reduce signal errors.
Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug
and plug it in the DMX-output of the last fixture.
4. Each lighting fixture needs to have an address set to receive the data sent by the controller.
The address number is between 0-511 (usually 0 & 1 are equal to 1).
5. 3 pin XLR connectors are more popular than 5 pins XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
14D

4.2 Address Setting
If you use a universal DMX controller to control the units, you have to set DMX address from 1 to
512 so that the units can receive DMX signal.
Press the MENU button to enter menu mode, select the DMX Functions, press the ENTER button
to confirm, use the UP and DOWN button to select the DMX Address, press the ENTER button to
confirm, the present address will blink on the display, use the UP and DOWN button to adjust the
address from 0 to 512, press the ENTER button to store. Press the MENUbutton back to the last
menu or let the unit idle 7 seconds to exit menu mode.
Please refer to the following diagram to address your DMX512 channel for the first 4 units：
Channel mode
Unit 1
Address
Unit 2
Address
Unit 3
Address
Unit 4
Address
19 Channels 1 20 39 58
22 Channels 1 23 45 67
4.3 DMX 512 Configuration
19 Channels Mode (Mode 1):
Channel Value Function
1
000-255
Pan
Pan movement 0°-540°
2
000-255
Tilt
Tilt movement 0°-270°
3
000-255
Pan/Tilt speed
Fast to slow
4
000-007
008-015
016-023
024-031
032-039
040-047
048-055
056-063
064-071
072-079
080-087
Pan/Tilt Macro
No Function
Macro 1
Macro 2
Macro 3
Macro 4
Macro 5
Macro 6
Macro 7
Macro 8
Macro 9
Macro 10
15D

088-095
096-103
104-111
112-119
120-127
128-135
136-143
144-151
152-159
160-167
168-175
176-183
184-191
192-199
200-207
208-215
216-223
224-231
232-239
240-247
248-255
Macro 11
Macro 12
Macro 13
Macro 14
Macro 15
Macro 16
Macro 17
Macro 18
Macro 19
Macro 20
Macro 21
Macro 22
Macro 23
Macro 24
Macro 25
Macro 26
Macro 27
Macro 28
Macro 29
Macro 30
Macro 31
5
000-255
Pan/Tilt Marco speed
Fast to slow
6
000-007
008-015
016-023
024-031
032-039
040-047
048-055
056-064
065-127
128-189
190-193
194-255
Color 1
Open
Color 1
Color 2
Color 3
Color 4
Color 5
Color 6
Color 7
Index
Clockwise rotation from fast to slow
Stop
Clockwise rotation from slow to fast
7
000-007
008-015
016-023
024-031
032-039
040-047
048-055
Color 2
Open
Color 1
Color 2
Color 3
Color 4
Color 5
Color 6
16D

056-064
065-127
128-189
190-193
194-255
Color 7
Index
Clockwise rotation from fast to slow
Stop
Clockwise rotation from slow to fast
8
000-005
006-0011
012-017
018-023
024-029
030-035
036-041
042-047
048-053
054-059
060-065
066-076
077-126
127
128-189
190-193
194-255
Gobo
Open
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5
Gobo 6
Gobo 7
Gobo 8
Gobo 9
Gobo 10
Open
Gobo shaking
Open
Clockwise rotation from fast to slow
Stop
Clockwise rotation from slow to fast
9
000-010
011-021
022-032
033-043
044-054
055-065
066-076
077-088
089-127
128-189
190-193
194-255
Gobo 2
Open
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5
Gobo 6
Gobo 7
Gobo shaking
Clockwise rotation from fast to slow
Stop
Clockwise rotation from slow to fast
10
000-127
128-189
190-193
194-255
R-gobo2
Index
Clockwise rotation from fast to slow
Stop
Clockwise rotation from slow to fast
11
000-255
Frost
0-100%
12 Iris
17D

000-255
0-100%
13 000-007
008-255
Prism
No effect
Prism effect
14
000-127
128-189
190-193
194-255
R-prism
Index
Clockwise rotation from fast to slow
Stop
Clockwise rotation from slow to fast
15
000-255
Zoom
0-100%
16
000-255
Focus
0-100%
17
000-007
008-015
016-131
132-139
140-181
182-189
190-231
232-239
240-247
248-255
Shutter
Off
On
Strobe, from slow to fast
Open
Slow open fast close
Open
Slow close fast open
Open
Random strobe
Open
18
000-255
Dimmer
0-100%
19
000-069
070-079
080-089
090-099
100-109
110-119
120-129
130-139
140-149
150-189
190-199
200-209
210-219
220-229
230-255
Function
No Function
Enable blackout while Pan/Tilt moving
Disable blackout while Pan/Tilt moving
Enable blackout while color changing
Disable blackout while color changing
Enable blackout while gobo changing
Disable blackout while gobo changing
No function
Pan/Tilt reset
Effect reset
No function
All reset
Enable blackout while Pan/Tilt Color gobo moving
Disable blackout while Pan/Tilt Color gobo moving
No function
18D

22 Channels Mode (Mode 2):
Channel Value Function
1
000-255
Pan
Pan movement 0°-540°
2 000-255 Pan Fine
3
000-255
Tilt
Tilt movement 0°-270°
4 000-255 Tilt Fine
5
000-255
Pan/Tilt speed
Fast to slow
6
000-007
008-015
016-023
024-031
032-039
040-047
048-055
056-063
064-071
072-079
080-087
088-095
096-103
104-111
112-119
120-127
128-135
136-143
144-151
152-159
160-167
168-175
176-183
184-191
192-199
200-207
208-215
216-223
224-231
232-239
240-247
248-255
Pan/Tilt Macro
No Function
Macro 1
Macro 2
Macro 3
Macro 4
Macro 5
Macro 6
Macro 7
Macro 8
Macro 9
Macro 10
Macro 11
Macro 12
Macro 13
Macro 14
Macro 15
Macro 16
Macro 17
Macro 18
Macro 19
Macro 20
Macro 21
Macro 22
Macro 23
Macro 24
Macro 25
Macro 26
Macro 27
Macro 28
Macro 29
Macro 30
Macro 31
19D
