ACME Whack User manual

CONTENTS
1. Safety Instructions ......................................................................................... 2
2. Technical Specifications ................................................................................. 5
3 Control Panel .................................................................................................. 7
4. Color/Gobo and Lamp.................................................................................... 8
4.1 Color/Gobo .............................................................................................. 8
4.2 Light Source ............................................................................................. 8
4.3 Change The Lamp..................................................................................... 9
5. How To Set The Unit..................................................................................... 11
5.1 Main Function........................................................................................ 11
5.2 Home Position Adjustment .................................................................... 15
6. Control By Universal DMX Controller ........................................................... 18
6.1 DMX512 Connection.............................................................................. 18
6.2 Address Setting ...................................................................................... 19
6.3 DMX512 Configuration........................................................................... 19
7. Troubleshooting........................................................................................... 32
8. Fixture Cleaning ........................................................................................... 33
1H

1. Safety Instructions
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that
they also receive this instruction manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The dealer will
not accept liability for any resulting defects or problems.
Unpack and check carefully that there is no transportation damage before using the unit.
This product is for indoor use only. Use only in a dry location.
DO install and operate by qualified operator.
DO NOT allow children to operate the fixture.
Use safety chain when fixing the unit. Handle the unit by carrying its base instead of head only.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces.
Be sure that no ventilation slots are blocked, otherwise the unit will be overheated.
Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
Minimum ambient temperature TA: 0℃. Maximum ambient temperature TA: 40℃.
DO NOT connect the device to any dimmer pack.
During initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective, and it will decrease gradually within 15 minutes.
Make sure there are no flammable materials close to the unit while operating to avoid fire
hazard.
Examine the power wires carefully; replace them immediately if there is any damage.
Avoid any inflammable liquids, water or metal objects entering the unit. Once it happens, cut
off the mains power immediately.
DO NOT operate in dirty or dusty environment, do clean fixtures regularly.
Please read the instruction carefully which includes important information about
the installation, usage and maintenance.
2H

DO NOT touch any wire during operation as there might be a hazard of electric shock.
Avoid power wires together twist other cables.
The minimum distance between light output and the illuminated surface must be more than 12
meters.
Disconnect mains power before fuse/lamp replacement or servicing.
Replace fuse/lamp only with the same type.
In the event of serious operating problem, stop using the unit immediately.
Never turn on and off the unit time after time.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
DO NOT open the unit as there are no user serviceable parts inside.
Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to
damage or malfunction. Please contact the nearest authorized technical assistance center if
needed.
Disconnect the mains power if the fixture is has not been used for a long time.
DO use the original packing materials before transporting it again.
Hot lamp explosion hazard. DO NOT open the unit within 15 minutes after switching off.
DO replace the bulb once it is damaged, deformed or life-expired.
DO NOT look directly at the light while the bulb is on.
Never touch bulb with bare fingers, as it is very hot after using.
DO NOT start on the unit without bulb enclosure or when housing is damaged.
3H

Installation:
1. Bolt each clamp (1) to the Omega holder with screw and lock nut through the hole in the holder.
2. Fasten the omega holders (2) on the bottom of the base by inserting quick-lock fasteners (3) into
the holes of the base and tighten fully clockwise.
3. Hang the fixture to the support (4) through clamp and fasten the screws (5). Fasten the safety
cable (6) through the bottom of the base and over the support.
Attention:
The fixture should be mounted via its Omega Quick Release Clamp bracket. Always ensure that the
unit is firmly fixed to avoid vibration and slipping while operating and make sure that the structure
to which you are attaching the unit is secure and is able to support a weight of 10 times of the
fixtures weight. Always use a safety cable that can hold 12 times of the weight of the fixture when
installing.
The equipment must be installed by professionals. It must be installed in a place where is out of the
reach of people and no one can pass by or under it.
4H

2. Technical Specifications
Power Voltage:
AC 100~240V, 50/60Hz
Power Consumption:
270W
Light Source:
PHILIPS MSD Platinum 5R
Color Temperature:
8000K
Beam Angle:
1°/3.8°
Movement:
Pan: 540°
Tilt: 250°
Pan/Tilt Resolution: 16 bit
Dimmer/Shutter:
Smooth dimming from 0-100%; outstanding strobe effect with variable speed
Color Wheel:
1 x color wheel with 14 fixed colors plus white with rainbow effect
Gobo Wheel:
1 x static gobo wheel with 17 gobos plus open
Control:
DMX Channel: 16/15/19/20 Channels
Control Mode: DMX512
Firmware Upgrade: Update via DMX link
Construction:
Display: LED display
Data In/Out: 3-pin XLR
Power In/Out: Power Connector in/out
Protection rating: IP20
5H

Features:
Motorized focus
Outstanding color macro effect
8 facet Prism, rotation in both directions
Independent frost effect

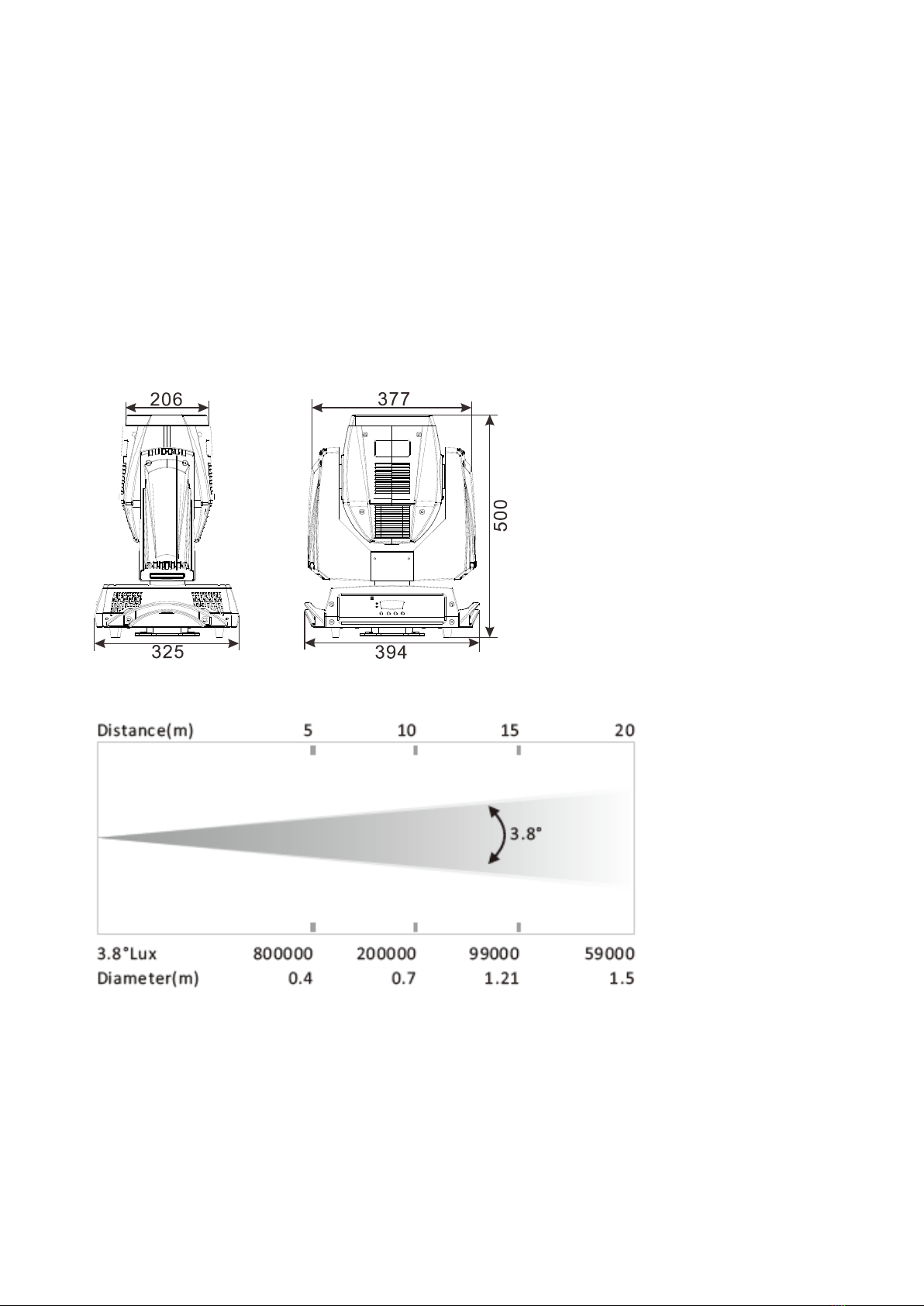

Dimension/Weight:
394x325x500mm, 18kgs
15.5"x12.8"x19.7"in, 39.7lbs
Photometrics Diagram:
6H

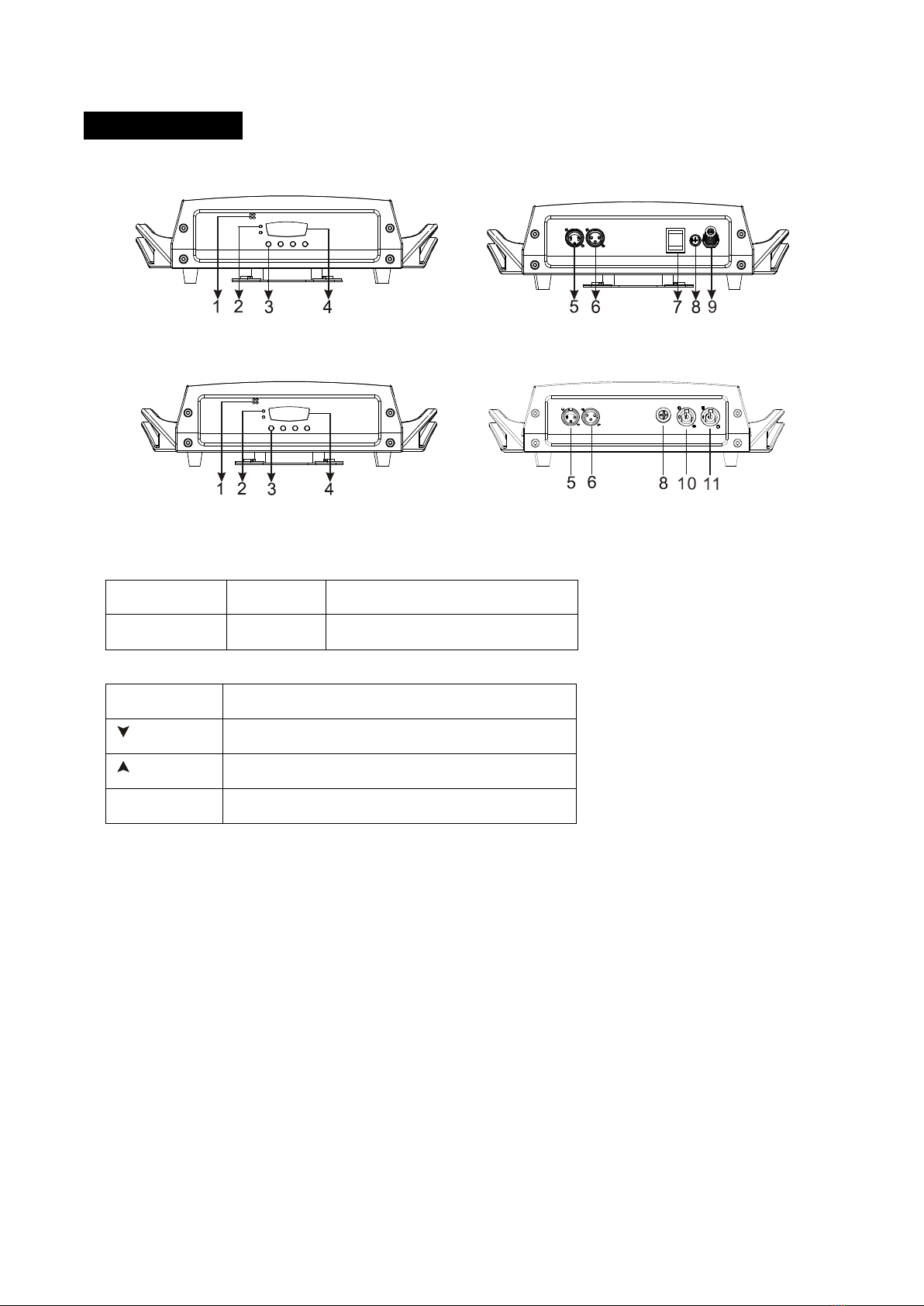

3 Control Panel
Wire Version:
Powercon Version:
1. Microphone: To receive music for sound active
2. LED:
POWER
On
Power On
DMX
On
DMX input present
3. Button:
MENU
To select the programming functions
UP
To go backward in the selected functions
DOWN
To go forward in the selected functions
ENTER
To confirm the selected functions
4. Display: Used to show the various menus and the selected function
5. DMX IN: DMX 512 link, use 3-pin XLR cable to link the unit and DMX controller
6. DMX OUT: DMX 512 operation, use 3-pin XLR cable to link the next units
7. POWER SWITCH(WIRE VERSION): Turn On/Off the power
8. FUSE(T 6.3A): Protect the unit from damage of over voltage or short circuit
9. POWER(WIRE VERSION): Used to connect to supply power
10. POWER IN(POWERCON VERSION): Used to connect to supply power
11. POWER OUT(POWERCON VERSION): Used to connect to the next fixture
7H

4. Color/Gobo and Lamp
4.1 Color/Gobo
DANGER!
Install the color wheel/gobo wheels with the device switched off only.
Unplug from mains before changing the color wheel/gobo wheels!
4.2 Light Source
PHILIPS MSD Platinum 5R
Because of its high internal pressure, there might be a risk that the Discharge lamp
would explode during operation. The lamp emits intense UV radiation which is harmful
to the eyes and skin. The high luminance of the arc can cause severe damage to the
retina if you take a close look at the lamp.
To protect the lamp, always turn off the lamp first (via control panel or DMX controller)
and let the unit run at least five minutes to cool down before switching off the mains
supply. Never handle the lamp or luminary when it is hot.
Do not touch the bulb with bare hands. If this happens, clean the lamp with denatured
alcohol and wipe it with a lint free cloth before installation.
The lamp generates UV radiation. Never operate the lamp without appropriate shielding.
When lighting up, the lamp operates at high pressure and there is a slight risk of arc tube
rupture. The risk increases with age, temperature and improper handling of the lamp. Do not
use the lamp longer than its lifespan.
Make sure the lamp is located in the center of the reflector for the best projection.
8H

4.3 Change The Lamp
Attention: The entire light path and lens of the luminaire must be thoroughly cleaned before
changing the bulb.
Do not use this lamp more than 2000 hours, using the lamp any longer than its set life could
seriously damage your unit. Periodically checking the lamp running time, when the lamp reaches
the 2000 hour mark, or close to it, we strongly suggest you switch the lamp out. Clear the lamp time
after you have replaced the lamp.
To replace the lamp:
1. Remove the fixture head covers using a screwdriver (Figure 1).
Figure 1
2. Position the head as Figure 2 and remove the lamp cooling fan at the rear of the head.
Figure 2
9H

3. Lift the lamp out of its recess as Figure 3.
Figure 3
4. Disconnect the lamp and connect the replacement lamp (Figure 4).Place the new lamp into the
lamp recess.(Figure 5)
Figure 4 Figure 5
5. See illustration below. Adjust the lamp using a slotted (flat head) screwdriver until it is
centralized.
Figure 6
6. Reinstall the fan and secure it, then replace and secure the head covers before reapplying power.
10H

Warning:
The installing direction of lamp:
5. How To Set The Unit
5.1 Main Function
Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until
the required function is shown on the monitor. Select the function by the ENTER button. Use the
UP/DOWN button to choose the submenu, press the ENTER button to store and automatically
return to the last menu. Press the MENU button or let the unit idle 30 seconds to exit menu mode.
The main functions are shown below:
11H

12H

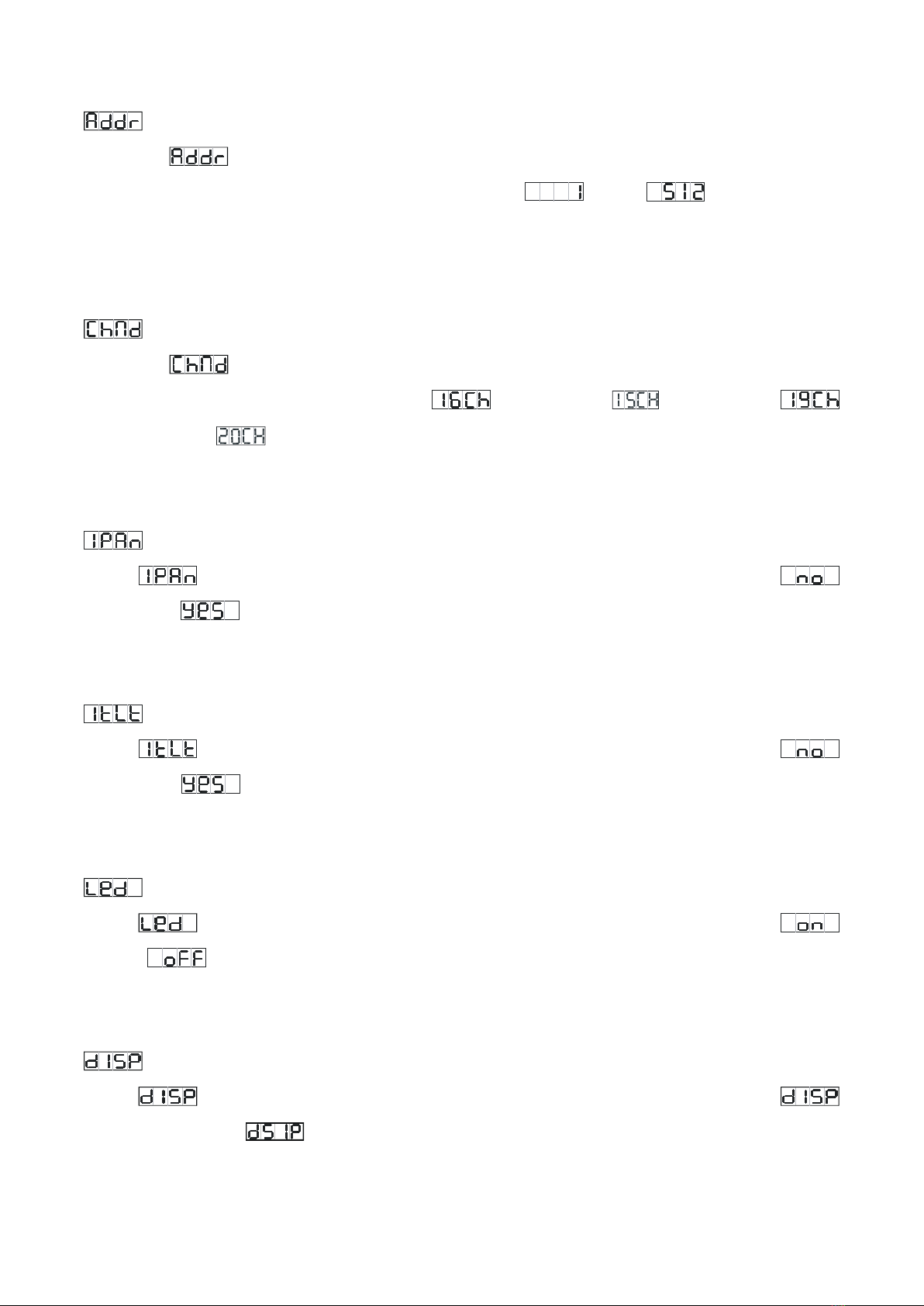

DMX Address
Select the , press the ENTER button to confirm, the display will show the present address.
Use the UP/DOWN button to adjust the address from (1) to (512),press the
ENTER button to store. Press the MENU button back to the last menu or idling 30 seconds to exit
menu mode.
Channel Mode
Select the , press the ENTER button to confirm, the display will show the present channel
mode. Use the UP/DOWN button to select (16 channel), (15 channel),
(19 channel) or (20 channel),press the ENTER button to store. Press the MENU button
back to the last menu or idling 30 seconds to exit menu mode.
Pan Invert
Select , press the ENTER button to confirm, use the UP/DOWN button to select
(normal) or (pan invert), press the ENTER button to store. Press the MENU button back to
the last menu or idling 30 seconds to exit menu mode.
Tilt Invert
Select , press the ENTER button to confirm, use the UP/DOWN button to select
(normal) or (tilt invert), press the ENTER button to store. Press the MENU button back to
the last menu or idling 30 seconds to exit menu mode.
LED Display
Select , press the ENTER button to confirm, use the UP/DOWN button to select
(on) or (off), press the ENTER button to store. Press the MENU button back to the last
menu or idling 30 seconds to exit menu mode.
Display Setting
Select , press the ENTER button to confirm, use the UP/DOWN button to select
(normal display) or (invert display). Press the MENU button back to the last menu or
idling 30 seconds to exit menu mode.
13H

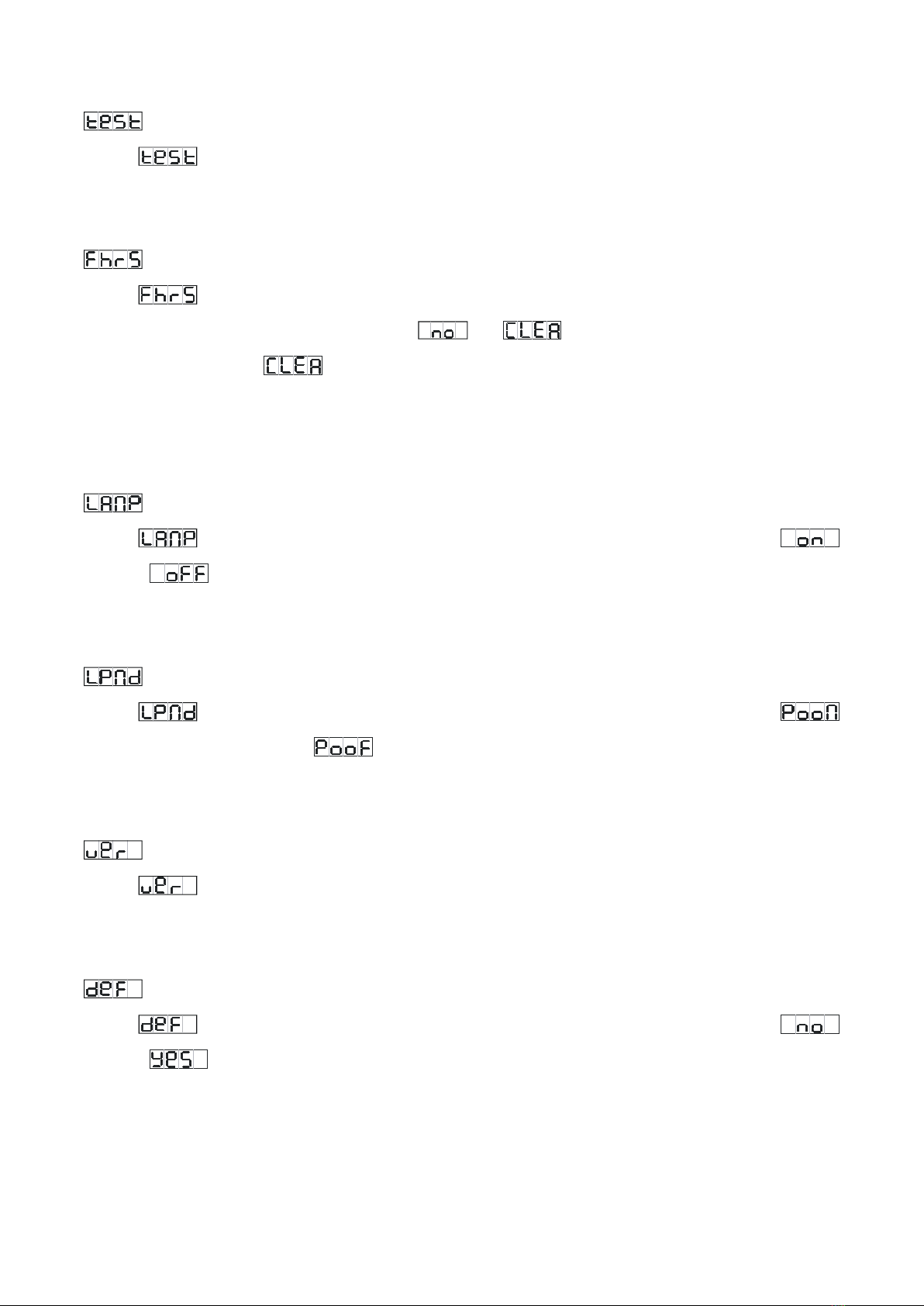

Auto Test
Select , press the ENTER button to confirm, then the unit will test by itself. Press the MENU
button back to the last menu.
Fixture Use Hours
Select , press the ENTER button to confirm, the display will show the working hours of the
unit. Use the UP/DOWN button to select or (clear lamp time), press the ENTER
button to store. When is selected, use the UP/DOWN button to set the password 50, press
the ENTER button and the lamp time will be cleared. To go back to the functions press the MENU
button again.
Lamp On/Off
Select , press the ENTER button to confirm, use the UP/DOWN button to select
(On) or (Off), press the ENTER button to store. Press the MENU button back to the last
menu or idling 30 seconds to exit menu mode.
Lamp On/Off While Power On
Select , press the ENTER button to confirm, use the UP/DOWN button to select
(lamp on while power on) or (lamp off while power on), press the ENTER button to store.
Press the MENU button back to the last menu or idling 30 seconds to exit menu mode.
Firmware Version
Select , press the ENTER button to confirm, the display will show the software version of the
unit. To go back to the functions press the MENU button again.
Default
Select , press the ENTER button to confirm, use the UP/DOWN button to select
(No) or (Yes), press the ENTER button to store. Press the MENU button back to the last
menu or idling 30 seconds to exit menu mode.
14H

Reset
Select , press the ENTER button to confirm and the fixture will reset.. To go back to the
functions press the MENU button again.
5.2 Home Position Adjustment
Press the MENU button into menu mode, then press the ENTER button for about 3 seconds into
offset mode to adjust the home position. Select the function by the ENTER button. Use the
UP/DOWN button to choose the submenu, press the ENTER button to store and automatically
return to the last menu. Press MENU button to exit.
15H

— Pan home position adjustment
To select the , press the ENTER button to show the PAN OFFSET on the display. Use the
DOWN and UP button to adjust the value from 0 to 255, press the ENTER button to store. Press
the MENU button to exit.
—Tilt home position adjustment
To select the , press the ENTER button to show the TILT OFFSET on the display. Use the
DOWN and UP button to adjust the value from -127 to 127, press the ENTER button to store. Press
the MENU button to exit.
—Dimmer home position adjustment
To select the , press the ENTER button to show the DIMMER OFFSET on the display. Use
the DOWN and UP button to adjust the value from 0 to 255, press the ENTER button to store.
Press the MENU button to exit.
—Color home position adjustment
To select the , press the ENTER button to show the COLOR OFFSET on the display. Use the
DOWN and UP button to adjust the value from -127 to 127, press the ENTER button to store. Press
the MENU button to exit.
—Gobo home position adjustment
To select the , press the ENTER button to show the GOBO OFFSET on the display. Use the
DOWN and UP button to adjust the value from -127 to 127, press the ENTER button to store. Press
the MENU button to exit.
16H

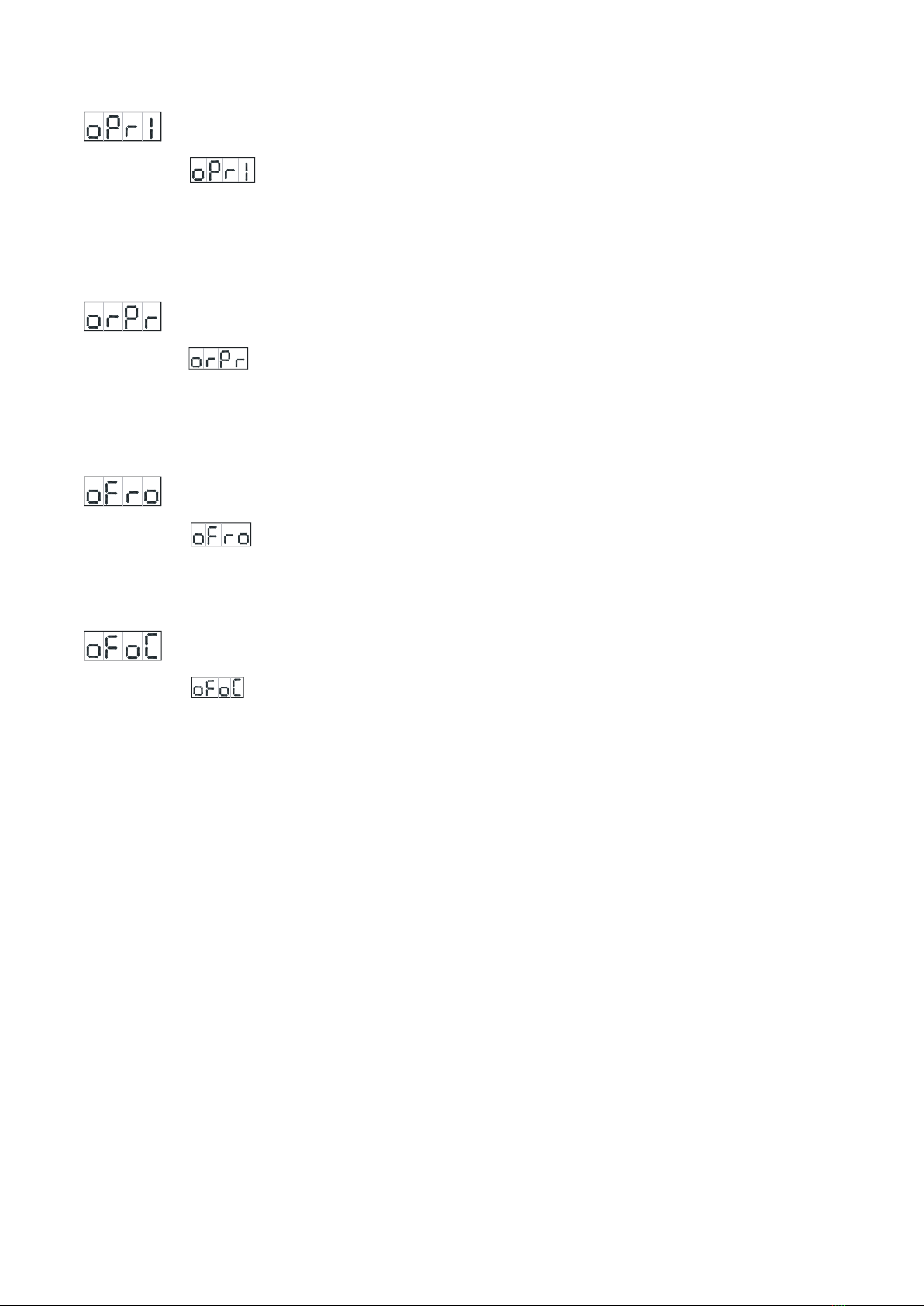

—Prism home position adjustment
To select the , press the ENTER button to show the PRISM OFFSET on the display. Use the
DOWN and UP button to adjust the value from 0 to 255, press the ENTER button to store. Press the
MENU button to exit.
—R-Prism home position adjustment
To select the , press the ENTER button to show the R-PRISM OFFSET on the display. Use the
DOWN and UP button to adjust the value from -127 to 127, press the ENTER button to store. Press
the MENU button to exit.
—Frost home position adjustment
To select the , press the ENTER button to show the FROST OFFSET on the display. Use the
DOWN and UP button to adjust the value from 0 to 255, press the ENTER button to store. Press the
MENU button to exit.
—Focus home position adjustment
To select the , press the ENTER button to show the FOCUS OFFSET on the display. Use the
DOWN and UP button to adjust the value from 0 to 255, press the ENTER button to store. Press the
MENU button to exit.
17H

6. Control By Universal DMX Controller
6.1 DMX512 Connection
1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-o h m 1/4 W
resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output
of the last unit.
2. Connect the unit together in a “daisy chain” by XLR plug cable from the output of the unit to
the input of the next unit. The cable cannot be branched or split to a “Y” cable. DMX 512 is a very
high-speed signal. Inadequate or damaged cables, soldered joints or corroded connectors can easily
distort the signal and shut down the system.
3. The DMX output and input connectors are pass-through to maintain the DMX circuit, when one
of the units’ power is disconnected.
4. Each lighting unit needs to have a DMX address to receive the data by the controller. The
address number is between 1-512.
5. The end of the DMX 512 system should be terminated to reduce signal errors.
6. 3 pin XLR connectors are more popular than 5 pins XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin4, Pin5 not used.
18H

6.2 Address Setting
If you use a universal DMX controller to control the units, you have to set DMX address from 1 to
512 so that the units can receive DMX signal.
Press the MENU button to enter menu mode, select DMX Address, press the ENTER button to
confirm, the present address will blinking the display, use the UP/DOWN button to adjust the
address from 001 to 512, press the ENTER button to store. Press the MENU button back to the last
menu or let the unit idle 30 seconds to exit menu mode.
Please refer to the following diagram to address your DMX512 channel for the first 4 units.
Channel mode
Unit 1
Address
Unit 2
Address
Unit 3
Address
Unit 4
Address
16 channels 1 17 33 49
15 channels 1 16 31 46
19 channels 1 20 39 58
20 channels 1 21 41 61
6.3 DMX512 Configuration
Please refer to below configurations to control the fixtures
Attentions:
1. The unit will maintain the last condition until reset if you cut-off the DMX signal.
2. For the channel Function, keep the value for about 3 seconds, then the corresponding function
will take into effect.
16 Channels (Mode 1):
Channel Value Function
1
000-255
Pan
0°

540°
2 000-255 Pan Fine
3
000-255
Tilt
0°

270°
4 000-255 Tilt Fine
5
000-255
Pan/Tilt Speed
Fast

Slow
19H
