ACME ENERGY HYBRID X-400 BSW User manual

User Manual
Please read the instruc on carefully before use
XA-400 BSW

CONTENTS
1. Safety Instructions..........................................................................................2
2. Technical Specifications..................................................................................4
3. Description.....................................................................................................5
3.1 Control Panel ..........................................................................................5
4. Gobo and Lamp..............................................................................................6
4.1 Gobos .....................................................................................................6
5. How To Set The Unit.......................................................................................6
5.1 Main Function.........................................................................................6
5.2 Home Position Adjustment ...................................................................13
5.3 Error Information..................................................................................15
6. Control By Universal DMX Controller ...........................................................16
6.1 Connection ...........................................................................................16
6.2 Address Setting.....................................................................................17
6.3 DMX 512 Configuration ........................................................................17
7. Troubleshooting ...........................................................................................23
8. Cleaning .......................................................................................................24
1C

1. Safety Instructions
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that
they also receive this instruction manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The dealer
will not accept liability for any resulting defects or problems.
Unpack and check carefully that there is no transportation damage before using the unit.
The unit is for indoor use only. Use only in a dry location.
DO install and operate by qualified operator.
DO NOT allow children to operate the fixture.
Use safety chain when fixing the unit. Handle the unit by carrying its base instead of head only.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces.
Be sure that no ventilation slots are blocked, otherwise the unit will be overheated.
Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
Maximum ambient temperature TA: 40℃. DO NOT operate it when the temperature is higher.
DO NOT connect the device to any dimmer pack.
During initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective, and it will decrease gradually within 15 minutes.
Make sure there are no flammable materials close to the unit while operating to avoid fire hazard.
Examine the power wires carefully; replace them immediately if there is any damage.
Unit’s surface temperature may reach up to 85℃. DO NOT touch the housing bare-handed during
its operation, and allow about 15 minutes for cooling the unit down before replacing bulb or
maintenance as it could be very hot.
Avoid any inflammable liquids, water or metal objects entering the unit. Once it happens, cut off
Please read the instruction carefully which includes important information about
the installation, usage and maintenance.
2C

the mains power immediately.
DO NOT operate in dirty or dusty environment, do clean fixtures regularly.
DO NOT touch any wire during operation as there might be a hazard of electric shock.
Avoid power wires together twist other cables.
The minimum distance between light output and the illuminated surface must be more than 12
meters.
Disconnect mains power before fuse/lamp replacement or servicing.
Replace fuse/lamp only with the same type.
In the event of serious operating problem, stop using the unit immediately.
Never turn on and off the unit time after time.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
DO NOT open the unit as there are no user serviceable parts inside.
Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage
or malfunction. Please contact the nearest authorized technical assistance center if needed.
Disconnect the mains power if the fixture is has not been used for a long time.
DO use the original packing materials before transporting it again.
Cautions:
To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.
Hot lamp explosion hazard. DO NOT open the unit within 15 minutes after switching off.
DO replace the bulb once it is damaged, deformed or life-expired.
DO NOT look directly at the light while the bulb is on.
Never touch bulb with bare fingers, as it is very hot after using.
DO NOT start on the unit without bulb enclosure or when housing is damaged.
Installation:
The unit is fully operational in three different mounting positions, hanging upside-down from a ceiling
or set on a flat level surface. To avoid internal damage to the unit, never mount the unit on its side as
illustrated above. Be sure this fixture is kept at least 0.5m away from any flammable materials
(decoration etc.). Always use and install the supplied safety cable as a safety measure to prevent
accidental damage and/or injury in the event the clamp fails.
3C

2. Technical Specifications
Power supply
AC 100~240V 50/60Hz
Power Consumption
305W
Light Source
1 X 300W LED
Movement
Pan: 540°
Tilt: 270°
Pan/Tilt moving speed adjustable.
Automatic Pan/Tilt correction.
Easy calibration and maintenance by magnetic home positioning.
Dimmer/Shutter
Blackout, 0~100% smooth dimming, independent shutter and various strobe effect.
Integrated three features: beam, spot and wash
Color wheel
7 fixed colors plus white
Rainbow effect in both directions.
Gobo wheel
1 Static gobo wheel with 6 gobos plus four open
1 Rotating gobo wheel with 7 gobos plus open
Prism
Prism : 6 facet prism rotating in both directions
Frost
Independent frost effect
Focus
Motorized focus
Zoom
Motorized linear zoom system
4C

Protocols
DMX 512
Date input/output: 3/5 Pin XLR socket
Dimension/Weight:
435x344x560mm, 21 Kgs
17.1"x13.5"x22.0"in, 46.2lbs
3. Description
3.1 Control Panel
Front view Rear view
1234567
1.LED:
MASTER On Master mode
SLAVE On Slave mode
SOUND On Sound activation
DMX On DMX input present
2.Display: To show the various menus and the selected function.
3.Button:
MENU To enter into move backward or leave the menu
UP To go backward to move up in the menu
DOWN To go to move down in the menu
ENTER To perform the desired functions
4.DMX input/output: For DMX 512 operation, use 3/5-pin XLR plug cable to link the units together
5.Fuse (T 10A): Protect the unit from damage of over current.
6.Power Cable: To connect to the mains supply
7.Power Switch: Turns On/Off the power.
393
560
435 344
5C

4. Gobo and Lamp
4.1 Gobos
CAUTION: Never unscrew the screws of the rotating gobo as the ball bearing will otherwise be
opened!
5. How To Set The Unit
5.1 Main Function
Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until the
required function is shown on the monitor. Select the function by the ENTER button. Use the
UP/DOWN button to choose the submenu, press the ENTER button to store and automatically return
to the last menu. Press the MENU button or let the unit idle one minute to exit menu mode.
In the event of disconnecting with mains power, press the UP button for one minute to enter into
menu mode. Press MENU button or let the unit idle one minute to exit.

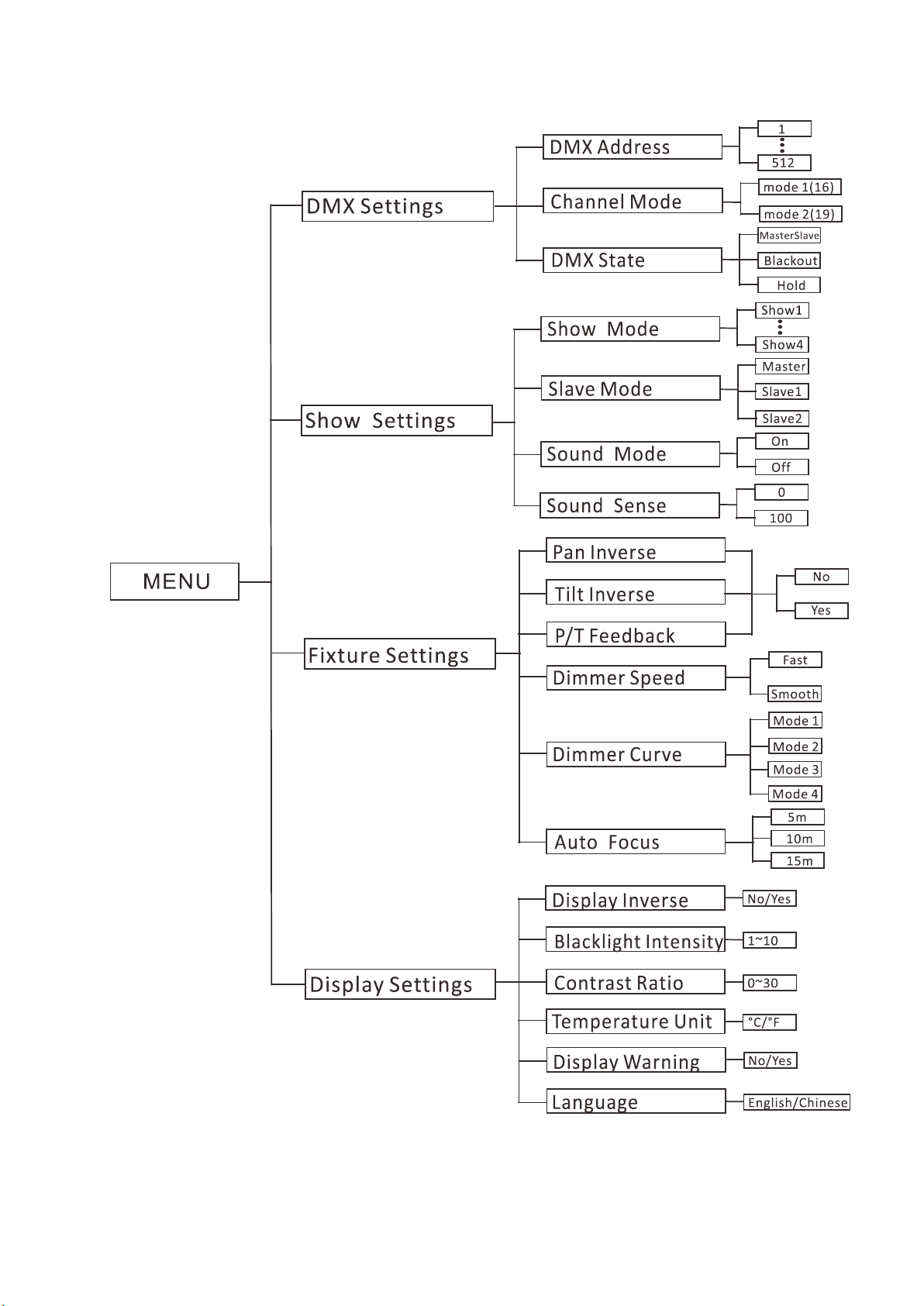

The main functions are shown below（the grayed boxes are preset settings）:
DANGER!
Install the gobos with the device switched off only.
Unplug from mains before changing gobos!
6C

7C

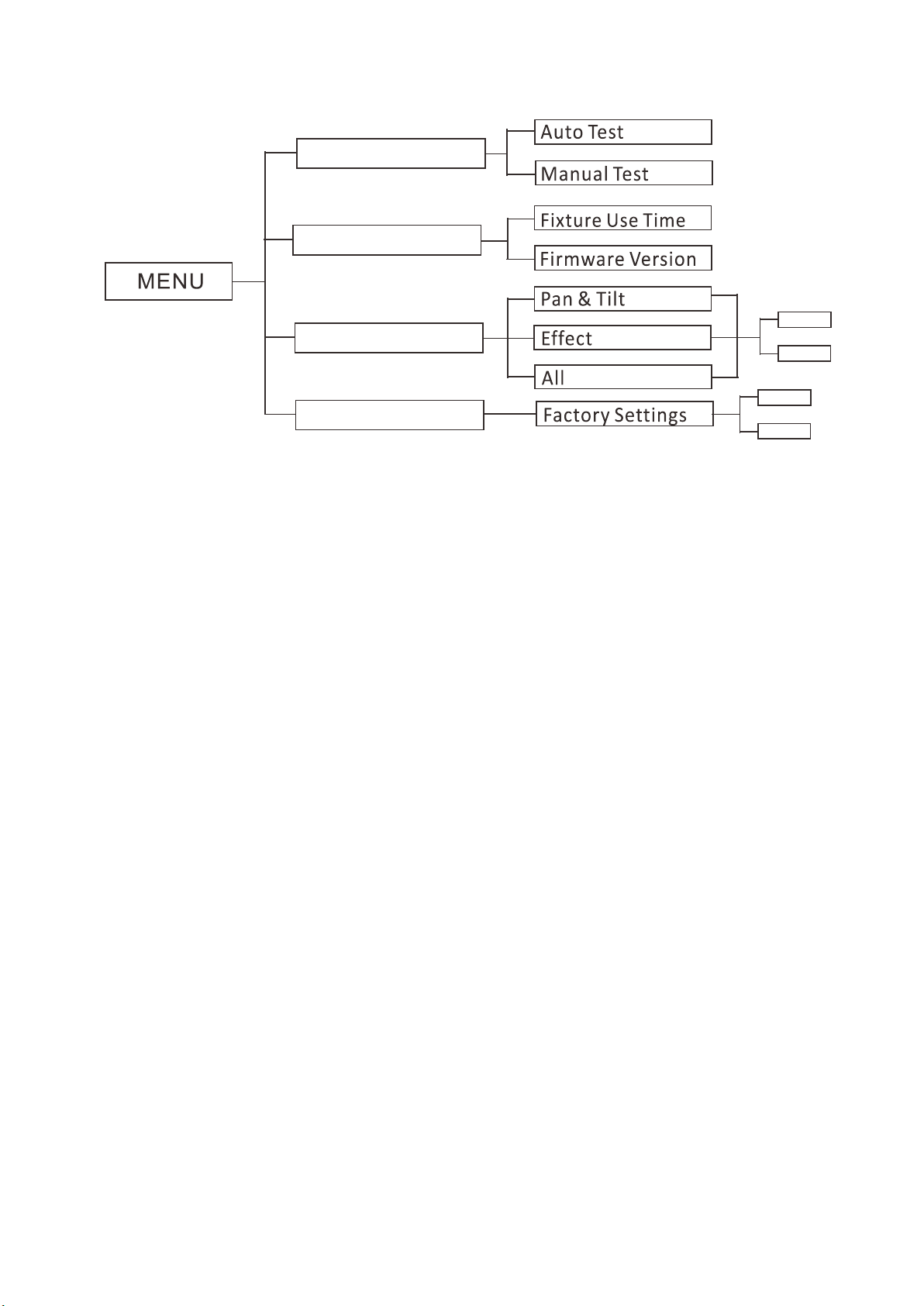

Yes
Fixture Information
Fixture Test
No
Reset Functions
Yes
No
Special Functions
DMX Settings
To select DMX Settings press the ENTER button to confirm, use the UP/DOWN button to select DMX
Address, DMX Channel Mode or DMX State.
DMX Address —DMX512 address setting
To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust
the address from 001 to 512, press the ENTER button to store. Press the MENU button back to the
last menu or let the unit idle one minute to exit menu mode.
DMX Channel Mode — channel mode
To select DMX Channel Mode, press the ENTER button to confirm. Use the UP/DOWN button to
select Mode1 (16) or Mode2 (19) channels mode, press the ENTER button to store. Press the
MENU button back to the last menu or let the unit idle one minute to exit menu mode.
DMX State —fixture state while DMX single stops
To select DMX State, press the ENTER button to confirm. Use the UP/DOWN button to select
Master Slave(fixture enters to master slave mode),Blackout (fixture blacks out if DMX signal stops)
or Hold (fixture continues to obey the last command it received Via DMX if DMX signal stops),
press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle
one minute to exit menu mode.
Fixture Settings
To select Fixture Settings, press the ENTER button to confirm, use the UP/DOWN button to select Pan
Inverse, Tile Inverse, P/T Feedback, Dimmer Speed, Dimmer Curve or Auto Focus.
8C

Pan Inverse
To select Pan Inverse, press the ENTER button to confirm. Use the UP/DOWN button to select No
(normal) or Yes (pan inverse), press the ENTER button to store. Press the MENU button back to
the last menu or let the unit idle one minute to exit menu mode.
Tilt Inverse
To select Tilt Inverse, press the ENTER button to confirm. Use the UP/DOWN button to select No
(normal) or Yes (tilt inverse), press the ENTER button to store. Press the MENU button back to the
last menu or let the unit idle one minute to exit menu mode.
P/T Feedback
To select P/T Feedback, press the ENTER button to confirm. Use the UP/DOWN button to select
No (Pan or tilt’s position will not feedback while out of step) or Yes (Feedback while pan/tilt out of
step), press the ENTER button to store. Press the MENU button back to the last menu or let the
unit idle one minute to exit menu mode.
Dimmer Speed
To select Dimmer Speed, press the ENTER button to confirm. Use the UP/DOWN button to select
fast or smooth, press the ENTER button to store. Press the MENU button back to the last menu or
let the unit idle one minute to exit menu mode.

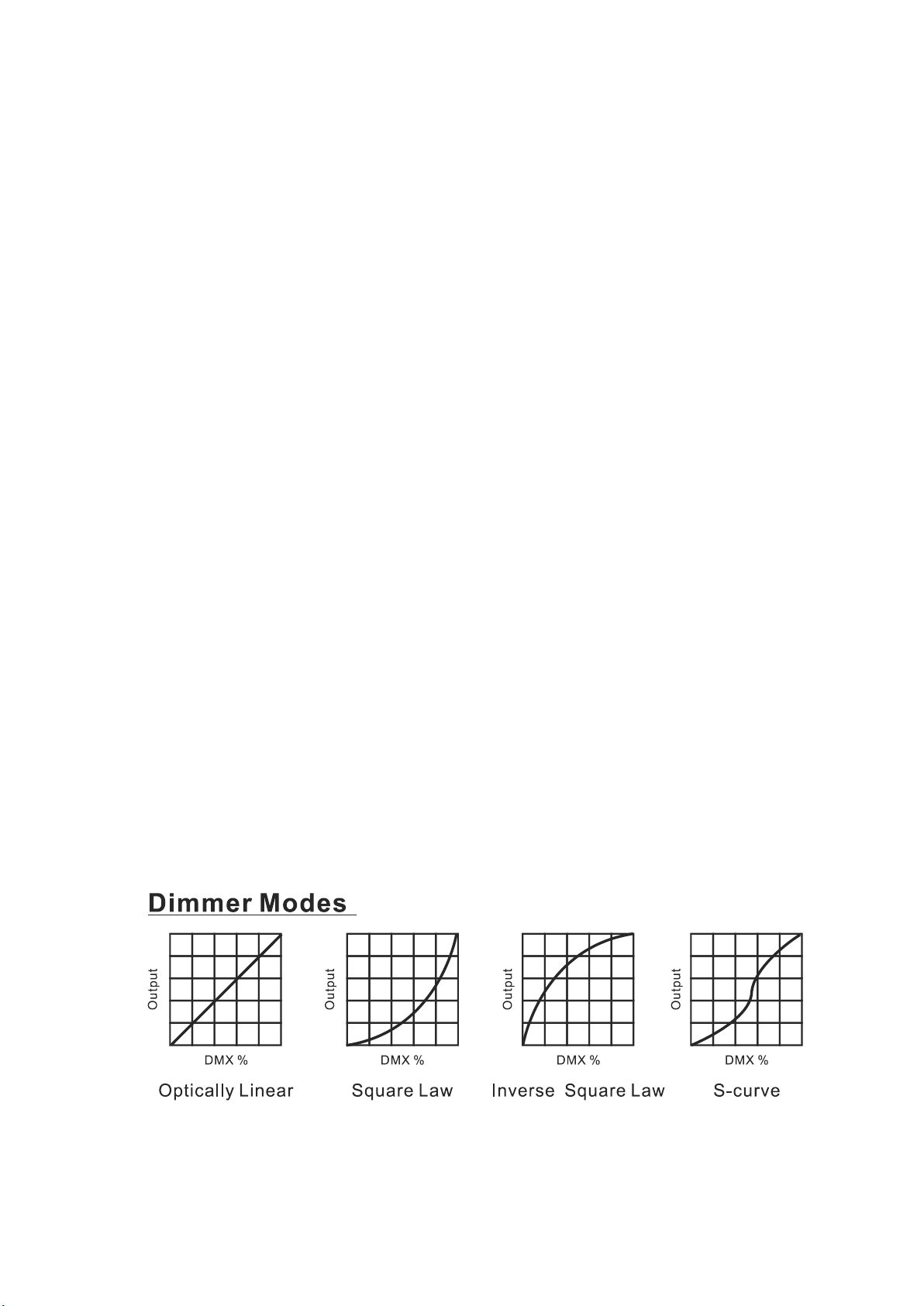

Dimmer Curve
To select Dimmer Curve, press the ENTER button to show the DIMMER CURVE on the display. Use
the DOWN/UP button to select the Mode1 or Mode 2 or Mode 3 or Mode 4. Once the mode has
been selected, press the ENTER button to setup, to go back to the functions without any change
press the MENU button again. Press and hold the MENU button about one second or wait for one
minute to exit the menu mode.
Mode 1(Optically Linear):
The increase in light intensity appears to be linear as DMX value is increased.
9C

Mode 2(Square Law):
Light intensity control is finer at low levels and coarser at high levels.
Mode 3(Inverse Square Law):
Light intensity control is coarser at low levels and finger at high levels.
Mode 4(S-cure):
Light intensity control is finger at low levels and high levels and coarser at medium levels.
Auto Focus
To select Auto Focus, press the ENTER button to confirm. Use the UP/DOWN button to select
5m,10m or 15m, press the ENTER button to store. Press the MENU button back to the last menu
or let the unit idle one minute to exit menu mode.
Display Settings
Enter menu mode, select Display Setting, press the ENTER button to confirm, use the UP/DOWN
button to select Display Inverse,Backlight Intensity,Contrast Ratio, Temperature Unit, Display
Warning or Language.
Display Inverse
Select Display Inverse, press the ENTER button to confirm, present mode will blink on the display,
use the UP/DOWN button to select No (normal display) or Yes (inverse display), press the ENTER
button to store. Press the MENU button back to the last menu or let the unit idle one minute to
exit menu mode.
Backlight Intensity
Select Backlight Intensity, press the ENTER button to confirm, present mode will blink on the
display, use the UP/DOWN button to adjust backlight intensity from 1 (dark) to 10 (bright), press
the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
Contrast Ratio
Select Contrast Ratio, press the ENTER button to confirm, present mode will blink on the display,
use the UP/DOWN button to adjust value from 0to 30, press the ENTER button to store. Press the
MENU button back to the last menu or let the unit idle one minute to exit menu mode.
Temperature Unit
Select Temperature Unit, press the ENTER button to confirm, present mode will blink on the
display, use the UP/DOWN button to select
℃
or
℉
, press the ENTER button to store. Press the
10C

MENU button back to the last menu or let the unit idle one minute to exit menu mode.
Display Warning
Select Display Invert, press the ENTER button to confirm, present mode will blink on the display,
use the UP/DOWN button to select No (normal display) or Yes (Show service warnings in display
panel), press the ENTER button to store. Press the MENU button back to the last menu or let the
unit idle one minute to exit menu mode.
Language
Select Language, press the ENTER button to confirm, present mode will blink on the display, use
the UP/DOWN button to select English or Chinese. Press the MENU button back to the last menu
or let the unit idle one minute to exit menu mode.
F ixture Test
Enter menu mode, select Fixture Test, press the ENTER button to confirm, use the UP/DOWN
button to select Auto Test or Manual Test
Auto Test
Select Auto Test, press the ENTER button to confirm, the unit will run built-in programs to
automatically test pan, tilt, shutter, color, CMY, gobo, gobo rotation, prism, prism rotation, iris,
frost, zoom, focus, dimmer and lamp on/off. Press the MENU button back to the last menu or exit
menu mode after auto test.
Manual Test
Select Manual Test, press the ENTER button to confirm, the present channel will show on the
display, use the UP/DOWN button to select channel, press the ENTER button to confirm, then use
the UP and DOWN button to adjust the value, press the ENTER button to store, the fixture will run
as the channel value indicates. Press the MENU button back to the last menu or exit menu mode
idling one minute.
(All channels value will become 0 after exiting Manual Test menu)
Fixture Information
Enter menu mode, select Fixture Information, press the ENTER button to confirm, use the
UP/DOWN button to select Fixture use time or Firmware Version.
Fixture use hour
Select Fixture use hour, press the ENTERbutton to confirm, fixture use time will show on the
11C

display, press the MENU button to exit.
Firmware Version
Select Firmware Version, press the ENTER button to confirm, firmware version will show on the
display, press the MENU button back to exit.
Reset Functions
Enter menu mode, select Reset Function, press the ENTER button to confirm, use the UP/DOWN
button to select Pan/Tilt, Effect or All.
Pan
﹠
Tilt —Reset Pan/Tilt
Select Pan
﹠
Tilt, press the ENTER button to confirm, use the UP/DOWN button to select Yes (the
unit will run built-in program to reset pan and tilt to their home positions) or No(normal), press
the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
Effect —Reset Effect
Select Effect, press the ENTER button to confirm, use the UP/DOWN button to select Yes (the unit
will run built-in program to reset effect to their home positions) or No, press the ENTER button to
store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu
mode
All — Reset All
Select All, press the ENTER button to confirm, use the UP/DOWN button to select Yes (the unit
will run built-in program to reset all motors to their home positions) or No, press ENTER button to
store. Press the MENU button to exit.
Special Functions
Factory Settings
Select Factory Settings,press the ENTER button to confirm, use the UP/DOWN button to select
Yes (the fixture will reset to factory settings)or No (normal), press ENTER button to store. Press
the MENU button to exit.
12C

5.2 Home Position Adjustment
Press the MENU button into menu mode, then press the ENTER button for about 3 seconds into offset
mode to adjust the home position. Select the function by the ENTER button. Use the UP/DOWN
button to choose the submenu, press the ENTER button to store and automatically return to the last
menu. Press MENU button to exit.
Pan
Tilt
Color 1
Gobo 1
Gobo 2
RGobo 2
Prism
Rprism
Beam/Frost
Focus
Offset Menu
Pan—pan home position adjustment
Enter offset mode, Select Pan, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to
store. Press the MENU button to exit.
Tilt—Tilt home position adjustment
Enter offset mode, Select Tilt, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to
store. Press the MENU button to exit.
Color 1—Color 1 home position adjustment
Enter offset mode, Select Color 1, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button
to store. Press the MENU button to exit.
Gobo 1—Gobo 1 home position adjustment
13C

Enter offset mode, Select Gobo 1, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button
to store. Press the MENU button to exit.
Gobo 2—Gobo 2 home position adjustment
Enter offset mode, Select Gobo 2, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button
to store. Press the MENU button to exit.
R-Gobo 2—Gobo 2 rotation home position adjustment
Enter offset mode, Select R-Gobo 2, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button
to store. Press the MENU button to exit.
Prism—Prism home position adjustment
Enter offset mode, Select Prism, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to
store. Press the MENU button to exit.
R-Prism—Prism rotation home position adjustment
Enter offset mode, Select R-Prism, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button
to store. Press the MENU button to exit.
Beam/Frost—Beam/Frost home position adjustment
Enter offset mode, Select Beam/Frost, press the ENTER button to confirm, the present position will
blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER
button to store. Press the MENU button to exit.
Focus—Focus home position adjustment
Enter offset mode, Select Focus, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to
store. Press the MENU button to exit.
14C

5.3 Error Information
Lamp Startup Fail
It appears when there is no lamp or some wires are damaged.
Temperature Sense Error
It appears when temperature check board is damaged.
Lamp Too Hot Power Off
It appears when temperature is detected higher than 110℃. Check if the unit is properly ventilated, or
fans or temperature check board may is damaged.
Lamp Too Hot Low Power
It appears when detected temperature is higher than 105℃. the unit will run on a low power level.
Lamp On Over 700 Hour
It appears when the lamp always has been on over 700 hours, please turn off the lamp.
Memory Initial Fail
It appears when the memory IC is damaged.
CPU-B Error, CPU-C Error, CPU-D Error
They appear when board P.C or some wires are damaged.
Pan Reset Error, Pan Encode Error, Tilt Reset Error, Tilt Encode Error, Shutter Reset Fail, Dimmer
Reset Fail, Color Reset Fail, Cyan Reset Fail, Magenta Reset Fail, Yellow Reset Fail, Gobo1 Reset Fail,
R-Gobo1 Reset Fail, Gobo2 Reset Fail, Iris Reset Fail, Effect Reset Fail, R-Effect Reset Fail, Frost Reset
Fail, Flat Reset Fail, Focus Reset Fail, Zoom Reset Fail
They may appear when turning on or resetting the unit, for some parts such as board P.C are damaged.
Please contact the qualified maintenance.
15C

6. Control By Universal DMX Controller
6.1 Connection
1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W resistor
between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the
last unit.
2. Connect the unit together in a “daisy chain” by XLR plug cable from the output of the unit to the
input of the next unit. The cable cannot be branched or split to a “Y” cable. DMX 512 is a very
high-speed signal. Inadequate or damaged cables, soldered joints or corroded connectors can easily
distort the signal and shut down the system.
3. The DMX output and input connectors are pass-through to maintain the DMX circuit, when one of
the units’ power is disconnected.
4. Each lighting unit needs to have a DMX address to receive the data by the controller. The address
number is between 0-511 (usually 0 & 1 are equal to 1).
ATTENTION
Termination reduces signal errors and to avoid signal transmission problems and
interference. It is always advisable to connect a DMX terminal (Resistance 120 ohm 1/4W
between pin2 (DMX-) and pin3 (DMX+) of the last fixture).
16C

5. The end of the DMX 512 system should be terminated to reduce signal errors.
6. 3 pin XLR connectors are more popular than 5 pins XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin4, Pin5 not used.
6.2 Address Setting
If you use a universal DMX controller to control the units, you have to set DMX address from 1 to 512
so that the units can receive DMX signal.
Press the MENU button to enter menu mode, select DMX Functions, press the ENTER button to
confirm, use the UP/DOWN button to select DMX Address, press the ENTER button to confirm, the
present address will blinking the display, use the UP/DOWN button to adjust the address from 001 to
512, press the ENTER button to store. Press the MENU button back to the last menu or idling let the
unit idle one minute to exit menu mode.
Please refer to the following diagram to address your DMX512 channel for the first 4 units.
Channel mode
Unit 1
Address
Unit 2
Address
Unit 3
Address
Unit 4
Address
16 channels 1 17 33 49
19 channels 1 20 39 58
6.3 DMX 512 Configuration
Please refer to below configurations to control the fixtures
Attentions:
1. The unit will maintain the last condition until reset if you cut-off the DMX signal.
2. For the channel Function, keep the value for about 5 seconds, then the corresponding function
will take into effect.
16 Channels (Mode 1):
CHANNEL VALUE FUNCTION
1
000-255
PAN
0 ° 540°
2
000-255
TILT
0 °

270°
17C

3 000-255 PAN/TILT SPEED
Fast to Slow
4
000-007
008-063
064-127
128-191
192-255
PAN/TILT SHOW MACRO
Null
Show 1
Show 2
Show 3
Show 4
5
000-007
008-015
016-023
024-031
032-039
040-047
048-055
056-064
065-127
128-189
190-193
194-255
COLOR 1
Open
Color 1
Color 2
Color 3
Color 4
Color 5
Color 6
Color 7
Index
clockwise rotation fast to slow
Stop
clockwise rotation slow to fast
6
000-006
007-013
014-020
021-027
028-034
035-041
042-048
049-055
056-062
063-069
070-083
084-127
128-189
190-193
194-255
GOBO
Open
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5
Gobo 6
Gobo 7
Gobo 8
Gobo 9
Open
Gobo Shaking
clockwise rotation fast to slow
Stop
clockwise rotation slow to fast
7
000-010
011-021
022-032
GOBO 2
Open
Gobo 1
Gobo 2
18C

033-043
044-054
055-065
066-076
077-087
088-127
128-189
190-193
194-255
Gobo 3
Gobo 4
Gobo 5
Gobo 6
Gobo 7
Gobo Shaking
clockwise rotation fast to slow
Stop
clockwise rotation slow to fast
8
000-127
128~189
190-193
194-255
R-GOBO 2
Index
clockwise rotation fast to slow
Stop
clockwise rotation slow to fast
9
000-007
008-255
PRISM
No effect
Prism Effect
10
000-127
128-189
190-193
194-255
R-PRISM
Index
clockwise rotation fast to slow
Stop
clockwise rotation slow to fast
11
000-007
008-127
128-255
FOCUS
Open
Angle
Frost
12
000-255
FOCUS
0% 100%
13
000-007
008-015
016-131
132-139
140-181
182-189
190-231
232-239
240-247
248-255
SHUTTER
Close
Open
slow to fast strobe
open
Slow open fast close
open
Slow close fast open
open
Random strobe
Open
14
000-255
DIMMER
0% 100%
19C
