ACME BIG BANG User manual

1B
CONTENTS
1. Safety Instructions ......................................................................................... 2
2. Technical Specifications ................................................................................. 3
3. Control Panel ................................................................................................. 5
4. Installation ..................................................................................................... 5
5. Control By Universal DMX Controller ............................................................. 7
5.1 DMX512 Connection ................................................................................ 7
5.2 Address Setting ........................................................................................ 8
5.3 DMX512 Configuration............................................................................. 8
6. Troubleshooting........................................................................................... 21
7. Fixture Cleaning ........................................................................................... 22

2B
1. Safety Instructions
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that
they also receive this instruction manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The dealer will
not accept liability for any resulting defects or problems.
Unpack and check carefully to ensure that there is no transportation damage before using the
unit.
This product is for indoor use only. Use only in a dry location.
DO install and operate by qualified operator.
DO NOT allow children to operate the fixture.
Use safety chain when fixing the unit. Handle the unit by carrying its base instead of head only.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces.
Be sure that no ventilation slots is blocked, otherwise the unit will be overheated.
Before operation, ensure that you are connecting this product to the proper voltage in
accordance with the specifications in this manual or on the product’s specification label.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
Minimum ambient temperature TA: 0℃. Maximum ambient temperature TA: 40℃.Do not
operate this product at a lower or higher temperature.
DO NOT connect the device to any dimmer pack.
Keep flammable materials away from the fixture while operating to avoid fire hazard.
Make sure the power cord is not crimped or damaged; replace it immediately if damaged.
Unit’s surface temperature may reach up to 75℃. DO NOT touch the housing bare-handed
during its operation.
Avoid any flammable liquids, water or metal from entering the unit. Once it happens, cut off
the mains power immediately.
Please read the instruction carefully which includes important information about
the installation, usage and maintenance.

3B
DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.
DO NOT touch any wire during operation as there might be a hazard of electric shock.
Avoid entanglement of the power cord with other wires.
The minimum distance to objects/surface must be more than 0.5 meters.
In the event of serious operating problem, stop using the unit immediately.
Never turn on and off the unit time after time.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
DO NOT open the housing as there are no user serviceable parts inside.
DO NOT attempt to operate this unit if it becomes damaged. DO NOT attempt any repairs
yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please
contact the nearest authorized technical assistance center if needed.
Disconnect this product from its power source before servicing.
DO use the original packaging if the device is to be transported.
Avoid direct eye exposure to the light source while the product is on.
DO NOT operate this product if you see damage on the housing, shields, or cables. Have the
damaged parts replaced by an authorized technician at once.
2. Technical Specifications
Power Voltage:
100-240V~ 50/60Hz
Power Consumption:
120W
Light Source:
441x0.3W RGB LED
Beam Angle:
110°
Field Angle:
150°
Movement:
Pan/Tilt Movement: 76°
Pan/Tilt Resolution: 16 bit

4B
Dimmer/Shutter:
Smooth dimming from 0~100%; outstanding strobe effect with variable speed
Control:
DMX Channel: 156/16 channels
Control Mode: DMX512, RDM
Firmware Upgrade via DMX link
Construction:
Data In/Out: 5-pin XLR
Power In/Out: Power Connector in
Protection Rating: IP20
Features:
49 sections can be controlled individually
Quick splicing in horizontal and vertical direction, side hanging directly or hanging with clamp
Compact design, light in weight
Outstanding color mixing effect
Dimensions/ Weight:
272x250x252mm, 5kgs
10.7”x9.8”x9.9”in, 11lbs
Photometric Diagram:

5B

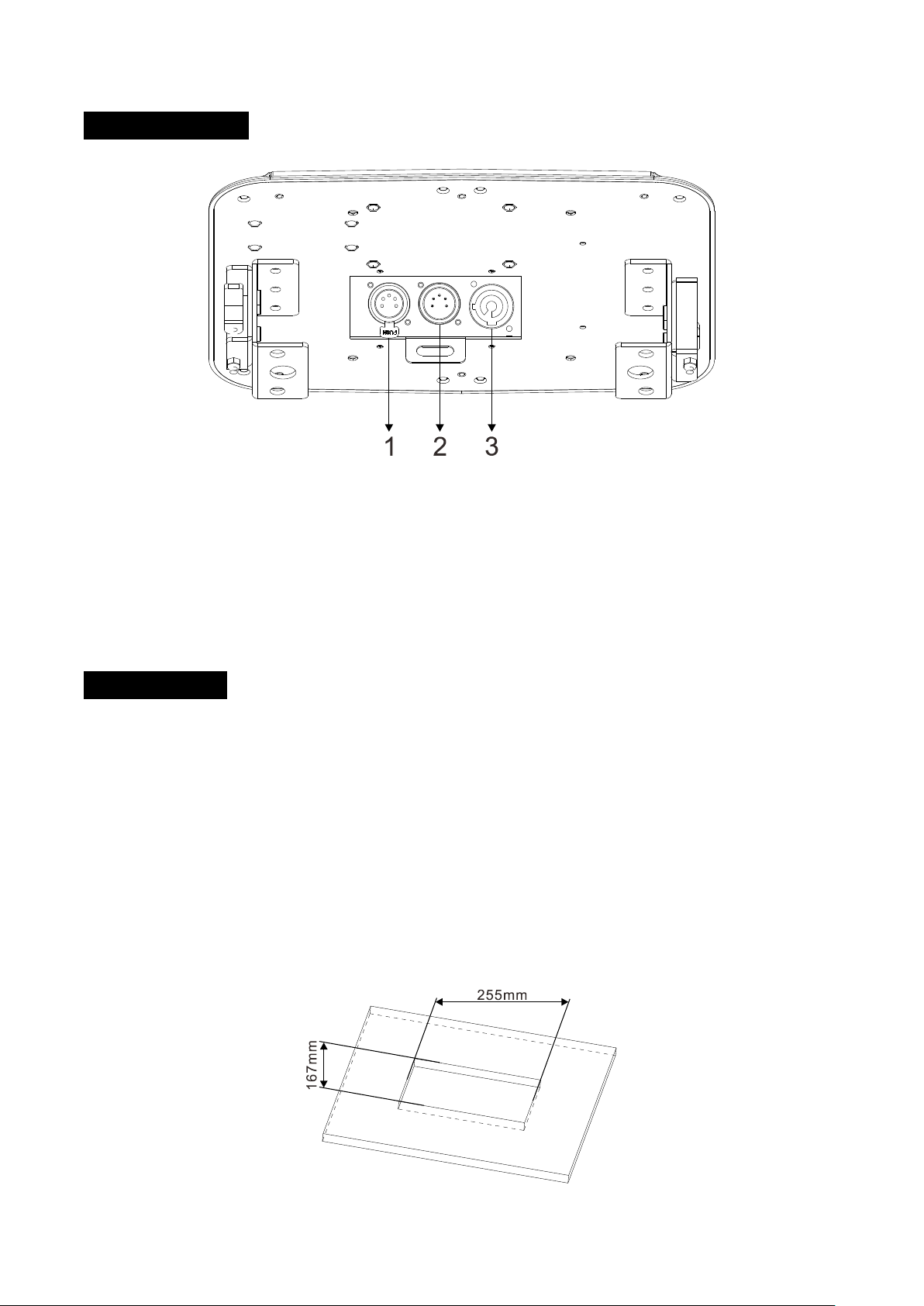

3. Control Panel
1. DMX OUT:
For DMX512 link, use 5-pin XLR cable to link the next units
2. DMX IN:
For DMX512 link, use 5-pin XLR cable to link the unit and controller
3. POWER IN: Connects to supply power
4. Installation
Always ensure that the unit is firmly fixed to avoid vibration and slipping off during operation.
Ensure that the trussing or area of installation must be able to hold 10 times the weight without any
deformation. Always install a safety cable that can hold at least 12 times the weight of the fixture
when installing.
DO install and operate by qualified operator. It must be installed in a place where there is out of the
reach of people.
1. Drill a rectangular hole with a length of 255mm and a width of 167mm in the ceiling. The ceiling
thickness range is 6mm≤L≤29mm.

6B

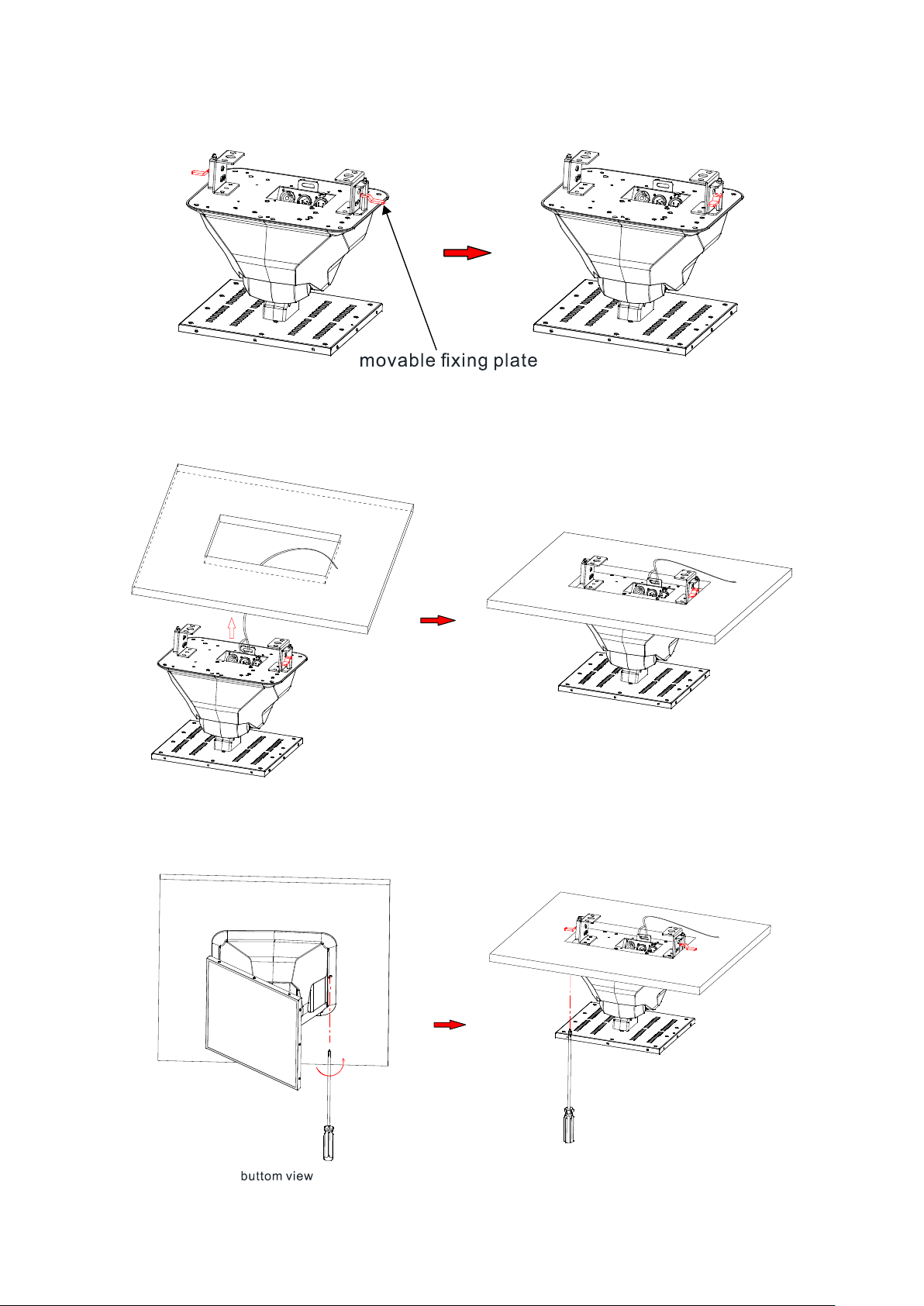

2. Adjust the two movable fixing plates of the luminaire inward and stick to the luminaire shell.
3. Install the safety cable and push the luminaire from the bottom to the ceiling to be flush with the
ceiling surfacing.
4. Screw the two screws to the right to open the movable fixing plates outwards and press the back
of the ceiling.

7B
5. Installation completed.
5. Control By Universal DMX Controller
5.1 DMX512 Connection
1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W
resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output
of the last unit.
2. Connect the unit together in a “daisy chain” by XLR plug cable from the output of the unit to
the input of the next unit. The cable can only be used in series and cannot be connected in parallel.
DMX 512 is a very high-speed signal. Inadequate or damaged cables, soldered joints or corroded
connectors can easily distort the signal and shut down the system.

8B
3. The DMX output and input connectors are pass-through to maintain the DMX circuit, when one
of the units’ power is disconnected.
4. Each lighting unit needs to have a DMX address to receive the data by the controller. The
address number is between 1-512.
5. The end of the DMX 512 system should be terminated to reduce signal errors.
6. 3 pin XLR connectors are more popular than 5 pins XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin4, Pin5 not used.
5.2 Address Setting
If you use a universal DMX controller to control the units, you have to set DMX address from 1 to
512 so that the units can receive DMX signal.
Please refer to the following diagram to address your DMX512 channel for the first 4 units.
Channel mode
Unit 1
Address
Unit 2
Address
Unit 3
Address
Unit 4
Address
156 channels
1
157
313
469
16 channels
1
17
33
49
5.3 DMX512 Configuration
Please control the fixture by referring to the configurations below
Attentions:
1. The unit will maintain the last condition until reset if you cut-off the DMX signal.
2. For the channel Function, keep the value for about 3 seconds, then the corresponding function
will take into effect.

9B
156 Channels (Mode 1):
CHANNEL
VALUE
FUNCTION
1
000-255
PAN
0°76°
2
000-255
PAN FINE
3
000-255
TILT
0°76°
4
000-255
TILT FINE
5
000-255
PAN/TILT SPEED
Fast to Slow
6
000-007
008-015
016-131
132-139
140-181
182-189
190-231
232-239
240-247
248-255
STROBE
Close
Open
Strobe from Slow to Fast
Open
Fast Close Slow Open
Open
Fast Open Slow Close
Open
Random Strobe
Open
7
000-255
DIMMER
0%100%
8
000-255
DIMMER FINE
9
000-009
010-019
020-029
030-039
040-049
050-059
060-069
070-079
080-089
090-099
100-109
110-119
120-129
130-139
140-149
150-159
160-169
170-179
SPECIAL FUNCTION
Null
Null
Null
Dimmer Curve: Linear
Dimmer Curve: Square Law
Dimmer Curve: Inverse Square Law
Dimmer Curve: S Curve
Null
Null
Null
Null
Null
Null
Null
Pan/Tilt Reset
Null
Null
Null

10B
180-189
190-199
200-209
210-219
220-229
230-239
240-245
246-251
252-255
Null
Null
Null
Dimmer Speed: Fast
Dimmer Speed: Slow
Null
Null
Null
Null
10
000-255
RED1
0%100%
11
000-255
GREEN1
0%100%
12
000-255
BLUE1
0%100%
13
000-255
RED2
0%100%
14
000-255
GREEN2
0%100%
15
000-255
BLUE2
0%100%
16
000-255
RED3
0%100%
17
000-255
GREEN3
0%100%
18
000-255
BLUE3
0%100%
19
000-255
RED4
0%100%
20
000-255
GREEN4
0%100%
21
000-255
BLUE4
0%100%
22
000-255
RED5
0%100%
23
000-255
GREEN5
0%100%
24
000-255
BLUE5
0%100%
25
000-255
RED6
0%100%
26
000-255
GREEN6
0%100%
27
BLUE6

11B
000-255
0%100%
28
000-255
RED7
0%100%
29
000-255
GREEN7
0%100%
30
000-255
BLUE7
0%100%
31
000-255
RED8
0%100%
32
000-255
GREEN8
0%100%
33
000-255
BLUE8
0%100%
34
000-255
RED9
0%100%
35
000-255
GREEN9
0%100%
36
000-255
BLUE9
0%100%
37
000-255
RED10
0%100%
38
000-255
GREEN10
0%100%
39
000-255
BLUE10
0%100%
40
000-255
RED11
0%100%
41
000-255
GREEN11
0%100%
42
000-255
BLUE11
0%100%
43
000-255
RED12
0%100%
44
000-255
GREEN12
0%100%
45
000-255
BLUE12
0%100%
46
000-255
RED13
0%100%
47
000-255
GREEN13
0%100%
48
000-255
BLUE13
0%100%

12B
49
000-255
RED14
0%100%
50
000-255
GREEN14
0%100%
51
000-255
BLUE14
0%100%
52
000-255
RED15
0%100%
53
000-255
GREEN15
0%100%
54
000-255
BLUE15
0%100%
55
000-255
RED16
0%100%
56
000-255
GREEN16
0%100%
57
000-255
BLUE16
0%100%
58
000-255
RED17
0%100%
59
000-255
GREEN17
0%100%
60
000-255
BLUE17
0%100%
61
000-255
RED18
0%100%
62
000-255
GREEN18
0%100%
63
000-255
BLUE18
0%100%
64
000-255
RED19
0%100%
65
000-255
GREEN19
0%100%
66
000-255
BLUE19
0%100%
67
000-255
RED20
0%100%
68
000-255
GREEN20
0%100%
69
000-255
BLUE20
0%100%
70
000-255
RED21
0%100%

13B
71
000-255
GREEN21
0%100%
72
000-255
BLUE21
0%100%
73
000-255
RED22
0%100%
74
000-255
GREEN22
0%100%
75
000-255
BLUE22
0%100%
76
000-255
RED23
0%100%
77
000-255
GREEN23
0%100%
78
000-255
BLUE23
0%100%
79
000-255
RED24
0%100%
80
000-255
GREEN24
0%100%
81
000-255
BLUE24
0%100%
82
000-255
RED25
0%100%
83
000-255
GREEN25
0%100%
84
000-255
BLUE25
0%100%
85
000-255
RED26
0%100%
86
000-255
GREEN26
0%100%
87
000-255
BLUE26
0%100%
88
000-255
RED27
0%100%
89
000-255
GREEN27
0%100%
90
000-255
BLUE27
0%100%
91
000-255
RED28
0%100%
92
000-255
GREEN28
0%100%

14B
93
000-255
BLUE28
0%100%
94
000-255
RED29
0%100%
95
000-255
GREEN29
0%100%
96
000-255
BLUE29
0%100%
97
000-255
RED30
0%100%
98
000-255
GREEN30
0%100%
99
000-255
BLUE30
0%100%
100
000-255
RED31
0%100%
101
000-255
GREEN31
0%100%
102
000-255
BLUE31
0%100%
103
000-255
RED32
0%100%
104
000-255
GREEN32
0%100%
105
000-255
BLUE32
0%100%
106
000-255
RED33
0%100%
107
000-255
GREEN33
0%100%
108
000-255
BLUE33
0%100%
109
000-255
RED34
0%100%
110
000-255
GREEN34
0%100%
111
000-255
BLUE34
0%100%
112
000-255
RED35
0%100%
113
000-255
GREEN35
0%100%
114
000-255
BLUE35
0%100%

15B
115
000-255
RED36
0%100%
116
000-255
GREEN36
0%100%
117
000-255
BLUE36
0%100%
118
000-255
RED37
0%100%
119
000-255
GREEN37
0%100%
120
000-255
BLUE37
0%100%
121
000-255
RED38
0%100%
122
000-255
GREEN38
0%100%
123
000-255
BLUE38
0%100%
124
000-255
RED39
0%100%
125
000-255
GREEN39
0%100%
126
000-255
BLUE39
0%100%
127
000-255
RED40
0%100%
128
000-255
GREEN40
0%100%
129
000-255
BLUE40
0%100%
130
000-255
RED41
0%100%
131
000-255
GREEN41
0%100%
132
000-255
BLUE41
0%100%
133
000-255
RED42
0%100%
134
000-255
GREEN42
0%100%
135
000-255
BLUE42
0%100%
136
000-255
RED43
0%100%

16B
137
000-255
GREEN43
0%100%
138
000-255
BLUE43
0%100%
139
000-255
RED44
0%100%
140
000-255
GREEN44
0%100%
141
000-255
BLUE44
0%100%
142
000-255
RED45
0%100%
143
000-255
GREEN45
0%100%
144
000-255
BLUE45
0%100%
145
000-255
RED46
0%100%
146
000-255
GREEN46
0%100%
147
000-255
BLUE46
0%100%
148
000-255
RED47
0%100%
149
000-255
GREEN47
0%100%
150
000-255
BLUE47
0%100%
151
000-255
RED48
0%100%
152
000-255
GREEN48
0%100%
153
000-255
BLUE48
0%100%
154
000-255
RED49
0%100%
155
000-255
GREEN49
0%100%
156
000-255
BLUE49
0%100%

17B
16 Channels (Mode 2):
CHANNEL
VALUE
FUNCTION
1
000-255
PAN
0°76°
2
000-255
PAN FINE
3
000-255
TILT
0°76°
4
000-255
TILT FINE
5
000-255
PAN/TILT SPEED
Fast to Slow
6
000-255
RED
0%100%
7
000-255
GREEN
0%100%
8
000-255
BLUE
0%100%
9
000-009
010-014
015-019
020-024
025-029
030-034
035-039
040-044
045-049
050-054
055-059
060-064
065-069
070-074
075-079
080-084
085-089
090-094
095-099
100-104
105-109
110-114
115-119
120-124
125-129
130-134
135-139
140-144
COLOR MACRO
Open
LEE 790-Moroccan Pink
LEE 157-Pink
LEE 332-Special Rose Pink
LEE 328-Follies Pink
LEE 345-Fuchsia Pink
LEE 194-Surprise Pink
LEE 181-Congo Blue
LEE 071-Tokyo Blue
LEE 120-Deep Blue
LEE 079-Just Blue
LEE 132-Medium Blue
LEE 200-Double CT Blue
LEE 161-State Blue
LEE 201-Full CT Blue
LEE 202-Half CT Blue
LEE 117-Steel Blue
LEE 353-Lighter Blue
LEE 118-Light Blue
LEE 116-Medium Blue Green
LEE 124-Dark Green
LEE 139-Primary Green
LEE 089-Moss Green
LEE 122-Fern Green
LEE 738-JAS Green
LEE 088-Lime Green
LEE 100-Spring Yellow
LEE 104-Deep Amber

18B
145-149
150-154
155-159
160-164
165-169
170-174
175-179
180-201
202-207
208-229
230-234
235-239
240-244
245-249
250-255
LEE 179-Chrome Orange
LEE 105-Orange
LEE 021-Gold Amber
LEE 778-Millennium Gold
LEE 135-Deep Gold Amber
LEE 164-Flame Red
Open
Clockwise Rotation, Fast to Slow
Stop
Counter-clockwise Rotation, Slow to Fast
Open
Random Color: Fast
Random Color: Medium
Random Color: Slow
Open
10
000-007
008-015
016-131
132-139
140-181
182-189
190-231
232-239
240-247
248-255
STROBE
Close
Open
Strobe from Slow to Fast
Open
Fast Close Slow Open
Open
Fast Open Slow Close
Open
Random Strobe
Open
11
000-255
DIMMER
0%100%
12
000-255
DIMMER FINE
13
000-255
BACKGROUND DIMMER
0%100%
14
000-014
015-047
048-095
096-135
136-175
176-215
216-255
EFFECT MODE
Blackout
Blackout
Macro Effect (see channel 15-1)
Number 1 to 9 (see channel 15-2)
Letter A to Z (see channel 15-3)
Blackout
Blackout
15-1
000-007
008-015
016-023
024-031
032-039
040-047
MARCO EFFECT
Null
Effect 01
Effect 02
Effect 03
Effect 04
Effect 05

19B
048-055
056-063
064-071
072-079
080-087
088-095
096-103
104-111
112-119
120-127
128-135
136-143
144-151
152-159
160-167
168-175
176-183
184-191
192-199
200-207
208-215
216-223
224-231
232-247
248-255
Effect 06
Effect 07
Effect 08
Effect 09
Effect 10
Effect 11
Effect 12
Effect 13
Effect 14
Effect 15
Effect 16
Effect 17
Effect 18
Effect 19
Effect 20
Effect 21
Effect 22
Effect 23
Effect 24
Effect 25
Effect 26
Effect 27
Effect 28
Random Effect
Null
15-2
000-025
026-048
049-071
072-094
095-117
118-140
141-163
164-186
187-209
210-232
233-255
NUMBER 1 to 9
Null
Number-0
Number-1
Number-2
Number-3
Number-4
Number-5
Number-6
Number-7
Number-8
Number-9
15-3
000-021
022-030
031-039
040-048
049-057
058-066
067-075
076-084
085-093
LETTER A to Z
Null
Letter-A
Letter-B
Letter-C
Letter-D
Letter-E
Letter-F
Letter-G
Letter-H
