ACME Building wash User manual

CONTENTS
1. Safety Instruction .............................................................................................................................2
2.Techical Specfications........................................................................................................................4
3. How To Set The Fixture ....................................................................................................................6
3.1 Control Panel............................................................................................................................6
3.2 Main Functions.........................................................................................................................7
4. How To Control The Unit................................................................................................................12
4.1 DMX Controller.......................................................................................................................12
4.2 DMX 512 Configuration..........................................................................................................12
5. DMX512 Connections.....................................................................................................................14
6. Troubleshooting .............................................................................................................................15
7. Fixture Cleaning .............................................................................................................................15
1E

1. Safety Instruction
Please keep this User Guide for future consultation. If you sell the unit to another user, be
sure that they also receive this instruction booklet.
Caution:
All fixtures are intact from the manufacturer, please operate follow up the user manual,
artificial fault are not under guarantee repair.
Unpack and check carefully there is no transportation damage before using the unit.
DO install and operate by operator.
Use safety chain when fixes the unit.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces.
Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
Maximum ambient temperature Ta: 40℃. Don’t operate it where the temperature is higher
than this.
DO NOT connect the device to any dimmer pack.
Make sure there are no flammable materials close to the unit while operating, as it is fire
hazard.
Look over power wires carefully, replace immediately if there is any damage.
Unit surface temperature may reach up to 60℃. DO NOT touch the housing bare-hand during
its operation.
Avoid any inflammable liquids, water or metal objects entering the unit. Once it happen, cut
off the mains power immediately.
DO NOT operate in dirty and dusty environment, also cleaning fixtures regularly.
DO NOT allow children to operate the fixture.
DO NOT touch any wire during operation as there might be a hazard of electric shock.
Avoid power wires together arounding other cables.
Please read the instructions carefully which includes important
information about the installation, operation and maintenance.
2E

Replace fuse only with the same type.
In the event of serious operating problem, stop using the unit immediately.
The housing, the lenses must be replaced if they are visibly damaged.
DO NOT open the unit as there are no user serviceable parts inside. Never try to repair the unit
by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please
contact the nearest authorized technical assistance center.
Disconnect the mains power if the fixture is not used for a long time.
DO use original packing materials once transport it again.
Installation:
The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is
firmly fixed to avoid vibration and slipping while operating. Always ensure that the structure to
which you are attaching the unit is secure and is able to support a weight of 10 times of the
unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the unit
when installing the fixture in the air.
The equipment must be fixed by professionals. And it must be fixed at a place where is out of the
touch of people and has no one pass by or under it.
If using a 230V 50Hz power supply, DO NOT connect in series more than 18 units; use
another main supply for the next 18 fixtures.
If using a 120V 60Hz power supply, DO NOT connect in series more than 9 units; use
another main supply for the next 9 fixtures.
3E

2.Techical Specfications
- New member of Visio architectural lightings, specially designed to replacing the traditional
outdoor 400W discharge fixtures.
- Great heat ventilation and heavy duty design to ensure reliable performance under harsh
environment
- It features 90pcs×3W CREE LEDs provides powerful output
- Various beam angles, ideal for different applications – for the illumination of buildings, bridges,
stadium, landscapes, theme parks and more.
Key Facts:
◇Die-cast housing and thermal control for the reliable performance
◇17000 Lumen Output
◇1 KHz refreshing frequency, flicker-free under HD camera
◇Barn door is available upon request (sold separately)
BW-903 CW AR:
Input Voltage
：
AC 100-240V 50/60Hz
Power Consumption
：
267W
Light Source: 90×3W CREE Cold White LEDs
Beam Angle: 6°, 15°, 25°, 40°, 60°, 80°
Lumen Output: >17000lm
Color Temperature: 5300~5900K
IP Rating: IP66
Weight
：
15.6Kgs
Dimension：385×400×195mm
4E

BW-903 WW AR:
Input Voltage
：
AC 100-240V 50/60Hz
Power Consumption
：
267W
Light Source: 90×3W CREE Warm White LEDs
Beam Angle: 6°, 15°, 25°, 40°, 60°, 80°
Lumen Output: >17300lm
Color Temperature: 2900~3200K
IP Rating: IP66
Weight
：
15.6Kgs
Dimension：385×400×195mm
BW-903 VW AR:
Input Voltage
：
AC 100-240V 50/60Hz
Power Consumption
：
267W
Light Source: 42×3W CREE Warm White and 48×3W Cold White LEDs
Beam Angle: 6°, 15°, 25°, 40°, 60°, 80°
Lumen Output: >17300lm
Color Temperature: 2900~5900K
IP Rating: IP66
Weight
：
15.6Kgs
Dimension：385×400×195mm
5E

3. How To Set The Fixture
3.1 Control Panel
1. Display:
To show the various menus and the selected functions
Button:
2. MENU
To select the programming functions
3. DOWN
To go backward in the selected functions
4. UP
To go forward in the selected functions
5. ENTER
To confirm the selected functions
6. POWER IN:
Water proof connectors for power input
7. POWER OUT:
Water proof connectors for power output
8. DMX IN:
Water proof 3-pin XLR connectors for DMX 512 operation
9. DMX OUT:
Water proof connectors for DMX 512 operation with 3-pin XLR plug
6E

3.2 Main Functions
To select any functions, press the MENU button until the required one is shown on the display.
Select the function by the ENTER button and the display will blink. Use the DOWN and UP button
to change the mode. Once the required mode has been selected, press the ENTER button to setup
or it will automatically return to the main functions without any change after idling one minute.
Back to the functions without any change press the MENU button.

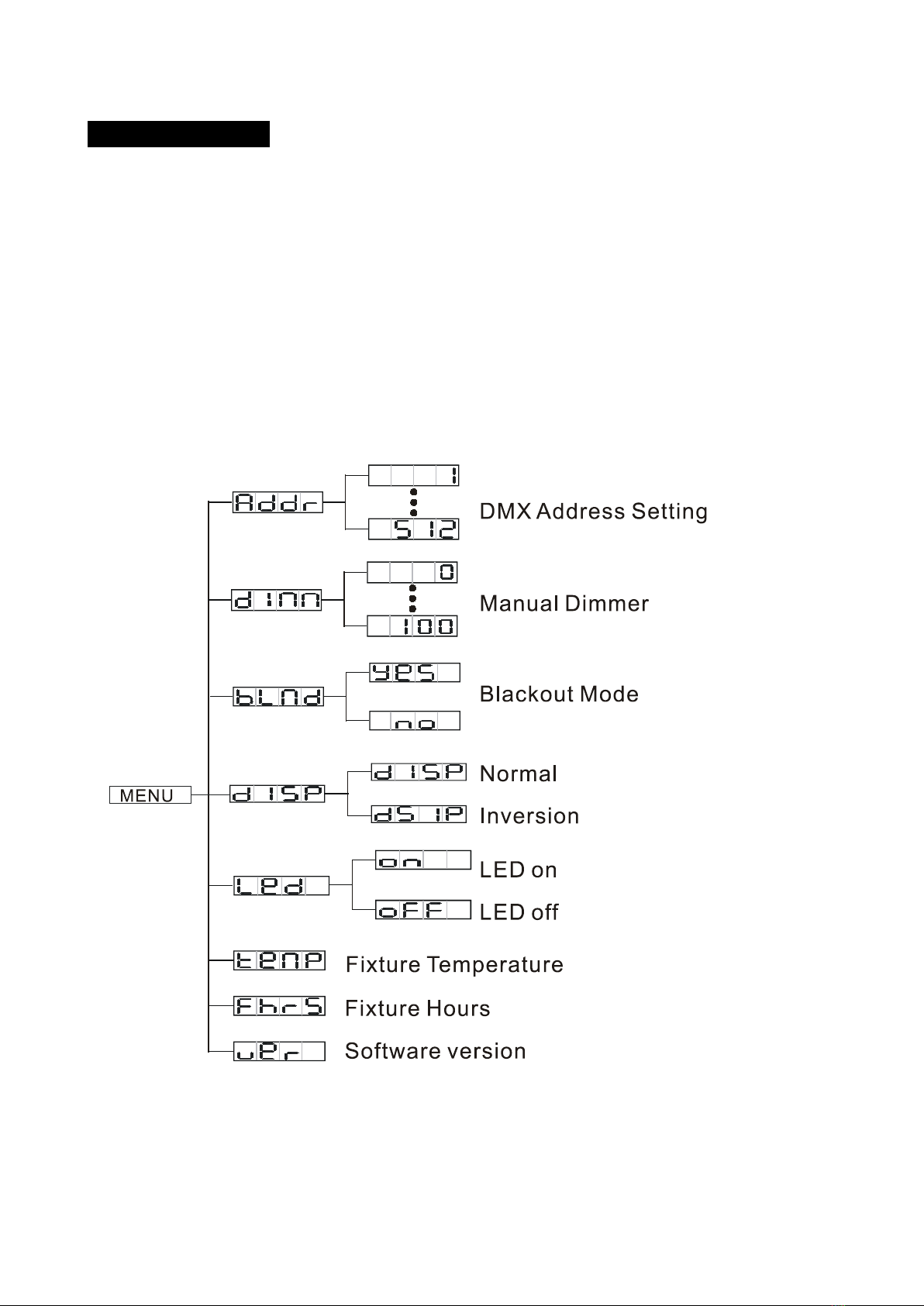

The main functions are shown below:
BW-903 CW AR / BW-903 WW AR:
7E

BW-903VW AR:
8E

DMX 512 Address Setting
Select the , press the ENTER button and the display will blink. Use the DOWN and UP
button to change the DMX 512 address from 1 to 512. Once the address has been selected, press
the ENTER button to setup or automatically exit menu mode without any change after one minute.
Back to the previous functions without any change press the MENU button.
Channel mode (For BW-903 VW AR only)
Select the , press the ENTER button and the display will blink. Use the DOWN and UP
button to select the (2 Channels) or (2D channels) Mode. Once select, press
the ENTER button to setup or automatically exit menu mode without any change after one minute.
To go back to the functions without any change press the MENU button.
Color Temperature Adjusting (For BW-903 VW AR only)
Select the , press the ENTER button and the display will blink. Use the DOWN and UP
button to select the (Cool White) or (Warm White) Mode. Press the ENTER
button to setup and use the DOWN and UP button to adjust the LED brightness between
and . Once select, press the ENTER button to setup or automatically exit menu mode
without any change after one minute. To go back to the functions without any change press the
MENU button.
Manual Dimmer
Select the , press the ENTER button and the display will blink. Use the DOWN and UP
button to adjust the LED brightness value. Once select, press the ENTER button to setup or
automatically exit menu mode without any change after one minute. To go back to the functions
without any change press the MENU button.
9E

Blackout mode
Select the , press the ENTER button and the display will blink. Use the DOWN and UP
button to select the (blackout) or (normal). Once selected, press the ENTER
button to setup or automatically exit menu mode without any change after one minute. To go
back to the functions without any change press the MENU button.
Display Inversion
Select the , press the ENTER button and the display will blink. Use the DOWN and UP
button to select the (Display normal) or (Display inverse). Once the mode has
been selected, press the ENTER button to setup or automatically return to the main functions
without any change after one minute. To go back to the previous functions without any change
press the MENU button.
LED
Press the MENU button up to when the is shown on the display. Pressing ENTER button
and the display will blink. Use the DOWN and UP button to select (display on) or
(display off 20 seconds after exit menu) mode. Once select, press ENTER button to setup
or exit menu mode without any change after one minute. Back to the functions without any
change press MENU button again.
Temperature Test
Press the MENU button up to when the is blinking on the display. Pressing ENTER
button and the display will show the temperature of the unit. To go back to the functions press the
MENU button again.
10E

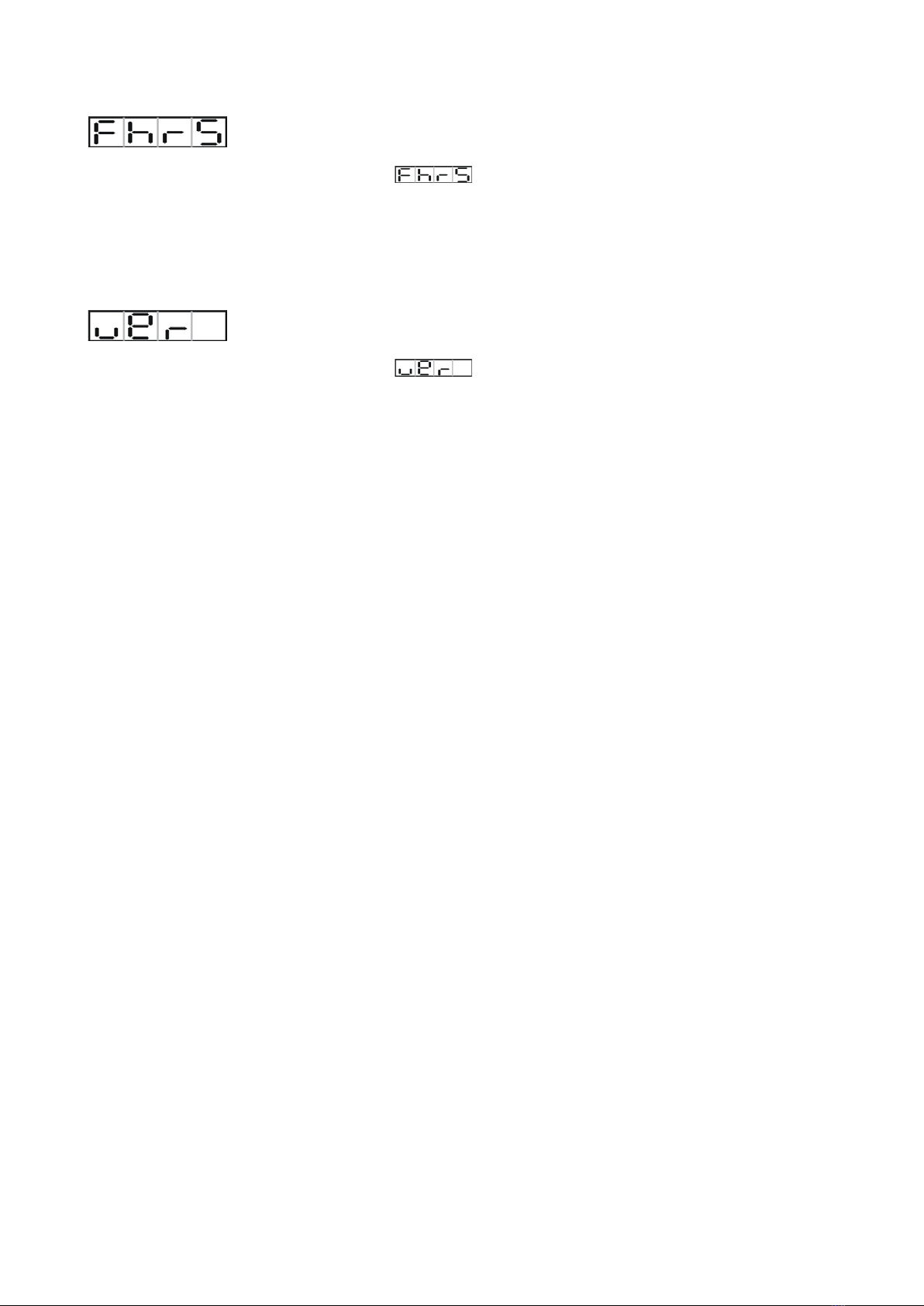

Fixture Hours
Press the MENU button up to when the is blinking on the display. Pressing ENTER
button and the display will show the number of working hours of the unit. To go back to the
functions press the MENU button.
Software version
Press the MENU button up to when the is blinking on the display. Pressing ENTER
button and the display will show the version of software of the unit. To go back to the functions
press the MENU button again.
11E

4. How To Control The Unit
You can operate the unit by DMX controller:
No need to turn the unit off when you change the DMX address, as new DMX address setting will
be affected at once. Every time you turn the unit on, it will show on the display After that
the unit will be ready to receive DMX signal or run the built in programs.
4.1 DMX Controller
Use universal DMX controller to control the units, you have to set DMX address from 1 to 512
channel so that the units can receive DMX signal.
Press the MENU button up to when the is showing on the display. Pressing the NTER
button and the display will blink. Use the DOWN and UP button to change the DMX512 address.
Once the address has been selected, press and keep the ENTER button pressed up to when the
display stops blinking or storing automatically 8 seconds later. To go back to the functions without
any change press the MENU button again.

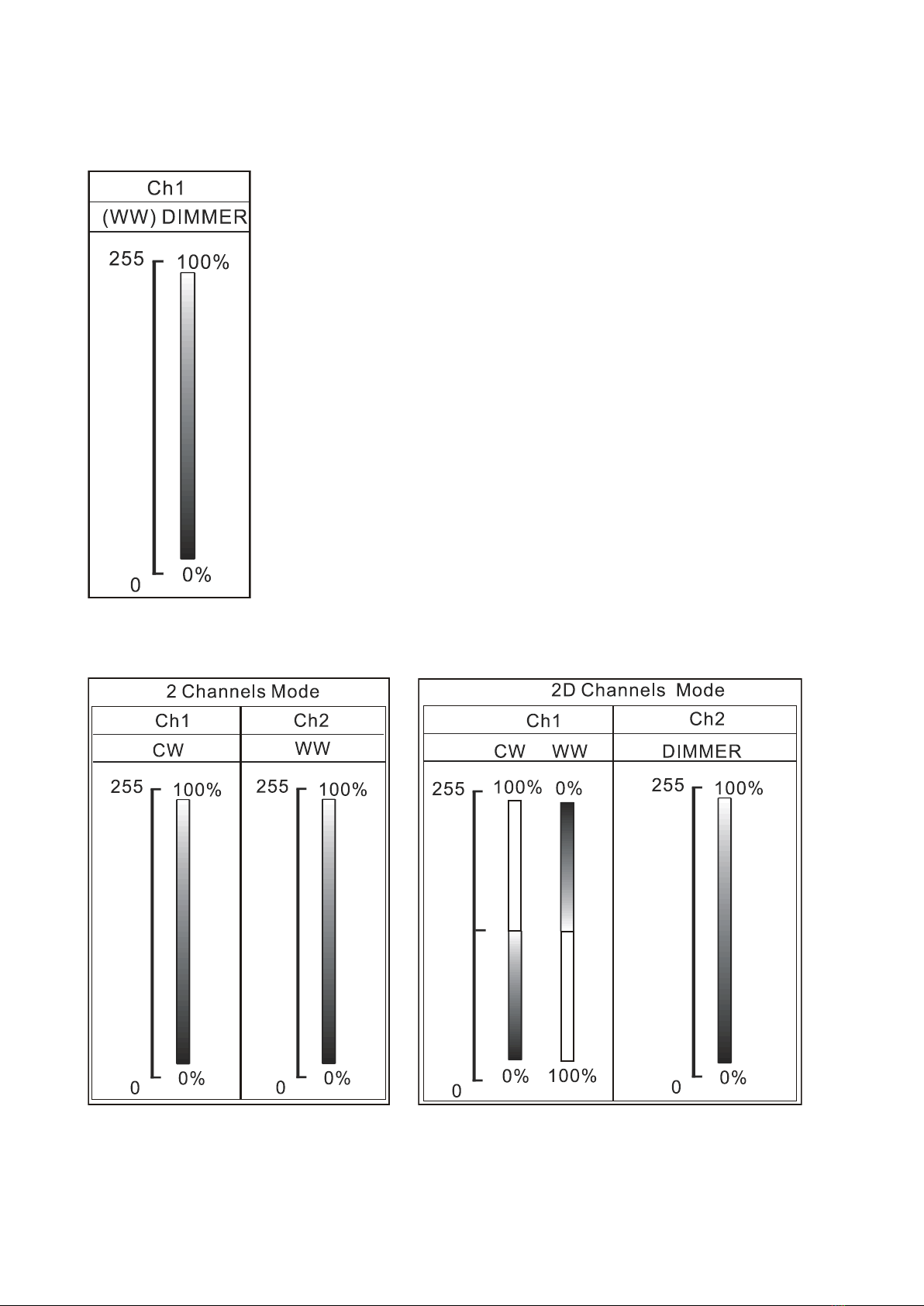

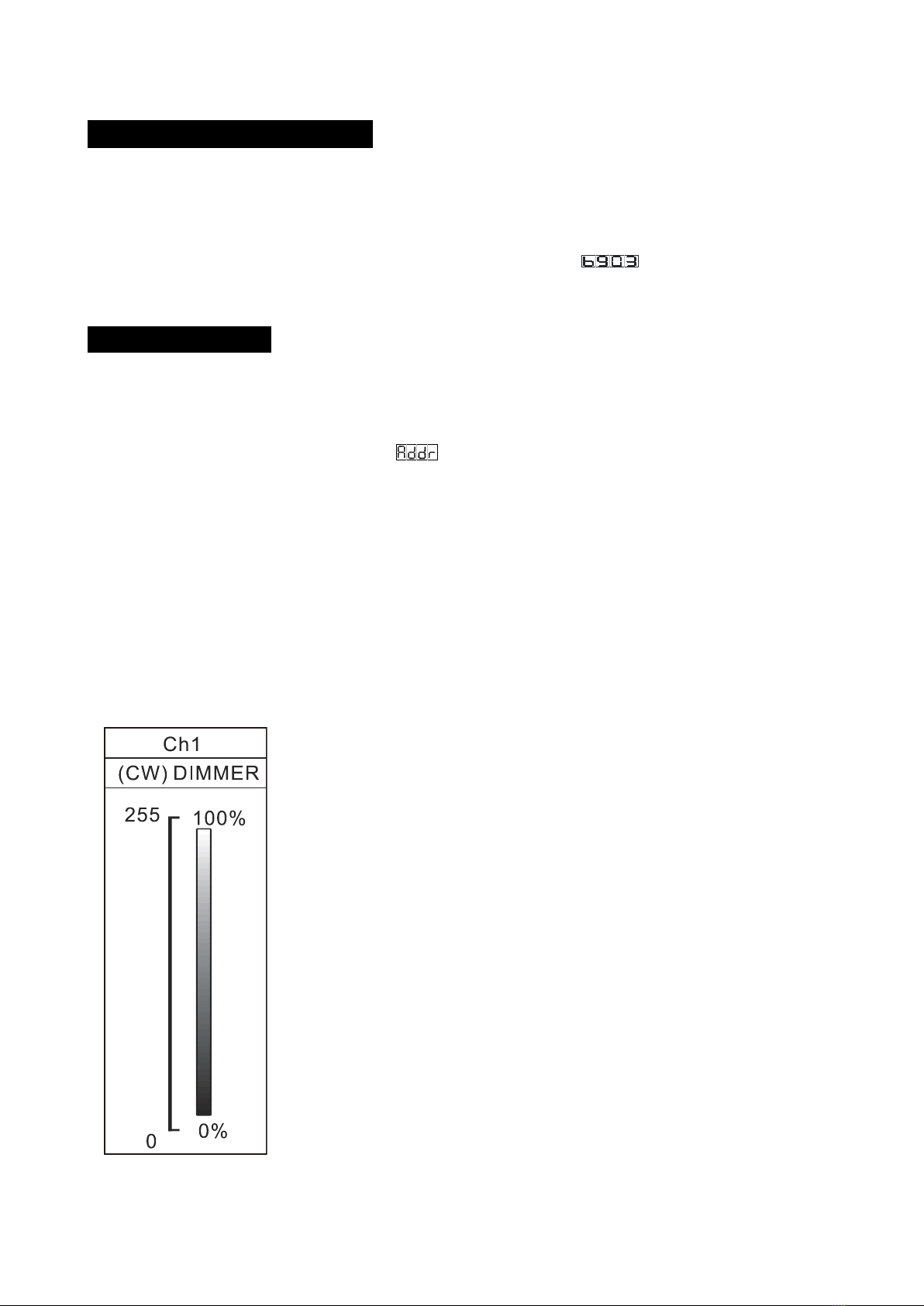

DMX 512 Configuration:
BW-903 CW AR:
12E

BW-903 WW AR:
BW-903 VW AR:
13E

5. DMX512 Connections
1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter-cable.
2. Connect the unit together in a `daisy chain` by XLR plug from the output of the unit to the
input of the next unit. The cable can not branched or split to a `Y` cable. DMX 512 is a very
high-speed signal. Inadequate or damaged cables, soldered joints or corroded connectors can
easily distort the signal and shut down the system.
3. The DMX output and input connectors are pass-through to maintain the DMX circuit, when
one of the units’ power is disconnected.
4. Each lighting unit needs to have an address set to receive the data sent by the controller. The
address number is between 0-511 (usually 0 & 1 are equal to 1).
5. The end of the DMX 512 system should be terminated to reduce signal errors.
6. 3 pin XLR connectors are more popular than 5 pin XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin 4/Pin 5: Not used.
14E

6. Troubleshooting
Following are a few common problems that may occur during operation. Here are some
suggestions for easy troubleshooting:
A. The fixture does not work, no light
1. Check the connection of power and main fuse.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX cables to see if linked properly.
2. If the DMX LED is on and no response to the controller, check the address settings and DMX
polarity.
3. If you have intermittent DMX signal problems, check the cables of the fixture or the previous
one.
4. Try another DMX controller.
C. Some fixtures don’t respond to the easy controller
1. You may have a break in the DMX cabling. Check the LED for the response of the master/
slave mode signal.
2. Wrong DMX address in the unit. Set the correct address.
D. No response to the sound
1. Make sure the fixture is not receiving a DMX signal.
2. Check microphone by tapping it.
3. Make sure the fixture is not set into Blackout mode
15E

7. Fixture Cleaning
The cleaning of outside glass must be carried out periodically to optimize light output. Cleaning
frequency depends on the environment in which the fixture operates: damp, smoky or particularly
dirty surrounding can cause greater accumulation of dirt on the fixture’s optics.
Clean with soft cloth using normal glass cleaning fluid.
Always dry the parts carefully.
Clean the external optics at least every 20 days.
16E

17E

Declaration of Conformity
We declare that our products (lighting equipments) comply with the following
specification and bears CE mark in accordance with the provision of the
Electromagnetic Compatibility (EMC) Directive 89/336/EEC.
EN55103-1: 2009 ; EN55103-2: 2009; EN62471: 2008;
EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008.
&
Harmonized Standard
EN60598-2-17:1989 + A2:1991; EN60598-1:2008+ A11: 2009
EN 62471:2008; EN 62493: 2010
Safety of household and similar electrical appliances
Part 1: General requirements
18E

Innovation, Quality, Performance
