Agilent Technologies 1260 Infinity II User manual

Agilent Technologies
Agilent InfinityLab LC Series
1260 Infinity II Flexible
Pump
User Manual

1260 Infinity II Flexible Pump User Manual
Notices
© Agilent Technologies, Inc. 2017
No part of this manual may be reproduced
in any form or by any means (including
electronic storage and retrieval or transla-
tion into a foreign language) without prior
agreement and written consent from Agi-
lent Technologies, Inc. as governed by
United States and international copyright
laws.
Manual Part Number
G7104-90010
Edition
09/2017
Printed in Germany
Agilent Technologies
Hewlett-Packard-Strasse 8
76337 Waldbronn
Warranty
The material contained in this docu-
ment is provided “as is,” and is sub-
ject to being changed, without notice,
in future editions. Further, to the max-
imum extent permitted by applicable
law, Agilent disclaims all warranties,
either express or implied, with regard
to this manual and any information
contained herein, including but not
limited to the implied warranties of
merchantability and fitness for a par-
ticular purpose. Agilent shall not be
liable for errors or for incidental or
consequential damages in connection
with the furnishing, use, or perfor-
mance of this document or of any
information contained herein. Should
Agilent and the user have a separate
written agreement with warranty
terms covering the material in this
document that conflict with these
terms, the warranty terms in the sep-
arate agreement shall control.
Technology Licenses
The hardware and/or software described in
this document are furnished under a
license and may be used or copied only in
accordance with the terms of such license.
Restricted Rights Legend
If software is for use in the performance of
a U.S. Government prime contract or sub-
contract, Software is delivered and licensed
as “Commercial computer software” as
defined in DFAR 252.227-7014 (June 1995),
or as a “commercial item” as defined in
FAR 2.101(a) or as “Restricted computer
software” as defined in FAR 52.227-19
(June 1987) or any equivalent agency regu-
lation or contract clause. Use, duplication
or disclosure of Software is subject to Agi-
lent Technologies’ standard commercial
license terms, and non-DOD Departments
and Agencies of the U.S. Government will
receive no greater than Restricted Rights as
defined in FAR 52.227-19(c)(1-2) (June
1987). U.S. Government users will receive
no greater than Limited Rights as defined in
FAR 52.227-14 (June 1987) or DFAR
252.227-7015 (b)(2) (November 1995), as
applicable in any technical data.
Safety Notices
CAUTION
A CAUTION notice denotes a
hazard. It calls attention to an
operating procedure, practice, or
the like that, if not correctly per-
formed or adhered to, could
result in damage to the product
or loss of important data. Do not
proceed beyond a CAUTION
notice until the indicated condi-
tions are fully understood and
met.
WARNING
A WARNING notice denotes a
hazard. It calls attention to an
operating procedure, practice,
or the like that, if not correctly
performed or adhered to, could
result in personal injury or
death. Do not proceed beyond a
WARNING notice until the indi-
cated conditions are fully
understood and met.

1260 Infinity II Flexible Pump User Manual 3
In This Guide...
In This Guide...
This manual covers the Agilent 1260 Infinity II Flexible Pump (G7104C).
1Introduction
This chapter gives an introduction to the module, instrument overview and
internal connectors.
2 Site Requirements and Specifications
This chapter provides information on environmental requirements, physical
and performance specifications.
3 Using the Module
This chapter explains the operational parameters of the Agilent 1260 Infinity
II Flexible Pump.
4 How to Optimize the Performance of Your Module
This chapter gives hints on how to optimize the performance or use additional
devices.
5 Troubleshooting and Diagnostics
Overview about the troubleshooting and diagnostic features.
6 Error Information
This chapter describes the meaning of error messages, and provides
information on probable causes and suggested actions how to recover from
error conditions.
7 Maintenance
This chapter describes the maintenance of the Agilent 1260 Infinity II Flexible
Pump.

4 1260 Infinity II Flexible Pump User Manual
In This Guide...
8 Parts and Materials
This chapter provides information on parts for maintenance and repair.
9 Identifying Cables
This chapter provides information on cables used with the modules.
10 Hardware Information
This chapter describes the pump in more detail on hardware and electronics.
11 LAN Configuration
This chapter provides information on connecting the module to the controller
software.
12 Appendix
This chapter provides additional information on safety, legal and web.

1260 Infinity II Flexible Pump User Manual 5
Contents
Contents
1Introduction 9
Product Description 10
Features 12

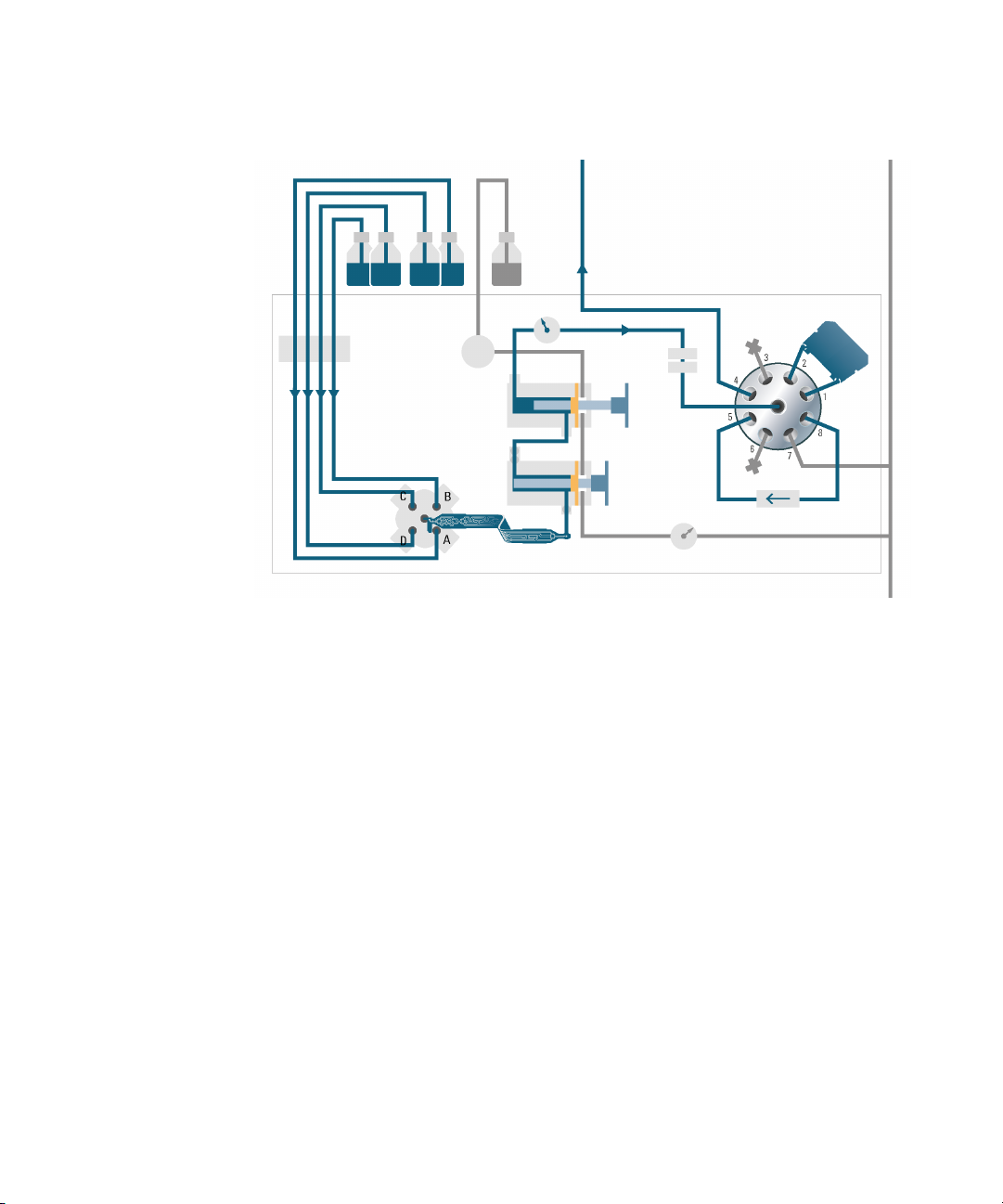

Operating Principle 13

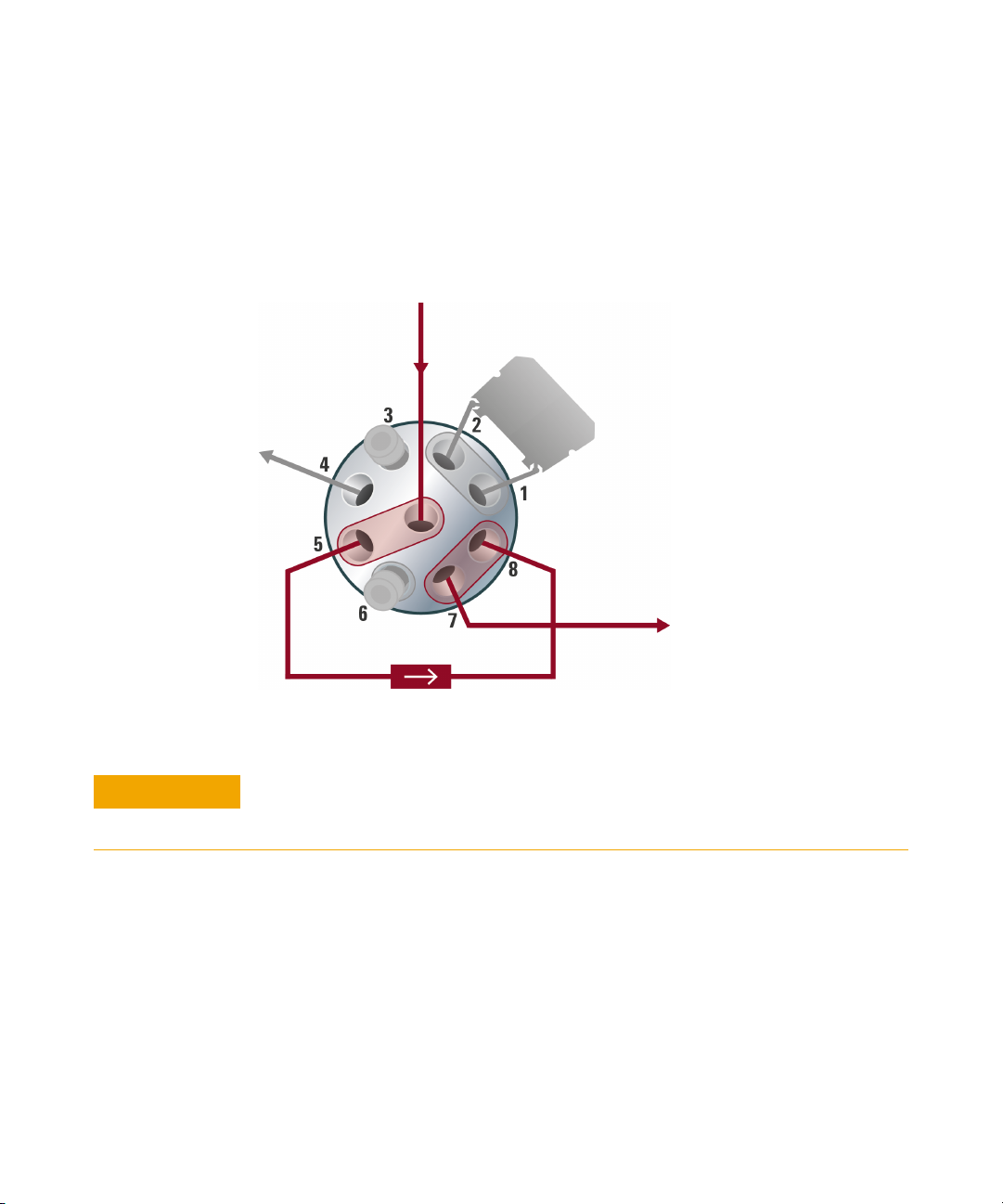

Positions of the Multi Purpose Valve 15
Leak and Waste Handling 19
2 Site Requirements and Specifications 25
Site Requirements 26
Physical Specifications 29
Performance Specifications 30
3 Using the Module 33
Magnets 34
Turn on/off 35
Status Indicators 37
Best Practices 38
Flushing the Filter 42
Purging the Pump 44
Solvent Information 46
Solvent Recommendation for Agilent 1290 Infinity and 1290 Infinity II and 1260
Infinity II Flexible Pumps 52
Algae Growth in HPLC Systems 57
Setting up the Pump with the Instrument Control Interface 58
Agilent Local Control Modules 69
4 How to Optimize the Performance of Your Module 71
Delay Volume and Extra-Column Volume 72
How to Configure the Optimum Delay Volume 73
How to Achieve Higher Resolution 75
Using Solvent Calibration Tables 78

6 1260 Infinity II Flexible Pump User Manual
Contents
5 Troubleshooting and Diagnostics 79
User Interfaces 80
Agilent Lab Advisor Software 81
Pump Leak Rate Test 82
System Pressure Test 86
Pump Self Test 88
6 Error Information 93
What Are Error Messages 95
General Error Messages 96
Pump Error Messages 101
7 Maintenance 119
Introduction to Maintenance 121
Warnings and Cautions 122
Overview of Maintenance 124
Cleaning the Module 125
Install Fittings and Capillaries 126
Remove and Install Doors 127
Replace the Pressure Sensor 129
Replace the Inlet Weaver 131
Replace the Inlet Valve 133
Remove the Jet Weaver 134
Install the Jet Weaver 136
Replace the Seal Wash Pump Cartridge 138
Replace the Multi-Channel Gradient Valve (MCGV) 139
Release a Stuck Inlet Valve 141
Remove the Pump Head Assembly 143
Pump Head Maintenance (Tool Free) 146
Install the Pump Head Assembly 160
Replace the Outlet Valve 162
Replace the Multi Purpose Valve 165
Replace Parts of the Multi Purpose Valve 167
Replace the High Pressure Outlet Filter or Filter Frit 168
Install the Inline Filter 170
Remove the Inline Filter 172
Replace Parts of the Inline Filter 173

1260 Infinity II Flexible Pump User Manual 7
Contents
Replace the Seal Wash Sensor 176
Replace the Module Firmware 178
Prepare the Pump Module for Transport 179
8 Parts and Materials 181
Overview of Main Assemblies 182
Flow Connections 184
Pump Heads 186
Multi Purpose Valve 190
Cover Parts 191
Accessory Kit 192
Tool Kit 193
9 Identifying Cables 195
Cable Overview 196
Analog Cables 198
Remote Cables 200
CAN/LAN Cables 204
Agilent Module to PC 205
USB Cables 206
10 Hardware Information 207
Firmware Description 208
Electrical Connections 211
Interfaces 213
Setting the 8-bit Configuration Switch 219
Early Maintenance Feedback 222
Instrument Layout 223

8 1260 Infinity II Flexible Pump User Manual
Contents
11 LAN Configuration 225
What You Have To Do First 226
TCP/IP Parameter Configuration 227
Configuration Switch 228
Initialization Mode Selection 229
Dynamic Host Configuration Protocol (DHCP) 231
Link Configuration Selection 234
Manual Configuration 235
PC and User Interface Software Setup 240
12 Appendix 243
General Safety Information 244
Waste Electrical and Electronic Equipment Directive 250
Radio Interference 251
Sound Emission 252
Agilent Technologies on Internet 253

9
1260 Infinity II Flexible Pump User Manual
Agilent Technologies
1
Introduction
Product Description 10
Features 12
Operating Principle 13
Positions of the Multi Purpose Valve 15
Leak and Waste Handling 19
Leak Sensor 22
Waste Concept 23
This chapter gives an introduction to the module, instrument overview and
internal connectors.

10 1260 Infinity II Flexible Pump User Manual
1 Introduction
Product Description
Product Description
The new Agilent 1260 Infinity II Flexible Pump improves your everyday
efficiency by combining the performance of a high-pressure mixing UHPLC
pump with the flexibility of a low-pressure mixing UHPLC pump.
The power range of 5 mL/min with a maximum pressure up to 800 bar allows
to run HPLC and UHPLC methods on the same LC system. Intelligent System
Emulation Technology enables the transfer from existing methods from
different LC systems - current Agilent systems as well as instruments from
other manufacturers.
The Agilent Inlet Weaver mixer, active damping, or the optional Agilent Jet
Weaver mixers for additional mixing capacity achieve high analytical
efficiency.
The established multipurpose valve enhances laboratory efficiency by adding
useful functionalities, for example, mixer in/out switch, filter backflush, or
automatic purge.
BlendAssist software simplifies your workflow with accurate buffer/additive
blending.

1260 Infinity II Flexible Pump User Manual 11
Introduction
1
Product Description
Figure 1 Overview of the Flexible Pump
6WDWXVLQGLFDWRU
3XPSKHDG
0&*9
,QOHWZHDYHU
3RZHUVZLWFK
/HDNGUDLQ
3UHVVXUHVHQVRU

12 1260 Infinity II Flexible Pump User Manual
1 Introduction
Features
Features
•High accuracy and precision for solvent flow and composition.
•Maximum backpressure up to 800 bar and high analytical flow rates up to
5 mL/min for high chromatographic performance.
•Integrated high efficiency degasser with low internal volume is based on
PTFE AF technology and has a fast change-over of solvents for purging the
pump.
•High solvent mixing efficiency before reaching the pump head due to the
established Inlet Weaver technology.
•Active damping with independently controllable high resolution pump
drives and firmware-embedded tuning algorithms significantly reduce
ripples and associated UV noise.
•SwitchableJetWeavermixers(35L,100L,380L)forincreasedmixing
performance.
•A multipurpose valve enables automatic software-embedded functionalities
such as switching the optional mixer in and out, or automatic purging.
•The unique Intelligent System Emulation Technology (ISET) enables the
emulation of existing Agilent 1100, 1200, and 1260 Infinity Series
instruments, as well as Waters Alliance, Waters H-Class, and Shimadzu
Prominence instruments.
•Precise and accurate buffer/additive blending using the BlendAssist
software feature, implemented in the pump driver.
•Built-in active seal-wash for increased uptime.

1260 Infinity II Flexible Pump User Manual 13
Introduction
1
Operating Principle
Operating Principle
The pump head comprises two pump chambers in series with independent
high-resolution motion control. A pressure sensor in the flow path monitors
the pressure. The pump control uses this signal for minimizing the pressure
ripple in order to achieve highest flow precision. A stable flow can be
delivered even in case of eventual small internal leaks, which can be
compensated automatically. A heat exchanger between two pump chambers
strongly reduces thermal effects due to solvent compression under very high
pressures.
As solvents are compressed by the pump head and expand further down the
flow path, for example in the column, the volumetric flow is changed
depending on the compressibility of the liquid. Agilent control software allows
specifying pure solvents, pre-mixed solvents and solvent gradients. Associated
Agilent solvent libraries are used by the pump control for enhanced flow
accuracy, which is required for cross-instrument or cross-system
reproducibility and method compatibility.
A high resolution encoder unit is attached to the pump drives, which divides a
single turn into 65000 steps. Each step corresponds to a volume of about
300 pL, which allows an extremely precise control.

14 1260 Infinity II Flexible Pump User Manual
1 Introduction
Operating Principle
Figure 2 The hydraulic path
3XPSKHDG
,QOHWZHDYHU
0&*9
3UHVVXUHVHQVRU
0XOWLVDPSOHU
6HDOZDVKSXPS
'HJDVVHU
6HDOZDVKVHQVRU
0XOWLSXUSRVH
YDOYH
-HW
:HDYHU

1260 Infinity II Flexible Pump User Manual 15
Introduction
1
Positions of the Multi Purpose Valve
Positions of the Multi Purpose Valve
The Multi Purpose Valve allows easy software controlled switching between
different modes of operation.
Normal Operating Mode Without Mixer
In normal operating mode, the flow comes from the pump head, passes the
pressure sensor and arrives at the central port of the Multi Purpose Valve. The
flow leaves the valve through port 4 to the system (autosampler etc.).
Figure 3 Valve position in normal operating mode without mixer
)URPSXPS
7RV\VWHP

16 1260 Infinity II Flexible Pump User Manual
1 Introduction
Positions of the Multi Purpose Valve
Purge Mode
In purge mode, the flow is diverted to the waste container.
Figure 4 Valve position in purge mode
)URPSXPS
7RZDVWH

1260 Infinity II Flexible Pump User Manual 17
Introduction
1
Positions of the Multi Purpose Valve
Normal Operating Mode With Jet Weaver and Optional Inline Filter
In this mode, the flow passes an optional Jet Weaver and the optional inline
filter. This configuration is recommended for special applications which
require an increased mixing efficiency.
Figure 5 Valve position in normal operating mode with Jet Weaver
)URPSXPS
7RV\VWHP
,QOLQHILOWHU
-HW:HDYHU

18 1260 Infinity II Flexible Pump User Manual
1 Introduction
Positions of the Multi Purpose Valve
Filter Flush Mode
This mode is used for cleaning the inline filter by back-flushing it. The flow
goes to port 5, passes the inline filter in opposite direction and leaves to the
waste through port 7.
Figure 6 Valve position in filter flush mode
)URPSXPS
,QOLQHILOWHU
7RZDVWH
CAUTION
Damage to the valve
➔Use the filter flush mode only if the optional inline filter is installed.

1260 Infinity II Flexible Pump User Manual 19
Introduction
1
Leak and Waste Handling
Leak and Waste Handling
The Agilent InfinityLab LC Series has been designed for safe leak and waste
handling. It is important that all security concepts are understood and
instructions are carefully followed.
The solvent cabinet is designed to store a maximum volume of 8 L solvent. The
maximum volume for an individual bottle stored in the solvent cabinet should
not exceed 2 L. For details, see the usage guideline for the Agilent Infinity II
Solvent Cabinets (a printed copy of the guideline has been shipped with the
solvent cabinet, electronic copies are available on the Internet).
All leak plane outlets are situated in a consistent position so that all Infinity
and Infinity II modules can be stacked on top of each other. Waste tubes are
guided through a channel on the right hand side of the instrument, keeping the
front access clear from tubes.
The leak plane provides leak management by catching all internal liquid leaks,
guiding them to the leak sensor for leak detection, and passing them on to the
next module below, if the leak sensor fails. The leak sensor in the leak plane
stops the running system as soon as the leak detection level is reached.
Solvent and condensate is guided through the waste channel into the waste
container:
•from the detector's flow cell outlet
•from the Multisampler needle wash port
•from the Sample Cooler (condensate)
•from the Seal Wash Sensor (if applicable)
•from the pump's Purge Valve or Multipurpose Valve

20 1260 Infinity II Flexible Pump User Manual
1 Introduction
Leak and Waste Handling
Figure 7 Infinity II Leak Waste Concept (Flex Bench installation)
