Agilent Technologies G6697A IDP-10 User manual

Agilent G6697A IDP-10 Dry Scroll Vacuum Pump for
Agilent 7000 and 7010 Series GC/MS
Installation Guide

Agilent G6697A Oil Free IDP-10 Dry Scroll Pump Installation Guide
Notices
© Agilent Technologies, Inc. 2018
No part of this manual may be repro-
duced in any form or by any means
(including electronic storage and
retrieval or translation into a foreign lan-
guage) without prior agreement and
written consent from Agilent Technolo-
gies, Inc. as governed by United States
and international copyright laws.
Manual Part Number
G7004-90000
Edition
First edition, July 2018
Printed in USA
Agilent Technologies, Inc.
2850 Centerville Road
Wilmington, DE 19808-1610 USA
Warranty
The material contained in this docu-
ment is provided “as is,” and is subject
to being changed, without notice, in
future editions. Further, to the maxi-
mum extent permitted by applicable
law, Agilent disclaims all warranties,
either express or implied, with regard
to this manual and any information
contained herein, including but not lim-
ited to the implied warranties of mer-
chantability and fitness for a particular
purpose. Agilent shall not be liable for
errors or for incidental or consequen-
tial damages in connection with the
furnishing, use, or performance of this
document or of any information con-
tained herein. Should Agilent and the
user have a separate written agree-
ment with warranty terms covering the
material in this document that conflict
with these terms, the warranty terms in
the separate agreement shall control.
Safety Notices
CAUTION
A CAUTION notice denotes a
hazard. It calls attention to an
operating procedure, practice,
or the like that, if not correctly
performed or adhered to, could
result in
damage to the product or loss
of important data. Do not
proceed beyond a CAUTION
notice until the indicated
conditions are fully understood
and met.
WARNING
A WARNING notice denotes a
hazard. It calls attention to an
operating procedure, practice,
or the like that, if not correctly
performed or adhered to, could
result in personal injury or
death. Do not proceed beyond a
WARNING notice until the
indicated conditions are fully
understood and met.

Agilent G6697A Oil Free IDP-10 Dry Scroll Pump Installation Guide 3
Contents
1 Introduction
General Information 6
Information 6
Safety symbols 6
Important Safety Warnings 7
General Safety Precautions 8
Cleaning 9
Recycling the Product 9
Parts Identification 9
Site Preparation 10
2 Installation
Removing the Existing Foreline Pump from the Agilent 7000
and 7010 Series GC/MS 12
Unpacking the IDP-10 Pump 14
Assembling the Foreline Hose 16
Installing the IDP-10 Pump 18
Installing the Ferrite 21

4 Agilent G6697A Oil Free IDP-10 Dry Scroll Pump Installation Guide

Agilent G6697A Oil Free IDP-10 Dry Scroll Pump Installation Guide 5
1Introduction
General Information 6
Important Safety Warnings 7
General Safety Precautions 8
Cleaning 9
Recycling the Product 9
Parts Identification 9
Site Preparation 10
This guide describes how to replace an Edwards RV5 Oil Sealed Rotary Vane
Vacuum Pump with the Agilent G6697A IDP-10 Scroll Vacuum Pump on Agilent
7000 and 7010 Series GC/MS instruments.

1 Introduction
General Information
6 Agilent G6697A Oil Free IDP-10 Dry Scroll Pump Installation Guide
General Information
Model 7000 and 7010 Series GC/MS instruments with the IDP-10 Scroll Vacuum
Pump for Agilent 7000 and 7010 Series GC/MS upgrade installed meet all safety
and compliance standards specified for the original instruments. Refer to the
original instrument instruction manuals for details.
Information
The IDP-10 Scroll Vacuum Pump for 7000 and 7010 Series GC/MS instruments
has been designed and tested in accordance with recognized safety standards,
and is designed for use indoors. If it is used in a manner not specified by the
manufacturer, the protection provided by the instrument may be impaired.
Whenever the safety protection of the IDP-10 Scroll Vacuum Pump for Agilent
7000 and 7010 Series GC/MS has been compromised, disconnect it from all
power sources, and secure it against unintended operation.
Refer servicing to qualified service personnel. Substituting parts or performing
any unauthorized modification to the pump may result in a safety hazard or
warranty void.
Safety symbols
Warnings and cautions in this guide or on the instrument must be observed
during all phases of operation, service, and repair of this instrument. Failure to
comply with these precautions violates safety standards of design and the
intended use of the instrument. Agilent Technologies assumes no liability for the
customer's failure to comply with these requirements.
WARNING:
Burn hazard
Indicates parts that may cause burns when touched.

1 Introduction
Important Safety Warnings
Agilent G6697A Oil Free IDP-10 Dry Scroll Pump Installation Guide 7
Important Safety Warnings
Safety cautions and warnings must be observed during all phases of operation,
service, and repair of an IDP-10 Scroll Vacuum Pump for Agilent 7000 and 7010
Series GC/MS. Failure to comply with these precautions violates safety
standards of design, and may compromise the intended use of the IDP-10 Scroll
Vacuum Pump for Agilent 7000 and 7010 Series GC/MS. Agilent Technologies
assumes no liability for the customer's failure to comply with these
requirements.
Prepare the installation site in accordance with the site preparation
specifications. Refer to “Site Preparation” on page 10 for more information.
WARNING The pump is designed for operation with neutral or noncorrosive gases. It is
not designed to pump corrosive, or particulate forming gases. Failure to
adhere to this warning could result in personal injury or death.
WARNING Install the pump in an area that is not exposed to liquids, steam, or excessive
humidity. Failure to adhere to this warning may result in electric shock, short
circuits, and severe bodily injury.

1 Introduction
General Safety Precautions
8 Agilent G6697A Oil Free IDP-10 Dry Scroll Pump Installation Guide
General Safety Precautions
While running the IDP-10 Scroll Vacuum Pump for Agilent 7000 and 7010 Series
GC/MS:
•Do not block air flow to the fan. Air flows into the front of the pump (Figure 1).
•Do not set items on top of the IDP-10 Scroll Vacuum Pump for Agilent 7000
and 7010 Series GC/MS.
•It is important that the IDP-10 Scroll Vacuum Pump for Agilent 7000 and
7010 Series GC/MS does not recirculate hot air. Always position the front end
of the IDP-10 Scroll Vacuum Pump for Agilent 7000 and 7010 Series GC/MS
where it can draw cool air.
•A pump exhibiting high surface temperature should be turned off and
allowed to cool. If the pump continues exhibiting this behavior, contact your
Agilent representative.
Although the pump can pump trace particulates normally found in the
atmosphere, it is not designed to process solids, chemicals, powders, liquid
solvents, condensates, or other particulates. They can damage the equipment,
degrade its performance, or shorten its useful life.
Do not place the pump near any equipment that is sensitive to vibration.

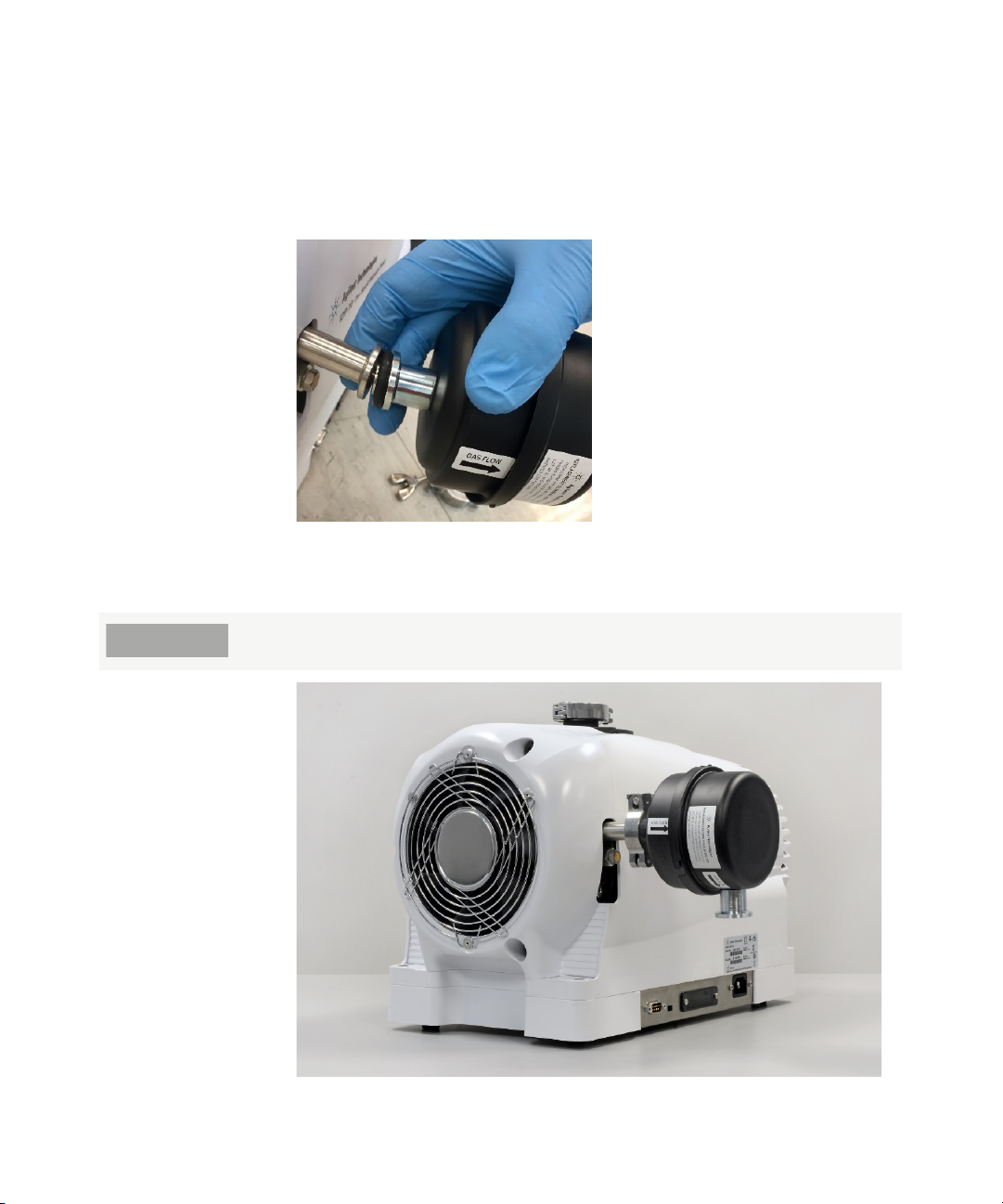

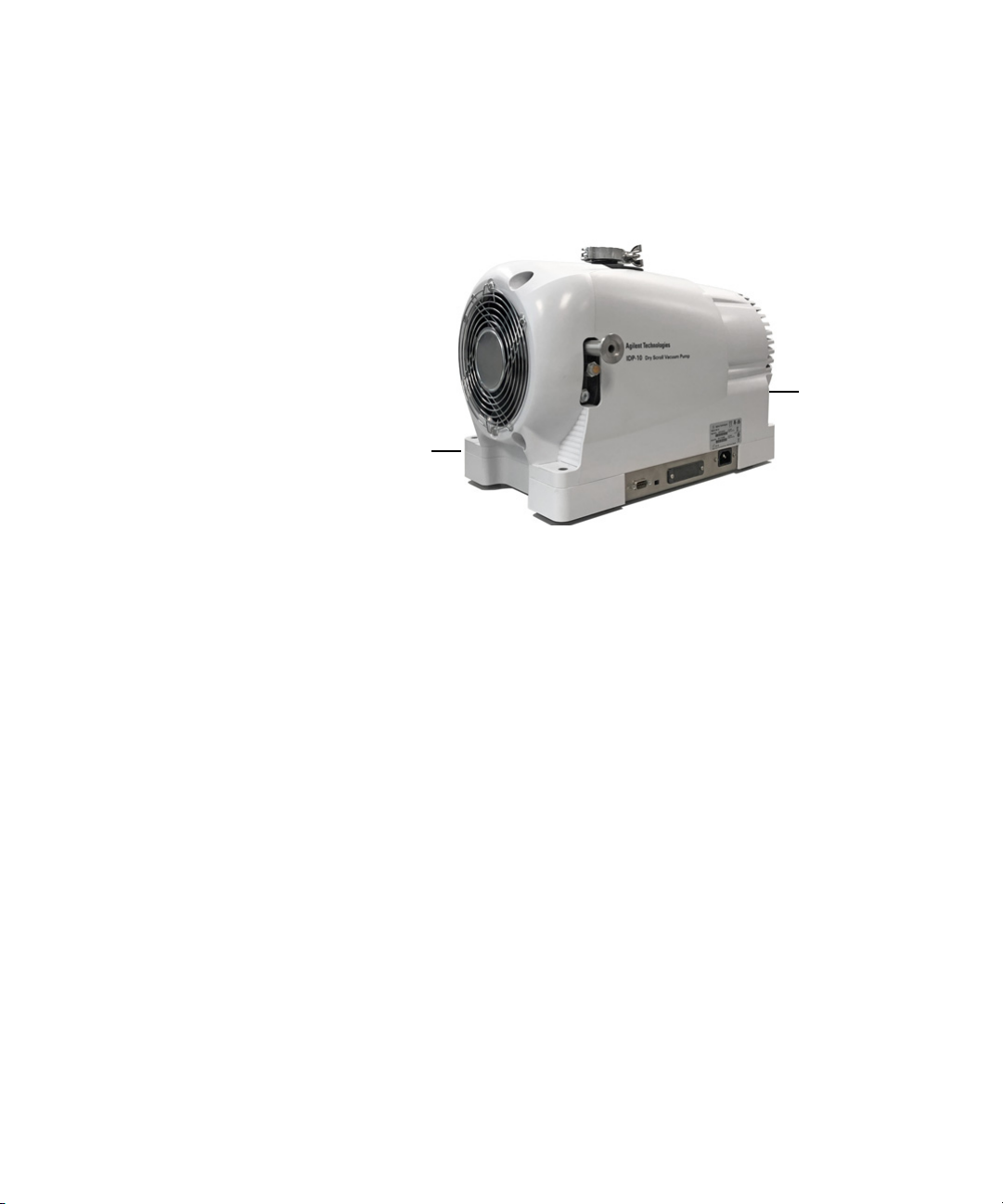

Figure 1. IDP-10 Dry Scroll Vacuum Pump
Front of pump

1 Introduction
Cleaning
Agilent G6697A Oil Free IDP-10 Dry Scroll Pump Installation Guide 9
Cleaning
To clean the IDP-10 Scroll Vacuum Pump for Agilent 7000 and 7010 Series
GC/MS:
•Clean the exterior surfaces of the IDP-10 with alcohol or mild detergents only.
Recycling the Product
For recycling, contact your local Agilent sales office.
Parts Identification
Table 1lists the contents of the IDP-10 Scroll Vacuum Pump for Agilent 7000
and 7010 Series GC/MS kit.
Table 1 IDP-10 Dry Scroll Pump for Agilent 7000 and 7010 Series GC/MS
contents list
Part Quantity Part number
IDP-10 scroll pump with valve 1 G7004-80010
Foreline Hose - imbedded spring 1 G7077-60119
KF25 Flange × 5/8 in. ID Hose barb adapter 1 G1099-20532
Clamp, Hose .437 in. DIA .56 in. WD SST 2 1400-3241
NW 20/25 Clamping Ring 1 0100-0549
IDP-10 Dry Scroll Vacuum Pump Installation Manual 1 G7004-90000
DS402 Power Cable IEC320 1 3706750
Ferrite 1 9170-2607

1 Introduction
Site Preparation
10 Agilent G6697A Oil Free IDP-10 Dry Scroll Pump Installation Guide
Site Preparation
Prepare the installation site in accordance with the site preparation
specifications associated with the GC/MS. Additionally, ensure that the site also
supports the criteria specific to the IDP-10 Scroll Vacuum Pump for Agilent 7000
and 7010 Series GC/MS, as listed in Table 2.
NOTE Where conflicts exist between these criteria and those of any co-located
equipment, the equipment with the tighter tolerances takes precedence.
Table 2 Site prep information
Criteria Description
Physical dimensions
Weight Pump only: 24.7 kg (54.5 lbs),
Shipping weight: 28.1 kg (62 lbs)
Dimensions 42.01 × 26.00 × 29.71 cm (16.54 × 10.24 × 11.70 inches)
(L × W × H)
Temperature and humidity ranges
Operating ambient temperature 5 to 40 °C (41 to 104 °F)
Relative humidity 5 to 90 % (non-condensing)

Agilent G6697A Oil Free IDP-10 Dry Scroll Pump Installation Guide 11
2Installation
Removing the Existing Foreline Pump from the Agilent 7000 and 7010 Series
GC/MS 12
Unpacking the IDP-10 Pump 14
Assembling the Foreline Hose 16
Installing the IDP-10 Pump 18
Installing the Ferrite 21
This chapter describes how to replace a rotary vane pump with the Agilent
G6697A IDP-10 Scroll Vacuum Pump on Agilent Technologies 7000 and 7010
Series GC/MS instruments.

2 Installation
Removing the Existing Foreline Pump from the Agilent 7000 and 7010 Series GC/MS
12 Agilent G6697A Oil Free IDP-10 Dry Scroll Pump Installation Guide
Removing the Existing Foreline Pump from
the Agilent 7000 and 7010 Series GC/MS
To remove the existing foreline pump from the GC/MS:
1Vent and shut down the instrument. Venting begins the automated shut
down of the GC/MS. Refer to the Agilent 7000/7010 Series Triple Quadrupole
Operating Manual for details.
2Turn off the GC/MS.
3Disconnect the instrument from its power outlet.
4On the GC/MS foreline gauge adapter, loosen the hose clamp, and carefully
remove the existing foreline hose from the end of the foreline gauge adapter
as shown in Figure 2.
WARNING The existing foreline pump may be hot. The foreline pump can cause burns if
touched when operating.

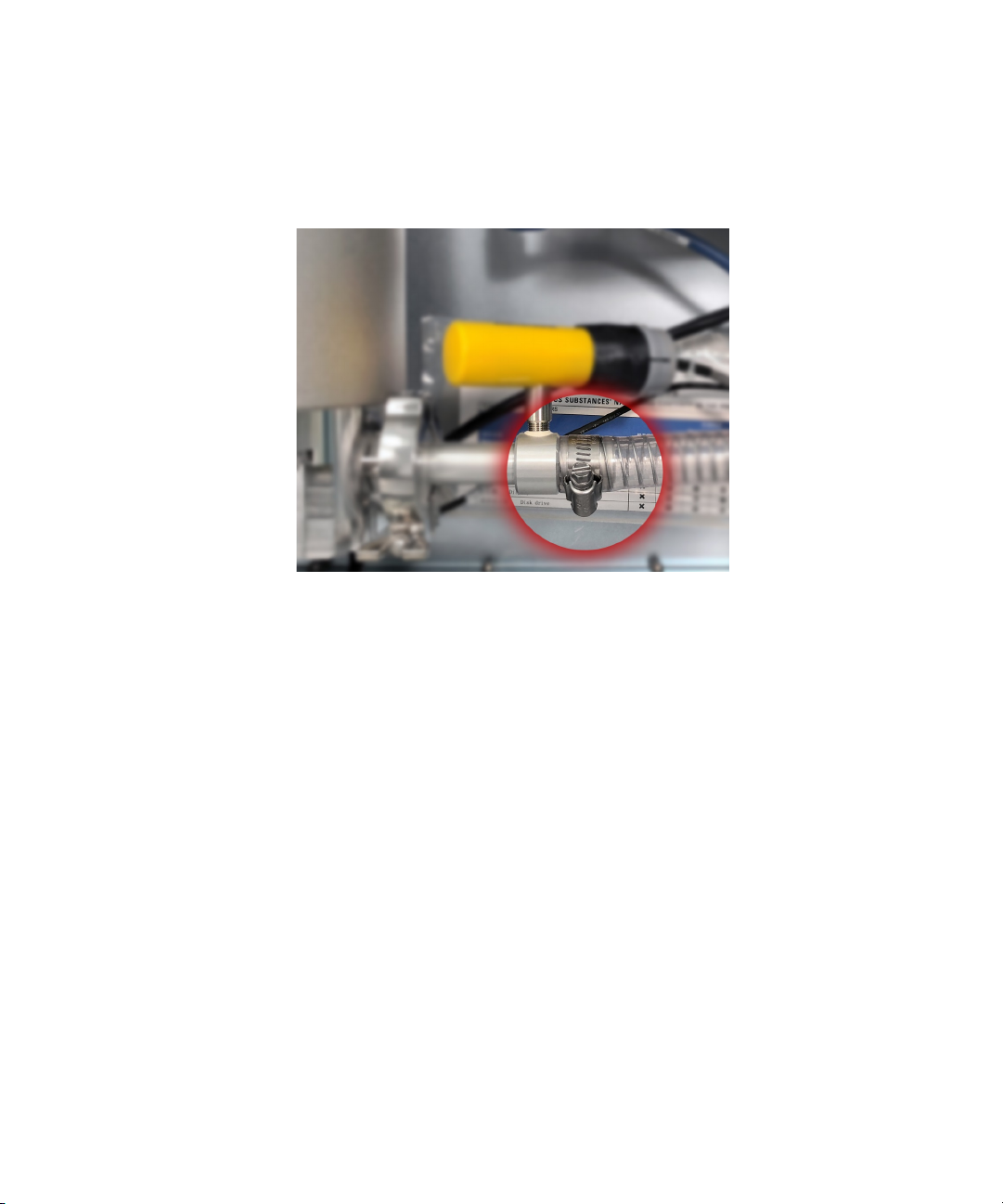

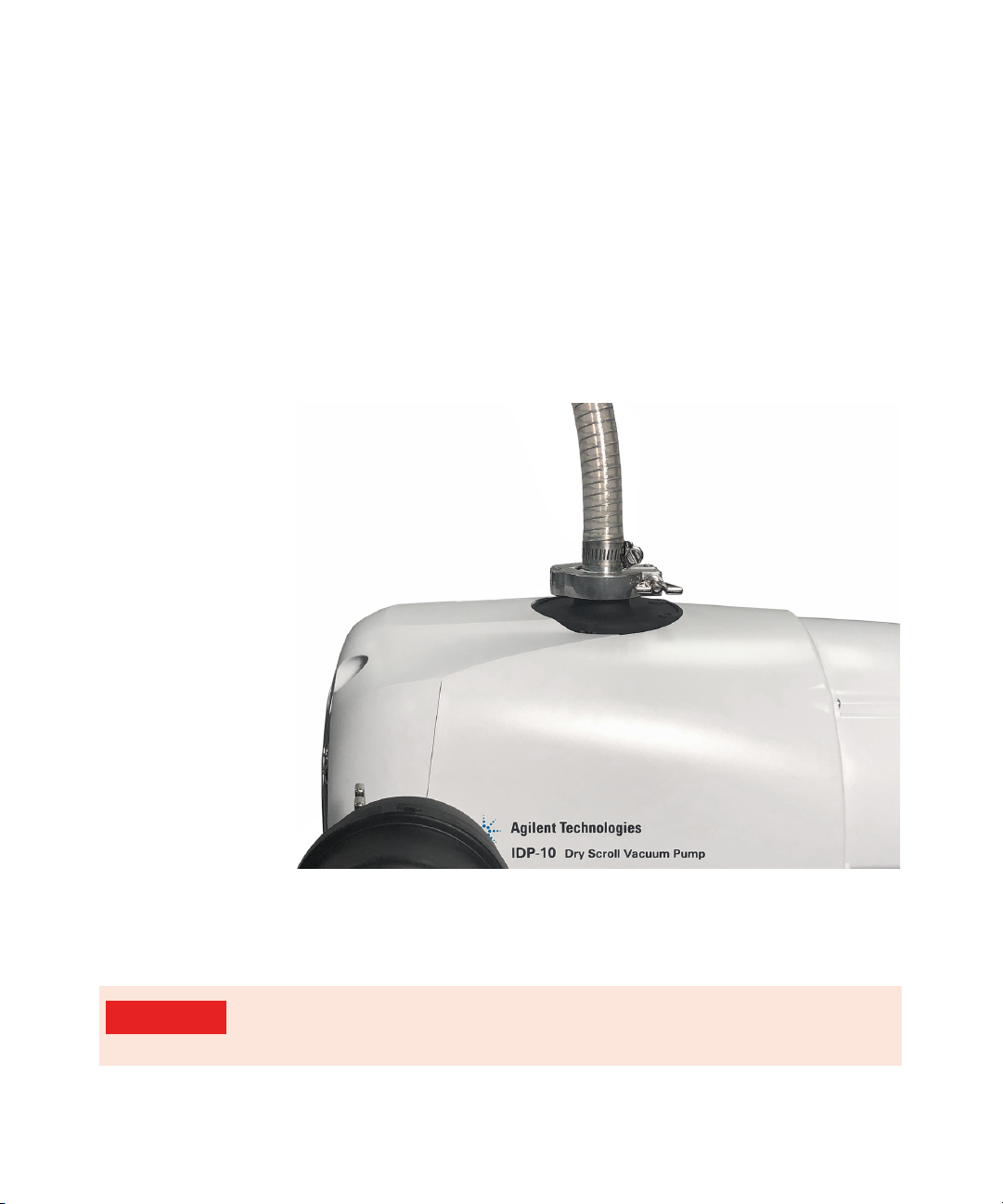

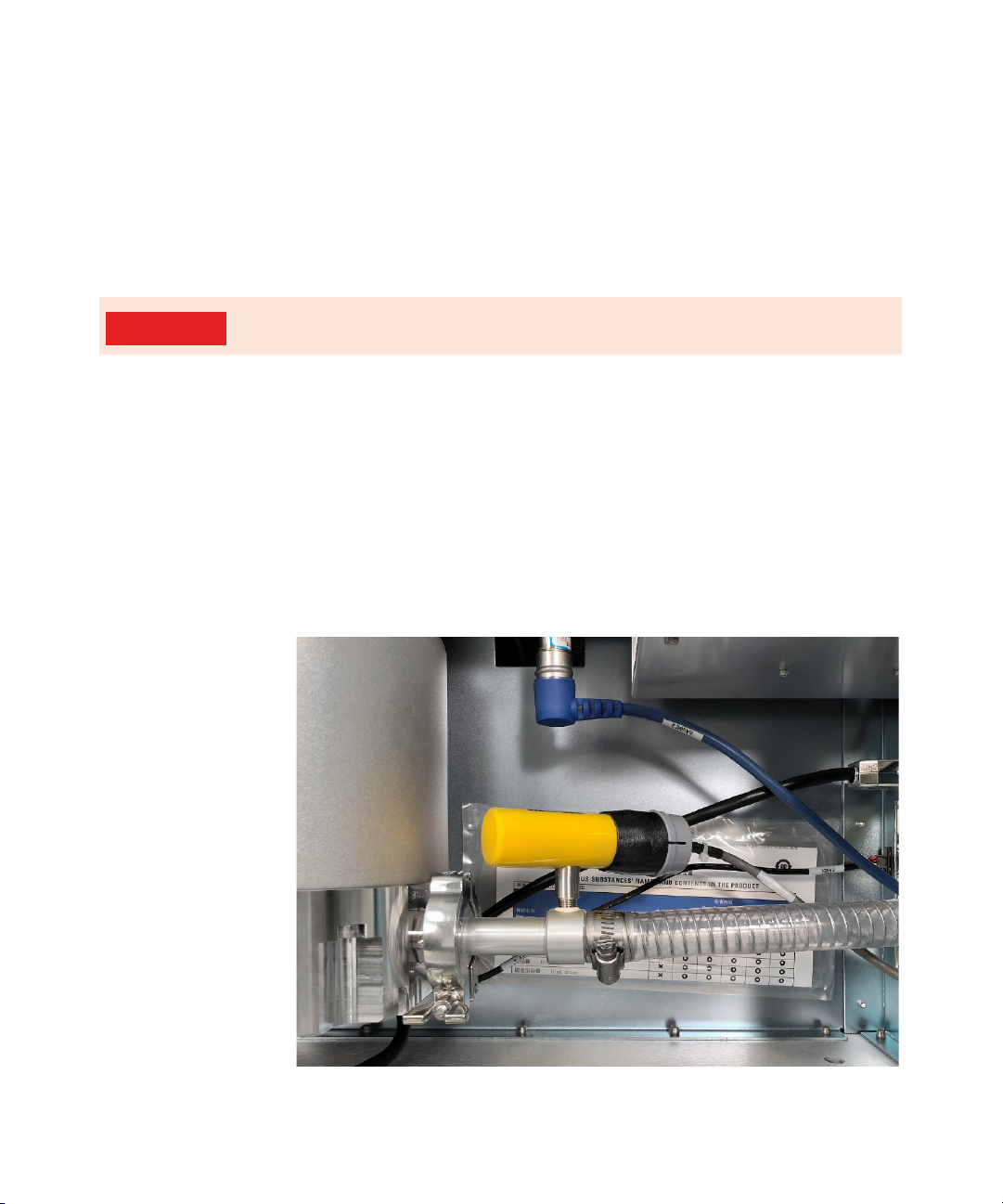

Figure 2. Foreline hose removal from foreline gauge adapter

2 Installation
Removing the Existing Foreline Pump from the Agilent 7000 and 7010 Series GC/MS
Agilent G6697A Oil Free IDP-10 Dry Scroll Pump Installation Guide 13
5Disconnect the other end of the foreline hose from the existing foreline
pump.
6Dispose of the existing pump, foreline hose, and fittings in accordance with
all local regulations. Contact your local recycler for specific instructions.
WARNING The old pump oil may contain toxic chemicals. Treat it as hazardous waste.

2 Installation
Unpacking the IDP-10 Pump
14 Agilent G6697A Oil Free IDP-10 Dry Scroll Pump Installation Guide
Unpacking the IDP-10 Pump
To unpack the Agilent G6697A IDP-10 Scroll Vacuum Pump for Agilent 7000 and
7010 Series GC/MS:
1Orient the shipping container with This End Up on top.
2Open the shipping container. All supplied components are in smaller boxes or
bags within the shipping container.
3Remove the boxed and bagged items from the shipping container.
4Open boxes and bags, and then remove all of the supplied components.
When removing the pump from its box, do the following:
aHave a helper hold the box containing the pump.
bRemove the Exhaust Filter and the NW16 Clamp and Centering Ring
from the foam insert, (Figure 3).
Figure 3. Exhaust Filter and NW16 Clamp/Centering Ring

2 Installation
Unpacking the IDP-10 Pump
Agilent G6697A Oil Free IDP-10 Dry Scroll Pump Installation Guide 15
cRemove the foam packaging from the box, then, lift the pump by the
built-in pump handles (Figure 4) at either end of the pump, carefully
remove the pump from the box.
5Retain the shipping container and all packing materials.
6Inspect the pump and other components for damage. If there is shipping
damage, contact the freight carrier and your local Agilent sales office
immediately.
Figure 4. IDP-10 pump lifting handles
Lifting handle
Lifting handle

2 Installation
Assembling the Foreline Hose
16 Agilent G6697A Oil Free IDP-10 Dry Scroll Pump Installation Guide
Assembling the Foreline Hose
To assemble the foreline hose:
1Attach the KF25 Flange × 5/8 in. ID Hose barb adapter (G1099-20532) to one
end of the new foreline hose (G7077-60119).
2Secure the barb fitting with 1x Clamp, Hose .437 in. DIA .56 in. Hose Clamp
(1400-3241) as shown in Figure 5.
aSpray the KF25 hose adapter (p/n G1099-20532) with isopropyl alcohol
(IPA) solvent.
bPlace the KF25 hose adapter connector face on a cloth on your work
surface.
cSlide the end of the foreline hose over the KF25 hose adapter.
dSecure the KF25 hose adapter in the foreline hose by positioning the
hose clamp over the inserted portion of the adapter, and then using a
hand tool, tighten hand tight.
CAUTION Do Not use any existing vacuum hoses or fittings. Any retained oil or
contamination from previously used hoses or fittings will damage the pump,
and may result in permanent pump failure.

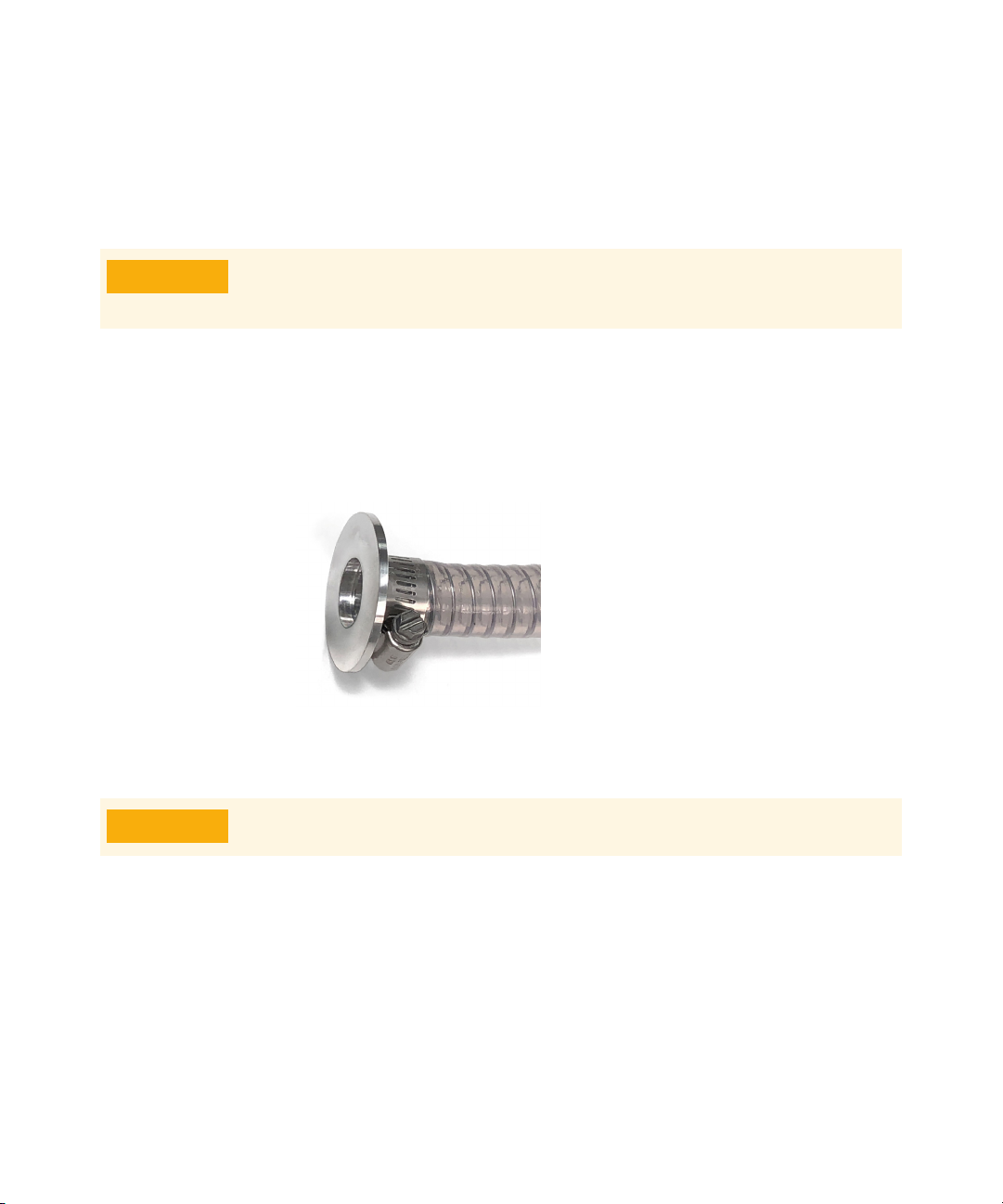

Figure 5. Attach barb fitting to new foreline hose and secure with hose clamp
CAUTION Be careful not to scratch the face of the hose adapter. Deep grooves or
scratches may prevent a leak-free installation.

2 Installation
Assembling the Foreline Hose
Agilent G6697A Oil Free IDP-10 Dry Scroll Pump Installation Guide 17
3Connect the other end of the foreline hose directly to the GC/MS foreline
gauge adapter as shown in Figure 6.
aPlace the remaining Hose Clamp (1400-3241) on the hose BEFORE
attaching the hose to the gauge adapter as shown in Figure 6.
bSpray the end of the GC/MS foreline gauge adapter with isopropyl
alcohol (IPA) solvent.
cSlide the end of the foreline hose over the end of the foreline gauge
adapter.
dSecure the hose on the foreline gauge adapter by positioning the hose
clamp over the barb portion of the foreline gauge adapter then using a
hand tool, tighten hand tight.
Figure 6. Attach the foreline hose to the GC/MS foreline gauge adapter, and
secure with Hose Clamp

2 Installation
Installing the IDP-10 Pump
18 Agilent G6697A Oil Free IDP-10 Dry Scroll Pump Installation Guide
Installing the IDP-10 Pump
To install the Agilent G6697A IDP-10 Scroll Vacuum Pump for Agilent 7000 and
7010 Series GC/MS:
1Locate the Centering Ring.
2Attach the free end of the new foreline hose assembly to the IDP-10 pump
using the Centering Ring included with the pump and the NW25 Clamp
(0100-0549) included with the kit as shown in Figure 7.
3Tighten the hinged clamp securing the valve to the pump hand tight.
Figure 7. Foreline Hose Assembly installed
WARNING Do not use the exhaust filter cartridge if the application requires capture or
containment of gases being pumped. Instead, route the pump exhaust to an
appropriate collection system.

2 Installation
Installing the IDP-10 Pump
Agilent G6697A Oil Free IDP-10 Dry Scroll Pump Installation Guide 19
4Install the exhaust filter cartridge to the Exhaust (side port) of the IDP-10
pump using the NW16 Clamp and Centering Ring provided with the pump, as
shown in Figure 8on page 19 and Figure 9on page 19.
Figure 8. Installing IDP-10 Exhaust Filter
NOTE The exhaust filter MUST be installed in the orientation shown, with the
direction of gas flow OUT OF the IDP-10 Pump as shown in Figure 8.
Figure 9. Exhaust filter cartridge installed

2 Installation
Installing the IDP-10 Pump
20 Agilent G6697A Oil Free IDP-10 Dry Scroll Pump Installation Guide
5Connect the power cord supplied with the kit to the IDP-10 pump as shown in
Figure 10.
6Connect the power cord to back panel of the Agilent GC/MS instrument as
shown in Figure 11.
7Turn on the Agilent GC/MS.
8Allow the GC/MS to run continuously for approximately 2 hours to remove
any potential excess moisture from the system.

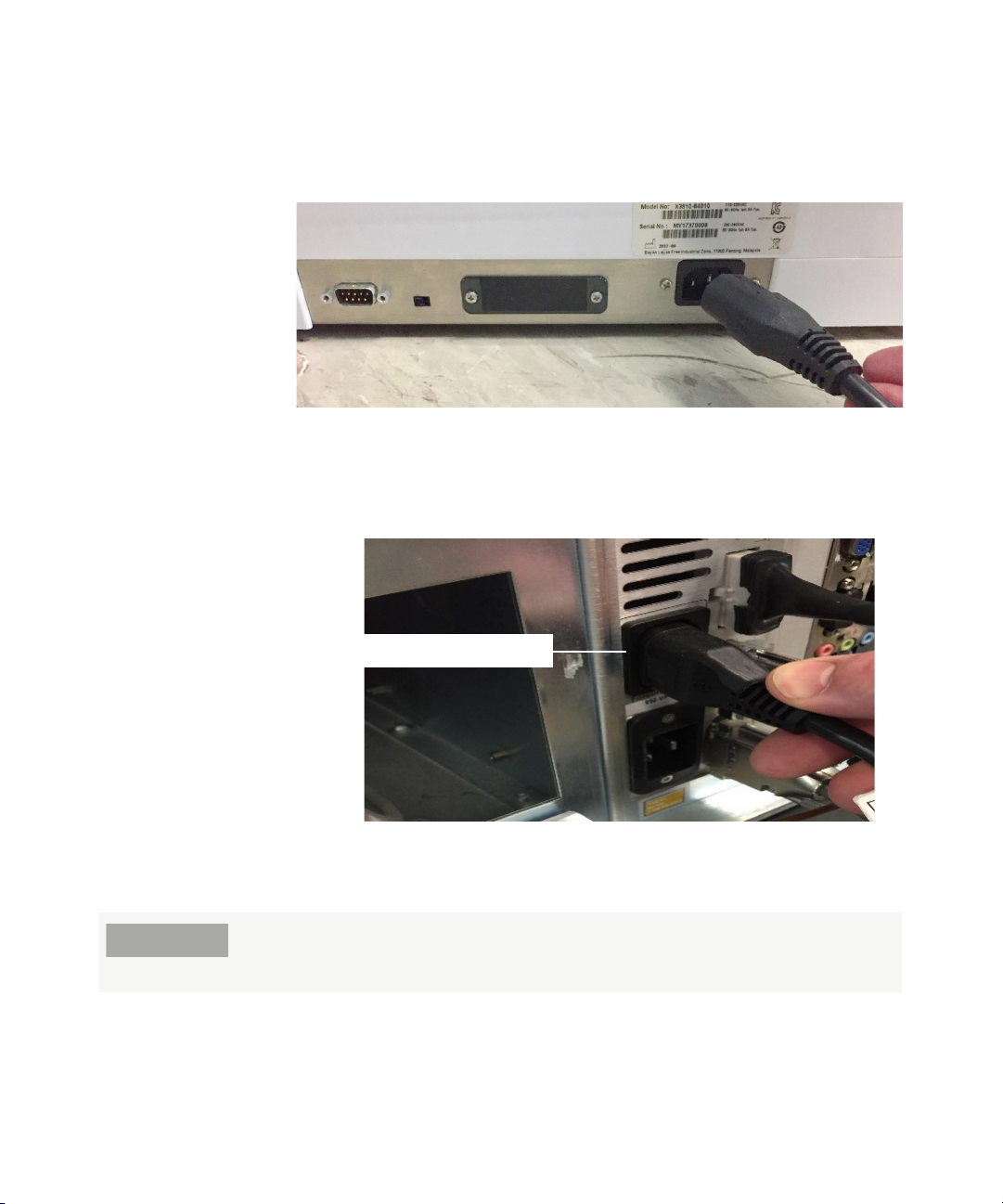

Figure 10. Power Cord Connection to IDP-10
Figure 11. Connecting IDP-10 Pump to back of GC/MS
IDP-10 Pump power cable
NOTE The supply of power to the IDP-10 pump is controlled by the Agilent 7000 and
7010 Series GC/MS Instrument. The pump will power up automatically as part
of the overall MSD start process.
