Alcatel-Lucent Premium DeskPhone 8039s User manual

OXO Connect
8039s Premium DeskPhone
8029s Premium DeskPhone
8019s DeskPhone
User Manual
8AL90353USABed01-1848

Digital Phone
8AL90353USABed01
2 /73
Introduction
Thank you for choosing an 'Alcatel-Lucent phone'.
8039s Premium DeskPhone
8029s Premium DeskPhone
8019s DeskPhone
This model offers enhanced ergonomic features for more effective communication.
This document describes the services offered by Alcatel-Lucent digital sets connected to an OXO
Connect system:
•8039s Premium DeskPhone (8039s).
•8029s Premium DeskPhone (8029s).
•8019s DeskPhone (8019s).
The label and icons displayed depend on the type and the skin of the set. The label is not displayed if the
corresponding feature is not configured on your telephone system. Depending on the size of the display,
some labels may be truncated. All labels are displayed in color and are italicized.
This icon describes a succession of actions or labels you have to do or select: .
This icon describes the consequence of an action: .
Some features depend on the type of the set.
8039s
8029s
8019s
Digital Phone
Monochrome screen
Premium Add-on 10 keys modules
Premium Smart display 14 keys module
Premium add-on 40-key modules
Audio services (hands-free, handset and headset)
The labels and icons presented in this document are not contractually binding and may be modified without
prior warning.

Digital Phone
8AL90353USABed01
3 /73
Getting to know your telephone 6
1.1 8039s Premium DeskPhone 6
1.2 8029s Premium DeskPhone 8
1.3 8019s DeskPhone 10
1.4 Welcome screens 12

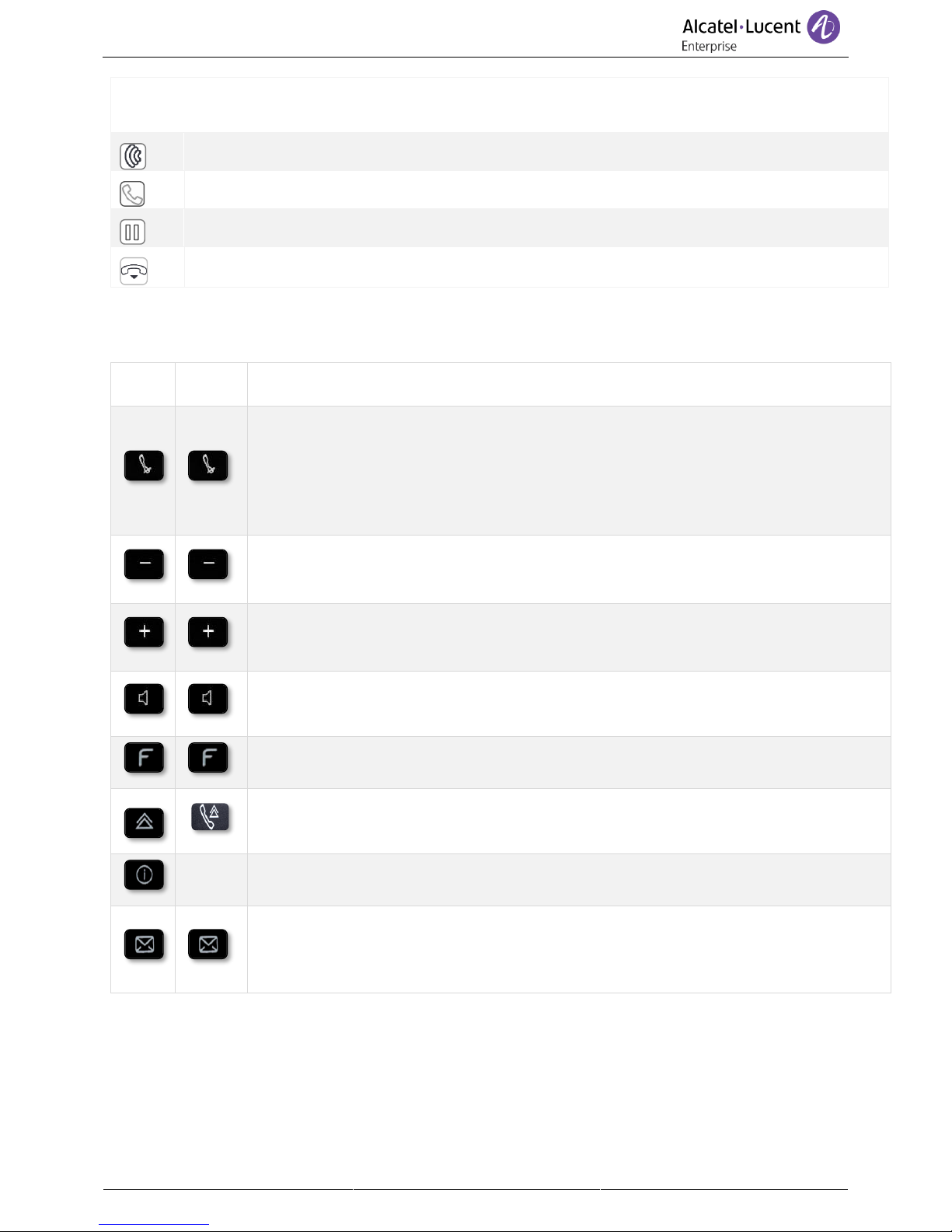

1.5 Status icons/ Call icons 12
1.6 Permanent features keys 13
1.7 Keyboard 14

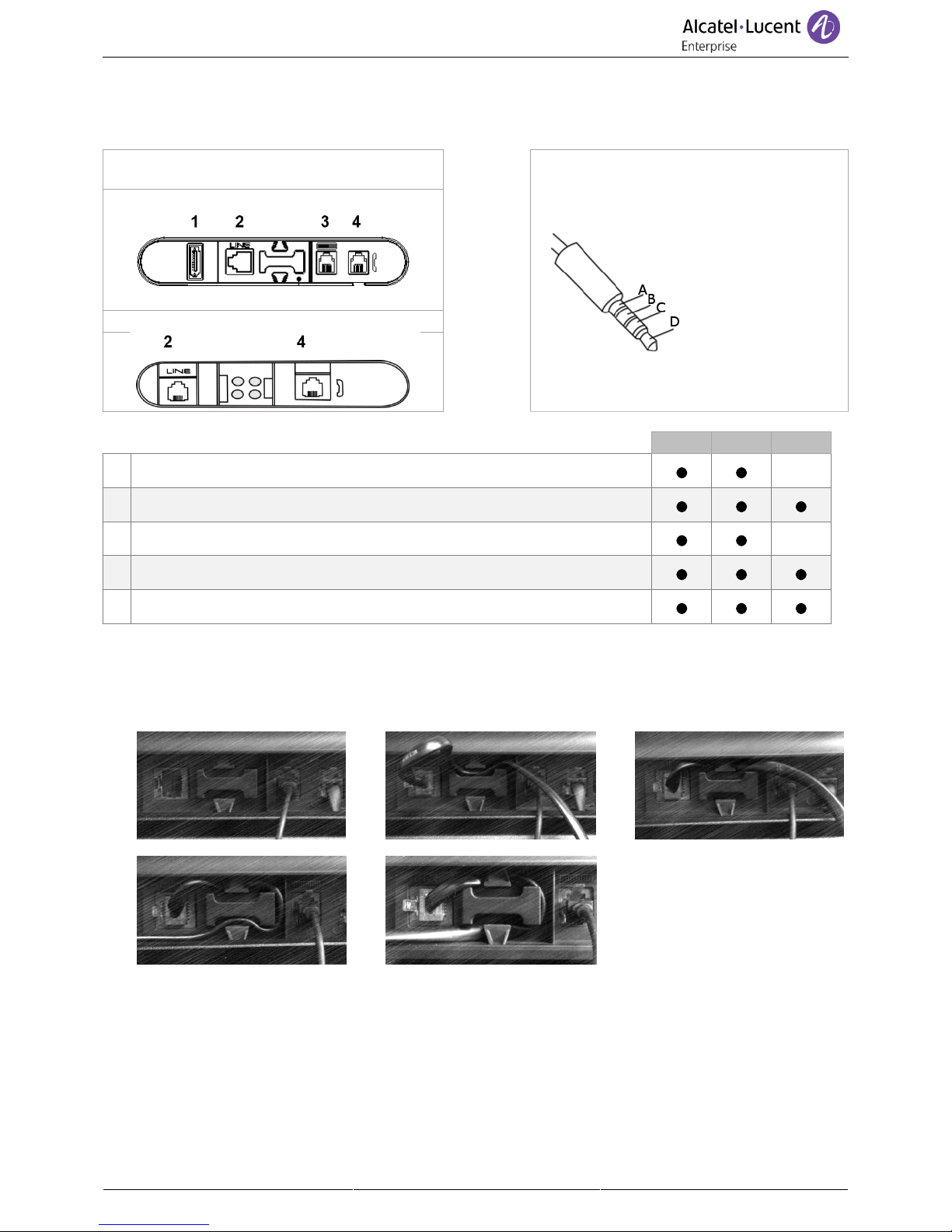

1.8 Description of the connectors 16
1.9 Add-on module 17
1.10 Install a comfort wired handset 20
Using your telephone 21
2.1 Identify the terminal you are on 21
2.2 Messaging portal 21
2.3 Consulting the call log 22
2.4 Making a call 24
2.5 Receiving a call 24
2.6 Switching between audio modes 25
2.7 Activating the loudspeaker during a conversation (handset lifted) 26
2.8 Making calls by name (company directory) 26
2.9 Make calls via your programmed call keys (Perso page/F1 and F2 keys/Add-on module) 27
2.10 Filtering calls using the voice mailbox 28
2.11 Redialing 28
2.12 Requesting automatic callback if internal number is busy 28
2.13 Cancelling an automatic callback 29
2.14 Receiving interphony calls 29
2.15 Sending DTMF signals 29
2.16 Mute, so that your contact cannot hear you 29
2.17 Forwarding calls to your voice message service 30
2.18 Consulting your voice mailbox 30
2.19 Sending an instant message to a contact 30
2.20 Consulting instant messages 32
2.21 Answering with an instant message 33
2.22 Lock / unlock your telephone 34
During a conversation 35
3.1 Making a second call during a conversation 35
3.2 Answering a second call during a conversation 35
3.3 Switching between calls (Broker call) 36
3.4 Transferring a call 36
3.5 Transfer a call to a voice mail 36
3.6 Three-way conference with internal and/or external contacts (conference) 37
3.7 Placing a call on hold (hold) 37
3.8 Placing an outside call on hold (parking) 37
3.9 Intrusion into an internal conversation (barge-in) 38
3.10 Save a number into your personal directory 38
'Meet me' conference 39
4.1 Initiate a 'Meet me' conference 39
4.2 Join a 'Meet me' conference 39

Digital Phone
8AL90353USABed01
4 /73
Sharing 40
5.1 Receiving supervised call ringing 40
5.2 Answering the general bell 40
5.3 Manager/Assistant filtering 40
5.4 Call pick-up 40
5.5 Answering briefly in place of the operator 41
5.6 Hunting groups 41
5.7 Calling an internal contact on his/her pager 41
5.8 Answering a call on your pager 41
5.9 Calling a contact on his/her loudspeaker 42
5.10 Send a voice message copy 42
5.11 Sending a recorded message to a number or a distribution list 42
5.12 Broadcasting a message on the loudspeakers of a station group 43
Keep in touch 44
6.1 Selecting calls to be forwarded 44
6.2 Forwarding calls to another number (immediate forward) 44
6.3 Personal assistant: reaching you with one number only 44
6.4 Activate/disable the personal assistant 44
6.5 Forwarding your calls from the receiving terminal ('Follow me') 45
6.6 Diverting all group calls 45
6.7 Cancelling all forwards 45
6.8 Cancelling a specific forward 45
6.9 Forwarding calls when your line is busy (forward if busy) 45
6.10 Do not disturb 46
6.11 Leaving a text message for internal callers 46
6.12 Consulting text messages 47
6.13 Message notification 47
6.14 Forwarding calls to your pager 47
Programming your telephone 48
7.1 Initializing your voice mailbox 48
7.2 Customizing your voice greeting 48
7.3 Modifying your personal code 48
7.4 Adjusting the audio functions 49
7.5 Adjusting the contrast of the display 50
7.6 Selecting the welcome page 50
7.7 Selecting language 50
7.8 Programming direct call keys (Perso page, Add-on module) 50
7.9 Modifying direct call keys 51
7.10 Deleting direct call keys 51
7.11 Programming an appointment reminder 51
7.12 Install a jack accessory (headset, hands-free, loudspeaker) 52
7.13 Activating/Deactivating 'Forced headset' mode 52
7.14 Contacting your administrator (Technical support) 53
ACD: Agent set/ Supervisor station 54
8.1 Agent set 54
8.2 Open an agent session (login) –Agent set 54
8.3 ACD application welcome screen –Agent set 54
8.4 The four operating statuses of the agent set 55
8.5 Changing the operating status of the set –Agent set 55

Digital Phone
8AL90353USABed01
5 /73
8.6 Modifying your personal code –Agent set 55
8.7 Integrating another group/leaving a group –Agent set 55
8.8 Close the agent session (logout) –Agent set 55
8.9 Supervisor station 55
8.10 Supervising group mailboxes –Supervisor station 56
Accessories 57
9.1 List of accessories 57
9.2 8115/8125 Audioffice 58
9.3 External ringing interface module (MWS 3GV28050AA) 63
9.4 Wall mounting kit 65
9.5 Connect a 3 pole jack headset 67
9.6 Alcatel-Lucent Enterprise Application Partner Program 68
Technical specifications 69
Ordering information 71
Guarantee and clauses 72
12.1 Safety Instructions 72
12.2 Regulatory Statements 73

Digital Phone
8AL90353USABed01
6 /73
Getting to know your telephone
1.1 8039s Premium DeskPhone
This phone is part of digital phone range. With its color display associated to 10 dedicated functions keys,
and an intuitive navigation key, the 8039s Premium DeskPhone provides a rich digital communications
experience and a great conversations comfort with an outstanding audio quality either in hands free or using
the comfort handset.

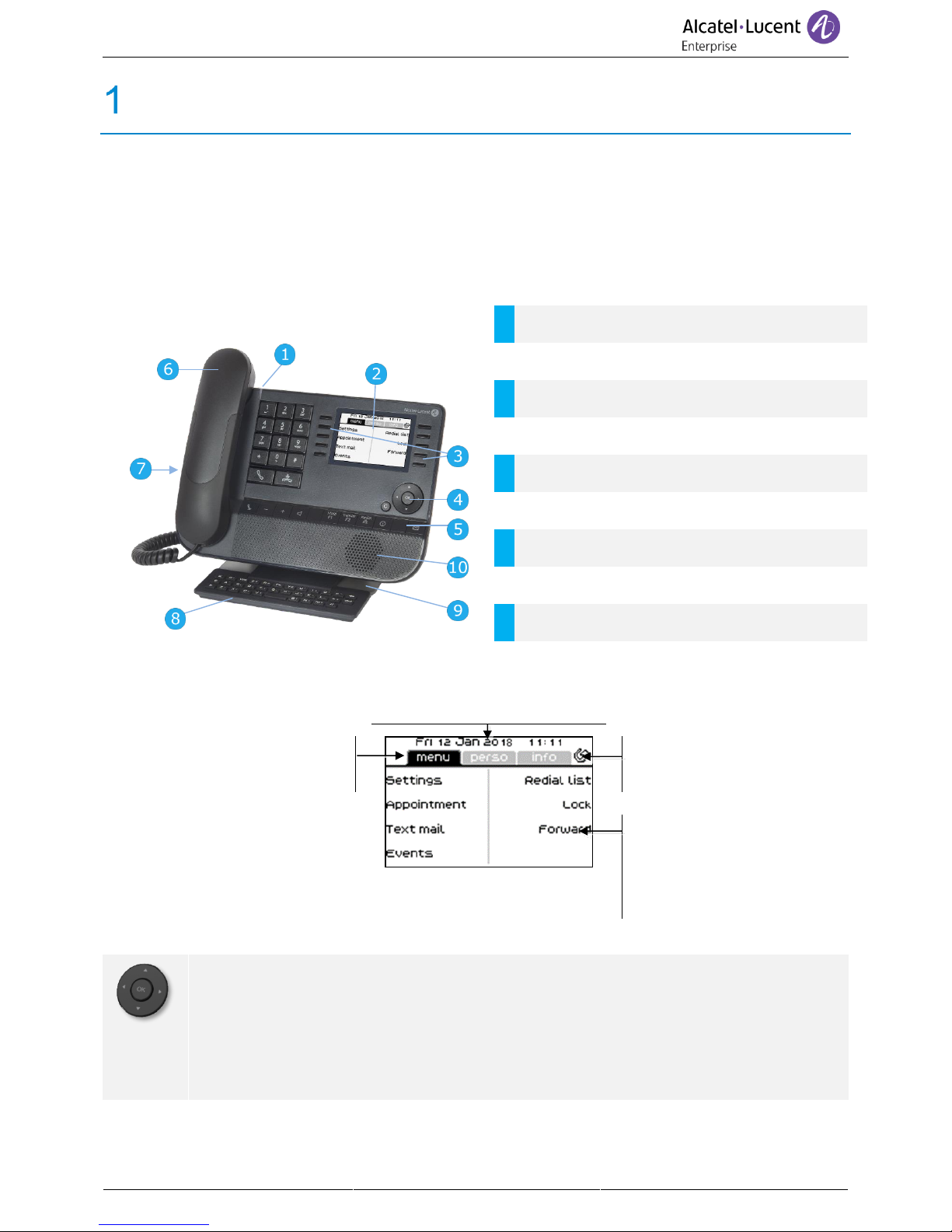

1.1.1 Phone description
1
LED
Flashing blue: incoming call / Appointment alarm.
2
Monochrome backlit screen.
3
10 dedicated functions keys.
4
Navigation.
5
Permanent feature keys: quick access to the phone's
main features.
6
Wired handset.
7
3.5 mm, 4 pole jack (TRRS standards: CTIA).
8
Magnetic alphabetic keyboard.
9
An adjustable and stable foot.
10
Loudspeaker.
1.1.2 Main screen and navigation keys
Top bar (date, time, status icons)
Display the page by selecting the
corresponding tab.
Forward icon.
Softkeys: Menus and actions
available depending on the
selected page.
OK key: Use this key to validate your choices and options while programming or
configuring.
Left-right navigator: In idle state, use this key to move from one page to another. In
conversation, use this key to move between tabs of current calls (call in progress, calls on
hold, incoming call). In the text edition, use this key to navigate into the text box.
Up-down navigator: Used to scroll through the content of a page.

Digital Phone
8AL90353USABed01
7 /73
Back/Exit key: Use this key to go back to the previous step. Use this key to go back to
the homepage (long press).
Manage your call forwarding by pressing the key associated with the forward icon.
•Stationary white icon: No forwarding activated.
•Rotating arrow: Forwarding activated.
1.1.3 Call management screen
Tabs: Incoming call icon, Call
in progress, Call on hold, …
Softkeys: actions available
depending on the call status
(when presentation screen is
not displayed)
Notification (popup) of
incoming call
Each tab corresponds to a call, the status of which is symbolized by its icon (in progress, call on hold,
arrival of new call). When a call is in progress, use the left-right navigator to look at calls on hold or
incoming calls.
All features are accessible while the call is displayed on the screen. Use the Up and Down arrows to
move up or down a page. These functions (transfer, conference, etc.) are directly related to the status
of the call consulted. For example, the transfer function will not be available between a call in progress
or on hold and an incoming call.
Used to switch from the conversation screen to the welcome screen
Press the key in front of the label to select the corresponding feature.
Calls can also be managed from the Perso page.
While the call is in progress, press the Back/Exit key and display the Perso page. Calls in progress or
waiting calls are displayed on the different line keys. It is then possible to converse with the contact
of your choice by pressing the key associated to the contact.

Digital Phone
8AL90353USABed01
8 /73
1.2 8029s Premium DeskPhone
This phone is part of digital phone range. In addition to a clear monochrome display associated to 6
dedicated function keys and an intuitive navigation key, the 8029s Premium DeskPhone provides 4
programmable keys as a smart add-on module, for a quick access to your favorite contacts or features. It
offers a rich digital communications experience and a great conversations comfort with an outstanding
audio quality either in hands free or using the comfort handset.
1.2.1 Phone description
1
LED
Flashing blue: incoming call / Appointment alarm.
2
Monochrome backlit screen.
3
6 dedicated functions keys.
4
4 programmable keys with Led and paper label.
5
Navigation.
6
Permanent feature keys: quick access to the phone's
main features.
7
Wired handset.
8
3.5 mm, 4 pole jack (TRRS standards: CTIA).
9
Magnetic alphabetic keyboard.
10
An adjustable and stable foot.
11
Loudspeaker.
1.2.2 Main screen and navigation keys
Top bar (date, time, status icons)
Display the page by selecting the
corresponding tab.
Forward icon.
Softkeys: Menus and actions
available depending on the
selected page.
OK key: Use this key to validate your choices and options while programming or configuring.
Left-right navigator: In idle state, use this key to move from one page to another. In
conversation, use this key to move between tabs of current calls (call in progress, calls on
hold, incoming call). In the text edition, use this key to navigate into the text box.
Up-down navigator: Used to scroll through the content of a page.
Back/Exit key: Use this key to go back to the previous step. Use this key to go back to the
homepage (long press).
Manage your call forwarding by pressing the key associated with the forward icon.
•Stationary white icon: No forwarding activated.
•Rotating arrow: Forwarding activated.

Digital Phone
8AL90353USABed01
9 /73

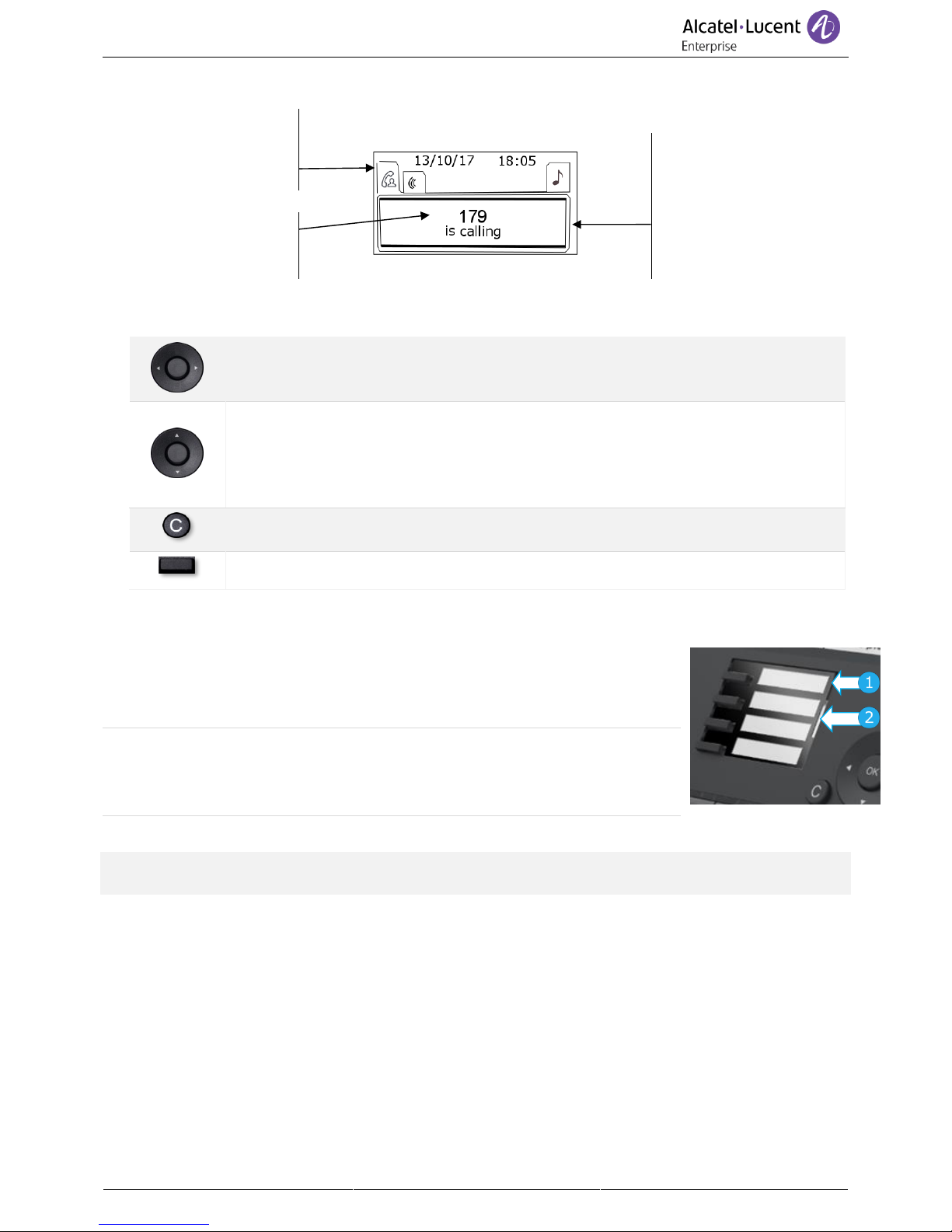

1.2.3 Call management screen
Tabs: Incoming call, Call in
progress, Call on hold, …
Softkeys: actions available
depending on the call status
(when presentation screen is
not displayed)
Notification (popup) of
incoming call
Each tab corresponds to a call, the status of which is symbolized by its icon (in
progress, call on hold, arrival of new call). When a call is in progress, use the left-
right navigator to look at calls on hold or incoming calls.
All features are accessible while the call is displayed on the screen. Use the Up
and Down arrows to move up or down a page. These functions (transfer,
conference, etc.) are directly related to the status of the call consulted. For
example, the transfer function will not be available between a call in progress or on
hold and an incoming call.
Used to switch from the conversation screen to the welcome screen.
Press the key in front of the label to select the corresponding feature.
1.2.4 Changing or updating the paper label
Removing the paper label
•Lift the protective cover at the notch (1).
•Remove the paper label in the same way (2).
•Update or replace the paper label.
Inserting the phone label
•Position the phone label, left side first, making sure it is placed correctly
behind the notches (a,b,c,d).
•Put the protective cover back in the same way.
The application 'LabelSet' is available to help you to print the paper labels. Please contact your business
partner for more information.
a
b
c
d

Digital Phone
8AL90353USABed01
10 /73
1.3 8019s DeskPhone
This phone is part of digital phone range. In addition to a clear monochrome display associated to 6
dedicated function keys and an intuitive navigation key, the 8019s DeskPhone provides 4 programmable
keys as a smart add-on module, for a quick access to your favorite contacts or features. It offers a rich
digital communications experience and a great conversations comfort with an outstanding audio quality
either in hands free or using the comfort handset
1.3.1 Phone description
1
LED
Flashing blue: incoming call / Appointment alarm.
2
Monochrome screen.
3
6 dedicated functions keys.
4
3 preprogrammed keys with Led and paper icon: Alpha-
numeric key, “Hold” key, “Transfer” key.
4 programmable keys with Led and paper label.
5
Navigation.
6
Permanent feature keys: quick access to the phone's
main features.
7
Wired handset.
8
3.5 mm, 4 pole jack (TRRS standards: CTIA).
9
Stable foot
10
Loudspeaker.
Your phone has 4 programmable keys with led and paper label. These keys are used to program a direct
call. You can use the paper to describe the key.
1.3.2 Main screen and navigation keys
Top bar (date, time, status icons)
Display the page by selecting the
corresponding tab.
Forward icon.
Softkeys: Menus and actions
available depending on the
selected page.
OK key: Use this key to validate your choices and options while programming or
configuring. Left-right navigator: In idle state, use this key to move from one page to
another. In conversation, use this key to move between tabs of current calls (call in
progress, calls on hold, incoming call). In the text edition, use this key to navigate into the
text box.
Up-down navigator: Used to scroll through the content of a page.
Back/Exit key: Use this key to go back to the previous step. Use this key to go back to the
homepage (long press). Use this key to delete one number or character at a time.
Manage your call forwarding by pressing the key associated with the forward icon.
•Stationary white icon: No forwarding activated.
•Rotating arrow: Forwarding activated.

Digital Phone
8AL90353USABed01
11 /73
1.3.3 Call management screen
Tabs: Incoming call, Call
in progress, Call on hold,
…
Softkeys: actions
available depending on
the call status (when
presentation screen is
not displayed)
Notification (popup) of
incoming call
Each tab corresponds to a call, the status of which is symbolized by its icon (in progress,
call on hold, arrival of new call). When a call is in progress, use the left-right navigator to
look at calls on hold or incoming calls.
All features are accessible while the call is displayed on the screen. Use the Up and Down
arrows to move up or down a page. These functions (transfer, conference, etc.) are
directly related to the status of the call consulted. For example, the transfer function will
not be available between a call in progress or on hold and an incoming call.
Used to switch from the conversation screen to the welcome screen.
Press the key in front of the label to select the corresponding feature.
Calls can also be managed from the Perso page. While the call is in progress, press the Back/Exit key
and display the Perso page. Calls in progress or waiting calls are displayed on the different line keys. It
is then possible to converse with the contact of your choice by pressing the key associated to the
contact.
1.3.4 Changing or updating the paper label
Removing the paper label
•Lift the protective cover at the notch and slide it up to take it out of its
housing.
•Remove the paper label in the same way.
•Update or replace the paper label.
Inserting the phone label
•Insert the paper label from the top end, making sure it is placed
correctly behind the notches.
•Put the protective cover back in the same way.
The application 'LabelSet' is available to help you to print the paper labels. Please contact your business
partner for more information.
1.3.5 Function keys and programmable keys
The 8019s DeskPhone uses 3 preprogrammed keys to access some features. In this
case, the icon of the feature is printed on the paper. Use the feature by pressing the
corresponding key. When activated, the LED corresponding to the key remains lit up.
Press the corresponding key to deactivate it.
•123<>abc Alpha-numerical keypad
Use this key to switch between alphabetic keyboard and numeric keyboard.
•Hold Use this key to put the call on hold.
•Transfer Use this key to transfer a call.

Digital Phone
8AL90353USABed01
12 /73
1.4 Welcome screens
8039s
8029s/8019s
1.4.1 Homepage description
You can access all of your phone's features from these screens. The default display has three pages
that you can access by pressing to the page tabs at the top of the screen. The selected page is
highlighted. The default pages can be augmented with other applications (ACD for example) installed
and/or configured on your system.
•Menu page Menu
Contains all features and applications accessible by pressing the label of the desired feature or
application. From this page, it is possible to adjust the ringer volume, program the time of an
appointment, lock the terminal, define the default page displayed, configure voice mail, and
access telephone functions such as calling back one of the last numbers or intercepting calls.
•Perso page Perso
Contains call line keys (allowing supervision of calls) and programmable call keys.
•Info page Info
Contains information on the telephone and the status of its functions: name, telephone number,
number of messages (including call log events, text messages and voice messages), activation
of transfer function, appointment reminder, etc.
•Forward icon: Press the icon (touchscreen) or the key next to this icon to program or change
the transfer function.
•Press the key in front of the label to select the corresponding feature.
Choose the page displayed by default on the telephone
•Settings Phone Homepage
•Select the default page (Menu, Perso, Info, Last page seen …).
•
1.5 Status icons/ Call icons
Status icons
Icons with information about some of the specific configurations of the phone are displayed in the top bar
of the screen.
Depending on the size of the display, all status icons may not be displayed simultaneously. Which icons
are displayed depends on their priority. The following icons are listed according to their priority, from the
highest to the lowest.
Telephone locked.
Headset connected.
Appointment programmed.

Digital Phone
8AL90353USABed01
13 /73
Call icons
Icons with information about call status are displayed in the tabs of the call presentation screen.
Incoming call icon.
Call in progress icon.
Call holding icon.
Your contact ended the conversation.
1.6 Permanent features keys
They are located just above the loudspeaker.
8039s
8029s
8019s
Description
•Mute and interphony key.
During a call, press this key to stop your contact from hearing you. When idle,
press this key to switch the phone to interphony mode. When you receive a call,
the phone hooks off automatically and you go straight into hands-free mode.
When activated, this key is lit blue. Interphony can be disabled by the
administrator.
•Turn down the volume (ringing or call state).
•Decrease the brightness (idle state).
•Decrease the contrast (idle state).
•Turn up the volume (ringing or call state).
•Increase the brightness (idle state).
•Increase the contrast (idle state).
•Pressing this key answers an incoming call in hands-free mode (when activated,
the key is lit blue). When a call is in progress, pressing this key switches from
hands-free mode to headset or handset mode.
•Hold: the call is placed on hold.
•Transfer: transfer the call to another number.
Redial
•Redial key: to access the 'Redial' feature.
oLast number redial (short press).
oCall back one of the last 8 numbers dialed (long press).
•Used to obtain information on functions of the 'menu' page and to program key of
the 'perso' page (short press). Not available on 8019s DeskPhone.
•Messaging key to access the messaging portal (call log, voice messages and text
messages).
This key flashes blue when there is a new event such as a new voice message, a
new instant message or a new event in the call log.

Digital Phone
8AL90353USABed01
14 /73
1.7 Keyboard
1.7.1 Magnetic alphabetic keyboard (8039s, 8029s Premium DeskPhone)
Your set is provided with a magnetic alphabetic keyboard. The
keyboard depends on your country and languages. The
magnetic keyboard is automatically fixed on the base of the
set. It is connected to the corresponding connector behind the
phone.
•Country variants:
oAZERTY
oQWERTZ
oQWERTY (international)
oQWERTY (nordic)
Use the keyboard to enter names while configuring the phone. Access directly access the dial by name
feature by entering the name of your contact on the keyboard.
Below is a list of the function keys that allow you to access all the symbols.
Cursor moving keys (left, right, up and down). Allows you to navigate edit boxes. Press the
Alt key to access the left and up directions.
Caps lock: to write text in capital letters.
Alt key: to access specific and punctuation characters.
Enter key: to validate edited text.
Backspace key: to delete one character in an edit box.

Digital Phone
8AL90353USABed01
15 /73
1.7.2 Alpha-numeric keyboard (8019s DeskPhone)
Your phone is equipped with alphanumeric keyboard. You can switch between numeric keyboard to dial
number, and alphabetic keyboard to enter text by pressing the corresponding preprogrammed key
(usually the first preprogrammed key).
•123<>abc Switch the keyboard to the alphabetic mode by selecting the associated
preprogrammed key. When activated, the LED corresponding to the key remains lit up.
•Enter alphabetic characters.
The number pad keys have letters that you can display by successive presses. The number is
the last character in the series. Some special characters can be displayed by successively
pressing the key:
%
$
/
~
&
(
)
[
]
=
*
@
#
space
|
-
_
1
+
.
,
;
:
\
?
!
<
>
0
•Use navigation keys to move the cursor into the text.
•Press and hold the '*' key to switch from lowercase to uppercase mode, and vice versa.
•use this key to delete the last entered character. The alphabetic mode remains
activated.
•123<>abc Select the lit preprogrammed key to return to the numeric mode.

Digital Phone
8AL90353USABed01
16 /73
1.8 Description of the connectors
Various connections to allow phone extensions.
8039s, 8029s
Jack connector - CTIA standards
5
A
Microphone
B
Ground
C
Audio (right)
D
Audio (left)
8019s
8039s
8029s
8019s
1
Add-on module connector (SATA type).
2
RJ 11 connector for external ringer and audio active envelop indicator.
3
Magnetic alphanumerical keyboard connector (RJ 9).
4
Wired handset connector (RJ9).
5
3.5 mm, 4 pole jack (TRRS standards: CTIA).
Cable path for line connection (8029/8039 Premium Deskphone)
Make sure you position the cable correctly in the compartment intended for that purpose:
1
2
3
4
5

Digital Phone
8AL90353USABed01
17 /73
1.9 Add-on module
Depending on your DeskPhone, phone capabilities can be extended with add-ons:
8039s
8029s
8019s
Premium Add-on 10 keys modules
Premium Smart display 14 keys module
Premium add-on 40-key modules
1.9.1 Install the add-on to the deskphone
•Premium Add-on 10 keys
oRemove the protection of the dedicated compartment behind the set.
oInsert the add-on correctly in the compartment.
oPlug the provided cord into the dedicated sockets behind your set and the add-on (1: ).
oFix the add-on with the provided screw.
oRestart the deskphone (unplug and plug in the power jack if you are using an external
power adapter or the Ethernet connector –LAN).
•Premium Add-on 40 keys / Premium Smart Display 14 keys:
oPlug the provided cord into the dedicated socket behind your phone and behind the add-
on ( ).
oIf desired, fix the foots (set and add-on) with the provided clip.
oRestart the deskphone (unplug and plug in the power jack if you are using an external
power adapter or the Ethernet connector –LAN).
Manage and use the add-on keys as a direct call key. See chapter: Programming your telephone.
1
2
3
4
1

Digital Phone
8AL90353USABed01
18 /73
1.9.2 Install more than one add-on module
It is possible to connect up to three add-on modules (Premium Smart Display 14 keys, Premium Add-on
40 keys). To attach another add-on, affix and connect the new add-on to the one that is already
connected:
•The first add-on is connected to the deskphone.
•Plug the provided cord of the new add-on into the dedicated
socket behind the connected add-on ( ).
•Plug the other end of the cord into the dedicated socket
behind the new add-on ( ).
•Restart the deskphone (unplug and plug in the power jack if
you are using an external power adapter or the Ethernet
connector –LAN).
1.9.3 Attach the add-on with the clip
You can also order this clip separately for each of the two add-on modules. You can attach the base (set
and add-on module) with the add-on clip provided with Premium Add-on module 40 keys and Premium
Smart Add-on module 14 keys.
Premium Smart Add-on
Remove the protection on the
add-on clip
Place the clip in the correct
position under the base of the
phone, as shown in the image
Place the add-on onto the clip,
as shown in the image
Premium Add-on 40
Remove the protection on the
add-on clip
Place the clip in the correct
position under the base of the
phone, as shown in the image
Place the add-on onto the clip,
as shown in the image
Use the same procedure to attach an add-on to another add-on.
You can attach one or more add-ons to your phone. To attach another add-on, affix and connect the new
add-on to the one that is already connected.

Digital Phone
8AL90353USABed01
19 /73
1.9.4 Changing or updating the paper label
•Premium Add-on 10 keys (with paper labels)
oRemove the protective cover (1): Insert a thin object (or
your fingernail) in the slot (a) to lift the protective cover.
Carefully remove the cover at the first notch (b). The cover
is held in place by small notches, take care not to break the
plastic cover near the notches.
Remove the cover from the other notches (c, d) by moving
the cover gently from right to left ( ).
oRemove the paper label with a thin object.
oReplace the paper label and protective cover (2):
The cover or the paper can only be placed in the right way.
It has to cover all the paper area. If not, return it.
Position the paper label, right side first, by inserting it under
the plastic notches (a). Then, insert the other notches (b) by
gently pressing the paper near each notch.
Put the protective cover back in the same way.
•Premium Add-on 40 keys (with paper labels)
oRemove the protective cover (1): Insert a thin object
(or your fingernail) in the correct position (a) to lift
the protective cover. Carefully remove the
protective cover. The cover is held in place by small
notches, take care not to break the plastic cover
near the notches.
oRemove the paper label in the same way
oReplace the paper label and protective cover (2):
The cover or the paper can only be placed in the
right way. It has to cover all the paper area. If not,
return it.
Position the paper label, right side first, by inserting
it under the plastic notches (c). Then, insert the
other notches (b) by gently pressing the paper near
each notch.
Put the protective cover back in the same way.
oFollow the same method for each paper area.
The application 'LabelSet' is available to help you to print the paper labels. Please contact your business
partner for more information.

Digital Phone
8AL90353USABed01
20 /73
1.10Install a comfort wired handset
•Remove the rubber.
•Plug-in the wired handset to the appropriate connector
(refer to phone description).
•Make sure you position the cable correctly in the
compartment intended for that purpose:-:
