Allsteel Further User manual

10/2019 3430358000
Tools Needed
Drill
6” Bit Extender
1/8” Drill Bit
1/4” Hex Drive Bit
#2 Phillips Bit
#3 Phillips Bit
M4 Hex Allen Wrench
3/32” Hex Allen Wrench
7/16” Box End Wrench
Flat Head Screwdriver
Short Phillips Screwdriver
Rubber Mallet
Index
System Installation Outline .........2
Beams and Supports ................3
Hub Feet ..................................4
Beam Supports .............................6
Electrical ............................. 11
Beam Electrical ............................13
In-Feed ..................................14
Hub Electrical .............................15
Power Pole ...............................16
Beam Trim & Screens...............19
Beam Trim ................................20
Electrical Port Cover ........................20
Beam Mounted Screens & Modesties ...........21
Wire management ...................22
Data Entry ................................23
Wire Managers ............................24
Wire Chain................................25
Hinged Trough.............................25
Worksurfaces & Supports..........26
Worksurface Bracket ........................27
Worksurface Support legs ....................27
Sti󰀨eners .................................28
Run O󰀨 Surfaces ...........................28
Support Storage ...........................29
H-Leg....................................30
Storage Basics ............................31
Accessories..........................34
Up Mounted Storage ........................35
Table Mounted Screens......................37
Laptop Drawer.............................40
Rail & Accessories..........................41
Adaptive ..............................43
Adaptive Beam Supports.....................44
Worksurface Supports .......................47
Worksurface Positioning .....................50
Further
Installation Instructions
Allsteel
Allsteel Inc.
Muscatine, Iowa 52761-0071
www.allsteelo󰀩ce.com
UAPE-L

Further Installation Packet
Failure to install product as instructed, use of hardware other than that which is provided, or failure to comply
with instructions can result in product failure, personal injury, or property damage.
WARNING
3430358000Pages 2 of 54

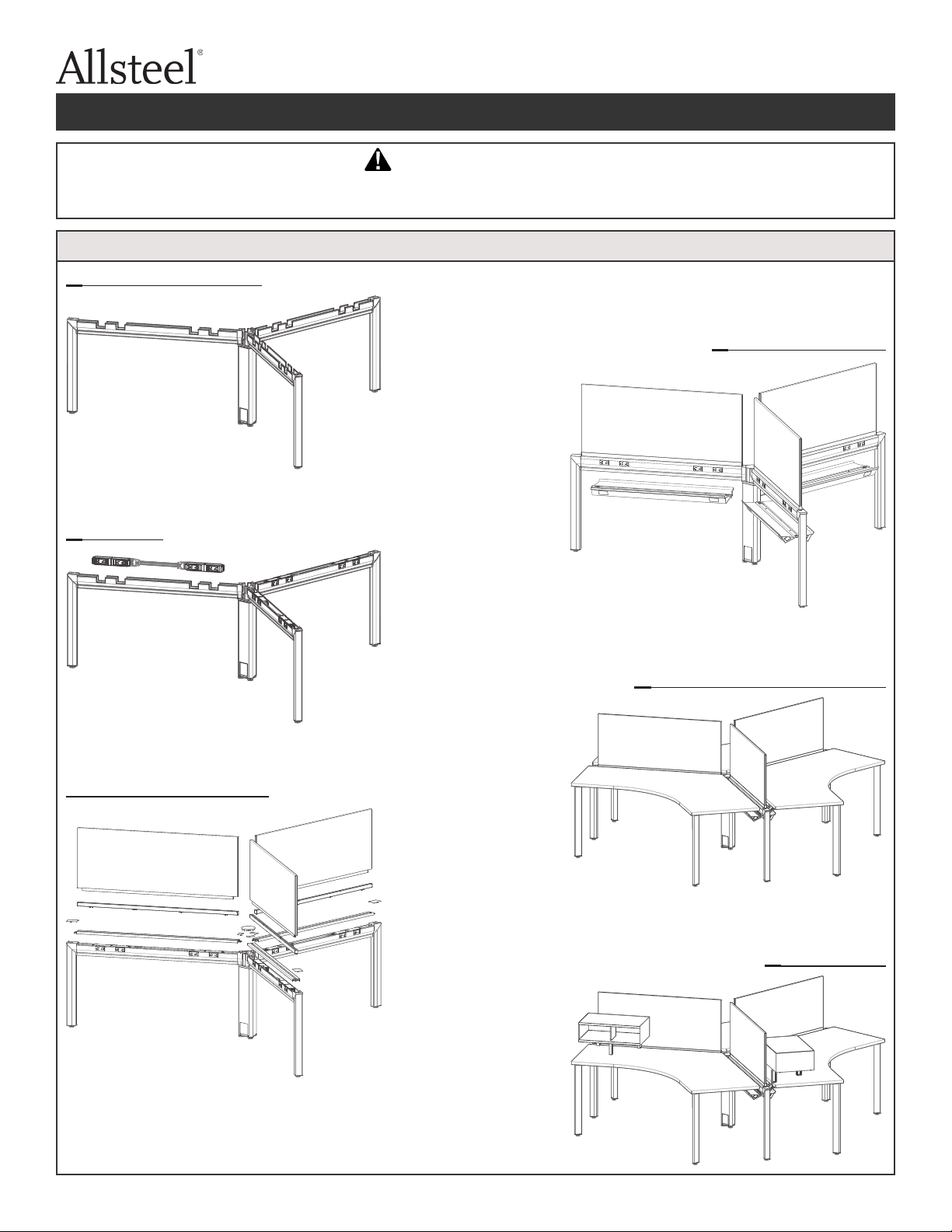

System Installation Outline
1: Beams and Supports
2: Electrical
3: Beam Trim & Screens
4: Wire Management
5: Worksurfaces and Supports
6: Accessories

Further Installation Packet
3430358000 Page 3 of 54
Create
Beams & Supports

Further Installation Packet
3430358000Page 4 of 54

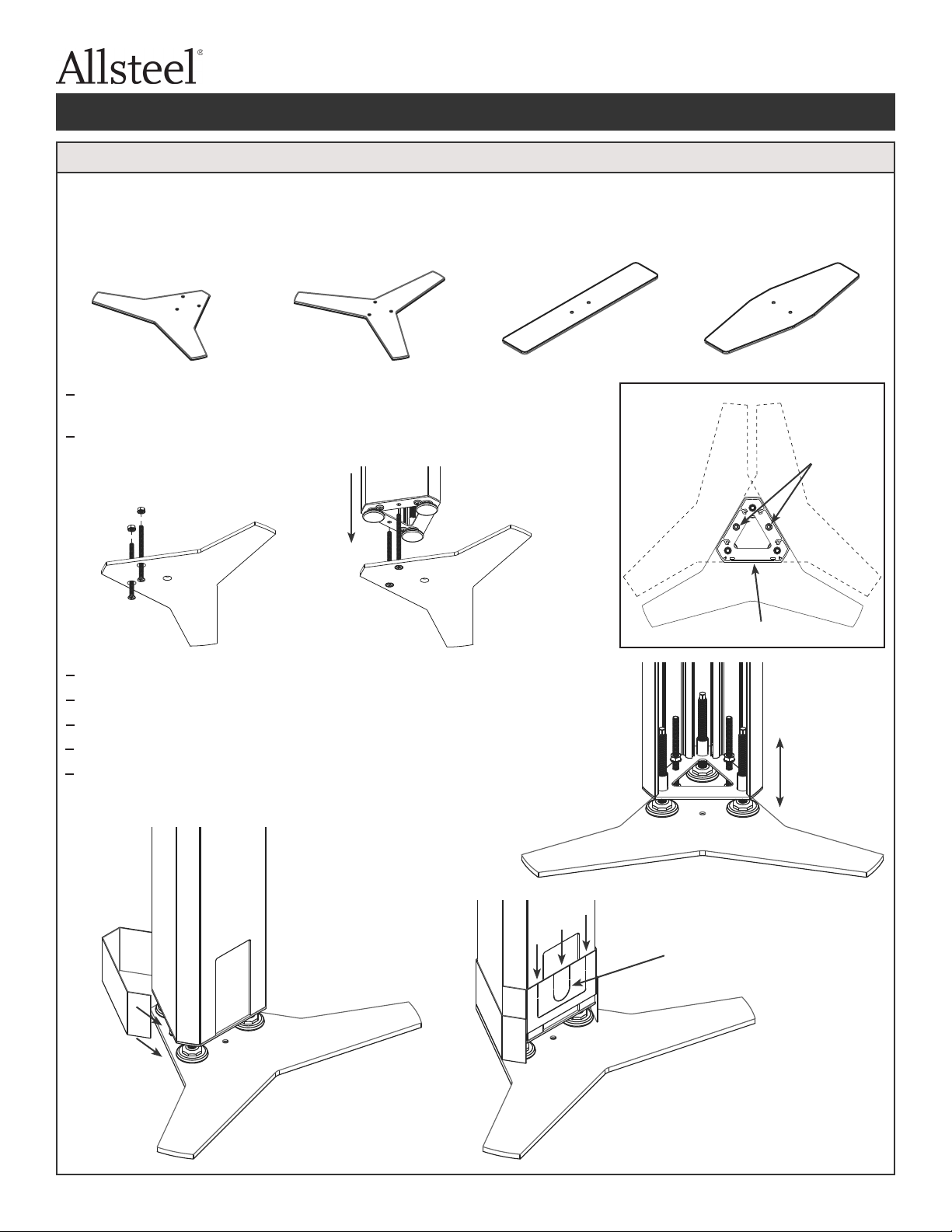

Hub Feet - Leveling
Note - The Further system features 4 versions of hub feet; all install in a similar fashion.
Note - Flexible Hub Feet have three holes to allow hub cover and feet direction to vary.
Flexible Hub
2-Feet
Flexible Hub
3-Feet
Fixed Hub
End of Run
Fixed Hub
In-Line
Hub Cover
Foot
Screws
E x2
F x2
F x2
7 - Press large shroud around base of hub until it snaps into place; slide at
shroud piece over open wall, behind large shroud.
6- Reinstall hub side cover.
5- Once level, tighten locknuts to hub bottom plate with 7/16” box end wrench.
4- Level hub assembly using standard leveling glide method.
3- Fasten locknuts on leveling screws leaving enough space for proper leveling.
2- Each hub baseplate features two holes for mounting leveling feet; Slide hub
over screws until glides are resting on hub foot.
1- Fasten two machine screws to foot using locknuts.

Further Installation Packet
3430358000 Page 5 of 54
Create

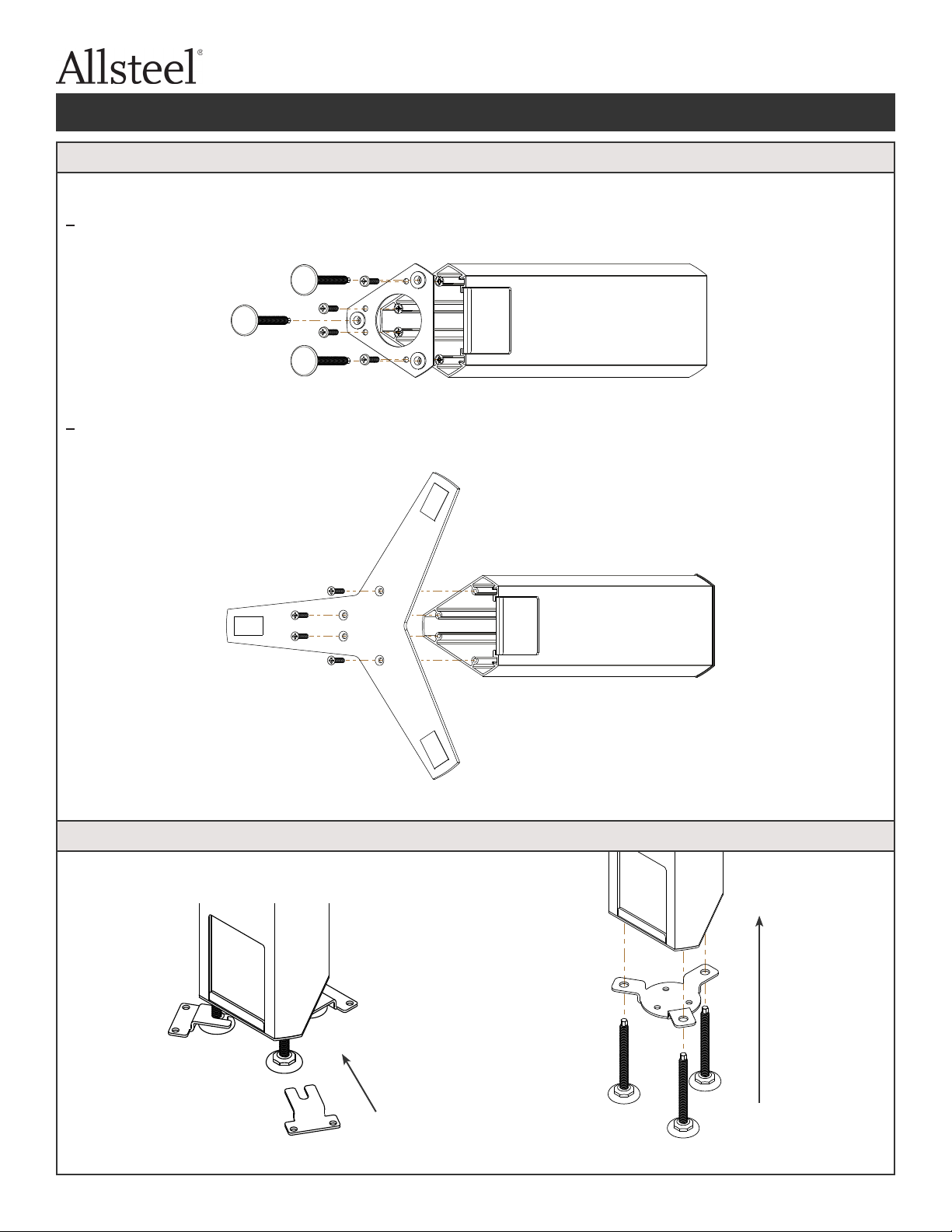

Floor Anchor Brackets
External Internal
Note - Fasteners for anchoring are not provided. Use
appropriate fasteners per oor type.
Hub Feet - Nonleveling
B x4
Note - Nonleveling feet are for use with Collaborative Hubs only. All hubs supporting beams require leveling.
1- Remove standard hub base.
2- Attach hub foot to bottom of hub assembly.

Further Installation Packet
3430358000Page 6 of 54

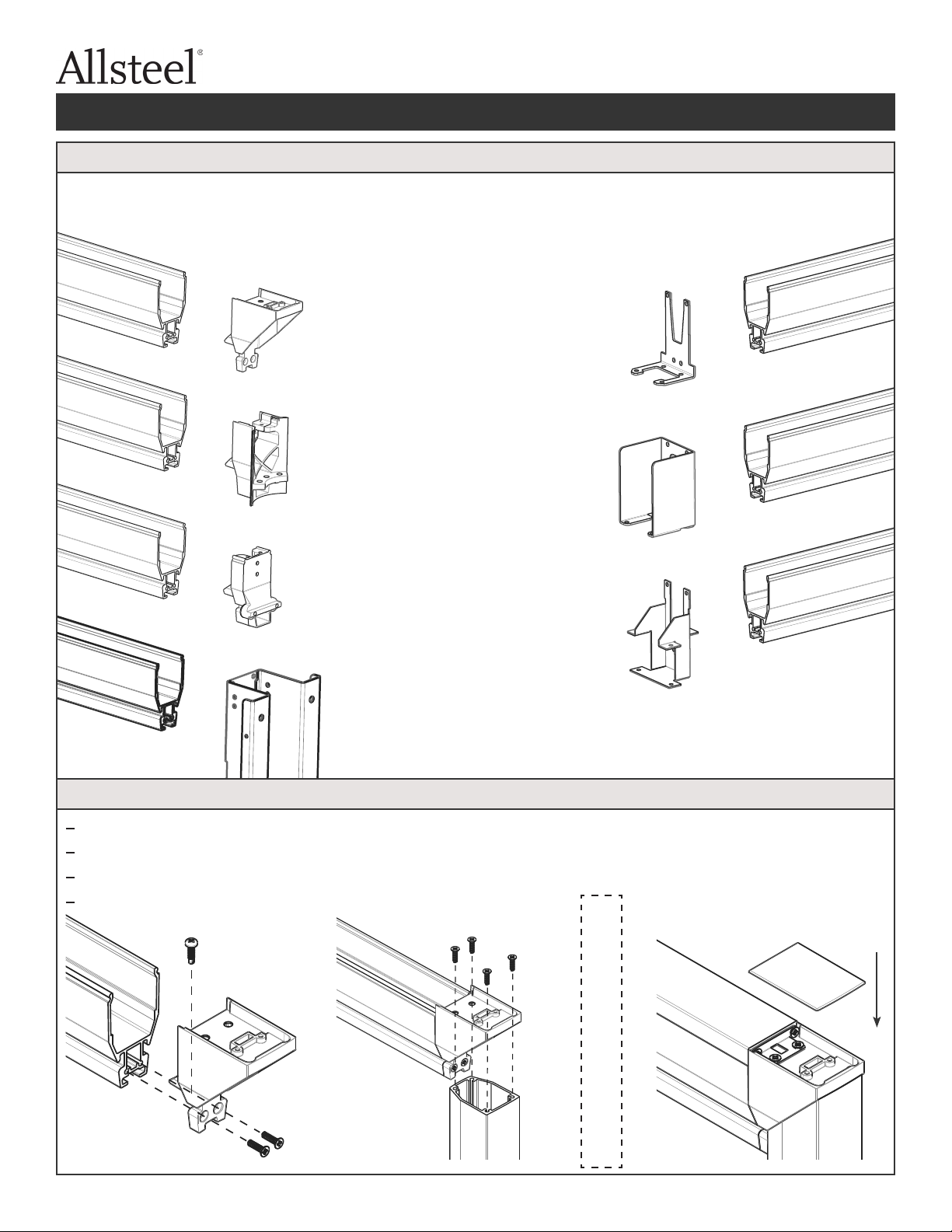

Note - Various supports may be used on either side of a beam. Beam connectors should be attached to both ends
before installation to vertical supports.
Flexible Hub
End Leg
Standard
Bench End
In-Line Hub
In-Line Leg
H-Leg
Wall Mount
End of Run
Hub
Beam Connectors
Square
Bench End
End Leg
G x2
D x1 G x4
Install Electrical & Beam Trim
1- Attach end leg bracket to end of beam.
2- Attach bracket and beam to end leg.
4- End leg trim snaps into bracket channel.
3- Install Electrical (11) and Beam Trim (20).

Further Installation Packet
3430358000 Page 7 of 54
Create

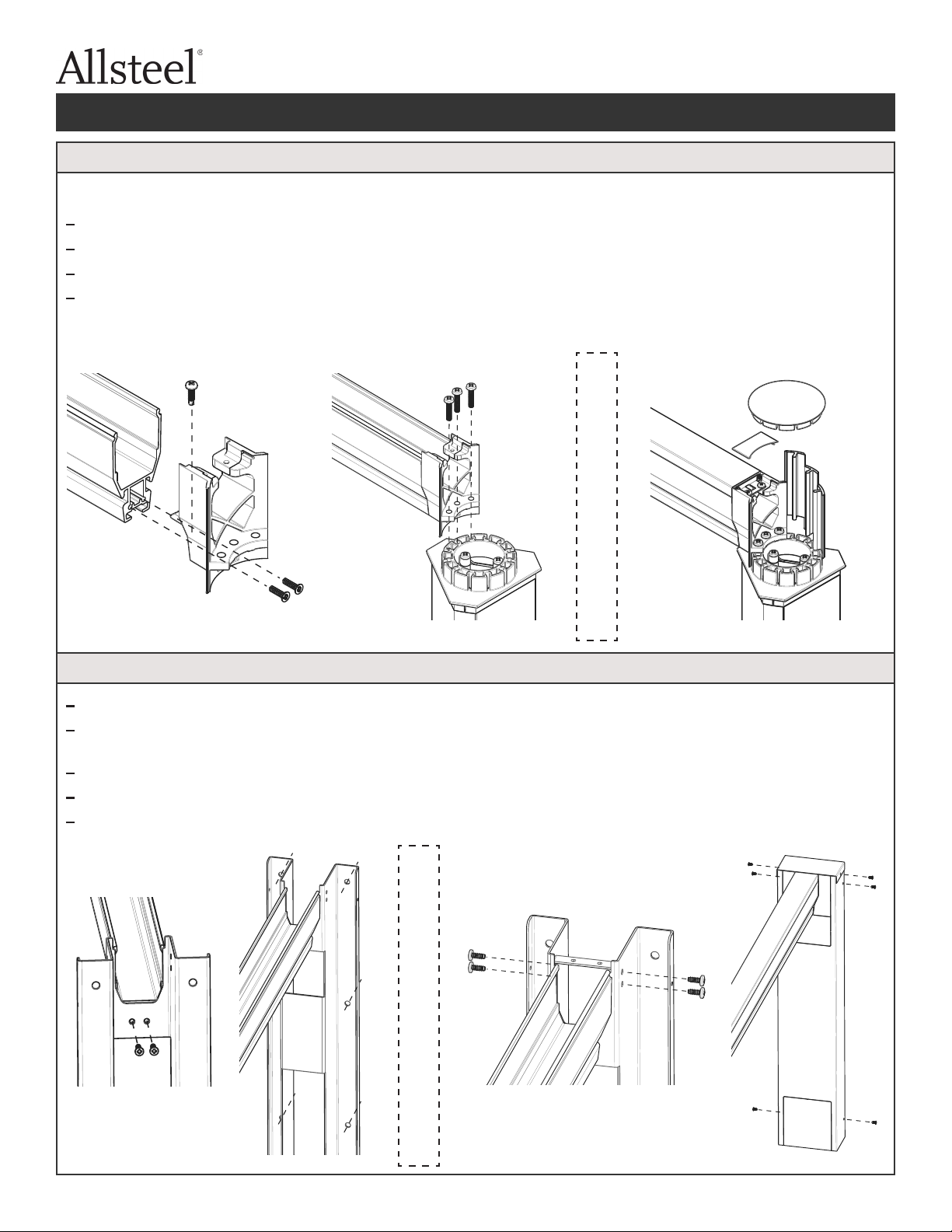

Note - One to four beams can be connected to the hub using the Hub-to-Beam Bracket at any 30° increment.
Flexible Hub
G x2
D x1 C x3
Install Electrical & Beam Trim
Wall Mount
Install Electrical & Beam Trim
G x2
H x4
I x6
1- Attach hub-to-beam bracket to end of beam.
2- Attach bracket and beam to top casting of hub.
4 - Slide gap llers into empty bosses of top casting. Bracket and hub trim
press into place. Rubber mallet may be required for proper alignment.
3- Install Electrical (11) and Beam Trim (20).
Note - Must attach to building stud on at least one side of inner support.
1- Attach inner support to beam.
2- Secure inner support and beam to the wall. (Fasteners not provided)
4- Attach top cap mounting bracket to inner support.
5- Attach outer cover to inner support and top trim to outer cover.
3- Install Electrical (11) and Beam Trim (20).

Further Installation Packet
3430358000Page 8 of 54
Standard End Legs
Nonported Beam
Flat Beam Trim
Standard Bench End
Install Electrical & Beam Trim
D x1
G x2
D x4
Step 2
1- Assemble end support. Refer to individual models for installation.
2- Measure and mark a vertical line in the direct center of the beam.
3- Attach bench end bracket to end of beam.
4- Align two center holes of bracket with line made in step 2. Secure bracket
and beam to bench end support assembly.
6- Snap trim cover into place around bracket.
5- Install Electrical (11) and Beam Trim (20).

Further Installation Packet
3430358000 Page 9 of 54
Create
Square In-Line Hub/H-Leg/In-Line Leg
In-Line Hub
Square End of Run Hub
H-Leg
In-Line Leg
G x2
G x4
J x4
J x4
Install Electrical Install Electrical
G x4
G x2
G x4
G x2
1- Attach mounting bracket to beam.
2- Attach bracket and beam to support.
4- Secure beam trim to mounting brackets.
1- Attach mounting bracket to beam.
2- Attach bracket and beam to hub.
4- Secure beam trim to mounting bracket.
3- Install Electrical (11).
3- Install Electrical (11).
5- Slide cover into place over mounting brackets.
5- Slide cover into place over mounting brackets.

Further Installation Packet
3430358000Page 10 of 54
Square Bench End
Install Electrical
.25” both edges
G x2
D x1
D x4
G x2
K x8
both sides
D x2
K x4
1- Attach mounting bracket to beam.
2- Attach bracket and beam to bench end support.
4- Secure beam trim to mounting bracket.
5 - Install worksurfaces to support; o󰀨set plate 0.25” from each edge.
6 - Attach cover to support. Install self-drilling screws rst for proper alignment.
3- Install Electrical (Page 11).

Further Installation Packet
3430358000 Page 11 of 54
Create
Electrical

Further Installation Packet
Improperly installed electrical components can fail resulting in personal injury and/or property damage.
Connection to a power source should be performed by a licensed electrician. The previous connection and
the quantity of receptacles used for a given circuit must both be in compliance with all national and local
electrical codes. To prevent personal injury ensure all power sources are disconnected during installation.
WARNING

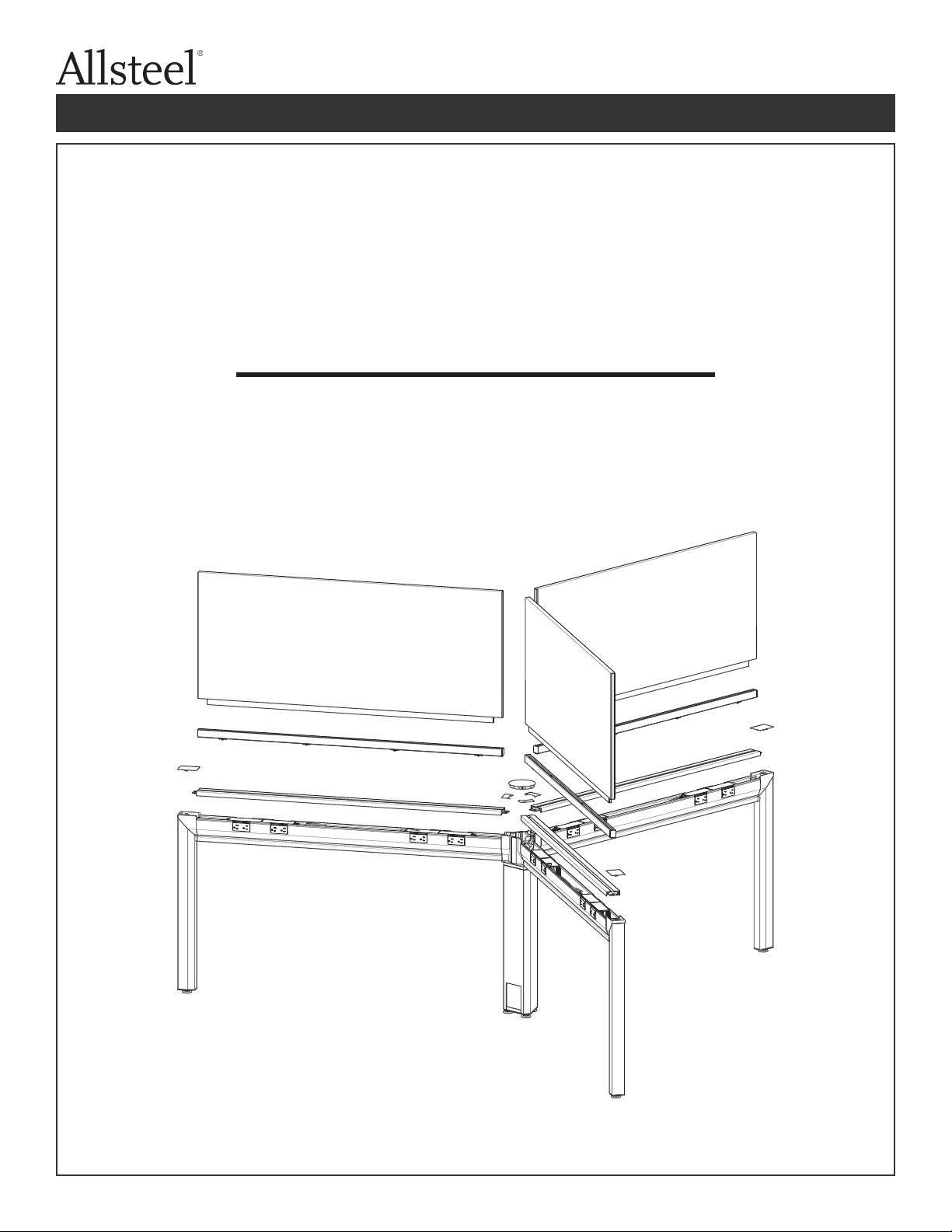

3430358000Pages 12 of 54
88 | Stride & Terrace – 3/2013
Frames – Tiles specsFrames – Tiles pricingelecTricalWorksurFacesWood sToragemeTal overheadsBenching sTride
Flexconnect™ Electrical System Options
The four-circuit, eight-wire electrical system is widely specified and
trusted by hundreds of thousands of end-users. This proven system
deliversfourcircuitsforeverypowerinfeedineithera3+1or2+2
configuration. The isolated/dedicated circuits are ideal for sensitive
computing equipment, while the common circuits are suitable for faxes,
copiers,tasklightsandotherperipherals.Boththe3+1and2+2
systems use the same pre-wired components, making it easy to adjust as
electrical needs change.
You can also choose a three-circuit, eight-wire system that has a
dedicated neutral for every hot circuit. The three-circuit components
havemodelnumberswithan“A”sufx.
Electrical & Data Stride®— Working with Electrical & Data
To Order:
1. Determine which electrical system you will
use after consulting your electrician and
computer support personnel:
•TheFour-circuitsystem
(4-Hot/2-Neutral/2-Ground)
– 3+1option
– 2+2option
•TheThree-circuitsystem
(3-Hot/3-Neutral/2-Ground)
•TheEight-circuitsystem(back-to-back
four-circuit systems)
2. Determine location, quantity and circuit of
duplexes.
3. Determine the appropriate choice and use
of Isolated, Isolated/Dedicated and Separate
Neutrals circuits.
4. Specify appropriate Power Harnesses* and
Pass-Thru Cables.*
5. Determine the location, quantity and type
of Power In-feeds needed.
*SelectPowerHarnessmodels(8712XX),
Pass-ThruCables(8710XX)andPass-Thru
Harness(8711XX)withthelasttwodigits
corresponding with the panel width into
which the component is to be positioned.
The initial cable length can be stretched
approximately 3" to transverse TEE, CROSS,
ELL and Extended Straight Connectors.
GRAY
WHITE
GRN/YLW
GRN/BARE
PINK
BLUE
RED
BLACK
DUPLEX RECEPTACLE CIRCUIT 1
12 GA
10 GA
12 GA
12 GA
12 GA
12 GA
12 GA
12 GA
NEUTRAL - 2
NEUTRAL - 1
ISOLATED
GROUND
HOT - 4
HOT - 3
HOT - 2
HOT - 1
CIRCUIT 2 CIRCUIT 3
CIRCUIT 4
ISOLATED/
DEDICATED
GRAY
WHITE
GRN/YLW
GRN/BARE
PINK
BLUE
RED
BLACK
DUPLEX RECEPTACLE CIRCUIT 1
12 GA
10 GA
12 GA
12 GA
12 GA
12 GA
12 GA
12 GA
NEUTRAL - 2
NEUTRAL - 1
ISOLATED
GROUND
HOT - 4
HOT - 3
HOT - 2
HOT - 1
CIRCUIT 2
CIRCUIT 3
ISOLATED
CIRCUIT 4
ISOLATED
Four‑circuit, 3 + 1 Receptacle Option
Four‑circuit, 2 + 2 Receptacle Option
The3+1optionistheelectricalstandardusedonAllsteelsystems
for many years in most installations. This wiring option provides
three utility circuits plus an isolated/dedicated circuit for more
sensitive equipment. Circuit 2 (one of the 3 common circuits
sharing a neutral wire) cannot be used with single-phase building
electrical supply.
The2+2optionisawiringoptionthatprovidestwoutility
circuits and two isolated circuits for more extensive computer
usage applications.
GSA Reference Page
DuplexH-connector
Jumper
Power Block
Conduit In-feed
Seal Tite In-feed

Further Installation Packet
3430358000 Page 13 of 54
Create
Beam to Beam Jumpers
Beam Power Kits
Beam
End
Beam
Center
NOTE: Single Blocks are not symmetric!
1- Insert duplexes into power blocks.
2- Connect power blocks to jumper.
3- Connect beam to beam jumpers between kits as needed.
4- Lay connected chain of power blocks and jumpers into beam.
1- Connect jumpers between beam electrical kit power blocks.
Note - One to three jumpers can pass over a exible hub. (Congurations below)
2- Lay connected jumpers into hub assembly.
Note - Duplex clips should face downward and snap into beam.

Further Installation Packet
3430358000Page 14 of 54
Breakaway tabs can
be removed and self-
drilled to horizontal
to hold In-feed and
data cables in place.
In-feeds & Hub to Beam Power Kits
Flexible Hub Power Pole
In-Line Hub End of Run Hub
Snap Fit Cover
Slide Cover
H-Leg Bench End
Bracket and beam
must be detached
from EOR hub to
install in-feed.
Hubs can sit directly over
or adjacent to oor core.
In-Feed Cover
Install with VHB tape
and apply pressure
with quick clamps for
best adhesion.
***IMPORTANT***
In-feeds to be connected to system
after electrician has wired it.
See page 17 for
Power Pole Variants
Note: In-feeds DO NOT connect directly to Beam Power Kits. Hub to Beam Kits include a
Jumper and H-connector to connect In-feed to system within a Support or Power Pole.
1 - Remove cover from applicable support.
2 - Connect Jumper and H-connector to Power Block of Beam Power Kit.
3 - Connect In-feed to H-connector within support or Power Pole as shown.
Note - Install Beam Trim before connecting In-feed to system. (Page 20)

Further Installation Packet
3430358000 Page 15 of 54
Create
spacers
Ported Flexible Hub
Collaborative Hub
Note - Duplex clips should face away from hub access door.
1 - Install freestanding base or oor anchor kit (4).
2- Unsnap hub side cover to access hub interior.
1- Install duplexes into power block. (one half only)
2- Unsnap hub side cover.
3- Connect power block to jumper or in-feed.
4- Place spacer plate over duplexes; insert power block into hub ports.
5- Press retaining brackets around the power block directly behind each
duplex until they snap into place.
3- Insert power module into hub cutout. Add spacers to top and bottom.
4- Slide thumb screws past ends of module. Tighten against spacers.

Further Installation Packet
3430358000Page 16 of 54
STEP 7 CEILING TRIM PLATES 90DEG FLAT TO TILE ON TILE
3430358000_ILL_17a_I
Power Pole - Flexible Hub
Note - Hub and beam structure must be completely assembled prior to
power pole installation.
Note - End condition trim mounts between bottom plate and mounting bracket, when applicable.
A x4
A x4
C x2
H x2
1- Attach mounting bracket to hub using preinstalled hub screws.
2- Secure trim plates to top and bottom of power pole.
5- Snap power pole cover into place after power and data are installed.
3- Align power pole with hub; secure bottom plate to mounting bracket.
4- Mount ceiling trim plates to ceiling tile by bending tabs into cutout.

Further Installation Packet
3430358000 Page 17 of 54
Create

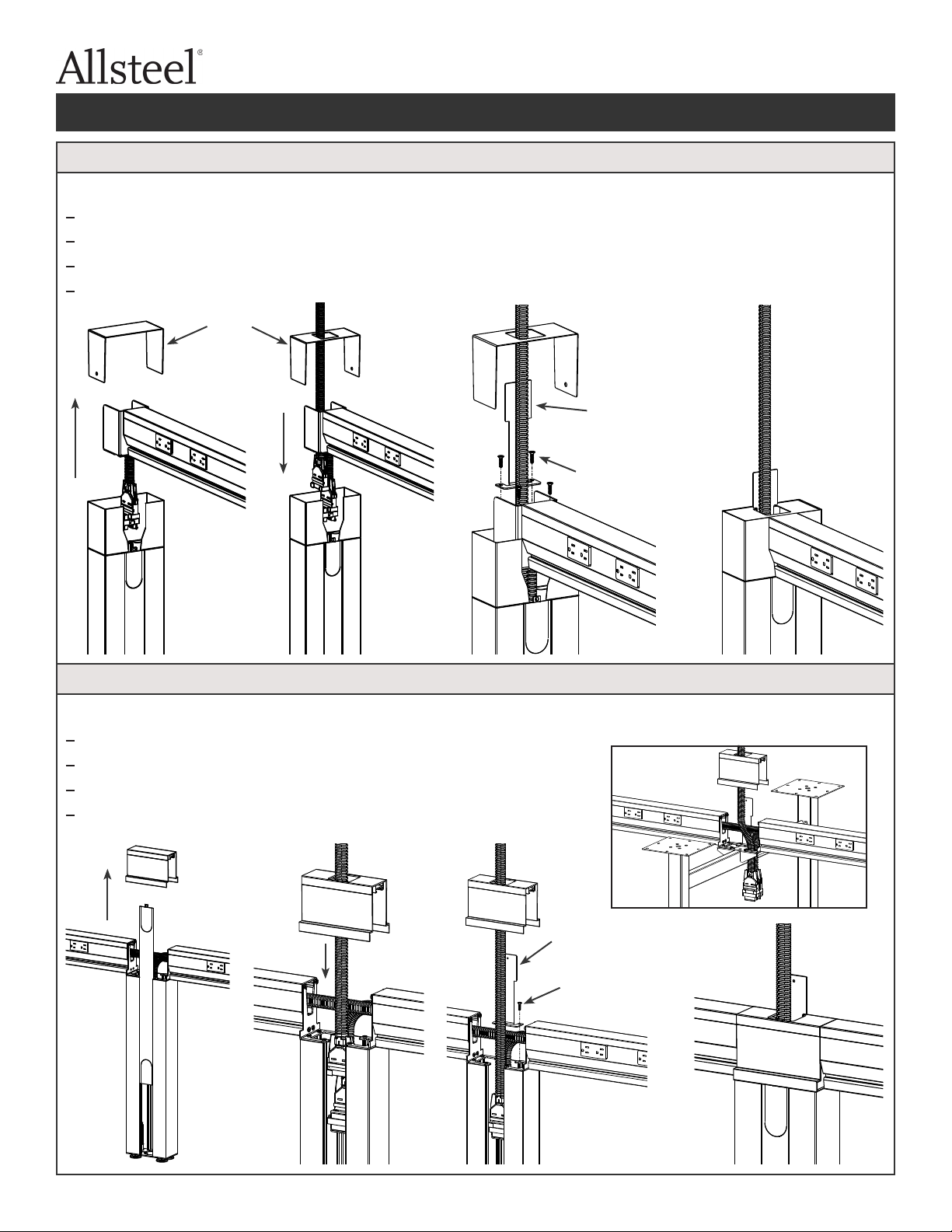

Power Pole Connector - End of Run Hub
Mounting Bracket
Replace
Cover
Use original screws
to connect both
brackets to hub.
Mounting Bracket
Remove and reuse
L-bracket screws
to attach Mounting
Bracket.
H-Leg Variant: Strap In-feed to Crossbar
Note - Hub to Beam Power Kit must be installed before Power Pole and Ceiling In-feed.
1- Detach Beam Connector Bracket from Hub support.
2- Insert In-feed through hole of Ported Hub Cover & attach to H-connector.
3- Place Mounting Bracket over Beam Connector; reattach both to the Hub.
4- Slide Hub Cover into place over Mounting Bracket.
Power Pole Connector - In-Line Hub/H-Leg
Note - Hub to Beam Power Kit must be installed before Power Pole and Ceiling In-feed.
1- Remove standard Hub Cover and side Sliding Access Door.
3- Attach Mounting Bracket to Hub/H-Leg over 2 interior L-brackets.
4- Reinstall Access Door; slide Hub Cover into place over Mounting Bracket.
2- Insert In-feed through hole of Ported Hub Cover & attach to H-connector.

Further Installation Packet
3430358000Page 18 of 54
Power Pole - Fixed Hubs/H-Leg
Slide Mounting Bracket
into Power Pole channel
Power Pole Extension Ceiling Trim Plate
Apply adhesive
metal strips to 3
interior walls of
power pole and
extension.
Position ceiling
trim plates above
and below ceiling
tiles; secure with
hardware shown.
Trim Plates
Note - Power Pole installation shown on End of Run Hub. Similar steps used for other applicable supports.
1- Remove cover from Power Pole; position around ceiling in-feed.
2- Slide Power Pole over Mounting Bracket within the pole’s back channel.
3- Tighten screw into Mounting Bracket hole to lock Power Pole into place.
4- Reinstall snap cover onto Power Pole.

Further Installation Packet
3430358000 Page 19 of 54
Create
Beam Trim & Screens

Further Installation Packet
3430358000Page 20 of 54

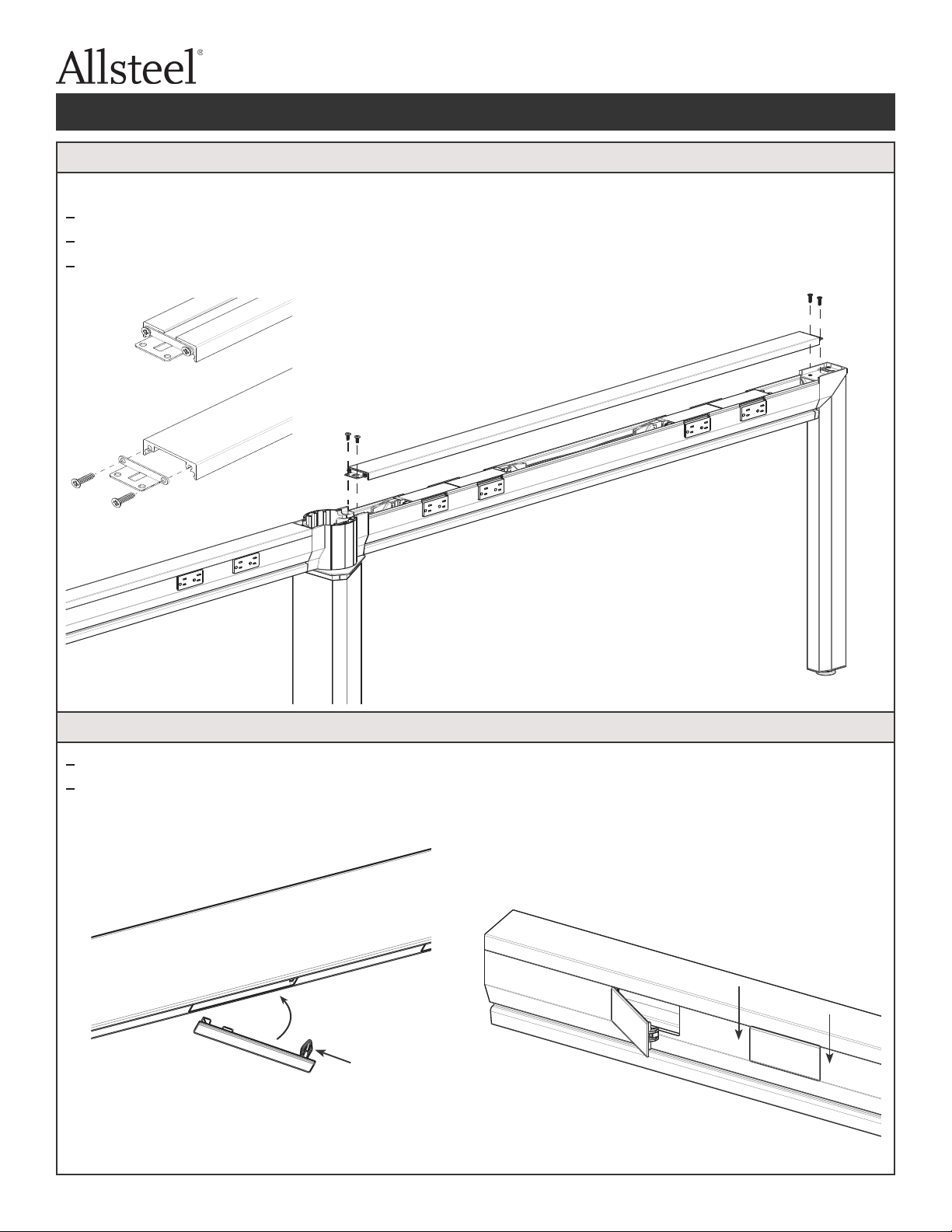

Beam Trim
Note - Square supports do not use “L” brackets; see pages 9-10.
Note - Electrical must be installed prior to Trim.
H x2
G x2
End Leg only
G x2
Electrical Port Cover
Press port covers down after
installation for best alignment.
Metal spring clip
must be installed
over rear tab of
Cover for proper
engagement.
1 - Attach “L” bracket to beam trim (at or mounting rail version).
2- Press trim over beam until it snaps into place; may require rubber mallet.
2- Secure “L” brackets to support castings or brackets on each end.
1- Place hook end of cover into either side of empty electrical port.
2- Press opposite end of cover into port until it snaps into place.
