Mattress and Seat Systems Service Manual Introduction
Page 1
CHAPTER 1
INTRODUCTION
1 About This Manual
Arjo strongly recommend that their equipment is only serviced by trained personnel and provide
courses for customers who wish to become licensed to service their own equipment. In no event
will Arjo be responsible for any service performed by customers or third parties.
This manual contains information on maintenance, servicing, repair, troubleshooting and testing for the
range of pressure relief mattress and seat systems shown in Table 1. The information in this handbook
is limited to the mattresses and seat cushions. The pumps for this range of systems are described in the
appropriate service manual.
Mattress replacements (MR), are a replacement for the normal bed mattress. Overlays (OL) are placed
on top of a normal bed mattress
Read and understand this manual before attempting to service or repair the equipment.
Numbering and Cross-Referencing in this Manual
For all chapters in this manual:
• Chapter page numbering is continuous. Section and paragraph numbering re-start at “1” in each
chapter.
• Figure and table numbering continue from the previous chapter.
Cross-references, which include a chapter number (and/or chapter title) refer to text in a different
chapter. Cross-references which do NOT include any chapter number (or chapter title) refer to text within
the same chapter.
Warnings, Cautions and Notes
WARNINGS given in this manual identify possible hazards in procedures or conditions which, if not
correctly followed, could result in death, injury or other serious adverse reactions.
CAUTIONS given in this manual identify possible hazards in procedures or conditions which, if not
correctly followed, could result in equipment failure or damage.
Notes given in this manual are used to explain or amplify a procedure or condition.
WARNING: BEFORE PERFORMING ANY SERVICE OR MAINTENANCE PROCEDURES,
ENSURE THAT THE EQUIPMENT HAS BEEN ADEQUATELY
DECONTAMINATED.
CAUTION: Do not use hypercarbonate and phenolic based cleaning solutions.
CAUTION: Ensure the system is clean and dry prior to storage.
Note: Store the systems in the protective bags provided.
2 General Description
The mattress replacement, overlays and seat systems identified in Table 1 are designed specifically to
aid in the prevention, treatment and management of pressure ulcers.
They are air-filled, alternating pressure mattress and seat systems powered by air pumps. Some of the
pumps provide an option of microprocessor aided control and sound alarm functions and have LED
indications on the front panel.
The mattresses can be used on standard hospital and normal domestic beds. The seat cushions can be
used on standard hospital and normal domestic chairs.

Mattress and Seat Systems Service Manual Introduction
Page 2
Table 1 - Mattresses and Seat Pads included in this service manual
Product Type(a) Part Number Figure Number
Alpha Active (Reliant IS2Cover, USA) MR 400001DAR Chap 3, Page 13, Fig 6
Alpha Active (Reliant IS2Cover, German) OL 400002DAR Chap 3, Page 14, Fig 7
Alpha Active (Glide IS2Cover, German) MR 400003ADV Chap 3, Page 13, Fig 6
Alpha Active (Reliant IS2Cover, German) MR 400003DAR Chap 3, Page 13, Fig 6
Alpha Relief (Reliant IS2Cover) MR 402001DAR Chap 3, Page 16, Fig 8
Alpha Relief (Hairnet Cover, USA) MR 402003HN Chap 3, Page 16, Fig 8
Alpha Relief 2 (Reliant IS2Cover) MR 402022DAR Chap 3, Page 18, Fig 9
Alpha Relief 2 (Glide IS2Cover) MR 402022ADV Chap 3, Page 18, Fig 9
Alpha Trancell II OL 401001 Chap 3, Page 20, Fig 10
Alpha Trancell II (German) OL 401002 Chap 3, Page 20, Fig 10
Alpha Trancell II (Ventilated) OL 401003 Chap 3, Page 20, Fig 10
Alpha Trancell II (Without Cover) OL 401007 Chap 3, Page 20, Fig 10
Alpha Trancell Deluxe MR ATD001DAR Chap 3, Page 22, Fig 11
Alpha Trancell Deluxe OL ATD002DAR Chap 3, Page 22, Fig 11
Alpha Trancell Deluxe Seat Seat ATD003DAR Chap 3, Page 36, Fig 21
Alpha Trancell (ICC13) Seat IC004 Chap 3, Page 33, Fig 18
AlphaXcell (Studded Cover, Euro) OL IC087 Chap 3, Page 24, Fig 12
AlphaXcell (Zipped Cover, Euro) OL IC137 Chap 3, Page 24, Fig 12
AlphaXcell (Studded Cover, USA) OL IC076 Chap 3, Page 24, Fig 12
AlphaXcell Double Mattress OL 632001 Chap 3, Page 26, Fig 13
Aura Seat 403001 Chap 3, Page 34, Fig 19
Turbo-Puls (Standard Cover) OL BB27001 Chap 3, Page 28, Fig 15
Turbo-Puls (Luxury Cover) OL BB27004 Chap 3, Page 28, Fig 15
Turbo-Puls (Standard Cover) MR BB27002 Chap 3, Page 28, Fig 15
Turbo-Puls Seat BB27003 Chap 3, Page 35, Fig 20
ICT/6R Standard OL IC001 Chap 3, Page 32, Fig 17
ICT18 (Harada) OL IC044 Chap 3, Page 30, Fig 16
ICT18 (Sanse Do) OL IC109 Chap 3, Page 30, Fig 16
ICT18 (Taiwan) OL IC116 Chap 3, Page 30, Fig 16
ICT18 (Ventilated, Harada) OL IC120 Chap 3, Page 30, Fig 16
a. Mattress Type: MR = Mattress Replacement, OL = Mattress Overlay

Mattress and Seat Systems Service Manual Introduction
Page 3
Regulatory
The mattress replacement, overlays and seat systems identified in Table 1 have been designed to
comply with regulatory safety standards including:
• EN60601-1:1990/A13:1996 and IEC 60601-1:1988/A2:1995
• UL60601-1, UL2601-1 and CAN/CSA C22.2 No. 601.1-M90
• EN60601-1:2006 and IEC 60601-1:2005
• AAMI/ANSI ES60601-1:2006 and CAN/CSA C22.2 No.60601.1(2008)
Precautions
For your own safety and the safety of the equipment, always take the following precautions:
• Do not expose the system to open flames, such as cigarettes, etc.
• Do not use or store the system in direct sunlight.
• Do not use phenol-based solutions to clean the system.
• Make sure the system is clean and dry before use or storage.
Electromagnetic Compatibility (EMC)
This product complies with the requirements of applicable EMC Standards. Medical electrical equipment
needs special precautions regarding EMC and needs to be installed in accordance with the following
instructions:
• The use of accessories not specified by the manufacturer may result in increased emissions by, or
decreased immunity of, the equipment, affecting its performance.
• Portable and mobile radio frequency (RF) communications equipment (e.g. mobile/cell phones) can
affect medical electrical equipment.
• If this equipment needs to be used adjacent to other electrical equipment, normal operation must be
confirmed before use.
Environmental Protection
Incorrect disposal of this equipment and its component parts, particularly batteries or other electrical
components, may produce substances that are hazardous to the environment. To minimise these
hazards, contact Arjo for information on correct disposal.

Mattress and Seat Systems Service Manual Introduction
Page 4
3 Mattress Overlay Systems (OL)
A typical mattress overlay (OL) system is shown in Figure 1. It includes a base sheet, alternating and
static cells (which are individually replaceable), a cover, air inlet tubes (with connectors where
applicable) and a Cardiopulmonary Resuscitation (CPR) pull tag (also referred to as a Rapid Deflate
stopper). The cell configurations are detailed in Table 2.
The AlphaXcell Double Mattress system is a double inflatable mattress overlay, which provides static
pressure to one side and alternating pressure relief to the other side. The static and alternating sides of
the mattress can be set up on either side of the bed depending on customer requirements.
The Trancell system is an exception. The cells for the Alpha Trancell system are not individual
replaceable cells but are a one-piece manufactured item and can only be replaced as a complete item.

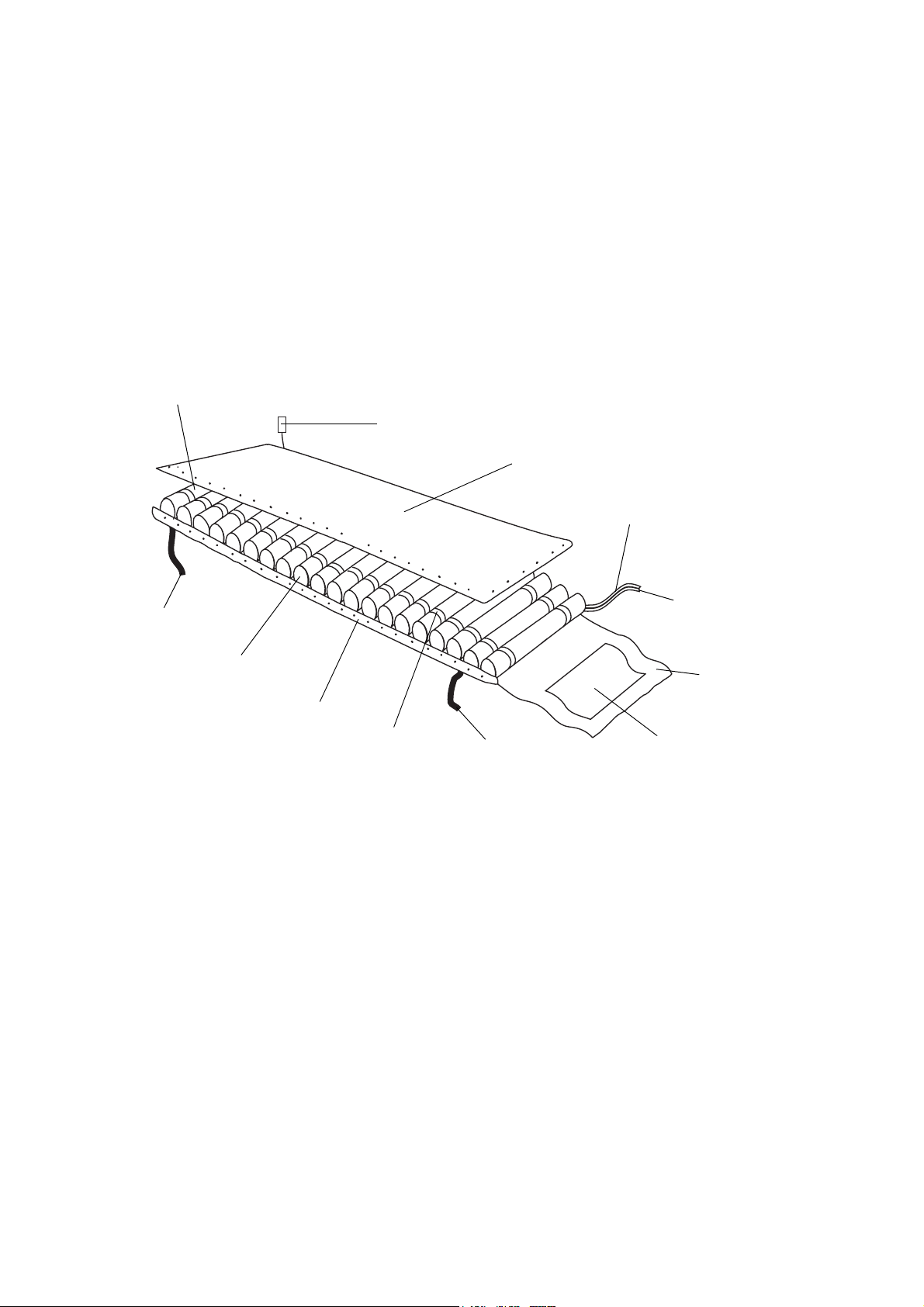

Figure 1 - Typical Mattress Overlay (OL) System
Static Cells (Head Section)
Cardiopulmonary Resuscitation (CPR) Pull Tag
Cover
Tube Connections
Air Inlet Tubes
Strap
Strap
Base Sheet
Alternating Cells
Cell Loops Setting-up Instructions
Securing Apron

Mattress and Seat Systems Service Manual Introduction
Page 5
4 Mattress Replacement Systems (MR)
A typical mattress replacement (MR) system is shown in Figure 2. The MR systems are basically the
same configuration as the OL systems with the addition of a foam base which replaces the normal bed
mattress. The foam base provides a safety and transport function should the air supply fail or the
alternating cells deflate. The cell configurations are detailed in Table 2.
Figure 2 - Typical Mattress Replacement (MR) System
5 Seating Systems
A typical seating system is shown in Figure 3. The seat includes a base sheet, alternating cells, a cover
and air inlet tubes (with connectors where applicable).The cell configurations are detailed in Table 2.
Figure 3 - Typical Seating System
Static Cells
Cardiopulmonary
Cover
Tube Connections
Air Inlet Tubes
Base Cover
Alternating Cells
Cell Loops
Resuscitation
(CPR) Pull Tag
Foam Base
(Head Section)
Cover
Tube Connections
Air Inlet Tubes
Straps
Base Sheet
Alternating Cells
Cell Loops

Mattress and Seat Systems Service Manual Introduction
Page 6
Table 2 - Static and Alternating Cell Configurations
Product
Mattress
Type(a)
a. Mattress Type: MR = Mattress Replacement, OL = Mattress Overlay
Total Number
of Cells
Alternating
Cells Static Cells
Alpha Active MR 17(b)
b. The Alpha Active system has 8 ventilated cells and 9 non-ventilated cells.
14 3
Alpha Active (German) OL 17(b) 14 3
Alpha Relief MR 17 17 0
Alpha Trancell II OL 16 14 2
Alpha Trancell II (Ventilated) OL 16 14 2
Alpha Trancell II (Without Cover) OL 16 14 2
Alpha Trancell (ICC13) Seat 9 9 0
Alpha Trancell Deluxe MR 20 20 0
Alpha Trancell Deluxe OL 20 20 0
Alpha Trancell Deluxe Seat Seat 9 9 0
AlphaXcell (Studded/Zipped Cover) OL 20 17 3
AlphaXcell Double Mattress OL 20 + 20(c)
c. The AlphaXcell Double Mattress has 20 cells on each side. On one side 17 cells are
alternating and 3 are static, and on the other side all 20 cells are static.
17 + 0(c) 3 + 20(c)
Aura Seat 9 9 0
Turbo-Puls OL 20 20 0
Turbo-Puls MR 20 20 0
Turbo-Puls Seat 9 9 0
ICT/6R Standard OL 20 20 0
ICT18 OL 18 15 3
ICT18 (Ventilated, Harada) OL 18 15 3

Mattress and Seat Systems Service Manual Introduction
Page 7
6 Operating Principles
Refer to Figure 4 for a typical pneumatic system diagram and cell inflation cycle, and Table 2 for the
actual cell configurations.
All pumps have two pressurised air outlets. Air from the outlets is fed to separate cells or groups of cells
in the mattress or seat cushion via a rotary valve.
The mattress or seat cushion support cells are continuously inflated and deflated during a ten minute
cycle. During the cycle, air is pumped from one outlet to cells “A” (or “B”) for 4 minutes and 10 seconds.
This is followed by a period of 50 seconds when air is pumped from both outlets to cells “A” and “B”.
Subsequently, air is pumped from the other outlet to cells “B” (or “A”) for 4 minutes and 10 seconds, and
then a further 50 seconds with air from both outlets to cells “A” and “B”. During the period when air is
pumped from an outlet to one group of cells, the second set of cells is slowly vented to atmosphere,
causing them to reduce pressure.
In some of the mattress replacements or overlays, there is a third set of cells labelled “C”, which are
supplied from a static feed. This static feed “C” is generated by two partial non-return valves (in the
mattress manifold assembly) from alternating feeds “A” and “B”, and is therefore never at zero pressure.
Where fitted, the “C” cells are normally in the head section of the mattress, to provide a stable pillow
section and prevent the patient’s head from rising and falling.
Figure 4 - Typical Mattress Pneumatic Diagram and Cell Inflation Cycle
Partial Non-return Valves CPR
(where applicable)
Air Inputs
(where applicable)
Alternating Cells
Static
Cells
Alternating
1
Static
2
Alternating
3
Static
4
Head EndFeet End
Manifold Assembly
(where
applicable)

Mattress and Seat Systems Service Manual Introduction
Page 8
7 Rapid Deflation of the Overlay or Mattress Replacement
Most, but not all, mattress replacement and overlay systems have a cardiopulmonary resuscitation
(CPR) or Rapid Deflate plug to allow rapid deflation of the mattress replacement or overlay system. None
of the seat systems have a CPR (or Rapid Deflate) plug.
The CPR (or Rapid Deflate) plug is located at the head end of the overlay or mattress replacement, on
the same side as the tubeset (refer to Figure 5). For rapid deflation of the overlay or mattress
replacement in an emergency, pull the CPR (or Rapid Deflate) tag to remove the CPR (or Rapid Deflate)
plug from the manifold.
To re-inflate the overlay or mattress replacement, replace the CPR (or Rapid Deflate) plug securely,
reconnect the manifold tubes to the pump, and switch on.

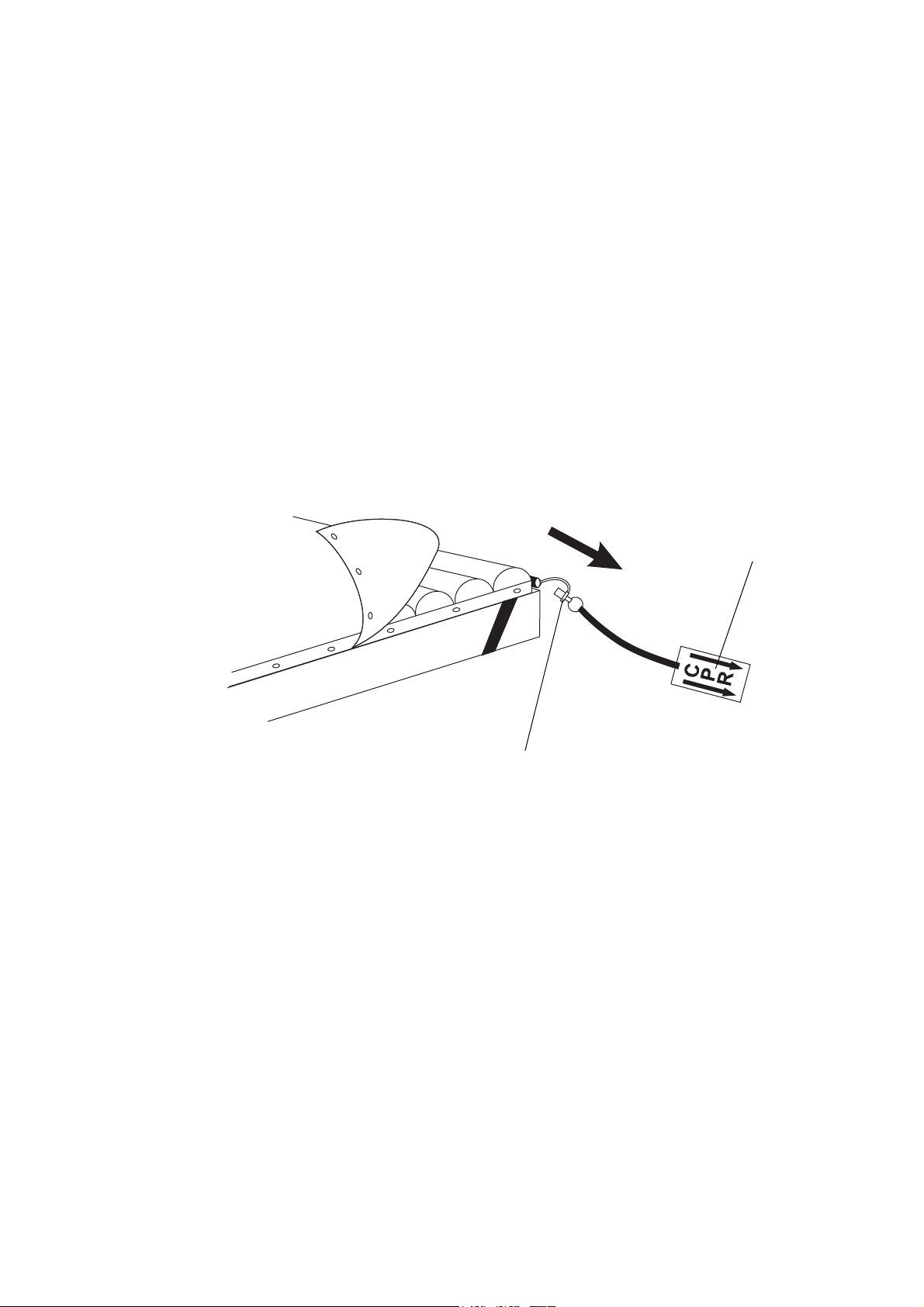

Figure 5 - Cardiopulmonary Resuscitation (CPR) or Rapid Deflate Plug
CPR Tag
CPR Plug

Mattress and Seat Systems Service Manual Maintenance
Page 9
CHAPTER 2
MAINTENANCE
1 Mattress/Seat System Service
To carry out a service on the mattress or seat system, do the following:
1.1 Carry out the Mattress/Seat System Maintenance Checks (Refer to Page 9, Section 2).
1.2 Carry out the Pressure and Function Test on the mattress or seat system in accordance with
Chapter 5, Page 53, Section 1.
2 Mattress/Seat System Maintenance Checks
If any parts are found to be damaged they must be replaced in accordance with the procedures detailed
in Chapter 3, Repair.
Note: Some of the items may not be applicable to a particular model of mattress or seat system.
2.1 Visually inspect the following for damage, wear and potential faults:
• Base and top cover Check for tears, staining, clarity of printed labels.
• Base / top cover zip Check the zip runs freely and condition of zip teeth.
• Anti-slip pads Check for damage.
• Fixing straps Check condition and security.
• Loop base sheet Check for broken/torn loops.
• Foam block Check condition.
• Connectors Check for damage and security.
• Cells Check for damage and security.
• Manifold Check for damage and security.
• Non-return valves Check for condition.
• Turn valves Check operation.
• Press studs Check condition.
• CPR (or Rapid Deflate) plug Check condition and operation.

Mattress and Seat Systems Service Manual Repair
Page 10
CHAPTER 3
REPAIR
1 General
This chapter details the repair procedures for the range of mattress and seat systems identified in
Chapter 1, Page 2, Table 1. All repairs should be carried out by Arjo approved service personnel.
The repair procedures in this chapter are general and not unique to a product. Refer to Table 3 first to
identify the relevant assembly drawing and parts list for the product being repaired, and then refer to
them whilst carrying out the repair procedures detailed in Section 3 onwards of this chapter.
It is easier to carry out the repair procedures if the mattress or seat system is fully deflated first.
Disconnect the tubeset between the mattress or seat system and the pump to deflate it.
After carrying out a service or any repairs on the mattress or seat system, but before installing the top
cover, check the following:
1.1 All press studs on the mattress, overlay or seat system are connected.
1.2 All cells are evenly positioned in their loop straps. The repair will normally have disturbed the
position of the cells, and they should be re-positioned evenly.
After carrying out a service or any repairs, the mattress or seat system must be tested for serviceability,
by carrying out the Pressure and Function Test on the mattress or seat system in accordance with
Chapter 5, Page 53, Section 1.

Mattress and Seat Systems Service Manual Repair
Page 11
2 Product Assembly Drawings and Parts Lists
Refer to Table 3 for the assembly drawing and parts list for each mattress or seat system.
Table 3 - Product Assemblies and Parts Lists
Product Assembly Drawing Parts List
Alpha Active Mattress Replacement (MR) Figure 6 Table 4
Alpha Active Mattress Overlay (OL) Figure 7 Table 4
Alpha Relief Mattress Replacement (MR) Figure 8 Table 5
Alpha Relief 2 Mattress Replacement (MR) Figure 9 Table 6
Alpha Trancell II Mattress Overlay (OL) Figure 10 Table 7
Alpha Trancell Deluxe Figure 11 Table 8
AlphaXcell Mattress Overlay (OL) Figure 12 Table 9
AlphaXcell Double Mattress Overlay (OL) Figure 13 Table 10
Turbo-Puls Mattress Replacement (MR) Figure 15 Table 11
Turbo-Puls Mattress Overlay (OL) Figure 15 Table 11
ICT18 Mattress Overlay (OL) Figure 16 Table 12
ICT/6R Mattress Overlay (OL) Figure 17 Table 13
Alpha Trancell Seat Figure 18 Table 14
Aura Seat Figure 19 Table 15
Turbo-Puls Seat Figure 20 Table 16
Alpha Trancell Deluxe Seat Figure 21 Table 17

Mattress and Seat Systems Service Manual Repair
Page 12
Figure 6 - Alpha Active Mattress Replacement (MR)
80
60
120
110
40
30
10
130
150
160
20
140
50
100
Head
End
Feet
End
Alternating
Non-ventilated
Item 170 (7 off)
Alternating
Ventilated
Item 180 (7 off)
Static
Non-ventilated
Item 170 (2 off)
Static
Ventilated
Item 180 (1 off)
Cell Arrangement
90
See Detail A
See Detail A
Note the orientation of the
Non-Return Valves (Item 70)
70
70
160
Detail A

Mattress and Seat Systems Service Manual Repair
Page 13
Figure 7 - Alpha Active Mattress Overlay (OL)
Head
End
Feet
End
Alternating
Non-ventilated
Item 170 (7 off)
Alternating
Ventilated
Item 180 (7 off)
Static
Non-ventilated
Item 170 (2 off)
Static
Ventilated
Item 180 (1 off)
Cell Arrangement
80
60
110
40
30
50
90
10
150
160
140
100
120
130
70
70
160
See Detail A
See Detail A
Note the orientation of the
Non-Return Valves (Item 70)
Detail A

Mattress and Seat Systems Service Manual Repair
Page 14
Table 4 - Alpha Active Mattress - Replacement (MR) and Overlay (OL) - Parts List
Item Part Number Description Qty
R E F 400001DAR Alpha Active Mattress Replacement (Reliant IS2Cover, USA) -
400002DAR Alpha Active Mattress Overlay (Reliant IS2Cover, German)
400003ADV Alpha Active Mattress Replacement (Glide IS2Cover, German)
400003DAR
Alpha Active Mattress Replacement (Reliant IS2Cover,
German)
10 400064 Base Cover Assy (for 400001DAR, 400003ADV & 400003DAR) 1
400061 Base Cover Assy (for 400002DAR)
20 402302 Foam Base (for 400001DAR, 400003ADV & 400003DAR only) 1
30 400050 Loop Base Sheet Assembly (for 400001DAR & 400002DAR) 1
400076 Loop Base Sheet Assembly (for 400003ADV & 400003DAR)
40 400062 Top Cover Assembly (for 400001DAR) 1
400077 Top Cover Assembly (for 400003ADV)
400058 Top Cover Assembly (for 400002DAR & 400003DAR)
50 400065 Manifold Assembly, Pump End (comprises Items 60 - 100)(a)
a. There are two non-return valve assemblies (Item 70) in each manifold assembly (Items 50
and 140).
1
60 400065UF • Manifold Tube, Twin Bore 1
70 IC036 • Non-Return Valve Assembly 4(a)
80 BP432 • Colder Connector, Female 2
90 197301 • Connector, Straight Male/Male 2
100 IC067 • End Plug Assembly (comprises Items 110 - 130) 1
110 IC033 • • End Plug, 2-way 1
120 FAS167 • • Clevis Pin, OD 3/16” x 5/8” Long 1
130 IC300 • • Swing Label and Web Assembly (CPR Pull) 1
140 400057 Manifold Assembly, Short (comprises Items 70, 150 - 160)(a) 1
150 400057UF • Manifold Tube, Twin Bore 1
160 BP418 • Stopper 4
170 400053 Cell Assembly, Non-Ventilated 9
180 400055 Cell Assembly, Ventilated 8

Mattress and Seat Systems Service Manual Repair
Page 15
Figure 8 - Alpha Relief Mattress Replacement (MR)
60
50
30
20
100
40
10
80
90
70
110
120
130
Note the orientation of the
Non-Return Valves (Item 70)

Mattress and Seat Systems Service Manual Repair
Page 16
Table 5 - Alpha Relief Mattress Replacement (MR) Parts List
Item Part Number Description Qty
REF 402001DAR Alpha Relief Mattress Replacement (Reliant IS2Cover, UK) -
402003HN Alpha Relief Mattress Replacement (Hairnet Cover, USA)
10 402059 Top Cover Assembly (for 402001DAR) 1
402055 Hairnet Cover Assembly (for 402003HN)
20 400064 Base Cover Assembly (for 402001DAR) 1
30 402302 Foam Base 1
40 402053 Loop Base Sheet Assembly 1
50 402050 Cell Assembly 17
60 402051 Manifold Assembly (comprises Items 70 - 130) 1
70 IC036 • Non-Return Valve Assembly 2
80 BP431 • Colder Connector, Male 1
90 BP432 • Colder Connector, Female 1
100 IC033 • End Plug, 2-way 1
110 FAS167 • Clevis Pin, OD 3/16” x 5/8” Long 1
120 401309 • Swing Label and Web Assembly (CPR Pull) 1
130 402051UF • Manifold Tube, Twin Bore 1
