Assa Abloy Corbin Russwin CLX3361 User manual

FM566-EN 6/22
Installation Instructions
For installation assistance contact Corbin Russwin:
1-800-543-3658 • [e-mail] •www.corbinrusswin.com.
Copyright © 2021, 2022, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
Pour le français, visiter: www.corbinrusswin.com/en/library/installation-instructions.

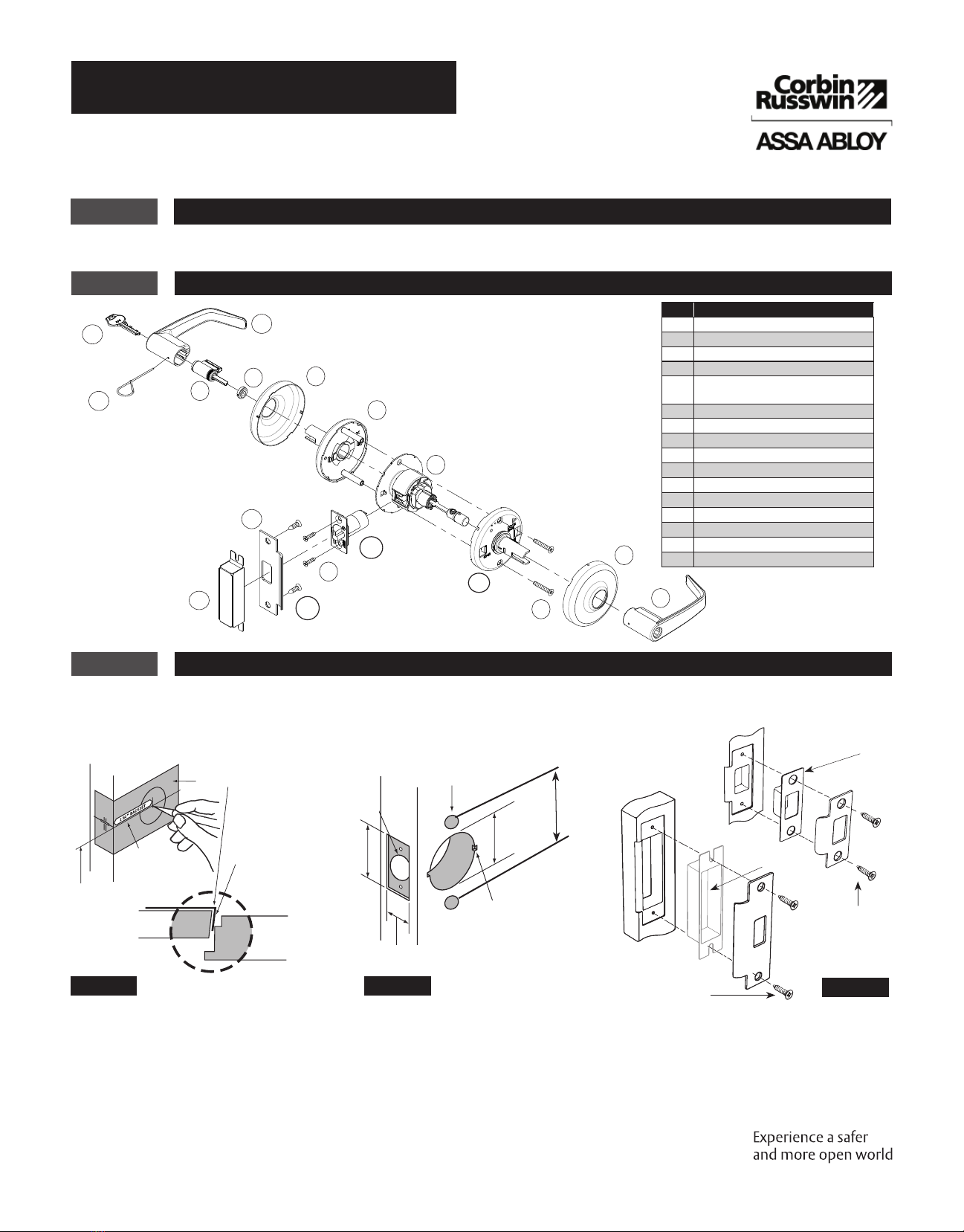

Installation Instructions
• #2 Phillips screwdriver
2Product Components
1Tools Required
• Lever release tool (provided) • 1/8" drill bit
• 5/16" drill bit • 5/32" drill bit
CLX3300 Cylindrical Lockset
1
2
6
2
5
7
8
9
10
11
12
15
34
13
14
16
Fig. Description
1 Inside lever handle
2 Rose/Scalp (2)
3 Screws - latch (2) #8-32 x 3/4"
4 Inside spring housing assembly
5Screws - through-bolt (2) #12-24
x 1-1/2"
6 Lockbody assembly with rose liner
7 Outside spring housing assembly
8 Cylinder spacer
9 Cylinder
10 Outside lever handle
11 Key
12 Lever release tool
13 Latch
14 Screws - strike (2) #12-24 x 1"
15 Strike
16 Strike box (Optional)
3Door Preparation
DOOR
FRAME
Desired
height
above
floor
Template
Backset must
match latch Door bevel
Figure1
5/16" (8mm) hole
2-1/8"
(54mm)
hole
1-1/8"
(29mm)
2-1/4"
(57mm)
1" (25mm)
hole
5/32" (4mm)
2-3/4"
(70 mm)
Figure2
IMPORTANT
• The accuracy of door preparation is critical for proper functioning and security of this lever handle lock. Misalignment can
cause premature wear and a lessening of security.
• Be sure to verify backset before marking and drilling door.
Strike Box
Attaching Screws
Strike Box
Attaching Screws
#8 -32 x 3/4"
#12 -24 x 1" Figure3
1. Use template FM567 to mark the door (See Figure 1).
2. Drill the door according to the template.
3. Verify the dimensions (See Figure 2).
4. Install the strike (See Figure 3)

CLX3300
Installation Instructions
Cylindrical Lockset
2
Copyright © 2021, 2022, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For installation assistance contact Corbin Russwin
1-800-543-3658 • [e-mail] •www.corbinrusswin.com
FM566-EN 6/22
5Adjust Lock for Door Thickness (if necessary)
6Install Outside Assembly
To adjust lock to door thickness if other than 1-3/4"
(44mm) refer to Section 5.
Insert outside trim assembly into door from outside
making sure that lockbody hooks latch case and
retractor engages bolt tail(s). See Figure 7.
DO NOT FORCE. (If lockbody does not engage latch
easily, check door preparation for errors.)
Latch bolt tail should be centered in depth of
retractor. If it is not, refer to Section 5 to properly
adjust the lock for door thickness.
Lock is factory preset for 1-3/4"(44mm) doors unless specified. To adjust lock to door thickness if other than 1-3/4"(44mm):
1. Remove outside trim assembly from the lockbody assembly. The lever, rose, and spring housing will remove as one piece
from the lockbody. See Figure 5.
2. Rotate outside rose liner to adjust lock to fit door thickness, so distance (Dimension A) from inside surface of liner to
centerline of retractor is half the thickness of the door. (See chart and Figure 6.)
3. Reassemble outside trim assembly onto lockbody assembly. Door Thickness Dimension A
1-3/4" (44 mm) 7/8" (22 mm)
2" (50 mm) 1" (25 mm)
2-1/4" (57 mm) 1-1/8" (29 mm)
Outside Rose Liner
Outside
Trim
Assembly
Lockbody
Assembly
Centerline of Retractor
Retractor
Figure5 Figure6
Dimension A
Figure7
4Latch Installation
Figure4
IMPORTANT: Deadlocking latch must stop on strike when door is closed.
Strike
Insert latch in door. (Be sure bevel edge of bolt faces strike plate.) Attach
with (2) #8-32 x 3/4" screws supplied.

CLX3300
Installation Instructions
Cylindrical Lockset
3
Copyright © 2021, 2022, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For installation assistance contact Corbin Russwin
1-800-543-3658 • [e-mail] •www.corbinrusswin.com
FM566-EN 6/22
Key
Outside Lever
Cylinder
Cylinder Spacer

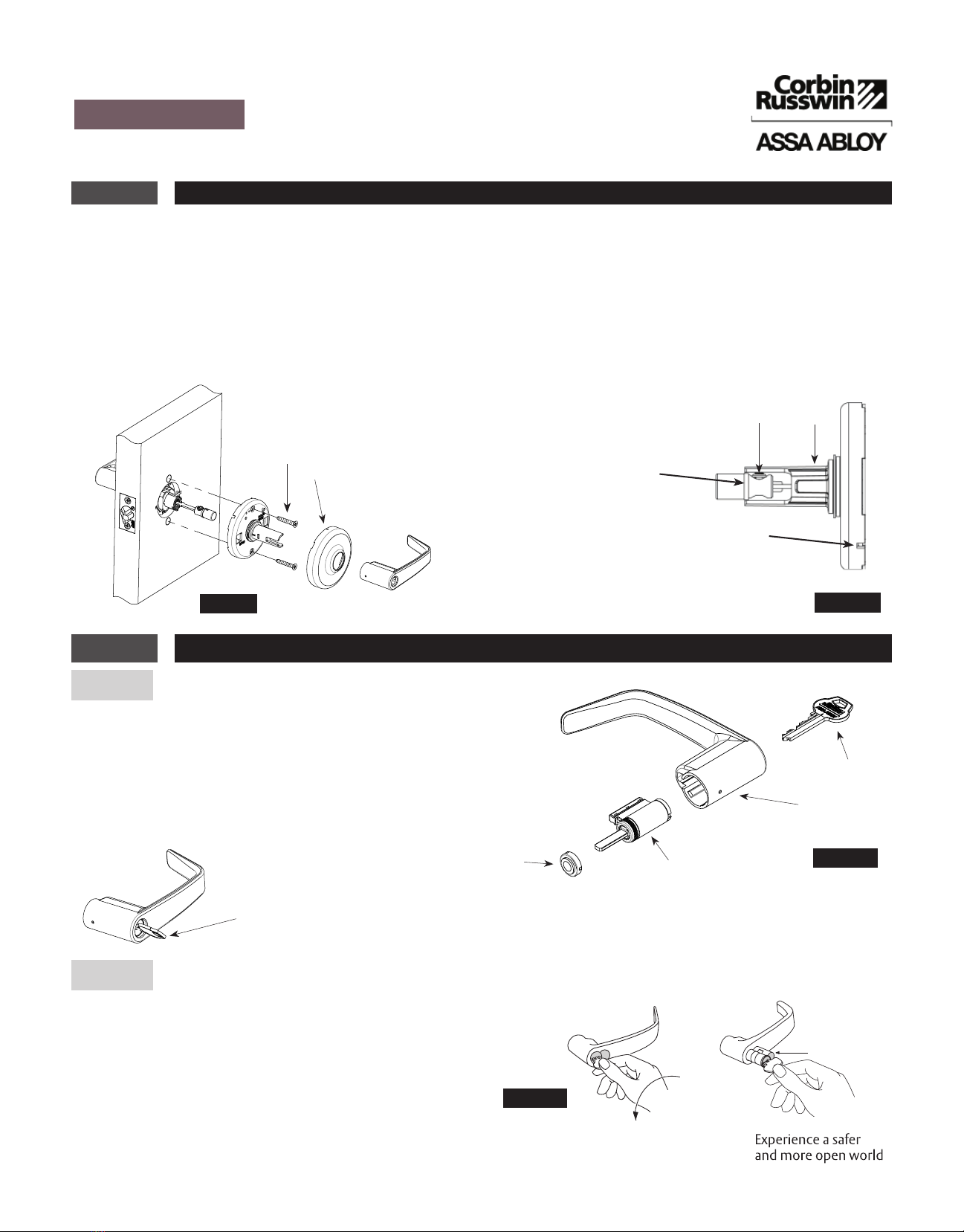

7Install Inside Components
1. Remove rose from inside spring housing assembly.
2. Align and insert inside spring housing onto the installed lockbody.
3. Install screws to tighten the lock to the door.
4. Orient dimples on side of rose with openings on side of spring housing assembly. See Figure 8.
5. Install rose onto the inside spring housing assembly.
6. In the unlocked position, verify the button is adjusted properly. See Figure 9 for proper alignment. Adjust if necessary.
7. Install inside lever.
Note: Test for proper operation before closing door. Button in-line with shank in-
dicates correct position based
upon door thickness. If the
button needs to be adjusted,
position it by depressing the
plunger, moving it in or out as
needed.
Shank
Plunger
Screws (2) #12-24 x 1-1/2"
Figure8 Figure9
Rose dimple
8Cylinder Installation
IMPORTANT
Before installing cylinders:
• Use a flat blade screwdriver to rotate cam until the driver points
are in a 6 and 12 o’clock position. (See Figure 16 on next page)
Correct Key Orientation During Assembly
C
C
New Core
• Remove temporary construction core or plastic core. If keyed, use
Control Key. Rotate 15° and pull.
• Insert permanent core into lever with control key. Rotate 15° and
remove key.
Figure10
Figure11
a Standard Cylinder (Figure 10)
b Interchangeable or Removable Core (Figure 11)
Verify that the cylinder spacer is already installed into the shank on the outside
spring housing assembly. Cylinder spacer should be removed for 7-Pin cylinder.
Note orientation of spacer, if it needs to be reinstalled.
Rose dimple opening

CLX3300
Installation Instructions
Cylindrical Lockset
4
Copyright © 2021, 2022, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For installation assistance contact Corbin Russwin
1-800-543-3658 • [e-mail] •www.corbinrusswin.com
FM566-EN 6/22

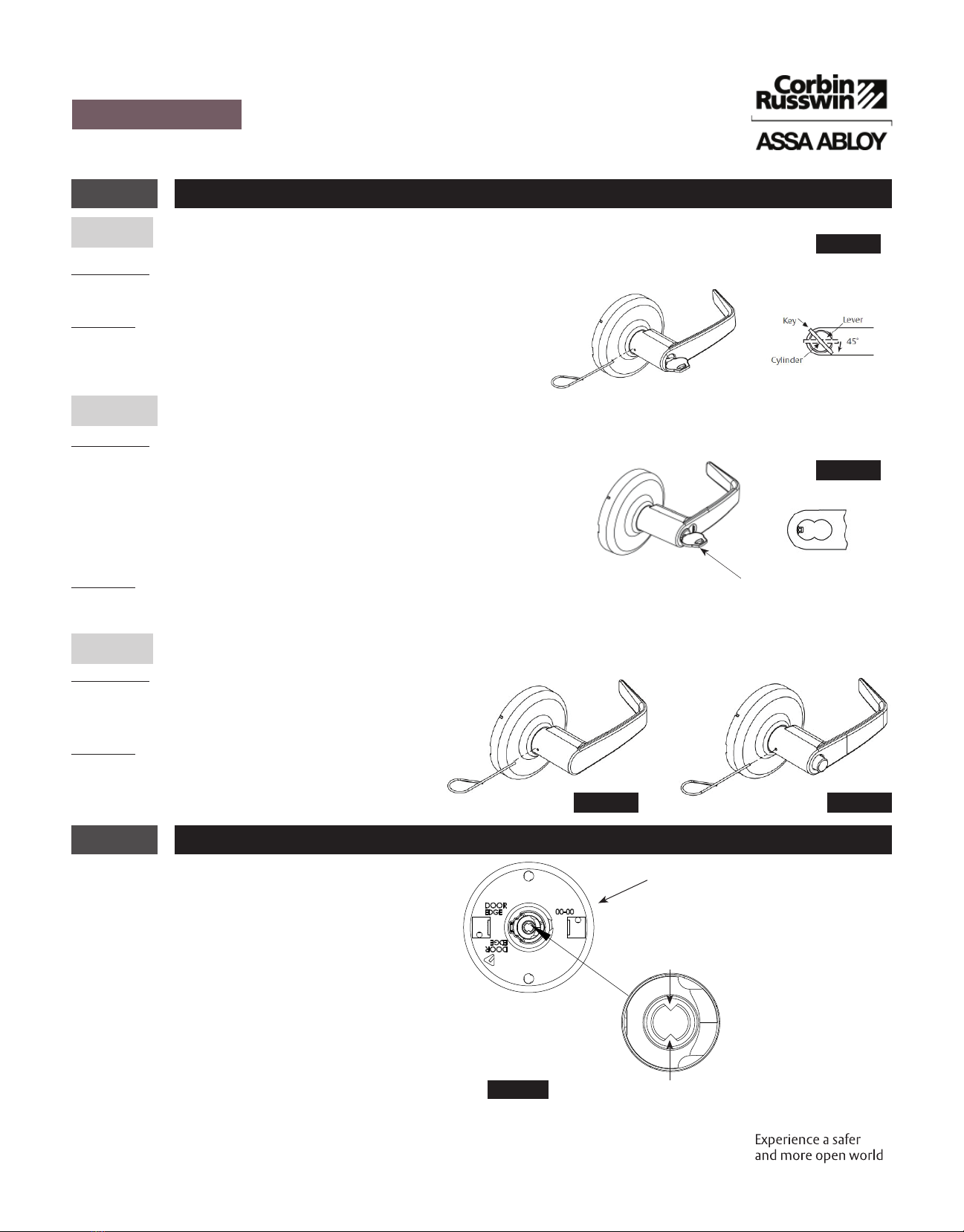

10 Timing CLX3352 & CLX3382
1. Remove outside and inside levers. (See Section 9)
2. Adjust internal cams visible from both the outside
and inside lock trim.
2a. Use a slotted screwdriver to rotate each cam
until the driver points are in a 6 and 12 o’clock
position. (See Figure 16)
3. Re-install outside and inside levers.
4. Test both cylinders with key before closing the
door.
To Remove:
Rotate key 45° and hold. Depress lever catch with lever release tool.
9Lever Removal & Installation
Lever catch
To Remove:
Remove core and tailpiece, using key marked “control.”
Insert slotted screwdriver or lever release tool into cylinder opening and make
contact with lever catch.
Pull lever catch horizontally towards the opposite side of the cylinder opening
and remove lever.
To Install:
Without the core installed, slide the lever on over the lever catch. Confirm the
lever will not pull off. Install core and tailpiece, using key marked “control.”
To Remove:
Depress lever catch with lever release tool, remove
lever.
To Install:
Slide the lever on over the lever catch. Confirm the
lever will not pull off.
a Standard Cylinder (Figure 12)
b Interchangable or Removable Core (Figure 13)
c Plain Lever (Figure 13) & Push/Turn Button (Figure 14)
Control Key
To Install:
With driver points at 6 and 12 (See Figure 16), rotate key 45° in
either direction and slide lever on over the lever catch. Confirm the
lever will not pull off.
Figure12
Figure13
Figure14 Figure15
View into lock from end of trim
12 o’clock drive point
6 o’clock drive point
Figure16

CLX3300
Installation Instructions
Cylindrical Lockset
5
Copyright © 2021, 2022, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For installation assistance contact Corbin Russwin
1-800-543-3658 • [e-mail] •www.corbinrusswin.com
FM566-EN 6/22

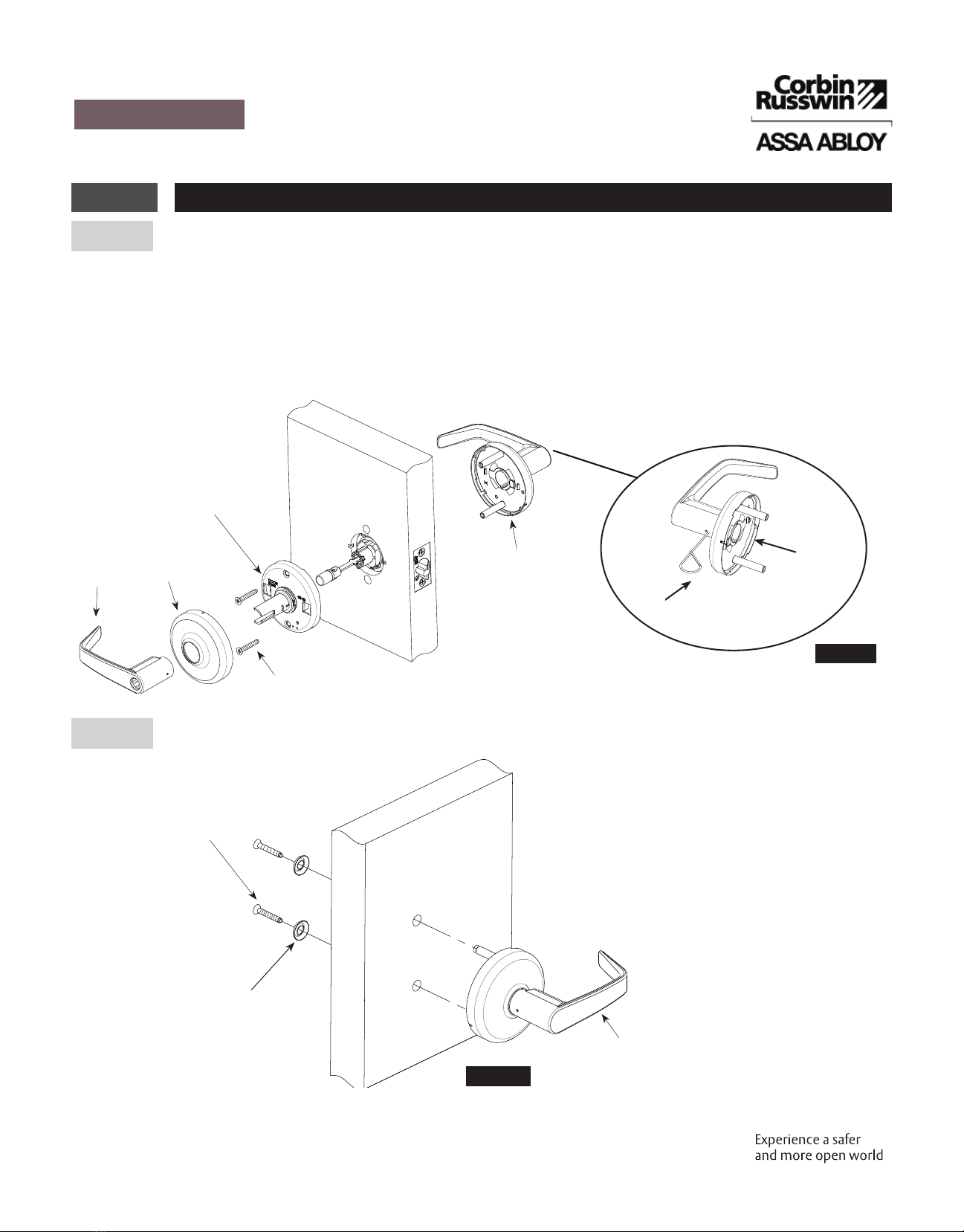

Remove
b Install Half Dummy (CLX3350)
1. Remove inside lever. (See Section 9).
2. Remove rose.
3. Remove (2) mounting screws and inside housing assembly.
4. Remove outside trim assembly.
5. Push and hold plug back (located inside of outside trim assembly). See Figure 17.
6. Push lever catch with lever release tool and remove lever.
11 Other Function Instructions
a Remove Outside Lever for Exit Latch (CLX3340NT)
Figure18
Lever
Rose
(2) Mounting Screw
Inside Housing Assembly
Outside Trim
Assembly
Figure17
Push
Push and
Hold Plug
Screws (2) #12 - 24 x 1-1/2"
Cup Washer
Trim Assembly

CLX3300
Installation Instructions
Cylindrical Lockset
6
Copyright © 2021, 2022, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For installation assistance contact Corbin Russwin
1-800-543-3658 • [e-mail] •www.corbinrusswin.com
FM566-EN 6/22

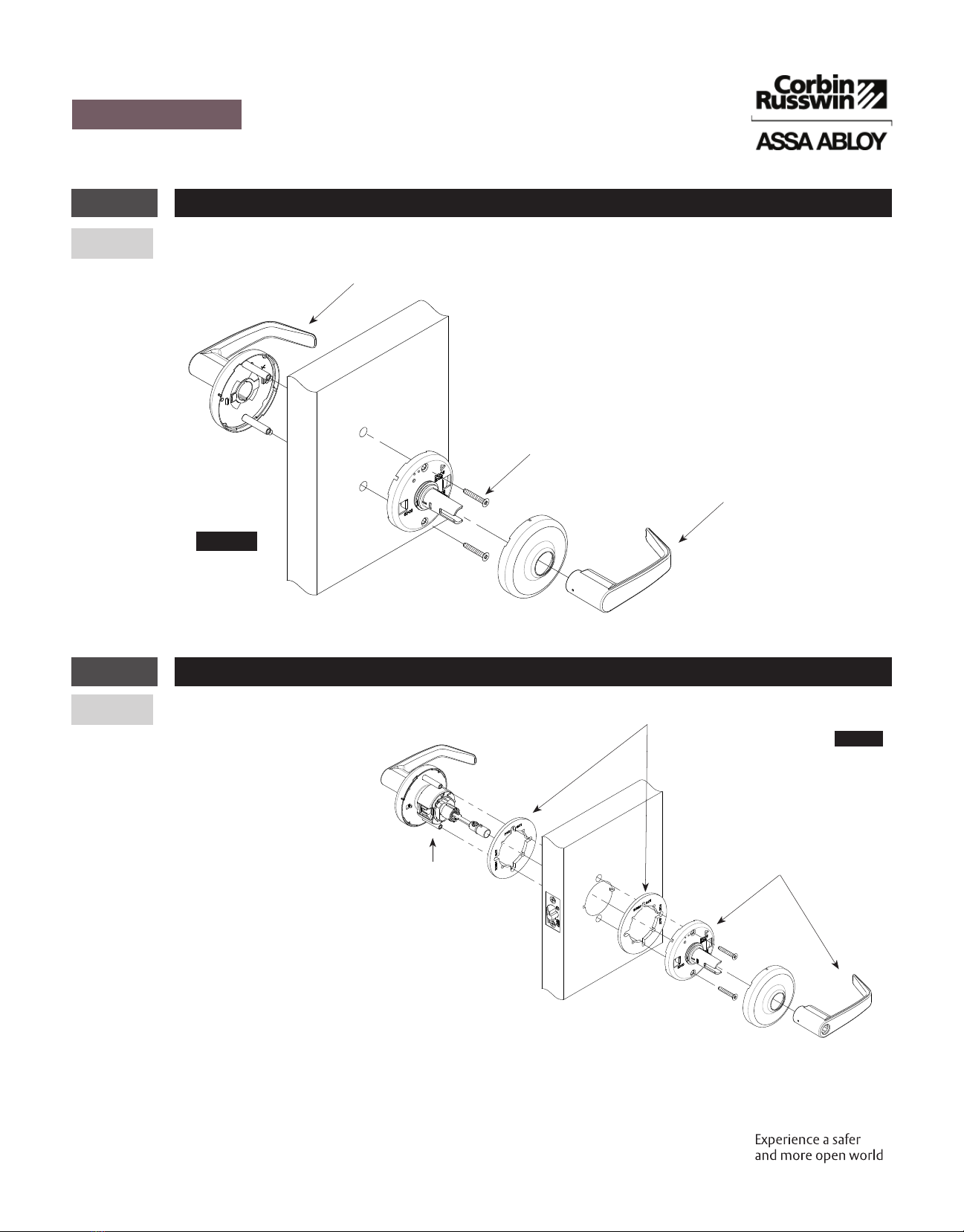

c Install Full Dummy (CLX3370)
Figure19
11 Other Function Instructions, continued
Figure20
12 Miscellaneous Options
Install (1) adapter plate between the door
and rose assemblies (both sides).
• Inside trim to be aligned with holes
marked screw slot.
• Outside trim through-bolts to be
aligned with through-bolt holes
marked on adapter plate.
a 1-3/8" Doors (D138)
Outside Trim and
Lockbody
Adapter Plate
Inside Trim Assembly
Outside Trim Assembly
Screws (2) #12 - 24 x 1-1/2"
Inside Trim Assembly

CLX3300
Installation Instructions
Cylindrical Lockset
7
Copyright © 2021, 2022, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For installation assistance contact Corbin Russwin
1-800-543-3658 • [e-mail] •www.corbinrusswin.com
FM566-EN 6/22

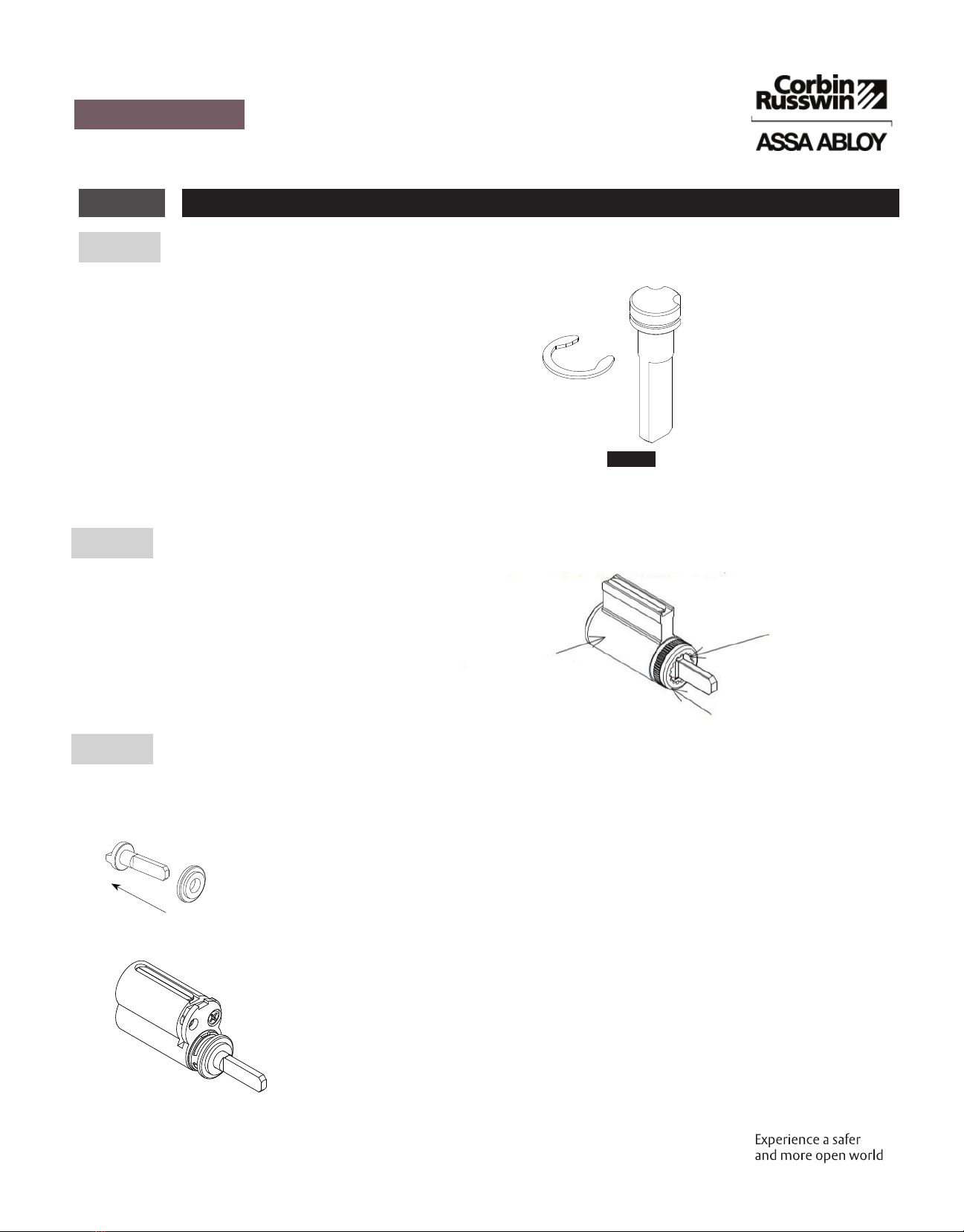

Provided less core. Tailpiece included (See Figure 21).
1. If needed, rotate clip to leave appropriate slot on tailpiece open
for locking pin.
2. Remove key from core.
3. Unscrew threaded cap from end of core (it will be necessary to
depress the locking pin).
4. Place tailpiece inside the exposed end of core with locking pin
in open slot.
5. Reverse step 3 to reinstall cap.
6. Install core in lock normally.
See FM207 for more details.
1. Provided less cylinder.
2. Depress cap pin and unscrew end cap to remove
tailpiece from competitor’s cylinder.
3. Insert new tailpiece in orientation shown.
4. Re-aassemble end cap over new tailpiece.
b Lever to Accept Schlage®LFIC (M69)
c Lever to Accept Schlage®or Yale®Fixed Core Cylinder (M06 or YC Option)
12 Miscellaneous Options
Figure21
d Lever to Accept Yale®LFIC (YRC Option)
1. Provided less cylinder
2. Slide provided spacer over tailpiece
3. Insert driver assembly into back of core.
Competitor’s
Cylinder
Cap Pin
End Cap

For installation assistance contact Corbin Russwin
1-800-543-3658 • [e-mail] • www.corbinrusswin.com
Copyright © 2021, 2022, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved.
Reproduction in whole or in part without the express written permission of ASSA ABLOY Access
and Egress Hardware Group, Inc. is prohibited.
WARNING
This product can expose you to lead
which is known to the state of California
to cause cancer and birth defects or other
reproductive harm. For more information go
to www.P65warnings.ca.gov.
CLX3300
Installation Instructions
Cylindrical Lockset
FM566-EN 6/22
Pour le français, visiter: www.corbinrusswin.com/en/library/installation-instructions.
12 Miscellaneous Options
e CLX3329 Hotel Function Timing Adjustment
1. Set the lock to the unlocked position, remove lever and cylinder from the outside trim. See lever removal instruction on
page 4).
2. Insert adjustment tool (provided with lock) into interior cap located within the shank (Figures 22 & 23).
3. Rotate cap clockwise until fully tight (Figure 24).
4. Rotate cap back counter-clockwise (Figure 25) until tool handle is approximately in line with the end of the shank as shown
in Figure 26 for Fixed Core cylinder (FC) or in Figure 27 for Interchangeable Cylinder (LFIC). The flat on the tool should be at
the 12 o’clock position.
5. Install cylinder in the lever (see cylinder installation instruction on page 3).
6. Turn key 90 degrees counter-clockwise and install lever (with cylinder) onto shank.
Timing of the hotel cylinder is set at the factory for the standard door thickness. If the change key or emergency key does not
operate properly, follow the steps below:
Interior Cap
7. Test to confirm that both the operating and the emergency keys work properly in both the unlocked and locked (pushed/
pushed and turn) positions.
- If the operating key is still working in the locked position, the interior cap needs to be turned out (CCW) 1/2 turn.
- If the emergency key is not working in the locked position, the interior cap needs to be turned in (CW) 1/2 turn.
Figure22
Figure23
Figure24
Figure25 Figure26 Figure27
Troubleshooting:
- If having issue fine tuning the adjustment, re-start from #3.
- If cylinder will not install, re-start from #3.
Adjustment Tool
Flat on Tool
End of Shank
