Brita PRO PERFORMANCE NRV Series User manual

Owners
PERFORMANCE SERIES
NRV FILTER
MANUAL
Professional
Installation Version V1.0D
54561
™

2
THROUGHOUT YOUR HOME | THROUGHOUT YOUR LIFE
828.449.2536
420 3rd Avenue NW
Hickory, NC 28601
BRITA®PRO
www.britapro.com
BRITA®PRO trademark and logo are registered trademarks of Brita LP and are
used under license by Protect Plus, LLC. All rights reserved
This control value and pressure tank is Tested
and Certified by NSF International against
NSF/ANSI Standard 44 for material and
structural integrity requirements.
COMPONENT
The NRV Carbon Filter Series is certified by
IAPMO R&T to NSF/ANSI 42 for chlorine,
taste and odor reduction.
The NRV Catalytic Carbon Filter Series is
certified by IAPMO R&T to NSF/ANSI 42
for chloramine, chlorine taste and odor
reduction.
The NRV Neutralizer Filter Series is
certified by IAPMO R&T according to
NSF/ANSI 42 for low pH adjustment.

3
READ THIS PAGE FIRST
BEFORE STARTING INSTALLATION 4
COMPONENTS & SPECIFICATIONS
SPECIFICATIONS 5
SYSTEM DIMENSIONS 5
INSTALLATION
UNPACK & INSTALL 6
PREINSTALLATION INSTRUCTIONS 7
ELECTRICAL GROUNDING 7
TOOLS REQUIRED FOR INSTALLATION 8
DETERMINING LOCATION 8
INSTALL BYPASS TO THE FILTER 9
INSTALLATION INSTRUCTIONS 9
OPERATION
CARE OF YOUR SYSTEM 10
REPLACING THE MEDIA BED 10
LOADING THE MEDIA PAK 10

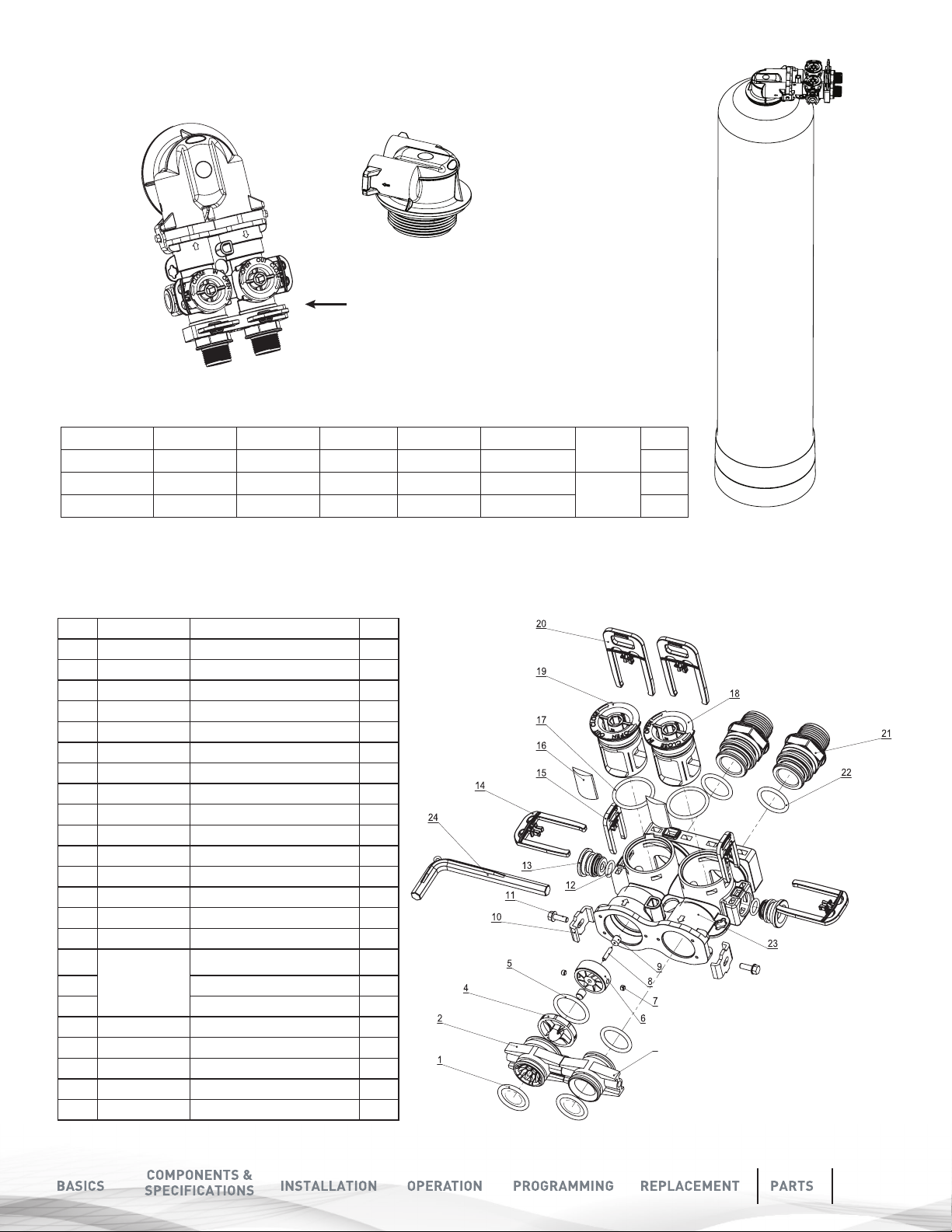

PARTS
BYPASS PARTS LIST 11
TROUBLE SHOOTING GUIDE 12
PERFORMANCE DATA STATEMENT 16
WARRANTY 19
CONTENTS

4
uYou must read and understand the contents of this manual
before installing or operating your water filter. Personal injury or
property damage could result if you fail to follow instructions in
this manual.
uThis filter and its installation must comply with state and local
regulations. Check with your local public works department for
plumbing and sanitation codes. Local codes should be followed In
the event the codes conflict with any content in this manual.
uFor installations in Massachusetts, Massachusetts Plumbing
Code 248 CMR shall be adhered to. Consult your licensed plumber
for installation of this system.
uThis filter must be operated on pressures between 30 psi
to 125 psi. If the water pressure is higher than 125 PSI, use a
pressure reducing valve in the water supply line to the unit.
uThis unit must be operated at temperatures between 40°F and
110°F (4°C - 43°C).
uDo not use this filter on hot water supplies.
uDo not install this unit where it may be exposed to wet
weather, direct sunlight, or temperatures outside of the
range specified above.
uApply provided NSF certified lubricant to all o-rings during
installation. Do not use pinched or damaged o-rings during
installation.
uExposure to high levels of iron, manganese, sulfur, and
sediments may cause damage to pistons, seals, and or spacers
within the control valve and are not covered in this warranty due
to the harsh environment.
uIt is recommended to annually inspect and service the control
valve. Frequent cleaning and or replacement of piston, seals,
and or spacers may be necessary depending on how harsh the
conditions are.
uDo not use water that is microbiologically unsafe without
adequate disinfection before or after this system.
uThis publication is based on information available when
approved for printing. Continuing design refinement could
cause changes that may not be included in this publication.
See page 6 for unpack and inspect system
BRITA®PRO reserves the right to change the specifications
referred to in this literature at any time, without prior notice.
INSTALL
NOTES &
SAFETY
MESSAGES
Watch for the
following messages
in this manual:
CAUTION
EXAMPLE:
Disassembly while under pressure
can result in flooding.
READ THIS
PAGE FIRST
BEFORE STARTING INSTALLATION
WARNING
ELECTRICAL SHOCK HAZARD! Unplug the unit before removing
the cover or accessing any internal control parts
EXAMPLE:
EXAMPLE:
Check and comply with
your state and local
codes. You must follow
these guidelines.
NOTE

5

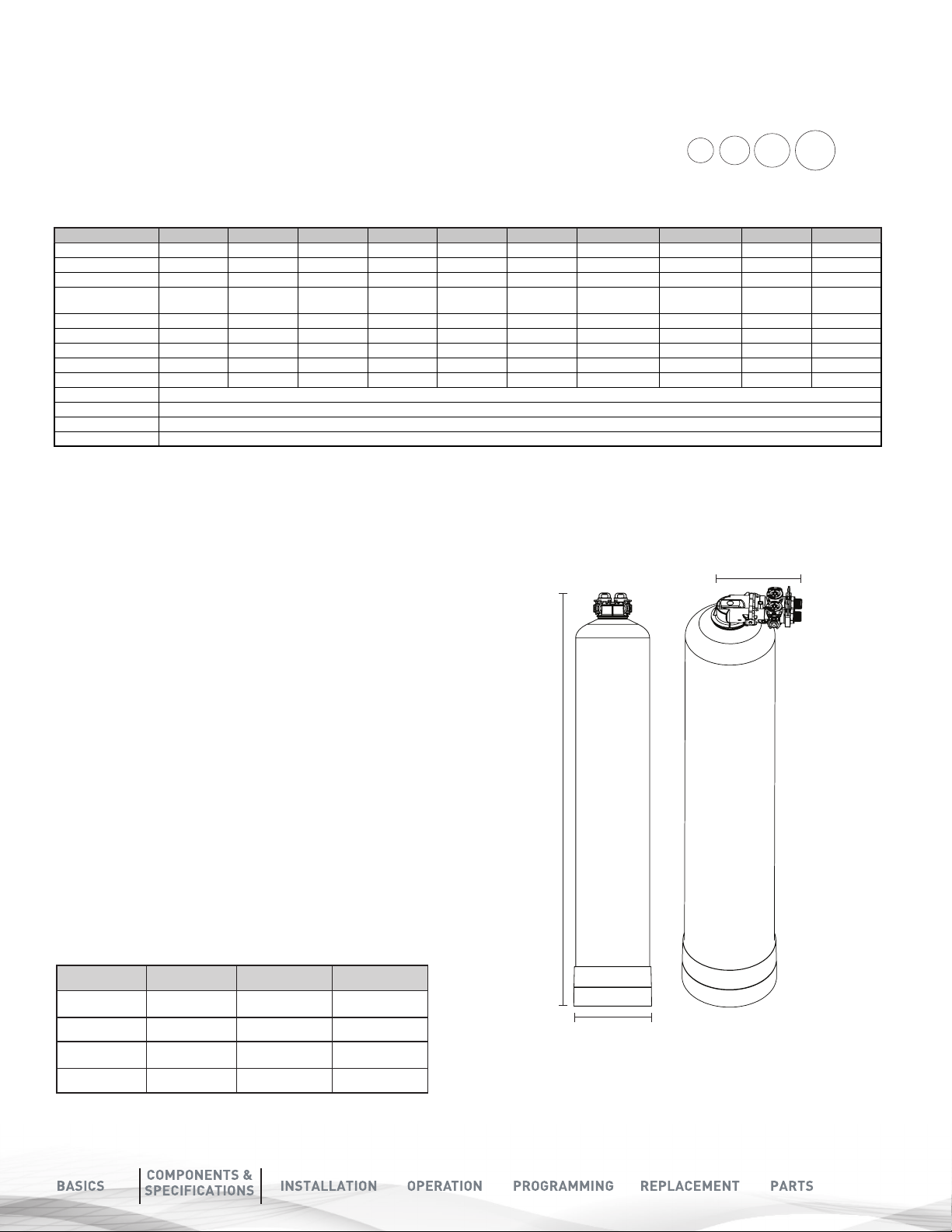

NRV FILTER SPECIFICATIONS
COMPONENTS &
SPECIFICATIONS
SYSTEM DIMENSIONS
Models A (Inches) B (Inches) C (Inches)
NRV TO-100 52 9" 12
NRV TO-150 58 10" 12
NRV TOK-100 52 9” 12
NRV TOK-150 58 10” 12
A
B
C
These systems are complete, self-contained, loaded with
media and ready to use. A simple inlet and outlet connection
is all that is required for installation. Please review
operating pressures, temperatures and water chemistry
limitations to ensure compatibility.
HOW YOUR FILTER WORKS
For your safety, the information in this manual must be
followed to minimize the risk of electric shock, property
damage or personal injury.
uCheck and comply with your provincial / state and local
codes. You must follow these guidelines.
uUse care when handling the filter tank. Do not turn
upside down, drop, drag or set on sharp protrusions.
uWARNING: This system is not intended for treating water
that is microbiologically unsafe or of unknown quality without
adequate disinfection before or after this system.
SAFETY GUIDE
Specifications BPFNRVCB100 BPFNRVCB150 BPFNRVCBK100 BPFNRVCBK150 BPFNRVCCB100 BPFNRVCCB150 BPFNRVCCBK100 BPFNRVCCBK150 BPFNRVNEU150 BPFNRVNEU250
Service Flow Rates
Normal 5.0 gpm 7.0 gpm 5.0 gpm 7.0 gpm 5.0 gpm 7.0 gpm 5.0 gpm 7.0 gpm 5.0 gpm 6.0 gpm
Peak 7.0 gpm 10.0 gpm 7.0 gpm 10.0 gpm 7.0 gpm 10.0 gpm 7.0 gpm 10.0 gpm 8.0 gpm 10.0 gpm
Filter Media Volume -
Cubic Feet 1.0 ft 1.5 ft 1.0 ft 1.5 ft 1.0 ft 1.5 ft 1.0 ft 1.5 ft 1.5 ft 2.5 ft
Filter Tank Size 9x48 10x54 9x48 10x54 9x48 10x54 9x48 10x54 10x54 13x54
Media Type Coconut Carbon Coconut Carbon Coconut Carbon Coconut Carbon Catalytic Carbon Catalytic Carbon Catalytic Carbon Catalytic Carbon Calcite Calcite
Media Loaded Yes Yes Yes Yes Yes Yes Yes Yes Yes No
KDF Protector No No Yes Yes No No Yes Yes No No
Shipping Weight 60 lbs 78 lbs 60 lbs 78 lbs 60 lbs 78 lbs 60 lbs 78 lbs 164 lbs 280 lbs
Plumbing Connections ¾” and 1” connections
Electrical Requirements None
Water Temperature Min 39 - Max. 100 degrees Fahrenheit
Water Pressure Max. 125 psi

6
UNPACK & INSPECT NRV FILTER
INSTALLATION
• Check the entire unit for any shipping damage or lost parts.
• Note any damage to the shipping cartons.
• Contact the transportation company for all damage and loss claims.
• The manufacturer is not responsible for damages in transit.
• Small parts needed to install the unit are in a parts box.
• To avoid loss of the small parts keep them in the parts bag until you are ready to install.
• Handle the unit with care.
• Do not drop the unit or set on sharp uneven projections on the floor.
• Do not turn the unit upside down.
NRV SYSTEM CONTENTS:
1. Control Valve
2. Pressure Tank
3. Parts Box (Shipped in Tank Box)
4. Owners Manual
1. CONTROL VALVE
2X 1”
Straight
Adapter
3. PARTS BOX
Bypass Shipped
in Parts Box
2. PRESSURE TANK

7
An approved grounding
strap must be used in all
cases where metal pipe was
originally used and is later
interrupted by poly pipe,
the Noryl bypass valve or
by physical separation. The
grounding clamp used for
continuity, must be no less
than #6 copper conductor
to maintain proper metallic
pipe bonding.
PRE-INSTALLATION INSTRUCTIONS
CHECK YOUR WATER HARDNESS
Use test strips (Part # 2793828-20) to get an estimation of water hardness. Contact your local BRITA®PRO dealer to use a
BRITA®PRO laboratory for a complete water analysis free of cost and no obligation to you.
CAUTION
The ground from the electrical panel or breaker box to the water meter or underground
copper pipe is tied to the copper water lines. If these lines are cut during installation
of the Noryl bypass valve and/or poly pipe, an approved grounding strap must be used
between the two lines that have been cut. This will maintain continuity. The length of the
grounding strap will depend upon the number of units being installed and/or the amount
of copper pipe being replaced with plastic pipe. See drawing below.
ELECTRICAL GROUNDING
8QILOWHUHG:DWHU%\SDVV
/RRS&XW&DSSHG
*URXQG6WUDS5HTXLUHG%HFDXVH
RI%UHDNLQ&RQWLQXLW\
)LOWHUHG:DWHU/LQHLQ+RPH
CAUTION
Do not use with water that is
microbiologically unsafe or
of unknown quality without
adequate disinfection before
or after the system.
NOTE
Check your local
electrical code for
the correct strap.
You must follow all
government codes and
regulations governing
the installation of
these devices.
NOTE
Cold Soft Water
Hard Soft Water
Water Heater
Softener
NRV Filter
Ground Strap
Ground Strap
Filtered Water
Water Meter
Raw Water
Drain
Electrical Panel

8
DETERMINE THE CORRECT
LOCATION OF THE WATER
CONDITIONING EQUIPMENT
Determine the best location for your water filter, bearing in mind the
location of your water supply lines, drain line and 120 volt AC electrical
outlet. Subjecting the filter to freezing or temperatures above 43°C
(110°F) will void the warranty. Review the various conditions below to
determine a proper location:
1. Locate as close as possible to the water supply source.
2. Locate as close as possible to a floor or laundry tub drain.
3. Locate in correct relationship to other water conditioning equipment
(see Fig. 1 on Page 7)
4. Filter should be located in the supply line before the water heater.
Temperatures above 120°F damage filters.
5. Do not install a filter in a location where freezing temperatures
occur. Freezing may cause permanent damage to this type of
equipment and will void the factory warranty.
6. Allow sufficient space around the unit for easy servicing.
7. Determine if additional plumbing is required if your water source is a
community water supply, a public water supply or you wish to bypass
water used for a geothermal heat pump, lawn sprinkling,
out-buildings or other high demand applications, refer to Fig. 1.
8. Keep the filter out of direct sunlight. Heat build up from direct
sunlight may soften and distort plastic parts.
TOOLS REQUIRED
FOR INSTALLATION:
uPliers
uScrewdriver
uTeflon tape
uRazor knife
uTwo adjustable wrenches
uAdditional tools may be required if modifications to home
plumbing are required.
uPlastic inlet and outlet fittings are included with the filter.
3/4” or 1” pipes to and from the filter fittings are
recommended to maintain full valve flow. You should maintain
the same or larger water supply pipe sizes as the filter inlet
and outlet pipe sizes.
uUse copper, brass, or PEX pipe and fittings.
uSome codes may also allow PVC plastic pipe.
Refer to local codes.
uALWAYS INSTALL THE INCLUDED BYPASS VALVE, OR 3
SHUT-OFF VALVES. Bypass valves let you turn off water to the
filter for repairs, but still have water in the house pipes.
u5/8” OD drain line is needed for the valve drain. A 10’ length of
hose is not included with some brands
If the plumbing system is used as the ground leg of
the electric supply, continuity should be maintained
by installing ground straps around any nonconductive
plastic piping used in installation.
NOTE

9

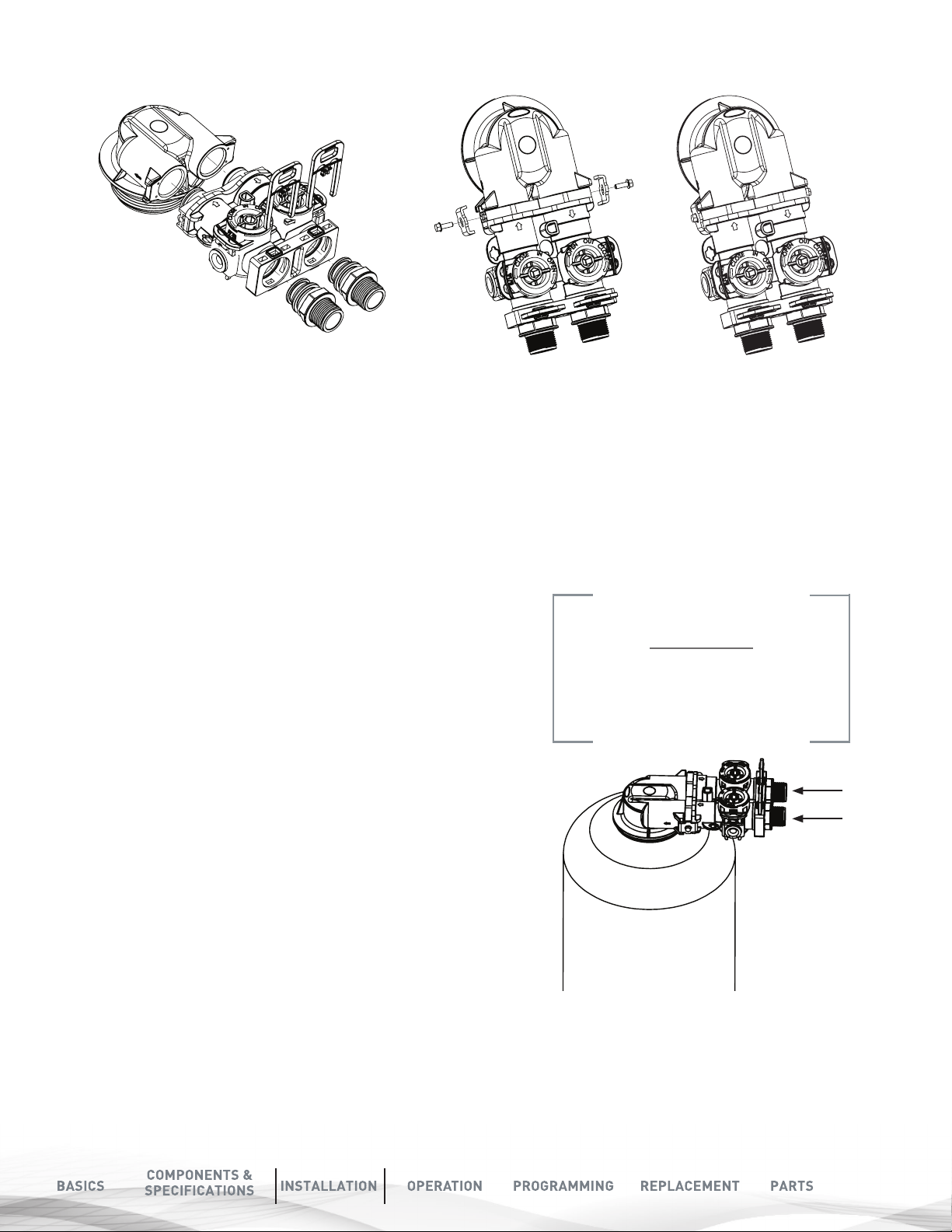

INSTALL BYPASS TO THE FILTER
1. If your hot water tank is electric, turn off the power to it to avoid
damage to the element in the tank.
2. If you have a private well, turn the power off to the pump and then
shut off the main water shut off valve. If you have municipal water,
simply shut off the main valve. Go to the faucet, (preferably on the
lowest floor of the house) turn on the cold water until all pressure is
relieved and the flow of water stops.
3. Connect the inlet and outlet of the filter using appropriate fittings.
Perform all plumbing according to local plumbing codes. Any solder
joints near the valve must be done before connecting any piping to the
valve. Always leave at least 6” (152 mm) between the valve and joints
when soldering pipes that are connected to the valve. Failure to do
this could cause damage to
the valve.
4. Using the Allen Key (included), place the unit in the bypass position.
Slowly turn on the main water supply. At the nearest cold treated
water tap nearby remove the faucet screen, open the faucet and
let water run a few minutes or until the system is free of any air or
foreign material resulting from the plumbing work.
5. Make sure there are no leaks in the plumbing system before
proceeding.
6. Proceed to start up instructions.
The unit is not ready for service until you complete the start-up
instructions. Carbon filters only:
Once the unit has filled sufficiently that water is at least equal to the
height of the media shut down the water for 15-20 minutes for the carbon
to soak. After the carbon has soaked for the recommended time continue
with installation instructions.
Additional information for Non backwashing carbon filter.
After soaking, remove the aerator screen from the nearest faucet, run
water at this faucet until all fines (black) is gone from the water.
NOTE
ON COPPER PLUMBING SYSTEMS BE
SURE TO INSTALL A GROUNDING WIRE
BETWEEN THE INLET AND OUTLET PIPING
TO MAINTAIN GROUNDING.
OUTLET
INLET
INSTALLATION INSTRUCTIONS
The Inlet and Outlet should be as per
above illustration. This will ensure that
water will flow through the filter under
upflow configuration.

10
CARE OF YOUR SYSTEM
To retain the attractive appearance of your new water filter, clean occasionally with mild soap solution. Do not use abrasive cleaners,
ammonia or solvents. Never subject your filter to freezing or to temperatures above 100°F.
REPLACING THE MEDIA BED
CARBON NRV FILTER  under normal operating conditions the effective life of the filter media is approximately one to three years,
depending on the water quality, after which, taste and odor problems may return. When this happens, contact your dealer for a
replacement media bed.
Check to ensure all media parts are received.
The first step in replacing the media bed is to shut off the water supply to the filter. At this point, you must disconnect the plumbing from
the inlet and outlet. Then unscrew the head from the fibreglass tank. Once this has been done, remove the distributor tube. Then you
can remove the filter media and two types of gravel from the tank. The quickest way to do this is by simply tipping the tank upside down
into a large drum or pail.
LOADING THE MEDIA PAK
Place the distributor tube back down the center of the tank. NOTE: the top of this tube should be plugged with a rag or cork to prevent
media from entering. Pour the bag of coarse gravel into the tank, and then pour the bag of fine gravel into the tank.
It is important that the distributor tube is not moved or pulled out as it is not possible to put it down to the bottom of the tank once
gravel or media are in the tank.
Plug
the
Riser
Tube
a
The riser
(distributor)
remains inside the
tank seated in the
depression at the
bottom
a b c
a) Remove the adaptor from the
mineral tank.
Grease the bottom o-ring of the adaptor.
b) Temporarily plug the open end of the
riser tube to ensure that no resin or
gravel falls down into the distribution.
The riser (distributor) remains inside
the tank seated in the depression at
the bottom.
Plug tube with a tape. Remove after
media is loaded.
c) Fill support bed first.
The media will not always spill down
inside the tank and may need to be
swept inside.
The large funnel (sold separately makes
filling the tank easier and neater. (Or
an empty 1 gallon or 4 liter
container with the bottom cut out
makes a good funnel.)
