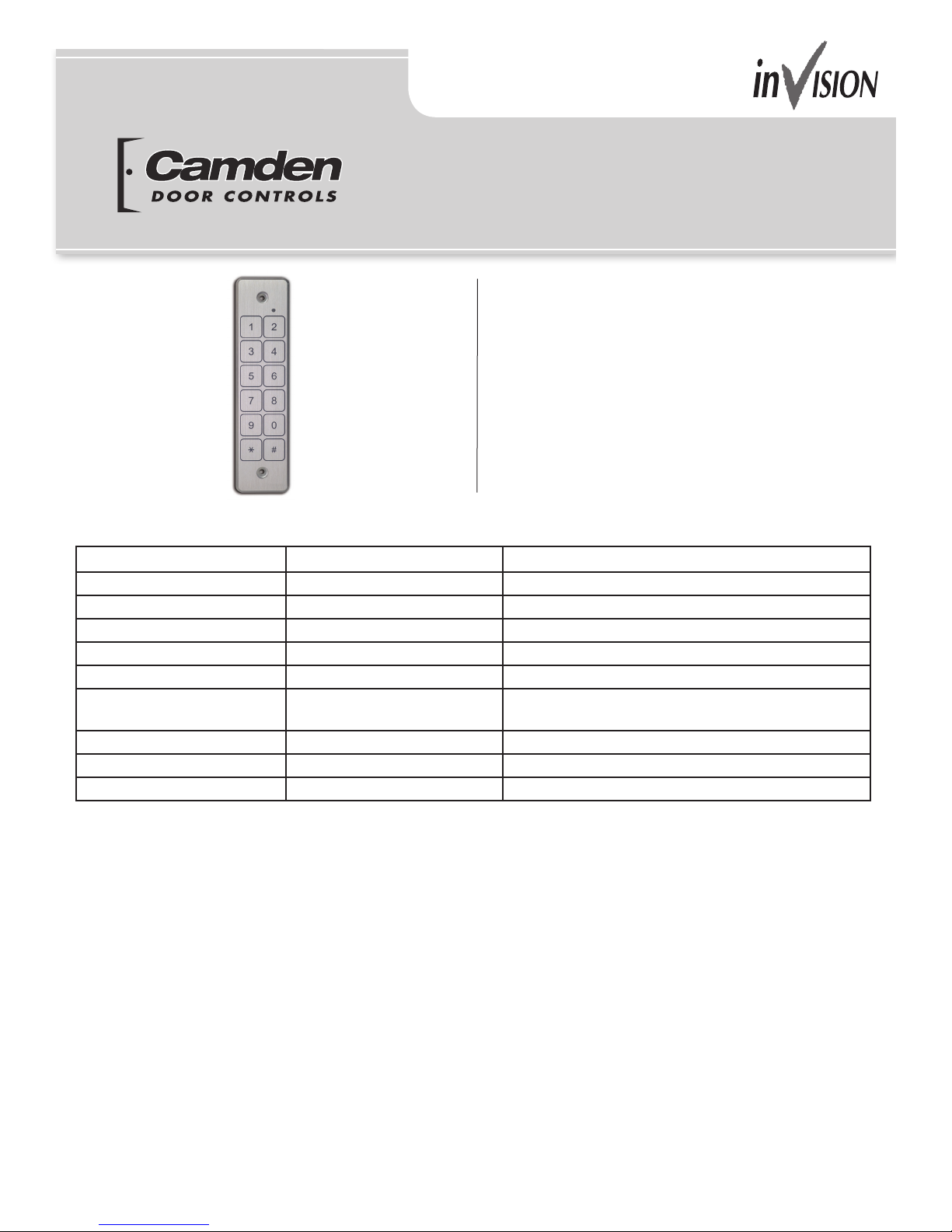

CAMDEN CV-6268W User manual

Model CV-6268W
Piezo Keypad w/ Wiegand Output
Installation Instructions
Protocol: 8 bit word
Power Supply: 8 to 25 VDC
Power Standby Consumption: less than 20 mA
Mounting: Single Gang Switch Box, or directly to the wall.
Mounting: Universal (single gang box)
Environment: IP68; 100% relative humidity
Temperature: - 20° to + 70°C
CLICK-N-LOCK mounting screw protection
The LED turns yellow and the buzzer beeps with each key press. The data is sent at 2 msec per bit with pulse duration
of 70 usec.
WIRING COLOR FUNCTION ELECTRICAL FUNCTION
RED Input Voltage 12 - 28 VDC
BLACK Ground
GREEN Data 0 Open collector 1K ohm pull-up to internal +5V
WHITE Data 1 Open collector 1K ohm pull-up to internal +5V
BROWN LED Input
BLUE CCTV output Open collector 0.25 A activated with each
key for 30 Sec.
VIOLET Housing Ground
ORANGE No Connection
GREY Tamper Output Open collector 0,100 A “Low” when light sensed
Wiring

Model CV-6268W Piezo Keypad Manual
Page 2 of 2
Push Buttons Keypads Strikes Magnetic Locks Key Switches Relays & Timers Access Control
5502 Timberlea Blvd.,
Mississauga, ON Canada
L4W 2T7
www.camdencontrols.com
Toll Free: 1.877.226.3369 File: CV-6268W Instructions.indd- Rev2
Revised: July 4th, 2014
Part No: 40-82B089
KEY OUTPUT KEY OUTPUT
011110000 610010110
111100001 710000111
211010010 801111000
311000011 901101001
410110100 *01011010
510100101 #01001011
8 BIT WORD SPECIFICATIONS:
Each key press generates the dened 8 bit output as
shown below:
NOTES:
1. Blue Wire - Pressing any key on the keypad will generate
a 30 second 0,25 amp intermittent duty grounding output.
2. GREY WIRE - When light sensor senses ambient light, the
wire is pulled “low”
