Cisco TelePresence Profile Series User manual

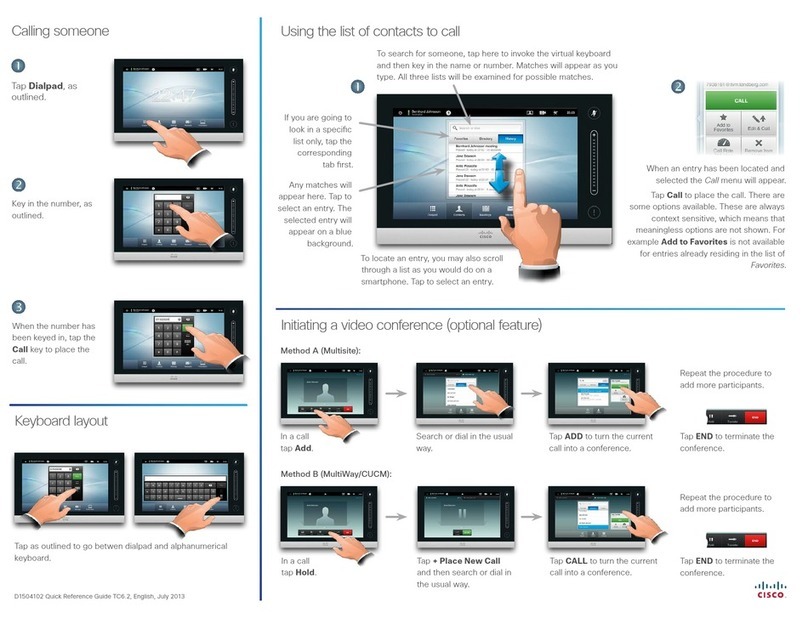

Calling someone Using the list of contacts to call
Initiating a video conference (optional feature)
Keyboard layout
Tap Dial, as outlined.
When the number has
been keyed in, tap the
Call key to place the
call.
Key in the number, as
outlined.
When an entry has been located and
selected the Call menu will appear.
Tap Call to place the call. There are
some options available. These are always
context sensitive, which means that
meaningless options are not shown. For
example Add to Favorites is not available
for entries already residing in the list of
Favorites.
If you are going to
look in a specic
list only, tap the
corresponding
tab rst.
To search for someone, tap here to invoke the virtual keyboard
and then key in the name or number. Matches will appear as you
type. All three lists will be examined for possible matches.
To locate an entry, you may also scroll
through a list as you would do on a
smartphone. Tap to select an entry.
Any matches will
appear here. Tap to
select an entry. The
selected entry will
appear on a blue
background.
D1504109Quick Reference Guide TC7.3, English, December 2015
Method A (Multisite):
Method B (MultiWay/CUCM):
In a call
tap Add.
In a call
tap Add.
Search or dial in the usual
way.
Place a new call in the
usual way.
Tap Add to turn
the current call into a
conference.
Tap Merge to
turn the current
call into a conference.
Tap END to terminate the
conference.
Repeat the procedure to
add more participants.
Tap END to terminate the
conference.
Repeat the procedure to
add more participants.
Tap as outlined to
go betwen dialpad and
alphanumerical keyboard.
Quick Reference Guide
Cisco TelePresence, Prole Series
Codec C-series, Quick Set C20
SX20 Quick Set, MX200, MX300
TC7. 3

Tap here to
invoke the
dial pad.
Tap here to
invoke the list
of contacts
including
Favorites,
Directory and
History.
Tap here to
invoke a list
of upcoming
scheduled
meetings.
Tap here to
start sharing
content and
conduct
presentations.
Any messages
to you while you
were away will be
indicated here.
Adjust volume
here (tap and
drag).
Tap to
mute /unmute
microphone.
A tour of the Touch pad
Tap the touch screen
to wake up the system,
if needed.
Tap a button
to activate its
function.
Scroll in lists
as outlined.
Quick Reference Guide
Cisco TelePresence, Prole Series
Codec C-series, Quick Set C20
SX20 Quick Set, MX200, MX300
Tap here to
invoke help
desk contact,
if available.
Tap here to activate /
deactivate the Do not
disturb feature, to activate /
deactivate the Standby
feature, and to access the
Settings. Time of day.
Tap here
to activate
self-view.
TC 7. 3
Sharing content
Make sure your presentation source is switched on and connected to
the video system before you tap Share.
Connect your source and
make sure it is switched on.
Tap Share (a), then scroll
horizontally (b) to locate
the presentation source, if
needed. Once located tap
the required source.
Tap Preview, if you want to
check what you will share
before you share it, and then
tap Share to actually start
sharing the content of your
source.
Your content will now be
viewable by all connected
participants. To stop sharing
content tap Stop Sharing, as
shown.
Tap the three small dots (...),
to acess the menu allowing
you to preview or to share
the content of the selected
source.
D1504109Quick Reference Guide TC7.3, English, December 2015
