Connects2 CTKPFD10 User manual

CTKPFD10
Integrated Touch Screen Control Kit
for Ford Vehicles
APPLICATION
FEATURES
Ford Mustang 2015> (Right Hand Drive Models Only)
• Allows for the installation of a double DIN aftermarket stereo
• Replaces HVAC control unit
• Retains climate controls, steering wheel controls, heated seats, vehicle OE
personalisation menus and settings
• Accomodates OEM toggle or OEM push button switches
• Includes mounting brackets and tting accessories
• Finished in gun metal to match vehicle dashboard
The information provided in this document is subject to change without notice due to manufacturer changes and/or improvements to the product/s. This
instruction manual is based on documented data and research. The manufacturer of this product cannot be held responsible for any changes made to the
vehicle by the manufacturer or damages that may occur through the installation of this product in accordance with the steps outlined herein.
Note: Application data is subject to change at any time
DISCLAIMER
For vehicles with Concert, Chorus or Symphony factory stereo and Mini ISO connector
CTKPFD10_IG_v2

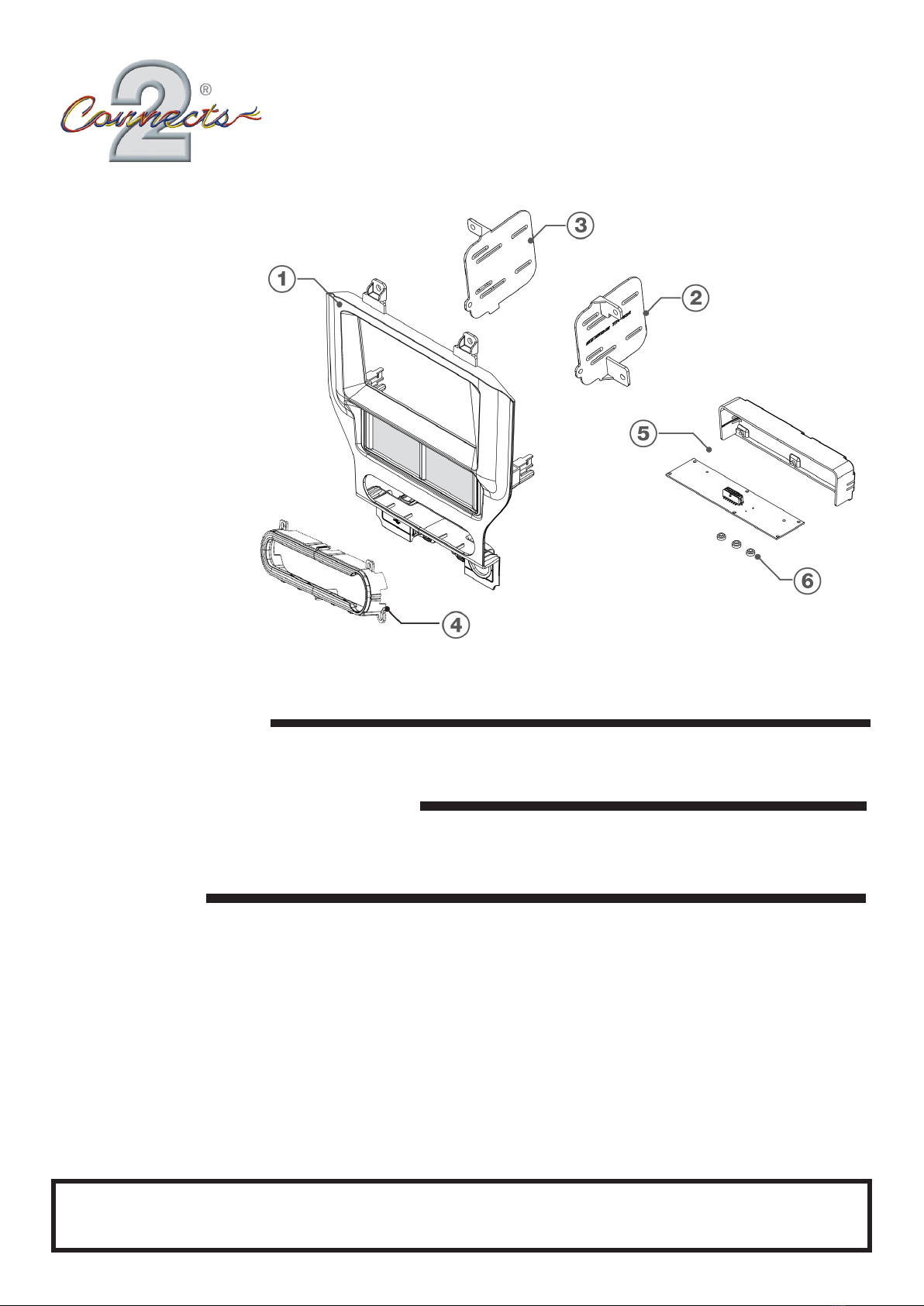

1. Fascia Panel
2. Right Bracket
3. Left Bracket
4. Four Switch Trim
5. Back Cover
6. PCB Spacer
RECOMMENDED TOOLS
• Panel Removal Tool • Screwdriver • Cutting Tool

2CTKPFD10_IG_v2
PRIOR TO INSTALLATION
INSTALLATION GUIDE
Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation must be
free of moisture and away from heat sources. Please ensure that the correct tools are using during the installation to avoid
damage to the vehicle or product. Connects2 can not be held responsible for the installation of this product.
1. Remove the two (passenger and driver side) knee
panels on the lower console. (A)
Next, remove the two exposed screws (B)
2. Using a panel removal tool, carefully remove the
tray located below the USB and 12V socket ports,
then remove and retain the two exposed screws.
Lift and slightly pull back the centre cup holder
console but do not remove the console.
3. Using a panel removal tool, carefully remove the
air vent trim surrounding the vents, temp and boost
control gauge. Unplug and remove.
*WARNING*
**DASH MODIFICATION IS REQUIRED FOR FULL INSTALLATION OF A DOUBLE DIN STEREO WHEN USING THIS PRODUCT**
See Step 7 for Details

3
Need help? Visit support.connects2.com/tickets/technical
CTKPFD10_IG_v2
INSTALLATION GUIDE
4. Unclip and remove the plastic plate located
inbetween the USB plug-in and the cigarette lighter
5. Remove the four screws securing the OEM panel
to the dash (circled), then unplug and remove the
panel
6. Remove the OEM display and the CD receiver by
unscrewing the four screws for each component,
then unplug all wiring and remove.
7. Carefully cut and remove the highlighted dashed
area on the sub-dash frame to create space for the
double DIN stereo.
File down the ridged areas highlighted and noted in
the image.
NB: Only le down the amount of plastic necessary to
achieve a flush t
**DASH MODIFICATION**

4CTKPFD10_IG_v2
INSTALLATION GUIDE

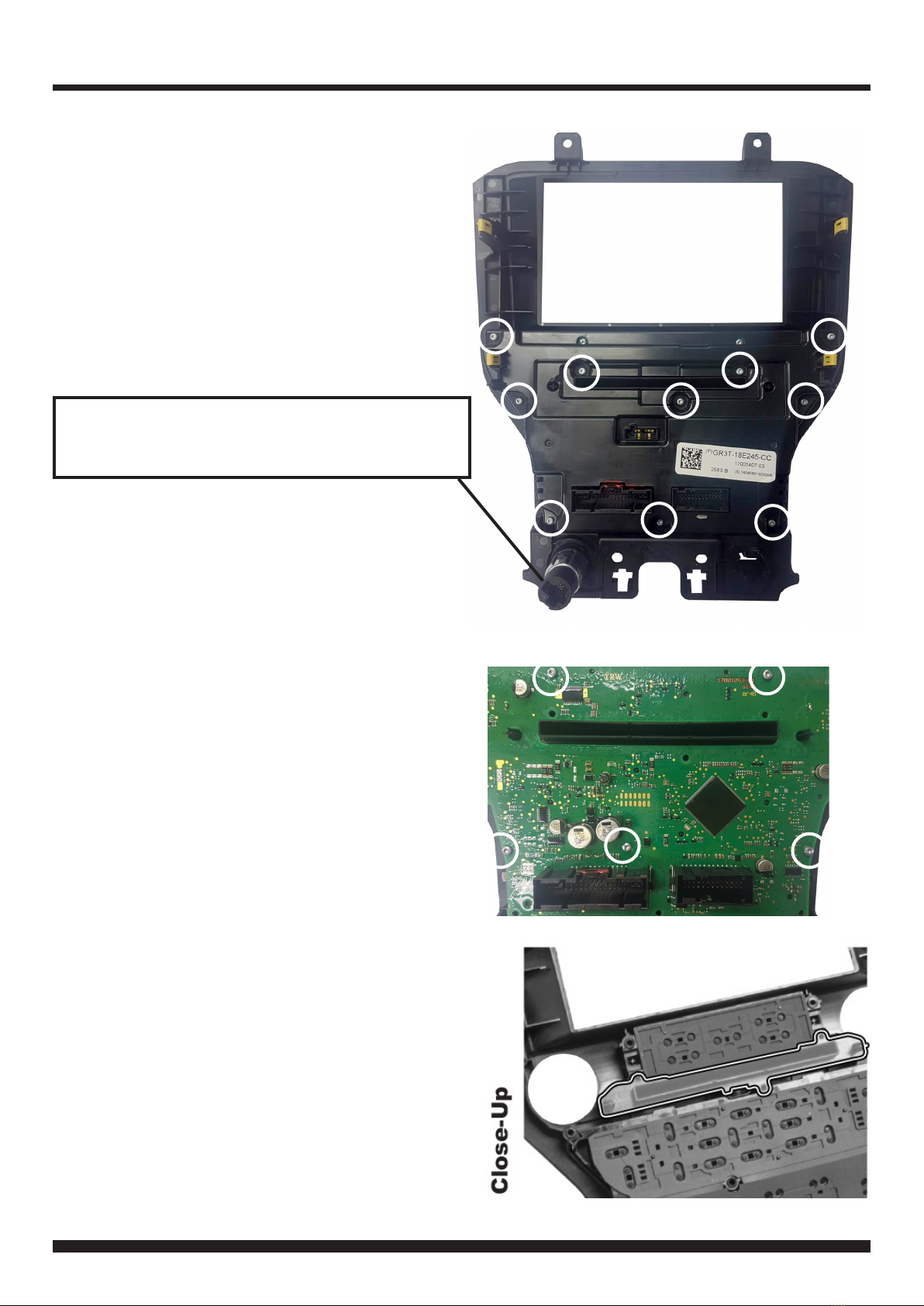

8. Remove the ten screws and the 12V socket locat-
ed behind the OEM climate control panel and retain
for installation. Then remove the PCB board back
cover.
NB: The amount of screws may vary between vehicle
models.
Retain the 12V socket from the OEM panel and place it
on the aftermarket panel once removed from the OEM
panel
9. Remove the ve screws securing the PCB board
to the panel, then remove from the panel
NB: The amount of screws may vary between vehicle
models
10. Lift and remove the plastic CD insert slot away
from its location

5
Need help? Visit support.connects2.com/tickets/technical
CTKPFD10_IG_v2
INSTALLATION GUIDE
11. Lift and remove the drive train/ignition controls
and rubber pad from the OEM panel and retain for
later install
NB: Remove rubber and plastics blocking pieces
needed in order to remove the ignition controls
12. Place the drive train/ignition control trim into
the fascia panel
13. Place the OEM drive train/ignition control
buttons (retained in Step 11) into the trim from
Step 12.
Next, place the three provided PCB spacers
indicated by the arrows on top of the button
controls.
NB: Image is for illustration purposes only and may not
represent the vehicle's exact ignition control button
conguration

6CTKPFD10_IG_v2

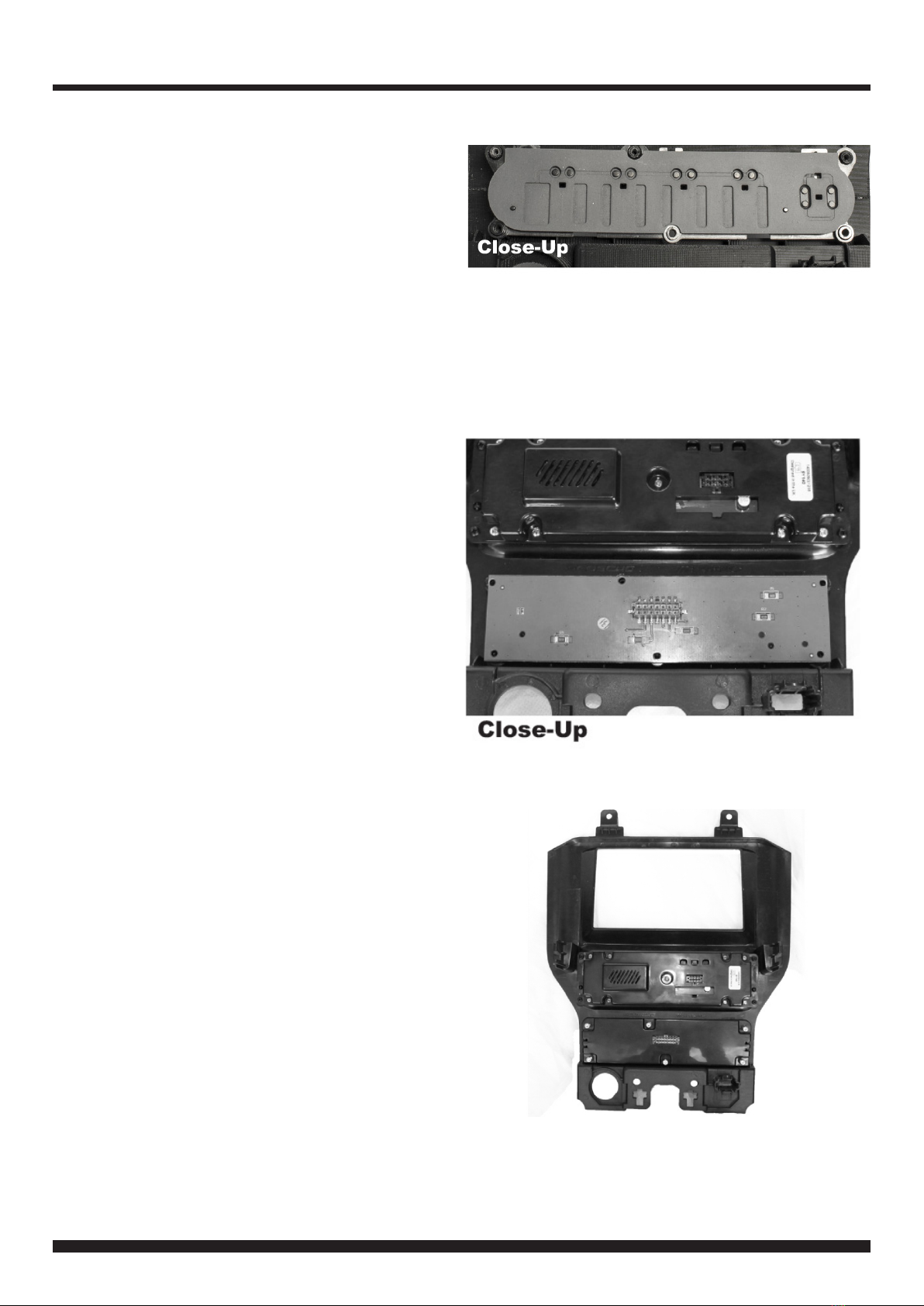

INSTALLATION GUIDE
14. Place the rubber pad from the OEM drive train
controls onto the back of the buttons, being careful
not to knock over the spacers placed in the previous
step.
15. Carefully align the circuit board over the rubber
pad
16. Place the back cover plate over the PCB and
secure using the six screws retained in disassembly
NB: Use the screws attained from the OEM PCB cover
plate

7
Need help? Visit support.connects2.com/tickets/technical
CTKPFD10_IG_v2
INSTALLATION GUIDE
Preparation of Aftermarket Head Unit:
18. Connect and reassemble everything in the reverse order of disassembly to complete the installation
NB: 12V/cigarette plug is retained from OEM panel
17. Attach the brackets provided to the aftermarket stereo (A), then secure stereo assembly into dash
cavity (B).

8CTKPFD10_IG_v2

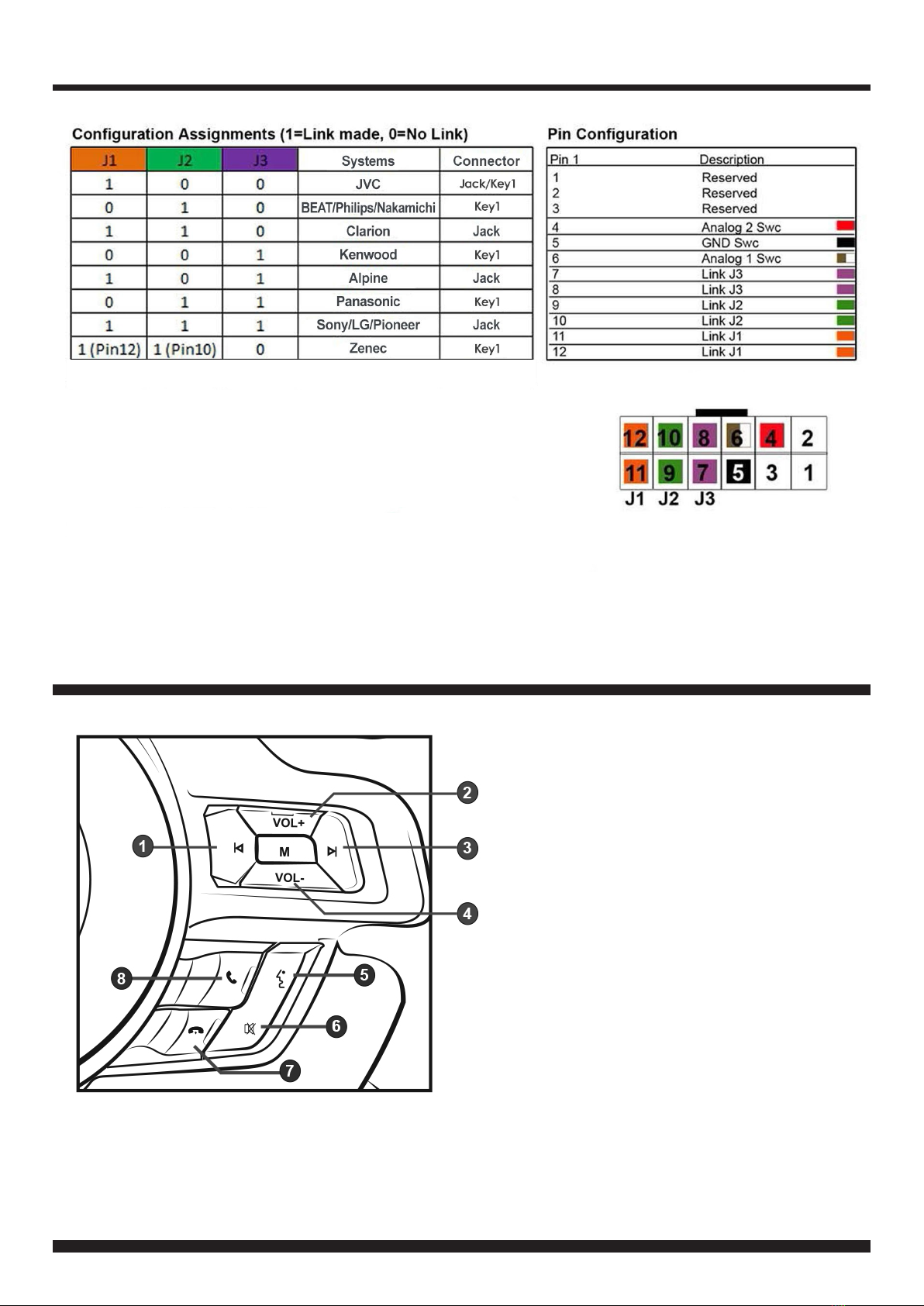

CONNECTING THE PATCH LEAD
STEERING WHEEL CONTROL CONFIGURATION
1. Track -
2. Volume +
3. Track +
4. Volume -
5. Voice Command (For JVC/Alpine/
Pioneer Units with Vocie Command
Capabilities)
6. Mute
7. Hang Up (BT HU Only)
8. Pick Up (BT HU Only)
Here are some example of how to make various patch leads:
Example 1: Alpine - Cut Link J2, then use the Jack Connector
to connect the patch lead to the head unit
Example 2: Kenwood - Cut Link J1 and J2, then use the
wire connector to connect the patch lead to the head unit

9
Need help? Visit support.connects2.com/tickets/technical
CTKPFD10_IG_v2

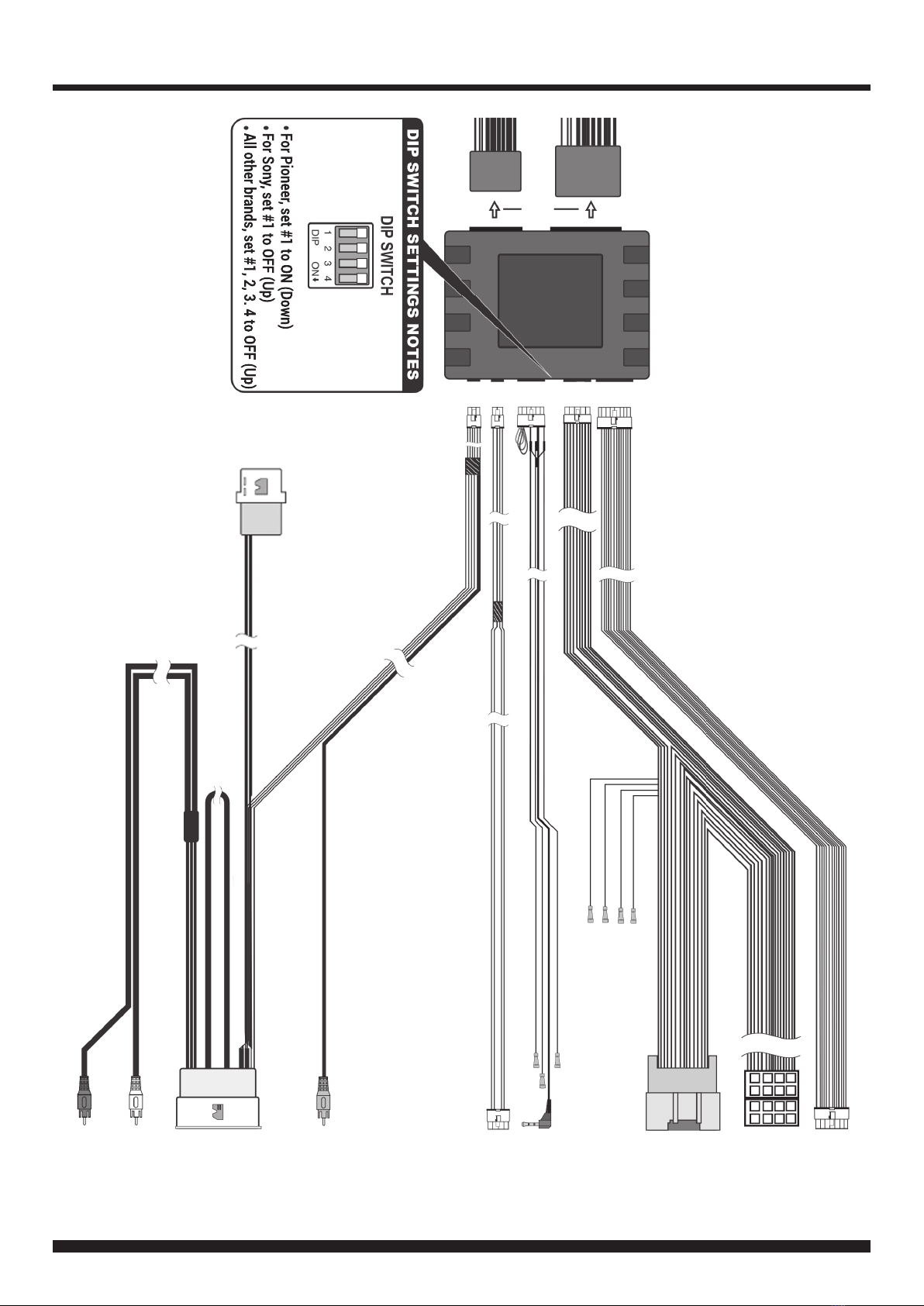

WIRING DIAGRAM
For Pioneer, set #1 to ON (Down) For Sony, set #1 to OFF (Up) All other brands, set #1, 2, 3. 4 to OFF (Up)
16 Pin 10 Pin 12 Pin 4 Pin 6 Pin
To Back of Push-Start Module To Aftermarket Stereo To Vehicle Harness
SWC (See 'Connecting the Patch Lead')
To Back of ITC Display Reverse Video Input (Brown) To Vehicle Harness Behind Screen For Both 4.2" & 8" Monitors (Attach to Sync Box) Audio Aux (White) Audio Aux (Red)
To Climate Control
Panel Harness
12 Pin Display Connector - Not Used
Pink Speed Pulse Lt. Green Park Brake Purple/White Reverse Gear Mute

10 CTKPFD10_IG_v2
CLIMATE/CONVENIENCE CONTROLS
The touchscreen interface replaces the factory climate, convenience and personalisation controls built into the factory Ford
stereo/dash panel. This solution provides improved ergonomics whilst adding touchscreen capabilities unique to this sys-
tem. Read the following sections to familiarise yourself with the operating controls and settings.
LEFT TOUCHSCREEN BUTTON LAYOUT
1. Change on-screen button conguration to show
controls for heated and cooled seats (if vehicle is
equipped). Level for both driver and passenger side
seats can be adjusted up or down independently.
2. Access menu. See ‘Menu Structure’ for more
information.
3. Quick press four times and hold to enable
Installer Menu. The Installer Menu can be found un-
der ‘Vehicle Settings’ by pressing the MENU
button (4) on the screen.
4. Press the POWER button to toggle the climate
controls on or off.
5. Press to toggle Automatic Air Conditioning on or
off (indicated by the orange icon).
6. Press to turn on Air Recirculation feature.
When on, air will be recirculated inside the vehicle
to quickly cool the interior and prevent outside air
or odors from entering.
Note: Operating this function when the A/C is off in-
creases humidity and may cause the windows to fog.
This feature is not available when Defrost or Defog
modes are active.
HH:MM
TEMP
MENU
CTRL
MyTemp
23.0 22.0
A
MAX DUAL
AUTO
AUTO
A
7. Activates maximum cooling with temperature
automatically adjusted to the lowest setting and fan
speed increased to the highest setting. Press the
button again to return to the previously selected fan
speed and temperature setting.
8. A preset/favourite temperature for the driver zone
can be stored using the MyTemp function. Once a
desired temperature for the driver has been set, long
press/hold MyTemp button until a beep is heard. A
short press of the MyTemp button will now instantly
restore the preset driver temperature.
9. Press to direct air at the front windscreen to help
clear fog or moisture. A light will illuminate in the
button to indicate the active/inactive status of the
Defrost mode.
Note: For best results, clear the windows of snow or ice
before activating Defrost mode. Do not attempt to
operate the vehicle until windows are clear.
10. Press to defog the rear window. A light will illumi-
nate in the button to indicate the active/inactive
status of the Defog mode. The Defog mode will also
be turned off when the vehicle ignition is turned off.
3
2
1
8
10 9
7
6
5
4

11
Need help? Visit support.connects2.com/tickets/technical
CTKPFD10_IG_v2
CLIMATE/CONVENIENCE CONTROLS
RIGHT TOUCHSCREEN BUTTON LAYOUT
11. Touch the vent control mode icons to select
desired vent mode. Graphics are displayed according
to the selected vent and airow pattern. Air can be
directed through the instrument panel, oor, side and
windsheild outlets as desired.
12. Select the desired temperature for the driver zone
by using the two arrow buttons.
13. Select the desired temperature for the passenger
zone by using the two arrow buttons.
14. Toggle ‘Dual Mode’ function to enable different
temperatures to be selected for driver and passenger
zones. Turn off to lock both zones to identical tem-
peratures.
15. Increase fan speed using the Fan + button
HH:MM
TEMP
MENU
CTRL
MyTemp
23.0 22.0
A
MAX DUAL
AUTO
AUTO
A
16. Decrease the fan speed using the Fan - button
17. Toggle ‘AUTO’ on to engage Auto mode for all
functions (Air Direction, Air Conditioning, Recircu-
lation, Fan Speed). Whilst in Auto mode, the vehicle
will try to reach the selected temperature in the most
ecient way possible.
Note: The ‘AUTO’ button will perform a different function
depending on whether the climate controls are being
adjusted manually, semi-automatically, or fully automat-
ically.
If all functions are under manual control, pressing
‘AUTO’ will activate full auto mode (all functions under
automatic control). If only some functions are under
manual control, then pressing ‘AUTO’ will return all func-
tions to manual control. A second press of ‘AUTO’ will
then activate full auto mode.
12
17
15 16
14
13
11

12 CTKPFD10_IG_v2

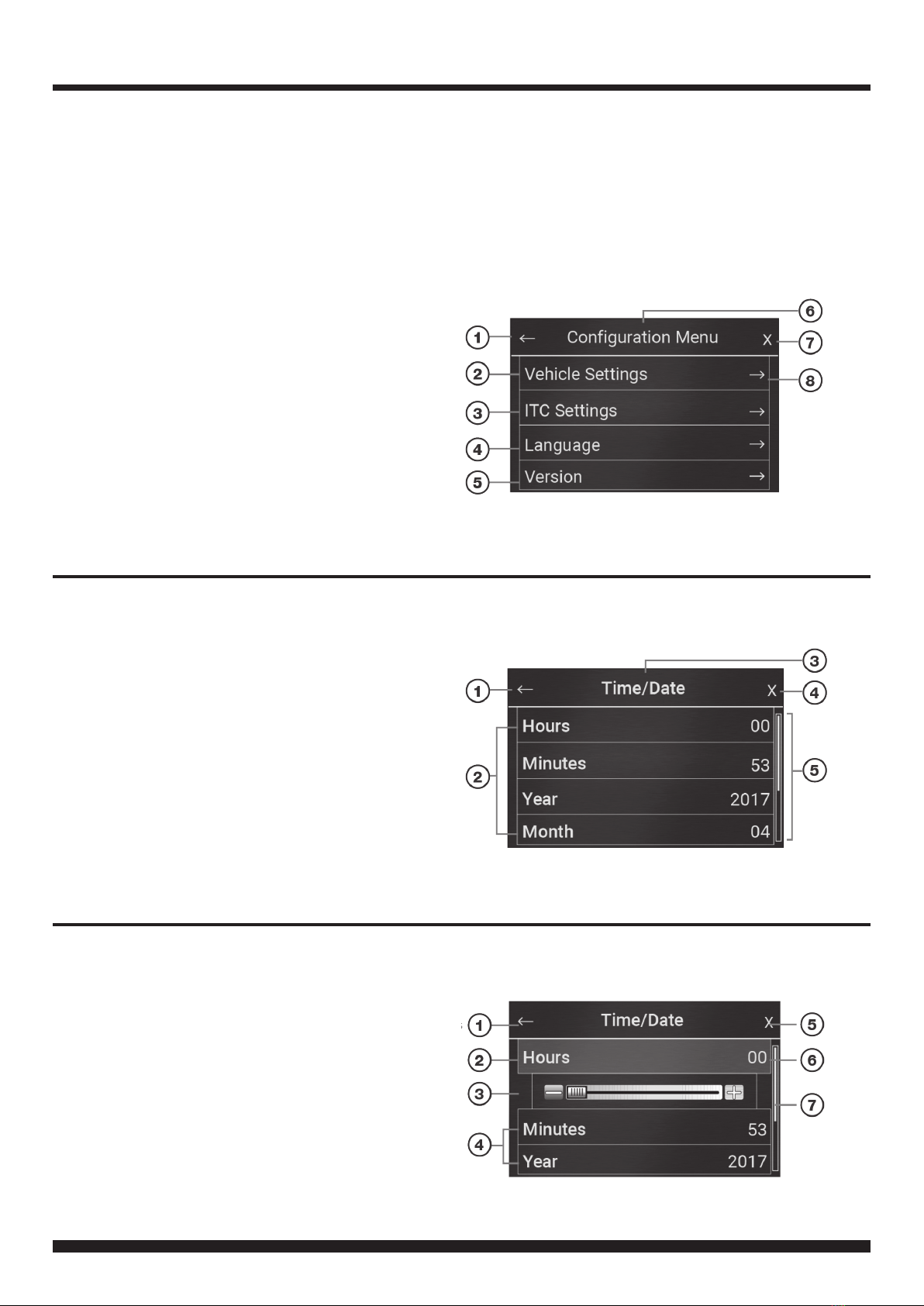

MENU NAVIGATION
Main Menu Navigation
1. Return to previous menu
2. Enter Vehicle Settings menu
3. Enter ITC Settings menu
4. Enter Language menu
5. Enter Module Version menu
6. Header
7. Close menu settings
8. Enter Sub-menu for selected option
Sub-Menu Navigation
1. Return to previous menu
2. Sub-menu conguration options
3. Header
4. Close menu
5. Scroll bar (Scroll Up/Down for more options)
Setting Conguration Options
1. Return to previous menu
2. Setting highlighted when selected
3. Scroll bar (Use to customise setting)
4. Press to select option
5. Close menu
6. Current value (Adjust with slider)
7. Scroll bar (Scroll Up/Down for more options)
Press the MENU button to access the Conguration menu and adjust Vehicle, ITC Interface, Language and
Version settings.
The following screenshots are sample menu displays to assist in the navigation of the user interface. Use
the Return Arrow to go back to the previous menu. Press the X to close the menu window and return to the
TFT colour touch screen home screen. For further setting options, refer to the charts in the following pages
of this manual.

13
Need help? Visit support.connects2.com/tickets/technical
CTKPFD10_IG_v2
VEHICLE CONFIGURATION SETTINGS CHART
VEHICLE SETTINGS (INSTALLER MENU)
To access the Installer Menu, quick press the Menu icon on the touch screen display four times. A pop up will
appear with the notication: "Installer Menu Enabled".
Use the charts on the following pages of this instruction manual to navigate through the various menus and
settings offered by the kit.
*Set 'Camera Type' to 'Type 2' for Mustang application to enable Zoom feature. If Zoom feature does not work,
select 'Type 1'.
**Please note that an additional module is required in order to retain the Shaker amplied system in vehicles
with this OEM option.
**

14 CTKPFD10_IG_v2
ITC SETTINGS CHART
LANGUAGE & SOFTWARE SETTINGS CHART

15
Need help? Visit support.connects2.com/tickets/technical
CTKPFD10_IG_v2
NOTES

16 CTKPFD10_IG_v2
NOTES
