FLEX Series with Cree SmartCast®Technology

Specification Troffers

Includes: FLX14™, FLX22™ and FLX24™

1 of 3 LPN00438X0001A1_C

INSTALLATION INSTRUCTIONS

INSTRUCTIONS D’INSTALLATION

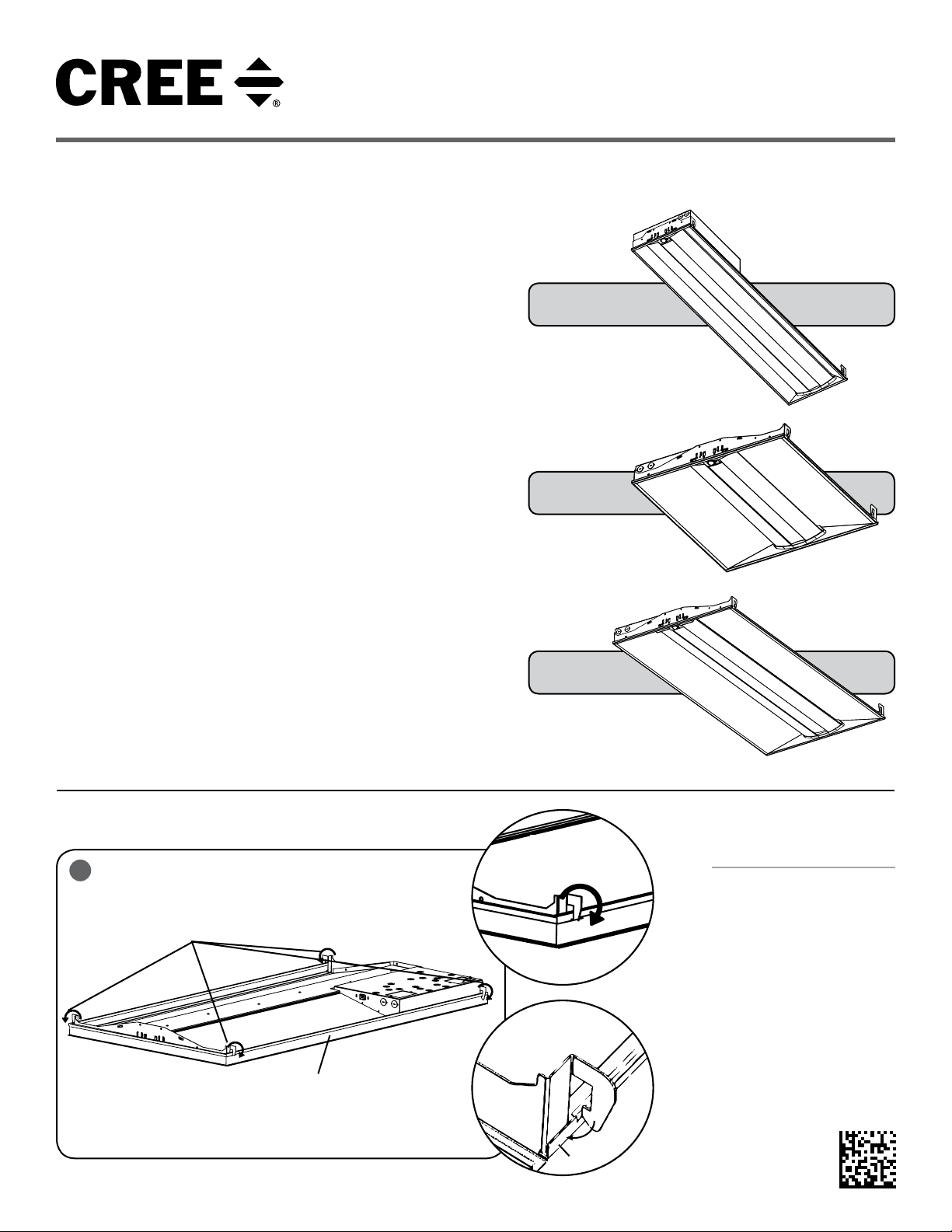

TO INSTALL:

T- BAR CEILING MOUNTING

STEP 1:

Bring the FLEX troffer up into the

T-Bar grid.

STEP 2:

Locate the luminaire hooks and

bend them out 90 degrees for

installation. See Figure 1.

NOTE: The luminaire hooks ship

bent in and need to be bent out

for installation.

STEP 3:

Then bend the luminaire hooks

against the T-Bar to secure the

luminaire. See Figure 1.

• The FLEX Series of

specification troffers is for non-

insulated ceiling applications

using T-Bar ceiling grid,

drywall grid adaptors, and

suspended mount.

• Designed for use in 120-

277V 50-60 Hz or 347V 60Hz

protected circuit (fuse box,

circuit breaker). Supply wire

sized as per NEC or governing

code(s), 90C rated.

• Make sure to cap off all unused

leads.

FLX14™

FLX22™

FLX24™

IMPORTANT SAFEGUARDS

When using electrical equipment, basic safety precautions should

always be followed including the following:

READ AND FOLLOW ALL SAFETY

INSTRUCTIONS

1. DANGER- Risk of shock- Disconnect power before installation.

DANGER – Risque de choc – Couper l’alimentation avant l’installation.

2. This luminaire must be installed in accordance with the NEC or your

local electrical code. If you are not familiar with these codes and

requirements, consult a qualied electrician.

Ce produit doit être installé conformément à NEC ou votre code

électrique local. Si vous n’êtes pas familier avec ces codes et ces

exigences, veuillez contacter un électricien qualié.

3. Suitable for damp locations.

Convient aux emplacements humides.

4. Access above ceiling required. Do not install insulation within 3" (76mm) of

any part of the luminaire.

Accès requis au-dessus du plafond. Ne pas mettre l’isolant à moins de 76

mm (3 po) de toute partie du luminaire.

SAVE THESE INSTRUCTIONS FOR

FUTURE REFERENCE

Luminaire Hooks

T-bar

1st:

90° Bend

2nd: Bend

Against T-bar

T-bar

2 of 3 LPN00438X0001A1_C

RF Module

SUSPENDED MOUNTING

STEP 1:

Attach customer supplied cables to the (2) cable

slots on each side of the housing.

See Figure 2 and 3.

STEP 2:

Attach customer supplied cables to mounting

surface using customer supplied hardware.

Ensuring that mounting surface can support the

luminaire.

STEP 3:

Attach the RF Module to the luminaire by clicking it

into place as Shown in Figure 3.

RESET RF MODULE

NOTE: The Blue LED is located behind the CREE

logo on the RF Module. The CREE logo with

illuminate blue when the Blue LED is active.

STEP 1:

Actuate RESET button through the access hole.

Push and hold until LED on RF module begins

blinking rapidly (approximately 6-7 seconds). See

Figure 5.

STEP 2:

Release for 1 sec.

STEP 3:

Press/Hold RESET button for 0.5 sec. Light will turn

off for a few seconds then go to full bright and the

Blue LED on the RF Module should begin a 2 blink

sequence. Figure 4.

CLEANING LENS

STEP 1:

Remove lens and end cap assembly by pulling

straight downward gently. See Figure 5.

STEP 3:

After cleaning is complete insert lens and end cap

assembly back into the luminaire housing. Check

end caps for any visible gap between the end cap

and end panel. If necessary push end cap against

the end panel to eliminate gaps.

Check lens for any visible gap between the lens and

luminaire.

TROUBLESHOOTING:

Out of the box, if the light does not turn on when

power is applied:

• Check Wiring with power off

• If wired correctly, check to see if Blue LED

blinking on the RF Module.

• If Blue LED is blinking, then perform a

RESET

(See RESET RF MODULE section).

• If Blue LED is on solid or off, call Cree

Customer Service.

• If you have done a RESET, and the light is

still off, call Cree Customer Service.

If light is unresponsive, use Cree Configuration Tool

to verify configuration.

Power Supply

Junction Box

Cover

Cable Slots

RF Module

Access Hole, Reset

Button Inside Blue LED

Placement

Lens

3 of 3 LPN00438X0001A1_C

www.lighting.cree.com

See http://lighting.cree.com/warranty for warranty and specifications. Cree®and the Cree Logo are registered trademarks, and

FLX14™, FLX22™ and FLX24™ are trademarks of Cree, Inc. Armstrong®is a registered trademark of AWI Licensing LLC.

FCC NOTICE

CAUTION: Changes or modifications not expressly approved could void your authority to use this equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful

interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will

be required to correct the interference at his own expense.

CAN ICES-005 (A)/NMB-005 (A)

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux

conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,

même si le brouillage est susceptible d’en compromettre le fonctionnement.

ELECTRICAL CONNECTIONS- 120-277V INPUT

STEP 1:

Make the following Electrical Connections::
