INSTALLATION INSTRUCTIONS
CR Series Troffers 220-240V
CR14, CR24, CR22 Architectural Troffer
Including: 300x1200mm, 600x1200mm, 600x600mm Luminaires
STEP 1:
Unpack the CR troffer from its shipping container.
STEP 2:
Place the CR troffer into the T bar ceiling panel.

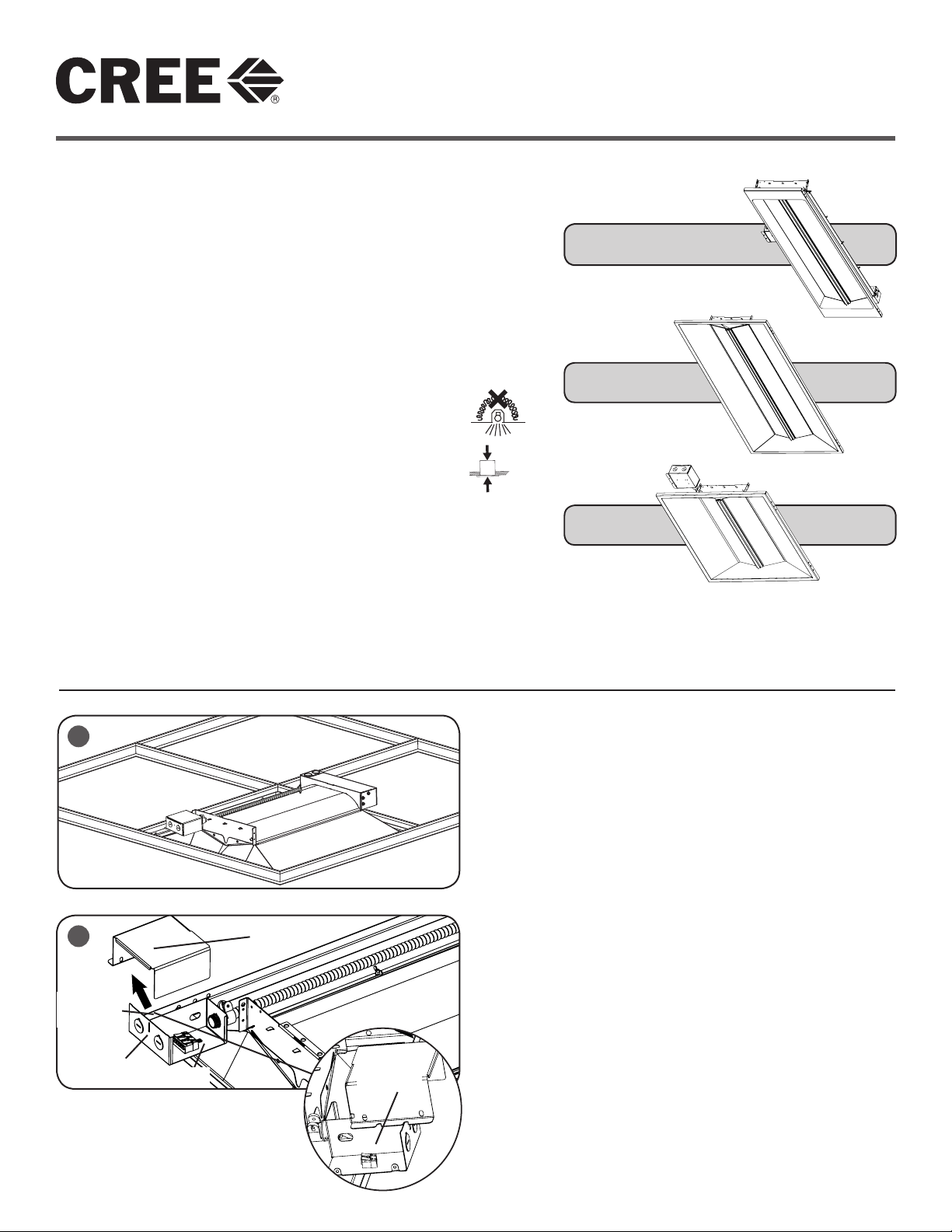

Assembly should fit tight and not need fasteners. See
Figure 1.
STEP 3:
Locate electrical junction box. Remove junction
box cover to access the luminaire’s power wiring
terminal block. See Figure 2.
STEP 4:
Using a screw driver blade, remove appropriate
wiring knockout from junction box. Connect
customer supplied power conduit to Junction
box using appropriate customer supplied conduit
fittings. See Figure 2.
STEP 5
If luminaire has a dimming option using a screw
driver blade, remove appropriate knockout from
the junction box. Connect customer supplied
dimming conduit to Junction box using appropriate
customer supplied conduit fittings. See Figure 2.
STEP 6:
Install appropriate customer supplied wiring into
conduits and luminaire’s junction box.
TO INSTALL:
• TheCRSeriesofrecessedtroffersisfornon-insulatedceilingapplicationsonly,usingT-Barceilinggrid.
• Designedforuseon220-240V,50-60Hzprotectedcircuits(fusebox,circuitbreaker).Recommendedsupplywireintoluminaireis1.5mm2to
2.5mm2strandedorsolid,rated90°Corhigher.
• SupplywireforbranchcircuitsizedinaccordancewithNationalandLocalelectricalwiringcodesrated90°Corhigher.
1
2
CR14
CR24
IMPORTANT SAFETY INFORMATION
Read all instructions before installation
WARNING - Risk of Electric Shock.
1. Beforeinstallingthisluminaireordoinganymaintenance,make sure to
turnoffthepoweratthecircuitbreakerorfusebox.
2. Donothandleenergizedmodulewithwethandsorwhenstandingonwet
ordampsurfaces,orinwater.
3. This luminaire must be installed in accordance with the national and
localbuildingcodesandelectricalwiringcodesincludingwiringmethods
and wiring connections. If you are not familiar with these codes and
requirements,consultaqualiedelectrician.
4. Thefollowingarenotprovided:conduit,cable,ttings,terminalblocksand
wireconnectors.RefertoCree’sRequirementsforElectricalInstallation
Materialssheetprovidedwithluminaire.
5. Luminairesuitablefordamplocations.
6. Suitableforsuspendedceilingsifaccessaboveceilingisprovided.
7. DO NOT install insulation material within 76mm (3in) of any part of
luminaire.
8. Lensportionofluminaire,intendedforroomside,issuitablefor
IP23locations.Remainderportionofluminaireisonlysuitablefor
IP20locations.
9. When looping-in the Mains supply wiring for connecting multiple
luminaires,DONOTexceedthe16AMPratingoftheluminaireterminal
block
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
Junction Box Cover
Junction Box Dimming
connection
(optional)
Dimming
connection
(optional)
Power
Connection
IP20
IP23
CR22

LPN000139_D
2 of 2
www.cree.com/lighting
© 2014 Cree, Inc. All rights reserved. For informational purposes only. Content is subject to change. See
www.cree.com/lighting/products/warranty for warranty and specifications. Cree® and the Cree logo are
registered trademarks.
ELECTRICAL CONNECTIONS
POWER CONNECTIONS
Conductor External Internal
LINE BROWN BROWN
NEUTRAL BLUE BLUE
PROTECTIVE EARTH GREEN/YELLOW GREEN/YELLOW OR
UNINSULATED BARE
0-10V OR DALI DIMMING CONNECTIONS (OPTIONAL)
Conductor External Internal
0-10V/DALI CONTROL (+) VIOLET VIOLET
0-10V/DALI CONTROL (-) GREY GREY
EARTH
BROWN
SWITCH
BLUE
GREY
VIOLET
NEUTRAL
CONTROL (+)
(DIMMING OPTIONAL)
CONTROL (-)
BROWN
DRIVER ASSEMBLY
BLUE
LINE
GREEN/
YELLOW
GREEN/YELLOW OR
UNINSULATED (BARE)
VIOLET
GREY
VIOLET
DRIVER ASSEMBLY
JUNCTION BOX A
JUNCTION BOX B
DRIVER ASSEMBLY
STEP 7:
NOTE: Refer to Cree’s Requirements for Electrical Installation Material
sheet provided with luminaire. Terminal block and wire connectors
are not provided.
Make electrical connections per “ELECTRICAL CONNECTION”
section and secure wiring into place using customer supplied cable
ties.
STEP 8:
Push all wires back into the junction box and re-install the junction box
cover ensuring no wires are pinched.
