D-Link DPH-150S User manual

DPH-150S/DPH-150SE
VERSION 3.00

DPH-150S/
VoIP Phone
DPH-150SE
CD-ROM(containing
Manual and Quick
Installation Guide)
Quick Installation Guide
Ethernet Cable
Power adaptor
Wall-mounting
screw pack
Warranty & Safery
Information
Handset cord
Handset
DPH-150S/DPH-150SE
2
Base bracket
Before You Begin
This product can be set up using the Keypad and a Web browser such as Internet
Explorer.
If you purchased this product to make a VoIP call, you must have either an
Ethernet-based Cable or a DSL modem with an active connection to the Internet.

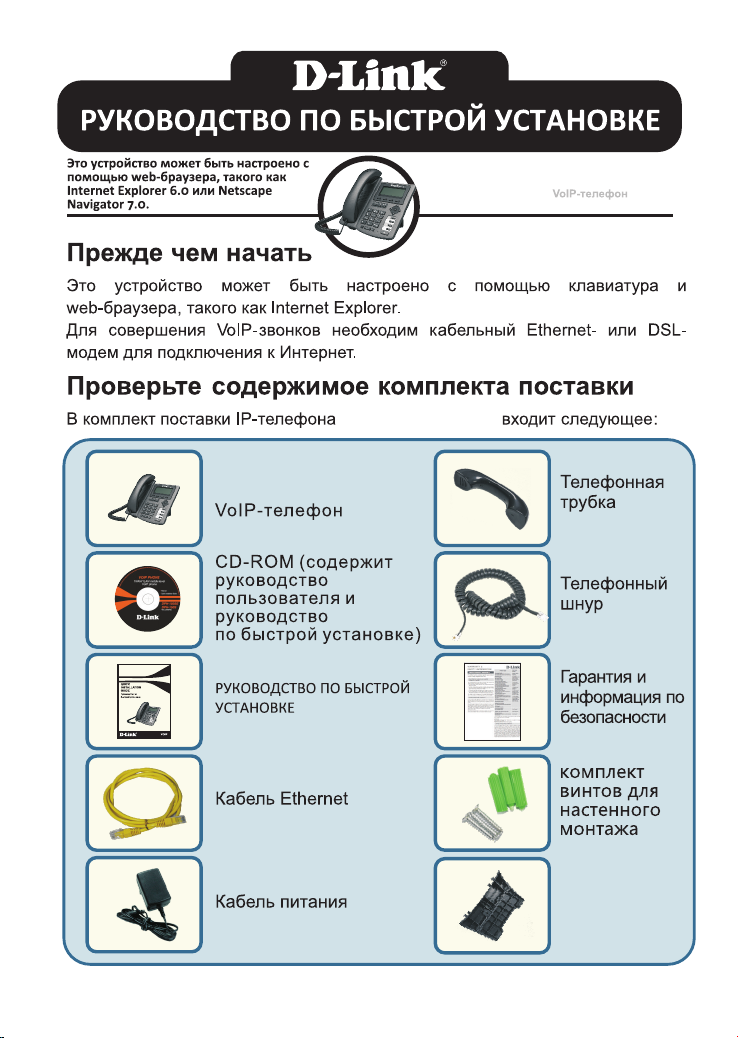

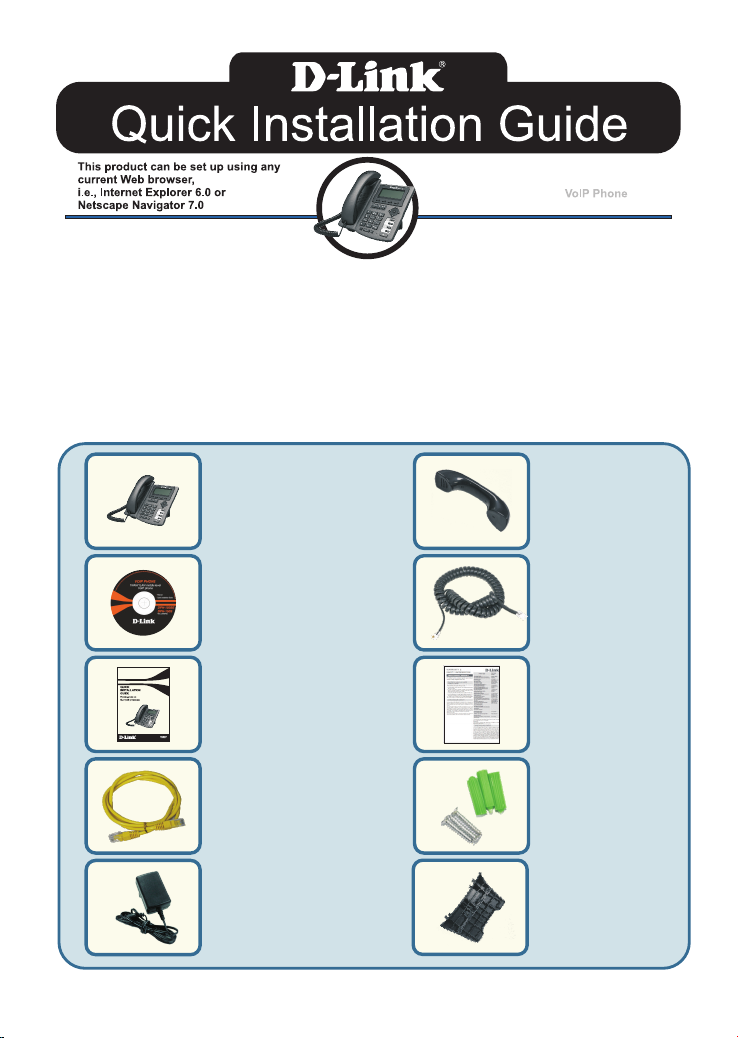

Check Your Package Contents
These are the items included with your DPH-150S/DPH-150SE IP Phone
purchase:
DPH-150S/DPH-150SE
VERSION 3.00

Text Mode
Key Normal(ABC) Numeric(0-9)
Text Mode
Key Normal(ABC) Numeric(0-9)
1
2
3
4
5
6
7
8
9
0
*
#
ABCabc
DEFdef
GHIghi
JKLjkl
MNOmno
PQRSpqrs
TUVtuv
WXYZwxyz

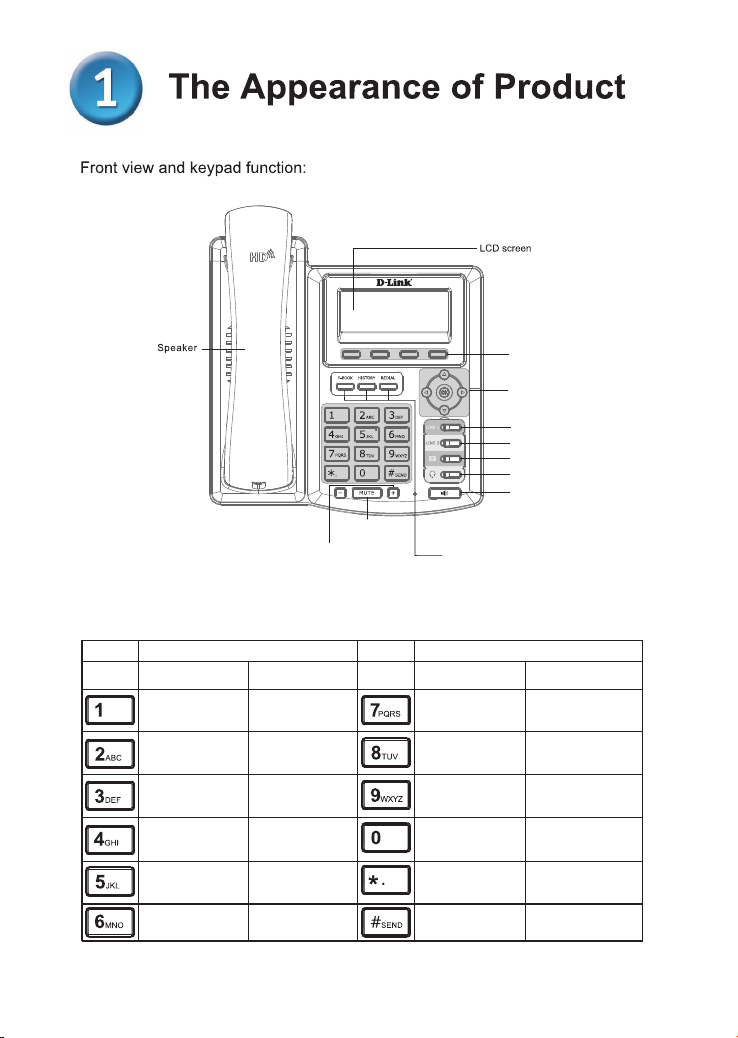

You can press these number keys one or more times to complete the corresponding input
when you want to do some input on the LCD.
#@,.:/$%&
()<>[]~!_=+-?
3
SMS
Headset
Rls
Line1
Navigation key
Soft Function key
Speaker
Mute
Volume Control Key
Pbook
History
Redial
DPH-150S

4

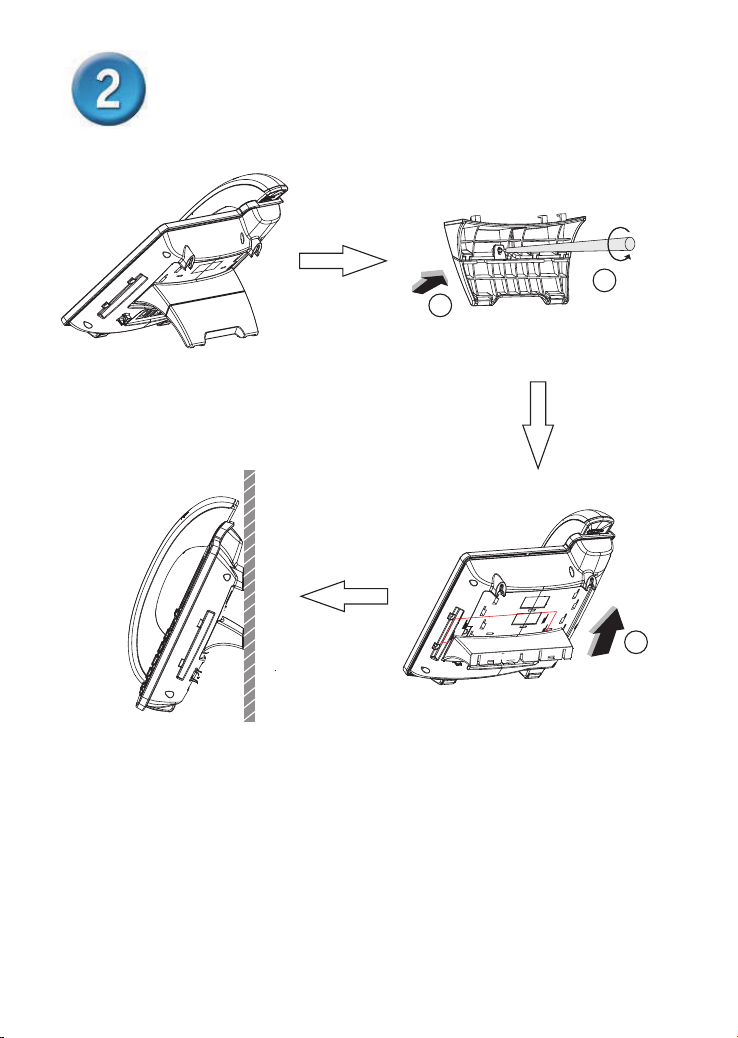

Wall Mounting
3
1
2

PC port
EXT Console
Headset Port
Handset Port
WAN connection port(Connect
to POE Switch only for DPH-150SE)
5
Power adapter port
(5V 1A DC)

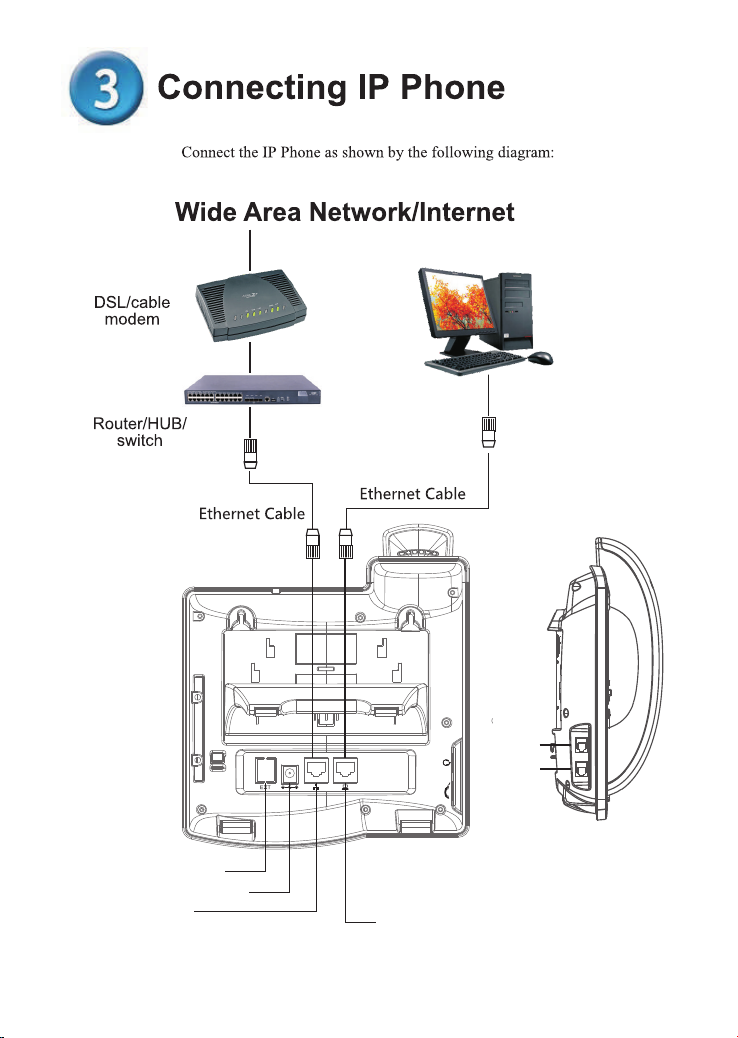

Network mode Settings diagram:
(1)
Press Menu Key
Select Settings
Select Network
Select WAN
ADSL DialUP
Enable/Disable
Enable Disable
DHCP
Enable/Disable
Disable
Enable
Network
Configuration:Auto
Select Net Mode
IP/Netmask/
Gateway/DNS Set
Select Static Set
Select Password:
********
Select PPPoE Set
Select Account:
username
6

(2)
The menu of phone Structure:
Status
Settings
Applications
Menu
Features
Phonebook
Call Logs
Reboot System
7
Keyboard
Screen Settings
Ring Settings
Voice Volumn
Time &Date
Greeting Word
Language
Mode
WAN IP
Firmware
Network
Accounts
Phone
TR069
Basic Settings
Advanced Settings
SMS
Memo
Voice Mail
Ping
All Contacts
Groups
Blacklist
Remote Phonebook
Speed Dial
Call Logs
Missed Calls
Dialed Calls
Received Calls
Accounts
Network
Security
Maintance
Factory Reset
Call Forwarding
Auto Answer
Auto handdown
Call Waiting
DND
Ban Anonymous Call
Ban Outgoing
Hotline
Dial Plan
Dial Peer
Intercom
Auto Redial
Call Completion
Ring From Headset
Power Light
Hide DTMF
Password Dial

DPH-150S/DPH-150SE
8

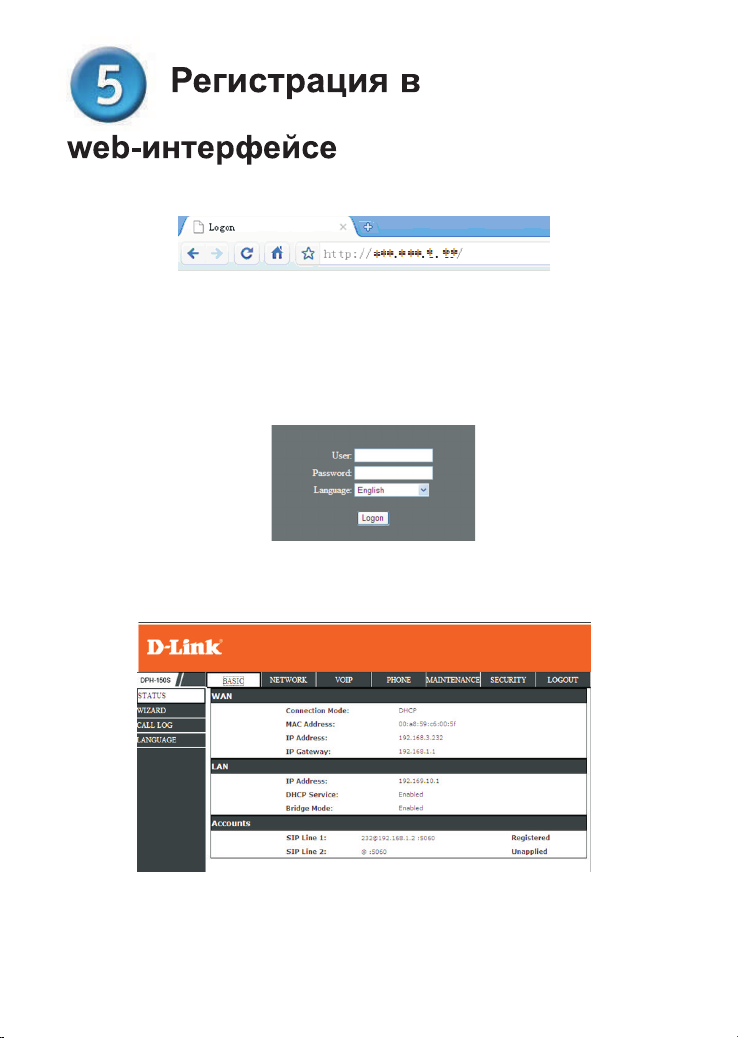

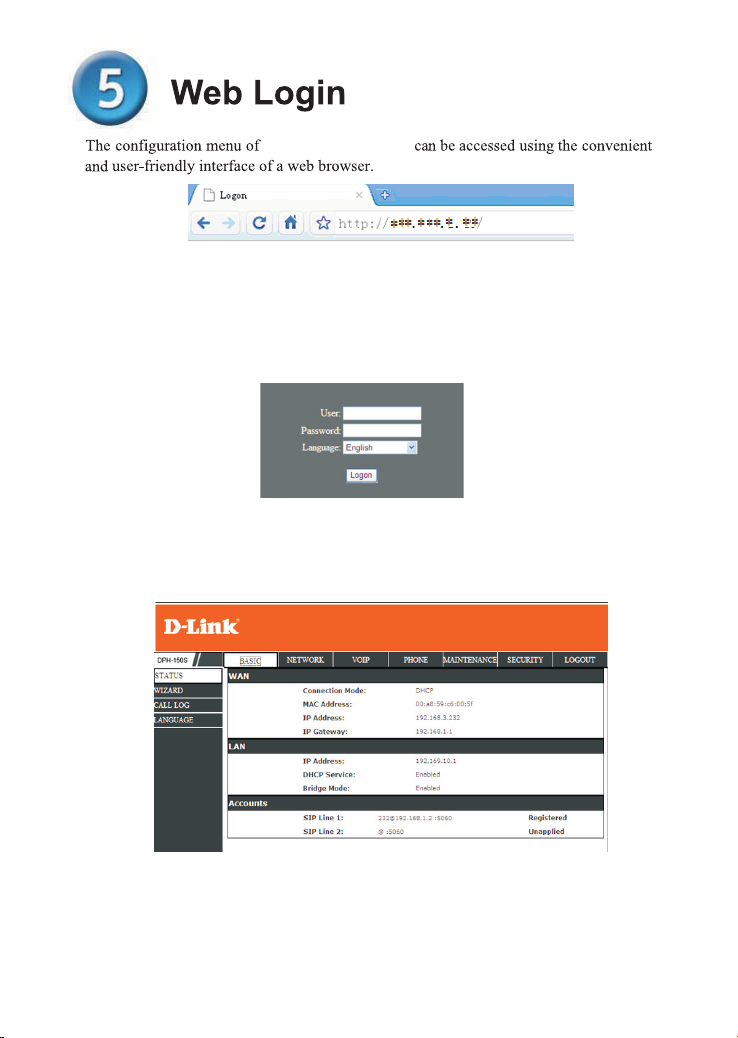

Open your web browser (ie. Internet Explorer, Firefox…).
Type in the IP address of the phone.
IP address is provided by your Internet Service Provider (ISP). If your ISP
supports DHCP, you may obtain the IP address from your phone. Press “down”
key to get IP address.
You can also login from LAN port through http://192.168.10.1
Enter Username and password;
The default Username and Password are “admin”.
Please see the following screen after login. Include BASIC, NETWORK, VOIP,
PHONE and so on.

9

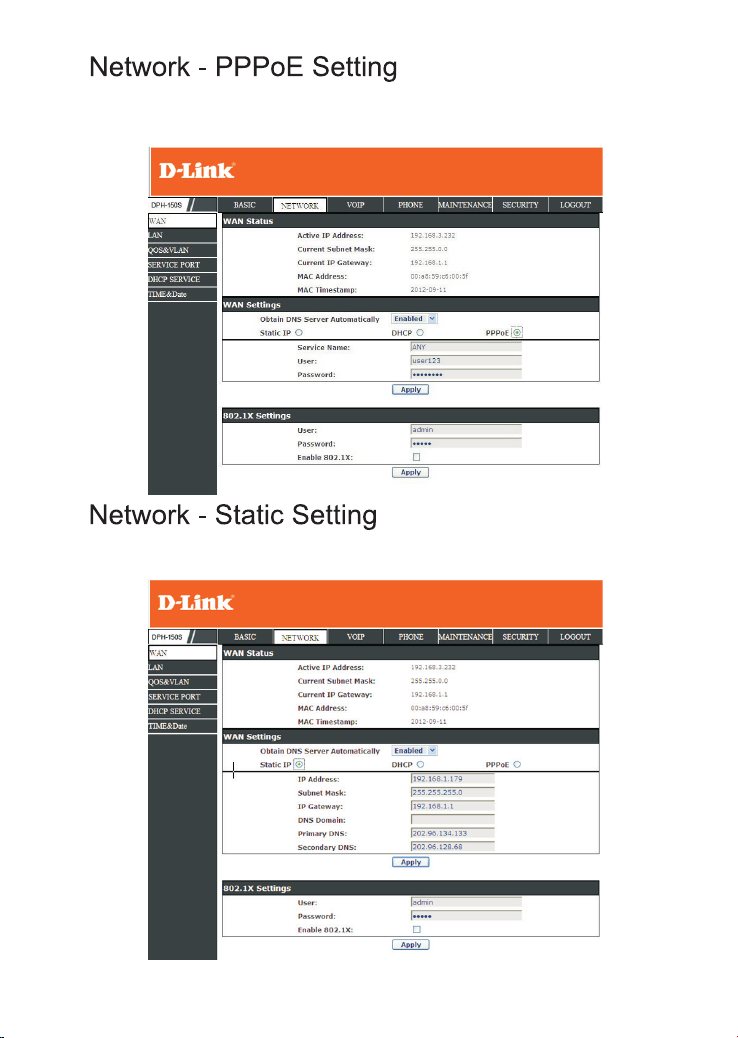

Select Network from the main menu.
Select PPPoE as network connection type if your ISP uses PPPoE. (Most DSL
users use PPPoE.)
Select Static IP as network connection type if all Wide Area Network IP is provided
to you by your ISP.

10

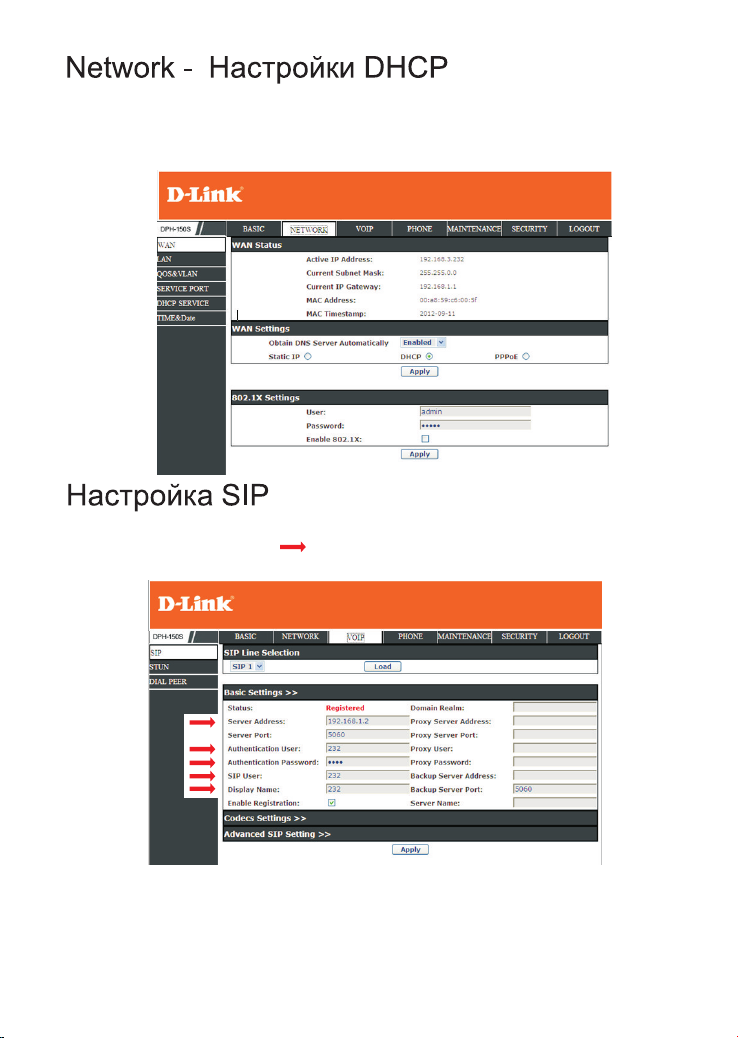

Select DHCP as network connection type that allows the network administrator
to distribute IP addresses when this IP Phone is plugged into a different place in
the network.
Select SIP Settings from the main menu. The following fields with “ ” are
required. Then click Apply to register phone to SIP server.
Server Address SIP server address
Server Port SIP server port number
SIP Account Name Username for logging into the SIP server
Password Password for logging into the SIP server
Phone number SIP phone number

11

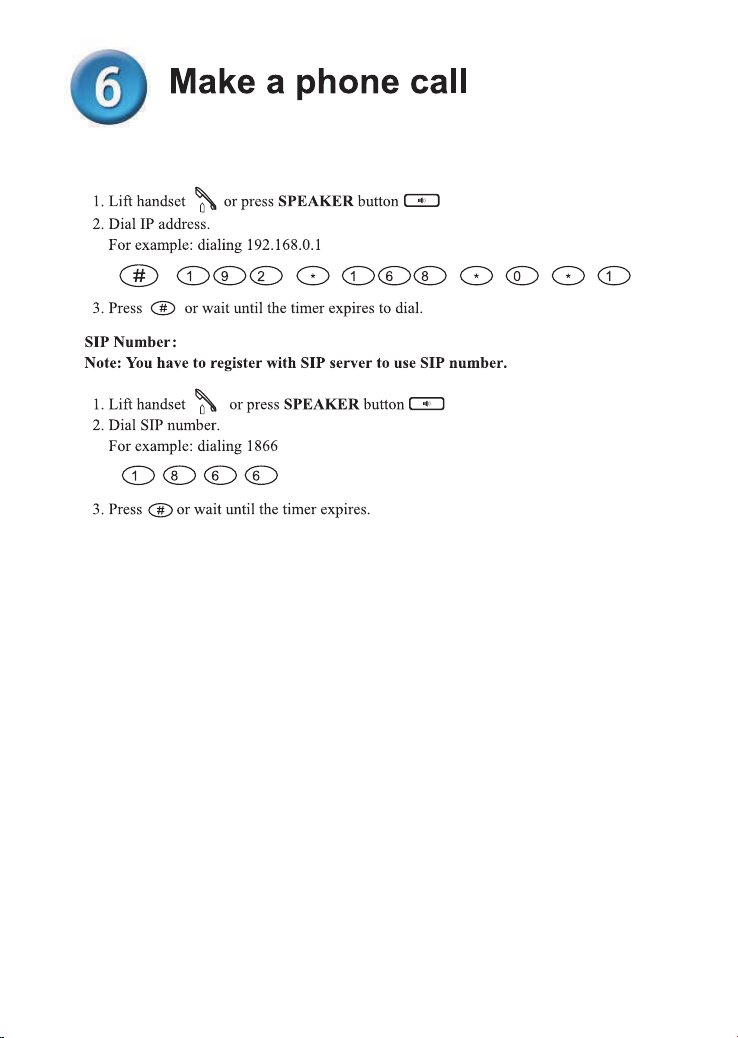

IP Address:

DPH-150S/DPH-150SE
DPH-150S/DPH-150SE
DPH-150S/DPH-150SE
12
Базовое
крепление
DPH-150S/DPH-150SE
VERSION 3.00

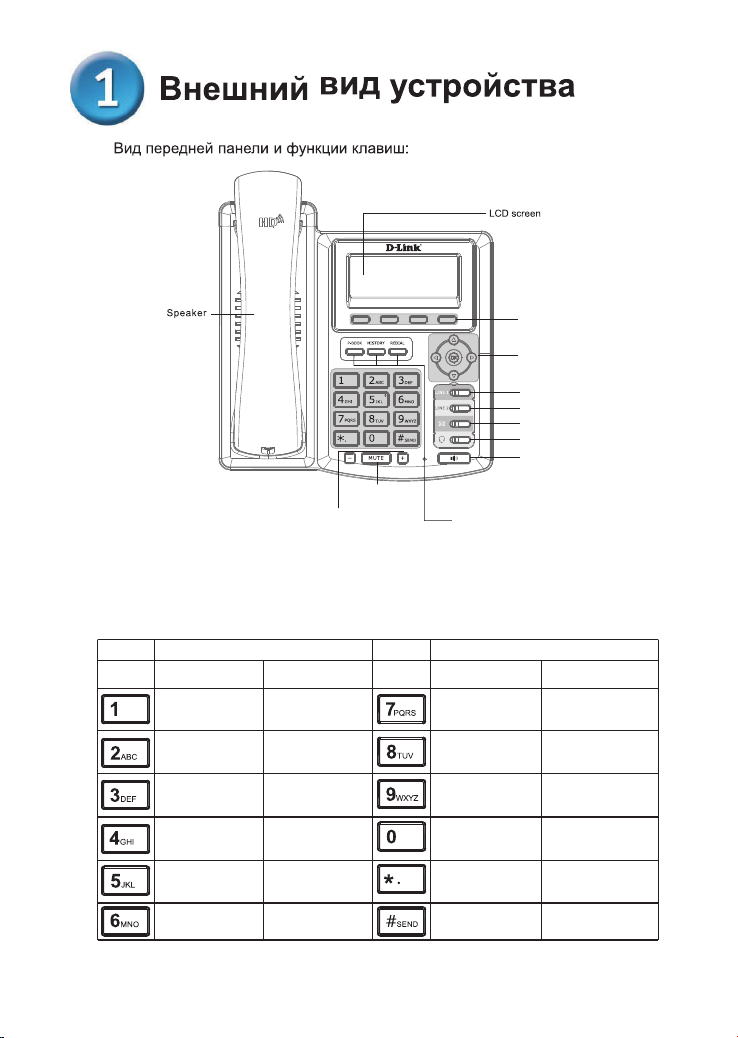

SMS
Headset
Rls
Line1
Navigation key
Soft Function key
Speaker
Mute
Volume Control Key
Pbook
History
Redial
Text Mode
Key Normal(ABC) Numeric(0-9)
Text Mode
Key Normal(ABC) Numeric(0-9)
1
2
3
4
5
6
7
8
9
0
*
#
ABCabc
DEFdef
GHIghi
JKLjkl
MNOmno
PQRSpqrs
TUVtuv
WXYZwxyz
#@,.:/$%&
()<>[]~!_=+-?
13
Клавиатура телефона поддерживает ввод информации в текстовом и
цифровом формате, что может использоваться, например, для ввода
идентификатора и пароля ADSL-провайдера и создания записей
телефонной книги.
DPH-150S

14

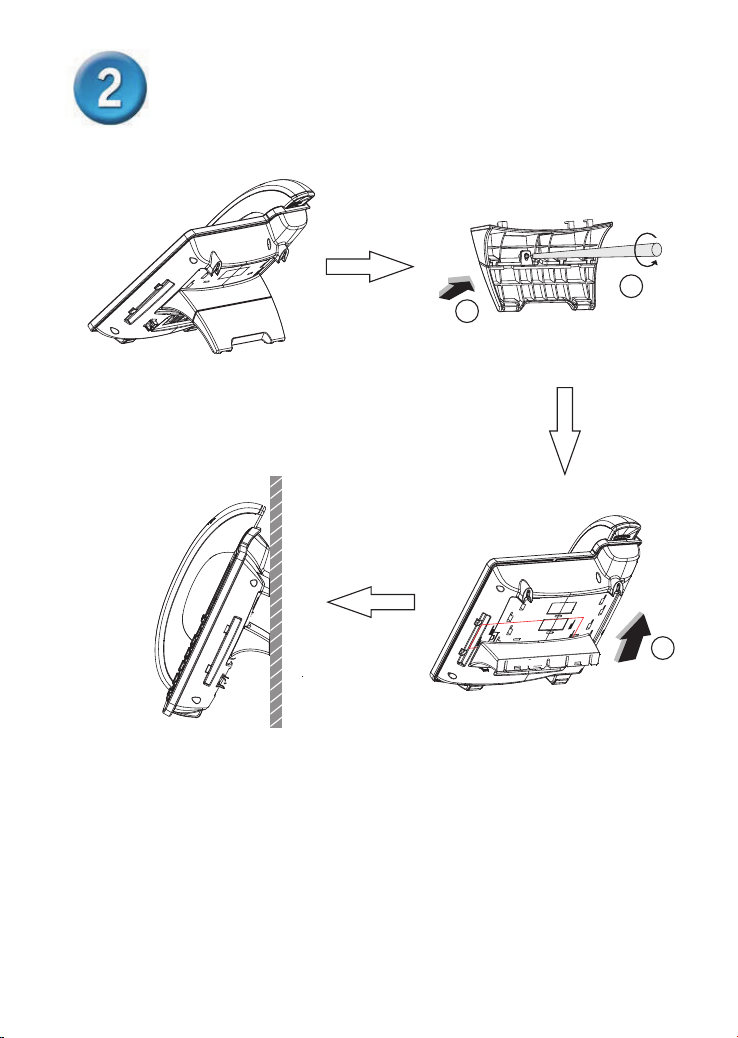

Крепление к стене
3
1
2

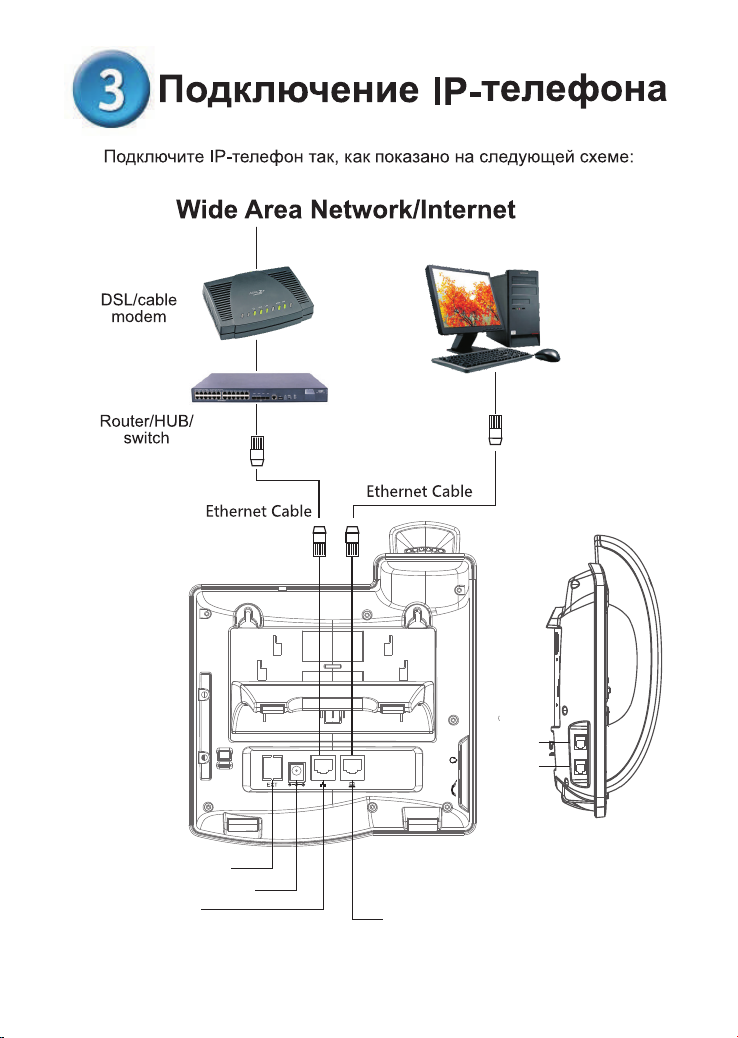

Headset Port
Handset Port
15
PC port
EXT Console
WAN connection port(Connect
to POE Switch only for DPH-150SE)
Power adapter port
(5V 1A DC)

Press Menu Key
Select Settings
Select Network
Select WAN
ADSL DialUP
Enable/Disable
Enable Disable
DHCP
Enable/Disable
Disable
Enable
Network
Configuration:Auto
Select Net Mode
IP/Netmask/
Gateway/DNS Set
Select Static Set
Select Password:
********
Select PPPoE Set
Select Account:
username
(1)
16

(2)
17
Status
Settings
Applications
Menu
Features
Phonebook
Call Logs
Reboot System
Keyboard
Screen Settings
Ring Settings
Voice Volumn
Time &Date
Greeting Word
Language
Mode
WAN IP
Firmware
Network
Accounts
Phone
TR069
Basic Settings
Advanced Settings
SMS
Memo
Voice Mail
Ping
All Contacts
Groups
Blacklist
Remote Phonebook
Speed Dial
Call Logs
Missed Calls
Dialed Calls
Received Calls
Accounts
Network
Security
Maintance
Factory Reset
Call Forwarding
Auto Answer
Auto handdown
Call Waiting
DND
Ban Anonymous Call
Ban Outgoing
Hotline
Dial Plan
Dial Peer
Intercom
Auto Redial
Call Completion
Ring From Headset
Power Light
Hide DTMF
Password Dial

18
Доступ к меню конфигурации DPH-150S/DPH-150SE можно получить
с помощью пользовательского web-интерфейса.
Откройте web-браузер (например, Internet Explorer, Firefox) и введите IP-
адрес телефона
IP-адрес предоставляется провайдером или администратором сети. Если
провайдер использует протокол DHCP, телефон получит IP-адрес
автоматически. Нажмите клавишу “down” для просмотра IP-адреса.
Также, можно войти в систему через порт LAN: http://192.168.10.1
Введите Имя пользователя: “admin” и пароль: “admin”
После авторизации появится следующий экран, который включает
настройки BASIC, NETWORK, VOIP, PHONE и т.д.

19

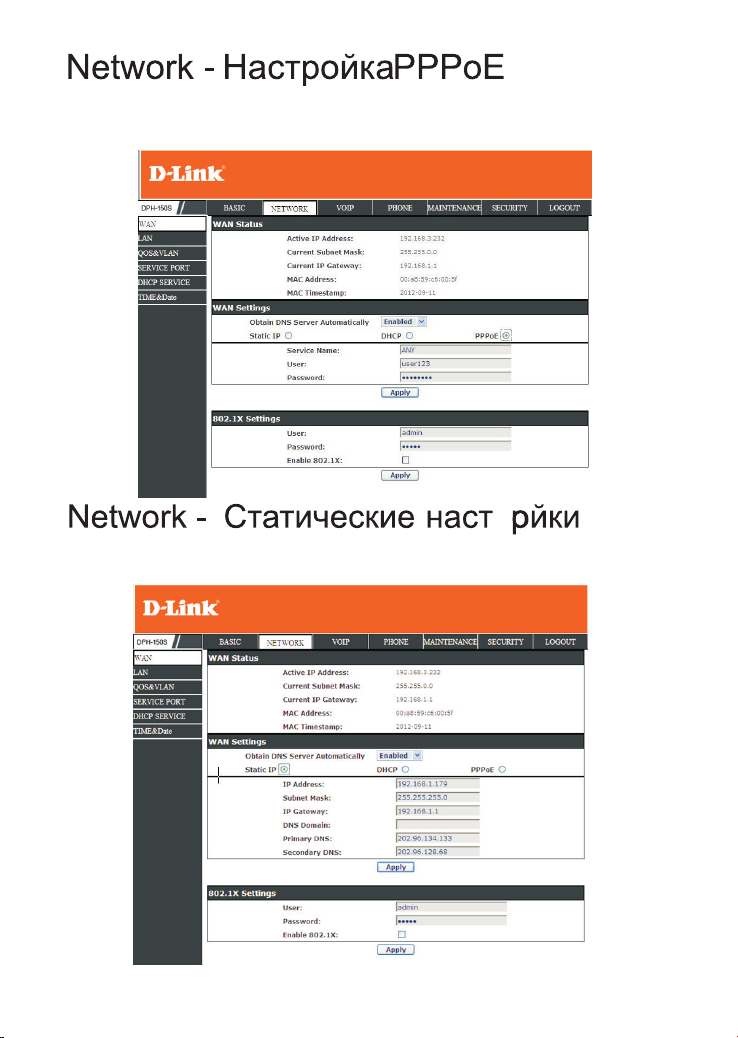

Выберите Network из главного меню.
Выберите PPPoE в качестве типа сетевого соединения, если провайдер
использует PPPoE. (Большинство DSL-пользователей использует PPPoE.)
Выберите Static в качестве типа сетевого соединения, если провайдер
предоставил Вам статический IP-адрес

20

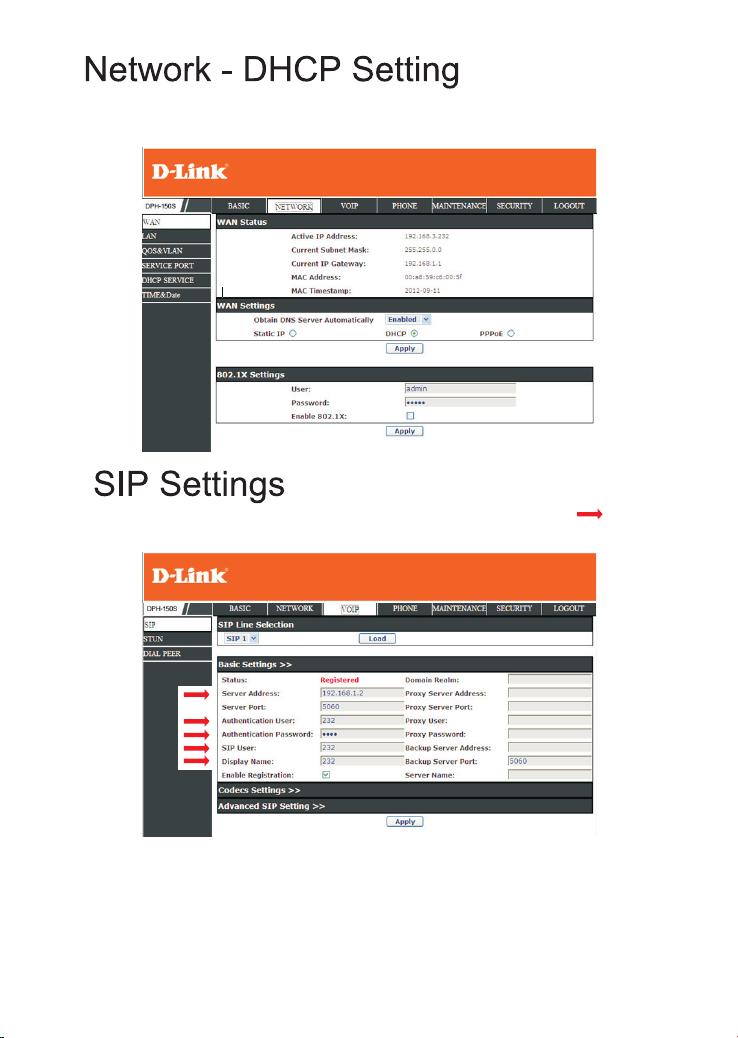

Выберите DHCP в качестве типа сетевого соединения, если провайдер
использует данный тип соединения.
DHCP позволяет автоматически получить IP-адрес при подключении
телефона к сети.
Выберите SIP Settings из главного меню. Необходимо заполнить поля,
отмеченные стрелкой “ ”. Затем нажмите на Apply для регистрации
телефона на SIP-сервере.
Server Address IP-адрес SIP-сервера
Server Port Номер порта SIP-сервера
SIP Account Name Имя пользователя для регистрации на SIP-сервере
Password Пароль для регистрации на SIP-сервере
Phone number Номер телефона SIP
