2D-Link DPH-125MS Quick Install Guide

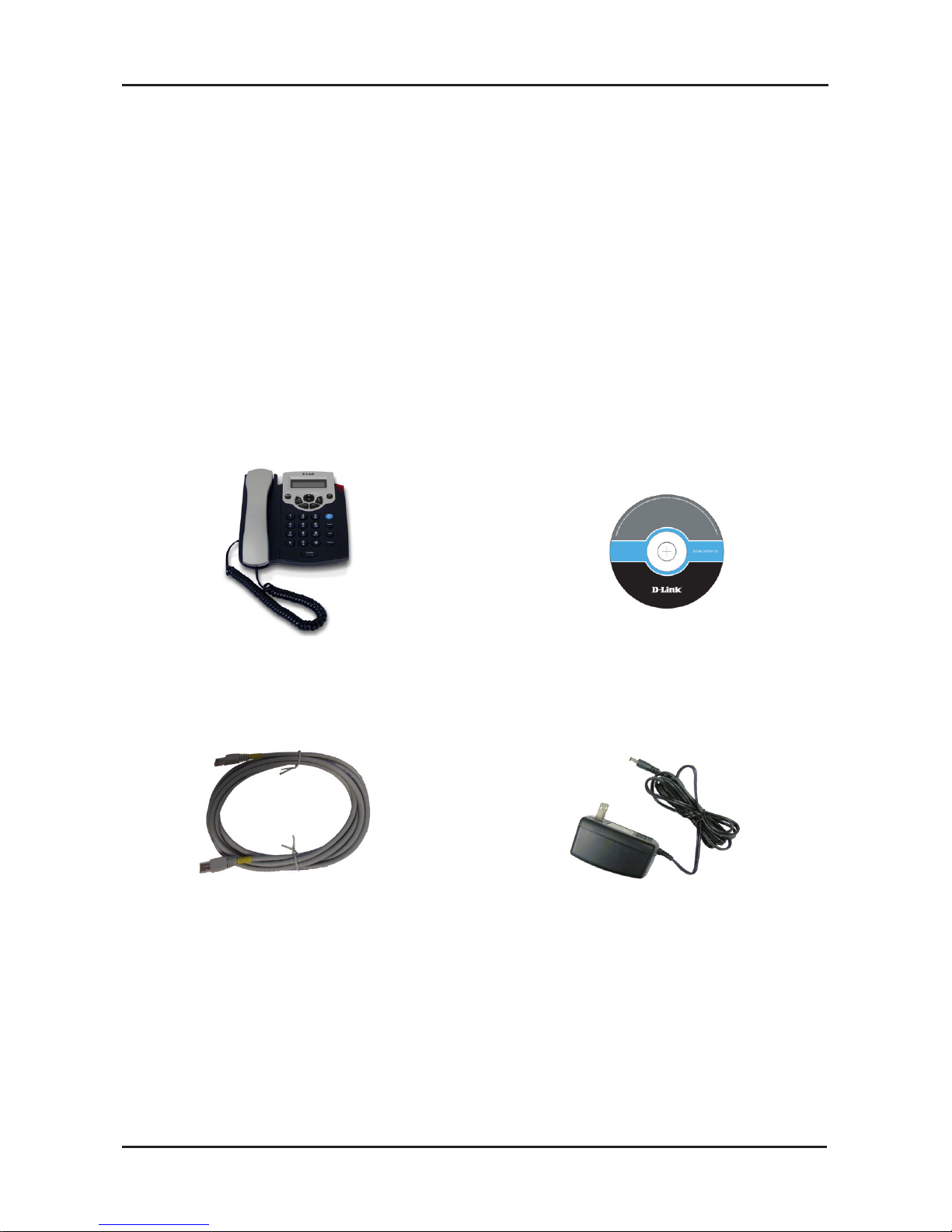

Package Contents
System Requirements
If any of the above items are missing, please contact your reseller.
Manual and QIG on CD
D-Link DPH-125MS IP Phone
CAT5 Ethernet Cable Power Adapter
Note: Using a power supply with a different voltage rating than the one included with
the DPH-125MS will cause damage and void the warranty for this product.
• Computers with Microsoft®Windows®XP or Windows Vista™
operating systems with an installed Ethernet adapter
• Internet Explorer Version 6.0, Mozilla 1.7.12 (5.0), or Firefox 1.5
and above (for configuration)

3 D-Link DPH-125MS Quick Install Guide

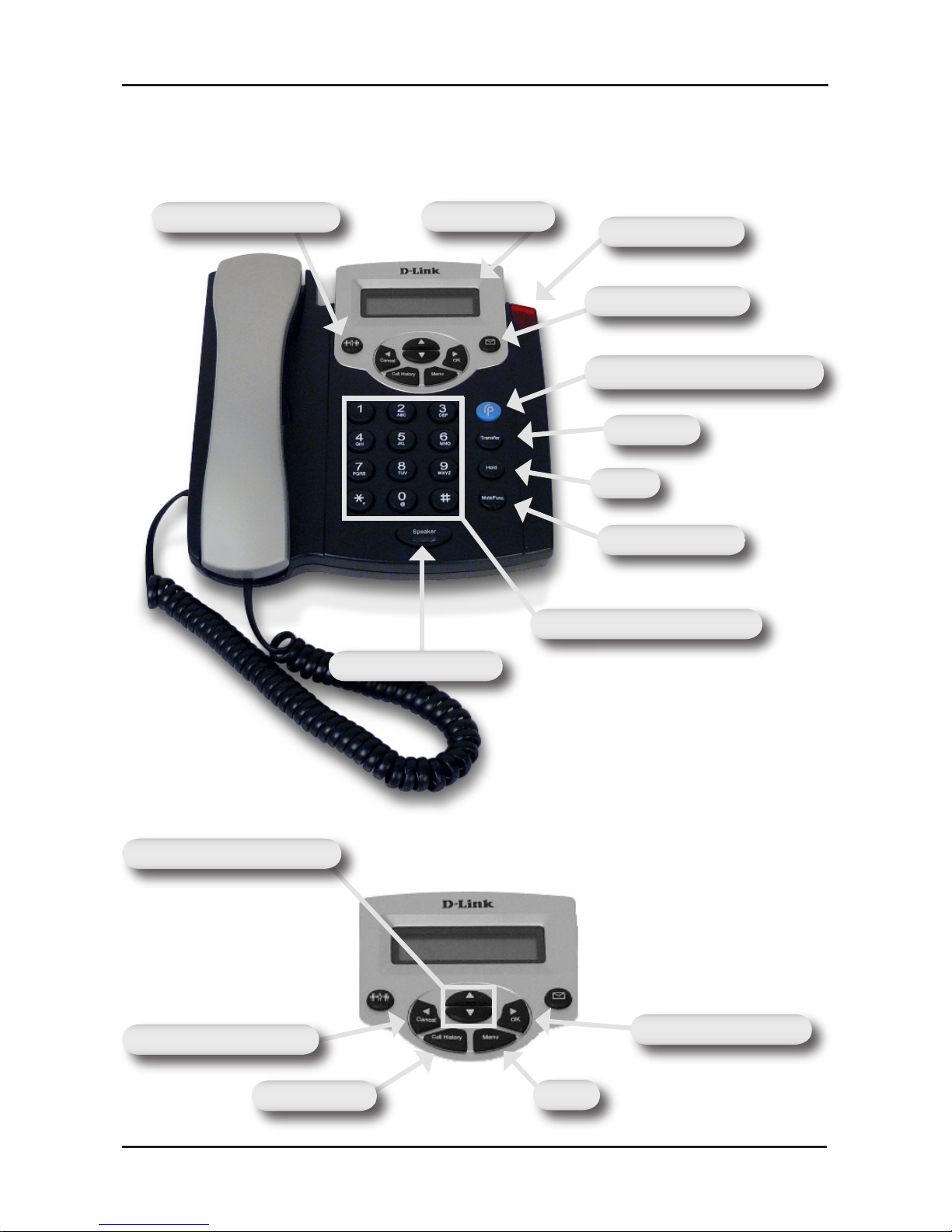

Hardware Overview
Front
Speaker Phone
LCD Display LED Indicator
3-Way Conference
Voice Messages
Response Point Button
Transfer
Hold
Mute/Function
Alphanumeric Keypad
Right-Arrow / OK
Call History Menu
UP/Down Arrow Keys
Left-Arrow / Cancel

4D-Link DPH-125MS Quick Install Guide

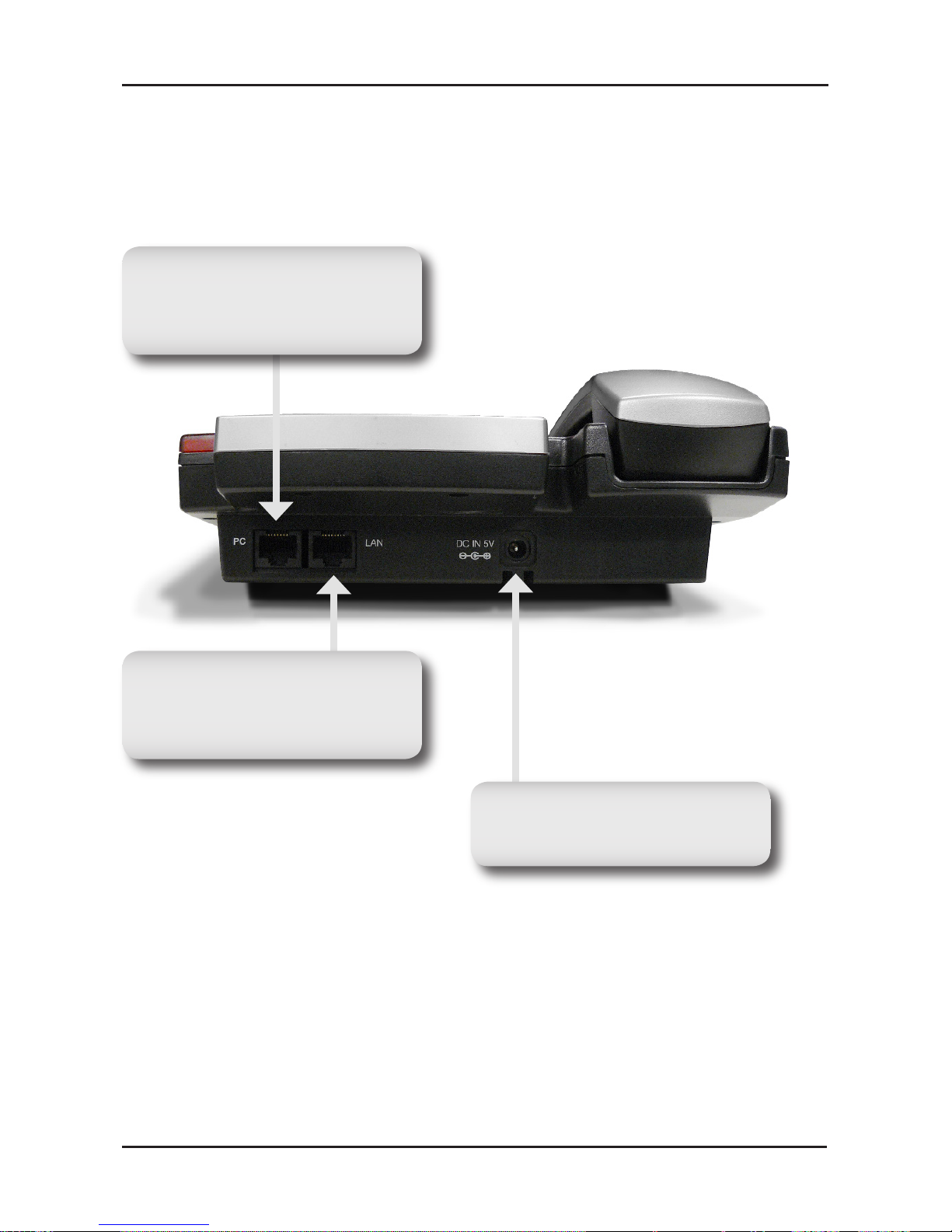

Hardware Overview
Rear
PC Port
Used to connect the IP Phone
through Ethernet cable to your
PC.
LAN Port
Used to connect the IP Phone
through Ethernet cable to your
Local Area Network.
Power Receptor
Receptor for the supplied power
adapter.

5 D-Link DPH-125MS Quick Install Guide
Connect one end of the Ethernet cable to the LAN port on the IP
Phone and connect the other end of the Ethernet cable to your Local
Area Network using your hub, or switch.
Plug the power adapter into an AC outlet or power strip and plug the
other end into the AC input on the phone. The Power LEDs will light
up to indicate proper connection.

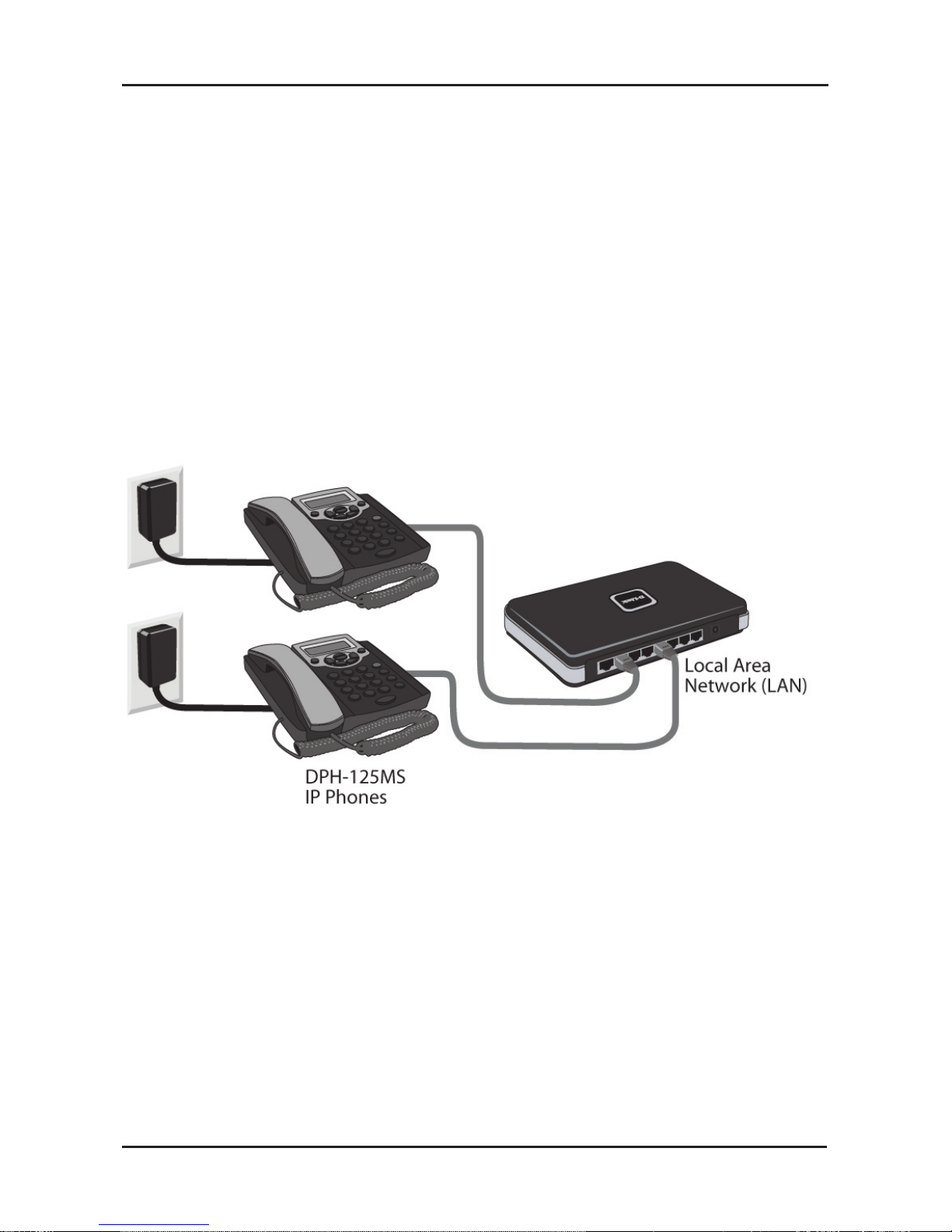

When you have connected the IP Phone to your network it should
look like the diagram below.
Installation

6D-Link DPH-125MS Quick Install Guide
Configure the DPH-125MS IP Phone
Note: Microsoft®Response Point™Administrator only operates with
Windows®XP SP2 or Windows Vista™.
Open Microsoft Response Point Administrator to configure the IP
Phone using the Configure Phone Wizard. Use the following steps
to configure the IP Phone:

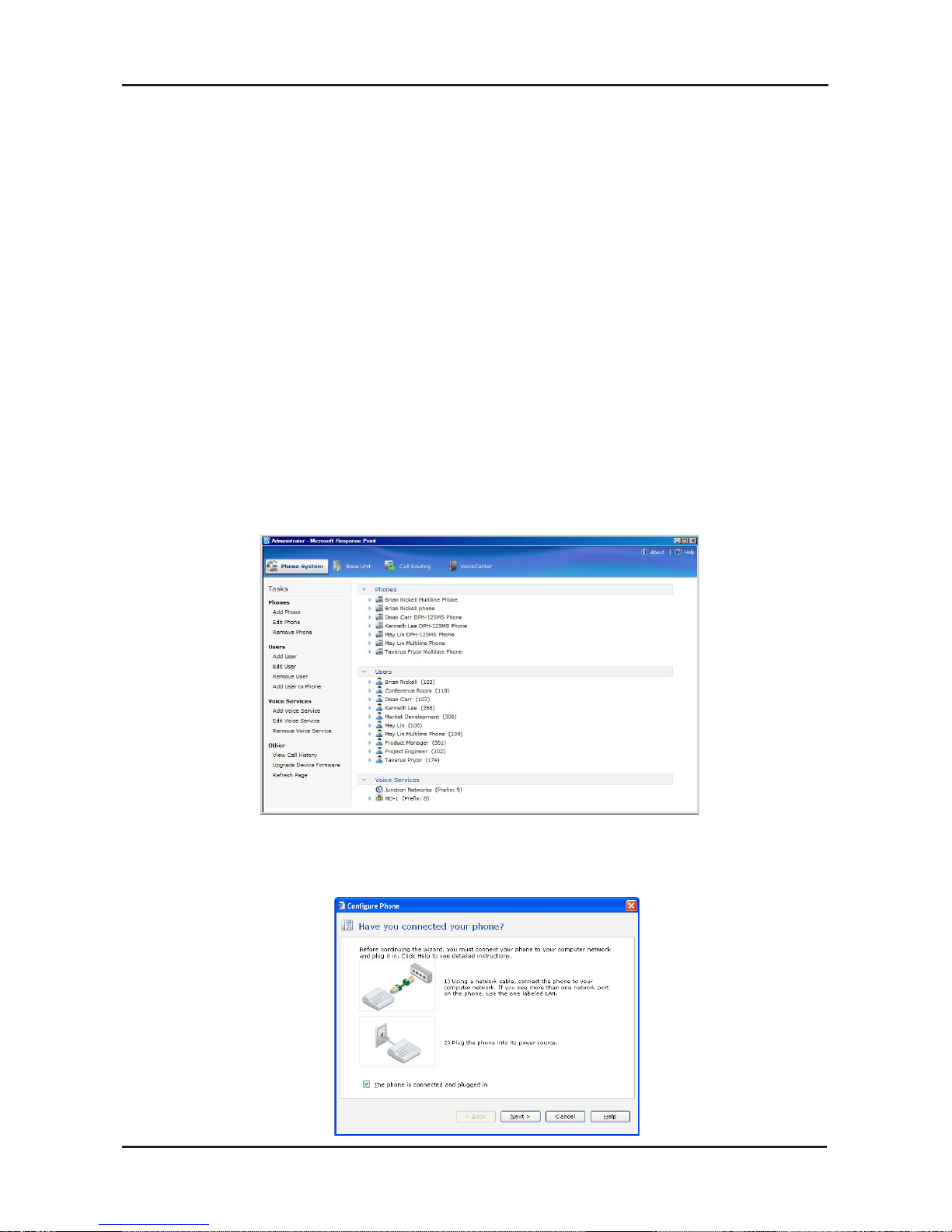

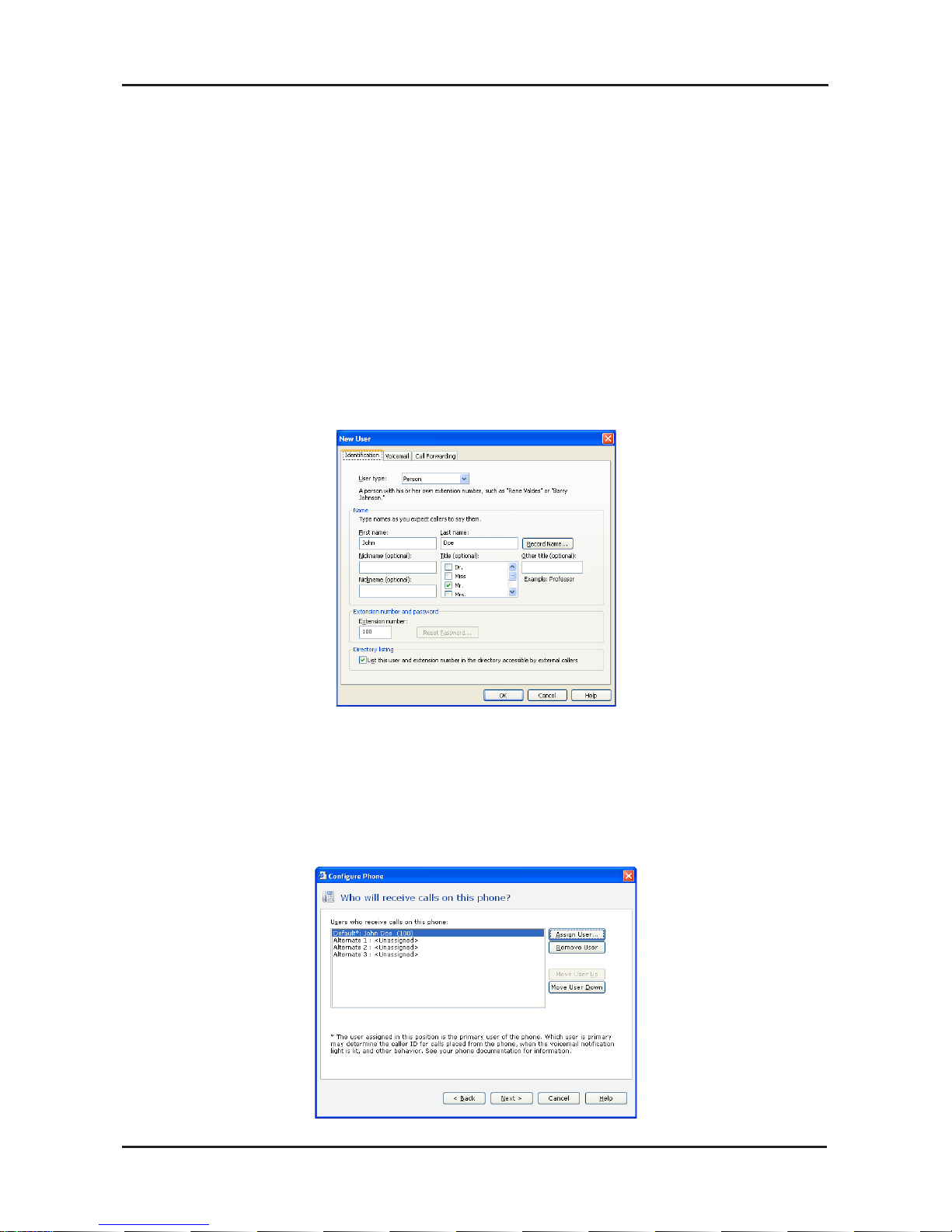

In Microsoft Response Point Administrator, click the Phone System
tab at the top of the screen if necessary.
In the Tasks panel, under Phones, click Add Phone to launch the
Configure Phone Wizard.
Select the check box confirming the IP Phone is connected and
plugged in. Click Next to continue.

7 D-Link DPH-125MS Quick Install Guide

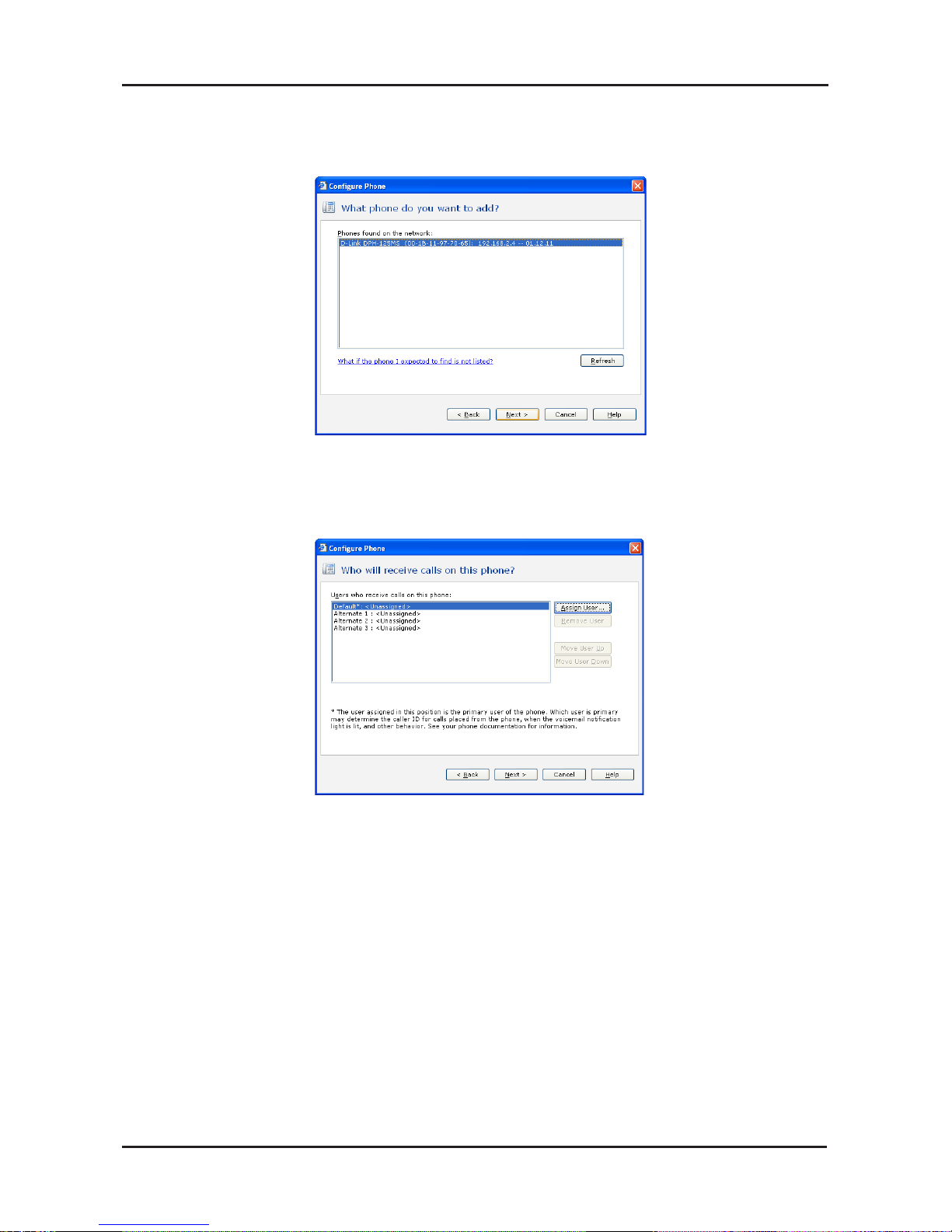

Select the D-Link DPH-125MS IP Phone you just connected and click
Next to continue.
For this step, you will add a new user and assign that user to the
phone you just configured. Click Assign User to open the New User
screen.

8D-Link DPH-125MS Quick Install Guide
On the Identification tab, in the User Type box, select Person from
the drop down menu if it is not already selected.
In the Name boxes, type the first and last name, and optional
nicknames or titles of the person who will use this phone.You should
specify nicknames and titles if you think callers will use when asking
for this user.
In the Extension number box, change the extension number if
desired and click OK to continue.
You have now assigned the person’s name to Line 1 with the extension
number you specified. You can assign up to 3 additional users to this
phone or click Next to continue.

9 D-Link DPH-125MS Quick Install Guide

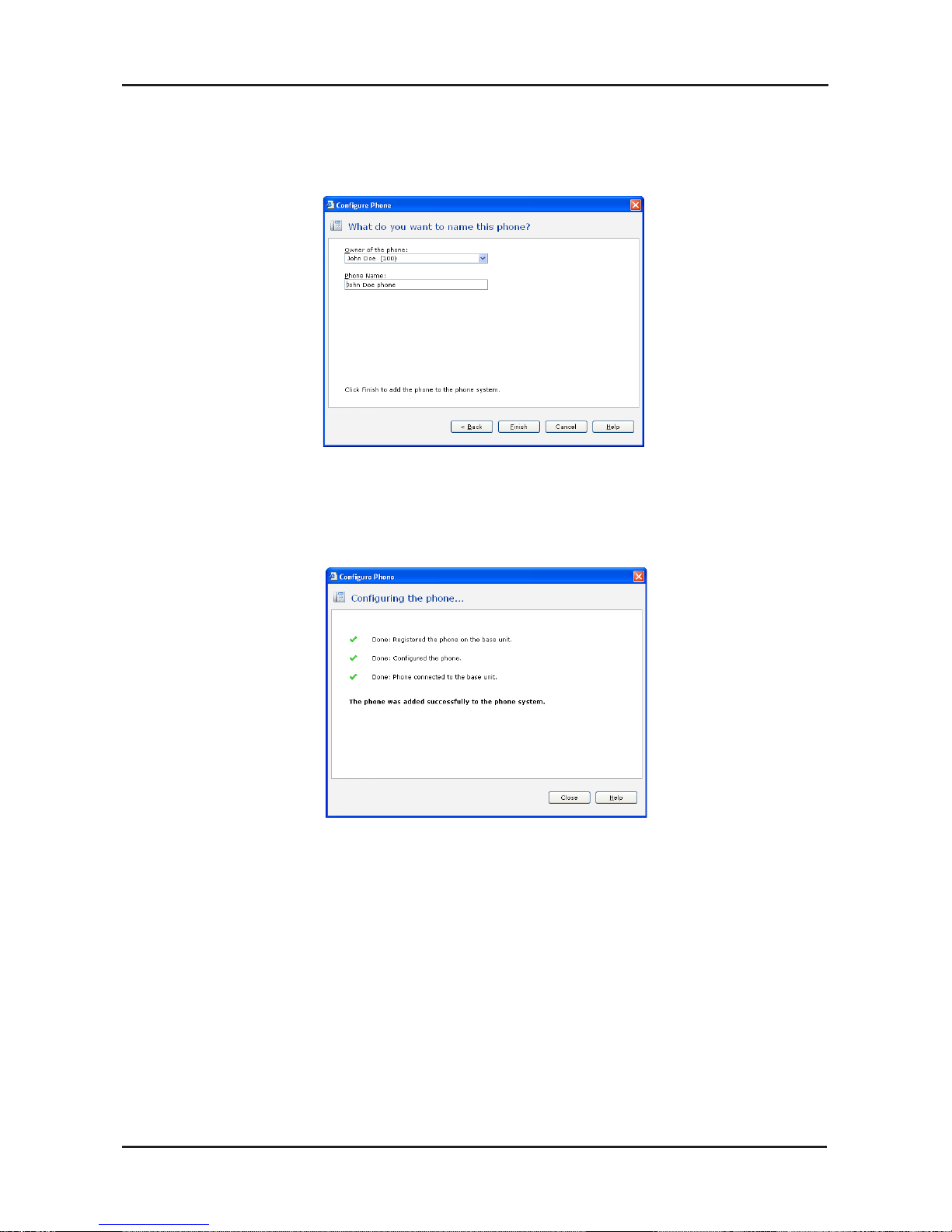

The owner and phone name have automatically been created for you.
Click Finish to continue.
The IP Phone has been successfully added to the phone system. Click
Close to exit the configuration wizard.

10D-Link DPH-125MS Quick Install Guide
Phone Installation List
Use this list as an aid in adding the DHP-125MS IP Phone and users
to Microsoft® Response Point™Administrator. Take this list to each
computer where a DPH-125MS IP Phone is located and record the
last 4 digits of the MAC address. You can find the MAC address by
pressing the MENU key and then press the UP Arrow key three times.
Write down the user name to be assigned to each phone with the
corresponding MAC address.
MAC ADDRESS USER NAME

11 D-Link DPH-125MS Quick Install Guide
MAC ADDRESS USER NAME

12D-Link DPH-125MS Quick Install Guide
Technical Support
D-Link’s website contains the latest user documentation and
software updates for D-Link products.
U.S. and Canadian customers can contact D-Link Technical
Support through our website or by phone.
United States
Telephone
[phone]
World Wide Web
http://support.dlink.com
Canada
Telephone
[phone]
World Wide Web
http://support.dlink.com
Version 1.2
September 24, 2008
