Drive Nitro RTL10266 User manual

Rev4.10.23.14
parts list
Item # RTL10266
WeIghT CapaCITy: 300 LBs (136 Kg)

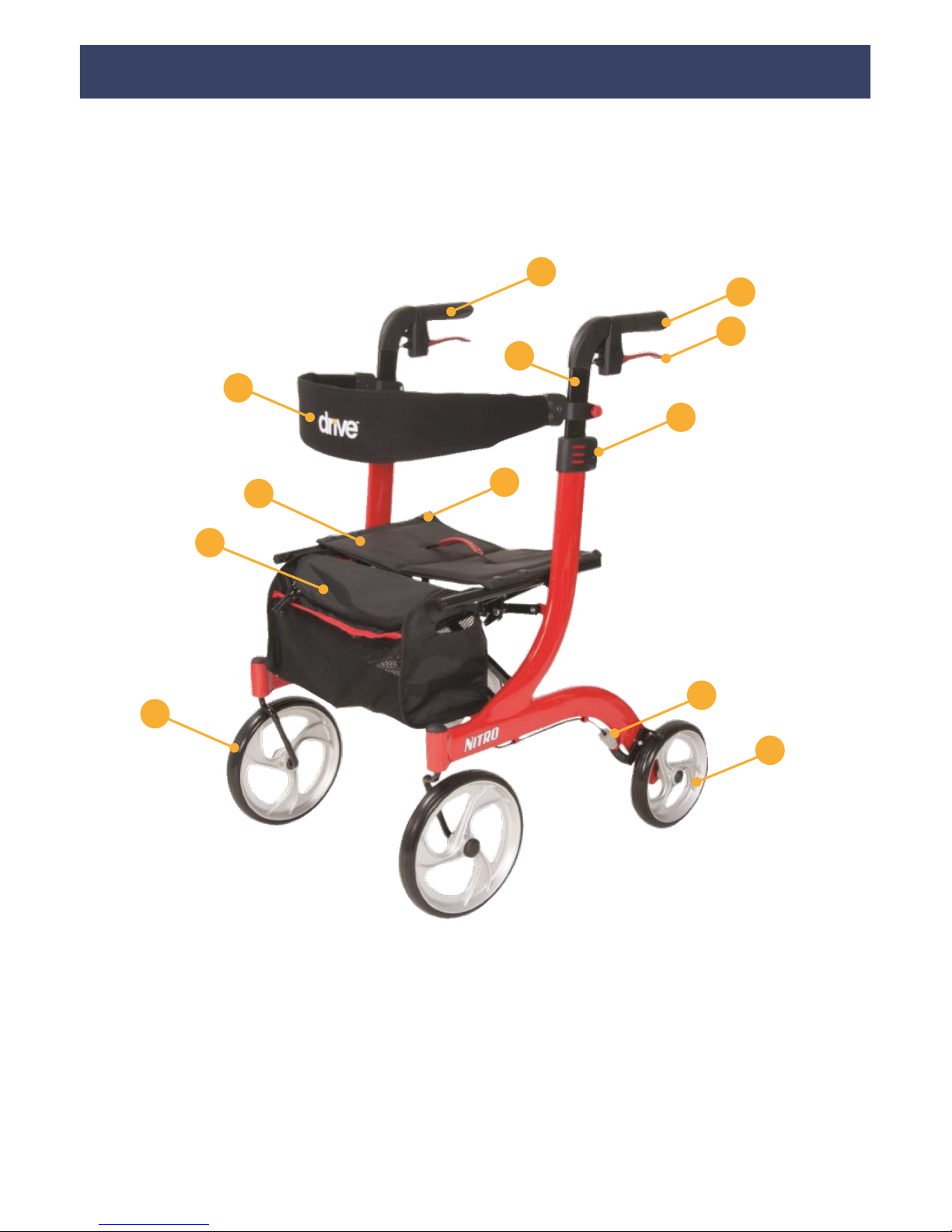

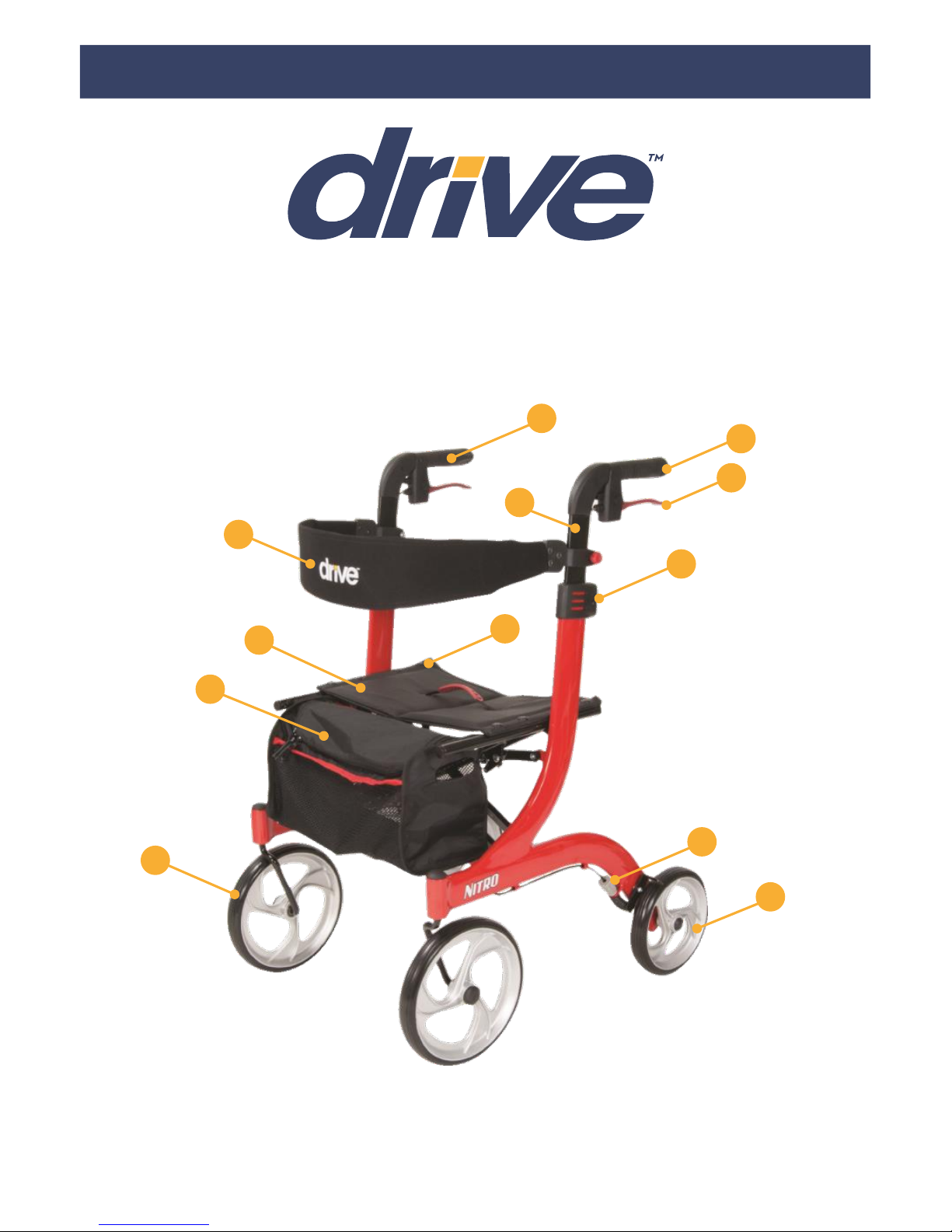

1. Handgrip
2. Adjustable tubing handgrip
3. Rear reflector on handgrip
4. Brake lever
5. Interlock button for handgrips
6. Back Rest
7. Seat
8. Bag
9. Front wheel
10. Brake adjust screw
1
7
8
2
4
11
6
3
5
12
10
9

11. Rear wheel 12. Safety bow
introduction
The Walking aid is suitable for a single user with limited mobility. The nitro is ideal for
indoor and outdoor use.
nitro includes:
1. Bag
2. Back Rest
3. Operating Instructions
unfolding the nitro
Position the Nitro on its
wheels. Open the red
safety bow and lift up
(figure 1). Press both
pipes from the seat
downwards until they
interlock (figure 2).
1
2

Rev4.10.23.14
height adjustment

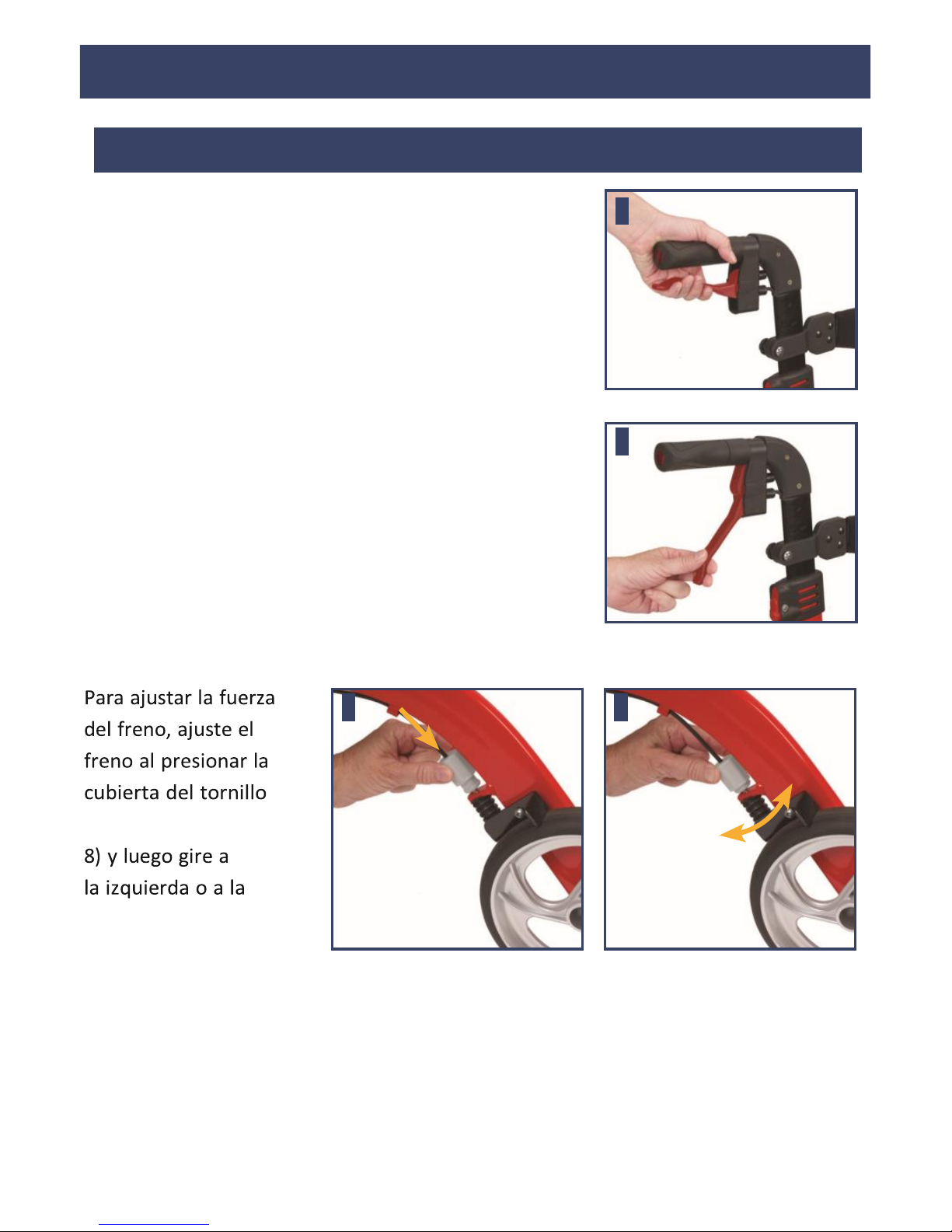

Press the red release buttons for handgrips below, as
shown in figure 3, and pull the handgrip upwards at
the same time. As the handle moves, release the
button. This automatically locks in the next possible
height. Repeat this process until the desired height is
reached.
removing / attaching the
carry bag
To remove bag, twist knobs located on the front end of the seat frame outward
(Figure 4 & 5). Pull out knobs and slide bag out of receptacle. To replace bag,
fold the Nitro slightly and reverse above steps.
4
5
3

braking / locking
Pull both brake levers upwards to apply the brakes
while the Nitro is moving (see figure 6). Always brake
slowly and steady.
Press both brake levers down to apply the locks while
the Nitro is stationary (see figure 7). Pull up the brake
levers and release to release the locks.
The effect of the brakes can be affected by abrasion of
the wheels.
Regularly test the brakes.
adjustment of
brakes
To adjust the braking
strength, adjust the
downwards (figure 8)
8
9
6
7

Rev4.10.23.14
sitting
Position the Nitro on an even and solid surface. Lock the
brakes (parking position). The Nitro must stand and
must not slip. Sit straight up and do not lean backwards.
(See figure 10).
DO NOT MOVE ROLLATOR WHILE SEATED.
folding / transport / storage
safety instructions
•Use only as a walking aid!
•Use only on even and solid surfaces.
•Maximum user weight: 300 lbs.
•Regularly check the screws and fasteners on the Nitro and retighten if necessary.
•Use bag only for transport of objects and do not overload. Maximum load: 11 lbs.
11
12
13
10

•Do not expose the product to temperatures above 104°F for an extended period of
time, as this can cause the Nitro parts to overheat and burn the user.
•Please make sure the Rollator is fully opened, seat is down and the folding bar
under seat is locked in the down position.
•Be sure that both knobs are fully tightened and are at equal heights. Test Rollator
for stability before applying full weight to hand grips.
•Test the brake lever before operating the Rollator. When wheels are locked, lock
bar on rear wheels should prevent wheels from turning. When locks are released,
the wheels should turn freely.
•Always lock the brake lever before sitting and do not use seat when unit is on an
incline or uneven ground.
•Replace tires when significantly worn or damaged.
•DO NOT MOVE ROLLATOR WHILE SEATED. This is a
walking aid only and is not to be used as a transportation device.
cleaning / maintenance
Clean regularly by hand with a damp cloth. Do not use aggressive detergents.

lifetime limited warranty
The frame of your Drive Medical product is warranted to be free of defects in material
and workmanship for the lifetime of the original consumer purchaser. The brake
handle and housing are covered for a period of 5 years of the original consumer
purchaser.
This device was built to exacting standards and carefully inspected prior to shipment.
This Lifetime Limited Warranty is an expression of our confidence in the materials and
workmanship of our products and our assurance to the consumer of years of
dependable service.
This warranty does not cover device failure due to owner misuse or negligence, or
normal wear and tear. The warranty does not extend to
non-durable components, such as rubber accessories, casters, and grips, which are
subject to normal wear and need periodic replacement.
If you have a question about your Drive device or this warranty, please contact an
authorized Drive dealer.
Warning: The items and packaging in this shipment contain chemicals known to the
state of California to cause cancer, birth defects or other reproductive harm.
*This product meets or exceeds all federal safety and environmental regulations.

© 2014 Medical Depot, Inc. All rights reserved.
Drive is a trademark of Medical Depot, Inc.
Port Washington N.Y. 11050 USA Made in China
