INSTRUCTION MANUAL
BExCS110-05D-P& BExCS110-05D-R-P
Combined Sounder & Beacon
ATEx/IECEx & UKEx Gas & Dust
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: [phone]
Document No. D210-00-601-IS Issue 8 12-09-2022 Sheet 1 of 7

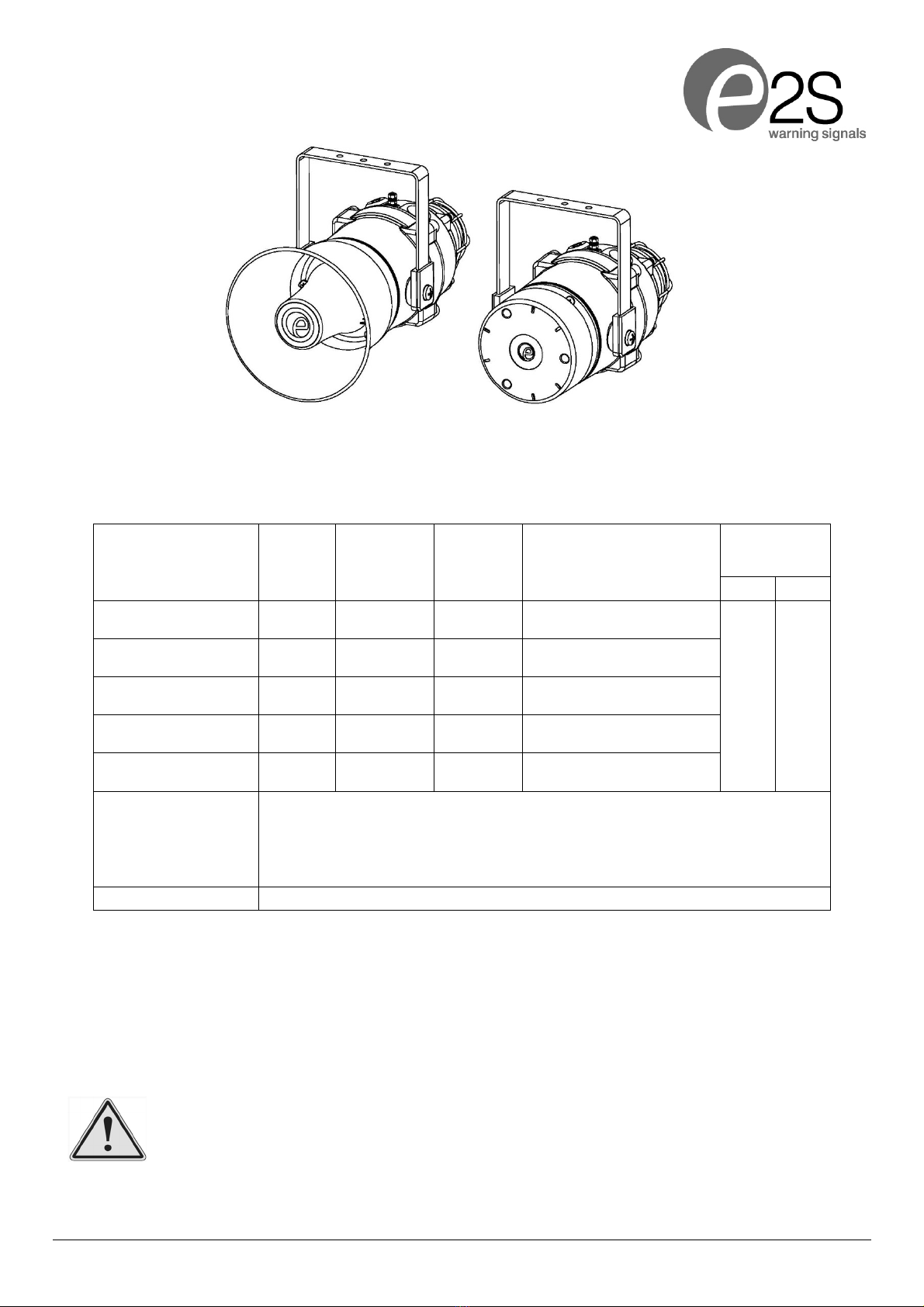

BExCS110-05D-P BExCS110-05D-R-P
1. Product Table
Unit Type Code
Nominal
Input
Voltage
Sounder
Nominal
Input Current
Beacon
Nominal
Input Current
Max I/P Voltage
Sound
Pressure Level
dB(A)
Max* Nom
.†
BExCS110-05DPDC012 /
BExCS110-05DPDC012-R 12Vdc 195mA 750mA 14V
Flare:
117dB(A)
Radial:
115dB(A)
Flare:
110dB(A)
Radial:
110dB(A)
BExCS110-05DPDC024 /
BExCS110-05DPDC024-R 24Vdc 265mA 300mA 28V
BExCS110-05DPDC048 /
BExCS110-05DPDC048-R 48Vdc 130mA 180mA 54V
BExCS110-05DPAC115 /
BExCS110-05DPAC115-R 115Vac 110mA 140mA 126V
BExCS110-05DPAC230 /
BExCS110-05DPAC230-R 230Vac 56mA 55mA 253V
*Max = Tone 4
†
Nom. = Tone 44
The table shows the input current taken by the various units.
The current levels shown above are for the 440Hz Continuous tone @ nominal input voltage.
Nominal current at nominal voltage.
Table 1: Electrical Ratings.
It is important that a suitable power supply is used to run the equipment. The power supply selected must have the necessary capacity
to provide the input current to all of the units.
The above table shows the input current taken by the various sounders and shows the maximum voltage at which the sounders can
be operated:
The input current will vary according to the voltage input level and the frequency of the tone selected.
2. Warnings
 DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT
 DO NOT OPEN WHEN ENERGIZED
 POTENTIAL ELECTROSTATIC CHARGING HAZARD – CLEAN ONLY WITH A DAMP CLOTH
 COVER BOLTS CLASS A4-80
 USE HEAT RESISTING CABLES AND CABLE GLANDS (RATED 110°C) AT AMB. TEMPERATURES OVER
40°C

European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: [phone]
Document No. D210-00-601-IS Issue 8 12-09-2022 Sheet 2 of 7
3. Marking & Rating Information
The BExCS110-05D-P & BExCS110-05D-R-P Alarm Horns comply
with the following standards for hazardous locations:
3.1 ATEX / IECEx & UKEx Ratings
Standards
EN60079-0:2018/IEC60079-0:2017 (ed.7): Explosive
Atmospheres - Equipment General Requirements.
EN60079-1:2014/IEC60079-1:2014 (ed.7): Explosive
Atmospheres - Equipment Protection by Flameproof Enclosures
“d”.
EN60079-31:2014/IEC60079-31:2013 (ed.2): Explosive
Atmospheres - Equipment Dust Ignition Protection by enclosure
“t”.
Model No: Rating
BExCS110-05D-P
/ BExCS110-05D-
R-P
Ex db IIC T5 Gb Ta. -50°C to +40°C
Ex db IIB T4 Gb Ta. -50°C to +70°C
Ex tb IIIC T110°C Db Ta. -50°C to +55°C
Ex tb IIIC T125°C Db Ta. -50°C to +70°C
See Product table for electrical ratings of each unit model
Certificate No. KEMA 01ATEX2223X
IECEx KEM 10.0025X
UL22UKEX2639X
Epsilon x
Equipment Group
and Category:
II 2G
II 2D
CE Marking and
Notified Body No. 2813
UKCA Marking and
Approval Body No.
0518
4. Zones, Gas Group, Category and
Temperature Classification
The units can be installed in locations with the following conditions:
A
rea Classification Gas
Zone 1 Explosive gas air mixture likely to occur in normal
operation.
Zone 2
Explosive gas air mixture not likely to occur in
normal operation, and if it does, it will only exist for
a short time.
Gas Groupings
Group IIA Propane
Group IIB Ethylene
Temperature Classification for Gas Applications
T1 450
o
C
T2 300
o
C
T3 200
o
C
T4 135
o
C
T5 100
o
C (Up to 40°C Ambient)
A
rea Classification Dust
Zone 21 Explosive dust air mixture likely to occur in normal
operation.
Zone 22
Explosive dust air mixture not likely to occur in
normal operation, and if it does, it will only exist for
a short time.
Dust Groupings
Group IIIA Combustible Dusts
Group IIIB Non-Conductive Dusts
Group IIIC Conductive Dusts
E
q
ui
p
ment Cate
g
or
y
2G, 2D
E
q
ui
p
ment Protection Level
Gb, Db,
Maximum Surface Tem
p
erature for Dust A
pp
lications
110°C at +55°C
125°C at +70°C
A
mbient Temperature Range
-50°C to +70°C Gas Groups IIA and IIB
-50°C to +70°C Dust Grou
p
s IIIA, IIIB and IIIC
IP Rating
IP66/67 to EN/IEC60529 and
IP6X to EN/IEC60079-0, EN/IEC60079-31
The unit must only be installed by suitably qualified personnel in
accordance with the latest issues of the relevant standards:
EN60079-14 / IEC60079-14: Explosive atmospheres - Electrical
installations design, selection and erection
EN60079-10-1 / IEC60079-10-1: Explosive atmospheres -
Classification of areas. Explosive gas atmospheres
EN60079-10-2 / IEC60079-10-2: Explosive atmospheres -
Classification of areas. Explosive dust atmospheres
The installation of the unit must also be in accordance with any local
codes that may apply and should only be carried out by a competent
electrical engineer who has the necessary training.

European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: [phone]
Document No. D210-00-601-IS Issue 8 12-09-2022 Sheet 3 of 7
5. Special Conditions for Safe Use
Repair of the flamepath / flameproof joints is not permitted.
The enclosure is non-conducting and may generate an
ignition-capable level of electrostatic charges under certain
extreme conditions (such as high-pressure steam). The user
should ensure that the equipment is not installed in a location
where it may be subjected to external conditions that might
cause a build-up of electrostatic charges on non-conducting
surfaces.
Additionally, cleaning of the equipment should be done only
with a damp cloth.
6. Product Mounting and Access
The location of the unit should be made with due regard to the
area over which the warning signal must be visible. They
should only be fixed to services that can carry the weight of the
unit.
The BEx combined sounder beacon should be secured to any
flat surface using at least two of the three 7mm fixing holes on
the stainless steel U shaped mounting bracket. See Figure
1a.1b. The required angle can be achieved by loosening the
two large bracket screws in the side of the unit, which allow
adjustment of the sounder in steps of 18°. On completion of
the installation then two large bracket adjustment screws on
the side of the unit must be fully tightened to ensure that the
unit cannot move in service.

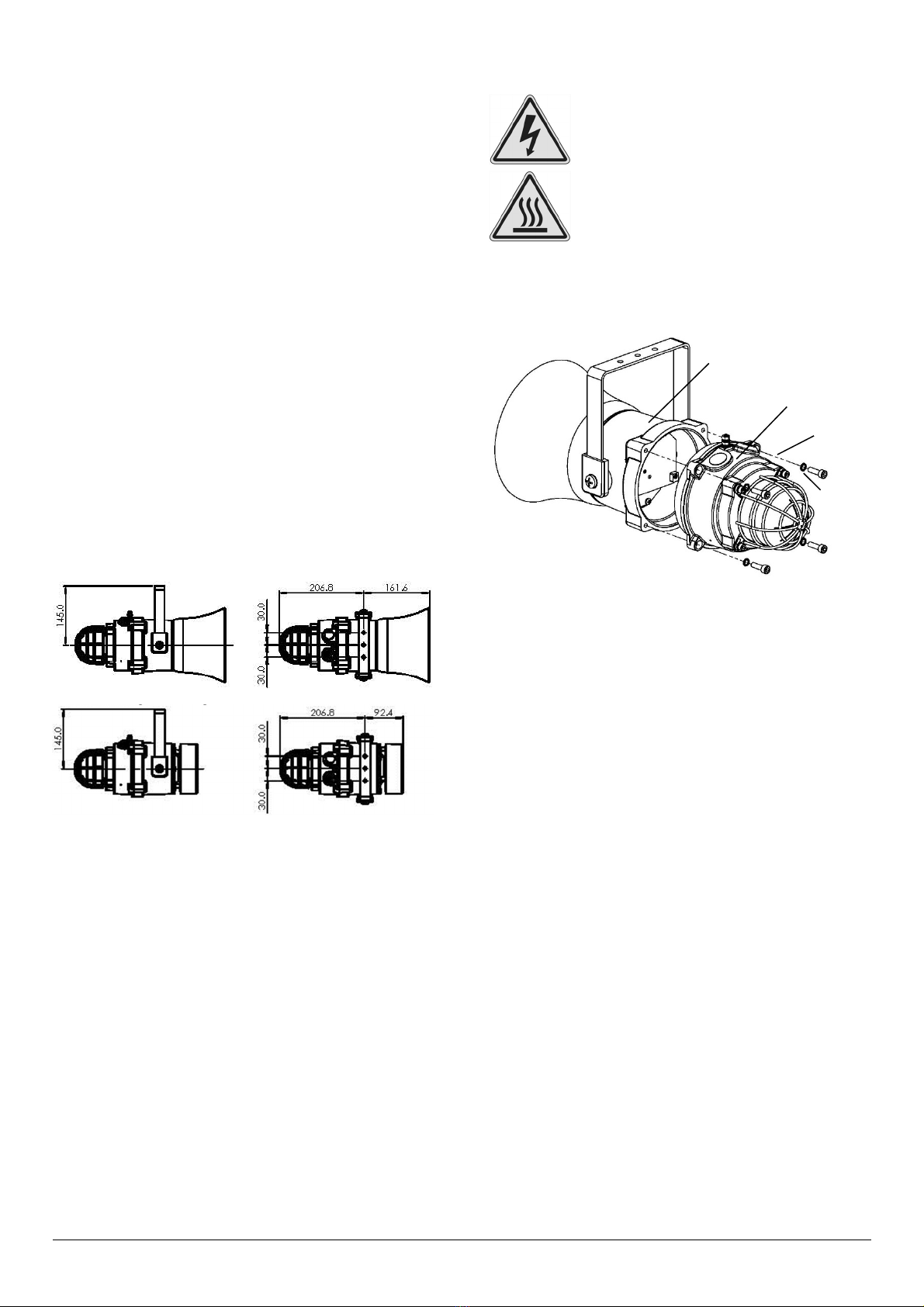

Fig. 1a Fixing Location for Combined Flare
Fig. 1b Fixing Location for Combined Radial
7. Access to the Flameproof Enclosure
To access the Ex d chamber, remove the four M6 hexagon
socket head screws and withdraw the flameproof cover taking
extreme care not to damage the flameproof joints in the
process. M6 cover screws are Class A4-80 stainless steel and
only screws of this category can be used for the enclosure.
Fig. 2 Accessing the Explosion proof Enclosure.
On completion of the installation, the flameproof joints should
be inspected to ensure that they are clean and that they have
not been damaged during installation.
Check that the earth bonding wire between the two castings is
secure and the ‘O’ ring seal is in place. When replacing the
flameproof cover casting ensure that it is square with the
flameproof chamber casting before inserting. Carefully push
the cover in place allowing time for the air to be expelled. Only
after the cover is fully in place should the four M6 Stainless
Steel A4-80 cover bolts and their spring washer be inserted
and tightened down. If the cover jams while it is being inserted,
carefully remove it and try again. Never use the cover bolts to
force the cover into position.
Warning – High voltage may be present,
risk of electric shock. DO NOT open when
energised, disconnect power before
opening.
Warning – Hot surfaces. External surfaces
and internal components may be hot after
operation, take care when handling the
equipment.
(Appropriate cable glands
to be customer su
pp
lied
)
Flameproof cover
(Beacon section)
M6 Cover
Screws
M6 Spring
Washer
Sounder Section

European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: [phone]
Document No. D210-00-601-IS Issue 8 12-09-2022 Sheet 4 of 7
8. Selection of Cable. Cable Glands, Blanking
Elements & Adapters
When selecting the cable size, consideration must be given to
the input current that each unit draws (see table above), the
number of sounders on the line and the length of the cable
runs. The cable size selected must have the necessary
capacity to provide the input current to all of the sounders
connected to the line.
For ambient temperatures over +40ºC the cable entry
temperature may exceed +70ºC and therefore suitable heat
resisting cables and cable glands must be used, with a rated
service temperature of at least 110ºC
The dual cable gland entries have an M20 x 1.5 entry thread.
To maintain the ingress protection rating and mode of
protection, the cable entries must be fitted with suitably rated
ATEX / IECEx or UKEx certified cable glands and/or suitably
rated ATEX / IECEx or UKEx certified blanking devices during
installation according to EN / IEC60079-14.
If a high IP (Ingress Protection) rating is required then a
suitable sealing washer must be fitted under the cable glands
or blanking plugs.
For use in explosive dust atmospheres, a minimum ingress
protection rating of IP6X must be maintained.
The BEx combined sounder/beacon range can be supplied
with the following types of adapters:
M20 to ½” NPT
M20 to ¾” NPT
M20 to M25
It is important to note that stopping plugs cannot be fitted onto
adapters, only directly onto the M20 entries.
Any other adapters used must be suitably rated and ATEX /
IECEx or UKEx certified adapters.
9. Earthing
Both AC and DC sounder units must be connected to an earth.
The units are provided with internal and external earth
terminals which are both located on the terminal chamber
section of the unit.
Fig. 3 Internal View of Cover
When using the internal earth terminal ensure that the
stainless steel M4 flat washer is between the incoming earth
wire and the enclosure.
Internal earthing connections should be made to the Internal
Earth terminal in the base of the housing using a ring crimp
terminal to secure the earth conductor under the earth clamp.
The earth conductor should be at least equal in size and rating
to the incoming power conductors. Tighten M4 Earth screw to
1Nm.
External earthing connections should be made to the M5 earth
stud, using a ring crimp terminal to secure the earth conductor
to the earth stud. The external earth conductor should be at
least 4mm² in size. Tighten the Earth nut to 3Nm. Please firmly
tighten the external grounding terminal so that the stud does
not become loose and lay the ground wire so that it is not
caught by twisting and sagging.

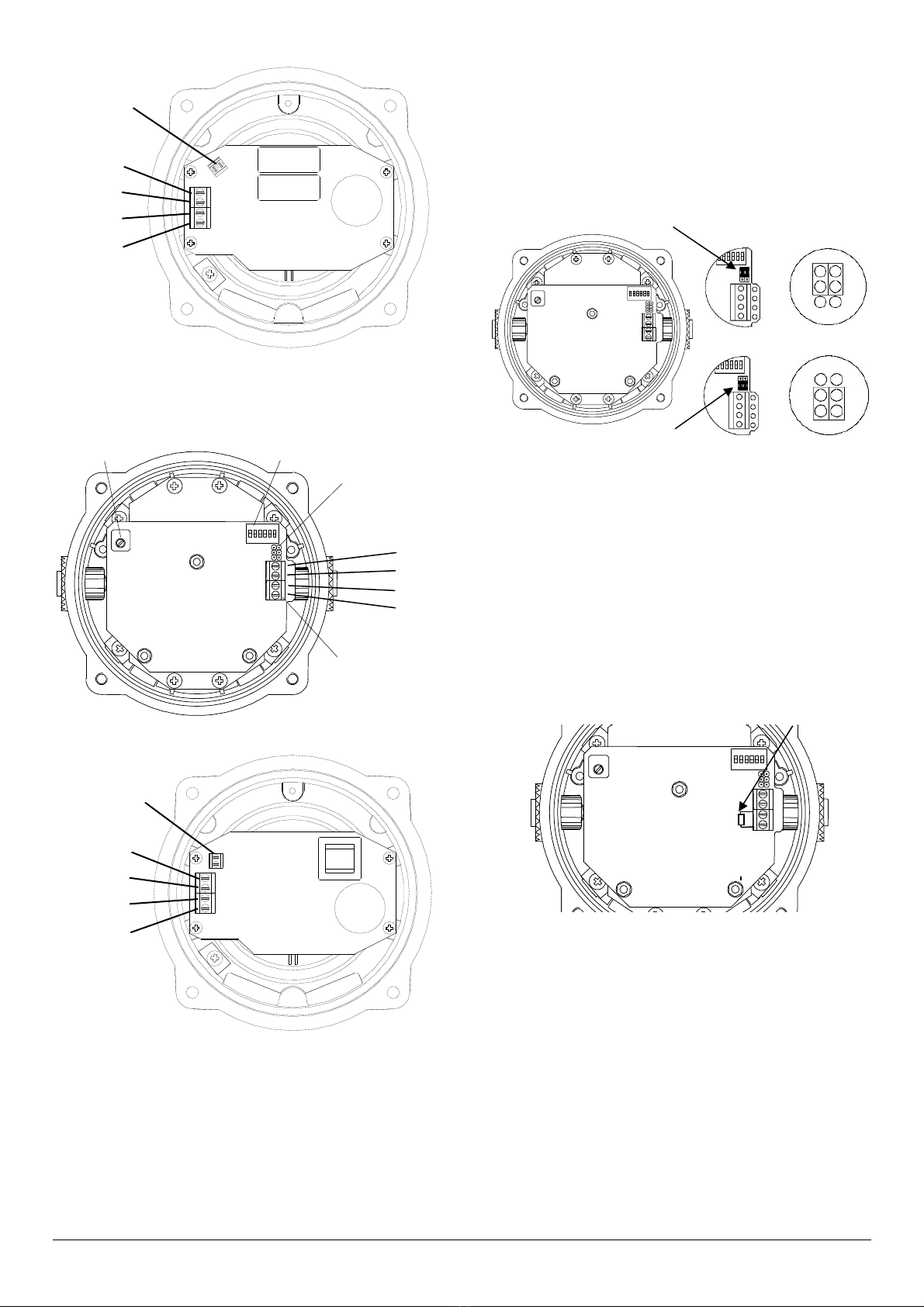

10. Cable Connections
Electrical connections are to be made into the terminal blocks
on the PCBA located in the flameproof enclosure. See section
7 of this manual for access to the flameproof enclosure.
Wires having a cross sectional area between 0.5 mm² to
2.5mm² can be connected to each terminal way. If an input and
output wire is required the 2-off Live/Neutral or +/- terminals
can be used. If fitting 2-off wires to one terminal way the sum
of the 2-off wires must be a maximum cross sectional area of
2.5mm². Strip wires to 8mm. Wires may also be fitted using
ferrules. Terminal screws need to be tightened down with a
tightening torque of 0.45 Nm / 5 Lb-in. When connecting wires
to the terminals great care should be taken to dress the wires
so that when the cover is inserted into the chamber the wires
do not exert excess pressure on the terminal blocks. This is
particularly important when using cables with large cross
sectional areas such as 2.5mm².
11. AC Wiring
Fig. 4a AC Terminals
External Earthing
Internal
Earthing
Internal
Bonding
Wire
Terminal
2-off M20
Cable
Entries
DIP Switch
Volume Control
Stage
Terminals
AC
Terminals
S2
S3
C
N
L

European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: [phone]
Document No. D210-00-601-IS Issue 8 12-09-2022 Sheet 5 of 7
Fig. 4b Beacon AC Terminals
12. DC Wiring
Fig. 5a DC Terminals
Fig. 5b Beacon DC Terminals
12.1 Stage Switching Polarity (DC Units Only)
The BExS110D DC sounders have the facility to use either +ve
or –ve switching to change the tone to the second and third
stages. Negative switching is the default setting. For –ve
switching connect the two headers on the pcb to the left-hand
(marked –ve) and centre pins. For +ve switching connect the
headers to the right hand (marked +ve) and the centre pins.
(Refer to Fig. 6)
Fig. 6 Stage Switching Polarity
12.2 Line Monitoring
On BExS110D DC units, dc reverse line monitoring can be
used if required. All DC sounders have a blocking diode fitted
in their supply input lines. An end of line monitoring diode or
an end of line monitoring resistor can be connected across the
+ve and –ve terminals. If an end of line resistor is used it must
have a minimum resistance value of 3k3Ω and a minimum
power rating of 0.5 watts or a minimum resistance value of
500Ω and a minimum power rating of 2 watts.
The resistor must be connected directly across the +ve and -
ve terminals as shown in the following drawing. The resistor
leads should be kept as short as possible.
Fig. 7 End of Line Resistor Placement
13. Wiring the combined sounder/beacon for
simultaneous operation
The sounder and beacon sections can be wired to the same
input supply so that they operate simultaneously or they can
be wired to separate input supplies so they can be operated
independently (see wiring diagrams D210-06-601 & D210-06-
605).
If the sounder and beacon sections are connected to the same
input supply. The incoming cables should be connected to the
input terminals on the beacon board and the two link wires,
that are supplied with the unit, should be used to link the supply
from the interconnecting terminals on the beacon board down
to the supply terminals on the sounder board.
End of Line Resisto
r
Volume Control DIP Switch
DC Terminals
Stage Headers
Negative Switching
Positive Switching
Ati td
Header Pin Location
Header Pin Location
S2
S3
-
+
-
+
-
+
-
-
+
+
Interconnecting Terminals
to sounder PCB
(simultaneous
mode of operation)
L
L
N
N
Interconnecting Terminals
to sounder PCB
(simultaneous
mode of operation)

European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: [phone]
Document No. D210-00-601-IS Issue 8 12-09-2022 Sheet 6 of 7
14. Settings
14.1 Tone Settings
The sounders have 32 different tones that can be selected for
the first stage alarm. The sounders can then be switched to
sound second and third stage alarm tones. The tones are
selected by operation of a DIP switch on the pcb for both DC
and AC units. The tone table D210-95-001-IS shows the switch
positions for the 32 tones and which tones are available for the
second and third stages. To operate the sounder on stage one
simply connect the supply voltage to the normal supply
terminals (+ve and –ve for DC units, L and N for AC units).
Refer to wiring schematics D210-06-601 (DC) or D210-06-605
(AC).
Default =
Tone 1
0 0 0 0 0 0
(ON = 1, OFF = 0)

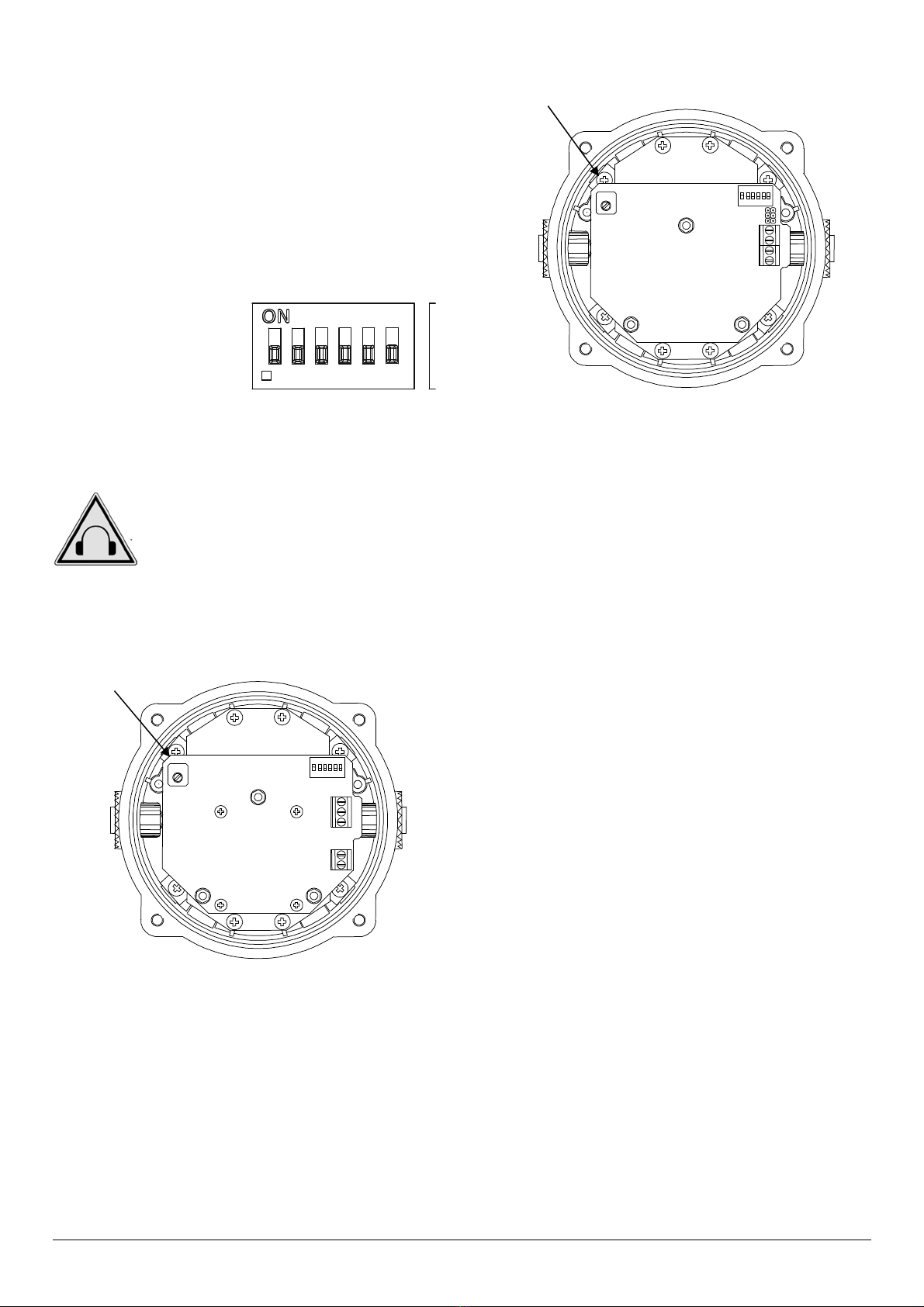

Figure 8: DIP switch configuration
14.2 Volume Control
The output level of the BEx sounder can be set by adjusting
the volume control potentiometer (see Fig 10a/10b). For
maximum output, set the potentiometer fully clockwise.
BExCS110-05D-P AC
Fig.10a Location of Volume Control Potentiometer
BExCS110-05D-P DC
Fig.10b Location of Volume Control Potentiometer
Warning - High noise levels above 85dB(A)
during operation. High levels of noise may
cause hearing loss, wear suitable ear
p
rotection when e
q
ui
p
ment is in o
p
eration.
Volume Control
Potentiometer
Volume Control
Potentiometer

European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: [phone]
Document No. D210-00-601-IS Issue 8 12-09-2022 Sheet 7 of 7
15. Interchangeable & Spare Parts
The beacon cover is interchangeable, contact E2S Ltd for a
replacement cover available in various colours.
To change the cover, unscrew the M5 socket head screws and
remove the M5 screws, M5 spring & flat washers.
Fig. 11 Removal of cover
Remove the guard and replace the old cover with the new
cover.
Fig. 12 Changing of cover
Fit the guard back on to the cover and casting, align the holes
of the guard, cover and casting. To reattach the cover, the
fixings MUST be in the order shown in figure 13.
Fig. 13 Cover and Guard Fixtures
16. Maintenance, Overhaul & Repair
Maintenance, repair and overhaul of the equipment should
only be carried out by suitably qualified personnel in
accordance with the current relevant standards:
EN60079-19
IEC60079-19
Explosive atmospheres - Equipment
repair, overhaul and reclamation
EN 60079-17
IEC60079-17
Explosive atmospheres - Electrical
installations inspection and maintenance
The acoustic horn is made out of ABS plastic, therefore to
avoid a possible ELECTROSTACTIC CHARGE the unit must
only be cleaned with a damp cloth.
Units must not be opened while an explosive atmosphere is
present.
If opening the unit during maintenance operations a clean
environment must be maintained and any dust layer removed
prior to opening the unit.
Warning – Hot surfaces. External surfaces
and internal components may be hot after
operation, take care when handling the
equipment.
M5x16 Hex Socket Screw
M5 Spring Washer
M5 Plain Washer
Guard
Cover
M5x16 Hex
Socket Screw
Old
Cover
New
Cover

E2S Warning Signals Impress House, Mansell Road, Acton, London W3 7QH [email protected] e2s.com Page 1 of 1 D210-95-001-IS_Issue_A - 22/04/2021
Stage 1
Set DIP
SW 1
Tone No.
Tone Description Tone
Visual
Stage 1
DIP SW 1
Settings
1 2 3 4 5 6
Stage
2
1 Continuous1000Hz Toxic Gas Alarm 0 0 0 0 0 0 1 11
2 Alternating 800/1000Hz at 0.25s Intervals 1 0 0 0 0 0 17 5
3 Slow Whoop 500/1200Hz at 0.3Hz with 0 1 0 0 0 0 2 5
0.5s gap repeated
4 Sweeping 800/1000Hz at 1Hz 1 1 0 0 0 0 6 5
5 Continuous at 2400Hz 0 0 1 0 0 0 3 27
6 Sweeping 2400/2900Hz at 7Hz 1 0 1 0 0 0 7 5
7 Sweeping 2400/2900Hz at 1Hz 0 1 1 0 0 0 10 5
8 Siren 500/1200/500Hz at 0.3Hz 1 1 1 0 0 0 2 5
9 Sawtooth 1200/500Hz at 1Hz 0 0 0 1 0 0 15 2
10 Alternating 2400/2900Hz at 2Hz 1 0 0 1 0 0 7 5
11 Intermittent 1000Hz at 0.5Hz General Alarm 0 1 0 1 0 0 31 1
12 Alternating 800/1000Hz at 0.875Hz 1 1 0 1 0 0 4 5
13 Intermittent 2400Hz at 1Hz 0 0 1 1 0 0 15 5
14 Intermittent 800Hz 0.25s on 1s off 1 0 1 1 0 0 4 5
15 Continuous at 800Hz 0 1 1 1 0 0 2 5
16 Intermittent 660Hz 150mS on, 150mS off 1 1 1 1 0 0 18 5
17 Alternating 544Hz (100mS)/440Hz(400mS) 0 0 0 0 1 0 2 27
18 Intermittent 660Hz 1.8s on, 1.8s off 1 0 0 0 1 0 2 5
19 1400Hz to 1600Hz sweeep up over 1s 0 1 0 0 1 0 2 5
- 1600Hz to 1400Hz sweep down over 0.5s
20 Continuous 660Hz 1 1 0 0 1 0 2 5
21 Alternating 554/440Hz at 1Hz 0 0 1 0 1 0 2 5
22 Intermittent 554Hz at 0.875Hz 1 0 1 0 1 0 2 5
23 800Hz pulsing at 2Hz 0 1 1 0 1 0 6 5
24 Sweeping 800/1000Hz at 50Hz 1 1 1 0 1 0 29 5
25 Sweeping 2400/2900Hz at 50Hz 0 0 0 1 1 0 29 5
26 Simulated Bell Sound 1 0 0 1 1 0 2 1
27 Continuous 554Hz 0 1 0 1 1 0 26 5
28 Continuous 440Hz 1 1 0 1 1 0 2 5
29 Sweeping 800/1000Hz at 7Hz 0 0 1 1 1 0 7 5
30 420Hz repeating 0.625s on, 0.625s off 1 0 1 1 1 0 32 5
Austrailian Alert Signal
31 1200/500Hz at 1Hz Prepare to 0 1 1 1 1 0 11 1
Abandon Platform
32 Sweeping 500/1200Hz 0 0 0 0 0 1 26 1
3.75s on, 0.25s off 15Hz
Stage
3
1000Hz
f1(Hz) a(s) a(s)
f(Hz)
1200Hz
0.5s
500Hz 3.3s
1000Hz
1s
800Hz
2400Hz
800Hz
660Hz
554Hz
440Hz
0.14s
2900Hz
1s
2400Hz
2900Hz
2400Hz
2900Hz
0.02s
2400Hz
1000Hz
0.02s
800Hz
1000Hz
0.14s
800Hz
1200Hz
0.25s
500Hz 3.75s
1200Hz
500Hz 1s
420Hz 0.625s
0.625s
1450Hz 0.25s
0.69ms
800Hz
0.5s
0.5s
660Hz 150ms 150ms
660Hz 1.8s 1.8s
554Hz 1.14s 1.14s
800Hz 0.25s 1s
2400Hz 0.5 0.5s
1000Hz 1s 1s
2900Hz
2400Hz
1600Hz
1s
1400Hz
0.5s
1000HZ 1.14s
800Hz 1.14s
0.5s
0.5s
540Hz
440Hz 400ms
100ms
540Hz
440Hz
0.5s
0.5s
1200Hz
3.33s
500Hz
500Hz
1200Hz
1s

Page left Intentionally blank

warning signals
2S
BEx
EUROPEAN SAFETY SYSTEMS LTD
IMPRESS HOUSE
MANSELL ROAD
ACTON
LONDON W3 7QH
WWW.E2S.COM
C
THIS DRAWING AND ANY INFORMATION OR DESCRIPTIVE
MATTER THEREIN IS COMMUNICATED IN CONFIDENCE AND
IS THE COPYRIGHT PROPERTY OF EUROPEAN SAFETY
SYSTEMS LTD. NEITHER THE WHOLE OR ANY EXTRACT MAY
BE DISCLOSED, LOANED, COPIED OR USED FOR
MANUFACTURING OR TENDERING PURPOSES WITHOUT THEIR
WRITTEN CONSENT.
EUROPEAN SAFETY SYSTEMS LTD.
AS PER LATEST DATE OF ISSUE SHOWN ABOVE
DRAWING TO BS8888:2000
GEOMETRIC TOLERANCES TO ISO1101:1983
LINEAR DIMENSIONAL TOLS
ANGULAR DIMENSIONAL TOLS
STANDARDS
MOD No. REASON - INITIAL - DATEISSUE
DATE
APPROVED
CHECKED DATE
DATE
DRAWN WEIGHT (Kg)
SURFACE FINISH
MATERIAL
ALTERNATIVE MATERIAL SHEETSCALE
TITLE
A3
IF IN DOUBT, ASK -
DO NOT SCALE
ALL DIMENSIONS IN MM
DRAWING NUMBER
A
B
C
D
E
F
G
109
G
F
E
78 6
5
D
C
134
2
A
B
D210-06-601
R.S.RAIT
B.ISARD
R.N.POTTS OF
NTS 1 1
OPTIONAL LINE MONITORING RESISTOR, CUSTOMER SUPPLIED,
500Ω MIN, 2W MIN OR 3K3Ω MIN, 0.5W MIN
MINIMUM VALUES:
R1
Single Stage Configuration Config.: 1a
Line Monitoring
Set to negative switching (default)
Stage 1: Apply Power to Stage 1 +ve & Stage 1 -ve
Two Stage Configuration Config.: 1b
Common Positive
Set to negative switching (default)
Stage 1:Apply Power to +ve & -ve
Stage 2: Apply Power to +ve & -ve, Connect Stage 2 to -ve
Stage 3: Apply Power to +ve & -ve, Connect Stage 3 to -ve
Three Stage Configuration Config.: 1c
Common Negative
Set to positive switching (Customer to set header pin)
Stage 1:Apply Power to +ve & -ve
Stage 2: Apply Power to +ve & -ve, Connect Stage 2 to +ve
Stage 3: Apply Power to +ve & -ve, Connect Stage 3 to +ve
08/03/2022
08/03/2022
08/03/2022

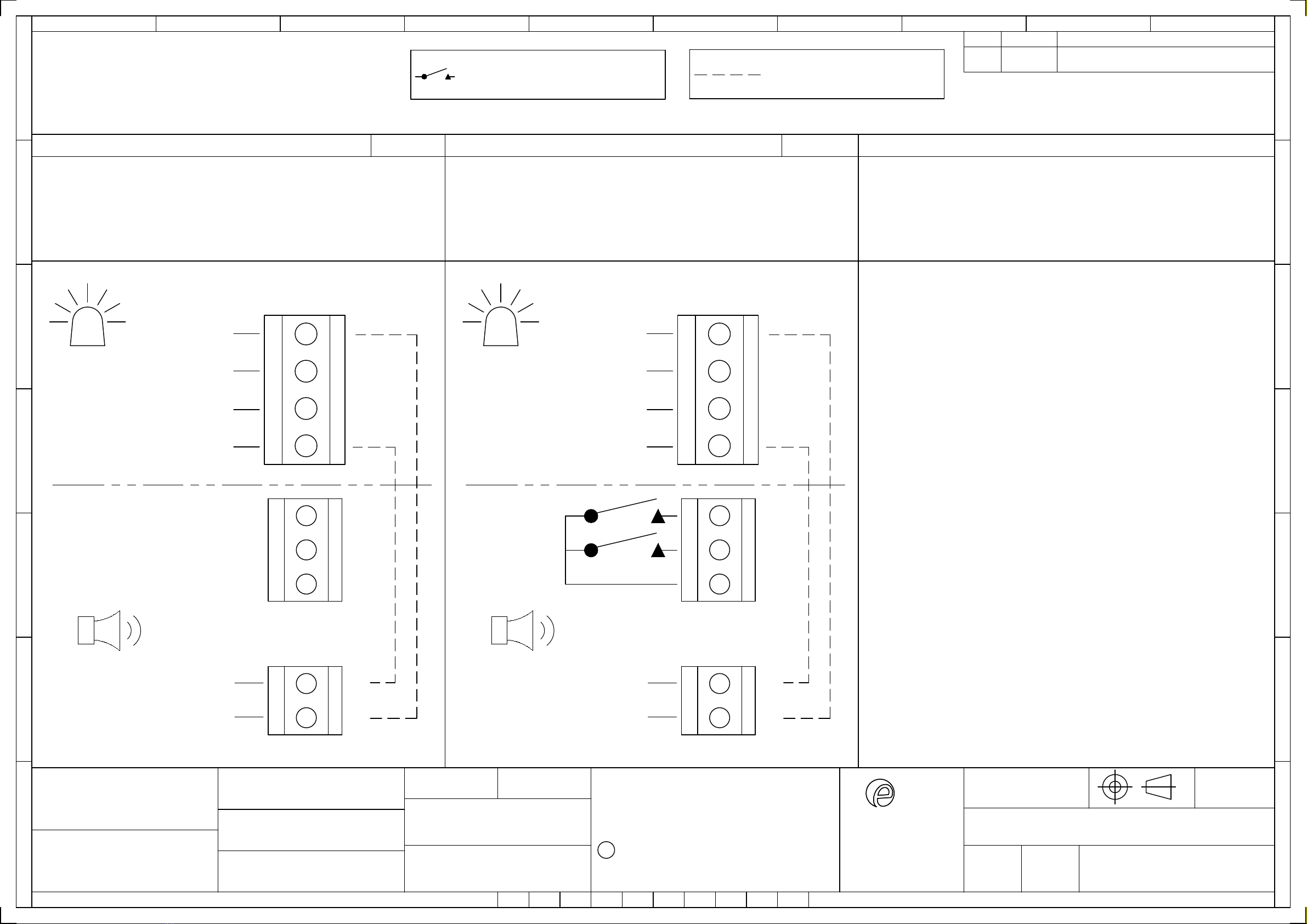

BExCS110-05D DC COMBINED SOUNDER
& BEACON WIRING DIAGRAMS
INTRODUCTIONINTRODUCTION
1RSR - 05/09/2022
Stage 1 -ve
Stage 1 +ve
Stage 2
-ve
+ve
Stage 3
Set to Positive Switching
R1 R1
Stage 2
+ve
-ve
Stage 3
R1
SWITCHES FOR STAGE OPERATION
CUSTOMER SUPPLIED
Stage 1 -ve in
Stage 1 +ve in
Stage 1 +ve out
Stage 1 -ve out
Stage 1 -ve in
Stage 1 +ve in
Stage 1 +ve out
Stage 1 -ve out
Stage 1 -ve in
Stage 1 +ve in
Stage 1 +ve out
Stage 1 -ve out
WIRING LINKING BEACON &
SOUNDER FACTORY FITTED

warning signals
2S
BEx
EUROPEAN SAFETY SYSTEMS LTD
IMPRESS HOUSE
MANSELL ROAD
ACTON
LONDON W3 7QH
WWW.E2S.COM
C
THIS DRAWING AND ANY INFORMATION OR DESCRIPTIVE
MATTER THEREIN IS COMMUNICATED IN CONFIDENCE AND
IS THE COPYRIGHT PROPERTY OF EUROPEAN SAFETY
SYSTEMS LTD. NEITHER THE WHOLE OR ANY EXTRACT MAY
BE DISCLOSED, LOANED, COPIED OR USED FOR
MANUFACTURING OR TENDERING PURPOSES WITHOUT THEIR
WRITTEN CONSENT.
EUROPEAN SAFETY SYSTEMS LTD.
AS PER LATEST DATE OF ISSUE SHOWN ABOVE
DRAWING TO BS8888:2000
GEOMETRIC TOLERANCES TO ISO1101:1983
LINEAR DIMENSIONAL TOLS
ANGULAR DIMENSIONAL TOLS
STANDARDS
MOD No. REASON - INITIAL - DATEISSUE
DATE
APPROVED
CHECKED DATE
DATE
DRAWN WEIGHT (Kg)
SURFACE FINISH
MATERIAL
ALTERNATIVE MATERIAL SHEETSCALE
TITLE
A3
IF IN DOUBT, ASK -
DO NOT SCALE
ALL DIMENSIONS IN MM
DRAWING NUMBER
A
B
C
D
E
F
G
109
G
F
E
78 6
5
D
C
134
2
A
B
D210-06-605
R.S.RAIT
B.ISARD
R.N.POTTS OF
NTS 1 1
08/03/2022
08/03/2022
08/03/2022
INTRODUCTIONINTRODUCTION
1RSR - 05/09/2022
SWITCHES FOR STAGE OPERATION
CUSTOMER SUPPLIED
WIRING LINKING BEACON &
SOUNDER FACTORY FITTED
Single Stage Configuration Config.: 1a
Stage 1: Apply Power to Live & Neutral
Two/Three Stage Configuration Config.: 1b
Stage 1: Apply Power to Live & Neutral
Stage 2: Apply Power to Live & Neutral
& connect Stage 2 to Common
Stage 3: Apply Power to Live & Neutral
& connect Stage 3 to Common
C
S2
S3
N
L
Live in
Neutral in
Neutral out
Live out
C
S2
S3
N
L
Live in
Neutral in
Neutral out
Live out
Neutral
Live
Stage 2
Common
Stage 3

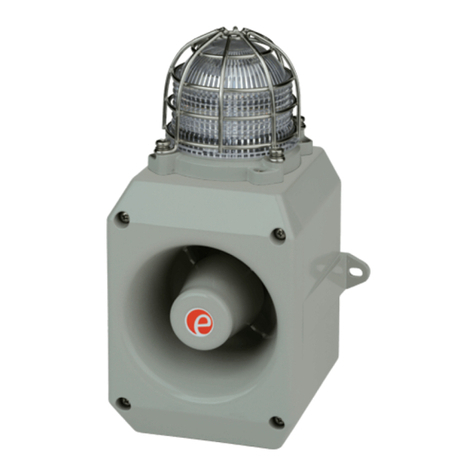

BExCS110-05D AC COMBINED SOUNDER
& BEACON WIRING DIAGRAMS
Neutral
Live








E2STelephone:+44(0)2087438880Fax:+44(0)2087404200Email:[email protected]www.e2s.comDC‐005_Issue_P(BExCS).docxN‐Page1of2‐
QAF_252_Issue_5

EUDeclarationofConformity
Manufacturer:  EuropeanSafetySystemsLtd.
ImpressHouse,MansellRoad,Acton
London,W37QH
UnitedKingdom

AuthorisedRepresentative:E2SWarnsignaltechnikUG
Charlottenstrasse45‐51
72764Reutlingen
Germany

EquipmentType:  BExCS110‐05D,BExDCS110‐05D,BExCS110‐05D‐R,BExDCS110‐05D‐R,
BExCS110‐05D‐P,BExDCS110‐05D‐P,BExCS110‐05D‐R‐P,BExDCS110‐05D‐R‐P,
BExCL15‐05D,BExDCL15‐05D,BExCL15‐05D‐R,BExDCL15‐05D‐R,
BExCL15‐05D‐P,BExDCL15‐05D‐P,BExCL15‐05D‐R‐P,BExDCL15‐05D‐R‐P,
BExCTS110‐05D,BExDCTS110‐05D,BExCTS110‐05D‐R,BExDCTS110‐05D‐R,
BExCTS110‐05D‐P,BExDCTS110‐05D‐P,BExCTS110‐05D‐R‐P,BExDCTS110‐05D‐R‐P,
BExCS110‐L1D,BExDCS110‐L1D,BExCS110‐L1D‐R,BExDCS110‐L1D‐R
BExCS110‐L2D,BExCS110‐L2D‐R,BExCA110‐05D‐P
Directive2014/34/EU:EquipmentandProtectiveSystemsforuseinPotentiallyExplosiveAtmospheres(ATEX)
NotifiedBodyforEUtypeExamination(ModuleB):DekraCertificationB.V.
NotifiedBodyNo.:0344
Meander1051,6825MJArnhem,TheNetherlands
EU‐typeExaminationCertificate(ModuleB):KEMA01ATEX2223X
NotifiedBodyforQualityAssuranceNotification/ConformitytoEU‐type
basedon
qualityassuranceoftheproductionprocess(ModuleD):
SiraCertificationService
NotifiedBodyNo.:2813
CSAGroupNetherlandsB.V,Utrechtseweg310,6812AR,Arnhem,Netherlands
QualityAssuranceNotification(ModuleD):SIRA05ATEXM342
Provisionsfulfilledbytheequipment:II2GExdbIIBT5orT4Gb
II2DExtbIIICT70°CtoT125°CDb
IP6XDustProtectiontoEN60079‐0/EN60079‐31
Standardsapplied:EN60079‐0:2012+A11:2013/ENIEC60079‐0:2018
EN60079‐1:2014
EN60079‐31:2014
IP6XDustProtectiontoEN60079‐0/EN60079‐31
Directive2014/30/EU:ElectromagneticCompatibilityDirective(EMC)
Standardsapplied:EN61000‐6‐1:2007
EN61000‐6‐2:2005
EN61000‐6‐3:2007/A1:2011/AC:2012
EN61000‐6‐4:2007/A1:2011
Directive2011/65/EU:Restrictionoftheuseofcertainhazardoussubstancesinelectricalandelectronicequipment(RoHS)
Theproductandallthecomponentscontainedwithinitareinaccordancewiththerestrictionoftheuseofhazardoussubstancesinelectricalandelectronic
equipment,includingamendmentDirective2015/863/EU.
Regulation(EC)1907/2006:Registration,Evaluation,AuthorisationandRestrictionofChemicals(REACH)
Theproductandallthecomponentscontainedwithinitarefreefromsubstancesofveryhighconcern.
OtherStandardsandRegulations
EN60529:1991+A1:2000+A2:2013.‐Degreesofprotectionprovidedbyenclosures(IPcode)–enclosureratedIP66/67









E2STelephone:+44(0)2087438880Fax:+44(0)2087404200Email:[email protected]www.e2s.comDC‐005_Issue_P(BExCS).docx‐Page2of2‐QAF_252_Issue_5




MartinStreetzDocumentNo.:DC‐005_Issue_P
QualityAssuranceManagerDateandPlaceofIssue:London,21/05/2020
EUDeclarationofConformity


OnbehalfofEuropeanSafetySystemsLtd.,Ideclarethat,onthedatetheequipmentaccompaniedbythisdeclarationisplacedonthemarket,theequipment
conformswithalltechnicalandregulatoryrequirementsoftheabovelisteddirectives,regulationsandstandards.

ThisDeclarationisissuedunderthesoleresponsibilityofthemanufacturer.
 













E2S Telephone: [phone] Fax: [phone] Email: sale[email protected] www.e2s.com DC-106_Issue_A (BExCS)- Page 1 of 2 - QAF_252_Issue_5
UKCA
Declaration of Conformity
Manufacturer: European Safety Systems Ltd.
Impress House, Mansell Road, Acton
London, W3 7QH
United Kingdom
Equipment Type: BExCS110-05D, BExDCS110-05D, BExCS110-05D-R, BExDCS110-05D-R,
BExCS110-05D-P, BExDCS110-05D-P, BExCS110-05D-R-P, BExDCS110-05D-R-P,
BExCL15-05D, BExDCL15-05D, BExCL15-05D-R, BExDCL15-05D-R,
BExCL15-05D-P, BExDCL15-05D-P, BExCL15-05D-R-P, BExDCL15-05D-R-P,
BExCTS110-05D, BExDCTS110-05D, BExCTS110-05D-R, BExDCTS110-05D-R,
BExCTS110-05D-P, BExDCTS110-05D-P, BExCTS110-05D-R-P, BExDCTS110-05D-R-P,
BExCS110-L1D, BExDCS110-L1D, BExCS110-L1D-R, BExDCS110-L1D-R
BExCS110-L2D, BExCS110-L2D-R, BExCA110-05D-P
Directive UKSI 2016:1107 (as amended by UKSI 2019:696) – Schedule 3A, Part 1 : Product or Protective System Intended for use in Potentially Explosive Atmospheres
(UKCA)
Notified Body for UK type Examination (Module B):
UL International (UK) Ltd
Notified Body No.: 0843
Unit 1-3 Horizon Kingsland Business Park, Wade Road,
Basingstoke, Hampshire RG24 8AH UK
UK-type Examination Certificate (Module B):
UL21UKEX2639X
Notified Body for Quality Assurance Notification / Conformity to EU-type
based on
quality assurance of the production process (Module D):
Sira Certification Service
Notified Body No.: 0518
Rake Lane, Eccleston, Chester CH4 9JN, UK
Quality Assurance Notification (Module D):
CSAE 22UKQAN0046
Provisions fulfilled by the equipment:
II 2G Ex db IIB T5…T4 Gb
II 2D Ex tb IIIC T70°C…T125° Db
IP6X Dust Protection to EN60079-0 / EN60079-31
Standards applied:
EN IEC 60079-0: 2018
EN 60079-1: 2014
EN 60079-31: 2014
Directive 2014/30/EU: Electromagnetic Compatibility Directive (EMC)
Standards applied:
EN 61000-6-1:2007
EN 61000-6-2:2005
EN 61000-6-3:2007 / A1:2011 / AC: 2012
EN 61000-6-4:2007 / A1: 2011
Directive 2011/65/EU: Restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS)
The product and all the components contained within it are in accordance with the restriction of the use of hazardous substances in electrical and electronic
equipment, including amendment by Directive 2015/863/EU.
Regulation (EC) 1907/2006: Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH)
The product and all the components contained within it are free from substances of very high concern.
Other Standards and Regulations
EN 60529:1991 / A1:2000 / A2:2013 - Degrees of protection provided by enclosures (IP code) – enclosure rated IP66/67

E2S Telephone: [phone] Fax: [phone] Email: sale[email protected] www.e2s.com DC-106_Issue_A (BExCS) - Page 2 of 2 - QAF_252_Issue_5
Martin Streetz
Document No.:
DC-106_Issue_A
Quality Assurance Manager
Date and Place of Issue:
London, 12/09/2022
UKCA
Declaration of Conformity
On behalf of European Safety Systems Ltd., I declare that, on the date the equipment accompanied by this declaration is placed on the market, the equipment
conforms with all technical and regulatory requirements of the above listed directives, regulations and standards.
This Declaration is issued under the sole responsibility of the manufacturer.

Page left Intentionally blank
