Escene HS108v2 User manual

HS108v2 IPPhone
www.escene.cn/en/
Escene Communication
HS108v2 Hotel Compact Type
IP Phone User Manual
E
Es sc ce en ne e C Co om mm mu un ni ic ca at ti io on n C Co o. .L Lt td d

HS108v2 IPPhone
www.escene.cn/en/
Escene Communication
Tables of Contents
1.Getting Started ...............................................................................................................................1
2.Phone overview..............................................................................................................................2
3. Basic Call Handling......................................................................................................................3
Do Not Disturb (WEB set >SIP account>Account 1> Do Not Disturb )..................................4
4. Phone Status..................................................................................................................................5
5 Net Work........................................................................................................................................6
5.1 LAN Port.............................................................................................................................6
5.2Advanced .............................................................................................................................7
5.2.1VLAN Setting ...........................................................................................................7
5.2.2Port Management Settings ........................................................................................7
5.2.3Qos............................................................................................................................8
5.2.4LLDP.........................................................................................................................8
5.2.5CDP...........................................................................................................................8
5.2.6Paging Setting ...........................................................................................................9
5.2.7Socket5 Proxy Server..............................................................................................10
6 SIPAccount..................................................................................................................................11
6.1Basic...................................................................................................................................11
6.2 Advanced...........................................................................................................................13
7Programmable Keys......................................................................................................................14
Function Keys.........................................................................................................................14
8 Phone Setting...............................................................................................................................15
8.1 Basic..................................................................................................................................15
8.1.1Ring.........................................................................................................................15
8.1.2Volume Settings ......................................................................................................16
8.2Features..............................................................................................................................17
8.2.1VoIP Call Forwarding..............................................................................................17
8.2.2Pickup function .......................................................................................................17
8.2.3Hot Line Function...................................................................................................18
8.2.4AutoAnswer ...........................................................................................................18
8.2.5Remote Control.......................................................................................................18
8.2.6Action URL.............................................................................................................18
8.2.7Other Features Settings...........................................................................................20
8.3Advanced ...........................................................................................................................22
8.3.1Audio.......................................................................................................................22
8.3.2Ring.........................................................................................................................23
8.3.3Dial Plan..................................................................................................................24
8.3.4BLF Setting.............................................................................................................25
9 Phone Maintenance......................................................................................................................25
9.1 Basic..................................................................................................................................25
9.1.1 HTTP Upgrade.......................................................................................................25

HS108v2 IPPhone
www.escene.cn/en/
Escene Communication
9.1.2 FTP Upgrade..........................................................................................................26
9.1.3 TFTP Upgrade........................................................................................................27
9.1.4 Default Setting .......................................................................................................27
9.1.5 Reboot....................................................................................................................28
9.2 Advanced...........................................................................................................................28
9.2.1 Log.........................................................................................................................28
9.2.2Auto Provision........................................................................................................28
10 Security......................................................................................................................................30
10.1Password..........................................................................................................................30
10.2Trusted certificates...........................................................................................................30
10.3IP Strategy........................................................................................................................31
11 WEB Other Settings or Information - Appendix........................................................................31
11.1 WEB User .......................................................................................................................31
11.2 Multi-Language...............................................................................................................31
11.3 Note Tips.........................................................................................................................32
Tips：Please check IP address by pressing the button “*1*1*2”in the
on hook status.

HS108v2 IPPhone
www.escene.cn/en/
Escene Communication
1.Getting Started
Technical Features
Tips: The following functions in the unit cannot operation, only operate under the WEB.
Item
Technical Features
Language
WEB support Multi-language, e.g. Chinese, English, Russian, French etc.
Line
2
Function
Keys
Flash key, Redial key, Number Keys
Voip
Protocol
SIP 2.0
Network
Protocol
HTTP、BOOTP、FTP、TFTP、IEEE 802.1Q
Codec
G.723.1 (5.3K 6.4K b/S)、G.729 A (8Kb/s)、G.711 A/U (64Kb/S)、G.722(64Kb/S)
QoS
TOS, Jiffer Buffer, VAD, CNG, G.168 (32ms)
Network
1*RJ45 10/100M Ethernet interfaces(LAN)
IPAssignment: Static IP or DHCP
Speech
Handset
Call
Processing
Call Waiting, Call Forward, Call Holding, Call Pickup, Callback
Security
Password Login Web
Management
Upgrade: HTTP/TFTP/PnP auto-provision
Configurations: Phone/Web/auto-provision
Debug: Telnet/Phone/Web
FPower
Supply
PoE(IEEE 802.af)
Specification
Storage Temperature: 0℃~ 60℃
Operating Humidity: 10%~90%
Size: 205mm*67mm*65mm
Net weight: 1.07kg Operating Humidity:：10% ~ 90%

HS108v2 IPPhone
www.escene.hk/en
Escene Communication
2.Phone overview
The unit keys and hardware

HS108v2 IPPhone
www.escene.cn/en/
Escene Communication
3. Basic Call Handling
You can perform basic call-handling tasks using a range of features and services. Feature
availability can vary; see your system administrator for more information.
Note: The bold type of the following text in table signifies the phone's button.
Placing a Call
Here are some easy ways to place a call on SayHi HS108v2 IP Phone:：
If you want to...
Then…
Place a call using
the handset
Pick up the handset
--1) You can hear dial tone;
--2) Enter a number；
--3) Press #button (default)，-or wait 5s
(default), then it send the number
automatically.
Redial
-- press “Dialed ”
Flash a call
>During a call, press the flash key to enter the transferred pattern with d
ial tone. The call will be holding.
>When transferring the dialing, pressing the flash key can cancel the tra
nsferred function.
The call still be holding.
>Pressing the flash key can recover the on holding call
Answering a Call
You can answer a call by simply lifting the handset, or you can use other options if they are
available on SayHi HS108v2.
If you want to...
Then...
Answer with a
handset
--1) Your phone ring;
--2) Light strip is Red
and flashing；
--Pick up the handset
Auto-answer
--1) WEB>Advance Phone Setting> “Auto answer”;
--2) Select “Enable”;
--3) Your phone answers incoming calls automatically after a few rings.

HS108v2 IPPhone
www.escene.cn/en/
Escene Communication
Ending a Call
To end a call, hang up. Here are some more details.
If you want to...
Then...
Hang up while using the
Handset
-- Return the handset to its cradle
Do Not Disturb (WEB set >SIPaccount>Account 1>Do Not Disturb )
To end a call, hang up. Here are some more details.
If you want to...
Then...
Turn on DND
-- web>SIPaccount>do not disturb>on
Shut down DND
-- web>SIPaccount>do not disturb>off

HS108v2 IPPhone
www.escene.cn/en/
Escene Communication

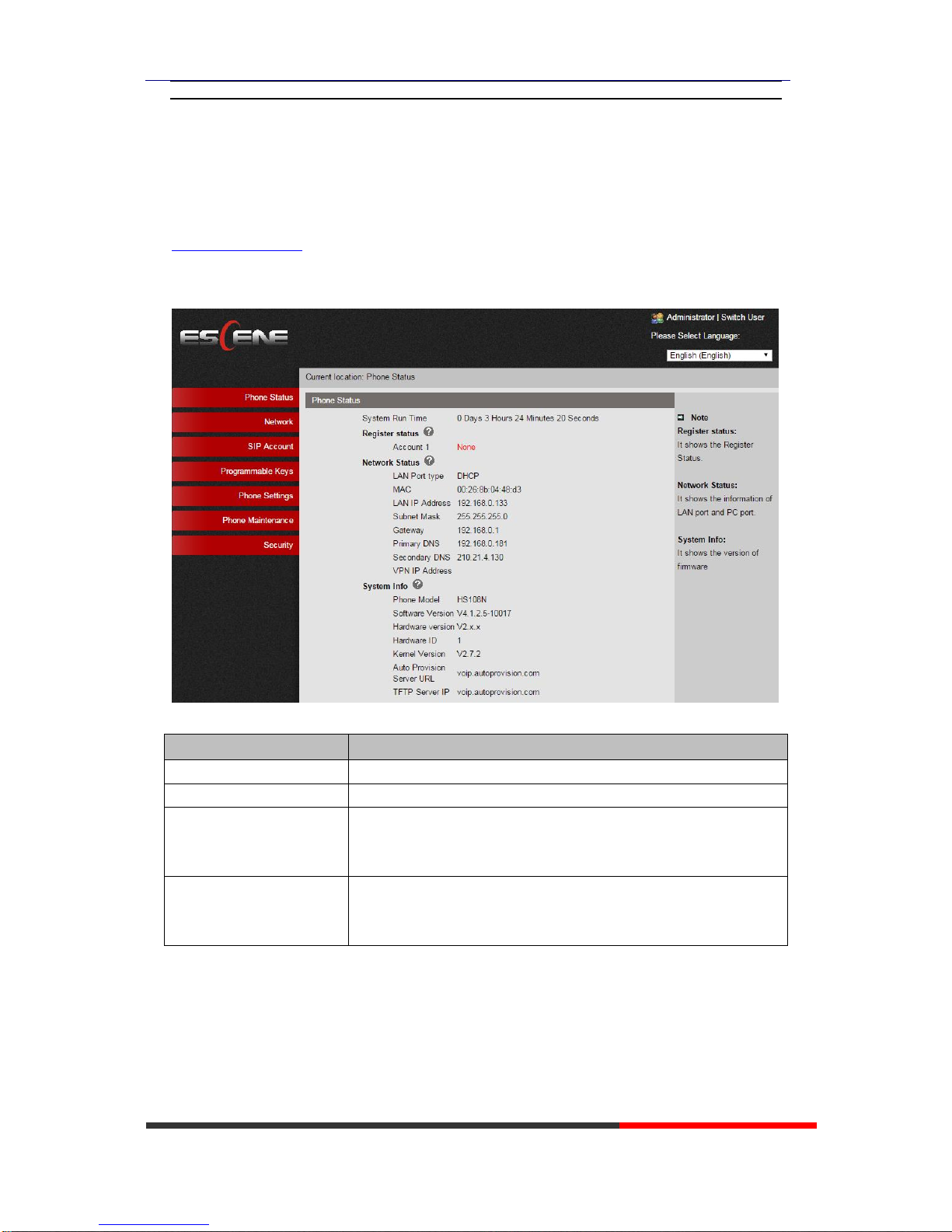

4. Phone Status
We can configure IP Phone more handy through web setting.. Enter it (for example
http://192.168.0.200) into the address bar of web browser..Tips: Please check IP address by
pressing the button ‘*1*1*2’in the on hook status. The default login name and password are
both “root”.
ITEM
DESCRIPTION
System Run Time
The phone system normal running time.
Register Status
The status with Account 1~2.
Network Status
The status with LAN, MAC, LAN IP, Net mask, Gateway, Primary
DNS, Secondary DNS, VPN IP, PC IP, PC Net mask, Device Type,
DHCP Server.
System Information
The status with Phone Model, Software Version, Hardware Version,
Hardware ID, Kernel Version, Auto-Provision Server URL, TFTP
Server IP.

HS108v2 IPPhone
www.escene.cn/en/
Escene Communication
5 Net Work
5.1 LAN Port
ITEM
DESCRIPTION
Network Connection Mode
Network Connection Mode has DHCP, Static IP, PPPoE.
DNS Settings
Select the DNS mode that you want.

HS108v2 IPPhone
www.escene.cn/en/
Escene Communication
5.2Advanced
5.2.1VLAN Setting
When using VLAN Setting option, you can set several parameters as follow:
ITEM
DESCRIPTION
Enable VLAN
You can enable/disable vlan for phone and pc
VID
[LAN/PC Port]
The vlan ID you want the phone or pc to join
5.2.2Port Management Settings
ITEM
DESCRIPTION
HTTP Port
The default web port is 80,if you want to change it(for example
change it to88),
You must input IP and Web port to login the web page(for
example HTTP://192.168.0.200:88). It will take effect on next
reboot.
Telnet
Enable/Disable Telnet

HS108v2 IPPhone
www.escene.cn/en/
Escene Communication
Telnet Port
The default Telnet port is 23,if you want to change it(for example
change it to 2003). You must input IP and Telnet port to login the
manage page (for example telnet 192.168.0.200:2003).It will take
effect on next reboot.
Local SIP Port
The port range setting with SIP, default is 5060.
RTP Port Range
The port range with RTP
5.2.3Qos
ITEM
DECSRIPTIO
N
SIP QoS
The range is 0~63,default is 26
Voice QoS
The range is 0~63,default is 46
5.2.4LLDP
ITEM
DESCRIPTION
LLDP
Enable/Disable LLDP Protocol
LLDP Packet Interval
LLDP Packet Interval Time
5.2.5CDP
ITEM
DESCRIPTION

HS108v2 IPPhone
www.escene.cn/en/
Escene Communication
CDP
Enable/Disable CDP Protocol
CDP Packet Interval
CDP Packet Interval Time
5.2.6Paging Setting
ITEM
DESCRIPTION
Paging Setting(NOTE: This feature priority is followed the serial number, In other words,
"paging 1" is the highest priority)
Paging1
Enable/Disable Paging feature.
Group IP and Port
Group IP and Port with Paging.

HS108v2 IPPhone
www.escene.cn/en/
Escene Communication

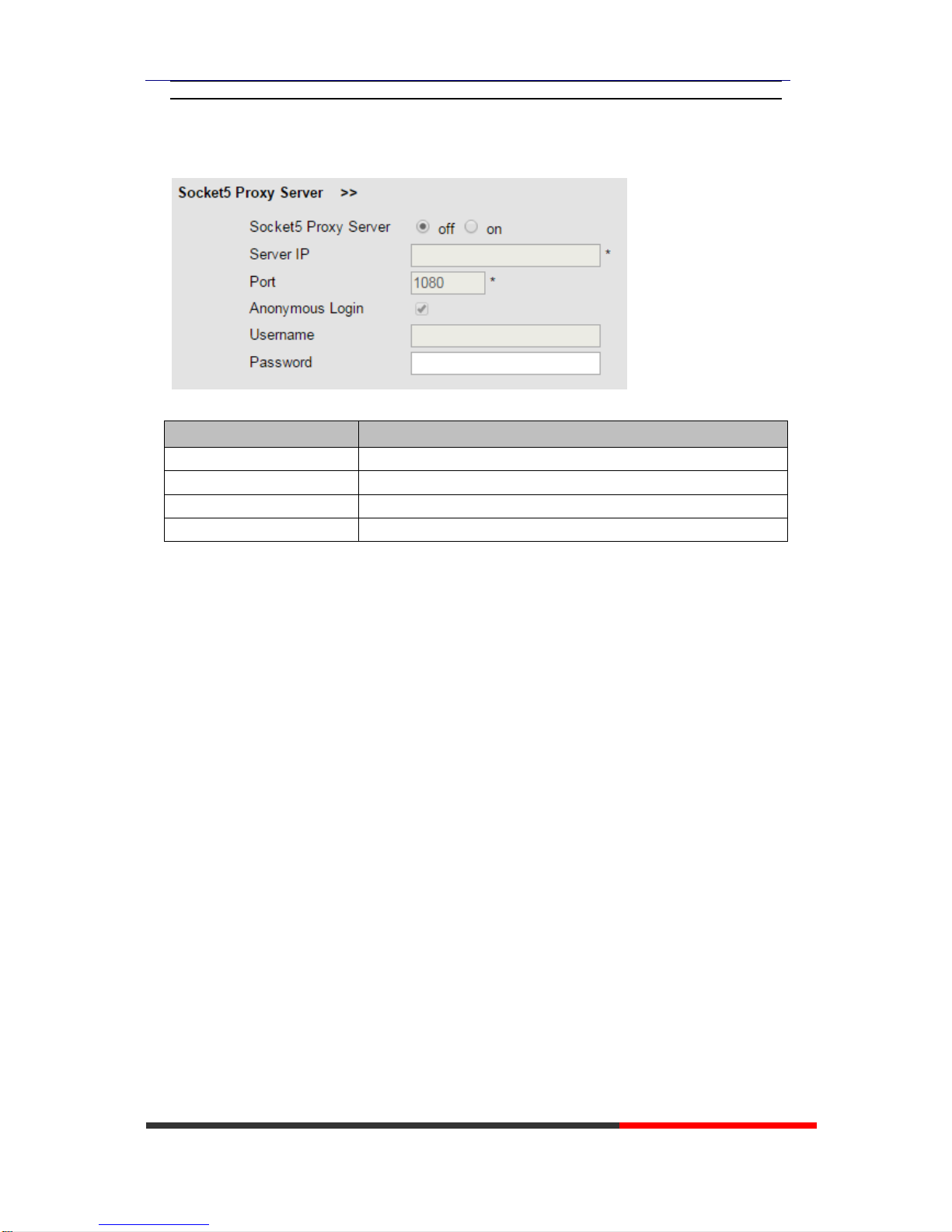

5.2.7Socket5 Proxy Server
ITEM
DESCRIPTION
Socket5 Proxy Server
Enable/Disable Socket5 Proxy Server.
Server IP
Socket5 Proxy Server IP address.
Port
Socket5 Proxy Server port, default is 1080.
Anonymous Login
Enable/Disable Socket5 Proxy Server login username.

HS108v2 IPPhone
www.escene.cn/en/
Escene Communication

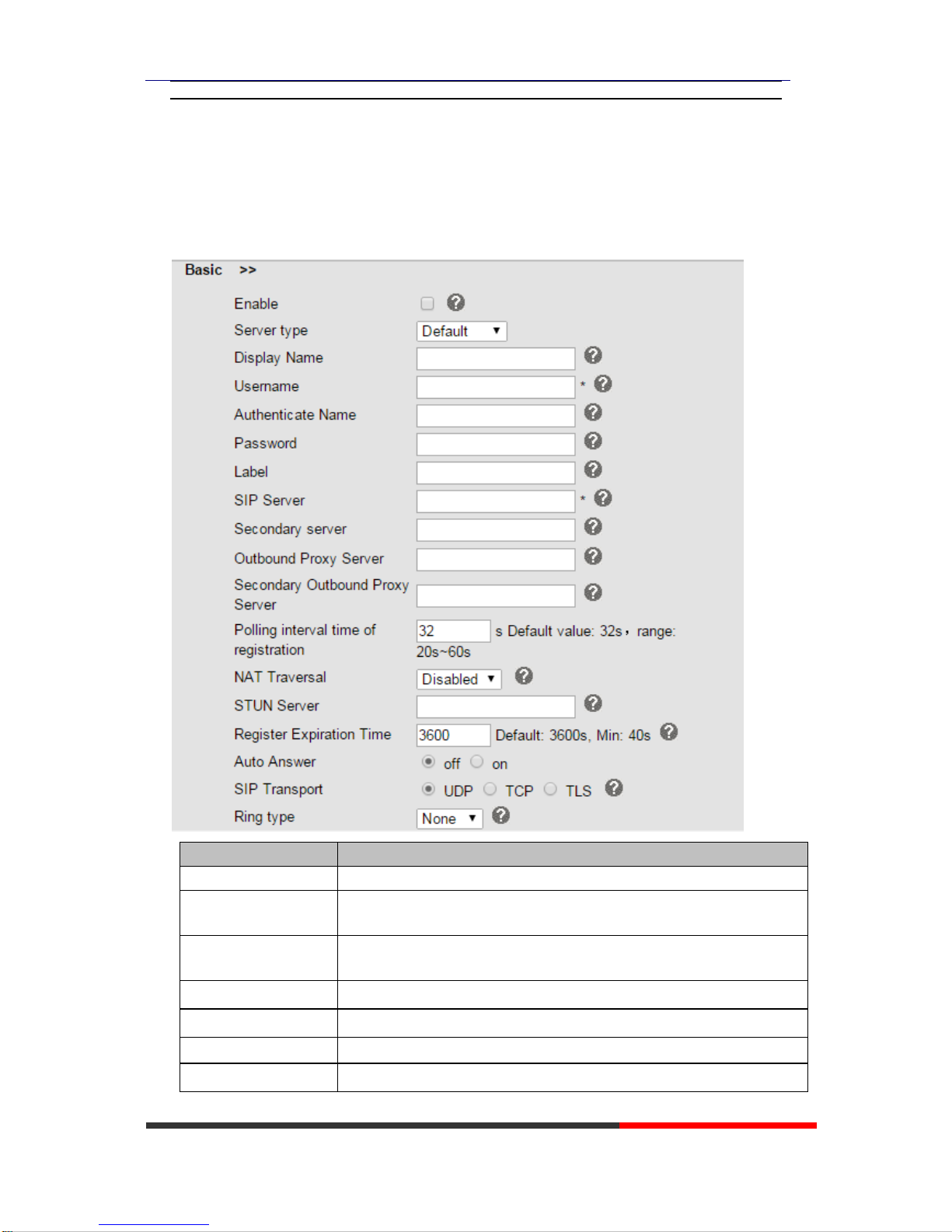

6 SIPAccount
6.1Basic
ITEM
DECSRIPTIO
N
Enable
You can choose on/off to enable/disable the line.
Server type
You can choose Default/Broadsoft.
Display Name
It is showed as Caller ID when making a phone call
Username
It is a username provided by SIP Server
Authenticate Name
It is authenticated ID for authentication
Password
It is a password provided by SIP Server
Label
Label with this account.

HS108v2 IPPhone
www.escene.cn/en/
Escene Communication
SIP Server
Server for registration, provided by administrator
Secondary server
When the main server can't work, it also can register in this secondary
server.
Outbound Proxy Server
Put into the address with the outbound proxy server.
Secondary Outbound
Proxy Server
When the main out bound server can't work, it also can use this secondary
server.
Poling Interval Time Of
Registration
Poling Interval Time Of Registration, default is 32 s.
NAT Traversal
Defines the STUN server will be active or not
STUN Server
Session traversal utilities for NAT.
BLA
Share with the line.
BLA Number
BLA Number
Subscribe Period
Subscribe expire time.
Register Expire Time
IP phone automatically registered every time
SIP Transport
There are UDP/TCP/TLS three options
Ring Type
Select this account ringing type.

HS108v2 IPPhone
www.escene.cn/en/
Escene Communication
6.2 Advanced
ITEM
DECSRIPTIO
N
Do Not Disturb
Enable/Disable Do Not Disturb
Anonymous Call
Enable/Disable anonymous call.
Anonymous Call
Rejection
Enable/Disable anonymous call rejection.
Use Session Timer
Enable/Disable refresh session function. The device will send an Invite
packet to refresh the session during a call if it enable.
Session Timer
The refresh session time interval.
Call Method
This method include SIP and TEL.
DNS-SRV
Enable/Disable DNS-SRV.
Allow-events
Enable/Disable Allow-events.

HS108v2 IPPhone
www.escene.cn/en/
Escene Communication
Registered NAT
Enable/Disable Registered to NAT
UDP Keep-alive
Message
The phone periodically sends a UDP packet to keep the port active and to
avoid the server to shut down the port
UDP Keep-alive
Interval
Default is 30 second.
SIP Encryption
Enable/Disable SIP encryption.
RTP Encryption
Enable/Disable RTP encryption.
Encryption Algorithm
The encryption algorithm at this time we only have RC4.
Encryption Key
The key with encryption.
7Programmable Keys
Function Keys
Function Keys: If you do not like the default setting with the function keys feature. You can
change to whatever you like.
NOTE: IF THE PHONE WITHOUT THE KEY, YOU CAN IGNORE IT.

HS108v2 IPPhone
www.escene.cn/en/
Escene Communication

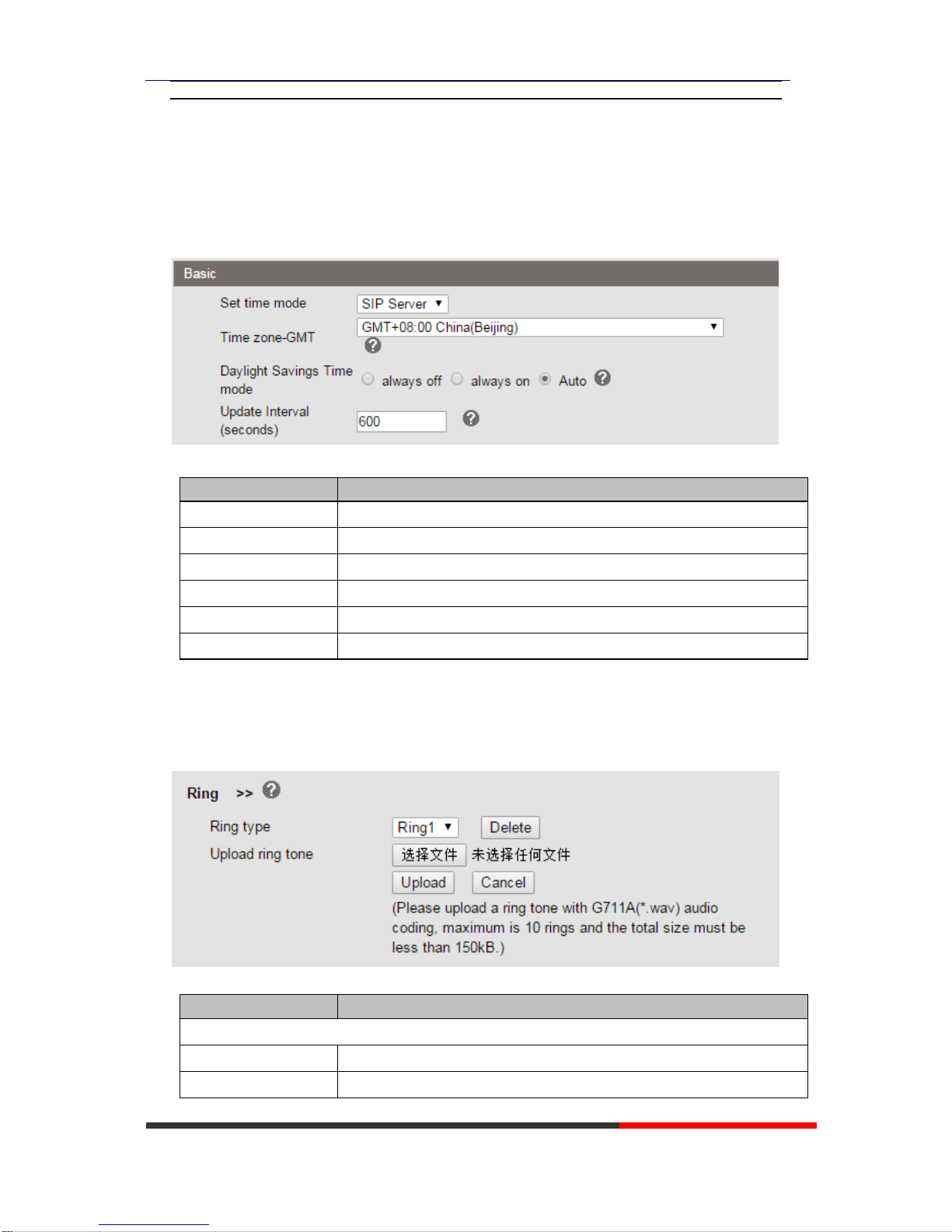

8 Phone Setting
8.1 Basic
ITEM
DECSRIPTIO
N
Set Time Mode
Include SNTP/SIP Server/Manual
SNTP Server
You can select in the list or input owner server address.
Secondary SNTP server
You can select in the list or input owner server address.
Time Zone-GMT
You can select different time zone for the phone
Daylight Saving Time
Enable/disable the DST for the phone
Update Interval
The update interval with SNTP.
8.1.1Ring
ITEM
DECSRIPTIO
N
Ring
Ring Type
Select the ring type. Default is Ring 1.
Uploading Ring Tone
Please upload a ring tone with G711Aaudio coding, Maximum 10 rings

HS108v2 IPPhone
www.escene.cn/en/
Escene Communication
and the total sizes must less than 150k.
8.1.2Volume Settings
ITEM
DECSRIPTIO
N
Select Country
Select the country dial tone. Default is United States.
Ring Volume
The ring volume default is Lv3, the range is 0~9.
Speaker Phone Volume
The speaker volume default is Lv5, the range is 1~9.
Speaker Phone MIC
Volume
The speaker MIC volume default is Lv3, the range is 1~7

HS108v2 IPPhone
www.escene.cn/en/
Escene Communication
8.2Features
8.2.1VoIP Call Forwarding
ITEM
DECSRIPTIO
N
Always
This feature allows you to forward all incoming calls to another phone
number.
If Busy
This feature allows you to forward an incoming call to another phone
number if busy.
If No Answer
This feature allows you to forward an incoming call to another phone
number if no answer.
Ring Frequency
Set ring frequency.
8.2.2Pickup function
ITEM
DECSRIPTI
ON
Pickup Function
When you are not in the position, others can help you to answer.
Pickup Code
Fill in server's pickup code.
