ES210 IP Smart VoIP Phone User Manual
E
Es sc ce en ne e C Co om mm mu un ni ic ca at ti io on n C Co o, , L Lt td d
INDEX
INDEX ...............................................................................................................................................................................................1
1. Getting Started.............................................................................................................................................................................3
About.....................................................................................................................................................................................3
Feature Highlights..................................................................................................................................................................3
2. Set up the Phone..........................................................................................................................................................................4
3. Phone User Interface....................................................................................................................................................................5
3.1 Hardware Component Instructions..................................................................................................................................5
3.2 Phone Screen Display Features ........................................................................................................................................7
3.3 Basic Network Settings.....................................................................................................................................................8
3.4 SIP Account Settings.........................................................................................................................................................8
3.5 Basic Features ..................................................................................................................................................................9

www.escene.cn/en/
Escene Communication
3.5.1 Making a Call ......................................................................................................................................................9
3.5.2 Anonymous Call..................................................................................................................................................9
3.5.3 Redial................................................................................................................................................................10
3.5.4 Call Log .............................................................................................................................................................10
3.5.5 Making Calls to Contact ....................................................................................................................................10
3.5.6 Multi-lines to Answer the Call...........................................................................................................................10
3.5.7 Auto-Answer.....................................................................................................................................................10
3.5.8 Ending a Call .....................................................................................................................................................11
3.5.9 Using Hold and Recover (Switch Calling Line) ...................................................................................................11
3.5.10 Transferring Calls ............................................................................................................................................12
3.5.11 Using Mute .....................................................................................................................................................12
3.5.12 Do Not Disturb................................................................................................................................................12
3.5.13 3-way Conference ...........................................................................................................................................12
3.5.14 Voice Mail.......................................................................................................................................................13
3.6 Advanced Settings..........................................................................................................................................................13
3.6.1 Using the phone book.......................................................................................................................................13
3.6.2 Using Call Logs ..................................................................................................................................................15
3.6.3 Peer-to-Peer......................................................................................................................................................15
3.7 Keypad Setting ...............................................................................................................................................................15
3.7.1 Language Setting...............................................................................................................................................15
3.7.2 Message............................................................................................................................................................16
3.7.3 Time & Date......................................................................................................................................................16
3.7.4 Ring Tone and Volume Setting ..........................................................................................................................16
3.7.5 Searching Phone Book ......................................................................................................................................17
3.7.6 Cannot Set the Features with Keypad...............................................................................................................17
4. WEB User Interface ....................................................................................................................................................................17
Main Interface-Phone Status ...............................................................................................................................................17
4.1 Net Work........................................................................................................................................................................19
4.1.1 LAN Port............................................................................................................................................................19
4.1.2 PC Port..............................................................................................................................................................21
4.1.3 Advanced..........................................................................................................................................................21
5 SIP Account .................................................................................................................................................................................23
5.1Basic................................................................................................................................................................................23
5.2 Call.................................................................................................................................................................................24
5.3 Security..........................................................................................................................................................................25
6 Phone Setting..............................................................................................................................................................................26
6.1 Basic...............................................................................................................................................................................26
6.1.1 Time Settings ....................................................................................................................................................27
6.1.2 Call....................................................................................................................................................................28
6.1.3 VoIP Call Forward..............................................................................................................................................29
6.1.4 QoS...................................................................................................................................................................29
6.2 Advanced .......................................................................................................................................................................30
6.2 .0 Audio ...............................................................................................................................................................30

www.escene.cn/en/
Escene Communication
6.3 Line Keys..............................................................................................................................................................32
6.4 Function Keys.......................................................................................................................................................32
6.5 Soft Key................................................................................................................................................................33
6.6 Dial Plan...............................................................................................................................................................33
6.7 IP Strategy............................................................................................................................................................35
7 Phone Book.................................................................................................................................................................................35
7.1 Group.............................................................................................................................................................................35
7.2 Contact...........................................................................................................................................................................35
7.3 LDAP...............................................................................................................................................................................36
7.4 Ban List...........................................................................................................................................................................37
8 Phone Maintenance ....................................................................................................................................................................38
8.1 Basic...............................................................................................................................................................................38
8.1.1 HTTP Upgrade...................................................................................................................................................38
8.1.2 FTP Upgrade .....................................................................................................................................................39
8.1.3 TFTP Upgrade....................................................................................................................................................40
8.1.4 Default Setting..................................................................................................................................................40
8.1.5 Reboot..............................................................................................................................................................41
8.2 Advanced .......................................................................................................................................................................41
8.2.1 Log....................................................................................................................................................................41
8.2.2 Auto Provision ..................................................................................................................................................41
9 Password.....................................................................................................................................................................................43
10 WEB Other Settings or Information - Appendix.........................................................................................................................43
10.1 WEB User.....................................................................................................................................................................43
10.2 Multi-Language............................................................................................................................................................43
10.3 Note Tips......................................................................................................................................................................43
1. Getting Started
About
ESCENE ES210 is a compact office IP
phone with rich features. It has 128*64 HD graphic LCD up to 4-line display; it also has HD Sound Quality, unique art design, demount
able bracket to provide multi-angle, 4 programmable keys, and friendly user interface to satisfy users's communication needs. This
document revised by Nolto Bilişim www.nolto.com Escene Turkey Distributor. June 2020.
Feature Highlights
a) Multi-Language
The LCD display supports Multi-Language.
b) HD Voice
Special voice processing technology, high-fidelity voice quality, HD encoding, HD Handset, ensure clear, realistic smooth communication.
c) Senior Calling Ability

www.escene.cn/en/
Escene Communication
2 lines with double color (GREEN & RED) LEDs, synchronously control or manage 2 calls, Call queue, Switch between lines. Multi-parties
conference call transfer.
d) All kinds of Phone Book
It supports XML Personal Phone Book\LDAP\Enterprise Phone Book etc. This feature satisfies customer's phone book requirements.
e) Support HTTP\TFTP\FTP\Auto-Provision.
f) Support POE (Remark: ES210-P) and Power Adapter.
g) 2-angle adjustable bracket.
h) Support 5 programmable keys.
2. Set up the Phone
a) Packing List:
Check the packing list before installation, if you find anything missing, contact your system administrator.
⚫1*ES210 IP Phone
⚫1*Handset
⚫1* Handset Cord
⚫1*Ethernet Cable
⚫1*Phone Bracket
⚫1*Quick Setup Guide
b) Phone Installation:
This section introduces how to install the phone with the components in the packing list:
⚫Attach the Bracket
⚫Connect the Handset and optional Headset
⚫Connect the Network and Power

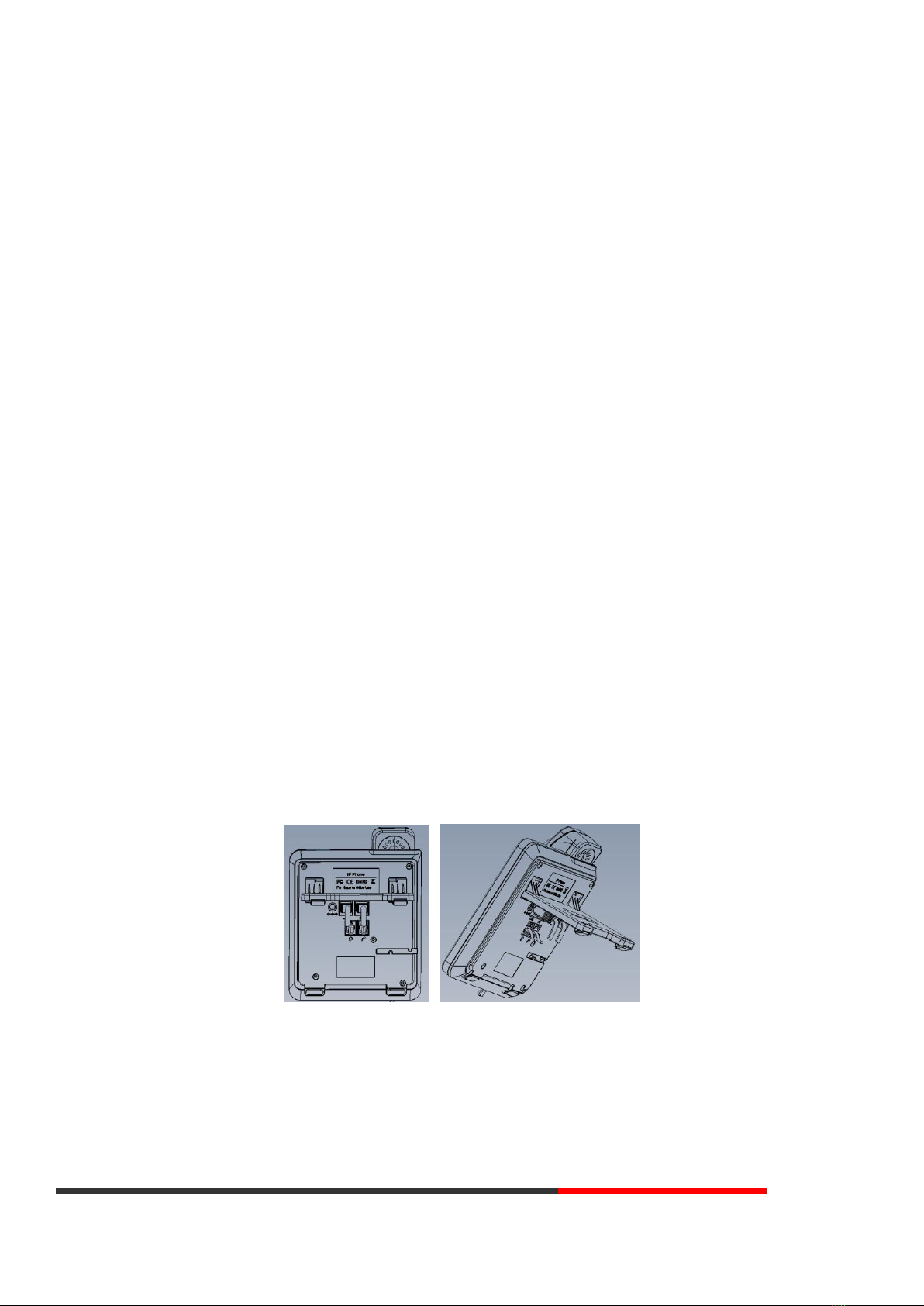

Attach the Bracket
Pls follow as below pictures to attach the bracket.

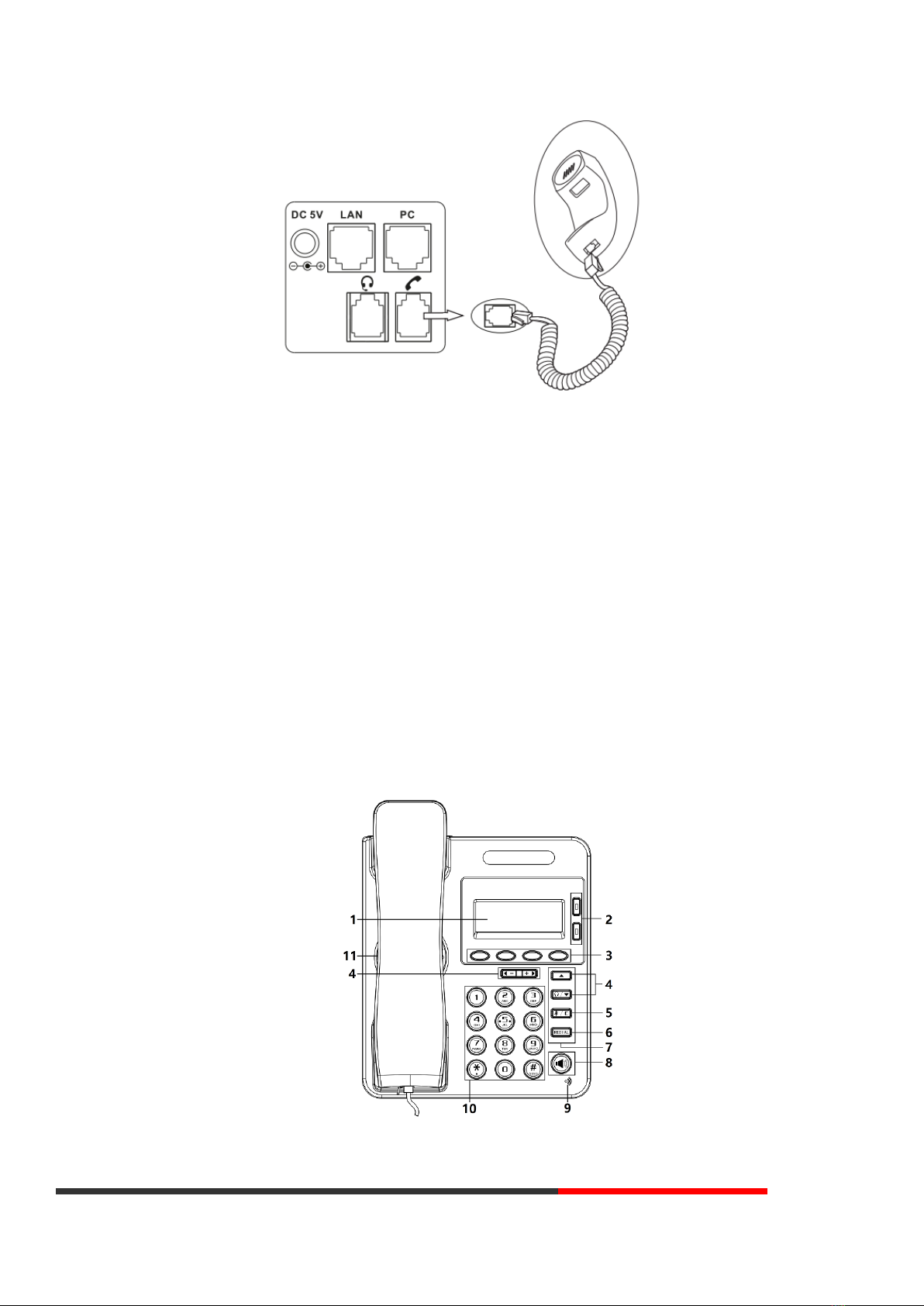

Connect the Handset and optional Headset

www.escene.cn/en/
Escene Communication
NOTE: Headset port & PSTN port is option. The Back light of LCD also is option.
Connect the Network and Power
You have two options for power supply. Your system administrator will advise you which one to use.
⚫AC power adapter
⚫POE (Power over Ethernet) IEEE802.3af
NOTES：Pls make sure your phone support POE feature. You can check the label on the back of the phone, for example "Model: ES210-P
Rev:2.1.0", the P means it support POE feature.
Note: If POE works, the phone does not need to connect to the AC power adapter. Make sure the Ethernet cable and switch/hub are POE compliant.
3. Phone User Interface
3.1 Hardware Component Instructions
The main hardware components of the ES210 IP Phone are the LCD screen and the keypad.

www.escene.cn/en/
Escene Communication
Hardware component instructions of the ES210 IP Phone are:
ITEM
DESCRIPTION
1
LCD Screen
Displayed information about calls, messages, soft keys, time, date, and other relevant data:
• Call information — caller ID, call duration
• Icons (e.g. )
• Missed calls or second incoming caller's information
•Time and date
2
Line Key
Red, flashing: Incoming call
Red, steady: Pick up but not on communication
Green, steady: On communication
Green, flashing: On hold
Light off: Idle
NOTE: Light yellow steady: Under the idle status, the light will on when: Missed Call, Transfer,
DND, Message, Mute, SIP-Unregistered.
3
Soft Key
Labels automatically to identity their context-sensitive features
4
Navigation Key
Volume Key
In the idle status, press UP or DOWN key can check the call log:
UP: Open the "All CONTACT LOG”, DOWN: Open the "MISSED CALL",
RIGHT and LEFT can check other list, like "RECEIVED CALL\DAIL CALL".
In the idle or talking status, press RIGHT or LEFT key can adjust the volume.
5
Mute & C Key
Cancels actions or rejects an incoming call, and the other feature:
In the idle: Open the "Phone Status".
Diagnosis: Press and hold 3 second to open "Hardware Diagnosis".
MUTE: "MUTE" feature is enabled if you press it while the conversation making on the
phone.
6
Redial Key
Dial the latest number.
7
Programmable Key
In the idle status, press and hold 3s will enter programmable function, the default password
is empty:
Line 1 & 2: press and hold can quickly enter account setting. If you want to set it to another
function, you need to login into website to change it.
Navigation key UP & DOWN, redial key press and hold can quickly enter programmable key
setting function, they can change to Redial\DND\Personal Phonebook\Enterprise
Phonebook\LDAP
\Directory\Speed Dial\Call History\Received Calls\Dialed Calls\Main Menu\New
Message\Forwarded Calls\View Status\Enable/Disable SIP Account\Default.
NOTE：MUTE&C key is not support programmable function.
8
Speaker Key
Toggles the hands-free speaker phone mode. Press and hold can change to headset mode
9
MIC
High sensitive pickup Mic.
10
Keypad
Provides the digits, letters, and special characters in context-sensitive applications.
11
Speaker
HD speaker.

www.escene.cn/en/
Escene Communication
3.2 Phone Screen Display Features
If the IP Phone has successfully started up and after using, the idle LCD display will show information as below:
ITEM
DESCRIPTION
1
TIME & DATE
TIME & DATE display in the middle of the screen.
2
Auto-Answer icon
Enable this feature, it will display "AA" at the top right corner.
3
Missed Call
Missed Call under the TIME in the middle of screen
4
Line Status
There are four status as below:
a. :Disconnect the network
b. :Account failed to register
c. :Account successfully registered
d. :Account successfully registered and DND feature is enabled. The DND icon also will
display at the top right corner.
5
Soft Key Area
Labels automatically to identity their context-sensitive features
6
Screen Top Icon
The Screen Top Icon from left to right is:
: Handset Hand on status
: Speaker Hand on status
: Headset Hand on status
: Call MUTE
: Missed Call
: Call Forward
: Text Message
: Keypad Lock
: Network is unavailable

www.escene.cn/en/
Escene Communication
3.3 Basic Network Settings
The phone supports Three Modes of Network Setting. Include PPPoE\Static IP\DHCP.
DHCP Setting
Feature
Operating Steps
DHCP
Press MENU> System Settings> Advanced Settings> Password (Default is Empty)> Network> LAN Port
⚫Press LAN Port to login into the menu
⚫Select "DHCP" mode
⚫Press "Enter" key
⚫Set the DNS\web port\telnet port
⚫Press "Save" key to make it work
⚫Tips "Network is changed, press OK reboot "
Static IP Setting
Feature
Operating Steps
Static IP
Press MENU> System Settings> Advanced Settings> Password (Default is Empty)> Network> LAN Port
⚫Press LAN Port to login into the menu
⚫Select "Static" mode
⚫Press "Enter" key
⚫Set the IP\Mask\GW\DNS\web port\telnet port
⚫Press "Save" key to make it work
⚫Tips "Network is changed, press OK reboot "
PPPoE Setting
Feature
Operating Steps
PPPoE
Press MENU> System Settings> Advanced Settings> Password (Default is Empty)> Network> LAN Port
⚫Press LAN Port to login into the menu
⚫Select "PPPoE" mode
⚫Press "Enter" key
⚫Set the Username\Password\web port\telnet port
⚫Press "Save" key to make it work
⚫Tips "Network is changed, press OK reboot "
3.4 SIP Account Settings
ES210 IP phone makes calls based on sip accounts, it can support Single account or Multi-account, each account can be configured to the different SIP
server.
If you want to…
Then...
Create a SIP account
--1) Select “System setting” > “Advanced setting”.
--2) Enter the password required（The default is empty).
--3) Select “SIP” > “Account sip”.
--4) Select one of the accounts you want to set, you can configure the following parameters

www.escene.cn/en/
Escene Communication
-Enable account*: Select Enable
-Number of lines: Default is 2
-Description: description of this account
-Display Name: The name displayed on the screen
-Authentication user: The Authenticated users are matched with the SIP server. (The
default with the same account)
-Account*: the account matches with the SIP server. (extension number)
-User password*: the user password matches with the SIP server
-SIP Server*: The primary SIP server, all calls through this server
-Out Bound Server: The out bound SIP server
-STUN Type: Enable/Disable STUN feature
-STUN: Input STUN URL
-Auto Answer: Enable/Disable this account auto answer feature
* Note: When you finish the setting, you can press Save to make it work, and then you can see
the status icon in the LCD idle. The parameters with the * mark must be set.
Disable sip account
--1) Select “System setting” > “Advanced setting”.
--2) Enter the password required（The default is empty).
--3) Select “SIP” > “Account sip”.
--4) Select “Enable account” > “Disable”.
--5) Select “Save” to saves settings
3.5 Basic Features
3.5.1 Making a Call
Here are some easy ways to place a call on SayHi IP Phone:
If you want to...
Then…
Place a call using the
handset
Pick up the handset
--1) You can hear dial tone.
--2) Enter a number.
--3) Press #button (default)，
-or wait 5s (default), then it sends the number
automatically.
Place a call using a
speakerphone
Press Speaker button
Place a call using a
headset
Put on your headset, Press, and
hold the speaker button to active
Headset feature, and then do as
using speakerphone
3.5.2 Anonymous Call
You can use anonymous call feature to block the identity and phone number from showing up to the called party when you call someone. E.g., you
want to call to consult some of the services, but you do not want to be harassed.
Enable Anonymous Call
Press MENU> Function Setting> Anonymous
--Press Enter button,

www.escene.cn/en/
Escene Communication
-You can select which Account want to use, enable/disable this feature, and
enable/disable reject anonymous
3.5.3 Redial
To redial the last placed call from your phone
Redial
--Press REDIAL button to dial the last number
-or press Navigation Button-Left > “Dialed number”, select a number, and press
3.5.4 Call Log
Dial from a call log
--1) Press MENU button >“Call history”, you can select "All Calls", “Missed calls”, “Received
calls” and “Dialed numbers”,
- or press Navigation UP/DOWN button (in idle status) > select "All Calls"(up) “Missed
calls” (down), left and right can select “Dialed numbers” or “Received calls”
--2) Then press button.
NOTE: You also can press the "log" to login this menu when in the idle.
3.5.5 Making Calls to Contact
You can also dial a contact from the Personal Phone Book.
Placing Calls to Contacts
--1) Press MENU button >“Phone Book”, you can select "Personal Phone Book",
“Enterprise Phone Book”, “LDAP” and “Blacklist”,
- or press Navigation UP/DOWN button (in idle status) > select the desired contact.
--2) Then press button.
NOTE: You also can press the "DIR" to login this menu when in the idle.
3.5.6 Multi-lines to Answer the Call
Multi-lines to Answer the Call
--1) Another Line button is Red and flashing, Light strip is Red and flashing.
--2) Press the flashing Line button to answer (at this time, the original call will be
hold.)
3.5.7 Auto-Answer
You can set the phone and let it auto-answer the coming call.

www.escene.cn/en/
Escene Communication
Auto-Answer the Coming Call
--1) Enable the Auto-Answer feature.
--2) Auto-Answer mode you can set in the MENU>Function Setting> Auto Answer >Device
⚫Speaker
⚫Handset
⚫Headset
When you use the Handset mode, at this time you need to hand up the handset and then
it can work at this status.
--3) Filter Groups
Auto-answer the coming call in this special groups.
3.5.8 Ending a Call
To end a call, hang up. Here are some more details. NOTE: Press and hold the speaker key can change to Handset feature.
Hang up while using the Handset
--Return the handset to its cradle,
-or press End
Hang up while using the
Speakerphone
--Press Speaker button,
-or press Line button for the appropriate line,
-or press End
Hang up while using the Headset
--Press Handset button, （Do not keep the headset mode),
-or press End (keep the headset mode)
Hang up one call, but preserve
another call on the other line
--Press End,
-or refer to the above three methods
3.5.9 Using Hold and Recover (Switch Calling Line)
You can hold and resume calls. You can take a call in one line at any time, and the other lines would be hold. As a result of that, you can switch
different calling line on our phone. Note: If the phone is not having the hold button, pls using the soft key.
If you want to...
Then...
Put a call on hold
--Press HOLD button,
-or press soft key
Hold a line and switch to another
line
Press another Line button for the appropriate line
Resume a call on current line
--Press Line button,
Release a call on different line
Select the line want to release hold, press the line, so recovery;
NOTES
•Engaging the Hold feature typically generates music or a beeping tone.
• A held call is indicated by the Yellow-green and flashing Line button or Hold in the LCD.

www.escene.cn/en/
Escene Communication
3.5.10 Transferring Calls
Transfer redirects a connected call. The target is the number to which you want to transfer the call.
Talk to the transfer recipient
before transferring a call
(consult transfer)
--1) Press TRANSFER button or press XFER.
--2) Enter number.
--3) press “#” （default),
-or press then transfer the call,
-or wait five seconds(default)then transfer the call
Transferred to idle lines or
other numbers without
talking to the transfer
recipient
(Blind transfer)
--1) Press TRANSFER button or XFER.
--2) Press ;
--3) Enter number.
--4) Press “#” （default)
-or press , then transfer the call.
-or wait five seconds(default)then transfer the call
Blind transfer to the
held line
--1) Press TRANSFER button or press XFER.
--2) Press the Line button of held line
3.5.11 Using Mute
With Mute enabled, you can hear other parties on a call, but they cannot hear you. You can use mute in conjunction with the handset, speakerphone,
or a headset。
Toggle Mute on
Press C button, then the screen top and left will have a MUTE icon
Toggle Mute off
Press C button again, then the button lights off
3.5.12 Do Not Disturb
You can use the Do Not Disturb (DND) feature to block incoming calls on your phone with a busy tone（Can also be set to their voice mail or other
extension numbers, etc.).
Enable global DND
--1) Press DND.
--2) All enabled line on the phone would changes to status. and the icon is .
Enable DND on a single line
Press MENU button > “Function setting” > “DND” > (select line) “Enable”
Disable DND
--Global DND enabled, press to disable global DND.
--Line DND enabled, press twice ,
-or press MENU button > “Function setting” > “DND” > (select line) “Disable”
3.5.13 3-way Conference
You can enable a three-party conference, during the conversation three phone parties can communicate with every party.
If you want to...
Then...
Invite the transfer recipient
into a conference in a
--1) When the transfer recipient answers the call, press CONFERCENCE button or "CONF"
on your phone.

www.escene.cn/en/
Escene Communication
transferring
--2) Then the held one, transfer recipient and you will be into a conference, and the LCD
will display status.
Invite the third party into a
conference in an active call
--1) Press "CONFERENCE" button or "CONF" in an active call.
--2) Enter the third-party number.
--3) After connected the third party, press "CONFERENCE" button or "CONF" again
establish a conference
withheld line
--1) when one phone line is holding on and the other line is busy.
--2) Press "CONFERENCE" button,
-or Press "CONF" Soft key
--3) Press the held line's programmable button, the 3-way Conference is enabled.
3.5.14 Voice Mail
You can set Voice Mail function in Menu> Message.
Voice Mail
--1) Dial the voice mail number, e.g. *97
--2) Enter the User Password
--3) It will login into the voice mail server. You need to follow the IVR to do it.
3.6 Advanced Settings
3.6.1 Using the phone book
Enterprise Phone Book
Search the Contacts from
Enterprise Phone Book
--1) Press DIR in the idle status,
-or press "MENU" button > “Phone book”> “Enterprise Phone Book”,
--2) Select “Enterprise Phone Book”, press "OK" button.
--3) Press "Find" and input the name who you want to search.
Call the Contact from
Enterprise Phone Book
--1) Press "DIR" in the idle,
-or press "MENU" button > “Phone book”> “Enterprise Phone Book”,
--2) Select “Enterprise Phone Book”, press "OK" button.
--3) Press "Find" and input the name who you want to search.
--4) When you search the person, you can dial it.
Personal Phone Book
Add Contacts
--1) Press Phone Book,
-or press "MENU" button > “Phone book”> “Personal phone book>View All”,
-or press "OK"button > “Phone book”> “Personal phone book>View All”.
--2) Select “Add contact”, press "OK" button.
--3) Use the navigation keys to select content, press "OK" button to set and modify:
-Name: set the name of contact,

www.escene.cn/en/
Escene Communication
-Office Number: Setting the contact Office Number
-Mobile Phone Number: Setting the contact Mobile Phone Number
-Others Number: Setting the contact Others Number
-SIP Account: Setting the contact call SIP account
-Group: the contacts be divided into different user’s groups
--4) Press "Save" soft key to complete
Add group
--1) Press "DIR" soft key,
-or press "MENU" button > “Phone book”> “Personal phone book>View All”,
-or press "OK"button > “Phone book”> “Personal phone book>View All”.
--2) Select the “add group” then press OK button.
--3) Use the navigation keys to select content, press OK button to set and modify:
-Group name: name of the group
--4) Press "Save "soft key to complete
Modify group
--1) Press "DIR" soft key,
-or press "MENU" button > “Phone book”> “Personal phone book>View All”,
-or press "OK"button > “Phone book”> “Personal phone book>View All”.
--2) Select the “Modify group” then press "OK" button.
--3) Select the group you want to modify, press the "OK"button to set and modify, press
"Save" to save the change
Delete group
--1) Press "DIR" soft key,
-or press "MENU" button > “Phone book”> “Personal phone book>View All”,
-or press "OK"button > “Phone book”> “Personal phone book>View All”.
--2) Select the “Delete group” button.
--3) Select a group you want to delete, press OK button
LDAP
Search the Contacts from
LDAP
--1) Press "DIR" in the idle,
-or press "MENU" button > “Phone book”> “LDAP”,
--2) Select “LDAP”, press "OK" button.
--3) Press "Find" and input the name or number who you want to find search from the LDAP
server.
Call the Contact from LDAP
--1) Press "DIR" in the idle,
-or press "MENU" button > “Phone book”> “LDAP”,
--2) Select “LDAP”, press "OK" button.
--3) Press "Find" and input the name or number who you want to find from the LDAP server.
--4) When you search the person, you can dial it.
Blacklist
Add the Contacts
--1) Press "DIR" in the idle,

www.escene.cn/en/
Escene Communication
-or press "MENU" button > “Phone book”> “Blacklist”,
--2) Select “Blacklist”, press "OK" button.
--3) Press "Add" and input the name\office number\mobile number\other number\SIP
account who what you want to add into the Blacklist.
View the Contact from
Blacklist
--1) Press "DIR" in the idle,
-or press "MENU" or "OK" button > “Phone book”> “Blacklist”,
--2) Select “Blacklist”, press "OK" button.
--3) Press "RUN" to view someone who what you want to find.
--4) If you want to move or change it, you can follow the RUN to do.
3.6.2 Using Call Logs
Your phone maintains records of your missed, placed, and received calls.
View call logs
--1) Press "MENU" or "LOG" button > “All Call” > “Missed Calls”, “Received Calls”, or “Dialed
numbers”
--2) Use the navigation keys to view the call record information.
Delete/Save Call Logs
--1) Login into the Call Logs
--2) Use the navigation keys to view the call record or select DEL key.
--3) Use the navigation keys to view the call record or select Save key.
3.6.3 Peer-to-Peer
When all the phone accounts were disable or not register. it will be showing this mode in the idle. It can use by when the new workstation is not
having SIP server.
Peer-to-Peer
Disable all of accounts or not register.
Make Call with
Peer-to-Peer
--1）Press MENU button> System Setting> Advanced Setting> SIP Account.
--2）Disable all of accounts or un-register.
--3）Turn back the phone idle, you can call someone use IP address.
3.7 Keypad Setting
SayHi series IP Phone can through two ways configuration it, one is setting in MENU, another is setting in website. Here just description in MENU.
NOTES: When you want to input the IP address like ".", it was replaced by the "*".
3.7.1 Language Setting
ES210 IP Phone support Multi-Language setting, as below is an example.
Switch the Language between
Chinese and English
--1）Press MENU button> System Setting> Phone Setting> Language
--2）Here you can select
English\French\Italian\Polish\Protuguese\Runssian\Spanish\Turkish\Chinese
--3) After you finish select, press Save to make it work.

www.escene.cn/en/
Escene Communication
3.7.2 Message
ES210 have Message feature. It will display in the LCD when it has a New Message.
Create a Message
--1）Press MENU button.
--2）Select "Messaging"
--3）Voice Message: Setting the Voice Message code in here.
Text Message: Write down the Text Message in here.
--4）Select Text Message> New Message.
--5）Input the receiver and write down message body, and then press send to finish.
Message Inbox
--1）Select Message Inbox.
--2）Select which one you want to check.
--3）You can press Enter to read or press Del to delete.
3.7.3 Time & Date
SNTP
--1）Press MENU button.
--2）Press MENU button> System Setting> Phone Setting> Time & Date> Time and Date setting> SNTP
--3）SNTP
-Time Zone：Setting the time zone
-NTP Server 1：NTP server address 1
-NTP Server 2：NTP server address 2
-Daylight：Enable/Disable Day Light
SIP Server
--1）Press MENU button.
--2）Press MENU button> System Setting> Phone Setting> Time & Date> Time and Date setting>SIP
Server
--3）Press Save to make it work
Manual Setting
Press MENU button.
--2）Press MENU button> System Setting> Phone Setting> Time & Date> Time and Date setting>
Manual Setting
--3）Manual Setting
- Manual Setting: Year\Month\Days\Hours\Minutes\Seconds
Time Display Format
--1）Press MENU button.
--2）Press MENU button> System Setting> Phone Setting> Time & Date> Time Display Format
--3）Time Mode: 24hour\12hour
Date mode:
DDMMWWW\MMDDWWW\WWWDDMMM\DDMMMYY\YYYYMMDD\DDMMYYYY\MMDDYY\DDM
MMYYYY\WWWDDMMM etc.
3.7.4 Ring Tone and Volume Setting
Ring Type
--1）Press MENU button.
--2）Press MENU button> System Setting> Phone Setting>Ring Type
--3）Select the ring type from 1 to 8 or custom ring, and then press Save to make it work.
Volume Setting
--1）Press MENU button.

www.escene.cn/en/
Escene Communication
--2）Press MENU button> System Setting> Phone Setting> Volume Setting
--3）Volume Setting: Handset\Speaker\Headset\Ring volume
--4) Press Enter to adjust the volume and press Save to make it work
NOTES: For the Custom Ring Type you need to upload it from website.
3.7.5 Searching Phone Book
Accurate Search
--1）Press MENU button >“Function Setting”, you can select " Accurate Search "
--2) Then press Enable/Disable and Save.
--3) When you back to idle, you can use the digital keypad to search the contact.
T9 Search
--1) Press MENU button >“Function Setting”, you can select " T9 search"
--2) Then press Enable/Disable and Save.
--3) When you back to idle, you can use the digital keypad to search the contact.
NOTES: The Search Phone Book setting default is Accurate Search.
3.7.6 Cannot Set the Features with Keypad
As below features are cannot setting with the keypad:
1) Dial Plan.
2) Custom Ring Type
3) SNTP Server and Time & Date
4) Update the Firmware or Backup.
4. WEB User Interface
In addition to the phone user interface, you can also customize your phone via web user interface. To access the web user interface, you need to know
the IP address of your new phone. To obtain the IP address, press the C key on the phone. Enter the IP address (e.g. HTTP://192.168.0.10 or
192.168.0.10) in the address bar of web browser on your PC. The default username is root (case-sensitive) and the password is root (case-sensitive).
Main Interface-Phone Status
Here you can see as below information: System Run Time, Register Status, Network Status, System Information,

www.escene.cn/en/
Escene Communication
ITEM
DESCRIPTION
System Run Time
The phone system normal running time.
Register Status
The status with Account 1~3.
Network Status
The status with LAN, MAC, LAN IP, Net mask, Gateway, Primary DNS, Secondary DNS, VPN IP,
PC IP, PC Net mask, Device Type, DHCP Server.
System Information
The status with Phone Model, Software Version, Hardware Version, Hardware ID, Kernel
Version, Auto-Provision Server URL, TFTP Server IP.

www.escene.cn/en/
Escene Communication
4.1 Net Work
4.1.1 LAN Port
Basic
ITEM
DESCRIPTION
Network Connection Mode
Network Connection Mode has DHCP, Static IP, PPPoE.
DNS Settings
Select the DNS mode that you want.

www.escene.cn/en/
Escene Communication
Advanced
ITEM
DESCRIPTION
Port Management Settings
HTTP Port
The default web port is 80, if you want to change it (for example change it to88),
You must input IP and Web port to login the web page(for example
HTTP://192.168.0.200:88). It will take effect on next reboot.
Telnet Port
The default Telnet port is 23, if you want to change it (for example change it to 2003).
You must input IP and Telnet port to login the manage page (for example telnet
192.168.0.200:2003). It will take effect on next reboot.
Socket5 Proxy Server
Socket5 Proxy Server
Enable/Disable Socket5 Proxy Server.
Server IP
Socket5 Proxy Server IP address.
