EVCO S.p.A. Vcolor 618 M & L | Installer manual ver. 2.0 | Co e 144VC618E204
page 1 of 50
Vcolor 618 M & L
Controller for retar ing-proofing cabinets
an rooms, with 5 or 7-inch colour TFT
touch-screen graphic isplay, in split
version
Installer Manual | ENGLISH
Co e 144VC618E204

EVCO S.p.A. Vcolor 618 M & L | Installer manual ver. 2.0 | Co e 144VC618E204
page 2 of 50
Important
Rea this ocument carefully before installation an before using the evice an take all the prescribe precautions. Keep this
ocument with the evice for future consultation.
Only use the evice in the ways escribe in this ocument. Do not use the evice as safety evice.
Disposal
The evice must be ispose of accor ing to local regulations governing the collection of electrical an electronic waste.

EVCO S.p.A. Vcolor 618 M & L | Installer manual ver. 2.0 | Co e 144VC618E204
page 3 of 50
Index
1 INTRODUCTION .................................................... 4
1.1 Intro uction ......................................................... 4
1.2 Table listing the mo els available, their main features
an purchasing co es ............................................ 5
2 MEASUREMENTS AND INSTALLATION ...................... 7
2.1 Vcolor 618 M user interface measurements .............. 7
2.2 Vcolor 618 L user interface measurements ............... 7
2.3 User interface installation ...................................... 8
2.4 Control mo ule measurements ............................... 8
2.5 Control mo ule installation .................................... 8
2.6 Installation precautions ......................................... 8
3 ELECTRICAL CONNECTION ..................................... 9
3.1 Vcolor 618 M electrical connection .......................... 9
3.2 Vcolor 618 L electrical connection ......................... 10
3.3 Precautions for electrical connection ...................... 11
4 DESCRIPTION .................................................... 12
4.1 User interface escription .................................... 12
4.2 Control mo ule escription .................................. 13
5 FIRST-TIME USE ................................................. 14
5.1 Operating mo es ................................................ 14
5.2 Operating the evice ........................................... 14
6 NAVIGATION ...................................................... 16
6.1 Initial information ............................................... 16
6.2 Home screen ...................................................... 16
6.3 Run screen ........................................................ 17
6.4 Screen Saver ..................................................... 18
6.5 Settings screen .................................................. 18
7 AN OVERVIEW OF THE FUNCTIONS ....................... 20
7.1 Automatic an manual cycles ............................... 20
7.2 Other functions .................................................. 21
8 MAIN FUNCTIONS ............................................... 22
8.1 Manual cycle ...................................................... 22
8.2 Automatic cycle .................................................. 23
8.3 Recipe book ....................................................... 25
8.4 Pre-cooling ......................................................... 25
9 REGULATIONS .................................................... 27
9.1 Pre-cooling ......................................................... 27
9.2 Temperature regulation ....................................... 27
9.3 Humi ity regulation ............................................. 28
10 LOAD MANAGEMENT ............................................ 30
10.1 Compressor management .................................... 30
10.2 Pump- own management .................................... 30
10.3 Evaporator fan management ................................ 30
10.4 Defrost management ........................................... 31
10.5 Heater management ............................................ 31
10.6 Steam generator output management ................... 31
10.7 Humi ifier output management ............................ 31
10.8 Dehumi ification management.............................. 32
10.9 Con enser fan management ................................. 32
10.10 Cabinet light management ................................... 32
11 MANAGING THE USB PORT ................................... 33
12 ALARMS ............................................................. 34
13 PARAMETERS...................................................... 37
14 ACCESSORIES .................................................... 44
14.1 Safety transformer (ECTSFD004) .......................... 44
14.2 Non-optoisolate RS-485/USB serial interface
(EVIF20SUXI) ..................................................... 44
14.3 USB plug for panel installation (0812000002) ......... 44
14.4 Connecting cables (0810500018/0810500020) ....... 44
14.5 Phase cutting spee regulator (EVDFAN1) .............. 44
14.6 USB flash rive (EVUSB4096M) ............................. 45
14.7 Graphic synoptic evice (EVC25T00X7XXX04) ........ 45
14.8 Polyester overlay (0041600281) ........................... 45
15 TECHNICAL SPECIFICATIONS ............................... 46
15.1 Technical specifications ........................................ 46

EVCO S.p.A. Vcolor 618 M & L | Installer manual ver. 2.0 | Co e 144VC618E204
page 4 of 50
1IN RODUC ION
1.1 Introduction

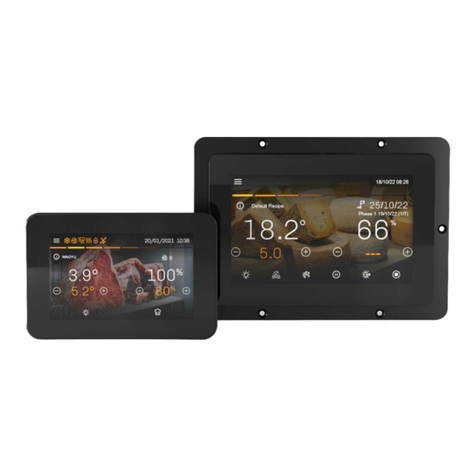

Vcolor 618 is a stylish controller for managing retar ing-proofing cabinets an rooms.
Available in split version, the controller consists of a 5-inch (M) or 7-inch (L) capacitive TFT touch-screen graphic isplay in glass, 65K
colours, 800 x 480 pixel resolution an IP65 protection for easy cleaning.
It is capable of managing automatic retar ing-proofing cycles (consisting of blocking, conservation, re-awakening, proofing an
retar ing phases), manual conservation an proofing cycles (with temperature, humi ity an fan intensity manage in epen ently for
each phase).
It also has a programming function that stores the settings for automatic retar ing-proofing cycles in a program which can
subsequently be selecte an run, an a USB communications port enabling the settings an ata recor e by the controller to be
uploa e an ownloa e using an or inary USB flash rive.
The controller installe from behin using threa e stu s enables it to be place flush with the panel thus making it fit perfectly with
the esign of the unit.

EVCO S.p.A. Vcolor 618 M & L | Installer manual ver. 2.0 | Co e 144VC618E204
page 5 of 50
1.2 able listing the models available, their main features and purchasing codes
The table below lists the mo els available.
Models available
Vcolor 618 M
5-inch capacitive TFT touch-screen
graphic isplay in glass
Vcolor 618 L
7-inch capacitive TFT touch-screen
graphic isplay in glass
The table below shows the main features of the evice.
Power supply Vcolor 618 M Vcolor 618 L
Control mo ule 115...230 VAC 115...230 VAC
User interface powere by the control mo ule 12 VAC
Analogue inputs Vcolor 618 M Vcolor 618 L
Cabinet probe (PTC/NTC) • •
Evaporator probe (PTC/NTC) • •
Con enser probe (PTC/NTC) • •
Humi ity probe (4-20 mA) • •
Digital inputs (for normally open/normally
closed contact) Vcolor 618 M Vcolor 618 L
Door switch • •
Compressor thermal switch • •
Low pressure switch • •
High pressure switch • •
Analogue outputs Vcolor 618 M Vcolor 618 L
PWM (evaporator fan) • •
Digital outputs (electro-mechanical relays; A
res. @ 250 VAC) Vcolor 618 M Vcolor 618 L
Compressor 16 A 16 A
Defrost 8 A 8 A
Humi ifier 8 A 8 A
Heaters 16 A 16 A
Steam generation 8 A 8 A
Cabinet light 8 A 8 A
Loa 4 (configurable, ehumi ifier efault) 8 A 8 A
Loa 8 (configurable, pump own valve efault) 8 A 8 A
Communications ports Vcolor 618 M Vcolor 618 L
RS-485 MODBUS • •
USB • •
Other features Vcolor 618 M Vcolor 618 L
Clock • •
Alarm buzzer • •
Management of automatic retar ing-proofing cycles • •

EVCO S.p.A. Vcolor 618 M & L | Installer manual ver. 2.0 | Co e 144VC618E204
page 6 of 50
an manual conservation an proofing cycles
Fan intensity management • •
HACCP function • •
"Programs" function • •
Wi-Fi Connectivity (optional) • •
For more information see the section 15 “TECHNICAL SPECIFICATIONS”.
The table below shows the purchasing co es.
Purchasing codes
Vcolor 618 M (control module + 5-inch user interface kit)
EVCMC618N9E
Vcolor 618 L (control module + 7-inch user interface kit)
EVCLC618N9E
For more mo els contact the EVCO sales network.

EVCO S.p.A. Vcolor 618 M & L | Installer manual ver. 2.0 | Co e 144VC618E204
page 7 of 50
2MEASUREMEN S AND INS ALLA ION
2.1 Vcolor 618 M user interface measurements
The pictures below show the measurements of the 5-inch user interface; measurements are expresse in mm (inches).
2.2 Vcolor 618 L user interface measurements
The pictures below show the measurements of the 7-inch user interface; measurements are expresse in mm (inches).

EVCO S.p.A. Vcolor 618 M & L | Installer manual ver. 2.0 | Co e 144VC618E204
page 8 of 50
2.3 User interface installation
The picture below shows the installation of the user interface.
The user interface installe from behin using threa e stu s enables it to be place flush with the panel thus making it fit perfectly
with the esign of the unit.
2.4 Control module measurements
The pictures below show the measurements of the control mo ule; measurements are expresse in mm (inches).
2.5 Control module installation
Installation of the control mo ule is on a flat surface with spacers.
2.6 Installation precautions
- Ensure that the working con itions for the evice (operating temperatures, humi ity, etc.) are within the set limits. See
section 16 TECHNICAL SPECIFICATIONS.
- Do not install the evice close to heat sources (heaters, hot air ucts, etc.), equipment with a strong magnetic fiel (large
iffusers, etc.), in places subject to irect sunlight, rain, amp, excessive ust, mechanical vibrations or shocks.
- Any metal parts close to the control mo ule must be far enough away so as not to compromise the safety istance.
- In compliance with safety regulations, the evice must be installe properly to ensure a equate protection from contact
with electrical parts. All protective parts must be fixe in such a way as to nee the ai of a tool to remove them.

EVCO S.p.A. Vcolor 618 M & L | Installer manual ver. 2.0 | Co e 144VC618E204
page 9 of 50
3ELEC RICAL CONNEC ION
3.1 Vcolor 618 M electrical connection
The picture below shows the Vcolor 618 M electrical connection.

EVCO S.p.A. Vcolor 618 M & L | Installer manual ver. 2.0 | Co e 144VC618E204
page 10 of 50
3.2 Vcolor 618 L electrical connection
The picture below shows the Vcolor 618 L electrical connection.

EVCO S.p.A. Vcolor 618 M & L | Installer manual ver. 2.0 | Co e 144VC618E204
page 11 of 50
3.3 Precautions for electrical connection
- Do not use electric or pneumatic screw rivers on the terminal blocks of the evice.
- If the evice has been move from a col to a warm place, the humi ity may cause con ensation to form insi e. Wait about
an hour before switching on the power.
- Make sure that the supply voltage, electrical frequency an power of the evice correspon to the local power supply. See
section 16 TECHNICAL SPECIFICATIONS.
- Disconnect the evice from the power supply before oing any type of maintenance.
- Connect the power cables as far away as possible from those for the signal.
- To re uce reflections on the signal transmitte along the cables connecting the user interface to the control mo ule it is
necessary to fit a termination resistor.
- For repairs an for further information on the evice, contact the EVCO sales network.

EVCO S.p.A. Vcolor 618 M & L | Installer manual ver. 2.0 | Co e 144VC618E204
page 12 of 50
4DESCRIP ION
4.1 User interface description
The picture below shows the front view of the Vcolor 618 L user interface.
The table below escribes the front parts of the user interface.
PART DESCRIPTION
1 isplay
The picture below shows the back view of the Vcolor 618 L user interface.
The table below escribes the back parts of the user interface.
PART DESCRIPTION
1 USB communications port
2 RS-485 MODBUS communications port
3 ip switch for the termination resistor for the RS-485 MODBUS port
4 user interface-control mo ule connection
5 ip switch for the termination resistor of the user interface
6 appliance earthing
For more information see subsequent sections.

EVCO S.p.A. Vcolor 618 M & L | Installer manual ver. 2.0 | Co e 144VC618E204
page 13 of 50
4.2 Control module description
The iagram below shows the inten e use of the control mo ule connectors.
PART DESCRIPTION
1 control mo ule power supply
2 K4 an K3 relays
3 K2 relay
4 K1 relay
5 K5 relay
6 igital inputs
7 K6 relay
8 K7 an K8 relays
9 unuse
10 unuse
11 unuse
12 unuse
13 PTC/NTC analogue inputs
14 analogue input 4-20 mA
15 analogue output
16 user interface-control mo ule connection
For more information see subsequent sections.

EVCO S.p.A. Vcolor 618 M & L | Installer manual ver. 2.0 | Co e 144VC618E204
page 14 of 50
5FIRS - IME USE
5.1 Operating modes
The controller has the following operating mo es:
- “off” (no power to the evice);
- “stan -by” (the evice is powere but switche off);
- “on” (the evice is powere , switche on an awaiting start-up of an operating cycle);
- “run” (the evice is powere , switche on an running an operating cycle).
Terminology: “switch on the evice” means moving from “stan -by” to “on” mo e an “switch off the evice” means moving from “on”
to “stan -by” mo e.
If there is a power failure, when power is restore the evice will return to the mo e set before the failure.
5.2 Operating the device
Follow these instructions to operate the evice.
1. Install the evice as shown in section 2 MEASUREMENTS AND INSTALLATION taking all the precautions mentione in
paragraph 2.6 Installation precautions.
2. Make the electrical connection as shown in section 3 ELECTRICAL CONNECTION.
3. Connect the power supply to the evice: if parameter E9 is set at 1 ( efault), the evice will show the EVCO splash screen
for 10 secon s; if the parameter is set at 0, a system loa ing screen will be shown:
E9=1 E9=0
Once loa ing is complete, the evice will isplay the mo e it was in before being powere own:
- On/Stan -by screen, press the central area to move to the Home screen;
- irectly the Home screen.
On/stan -by screen Home screen
To switch the evice on, on the On/stan -by screen press the central key ; to switch the evice off, on the Home screen
press the key on the lower part of the screen.
N.B. If the power supply has been cut off long enough to cause a clock error (RTC alarm), it will be necessary to reset the
ate an time.
4. When switching on from the settings key on the On/stan -by screen, enter the SET DATE/TIME menu an touch the
ata to change by confirming it with .
5. By touching the settings key on the On/stan -by screen, enter the SERVICE menu an from here the PARAMETERS
menu. Enter the passwor -19 an configure the evice as you wish in the or er in which the parameters are liste in the
table below. Then check that the remaining parameters have been set in a consistent way. See later sections an in
particular section 14 PARAMETERS.

EVCO S.p.A. Vcolor 618 M & L | Installer manual ver. 2.0 | Co e 144VC618E204
page 15 of 50
Par. Min. Max. Unit Default
P0 0 1 - - - - 1
Type of probe
0 = PTC
1 = NTC
P3 0 1 - - - - 1
Enable evaporator probe
0 = Disable
1 = Enable
P4 0 1 - - - - 0
Enable con enser probe
0 = Disable
1 = Enable
rU0 0 1 - - - - 0
Humi ity management mo e:
0 = with humi ity probe
1 = without the humi ity probe, time intervals base on the
percentage set
i1 0 1 - - - - 1
Door switch input contact type
0 = normally open (input active with contact close )
1 = normally close (input active with contact open)
i4 0 1 - - - - 0
High pressure input contact type
0 = normally open (input active with contact close )
1 = normally close (input active with contact open)
i6 0 3 - - - - 2
Effect cause by activation of the low pressure input
0 = no effect
1 = ALARM The compressor an evaporator fan are switche off
2 = PUMP-DOWN AND ALARM MANAGEMENT
While the compressor
is being switche off the igital input will act to switch off the
compressor output to en the pump-
own phase. During the
activation phases of the refrigeration plant the igital input will
act to switch off the compressor an evaporator fan.
3 = COMPRESSOR THERMAL SWITCH ALARM
Compressor is
switche off
i7 0 1 - - - - 0
Low pressure input contact type
0 = normally open (input active with contact close )
1 = normally close (input active with contact open)
i10 0 1 - - - - 1
Thermal switch input contact type
0 = normally open (input active with contact close )
1 = normally close (input active with contact open)
u1 0 1 - - - - 0
Loa manage by output K8
0 = Pump own valve (with this setting parameter u2 is relevant)
1 =
evaporator fan (in which case the output will repeat in ON/OFF
mo e the status of the PWM output for the evaporator fan)
u3 0 1 - - - - 0
Loa manage by output K4
0 =
ehumi ifier/extractor fan (with this setting parameters rU5
an rU6 are relevant)
1 =
Con enser fan (with this setting parameters F16 an F17 are
relevant)
With u3 = 1 ehumi ification will be manage automatica
lly by
activation of the refrigeration plant
E12 0 2 - - - - 0
Type of humi ifier
0 = humi ifier with steamer
1 = humi ifier with serial control (EASYSTEAM)
2 = humi ifier with instant generation

EVCO S.p.A. Vcolor 618 M & L | Installer manual ver. 2.0 | Co e 144VC618E204
page 16 of 50
6 NAVIGA ION
6.1 Initial information
Navigating the menus is intuitive, base on touch technology.
-To enter into a proce ure touch the menu or the correspon ing icon
-To exit the proce ure an , in general, to return to the previous level, press the Back key
-To scroll up an own a menu use the an keys
-To confirm the settings an /or changes press the key
-To start up a cycle press
-To interrupt a cycle hol own for at least 4 secon s
-To regulate a setting, use the – an + keys or press an rag the relevant bar
-To silence the buzzer touch any key while it is soun ing. If the buzzer is soun ing for the en of an automatic cycle or
because the pre-cooling temperature has been reache , the buzzer will be eactivate automatically after the number of
secon s set by parameter E12 (unless it is silence manually).
6.2 Home screen
The Home screen is the eparture point for navigating the user interface.
The Home screen isplays the functions enable , the ate an the time.
All the en -user’s selections start form the Home screen.
The 4 interactive keys grant access to the following functions
MANUAL
select, set an start up a manual cooling or heating cycle
AUTOMATIC
select, set an start up a complete automatic retar ing-proofing cycle
RECIPE BOOK
Select an /or change automatic retar ing-proofing cycles save in the memory
PRE-COOLING
set an start up a cabinet pre-cooling cycle

EVCO S.p.A. Vcolor 618 M & L | Installer manual ver. 2.0 | Co e 144VC618E204
page 17 of 50
6.3 Run screen
Once a manual or automatic cycle has been starte up, the Run screen will appear for the type of cycle selecte .
MANUAL REFRIGERATION MANUAL HEATING
AUTOMATIC
6.3.1 Regulator status icons
While a manual or automatic cycle is being run, the status of the principal loa s are isplaye as icons on the upper part of the screen.
The table below gives their escription when switche on
compressor active
heating active
fans working
Defrosting in progress
Humi ification in progress
ehumi ification in progress
Alarm in progress

EVCO S.p.A. Vcolor 618 M & L | Installer manual ver. 2.0 | Co e 144VC618E204
page 18 of 50
6.3.2 Function keys
While a manual or automatic cycle is being run, the lower part of the screen isplays the function keys, which are as follows.
switch light on/off
manual comman s for changing setpoints an activating manual efrost
isplay input/output an alarm status
6.4 Screen Saver
After a perio of inactivity set by parameter E8 (from 1 to 240 minutes), the Run screen will switch to Screen Saver showing the values
etecte by the probes in use This function can be isable by setting parameter E8 to 0.
Just touch the screen to exit the Screen Saver. When an alarm is in progress the Run screen will be restore .
6.5 Settings screen
The settings key on the On/stan -by screen grants access to the Set-up screen with the relevant function menus (for the
INPUTS/OUTPUTS STATUS function, ata are only isplaye ). To access the various proce ures, touch the screen near the
information/function require . The following screen is isplaye :
If parameter E12 is set at 1, the screen will also isplay the configuration etails for the serial control humi ifier.

EVCO S.p.A. Vcolor 618 M & L | Installer manual ver. 2.0 | Co e 144VC618E204
page 19 of 50
6.5.1 Service
This option gives access to the following menu
RECORDINGS SET-UP
This enables selection of the variables to be recor e for the HACCP history.
RESTORE FACTORY DATA
Touching on this option grants access to the following passwor -protecte functions (149):
-Delete recor s
-Restore efault parameters
-Delete recipes
PARAMETERS
Touching this option enables configuration of the passwor -protecte parameters (-19). To set parameters follow the navigation
instructions given in section 6.1 an configure the machine appropriately consulting the list in section 14 PARAMETERS.

EVCO S.p.A. Vcolor 618 M & L | Installer manual ver. 2.0 | Co e 144VC618E204
page 20 of 50
7AN OVERVIEW OF HE FUNC IONS
7.1 Automatic and manual cycles
The controller provi es complete control for retar ing-proofing cabinets or rooms for brea or pastry-making by managing the complete
ough retar ing-proofing cycle automatically.
An automatic retar ing-proofing cycle consists of 5 ifferent phases with ifferent temperatures, relative humi ity, fan spee s an
urations, one run after the other in the following or er.
1. BLOCKING phase
Temperature regulation is active an has a neutral zone a justment, the temperature setpoint, the humi ity setpoint (if control of this
is require ), the fan spee an uration in hours an minutes for the phase are set by the en -user.
Relative humi ity regulation epen s on parameter rU4. If this is set to zero humi ity control is not carrie out in this phase.
2. CONSERVATION phase
Temperature regulation is active an has a neutral zone a justment, the temperature setpoint, the humi ity setpoint (if control of this
is require ) an the fan spee are set by the en -user.
Moving from the blocking setpoint (previous phase) to the conservation setpoint can be gra ual, with the incremental percentages set
while the parameters are being set.
Relative humi ity regulation epen s on parameter rU4. If this is set to zero humi ity control is not carrie out in this phase.
The uration of this phase is calculate automatically by the controller on the basis of the uration of the blocking, re-awakening an
proofing phases an the ay an time for the en of proofing require for the ough.
3. RE-AWAKENING phase
Temperature regulation is active an has a NEUTRAL ZONE a justment, the working setpoint is set by the en -user. Moving from the
conservation setpoint (previous phase) to the re-awakening setpoint can be gra ual, with the incremental percentages set while the
parameters are being set.
Relative humi ity regulation is active an has a NEUTRAL ZONE a justment, the working setpoint is set by the en -user.
The uration in hours an minutes an the evaporator fan spee are set by the en -user.
4. PROOFING phase
Temperature regulation is active an has a NEUTRAL ZONE a justment, the working setpoint is set by the en -user. Moving from the
re-awakening setpoint (previous phase) to the proofing setpoint can be gra ual, with the incremental percentages set while the
parameters are being set.
Relative humi ity regulation is active an has a NEUTRAL ZONE a justment, the working setpoint is set by the en -user.
