Thank you for buying this Ferm product.
By doing so you now have an excellent product,
delivered by one of Europe‘s leading suppliers.
All products delivered to you by Ferm are
manufactured according to the highest standards
of performance and safety. As part of our
philosophy we also provide an excellent customer
service, backed by our comprehensive warranty.
We hope you will enjoy using this product for
many years to come.
SAfEty wArningS
1WARNING
Read the enclosed safety warnings,
the additional safety warnings and
the instructions.
Failure to follow the safety warnings and
the instructions may result in electric
shock, re and/or serious injury.
Keep the safety warnings and the
instructions for future reference.
The following symbols are used in the user
manual or on the product:
1
Read the user manual.
2
Risk of personal injury.
3
Risk of electric shock.
4Immediately remove the mains plug from
the mains if the mains cable becomes
damaged and during cleaning and
maintenance.
5 Wear safety goggles.
Wear hearing protection.
A
Wear a dust mask.
7
Double insulated.
Do not dispose of the product in
unsuitable containers.
9The product is in accordance with the
applicable safety standards in the
European directives.
ADDitiOnAL SAfEty wArningS
fOr JigSAwS
● Donotworkmaterialscontainingasbestos.
Asbestos is considered carcinogenic.
● Wearsafetygoggles,hearingprotectionandif
necessary other protective means, such as
safety gloves, safety shoes, etc.
● Beforeuse,removeallnailsandothermetal
objects from the workpiece.
● Makesurethattheworkpieceisproperly
supportedorxed.
● Donotusethemachinewithouttheguard.
● Inspectthesawbladebeforeeachuse.Donot
use saw blades which are bent, cracked, or
otherwise damaged.
● Makesurethatthesawbladeisproperly
mounted.
● Onlyusesawbladesthataresuitableforuse
with the machine.
● Onlyusesawbladeswiththecorrect
dimensions.
● Donotuseotheraccessoriesthansawblades.
● DonotusesawbladesmadeofHSSsteel.
● Donotusethemachineonworkpieces
requiring a maximum sawing depth that
exceeds the maximum sawing depth of the
saw blade.
● Holdthemachinebytheinsulatedgripping
surfaces where the saw blade may contact
hiddenwiringorthemainscable.Ifthesaw
blade contacts a ‘live‘ wire, the exposed metal
parts of the machine can also become ‘live‘.
Risk of electric shock.
● Letthemachinerunatnoloadinasafearea
aftermountingthesawblade.Ifthemachine
vibrates strongly, immediately switch off the
machine, remove the mains plug from the
mains, and try to solve the problem.
● Bewarethatthesawbladecontinuestorotate
for a short period after switching off the
machine.Donotattempttobringthesaw
blade to a standstill yourself.
Kickback is the upward and backward movement
of the saw blade when the saw blade
unexpectedly touches an object.
Securelyholdthemachineduringuse.
Keep your attention focused on the operation.
6
EN
Kickback is usually caused by:
- unintentionally touching hard objects or
materials with the rotating saw blade;
- a blunt saw blade;
- a saw blade that is not properly mounted;
- sawing into a previous cut;
- a lack of attention to the operation;
- an instable stance.
ELECtriCAL SAfEty
3Always check that the voltage of the
power supply corresponds to the voltage
on the rating plate.
● Donotusethemachineifthemainscableor
the mains plug is damaged.
● Onlyuseextensioncablesthataresuitablefor
the power rating of the machine with a minimum
thickness of 1.5 mm2.Ifyouuseaextension
cable reel, always fully unroll the cable.
Ifthemoulded3-pinplugattachedtotheunitis
damaged and needs replacing, it is important that
it is correctly destroyed and replaced by an
approvedBS1363/5Afusedplugandthatthe
following wiring instructions are followed.
The wires in the mains cable are coloured in
accordance with the following code:
blue neutral
brown live
As the colours of the wires in the mains cable of
the unit may not correspond to the coloured
markings identifying the terminals in the plug,
proceed as follows:
- The wire which is coloured blue must be
connected to the terminal which is marked with
the letter N or coloured black.
- The wire which is coloured brown must be
connected to the terminal which is marked with
theletterLorcolouredred.
TECHNICAL DATA
Mainsvoltage V~ 230
Mainsfrequency Hz 50
Powerinput W 710
No-load speed min-1 800-3,000
Max.sawingdepth(wood) mm 110
Max.sawingstroke mm 20
Mitreangle ° 45
Number of pendulum positions 4
Weight kg 2.55
NOISE AND VIBRATION
Soundpressure(Lpa) dB(A) 91
Acousticpower(Lwa) dB(A) 102
Uncertainty(K) dB(A) 3
Vibration(wood) m/s27.1
Vibration(metal) m/s2 10.2
Uncertainty(K) m/s21.5
2
Wear hearing protection.
The vibration emission level stated in this
instruction manual has been measured in
accordance with a standardised test given in EN
60745;itmaybeusedtocompareonetoolwith
another and as a preliminary assessment of
exposure to vibration when using the tool for the
applications mentioned
- using the tool for different applications, or with
different or poorly maintainted accessories,
maysignicantlyincreasetheexposurelevel
- the times when the tool is switched off or when
it is running but not actually doing the job, may
signicantlyreducetheexposurelevel
Protect yourself against the effects of vibration by
maintaining the tool and its accessories, keeping
yourhandswarm,andorganizingyourwork
patterns
Your pendulum action jigsaw has been designed
for sawing wood, metal, plastics, ceramics,
rubber,etc.toanyrequiredsizeandinany
required shape.

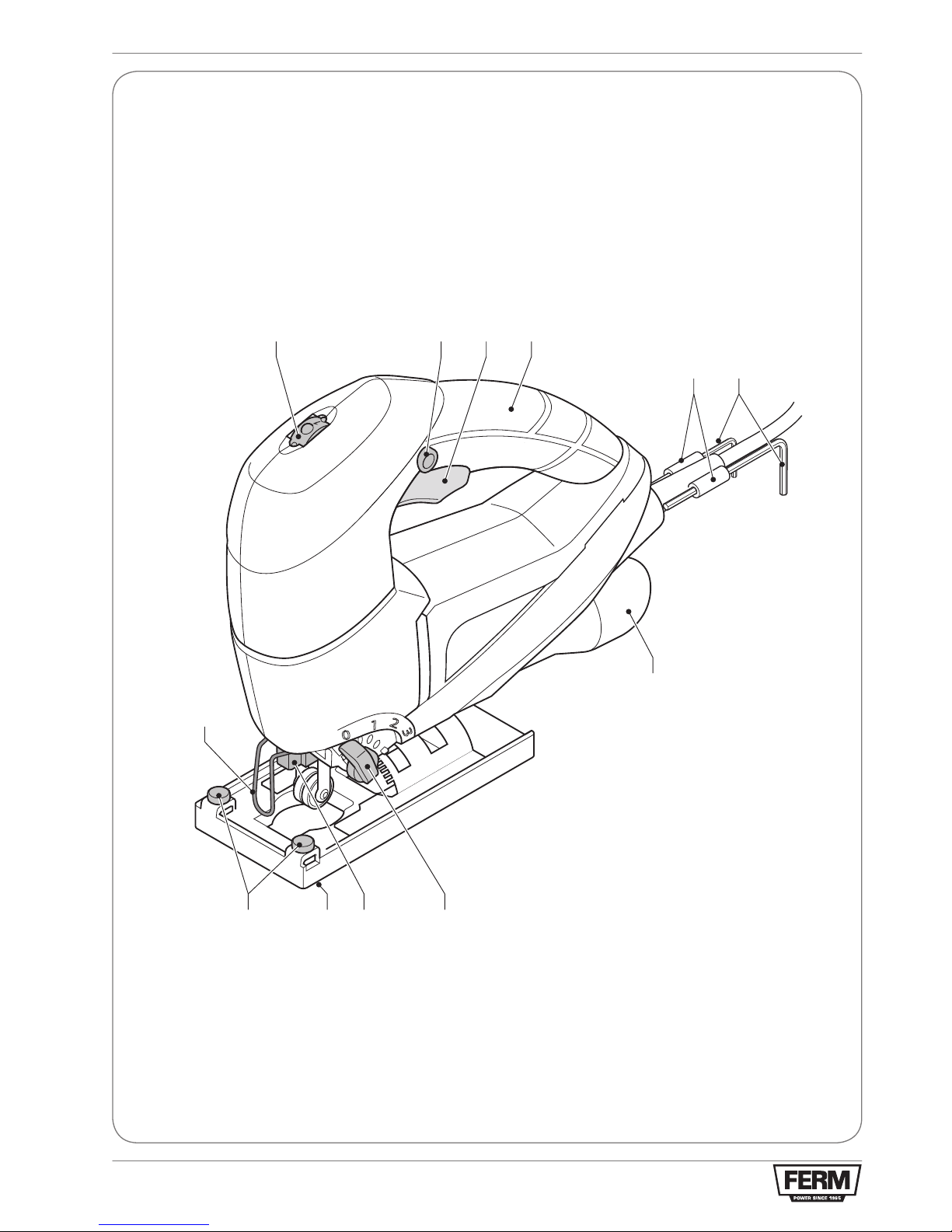

1. On/offswitch
2. Lock-onbutton
3. Speedadjustmentwheel
4. Pendulum action switch
5. Guard
6. Sawbladeholder
7. Sawshoe
8. Lockingboltforparallelguide
9. Dustextractionconnection
10. Grip
11. Allen key
12. Allen key holder
7
EN
ASSEMBLy
3Before assembly, always switch off the
machine and remove the mains plug
from the mains.
Refer to the table below to select the required
saw blade.
Coarse Wood
Medium Wood
Fine Steel,aluminium,plastic
Veryne Wood(curves)
2Do not attempt to remove the guard from
the machine.
● SlackentheAllenscrew(13)usingtheAllen
key(11).
● Insertthesawblade(14)inthesawblade
holder(6)asfaraspossible.Theteethofthe
sawblade(14)mustpointupwardand
forward. The smooth side of the saw blade
mustengageintheslotoftheguideroller(15).
● TightentheAllenscrew(13)usingtheAllen
key(11).
● SlackentheAllenscrew(13)usingtheAllen
key(11).
● Removethesawblade(14)fromthesaw
bladeholder(6).
● TightentheAllenscrew(13)usingtheAllen
key(11).
The parallel guide is used for sawing along edges
at a maximum distance of 16 cm.
● Slackenthelockingbolts(8).
● Inserttheparallelguide(16)intothesawshoe
(7).
● Settheparallelguide(16)totherequired
position.
● Tightenthelockingbolts(8).
● Slackenthelockingbolts(8).
● Removetheparallelguide(16)fromthesaw
shoe(7).
● Tightenthelockingbolts(8).
● Toswitchonthemachine,presstheon/off
switch(1).
● Toswitchthemachinetocontinuousmode,
keeptheon/offswitch(1)pressedand
simultaneouslypressthelock-onbutton(2).
● Toswitchoffthemachine,releasetheon/off
switch(1).
The speed adjustment wheel is used for setting
the sawing speed. The speed adjustment wheel
can be set to 6 positions. The ideal sawing speed
dependsontheproleandtheteethofthesaw
blade and on the material to be worked.
2
Do not set the sawing speed during use.
● Turnthespeedadjustmentwheel(3)tothe
required position.
● Forhardmaterials,useasawbladewithne
teeth and select a lower speed.
● Forsoftmaterials,useasawbladewith
coarse teeth and select a higher speed.

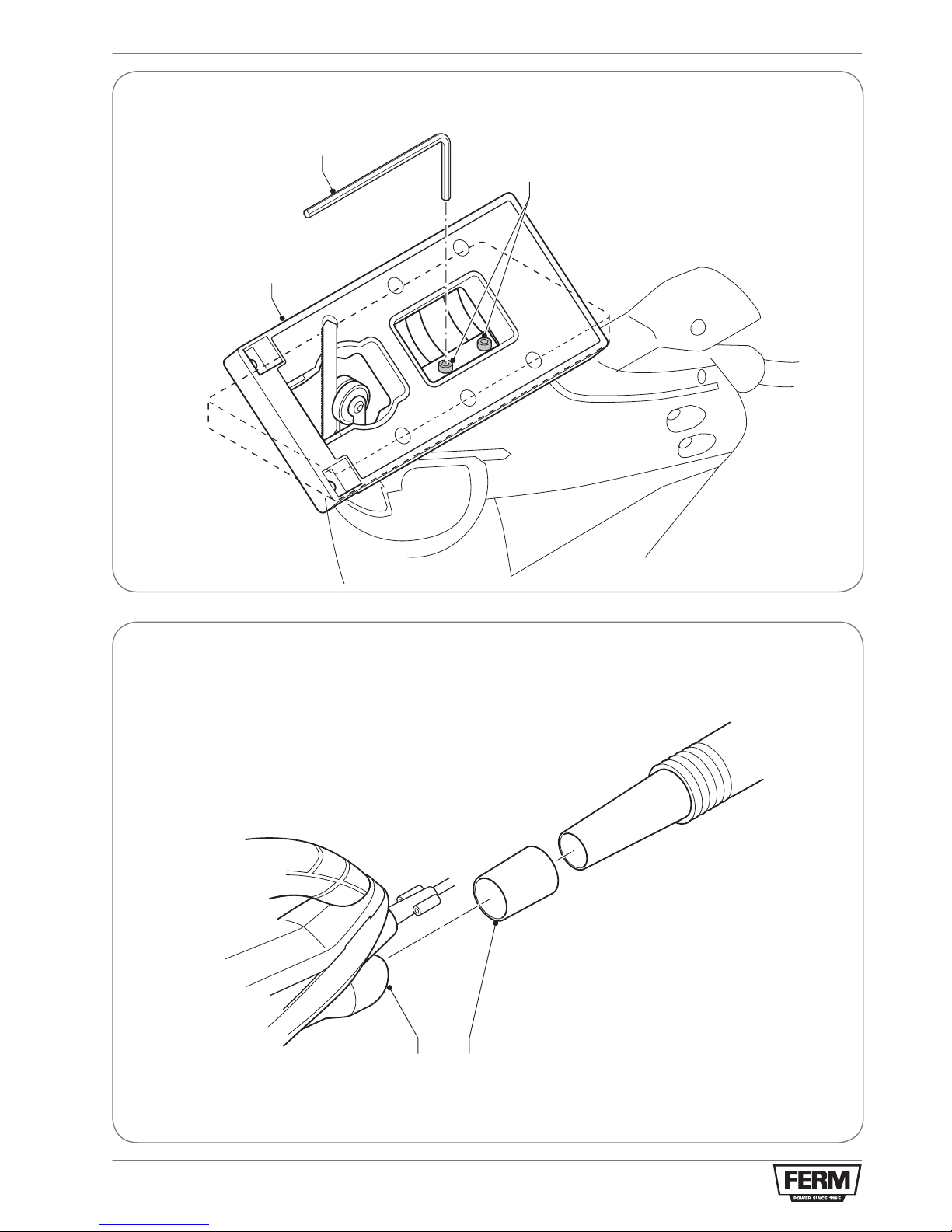

Themitreangleisvariablebetween0°and45°.
2
Do not set the mitre angle during use.
● SlackentheAllenscrews(17)usingtheAllen
key(11).
● Tiltthesawshoe(7)totherequiredposition.
● TightentheAllenscrews(17)usingtheAllen
key(11).
The pendulum action switch is used to set the
way in which the teeth of the saw blade grip the
material. The pendulum action switch can be set
to 4 positions.
2Do not set the pendulum position during
use.
● Turnthependulumactionswitch(4)to
required position according to the material to
be worked. Refer to the table below to select
the required position.
8
EN
Wood 1-3
Plastics 1
Aluminium 0-1
Steel 0
Ceramics 0
Rubber 0
● Insertthedustextractionadapter(18)intothe
dustextractionconnection(9).
● Connectthehoseofavacuumcleanertothe
dustextractionadapter(18).
● Clamptheworkpiece.Useaclampingdevice
for small workpieces.
● Drawalinetodenethedirectioninwhichto
guide the saw blade.
● Firmlyholdthemachinebythegrip.
● Setthesawingspeed.
● Setthemitreangle.
● Setthependulumposition.
● Switchonthemachine.
● Waituntilthemachinehasreachedfullspeed.
● Placethesawshoeontheworkpiece.
● Slowlymovethemachinealongthepre-drawn
line,rmlypressingthesawshoeagainstthe
workpiece.
● Donotapplytoomuchpressureonthe
machine.Letthemachinedothework.
● Switchoffthemachineandwaitforthe
machine to come to a complete standstill
before putting the machine down.
CLEAning AnD MAintEnAnCE
3Before cleaning and maintenance,
always switch off the machine and
remove the mains plug from the mains.
● Regularlycleanthehousingwithasoftcloth.
● Keeptheventilationslotsfreefromdustand
dirt.Ifnecessary,useasoft,moistclothto
remove dust and dirt from the ventilation slots.
● Regularlycleanthesawbladetoavoid
inaccuracies during use.
● Regularlylubricatetheguideroller.
Worn or damaged saw blades must be replaced
immediately.
2Only use sharp and undamaged saw
blades.
● Toremovetheoldsawblade(14),proceedas
describedinthesection„Mountingand
removing the saw blade“.
● Tomountthenewsawblade(14),proceedas
describedinthesection„Mountingand
removing the saw blade“.
wArrAnty
Consult the enclosed warranty terms.
EnvirOnMEnt
The product, the accessories, and the packaging
must be sorted for environmentally friendly
recycling.
Donotdisposeofpowertoolsintodomestic
waste. According to the European Guideline
2012/19/EUforWasteElectricalandElectronic
Equipment and its implementation into national
right, power tools that are no longer usable must
be collected separately and disposed of in an
environmentally friendly way.
