FSW10 Semi Automatic Pallet Wrapping Machine Operation Manual | FPA001 | Oct 2017 | Page 1
FSW10 Pallet Wrapping Machine
OPERATION MANUAL
Machine Semi-
A
utomatic Pallet Wrapping Machine
Model FSW10
Date Septembe
r
2017
Issue FPA001

FSW10 Semi Automatic Pallet Wrapping Machine Operation Manual | FPA001 | Oct 2017 | Page 1
CONTENTS
1. General Information 2
1.1 Note of Installation 2
1.2 Notice of Operation 2
2. Specification 3
2.1 Specification Table 3
2.2 Machine Dimensions 4
2.3 Machine Description 5
3. Operation 6
3.1 Operation of Control Panel 6
3.2 Control button explanation 7
3.3 How to run a Wrapping Cycle 9
3.4 Illustration for Film Threading 10
3.5 Stretch tension adjust knob 10
3.6 Film quick release description 11
4. Electrical 11
4.1 Electrical Capacity 11
5. Suggested Maintenance and Trouble Shooting 12
5.1 Suggested Maintenance 12
5.2 Warranty Periods 12
5.3 Fromm Service Solutions 12
5.4 Possible Troubleshooting Causes and Remedies 13
6. Contact Fromm Packaging 14

FSW10 Semi Automatic Pallet Wrapping Machine Operation Manual | FPA001 | Oct 2017 | Page 2
1. GENERAL INFORMATION
Congratulations on the purchase of your Fromm Semi-Automatic Pallet Wrapping Machine.
We trust you will have many years of packaging efficiency.
Before proceeding with the operation or installation of your new machine please read this
manual thoroughly and gain a full understanding of the requirements, features and
operation of your new machine.
1.1 Note of Installation
To make sure a safe and correct operation, please check below conditions before install the
machine:
1. Power source capacity must be equal of the machine need.
2. Machine standard power is 240V (+- 10%).
3. Machine standard power Hertz is 50Hz. (+- 2%).
4. Machine is workable under the temperature between 0 - 45.
5. Make sure the wire is tidy on the ground.
6. There should not be any vibration beside the machine, make sure the ground is flat.
1.2 Notice of Operation
To have good protection for the operator, please make sure the following conditions:
1. Before operating, please read the machine operational manual carefully.
2. Make sure there is no object put on the power cable.
3. Make sure there is no object put on the upper elevator unit.
4. Avoid any damp object or water around the electric parts.
5. Avoid film winded underneath the turntable.
6. Do not stand on or across the machine during operation.
7. When problem occurs, please read section - Suggested Maintenance and Trouble
Shooting.

FSW10 Semi Automatic Pallet Wrapping Machine Operation Manual | FPA001 | Oct 2017 | Page 3
2. SPECIFICATION
2.1 Specification Table
Model FSW-10
Turntable Speed 10 RPM
Turntable diameter 1500mm
Max wrapping height 2200mm
Pallet size 1050x1050mm
Max loading weight 1200kgs
Film stretch (%) Infinite / manual adjust
Max. film spec. ∮250x500mm
Turntable height 76mm
Ramp (slope) spec. 1165x1000m
Machine size 2300x1500x2346mm.
Machine net weight 335kg
Options:
 1.65m turntable diameter (max loading weight 1650kg).
 2.6m and 3m wrapping height.
 Ramp.

FSW10 Semi Automatic Pallet Wrapping Machine Operation Manual | FPA001 | Oct 2017 | Page 4
2.2 Machine Dimensions

FSW10 Semi Automatic Pallet Wrapping Machine Operation Manual | FPA001 | Oct 2017 | Page 5

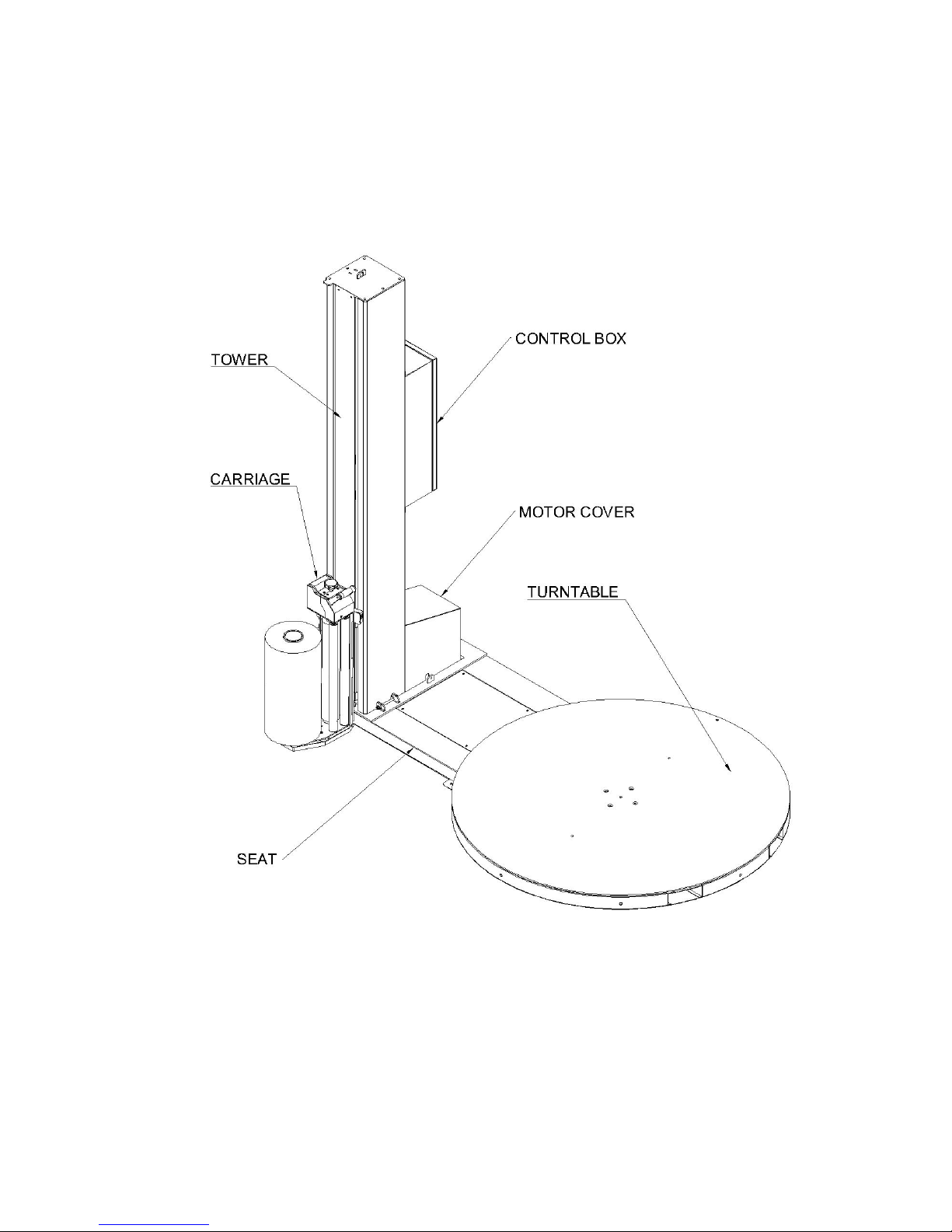

2.3 Machine Description

FSW10 Semi Automatic Pallet Wrapping Machine Operation Manual | FPA001 | Oct 2017 | Page 6
3. OPERATION
3.1 Operation of the control panel

FSW10 Semi Automatic Pallet Wrapping Machine Operation Manual | FPA001 | Oct 2017 | Page 7
3.2 Control Button Explanations
A. MAIN POWER
To switch ON and OFF the power.
B. POWER INDICATOR
Show that power is ON when light illuminates.
Machine Running, LED "Continue Flash"
Power Cut circuit (EMG, KEY, ETC) Flash Twice.
C. MODE SELECTIONS
This selector is to choose the number of top and bottom.
Mode 1: Top 2 wraps, bottom 3 wraps.
Mode 2: Top 3 wraps, bottom 4 wraps.
D. START
Press the button to start the cycle (automatic program).

FSW10 Semi Automatic Pallet Wrapping Machine Operation Manual | FPA001 | Oct 2017 | Page 8

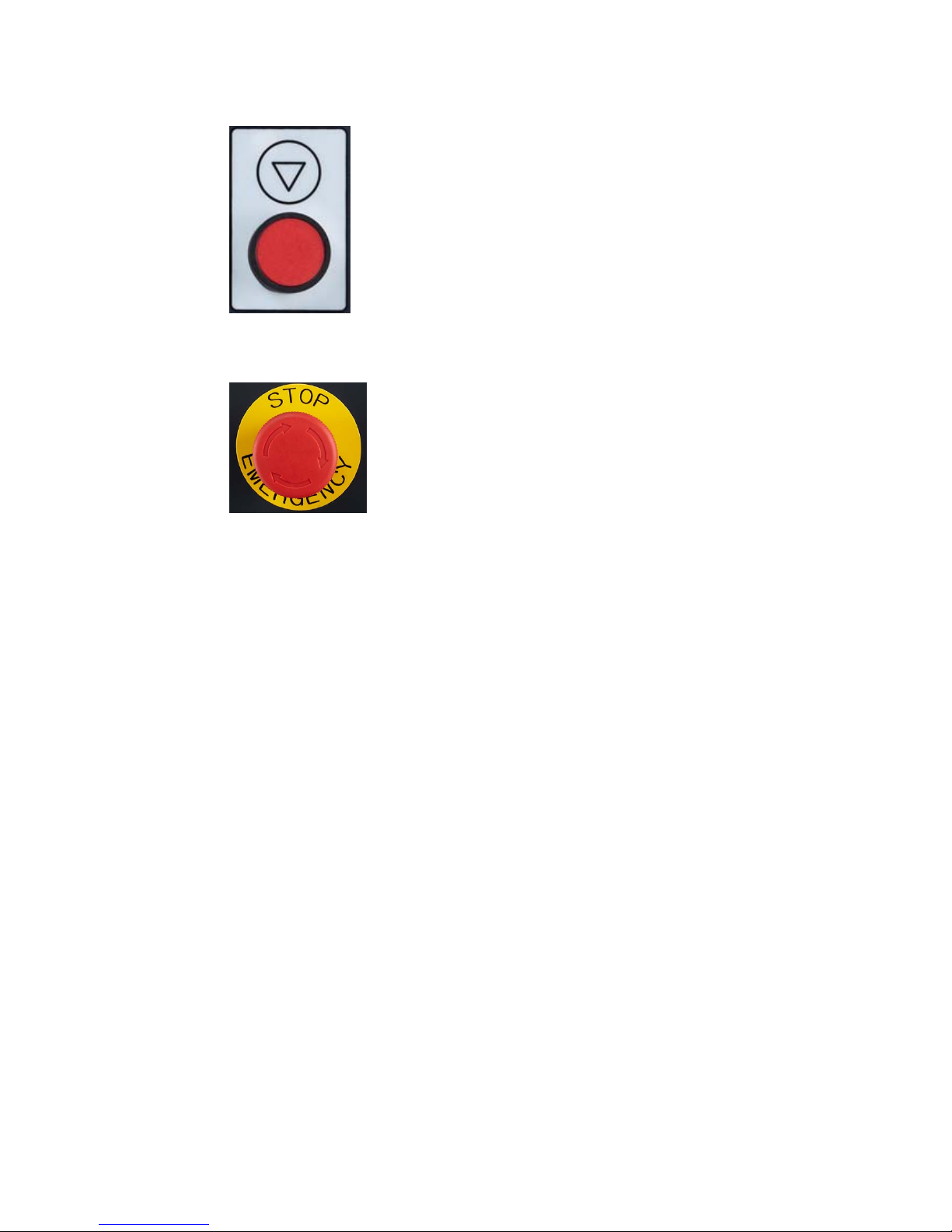

E. PAUSE
During the wrapping cycle, if the machine is
required to be stopped press (E) button to pause
the cyclee and press (D) button to resume back to
operation.
F. EMERGENCY STOP
Press the button for emergency stop. For security
consideration, the turntable will not stop instantly
when the EMERGENCY STOP button is pressed.
When the turntable power is off, the brake will
release.

FSW10 Semi Automatic Pallet Wrapping Machine Operation Manual | FPA001 | Oct 2017 | Page 9
3.3 How to run a wrapping cycle
1. Turn the main power switch (A) to the ON position and check if the Power Light
illuminates.
2. Select the top and bottom wraps with selector switch (C) (wrapping cycle).
Mode 1: 3 bottom wraps and 2 top wraps.
Mode 2: 4 bottom wraps and 3 top wraps.
Please note: During the machine operation, there is no need to stop the machine, to change
the wrapping mode.
3. Press the Start button (D) to start wrapping the pack.
4. During the wrapping cycle, if the machine is required to be stopped, press the stop button
(E) to pause the machine, then press start button (D) to resume back to operation.
5. When the wrapping cycle is finished, the carriage will return back to the bottom of the
machine and stop automatically.
6. Return to Operation Cycle step 2, Start the Button Wrapping Cycle.
7. Please turn OFF the main power switch (A) when the machine is no longer in use.
Please press the emergency stop button (F) to stop the machine instantly, if any Emergency
has occurs.
SECURITY BAR
If the security switch is activated, the machine will stop moving. Make sure you have cleared the
security bar to reset the security switch. Press the START button to continue wrapping cycle.

FSW10 Semi Automatic Pallet Wrapping Machine Operation Manual | FPA001 | Oct 2017 | Page 10

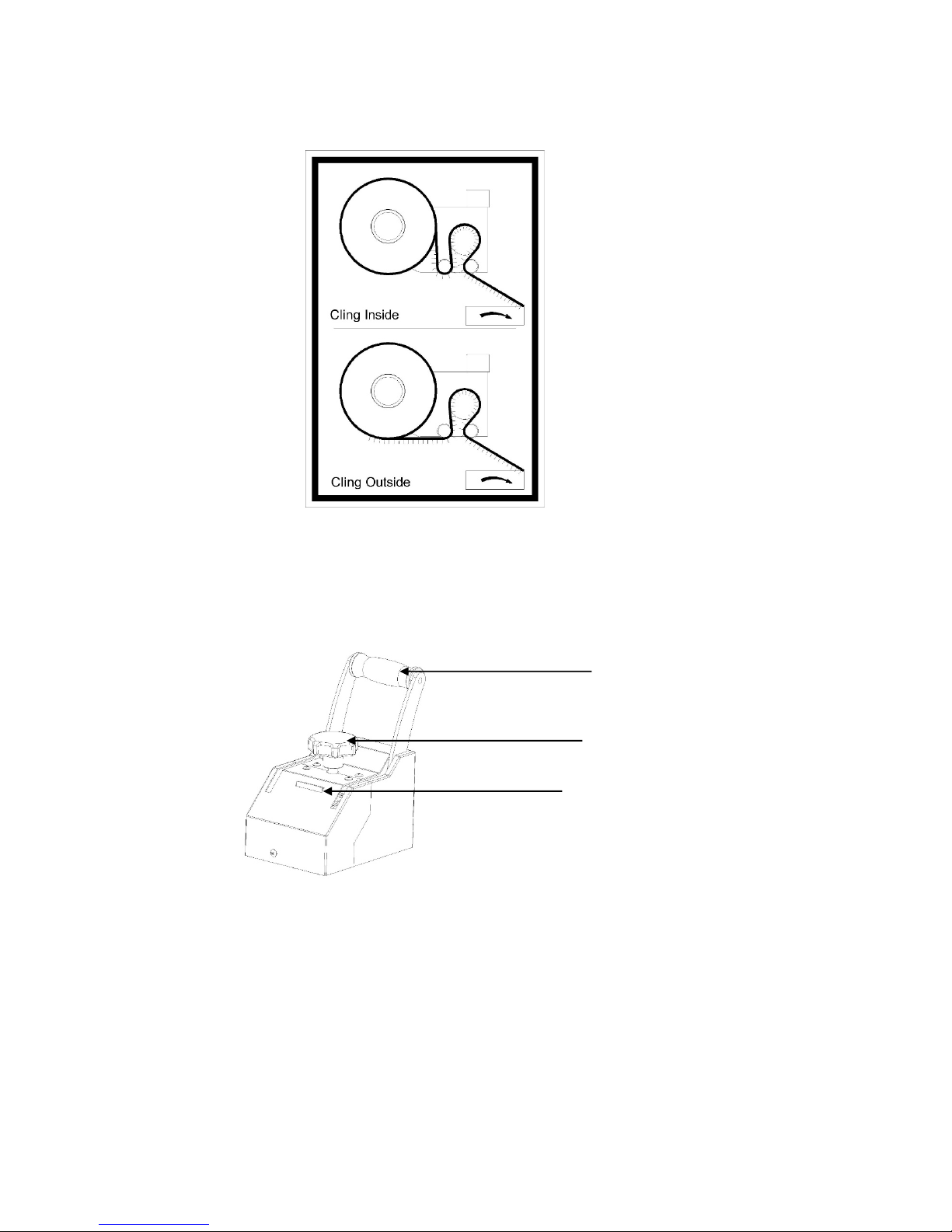

3.4 Illustration for film threading
3.5 Stretch tension adjust knob
Turn the knob clockwise to increase the tension. Counterclockwise to decrease the tension.
Quick Release Handle
Tension Adjusting Knob
Tension Indicator

FSW10 Semi Automatic Pallet Wrapping Machine Operation Manual | FPA001 | Oct 2017 | Page 11
3.6 Film Quick Release description
 Pull up the quick release handle upon applying film to the loads.
 Push down the quick release handle to engage the brake during the wrap cycle.
4. ELECTRICAL
4.1 Electrical Capacity
Power Consumption
Power Cable - Minimum 1.25mm2
Machine input - 240V /1 PHASE /50Hz
Turntable moto
r
0.4 KW
Elevator moto
r
0.4 KW
Control & wiring box DC 24V
Machine power use 0.85 KW
Overall power required 1 KW

FSW10 Semi Automatic Pallet Wrapping Machine Operation Manual | FPA001 | Oct 2017 | Page 12
5. SUGGESTED MAINTENANCE & TROUBLE SHOOTING
5.1 Suggested Maintenance
Fromm Packaging Australia recommends servicing every six months as a minimum, but many
machines have different service intervals depending on condition and throughput. It’s best to
discuss your servicing requirements with Fromm Packaging.
5.2 Warranty Periods
To provide you with peace of mind all Fromm stretch wrapping, strapping and carton taping
equipment includes a two year warranty from the date of delivery to your site. The warranty
includes all deficiencies clearly resulting from poor manufacturing or faulty materials. Damage
claims as a result of production shutdowns and claims for damage to persons and to property
resulting from warranty deficiencies covering structural components and non-wearing
parts effective from the date of delivery to your site.
The warranty excludes:
 Wearing parts (rollers, motors and belts),
 Deficiencies resulting from improper installing, incorrect handling and maintain the
equipment,
 Disregard of directions in the operation manual,
 Unauthorised repair work to the equipment,
 Use of consumable products not recommended by the supplier of the equipment.
We reserve the right to modify the product any time in order to improve the quality.
5.3 Fromm Service Solutions
Fromm service technicians are trained to service all stretch wrapping, strapping and carton
taping machines which we sell and are your on-site expert support to optimise the performance
and reliability of your packaging equipment.
With technical offices in Sydney, Brisbane and Melbourne metro areas we are on hand to
ensure your equipment is running smoothly. Customers located outside metropolitan areas we
offer phone support and can organise onsite technical support when required.

FSW10 Semi Automatic Pallet Wrapping Machine Operation Manual | FPA001 | Oct 2017 | Page 13
5.4 Possible troubleshooting causes
Machine trouble Cause Solution
Machine does not work. Power supply for motor is
tripped.
Screen lamp not ON.
Foot security bar is activated.
Reset circuit breaker.
Check microprocessor board.
Release/clea
r
the security bar switch.
Turntable does not turn. Microprocessor board is faulty.
Motor stop turning
Replace the microprocessor board.
Check power.
Check motor and control card.
Replace the motor control card.
Turntable does not stop
in home position.
Turntable proximity switch not
working.
Check the proximity switch underneath
turntable. If it’s fine, then adjust the
sensing plate.
Carriage unit cannot
move.
Microprocessor board is faulty.
Motor stop turning.
Replace microprocessor board.
Check the top and bottom limit.
Release/clea
r
the security bar switch.
When running machine
the carriage unit goes
up and over the
package height.
Photo sensor is sensing
another object past the pack.
Photo sensor is switching from
another light source.
Make sure there is no object past the
machine that the auto height sensor.
Avoid the light source.
Check the photo sensor.
Carriage does not rise. Photo sensor is faulty.
Photo sensor cannot sense a
black coloured package.
Turntable proximity switch is
not working.
Replace photo sensor.
Avoid black coloured product.
Check the proximity switch.

FSW10 Semi Automatic Pallet Wrapping Machine Operation Manual | FPA001 | Oct 2017 | Page 14
6. CONTACT FROMM PACKAGING AUSTRALIA
For any questions please contact Fromm Packaging Australia
Phone: [phone]
Email: [email protected]
Postal Address: PO Box 4016, Mt Ommaney QLD 4074
