OPERATION MANUAL / SPARE PARTS LIST
PNEUMATIC STEEL
STRAPPING TOOL
MODEL A383.0001
13.6750.01
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

2
INDEX PAGE
1 SAFETY INSTRUCTIONS 3
2 WARRANTY CONDITIONS AND LIABILITY 4
3 APPROPRIATE USE 4
4 CHART OF TYPES 4
5 TECNICAL DATA 5
6 INSTALLATION 6
7 OPERATING CONTROLS 7
8 OPERATION 7
8.1 Feeding the strap around the package . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
8.2 Loading the strap. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
8.3 Tensioning the strap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
8.4 Sealing the strap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
8.5 Removing the tool from the tensioned strap . . . . . . . . . . . . . . . . . . . . . . . 8
9 SEAL CONTROL 9
10 SEAL ADJUSTMENT 10
11 MAINTENANCE 11
11.1 Air-unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
11.2 Oil level in the pressure intensifier. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
11.3 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
11.4 Lubrication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
12 Exchange of wearing parts 12
12.1 Exchange of punch and die halves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
12.2 Exchange of the feed wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
12.3 Exchange of the gripper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
12.4 Exchange of cutter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
13 CONTROL SYSTEM 15
13.1 Pneumatic schematic A383.0001 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
13.2 Details of the control system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
14 Functional characteristics 17
14.1 Adjustments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
15 SPARE PARTS LIST 13.6750.01 19
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

3
1 SAFETY INSTRUCTIONS
Read these instructions carefully. Failure to follow these instructions can result in severe personal injury.
Eye injury hazard
Failure to wear safety glasses with side shields can result in
severe eye injury or blindness. Always wear safety glasses with
side shields which conform to ANSI Standard Z87.1.
Operation
Tool must not be used by persons not properly trained in their use.
Before tensioning strap, read and understand the tool operating
instructions. Failure to follow the operating instructions or improper
load positioning could result in strap breakage.
Become familiar with your tool and keep fingers away from areas
that can pinch or cut.
Joints
You are fully responsible to review the joints made by your tool.
Become familiar with the seal control and seal adjustment descri-
bed in this operation manual. Misformed joints may not secure the
load and could cause serious injury. Never handle or ship any load
with improperly formed joints.
Dispensing strap
Only dispense strap from a dispenser specifically designed for
strap.
Tuck strap end back into dispenser when not in use.
Protective gloves
When handling strap, always wear protective gloves.
Strap warnings
Never use strap as a means of pulling or lifting loads. Failure to fol-
low these warnings can result in severe personal injury.
Strap breakage hazard
Improper operation of the tool, excessive tensioning, using strap
not recommended for this tool or sharp corners on the load can
result in a sudden loss of strap tension or in strap breakage during
tensioning, which could result in the following:
• A sudden loss of balance causing you to fall.
• Both tool and strap flying violently towards your face.
Note as follows:
• If the load corners are sharp, use edge protectors.
• Place the strap correctly around a properly positioned
load.
• Positioning yourself in-line with the strap, during tension-
ing and sealing, can result in severe personal injury from
flying strap or tool. When tensioning or sealing, position
yourself to one side of the strap and keep all bystanders
away.
• Use the correct strap quality, strap width, strap gauge and
strap tensile strength recommended in this manual for
your tool. Using strap not recommended for this tool can
result in strap breakage during tensioning.
Cutting tensioned strap
When cutting strapping, use the proper strapping cutter and keep
other personnel and yourself at a safe distance from the strap.
Always stand to side of the strap, away from the direction the loo-
sened strap end will fly. Use only cutters designed for strap and
never hammers, pliers, hacksaws, axes, etc.
Fall hazard
Keep your working area tidy. Untidiness of your working area may
cause a risk of injury. Maintaining improper footing and/or balance
when operating the tool can cause you to fall. Before tensioning
and especially in elevated areas, always establish good balance.
Both feet should be securely placed on a flat, solid surface, espe-
cially when working in elevated areas. Do not use the tool when
you are in an awkward position.
Pay attention to the rules and regulations for preventions of acci-
dent which are valid for the work place.
Tool hazards
A well maintained tool is a safe tool!
Check tool regularly for broken or worn parts. Do not operate a
tool with broken or worn parts.
Never modify any tool. Modification can result in severe bodily
injury.
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

4a383man.en
2 WARRANTY CONDITIONS AND LIABILITY
FROMM Holding AG warrants all its strapping tools and machine heads during a period of 24 months from the
date of installation at the end-user's sight by the distributor, however, not later than 30 months from the date of
shipment to the distributor of FROMM Holding AG.
The warranty includes all deficiencies clearly resulting from poor manufacturing or faulty materials. Damage
claims as a result of production shutdowns and claims for damage to persons and to property resulting from
warranty deficiencies cannot be asserted by the customer.
The warranty excludes:
• wearing parts,
• deficiencies resulting from improper installing, incorrect handling and maintaining the tool,
• deficiencies resulting from using the tool without or with defective security- and safety devices,
• disregard of directions in the operation manual,
• arbitrary modifications of the tool,
• deficient control of wearing parts,
• deficient repair works of the tool.
•Use of consumable products not recommended by FROMM Holding AG
We reserve the right to modify the product at any time in order to improve its quality.
3 APPROPRIATE USE
The tool model A383 has been designed to strap packages with steel strapping exclusively.
The warranty / liability excludes:
• non appropriate use of the tool,
• disregard of directions in the operation manual,
• disregard of control- and maintenance instructions.
4 CHART OF TYPES
Uniflex = Strap with max. tensile strength of 850 N/mm2(123 000 psi)
Ultraflex = Strap with max. tensile strength of 1100 N/mm2(160 000 psi)
Item
No.
Model Strap width Strap thickness Max. tension
Uniflex Ultraflex kN lbs.
13.6702 A383/19/150/0.80-0.90 19 mm / 3/4" - 0.8 - 0.9mm/.031 - .035" 15 3360
13.6710 A383/25/100/0.80-0.90 25 mm / 1" 0.8 - 0.9mm/.031 - .035" 0.8 - 0.9mm/.031 - .035" 10 2240
13.6720 A383/25/150/0.80-0.90 25 mm / 1" 0.8 - 0.9mm/.031 - .035" 0.8 - 0.9mm/.031 - .035" 15 3360
13.6730 A383/25/150/1.0 25 mm / 1" 1 mm / .040" - 15 3360
13.6731 A383/25/150/1.3 25 mm / 1" 1.3 mm / .050" - 15 3360
13.6739 A383/32/100/0.63 32 mm /1 1/4" - 0.63 mm / .025" 10 2240
13.6740 A383/32/100/0.80-0.90 32 mm /1 1/4" 0.8 - 0.9mm/.031 - .035" 0.8 - 0.9mm/.031 - .035" 10 2240
13.6750 A383/32/150/0.80-0.90 32 mm /1 1/4" 0.8 - 0.9mm/.031 - .035" 0.8 - 0.9mm/.031 - .035" 15 3360
13.6760 A383/32/150/1.0 32 mm /1 1/4" 1 mm / .040" - 15 3360
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

5
a383man.en
5 TECNICAL DATA
Dimensions without suspension bracket
Sound information
The A-weighted equivalent continuous sound level at the work place of the machine operator is
typical 78 dB (A).
This value was determind according to DIN 45 635 T3 (11.85).
Vibration information
The weighted effective value of the acceleration typically amounts to less than 2,5m/s2.
This value was determined according to DIN EN 28 662 T1 (01.93).
Compressed air
Air consumption
Steel strap
Length: 420 mm / 16.5"
Width: 195 mm / 7.6"
Height: 350 mm / 13.7"
Weight: 23.1 kg / 50.82 lbs
Joining thread: G 1/4" min.
Max. air pressure: 6 bar / 87 psi.
Tensioning: 22 Nl / 0.80 cu.ft uncompressed air per second with the air motor running.
Sealing: 12.3 Nl / 0.44 cu.ft uncompressed air per cycle.
Width: 19 - 32 mm/ 3/4" - 1 1/4" (see chart of types).
Thickness: 0.63 mm - 1.3 mm / .025" - .050" (see chart of types).
Quality: Fundamentaly the A383 allows the use of all current steel straps ranging from 700 to
1100 N/mm2(100 000 - 159 500 psi) in tensile (see chart of types).
Strap with less than 600 N/mm2(87 000psi) in tensile is not suitable for the A383 tool.
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

6a383man.en
6INSTALLATION
Compressed air connection
The compressed air should be connected to the tool preferably by a quick disconnector.
It is very important to clean the compressed air with an air unit
consisting of a separator for water and dirt, a pressure regulator with a
manometer and a lubricator.
The maximum length of the air tube between air unit and tool has to be 5 m / 15 ft.
Suspension of tool
It is possible to suspend the tool on a balancer using one of the various suspension brackets available.
Depending on the application of the tool the appropriate suspension bracket is mounted.
A38.2413 SUSPENSION UNIVERSAL (no picture)
NORMAL, VERTICAL, HORIZONTAL
incl. air supply
A38.2410
NORMAL
A38.2401
VERTICAL
A38.2404
HORIZONTAL
A38.2407
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

7
a383man.en
7 OPERATING CONTROLS
8OPERATION
8.1 Feeding the strap around the
package
The strap is fed arround the package in the direction
as shown in the illustration. The end of the strap is
held tightly with the left hand and pulled firmly
towards the operator with the right hand.
8.2 Loading the strap
Lift and hold the flapper valve lever with the index
finger of the right hand. The left hand inserts the two
straps lying precisely upon another into the tool until
they hit the strap stops. The lower strap end must
slightly protrude the end of the base plate. Release
the flapper valve lever - the flapper closes and the
feed wheel is lowered to the strap.
Flapper valve lever
Sealing valve lever
Motor valve lever
Lever
Always wear safety
glasses with side
shields which conform
to ANSI Standard
Z87.1.
When handling strap,
always wear
protective gloves.
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

8a383man.en
8.3 Tensioning the strap
The motor valve lever is pressed down with the
thumb of the right hand so that the catch locks. Let
the tool tension until the motor stalls.
If the tensioning cycle has to be interrupted (faulty
strapping, applying of corner protection angles)
press the red lever.
8.4 Sealing the strap
Hold the strap which is reeled off from the strap coil
with the left hand . Press and hold down the sealing
valve lever until the strap is cut off.
Release the sealing valve lever.
8.5 Removing the tool from the
tensioned strap
Hold the cut strap end firmly with your left hand.
Lift the flapper valve lever with the right hand and
push the tool hard to the right from the tensioned
strap.
Release the flapper valve lever.
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

9
a383man.en
9 SEAL CONTROL
A regular control of the seal is necessary. The seal can be checked visually and the person controlling can
easily judge the quality of the seal. When checking the seal the following illustrations must be compared.
Correct seal
A correct seal must be conform to the illustration. This means that the depth with which the upper strap hooks
into the lower one must be 1 - 1.5 mm in min. and 2 mm in max.. The upper strap must be sheared clean and
the cutter must not leave scratch marks on the lower strap.
Incorrect seal (the sealing mechanism is adjusted too high)
This stamped seal is not deep enough and the upper strap is not sheared.The tensile strength of this seal is
not sufficient and the strapping must be taken away from the package. The tool must be readjusted immediately
(see SEAL ADJUSTMENT ).
Incorrect seal (the sealing mechanism is adjusted too low)
This stamped seal is too deep and the lower strap is scratched by the cutter. Although the tensile strength of
this seal is sufficient the strapping must be taken away from the package because of the scratched lower
strap. The tool must be readjusted immediately (see SEAL ADJUSTMENT).
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

10 a383man.en

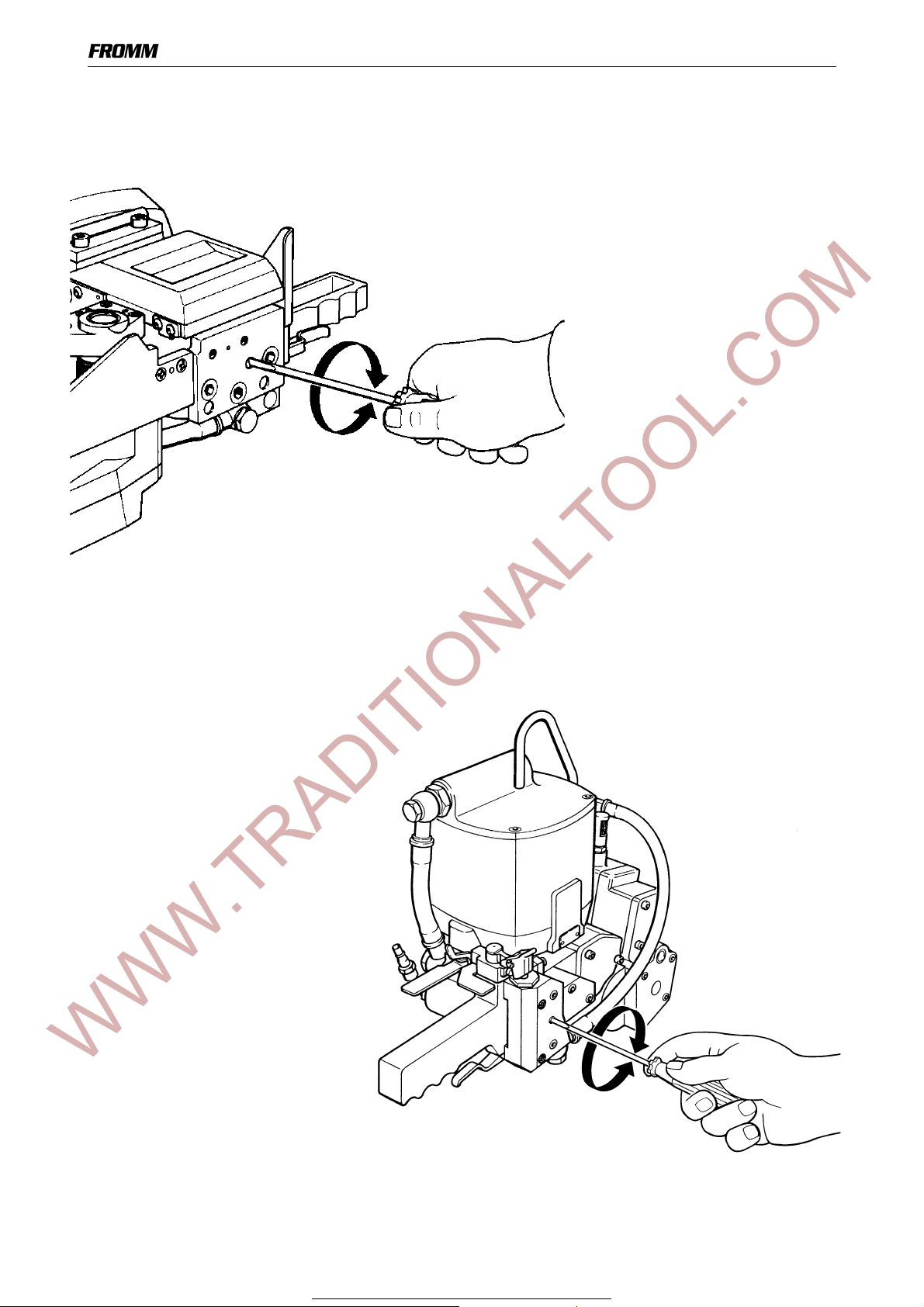

10 SEAL ADJUSTMENT
The depth of the sealing mechanism and the cutter can be steplessly adjusted by turning the adjusting screw
with a screw driver.
Sealing depth is excessive
Turn adjusting screw clockwise. A turn
of 90°equals a stroke correction of
0.25 mm/.010".
Sealing depth is insufficient
Turn adjusting screw counter-
clockwise. A turn of 90°equals a
stroke correction of 0.25 mm/.010".
If low gauge and soft straps are used
the sealless joint is not always
properly formed (the straps do not
interlock properly). In order to avoid
inproper interlocking the timing of the
interlock can be influenced by the
adjustment of a throttle on the control
valve body.
Under normal conditions the holding air
throttle is screwed flush into the outside
of the control valve body. If the straps
do not interlock properly (one or two
notches do not interlock at all) the
throttle has to be turned in a
clockwise direction.
Attention!
Adjust holding air throttle in such a way
that no tension marks on the
bottom of the seal caused by the punch
will be noticed. If marks are noticed the
punch might wear
prematurely.
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

11
a383man.en
11 MAINTENANCE
Depending on the working conditions and the use of the tool the following maintenance has to be made
periodically:
11.1 Air-unit
• Checking the air pressure daily.
• Checking the oil-level daily.
• The water separator must be emptied before it is full (unless automatic).
• The filter has to be cleaned following the instructions of the manufacturer of the air- unit.
Oil for the air-unit
HL or CL ISO-VG 10
11.2 Oil level in the pressure intensifier
Control
A proper operation of the tool is only warranted if there is the correct amount of oil in the pressure intensifier.
The position of the piston in its idle position reveals whether there is enough, too much or not enough oil in the
pressure intensifier. A flawless operation of the tool is guaranteed only if the amount of oil in the pressure
intensifier is correct!
If there is too much oil in the pressure intensifier the position of the piston in its idle position is lower than the
lower edge of the body (visible when flapper is open). As a result of this faulty position of the piston there is
not enough space for the straps and the seal joint resp; it is difficult or impossible to insert the straps into the
tool and to remove them from the tool resp..
If there is not enough oil in the pressure intensifier the position of the piston in its idle position is higher than
the lower edge of the body (visible when the flapper is open). As a result of this faulty position of the piston
there is a risk that the stroke of the piston during the sealing action is too short and consequently the seal joint
is not formed properly and the upper strap is not cut entirely in spite of the correct adjustment of the adjusting
screw resp..
Oil for the pressure intensifier in the tool
SAE 10W-20 (for refilling)
Refilling of oil into the pressure intensifier
• Turn tool with flapper in an upward position. Remove sealing screw.
• Introduce wrench (N7.3250) into boring with valve handle being parallel to the toggle, turn toggle by 90°
(thus the sealing piston is moved into its correct position).
• Turn back the wrench and remove it.
• Fill in oil of type SAE 10W-20 and let escape air bubbles. Screw in sealing screw again and tighten it.
• Check the position of the sealing piston as per afore mentioned instructions.
Wrench
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

12 a383man.en
11.3 Cleaning
If impact of dirt and dust is considerable and if painted straps are used the feed wheel must be cleaned
regularly. Normally it is sufficient to blow out this part by using an air gun.
11.4 Lubrication
The gear is filled with MOLYKOTE BR 2 PLUS. Use the same type of grease after repairs.
When being exchanged, all valve parts and other movable parts have to be greased with grease of type
Mobilux EP2 or with any equivalent product.
12 Exchange of wearing parts
12.1 Exchange of punch and die halves
If in spite of a correct adjustment of the adjusting screw it is no longer possible to make a proper seal (see
seal control) the base plate must be removed and the wear of the punch and the die halves must be
examined.
If the cutting edges are destroyed or worn heavily (attention! the cutting edges of new punches and dies are
also rounded slightly) the corresponding parts must be replaced.
Important!
Make sure that the mounting surfaces are completely free from dirt before the new parts are installed.
After assembling the base plate, the base plate screws must be tightened using a torque wrench with
a torque of 90 Nm.
The screws N1.1323 und N1.1806 have to be secured with Loctite 222.
N1.1806
N1.1323
N1.1174
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

13
a383man.en

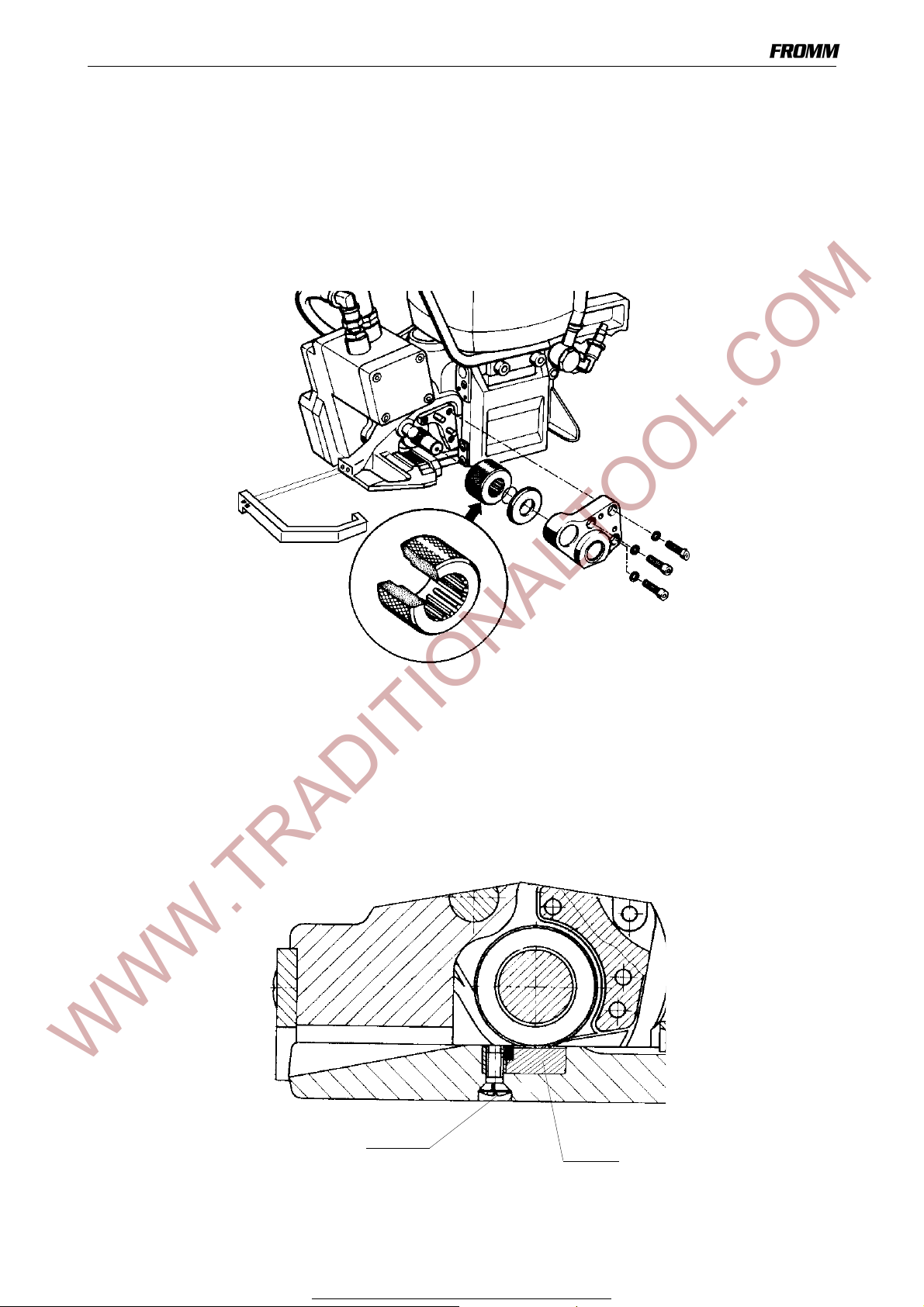

12.2 Exchange of the feed wheel
• Remove the left strap stop
• Unscrew the three screws and remove the bearing cover.
• Remove the front distance ring, the O-ring and the feed wheel from the feed wheel shaft.
• Assembling in opposite order.
Important! Take notice of the assembling position of the feed wheel.
12.3 Exchange of the gripper
• Remove the left strap stop and the bearing cover.
• Remove the front distance ring, the O-ring and the feed wheel from the feed wheel shaft.
• Remove cross-recess screw and holder so that the gripper can be removed.
• Clean the groove and firmly retighten the holder after insertion of the new gripper.
• Assembling in opposite order.
Important! The screw N1.1807 has to be secured with Loctite 222.
Gripper
N1.1807
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

14 a383man.en

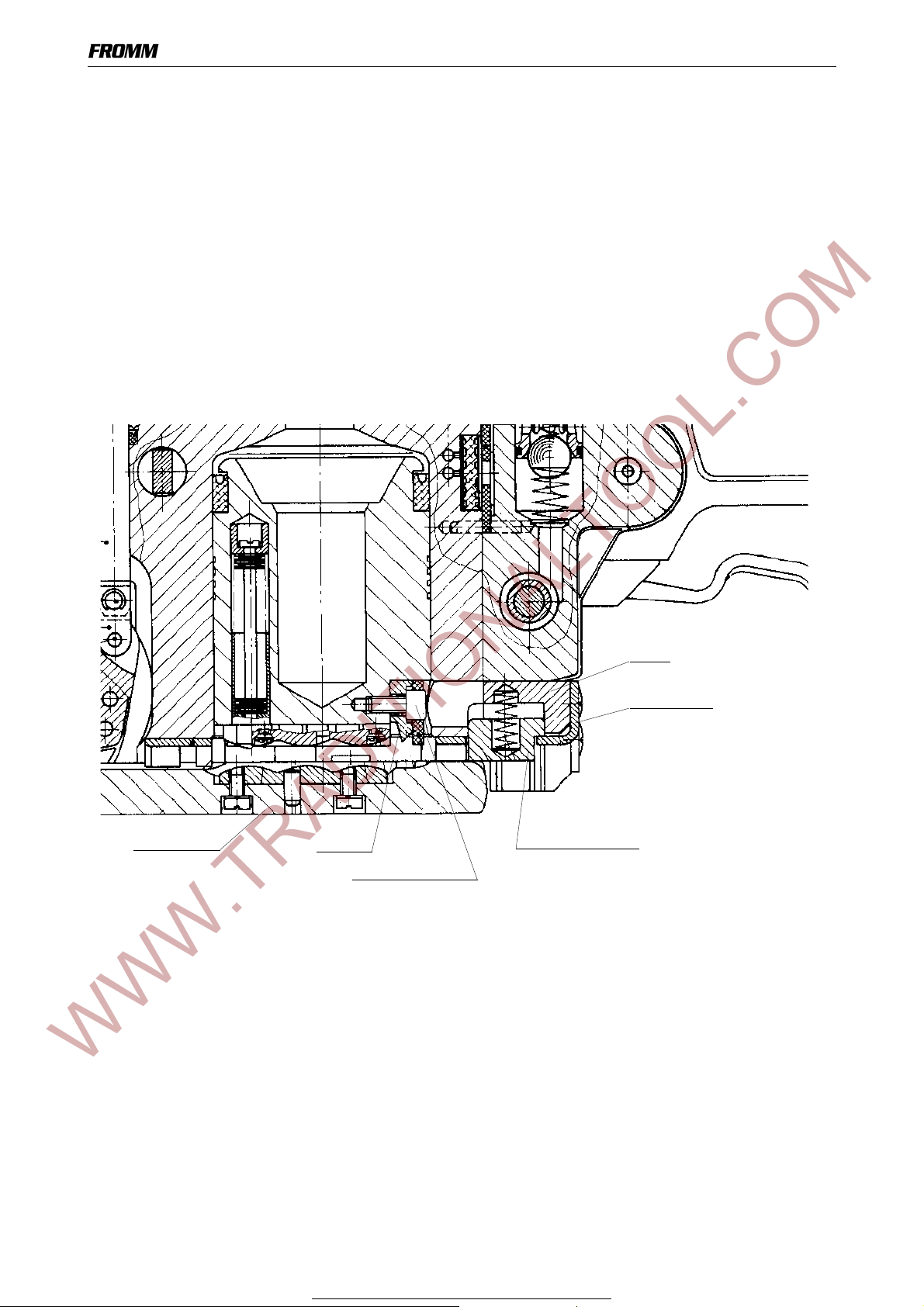

12.4 Exchange of cutter
• Remove base plate, guard plate with guide and right strap stop.
• Using a hexagon socket spinner wrench to unscrew and remove cutter screw M6 x 12 across the
appropriate boring in the sealing body.
• Replace cutter.
• Assemble in the opposite order.
Important! The screw N1.1193 has to be secured with Loctite 222.
Guard plate
Guide
Strap stop, right
Cutter
Screw N1.1193
Base Plate
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

15
a383man.en
13 CONTROL SYSTEM
13.1 Pneumatic schematic A383.0001
POS. DESCRIPTION
1 Throttle 1,2
2 Throttle 1,2
3 Flapper valve
4 Flapper security valve
5 Sealing valve
6 Motor valve
7 Throttle valve
8 Pilot valve
9 Throttle
10 Throttle 1,8
11 Holding air throttle 2,0
12 Non-return valve
13 Diaphragm
14 Holding air valve
15 Air-pressure-reduction-valve
16 Throttle 1,2
17 Rocker cylinder
18 Throttle 1,2
19 Flapper cylinder
20 Sealing cylinder
21 Muffler
22 Air Motor
23 Flapper valve lever
24 Motor valve lever
25 Sealing valve lever
26 Catch
27 Flapper
28 Lever
29 Holding air throttle
30 Ejection bolt
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

16 a383man.en
13.2 Details of the control system
POS. DESCRIPTION
1 Throttle 1,2
2 Throttle 1,2
3 Flapper valve
4 Flapper security valve
5 Sealing valve
6 Motor valve
7 Throttle valve
8 Pilot valve
9 Throttle
10 Throttle 1,8
11 Holding air throttle 2,0
12 Non-return valve
13 Diaphragm
14 Holding air valve
15 Air-pressure-reduction-
valve
16 Throttle 1,2
17 Rocker cylinder
18 Throttle 1,2
19 Flapper cylinder
20 Sealing cylinder
21 Muffler
22 Air Motor
23 Flapper valve lever
24 Motor valve lever
25 Sealing valve lever
26 Catch
27 Flapper
28 Lever
29 Holding air throttle
30 Ejection bolt
15
22
23
5
26
13
17
8
24
25
26
21
14
3
28
30
29
27
19
12
4
7
6
5
20
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

17
a383man.en
14 Functional characteristics
Idle position
Because of the connection of the tool to the compressed air-net (connection P) compressed air flows through
flapper valve 3 to the flapper cylinder 19 and rocker cylinder 17.
As a result of this air-flow, the closing force of the spring of the flapper cylinder 19 is supported by compres-
sed air on the one hand (flapper closed) and the feed-wheel is lowered to the gripper on the other hand.
The closed flapper 27 holds open flapper security valve 4. Flapper security valve 4 opens the line to sealing
valve 5 and motor valve 6 (both closed) and also to pilot valve 8, throttle 10, diaphragm 13 and holding air
valve 14.
As a result, holding air valve 14 is kept closed. Compressed air is also conducted to the holding air throttle 11
directly from the main connection and stops at the closed holding air valve 14.
Inserting the strap
To insert the strap, the flapper valve lever 23 of the flapper valve 3 is lifted. The valve switches, the flapper
cylinder 19 opens the flapper 27 and the rocker cylinder 17 lifts the feed wheel.
After inserting the strap, the flapper valve lever 23 is released again; flapper valve 3 and both cylinders 17 and
19 stay again in their idle position. The throttles 1, 2, 16 and 18 avoid jerking motions.
Tensioning
By pressing down the motor valve lever 24 the motor valve 6 is commuted and catches in an open position.
Compressed air now flows from connection P through the flapper security valve 4 and motor valve 6, the
adjustable throttle valve 7 and through the non-return valve 12 to the air motor 22 and drives the latter.
The used air leaves the air motor through the muffler 21. At the same time also the control pistons of the pilot
valve 8 and the holding air valve 14 are admitted with pressure from the right.
The left control side of the holding air valve 14 is deaerated through pilot valve 8 and the holding air valve 14
opens the opening area from the holding air throttle 11 through the adjustable holding air throttle to the air
motor 22.
This state remains unchanged until the air motor 22 stalls (through overcharge). If the tensioning cycle has to
be interrupted the blocking of the motor valve 6 must be suspended (press down lever 28).
Because of this the catch 26 is hooked out through the ejection bolt 30. At the same time the holding air valve
14 is closed so that the air motor 22 stalls.
Remark:If the strap is not transported after pressing the motor valve lever the procedure "Inserting the
strap"has to be done again. By pressing the flapper valve lever 23 the catch 26 is hooked out automatically.
So the started tensioning process is stopped and has to be restarted.
Sealing
The sealing action is started by pressing down the sealing valve lever 25. Sealing valve 5 switches and the
blocking of motor valve 6 is suspended.
The air motor 22 is held under pressure by the holding air throttle 11 and the holding air valve 14 in order to
avoid the rewinding of the feed wheel which is under pressure.
From sealing valve 5 compressed air flows to the pressure reduction valve 15 (to be adjusted at 5.3 bar/76
psi) as well as to the sealing cylinder 20. At the same time diaphragm 13 and through throttle 9 also pilot valve
8 are admitted with compressed air from the left.
Pilot valve 8 changes to opening and diaphragm 13 to locking. Since the right side of diaphragm 13 has a
smaller control piston surface than the left side, diaphragm 13 remains in a locking position and consequently
avoids the switching off of holding air valve 14. The piston of the cylinder 20 moves out and under the use of
a hydraulic pressure intensifier produces the necessary power to cut the sealing profile into the two straps and
to shear off the upper strap.
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

18 a383man.en
As soon as the upper strap is sheared off, the sealing valve lever 25 can be released. Sealing valve 5
switches to deaeration, the compressed air in cylinder 20 starts to flow back and escapes through the
pressure reduction valve 15 (back stroke area), sealing valve 5 and the lower part of the cylinder 20 into the
athmosphere.
The pressure in the line between pressure reduction valve 15 and sealing valve 5 drops continually.
As a result of this, the pressure on the left control side of diaphragm 13 is reduced.
The surface relation of the left to the right control side is modulated in such a way that diaphragm 13 switches
in dependence to the piston movement of the sealing cylinder and opens the input to the left control side of
holding air valve 14.
Holding air valve 14 interrupts the holding air. The pressure in the air motor 22 drops; the air motor can be
turned back by the tension in the strap. The two straps provided with the sealing profile can now interlock.
At this point the piston (piston with dies and cutter) is positioned approx. one to two mm (.040" to .080") from
its lowest position on its way to its initial position.
Removing the tool
The tool is opened by pulling the Flapper valve lever 23; the tool is then pushed away from the seal to the
right.
14.1 Adjustments
Tension speed / tension force
Throttle valve 7 limits the tension speed and also the tension force in the lower range of adjustments.
Factory presetting adjustment: 90 % of the maximum speed.
Sealing cylinder
The air pressure reduction valve 15 limits the entry pressure to the sealing cylinder 20.
Factory presetting adjustment: 5.3 bar (76 psi).
Important! The presetting adjustments must not be exceeded.
Timing of the interlock
Under normal conditions the holding air throttle 29 is screwed flush into the outside of the control valve body.
If the straps do not interlock properly (one or two notches do not interlock at all) the throttle has to be turned in
a clockwise direction; this causes a reduction of the holding air on the motor and the tensioned strap is held
with less power so that it will interlock quicker after sealing.
Attention!
Adjust holding air throttle in such a way that no tension marks on the bottom of the seal caused by the punch
will be noticed. If marks are noticed the punch might wear prematurely.
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

[ ] = Group * = Wearing parts
19
13675001.een
15 SPARE PARTS LIST 13.6750.01
13.6750.01 A383/32/0.80-0.90/15.0 A383.0001.01 09.11.99
Item-No. in group Pcs. Description Dimension Field
A3H.1110 1 FILTER NETTING B9
A3H.1111 1 NETTING FRAME C9
A3H.1112 1 PROTECTION NETTING B9
[A38.0109] 1 CONTROL VALVE A17
[A38.0112] 1 TENSIONING UNIT 15KN A22
[A38.0113] 1 VALVE HANDLE C17
[A38.0114] 1 PISTON PLATE B11
[A38.0115] 1 CYLINDER COVER A12
[A38.0118] A38.0112 1 AIR MOTOR EXC. 3.0 A22
[A38.0132] A38.0118 1 MOTOR CELL EXC. 3,0 B20
A38.1114 A38.2118 1 BUSH A6
A38.1138 1 SOCKET SET SCREW B3
A38.1142 1 BOLT C9
A38.1145 1 CYLINDER COVER B10
A38.1147 1 FORK C23
A38.1148 1 SHAFT C23
A38.1149 1 COVER B7
A38.1152 2 BLIND PLUG C8+
A38.1156 1 DISK B11
A38.1204 A38.0113 1 SHAFT D14
A38.1205 A38.0113 1 SECURITY LEVER D14
A38.1206 A38.0113 1 LEVER BODY D13
A38.1208 A38.0113 1 SEALER VALVE SHELL B14
A38.1209 A38.0113 2 VALVE BOLT A14
A38.1210 A38.0113 1 TENSIONER VALVE LEVER A15
A38.1211 A38.0113 1 SEALING VALVE LEVER B15
A38.1212 A38.0113 1 SHAFT A14
A38.1213 A38.0113 1 LEVER BODY A14
A38.1214 A38.0113 1 CATCH PIN B15
A38.1215 A38.0113 1 GUIDE RING C16
A38.1216 A38.0109 4 SUSTAINING RING D9+
A38.1216 A38.0113 5 SUSTAINING RING B18+
A38.1216 5 SUSTAINING RING C16+
A38.1217 A38.0113 1 GUIDE RING C17
A38.1218 A38.0113 1 VALVE PISTON C17
A38.1220 A38.0113 1 VALVE LEVER D17
A38.1221 A38.0113 1 SHAFT D17
A38.1222 A38.0113 1 LEVER BODY D17
A38.1226 A38.0109 1 CYLINDER CAP D18
A38.1227 A38.0109 1 CYLINDER RING C18
A38.1228 A38.0109 1 PISTON BAR C18
A38.1229 A38.0109 1 THRUST PIECE A18
A38.1231 1 SEAL PLATE B17
[A38.1236] 1 MOTOR TUBE A16
A38.1242 A38.0113 1 TENSIONER VALVE SHELL B15
A38.1243 1 SEAL PLATE C14
[A38.1244] A38.0109 1 CONTROL VALVE BODY A17
[A38.1246] 1 VALVE HEAD D10
A38.1248 1 SEALING STRIP D10
A38.1249 1 VALVE STEM D10
A38.1250 1 DISTANCE SLEEVE D9
A38.1251 1 COMPENSATOR RING C10
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

[ ] = Group * = Wearing parts
20 13675001.een
A38.1253 A38.0113 1 THROTTLE SCREW C14
A38.1272 1 JOINT CONE B16
A38.1274 A38.1244 1 HOLDING AIR THROTTLE A17
A38.1275 A38.0113 1 SLIDE BOLT C16
A38.1276 A38.0113 1 RING B15
A38.1277 A38.0113 1 SCREW A15
A38.1278 A38.0113 1 EJECTION HEAD A15
A38.1279 A38.0113 1 EJECTING BOLT A15
A38.1280 A38.0109 1 SEALING SCREW A18
A38.1281 A38.0109 1 TOUCH BOLT A18
A38.1282 A38.0113 1 LEVER A16
A38.1283 A38.0113 1 SHAFT A16
A38.1324 1 STRAP HOLDER D21
A38.1351 *A38.0132 8 VANE C20
A38.1352 A38.0132 1 END PLATE B21
[A38.1353] A38.0118 1 AIR MOTOR HOUSING B21
A38.1354 A38.0118 1 COVER A20
A38.1370 A38.0112 1 BEARING PLATE C24
A38.1371 A38.0112 1 INTERMEDIATE WHEEL B23
[A38.1372] A38.0112 1 BODY COVER B24
A38.1374 A38.0132 16 FELT C19+
A38.1376 A38.0132 1 ROTOR C20
A38.1377 A38.0132 1 COUPLING B20
A38.1378 A38.0132 1 DOWEL B20
A38.1427 A38.2401 1 BUTT STRAP --
A38.1506 A38.0115 1 PRESSION SETTING SCREW A10
A38.1507 A38.0115 1 VARIABLE PISTON B11
A38.1508 A38.0115 1 BALL SEAT B11
A38.1510 A38.0115 1 SEALING PLUG A10
A38.2103 1 DIE AND CUTTER SUPPORT B3
[A38.2104] 1 EJECTOR SPRING PACKAGE C2
A38.2105 A38.2104 1 EJECTOR SPINDLE C3
A38.2106 A38.2104 1 EJECTING BUSH C3
A38.2107 A38.2104 1 CAP C3
A38.2110 *1 DIE HALF D3
A38.2111 *1 DIE HALF D4
A38.2112 *1 CUTTER C4
A38.2114 1 STRAP CLAMP C4
A38.2117 1 GUIDE SHEET METAL D3
[A38.2118] 1 SPRING PACKAGE A5
A38.2119 A38.2118 1 SPINDLE A6
A38.2120 1 BASE PLATE C6
A38.2122 *1 PUNCH C6
A38.2123 1 ADJUSTING SCREW C6
A38.2124 1 EJECTOR B6
[A38.2125] 1 SPRING PACKAGE B5
A38.2126 A38.2125 1 SPINDLE B6
A38.2127 1 FLAPPER C2
A38.2129 1 STRAP GUIDE C2
A38.2131 1 STRAP GUIDE B1
A38.2132 1 FLAP PIVOT PIN B3
A38.2133 1 PISTON ROD C9
A38.2134 1 PISTON ROD C7
A38.2135 1 GUIDE RING C8
13.6750.01 A383/32/0.80-0.90/15.0 A383.0001.01 09.11.99
Item-No. in group Pcs. Description Dimension Field
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699
