Fromm A334 Guide

OPERATION MANUAL / SPARE PARTS LIST
MANUAL SEALLESS
COMBINATION STRAPPING TOOL
MODEL A334
13.2611.01
13261101.en/MAS/© 04.06
For Parts & Service 1-877-862-6699

2
1 SAFETY INSTRUCTIONS
Read these instructions carefully. Failure to follow these instructions can result in severe personal injury.
Eye injury hazard
Failure to wear safety glasses with side shields can result in severe eye injury or blindness. Always wear
safety glasses with side shields which conform to ANSI Standard Z87.1.
Operation
Tool must not be used by persons not properly trained in their use. Before tensioning strap, read and
understand the tool operating instructions. Failure to follow the operating instructions or improper load
positioning could result in strap breakage.
Become familiar with your tool and keep fingers away from areas that can pinch or cut.
INDEX PAGE
1 SAFETY INSTRUCTIONS 2
2 WARRANTY CONDITIONS AND LIABILITY 4
3 APPROPRIATE USE 4
4 TECNICAL DATA 4
5 CHART OF TYPES A334 5
6 OPERATION LEVERS 5
7OPERATION 6
8 SPARE PARTS LIST 13.2611.01 10
9 SEAL CONTROL 13
10 SEAL ADJUSTMENT 14
11 MAINTENANCE 15
12 CLEANING 15
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

3
Joints
You are fully responsible to review the joints made by your tool. Become familiar with the seal control and seal
adjustment described in this operation manual. Misformed joints may not secure the load and could cause
serious injury. Never handle or ship any load with improperly formed joints.
Dispensing strap
Only dispense strap from a dispenser specifically designed for strap.
Tuck strap end back into dispenser when not in use.
Protective gloves
When handling strap, always wear protective gloves.
Strap warnings
Never use strap as a means of pulling or lifting loads. Failure to follow these warnings can result in severe
personal injury.
Strap breakage hazard
Improper operation of the tool, excessive tensioning, using strap not recommended for this tool or sharp
corners on the load can result in a sudden loss of strap tension or in strap breakage during tensioning, which
could result in the following:
• A sudden loss of balance causing you to fall.
• Both tool and strap flying violently towards your face.
Note as follows:
• If the load corners are sharp, use edge protectors.
• Place the strap correctly around a properly positioned load.
• Positioning yourself in-line with the strap, during tensioning and sealing, can result in severe personal
injury from flying strap or tool. When tensioning or sealing, position yourself to one side of the strap and
keep all bystanders away.
• Use the correct strap quality, strap width, strap gauge and strap tensile strength recommended in this
manual for your tool. Using strap not recommended for this tool can result in strap breakage during
tensioning.
Cutting tensioned strap
When cutting strapping, use the proper strapping cutter and keep other personnel and yourself at a safe
distance from the strap. Always stand to side of the strap, away from the direction the loosened strap end will
fly. Use only cutters designed for strap and never hammers, pliers, hacksaws, axes, etc.
Fall hazard
Keep your working area tidy. Untidiness of your working area may cause a risk of injury. Maintaining improper
footing and/or balance when operating the tool can cause you to fall. Before tensioning and especially in
elevated areas, always establish good balance. Both feet should be securely placed on a flat, solid surface,
especially when working in elevated areas. Do not use the tool when you are in an awkward position.
Pay attention to the rules and regulations for preventions of accident which are valid for the work place.
Tool hazards
A well maintained tool is a safe tool!
Check tool regularly for broken or worn parts. Do not operate a tool with broken or worn parts.
Never modify any tool. Modification can result in severe bodily injury.
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

4A334T1.en.fm
2 WARRANTY CONDITIONS AND LIABILITY
FROMM Holding AG warrants all its strapping tools and machine heads during a period of 90 days from the
date of sale. The warranty includes all deficiencies clearly resulting from poor manufacturing or faulty materials.
Damage claims as a result of production shutdowns and claims for damage to persons and to property
resulting from warranty deficiencies cannot be asserted by the customer.
The warranty excludes:
• wearing parts
• deficiencies resulting from improper installing, incorrect handling and maintaining the tool
• deficiencies resulting from using the tool without or with defective security- and safety devices
• disregard of directions in the operation manual
• arbitrary modifications of the tool
• deficient control of wearing parts
• deficient repair works of the tool
• Use of consumable products not recommended by FROMM Holding AG
We reserve the right to modify the product at any time in order to improve its quality.
3 APPROPRIATE USE
The tool model A334 has been designed to strap packages with steel strapping exclusively.
The warranty / liability excludes:
•non appropriate use of the tool,
•disregard of directions in the operation manual,
•disregard of control- and maintenance instructions.
4 TECNICAL DATA
Dimensions without suspension bracket
Tool Package
Length: 560 mm / 22" 635 mm / 25"
Width: 155 mm / 6.1" 210 mm / 8.3"
Height: 305 mm / 12" 350 mm / 13.8"
Weight: 7.2 kg / 15.9 lbs 1.28 kg / 2.82 lbs
Joint strength
Approx. 80% of the strap’s tensile strength.
Steel strapping
Width: 16 - 20 mm / 5/8 - 3/4" (see chart of types)
Thickness: 0.58 - 0.80 mm / 0.023 - 0.031"
Quality: Fundamentally the A334 allows the use of all current steel straps with tensile
strengths ranging from 850 to 1100 N/mm2/ 123 000 - 160 000 psi.
Straps with a low breaking elongation are unsuitable.
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

5
A334T1.en.fm
5 CHART OF TYPES A334
Uniflex (Regular Duty max. 850 N/mm2/ 123’000 psi)
Ultraflex (High Tensile max. 1100 N/mm2/ 160’000 psi)
6 OPERATION LEVERS
Item No. Model Strap width Strap thickness
13.2590 A334/16/0.58-0.70 16 mm / 5/8" 0.58 - 0.70 mm / 0.023 - 0.028"
13.2591 A334/16/0.8 16 mm / 5/8" 0.8 mm / 0.031"
13.2610 A334/19/0.58-0.70 19 mm / 3/4" 0.58 - 0.70 mm / 0.023 - 0.028"
13.2611 A334/19/0.8 19 mm / 3/4" 0.8 mm / 0.031"
13.2620 A334/20/0.58-0.70 20 mm 0.58 - 0.70 mm / 0.023 - 0.028"
13.2621 A334/20/0.8 20 mm 0.8 mm / 0.031"

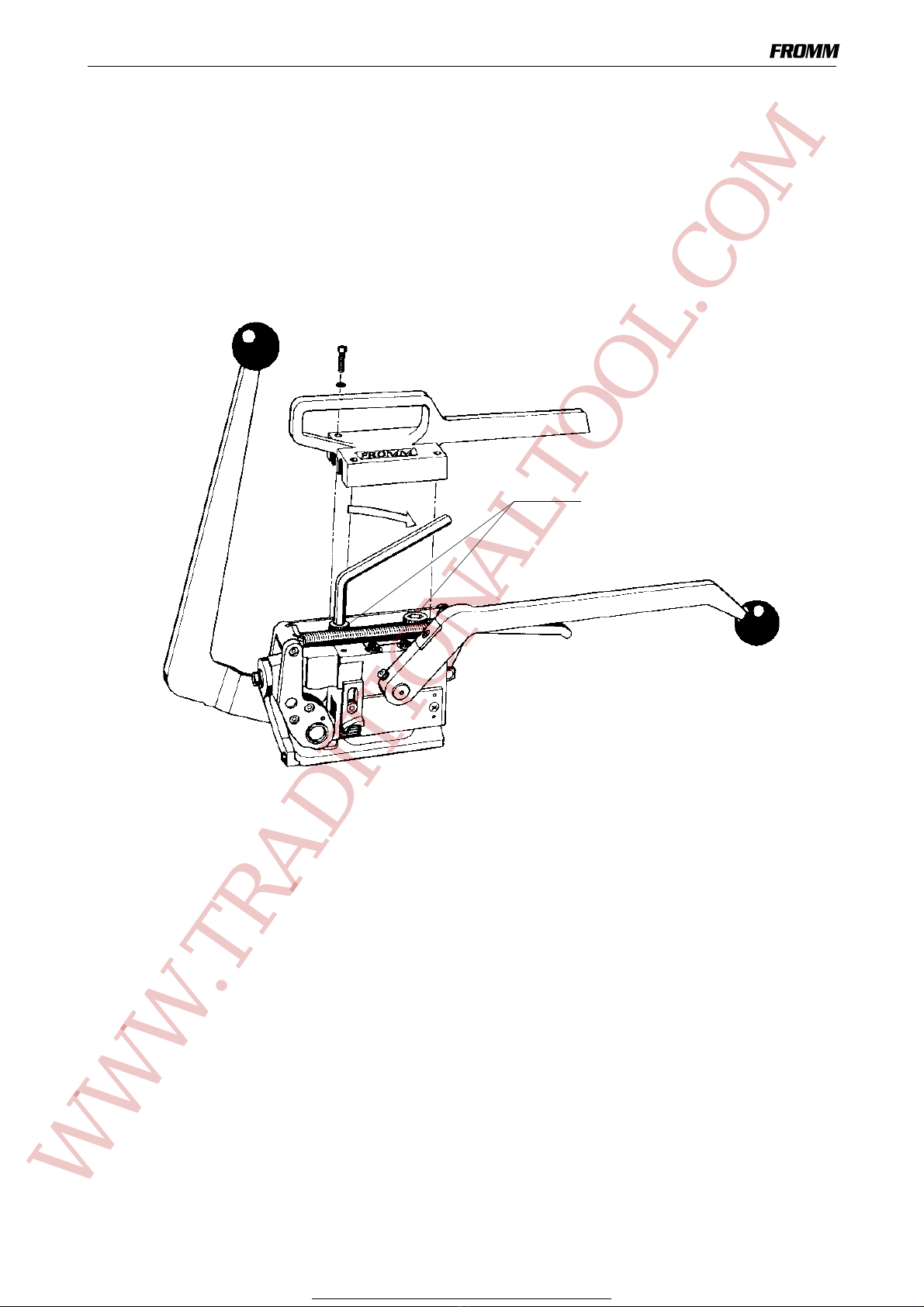

Tensioning handle
Cover
sealing handle
Stop
Base plate
Lifting Handle
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

6A334T1.en.fm
7 OPERATION
Feeding the strap around the package
The strapping is fed around the package in the direction as
shown in the illustration. The strapping end is held tightly
with the left hand and pulled firmly towards the operator
with the right hand.
Loading the strap
The lifting handle is raised with the right hand. Insert
both thicknesses of the strap with the left hand. Lower
the lifting handle; be certain that the strap is held by the
strap guide.
When handling strap, always wear protective
gloves and safety glasses with side shields
which conform to ANSI Standard Z87.1.
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

7
A334T1.en.fm
Tensioning the strap
The tool is held tightly with the left hand
being placed on the sealing handle. The
tensioning handle is now moved forward
and backward with the right hand until the
desired tension is attained.
Sealing the strap
The sealing handle is moved forward
using the left hand until it hits the stop.
The handle is then moved back to its
initial position.
When sealing, the right hand holding the
tensioning handle absorbs the sealing
force.
Removing the tool from the tensioned strap
The lifting handle is raised with the right hand. The tool is
then pushed to the right from the seal.
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

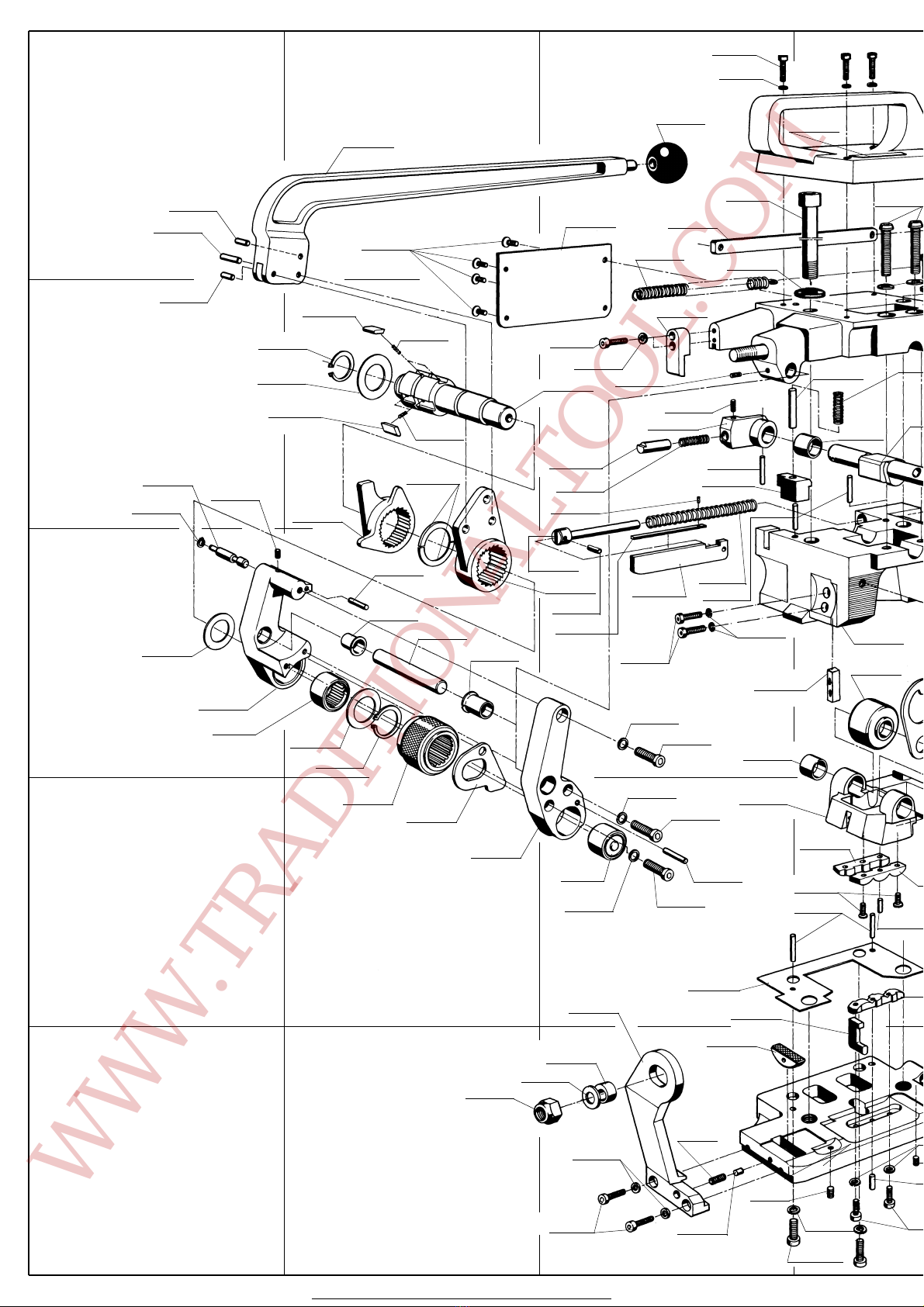

2 31A
B
C
D
E
13261101.z
A33.3219
N4.1116
N1.1808
A33.1218
➀A33.3209
➀A33.3209
N2.1108
N2.5606
A33.3208
N1.3106
A33.3221
N2.1802
➀A33.3124
N2.2145
A33.3213
A33.3215
➀N3.2327
A33.3213
N2.1108
A33.3226
A33.3216
➀N3.2326
N1.6207 N1.1113
N2.2166
N1.6207
N1.1113
N3.3133
N3.3133
A3.1410
N1.6207
N1.1113
A33.2204
N1.6102
N1.5309
N1.6207
A33.2203 N1.6215
N2.2149
➄A33.2217
A33.2225
N2.2138
➂N1.1806
A38.1171
N3.3132
N1.6207
N1.1113
➃N1.1185
A33.3204
A33.2211
A33.2226
N1.1107
N1.6219
A33.1202
A33.3218
N2.2401
A33.1219
N2.2447
➀A33.1201
N1.3503
A33.3211
N1.6222
➂N1.1196
N1.3106
A33.3205
N2.5324 N1.6134
A33.1223
N2.2410
➀A33.1229
➁A33.1237
A33.2201
N3.3132
A33.1226
N41.9128
A33.2205
A33.3210
➅N2.2158
➅N2.2157
➅N2.2158
N2.5154 ➀
N2.5154 ➀
➀ A33.1210
➀N2.5173
N2.2149
➀N2.5182
➆N1.1115
N1.1187 ➆
➂N1.1168
N1.3112 ➂
➂ N1.3108
➅A33.1209
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

4567
➀Mobilux EP2
➁Molykote 1000
➂Loctite 222
➃120 Nm
➄Compensation
➅Loctite 603
➆42 Nm
N3.3132
A33.2202
N3.3132
A33.1207
N1.1185 ➃
N1.1168
N1.6134
A38.1170
N1.1181 ➂
N1.1304 ➂
N1.6203
N2.2112
N1.3106 ➂
N2.5172 ➀
A33.1208
N1.6117
N1.5131
A33.1226
N1.1139
N2.1802
A33.3230 ➀
A33.1236
A33.1216
N1.2106 ➂
N1.7104 ➂
A33.1214
N4.1116
N1.5902
N2.2159
N1.1140
N1.6115
A33.1225
N2.2147
N1.3408
A33.1163
A33.1213
N1.6103
A33.1217
N1.1805
N1.1181
A33.2209 ➀
A33.1234
A38.1174
A33.2154 ➀
A33.2215
A38.1110
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

[ ] = Group * = Wearing parts
10 13261101.een.fm
8 SPARE PARTS LIST 13.2611.01
13.2611.01 A334/19/0.80 A334.0005.01 31.03.06
Item-No. in group Pcs. Description Dimension Field
A33.1163 1 SOCKET SET SCREW B5
A33.1201 1 RELEASING BOLT B3
A33.1202 1 ROD BAR C3
A33.1207 1 COVER A5
[A33.1208] 1 CAM B4
A33.1209 1 RELEASING HEAD B3
A33.1210 1 RELEASING ROD C3
A33.1213 1 STOP C4
A33.1214 1 SEALING HANDLE B6
A33.1216 1 STOP PLATE B5
A33.1217 1 COVER C5
A33.1218 1 COVER A3
A33.1219 1 SLIDE-BEARING C3
A33.1223 1 PARALLEL PIN B4
A33.1225 1 PLATE SPRING C5
[A33.1226] 1 HOUSING C4+
A33.1229 1 RELEASING BODY B3
[A33.1234] 1 DIE AND CUTTER SUPPORT D5
A33.1236 1 ROCKER LEVER B5
A33.1237 1 KEY C3
A33.2154 1 LIMIT BOLT E5
A33.2201 A33.1234 1 ROLLER C4
A33.2202 A33.1234 1 SUPPORTING SHAFT D5
A33.2203 1 NYLON BOLT E3
A33.2204 1 EXCENTRICAL BUSHING E3
A33.2205 1 BUTT STRAP D3
A33.2209 A33.1234 1 LINK C4
A33.2211 1 EJECTOR D3
A33.2215 1 BASE PLATE E4
A33.2217 1 SHIM D3
[A33.2225] *1 GRIPPER E3
A33.2226 A33.1234 1 DIE AND CUTTER SUPPORT D3
A33.3124 2 RING HALF B2
A33.3204 1 ROD BAR A3
[A33.3205] 1 STOP B3
A33.3208 1 LOCKING RING B2
A33.3209 6 TENSIONING PAWL B2
A33.3210 1 STRAP GUIDE D2
A33.3211 1 TENSION SHAFT B3
A33.3213 2 SPACER WASHER C1+
A33.3215 1 ROCKER C1
A33.3216 1 ROCKER COVER D2
A33.3218 1 DRIVER C3
A33.3219 1 TENSION HANDLE A2
A33.3221 1 BOLT B1
A33.3226 *1 TENSIONING WHEEL D2
A33.3230 1 LEVER BOLT B5
A38.1110 *1 CUTTER C4
A38.1170 *1 DIE HALF D4
A38.1171 *1 DIE HALF D4
A38.1174 *1 PUNCH D4
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

[ ] = Group
11
13261101.een.fm
A3.1410 1 BOLT C2
N1.1107 2 SCREW M4 X 10 C3
N1.1113 7 SCREW M5 X 20 A3+
N1.1115 2 SCREW M8 X 40 A4
N1.1139 A33.1227 1 SCREW M10 X 16 B4
N1.1140 1 SCREW M4 X 8 C5
N1.1168 3 SCREW M5 X 16 E3+
N1.1181 2 SCREW M5 X 12 C5+
N1.1185 2 SCREW M12 X 1,25 X 112 A3+
N1.1187 2 SCREW M8 X 16 E4
N1.1196 A33.3205 2 SCREW M4 X 16 B3
N1.1304 2 SCREW M3 X 8 E4
N1.1805 1 SCREW M5 X 8 C5
N1.1806 4 SCREW M4 X 10 D4
N1.1808 4 SCREW M4 X 10 A2
N1.2106 1 COUNTERSUNK SCREW M4 X 8 B5
N1.3106 3 SOCKET SET SCREW M5 X 6 B1+
N1.3108 1 SOCKET SET SCREW M6 X 10 E3
N1.3112 1 SOCKET SET SCREW M5 X 10 E3
N1.3408 1 SOCKET SET SCREW M12 X 8 B4
N1.3503 1 SOCKET SET SCREW M5 X 12 B3
N1.5131 1 HEXAGON NUT M5 B5
N1.5309 1 RETAINING NUT M10 X 1.25 E2
N1.5902 1 HEXACON NUT M6 C6
N1.6102 1 WASHER 10.5 X 21 X 2 E3
N1.6103 1 WASHER 5.3 X 9.5 X 1 C4
N1.6115 1 WASHER 4.3 X 9 X 0.8 C5
N1.6117 2 WASHER 8.4 X 17 X 1.6 B4
N1.6134 2 WASHER 13 X 20 X 2 A3+
N1.6203 2 SPRING LOCK WASHER M3 E4
N1.6207 9 SPRING LOCK WASHER M5 A3+
N1.6215 2 SPRING LOCK WASHER M8 E4
N1.6219 2 SPRING LOCK WASHER M4 C3
N1.6222 A33.3205 2 SPRING LOCK WASHER M4 B3
N1.7104 1 SHOULDER SCREW 8 X 30/M6 B5
N2.1108 2 SECURITY RING 20 B1+
N2.1802 2 TENSIONING RING 5 B1+
N2.2112 1 PARALLEL PIN 3 m6 X 12 E4
N2.2138 A33.1234 2 PARALLEL PIN 4 m6 X 12 D4
N2.2145 1 PARALLEL PIN 4 h6 X 18 C2
N2.2147 2 PARALLEL PIN 3 m6 X 10 C4
N2.2149 2 PARALLEL PIN 4 h6 X 22 C3
N2.2149 A33.1226 2 PARALLEL PIN 4 h6 X 22 D4
N2.2157 1 PARALLEL PIN 6 h6 X 20 A1
N2.2158 2 PARALLEL PIN 6 h6 X 16 A1+
N2.2159 1 PARALLEL PIN 10 h6 X 40 C5
N2.2166 1 PARALLEL PIN 4 h6 X 20 D3
N2.2401 1 DOWEL PIN 3 X 10 C3
N2.2410 1 DOWEL PIN 4 X 22 B3
N2.2447 1 DOWEL PIN 2 X 4 B3
N2.5154 6 PRESSURE SPRING 0.45 X 3.9 X 7/6 B2+
N2.5172 1 PRESSURE SPRING 1 X 9 X 26/10.5 B4
N2.5173 1 PRESSURE SPRING 1.6 X 9.8 X 94/42.5 C3
13.2611.01 A334/19/0.80 A334.0005.01 31.03.06
Item-No. in group Pcs. Description Dimension Field
* = Wearing parts
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

[ ] = Group * = Wearing parts
12 13261101.een.fm
N2.5182 1 PRESSURE SPRING 0.63 X 5.5 X 27/15.5 B3
N2.5324 1 TENSIONING SPRING 2 X 10.2 X 120 A3
N2.5606 1 CUP SPRING 40 X 20.4 X 1 B1
N3.2326 1 NEEDLE CASE 18 X 24 X 16 D3
N3.2327 1 NEEDLE BUSH 20 X 26 X 16 C1
N3.3132 2 SLIDE-BEARING 16 X 18 X 20 B4
N3.3132 A33.1234 2 SLIDE-BEARING 16 X 18 X 20 C3+
N3.3133 2 HEADED PRESS FIT BUSH 12 X 14 X 20 X 17 C2
N41.9128 1 ADHESIVE LABEL 30 X 10 X 0.1 A4
N4.1116 2 GRIP BALL D=48 A3+
13.2611.01 A334/19/0.80 A334.0005.01 31.03.06
Item-No. in group Pcs. Description Dimension Field
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

13
A334T2.en.fm
9 SEAL CONTROL
A regular control of the seal is necessary. The seal can be checked visually and the person controlling can
easily judge the quality of the seal. When checking the seal the following illustrations must be compared.
Correct seal
A correct seal must be conform to the illustration. This means that the depth with which the upper strap hooks
into the lower one must be 1 – 1.5 mm ( 0.039 – 0.059”) in min. and must not exceed 2 mm (0.079”). The upper
strap must be sheared clean and the cutter must not leave scratch marks on the lower strap.
Incorrect seal (the sealing mechanism is adjusted too high)
This stamped seal is not deep enough and the upper strap is not sheared.The tensile strength of this seal is
insufficient and the strapping must be taken away from the package. The tool must be readjusted immediately
(see SEAL ADJUSTMENT).
Incorrect seal (the sealing mechanism is adjusted too low)
This stamped seal is too deep and the lower strap is scratched by the cutter. Although the tensile strength of
this seal is sufficient the strapping must be taken away from the package because of the scratched lower strap.
The tool must be readjusted immediately (see SEAL ADJUSTMENT).
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

14 A334T2.en.fm
10 SEAL ADJUSTMENT

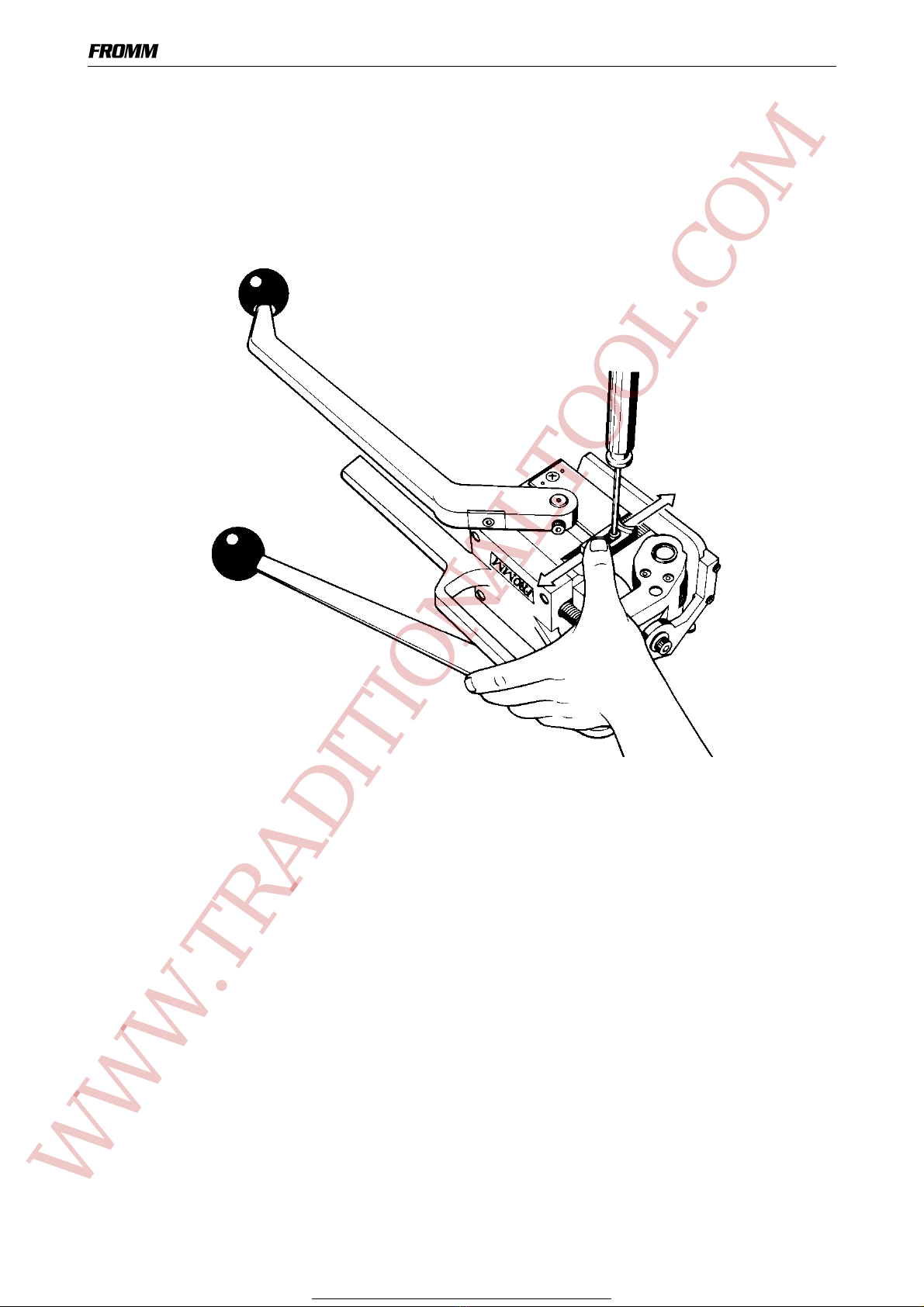

The depth of the sealing mechanism and the cutter can be adjusted by displacing the stop.Place the tool as
shown and loosen the screw with an allen key. After displacing the stop retighten the screw.
• If sealing depth is not sufficient reset stop in the direction of the base plate.
• If sealing depth is excessive reset stop in the direction of the cover.
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

15
A334T2.en.fm
11 MAINTENANCE
Disassembly / Assembly
If base plate was removed for service- or repair works it is important to retighten the two screws N1.1185 with
tightening torque of 120 Nm / 87 ft lb when assemble.
12 CLEANING
In case of heavy dirt and when painted straps are used the punch, dies, gripper and feed-wheel must be
cleaned regularly.
Normally it is sufficient to blow out the parts with the help of an air gun.
N1.1185
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

16 A334T2.en.fm
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699
