Goldmedal 4211C User manual

Part No. 33051
Instruction Manual
10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA
Carmel Apple-Dip Warmer
Model No. 4211C, 4211CX

Carmel Apple-Dip
Warmer Model No. 4211C, 4211CX
Page 2
gmpopcorn.com

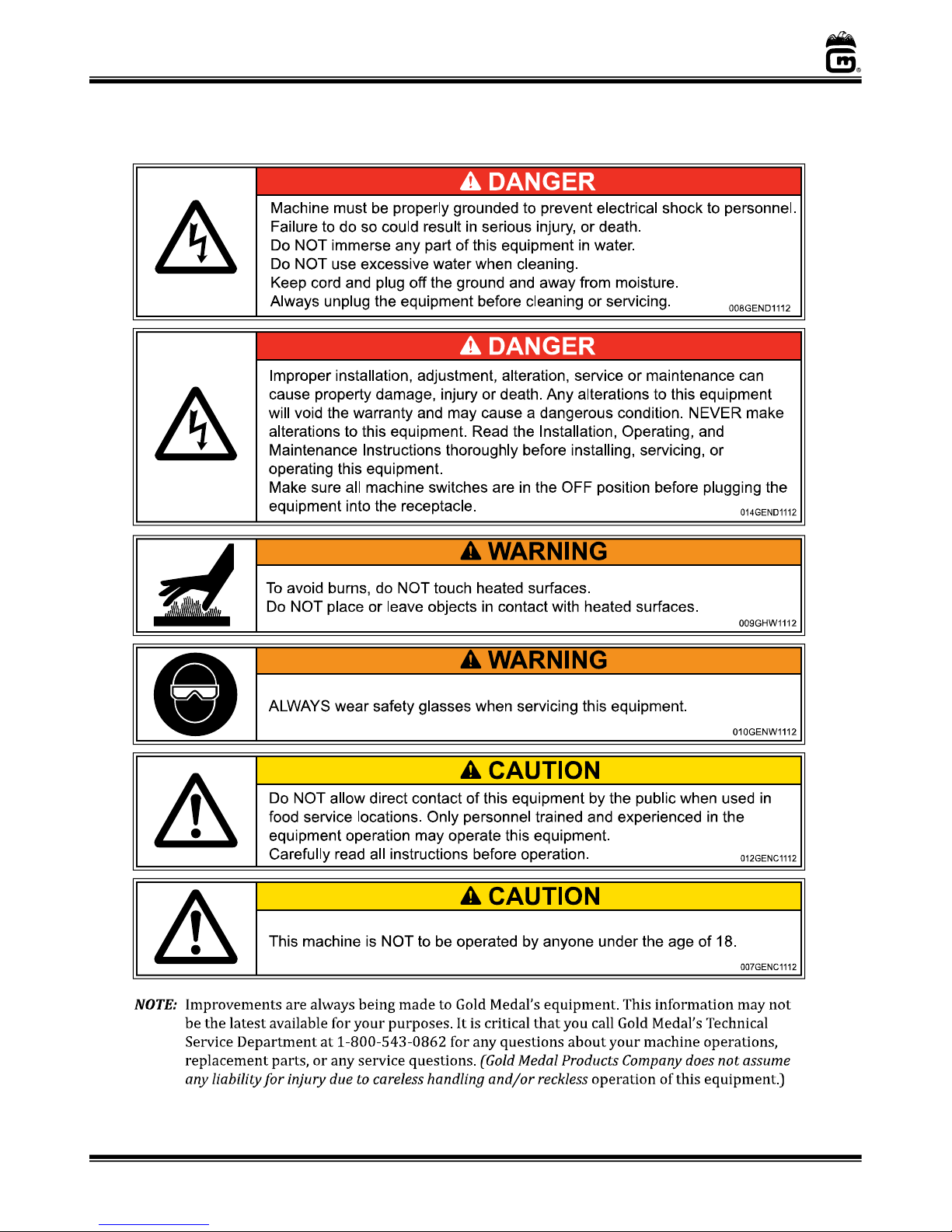

SAFETY PRECAUTIONS

Carmel Apple-Dip
Warmer Model No. 4211C, 4211CX
Page 3
gmpopcorn.com
INSTALLATION INSTRUCTIONS
Inspection of Shipment
After unpacking, check thoroughly for any damage which may have occurred in transit. Claims
should be filed immediately with the transportation company. The warranty does not cover
damage that occurs in transit, or damage caused by abuse, or consequential damage due to the
operation of this machine, since it is beyond our control.
Setup
Your new Caramel Apple-Dip Warmer is completely assembled and tested at the factory. Remove
all packing material and tape before starting operation.
Accessories Included

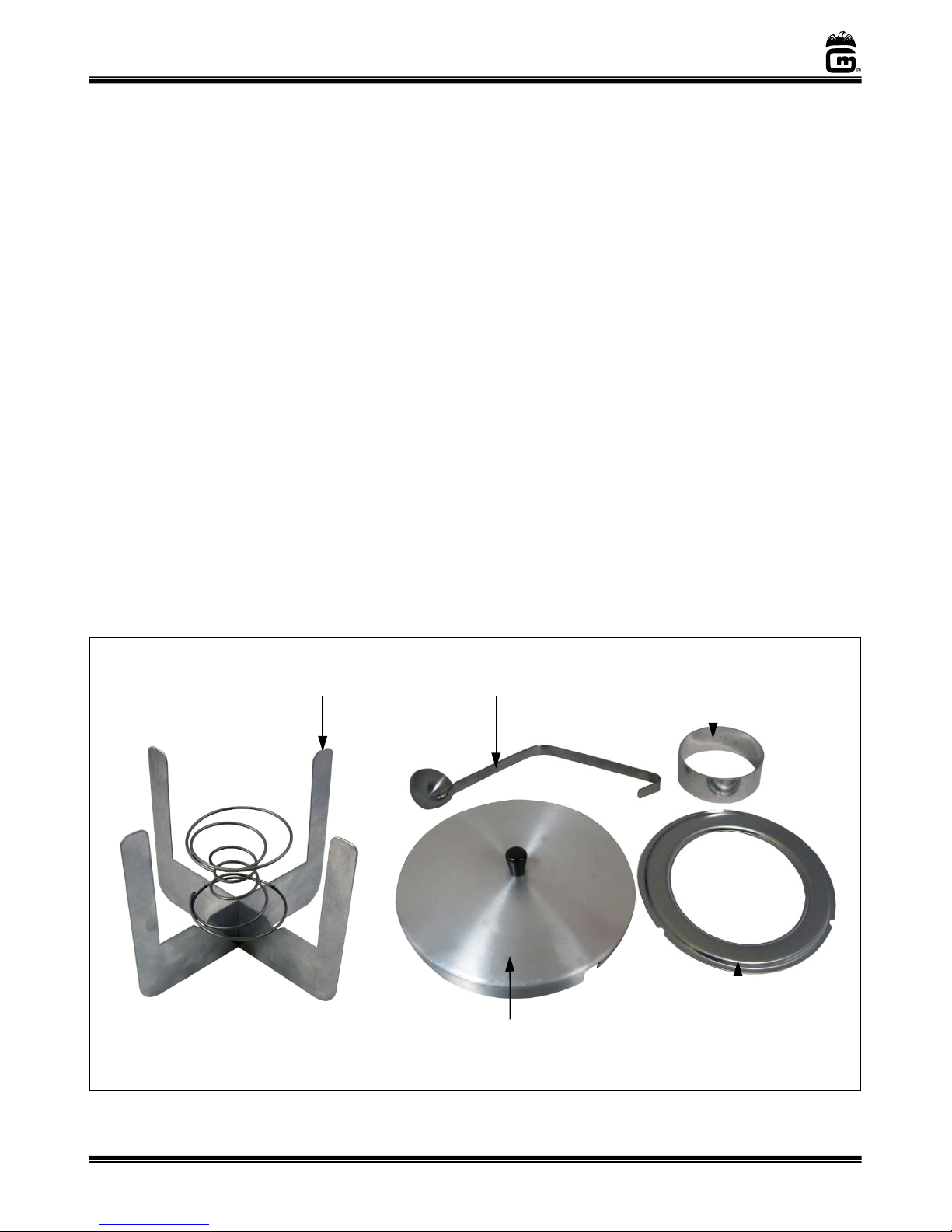

The following accessories are included with your machine:
•Can Holder w/Spring (2)
•3/4oz. Dipper (2)
•Bowl Platform (2)
•Lid w/Knob (2)
•Lock Ring (2)
Can Holder
w/Spring
3/4oz. Dipper
Bowl Platform
Lock Ring
Lid w/Knob

Carmel Apple-Dip
Warmer Model No. 4211C, 4211CX
Page 4
gmpopcorn.com
Electrical Requirements
The following power supply must be provided:
4211C:120Volts, 1440 Watts, 60Hz.
4211CX:230Volts, 1440 Watts, 50Hz.
DANGER
Machine must be properly grounded to prevent electrical
shock to personnel. Failure to do so could result in serious
injury, or death.
Do NOT immerse any part of this equipment in water.
Do NOT use excessive water when cleaning.
Keep cord and plug off the ground and away from
moisture.
Always unplug the equipment before cleaning or servicing.
Your electrician must furnish sufficient power for proper machine operation. We recommend
this equipment be on a dedicated and protected circuit. Failure to wire properly will void the
warranty and may result in damage to the machine. It is Gold Medal Products Company’s
recommendation that this machine be plugged directly into a wall outlet. The use of extension
cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced
performance.
Before You Plug In Machine
1. Make sure all machine switches are in the OFF position before plugging the equipment
into the receptacle.
2. Make sure the wall outlet can accept the grounded plugs (where applicable) on the
power supply cord.
3. The wall outlet must have the proper polarity. If in doubt, have a competent
electrician inspect the outlet and correct if necessary.
4. DO NOT use a grounded to un-grounded receptacle adapter.
5. Install the unit in a level position.

Carmel Apple-Dip
Warmer Model No. 4211C, 4211CX
Page 5
gmpopcorn.com
About the Machine and Available Supplies
This machine is designed to use with either a standard #10 can (this is the can the caramel dip is
sold in), or a stainless steel insert bowl. The insert bowl is sold separately from Gold Medal
Products Co. as item #2194.
Below is a list of other accessories available from Gold Medal for making caramel apples. These
items are sold separately, and are NOT included with the machine.
1. Quicker Dipper – Item #4777
2. Candy Thermometer – Item #4300
3. Settersticker – Item #4006
4. Candy Apple Sticks – Item #4005
5. Stainless Steel Insert Bowl – Item #2194

Carmel Apple-Dip
Warmer Model No. 4211C, 4211CX
Page 6
gmpopcorn.com
OPERATING INSTRUCTIONS
Controls and Their Functions
ON/OFF SWITCH
Pushing this switch to the “ON” position (upright position with the lighted rocker switch
illuminated) will turn on the machine.
TEMPERATURE CONTROL KNOB
The left and right side Temperature Control Knobs are used to set the desired warming
temperature for the caramel apple dip. The temperature controls operate the warming
cans separately.
Temperature
Control Knob
Temperature
Control Knob
On/Off Switch

Carmel Apple-Dip
Warmer Model No. 4211C, 4211CX
Page 7
gmpopcorn.com
Operating Procedure
CAUTION
Do NOT operate this unit without water!
1. Place the 2 can holders w/springs (shown on page 3) into the two reservoirs of the
machine.
2. Place opened cans of caramel apple dip into the can holders.
3. Fill the Caramel Apple Dip reservoirs with hot water, to within 2 inches of top of the
can. Place lock-rings over cans, push down to lock in place.
4. Turn on the main power supply. (small, green rocker switch)
5. Turn both heat control knobs on, and set them on at least the “B” position. (Due to
varying line voltages, this setting may need to be adjusted up or down.)
6. Place Quicker Dipper in one of the cans. (This will reduce melting time from 3 hours,
down to 1 hour.)
7. Heat caramel to 170 degrees Fahrenheit. Best temperature for dipping apples is
between 170 and 175 degrees Fahrenheit. At 180 degrees caramel begins to darken.
8. Skewer apples using Settersticker and candy apple sticks.
9. Dip apple in caramel, including ½” up onto stick. Pull apple out and spin to remove
excess caramel.
10. Scrape off (almost to apple skin) bottom 1/3 of caramel from apple.
11. Dip apple in chopped nuts, if desired.
12. Place on waxed paper to cool.
13. Dip the next apple.
Supplies Needed:
•Clean, dry, room temperature apples
•Midway’s Finest Caramel Apple Dip #4224 or
•Mom’s Homestyle #4120
•Chopped Nuts (Optional)

Carmel Apple-Dip
Warmer Model No. 4211C, 4211CX
Page 8
gmpopcorn.com
CARE AND CLEANING
1. Unplug the machine and clean it after use.
2. Do not leave water in the pans overnight.
3. Clean the stainless steel covers with stainless steel cleaner. Gold Medal Products
Company’s Watchdog Stainless Steel Polish (P/N 2088) is recommended.
4. Make sure to clean all of the pans in order to sanitize them before each use.
5. Clean the outside of the unit with a soft cloth, soap and hot water.
DANGER
Machine must be properly grounded to prevent electrical
shock to personnel.
DO NOT immerse in water.
Always unplug the equipment before cleaning or servicing.
Good sanitation practice demands that all food preparation equipment be cleaned regularly. A
clean looking, well-kept machine is one of the best ways of advertising your product

Carmel Apple-Dip
Warmer Model No. 4211C, 4211CX
Page 9
gmpopcorn.com
MAINTENANCE INSTRUCTIONS
DANGER
Improper installation, adjustment, alteration, service, or
maintenance can cause property damage, injury or death.
Read the installation, Operating, and Maintenance
Instructions thoroughly before installing or servicing this
equipment.
DANGER
Do Not immerse the equipment in water. Unplug your
machine before servicing.
WARNING
Adequate eye protection must be used when servicing this
equipment to prevent eye injury.
CAUTION
THE FOLLOWING SECTIONS OF THIS MANUAL ARE
INTENDED ONLY FOR QUALIFIED SERVICE
PERSONNEL WHO ARE FAMILIAR WITH ELECTRICAL
EQUIPMENT. THESE ARE NOT INTENDED FOR THE
OPERATOR.

Carmel Apple-Dip
Warmer Model No. 4211C, 4211CX
Page 10
gmpopcorn.com
ORDERING SPARE PARTS
1. Identify the needed part by checking it against the photos, illustrations, and/or
parts list.
2. When ordering, please include part number, part name, and quantity needed.
3. Please include your model number, serial number, and date of manufacture (located
on the machine nameplate) with your order.
4. Address all parts orders to:
Parts Department
Gold Medal Products Co.
10700 Medallion Drive
Cincinnati, Ohio 45241-4807
Or, place orders by phone or online:
Phone: [phone]
[phone]
Fax: [phone]
[phone]
E-mail: [e-mail]
Web Page: www.gmpopcorn.com

Carmel Apple-Dip
Warmer Model No. 4211C, 4211CX
Page 11
gmpopcorn.com

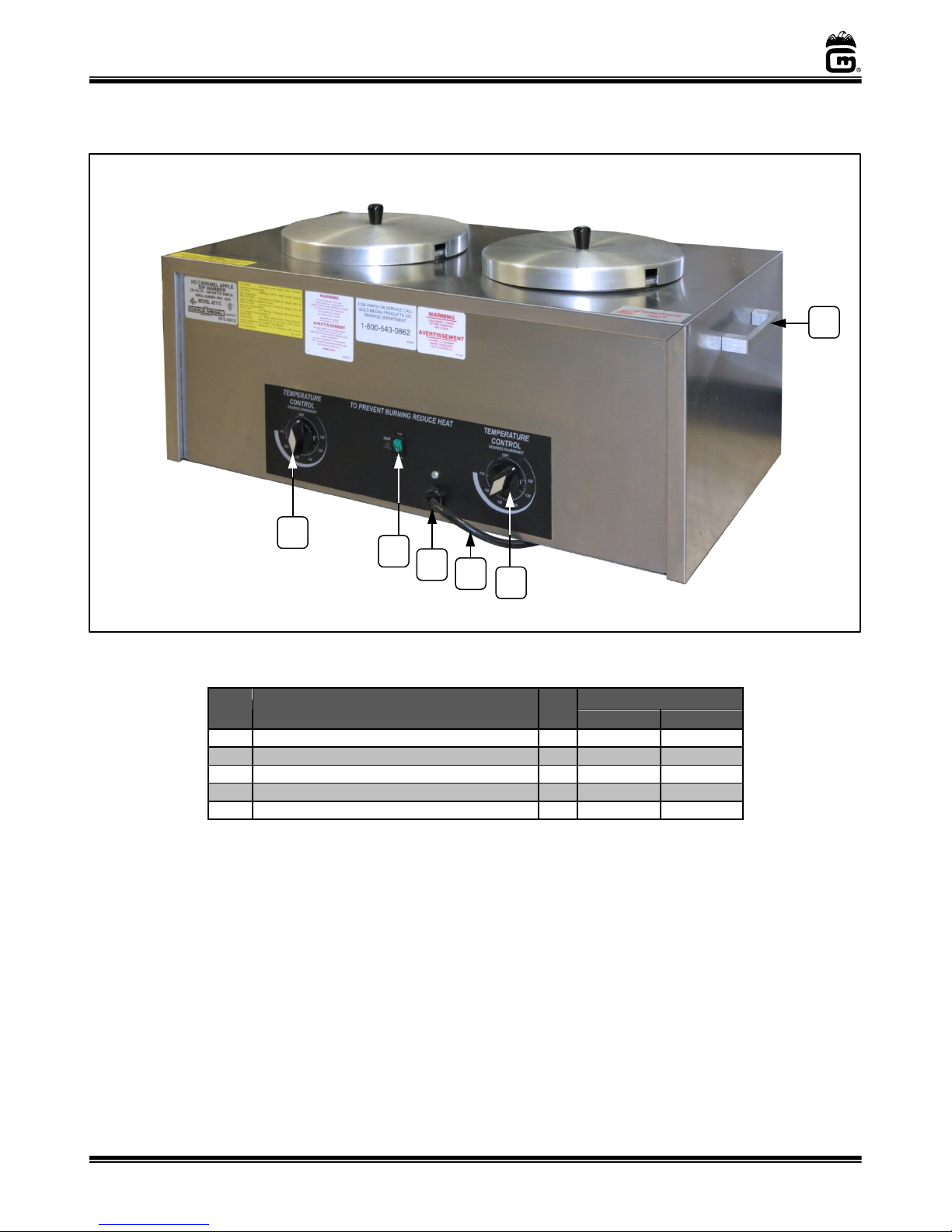

Cabinet Exterior – Front View
Item Part Description Qty.
Part Number
4211C
4211CX
1
KNOB, HEAT CONTROL
2
87049
87049
2
ROCKER SWITCH
1
42532
42532
3
STRAIN RELIEF
1
49740
49740
4
POWER SUPPLY CORD
1
22038
22038
5
HANDLE
2
67069
67069
1
2 3 4 1
5

Carmel Apple-Dip
Warmer Model No. 4211C, 4211CX
Page 12
gmpopcorn.com
Cabinet Interior and Bottom Cover View
Item
Part Description Qty.
Part Number
4211C
4211CX
1
TINNERMAN FASTENER
10
47299
47299
2
8-32 X 1/2 SLT HWH T/S (Screws)
14
49379
49379
3
HEAT CONTROL
2
42617
42617
4
HEAT ELEMENT
2
33038
33038EX
5
ROCKER SWITCH
1
42532
42532
6
STRAIN RELIEF T&B #3302
1
89045
89045
7
ELEMEMT SPRING (two on each tank)
4
38022
38022
8
8QT WATER TANK ASSY
2
33048
33048
9
BOTTOM COVER
1
33042
33042
10
RUBBER FOOT
4
87247
87247
2 3, 4
1, 2 3 5 6 34
Bottom Cover
(Shown at a Reduced View)
9
2
10
8
7

Carmel Apple-Dip
Warmer Model No. 4211C, 4211CX
Page 13
gmpopcorn.com
Unit Accessories
Item Part Description Qty.
Part Number
4211C
4211CX
1
CAN HOLDER W/SPRING
2
38540
38540
2
3/4 OZ DIPPER
2
38129
38129
3
BOWL PLATFORM
2
38120
38120
4
LID W/KNOB
2
33056
33056
5
KNOB LID LIFT
2
47120
47120
6
LOCK RING
2
38031
38031
1 2 3
5 6
4

Carmel Apple-Dip
Warmer Model No. 4211C, 4211CX
Page 14
gmpopcorn.com

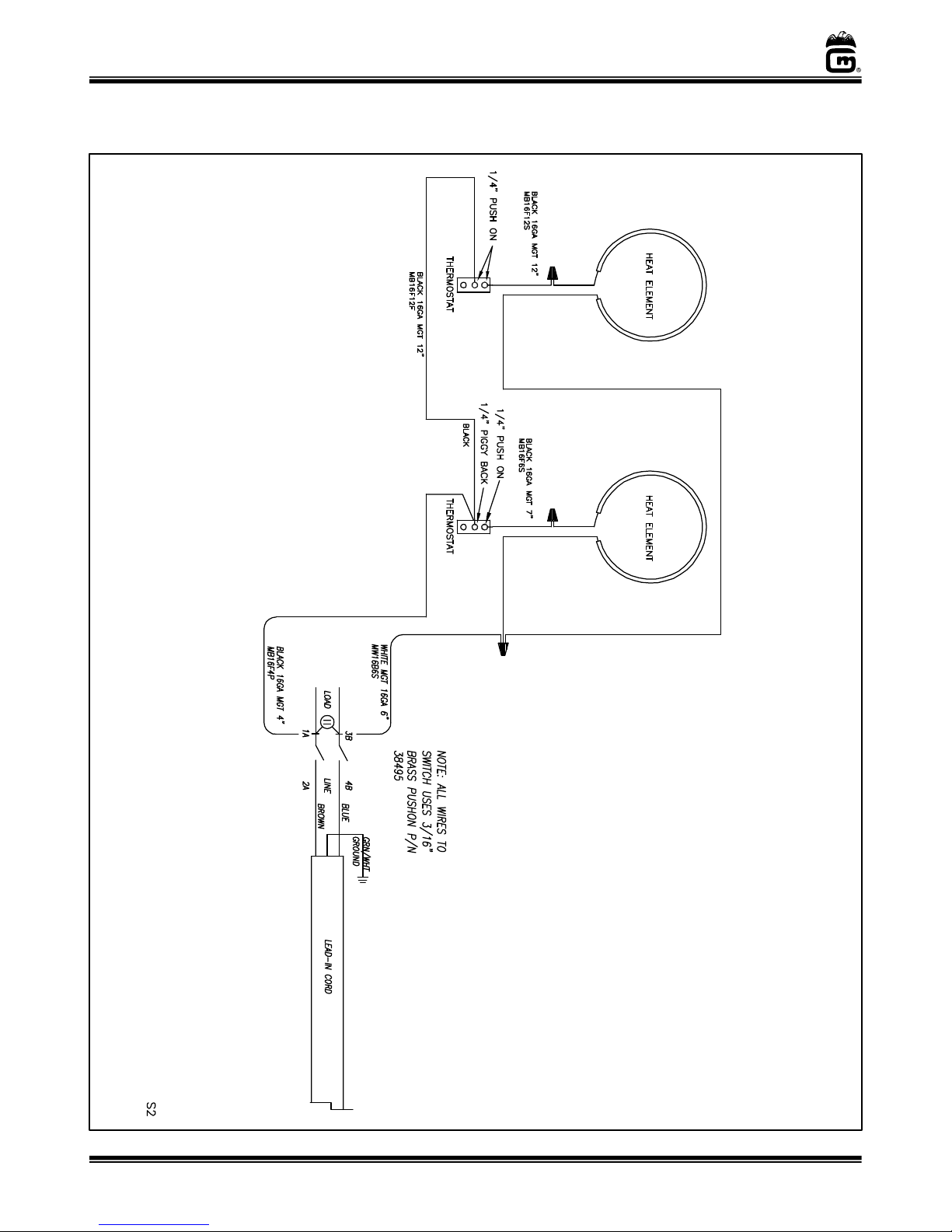

WIRING DIAGRAM
Model No. 4211C

Carmel Apple-Dip
Warmer Model No. 4211C, 4211CX
Page 15
gmpopcorn.com
Model No. 4211CX

Carmel Apple-Dip
Warmer Model No. 4211C, 4211CX
Page 16
gmpopcorn.com
WARRANTY
Gold Medal Products Company warrants to the original purchaser each item of its manufacture
to be free of defects in workmanship and material under normal use and service. Gold Medal
Products Company’s obligation under this warranty is limited solely to repairing or replacing
parts, f.o.b. Cincinnati, Ohio, which in its judgment are defective in workmanship or material
and which are returned, freight prepaid, to its Cincinnati, Ohio factory or other designated
point. Except for “Perishable Parts” on specific machines, the above warranty applies for a
period of two (2) years from the date of original sale to the original purchaser of equipment
when recommended operating instructions and maintenance procedures have been followed.
These are packed with the machine. Parts warranty is two (2) years, labor is six (6) months.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR
IMPLIED, AND OF ALL OTHER OBLIGATIONS OR LIABILITIES ON OUR PART,
INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY. THERE ARE
NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE
HEREOF. In no event shall Gold Medal Products Company be liable for special, incidental
or consequential damages. No claim under this warranty will be honored if the equipment
covered has been misused, neglected, damaged in transit, or has been tampered with or
changed in any way. No claim under this warranty shall be honored in the event that
components in the unit at the time of the claim were not supplied or approved by Gold Medal
Products Company. This warranty is effective only when electrical items have been properly
attached to city utility lines only at proper voltages. This warranty is not transferable without
the written consent of Gold Medal Products Company.
The term “Original Purchaser” as used in this warranty shall be deemed to mean that person,
firm, association, or corporation who was billed by the GOLD MEDAL PRODUCTS
COMPANY, or their authorized distributor for the equipment.
THIS WARRANTY HAS NO EFFECT AND IS VOID UNLESS THE ORIGINAL
PURCHASER FIRST CALLS GOLD MEDAL PRODUCTS COMPANY AT 1-800-543-0862
TO DISCUSS WITH OUR SERVICE REPRESENTATIVE THE EQUIPMENT PROBLEM,
AND, IF NECESSARY, FOR INSTRUCTIONS CONCERNING THE REPAIR OR
REPLACEMENT OF PARTS.
NOTE: This equipment is manufactured and sold for commercial use only.
