Installation Instructions: Vertical Queen Wall Bed Kit
1-800-423-3531 • www.hafele.com
* Professional installation recommended.
TIP-OVER HAZARD
Serious or fatal crushing
injuries can occur from
furniture tip-over. To
prevent, furniture MUST
be permanently xed to
the wall.
Page 1
Item Number: 271.92.200

To avoid serious risk of injury and ensure the proper functioning of the wall bed mechanism, the following
safety measures MUST to be followed:
CHOICE OF LOCATION WARNINGS
1. Cabinet for the vertical queen wall bed MUST be secured to 3 wooden wall studs with the included hardware.
2. Do NOT use wall anchors or drywall anchors to secure the cabinet to the wall.
3. Do NOT install the cabinet on a masonry, brick or a wall with metal studs.
PRODUCT SPECIFIC WARNINGS
4. Do NOT deviate from the required interior cabinet dimensions listed on page 5. A cabinet that is not properly
sized WILL cause the mechanism to fail which could create serious safety hazards.
5. Do NOT modify the design of the cabinet by removing components/panels. A cabinet/mechanism that is not
properly assembled WILL cause the mechanism to fail which could create serious safety hazards or damages
as the wall bed could detach from the wall.
6. Do NOT construct the full cabinet in particleboard or MDF. A cabinet that is not in the proper material WILL
cause the mechanism to fail which could create serious safety hazards or damages as the wall bed could detach
from the wall. See page 5 for more details on acceptable material per panel component.
INSTALLER & USER WARNINGS
7. Do NOT allow children to play with or operate the assembled product without adult supervision.
8. Installation of the wall bed mechanism and cabinet MUST be done with two adults. Failure to do so increases
the risk of serious injury.
9. Do NOT use a foam or very light mattress with this mechanism as this could cause the mechanism to close
very fast and in a dangerous manner.
GENERAL SAFETY WARNINGS
TIP-OVER HAZARD
Serious or fatal crushing
injuries can occur from
furniture tip-over. To
prevent, furniture MUST
be permanently xed to
the wall.
Page 2
RECOMMENDED SIZES & WEIGHTS
Wall bed will not operate properly unless the above weight ranges are adhered to. Do NOT exceed load ratings.
100lbs
Ma�ress
Average front
panel
Comfort Slat Kit or
Plywood Sheet
Combined Lifting
Capacity
65-85lbs 30-35lbs 195-220lbs
LOAD RATINGS
181kg (400lbs) 454kg (1000lbs)
Static Load RatingDynamic Load Rating
Rating takes into account the weight of the front panels (doors), mattress, hardware, bedding & user(s).

ALeft and right frame structure (Pair) x1
BHead and foot frame structure (Pair) x1
CMiddle horizontal frame support x3
DHead and foot center frame support x2
EMiddle vertical frame support x2
FMounting plate set (left and right) x1
HMattress support x2
IM6 x 15mm Bolt x32
JSaddle locking plate x2
KDoor bracket for adjustability x12
LLeg set (Pair) x1
Mx12
HARDWARE FOR QUEEN WALL BED MECHANISM
x2
G1900N Non-locking pistons
Through bolt (Male part) only
Page 3

OWrench
PHex Key #4
QHex Key #5
R#10 x 35mm screw x32
S#8 x 15mm screw x142
TM5 x 15mm bolt x2
UM5 Locking nut (for saddle lock) x2
VM8 Locking nut x6
X1/4 x 20 Hex head screw fully threaded x3
Y#12 x 5/8 washer head screw
(20 additional screws are provided with FF & GG) x6
Z1/4 x 3’’ washer head lag bolt fully thread x6
AA Safety bracket to attach wall bed to wall x3
CC Tube (for connecting the legs) x1
DD Nylon Washers (for leg pivot point) x4
EE Temporary structure stopper
x1
x1
x1
NThrough bolt (Female part) only x12
x2
FF Bracket for mechanism cover (Pair)
(Optional accessories, provided in a separate kit)
x1
GG Mechanism cover (Pair)
(Optional accessories, provided in a separate kit)
x1
Page 4

Overall Cabinet Dimensions
* Suggested dimensions for 19mm (3/4’’) board.
Cabinet Parts Dimension Guide
The internal dimensions MUST be consistent with the
instructions to maintain safety & optimal functionality.
Inside Measurements [mm (in)]
Width Depth Height
Outside Measurements [mm (in)]
Width Depth Height
*All measurements are for 19mm (3/4” ) board
QUEEN WALL BED PANEL DIMENSIONS [mm (in)]
# Qty Width Length Thickness Recommended Materials
A 2 406 (16’’) 2196 (86-7/16’’) Melamine, Plywood, Hardwood
B 2 406 (16’’) 1659 (65-5/16’’) Melamine, Plywood, Hardwood
C 1 330 (13’’) 1659 (65-5/16’’) Melamine, Plywood, Hardwood
D 1 660 (26’’) 1659 (65-5/16’’) Melamine, Plywood, Hardwood, MDF
E 2 825 (32-1/2’’) 2141 (84-5/16’’) Melamine, Plywood, Hardwood, MDF
F 1 75 (2-15/16’’) 455 (17-15/16’’) Melamine, Plywood, Hardwood, MDF
B
B
B
B
A
A
A
A
DD
CC
F
Queen 1659 (65-5/16’’) 368 (14-1/2’’) 2158 (84-15/16’’) Queen 1697 (66-13/16’’) 406 (16’’) 2196 (86-7/16’’)
EE
19 (3/4’’)
19 (3/4’’)
19 (3/4’’)
19 (3/4’’)
19 (3/4’’)
19 (3/4’’)
Page 5

DRILLING GUIDE FOR ‘’F’’ BRACKET
All measurements are for 19mm (3/4’’)
thick board. Do not use less than
19mm (3/4’’ ) board for wall bed
cabinets.
*See full sized template in product box.
Do not install bracket Fwith
wood screws. It is very important
to install all with provided through bolts
as well as using the correct boring
bit size for the hole. Failure to adhere
to the instructions may cause the side
brackets to detach from the cabinet
and could result in death or serious
injury.
The holes should be 10mm
(3/8” )in diameter.
* Please note that dimensions shown are for the side
panels prior to cabinet assembly.
Page 6

INSTALLING THE MOUNTING BRACKETS:
1
ASSEMBLING THE CABINET
2
* See guide on page 5 for suggested cabinet dimensions.
Make sure the cabinet is level.
Right side
Front
Front
Left side
Bottom
M + N
N
FF
Wood
x12
x2
Q
This installation is drilled through the cabinet sides.
**See the previous page for drilling guide.
Cabinet sides overlay for
a more secure assembly..
M
Do not install bracket Fwith
wood screws. It is very important
to install all with provided through bolts
as well as using the correct boring
bit size for the hole. Failure to adhere
to the instructions may cause the side
brackets to detach from the cabinet
and could result in death or serious
injury.
Please use appropriate hardware to
assemble these corners according
to the material used. Failure to
properly assemble the cabinet may
cause it to open and result in injuries.
Remove any trim from the base of the
wall so that the back of the cabinet is
completely agains the wall. Failure to
do this may cause the cabinet to
detach from the wall ans cause serious
injury or death.
Page 7

ASSEMBLING THE FRAME
4
3
SECURING TO THE WALL
Attach Dto B. Attach Hto B for the head of bed.
I
B
Dx2
x2
Y
Z
AA
X
Professional installation recommended.
Cabinet needs to be secured into at
least 3 wood.
Do NOT use nylon or other wall anchors.
between the components.
Xgoes through the
wood into the threaded
hole in bracket AA.
Steel dowel goes directly into
the wood top. Drill holes in
panel with a 5mm (13/64’’) drill bit.
Y
X
Z
AA
x6
x3
x6
x3
D
D
B
B
Hx2
H
H
x8
4.1
P
406mm (16’’ ) between brackets
(Stud to stud)
NOTE: Due to stud placement
in the wall versus the desired
position of the bed, it is
possible that the brackets will
not be exactly at the center of
the cabinet.
Mount all 3 brackets ush
to the back of the cabinet.
TIP-OVER HAZARD
Serious or fatal crushing
injuries can occur from
furniture tip-over. To
prevent, furniture MUST
be permanently xed to
the wall.
Page 8

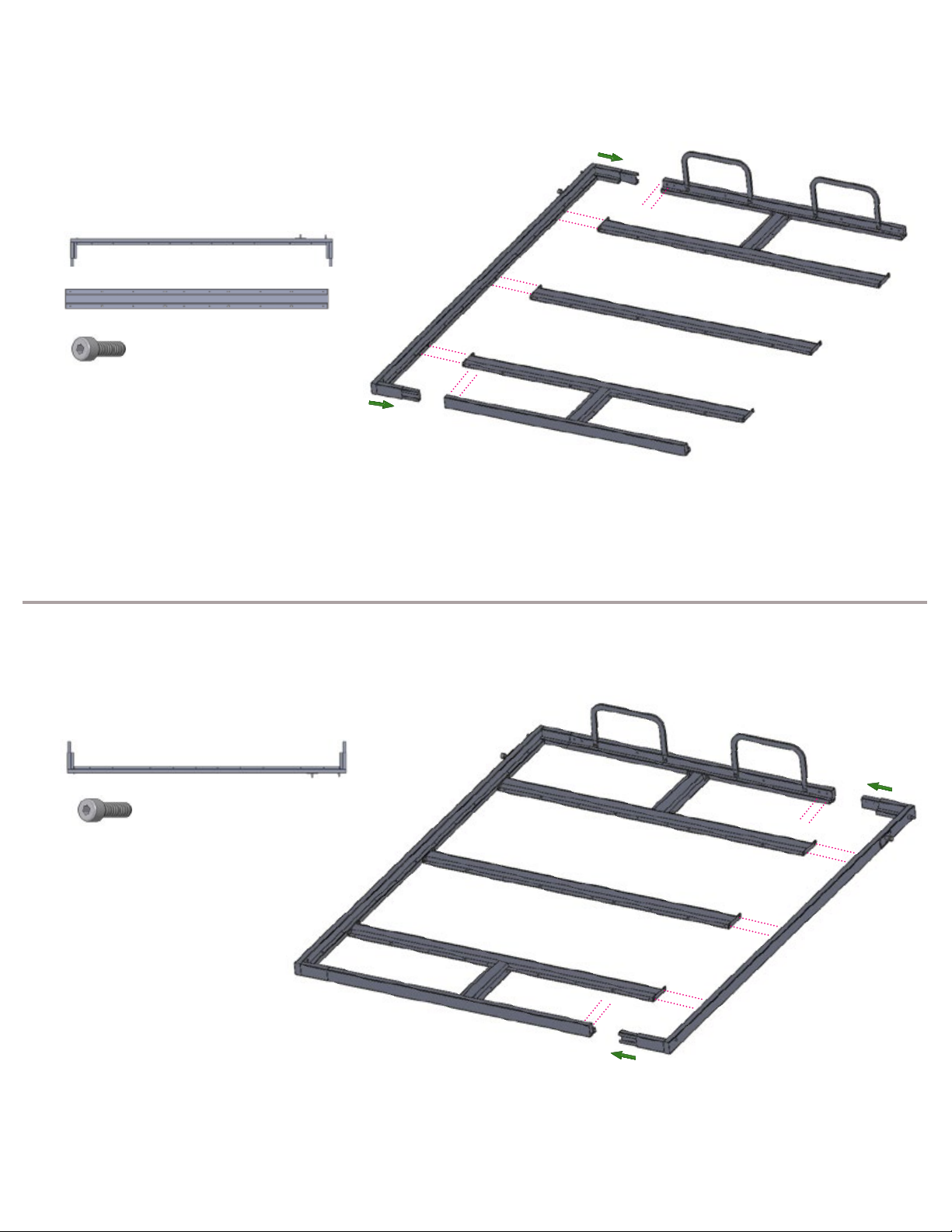

Insert A onto B and attach them together
with I. Attach Cto Awith I.
Insert the second A onto B and attach them together
with I. Attach Cto A with I.
A
Cx3
Ix10
x1 A
C
C
C
A
Ix10
x1
A
4.3
4.2
Page 9

6INSTALLING THE FRAME ONTO THE MOUNTING BRACKETS
Place the bearings into the saddles on both of the
mounting brackets. Secure the bearings in place
with:
T
J
U
x2
x2
x2
5
ATTACHING THE PISTONS TO THE FRAME
Vx2 G
G
x2
V
Follow the arrows on the piston indicating
which side is ‘’up’’ in order to install the piston
properly and ensure the longevity and proper
operation of the piston.
Do NOT unscrew the cabinet from the
wall once the mechanism or pistons
are in place.
TIP-OVER HAZARD
Serious or fatal crushing
injuries can occur from
furniture tip-over. To
prevent, furniture MUST
be permanently xed to
the wall.
Do NOT unscrew the cabinet from the
wall once the mechanism or pistons
are in place.
TIP-OVER HAZARD
Serious or fatal crushing
injuries can occur from
furniture tip-over. To
prevent, furniture MUST
be permanently xed to
the wall.
Page 10

INSTALLING THE DOOR BRACKETS
Kx12
The door brackets must point downward. Install the door
brackets in alignment with the support bars on the bed
frame.
Top
Bottom
Sx 48
Do not mount handle lower than approximately 1/3 of the
way down from the top of the door as this could result in the
door being harder to open.
197mm
7 3/4”
197mm
7 3/4”
Measurements for the right side
of the panel use the top right hole
on the backside of the doors.
Use top left hole for left side
(see image below).
600mm
23 5/8”
413mm
16 1/4”
600mm
23 5/8”
x2 doors
7
INSTALLING THE HANDLES
8
It is not recommended to use knobs on wall bed doors.
Please use handles in order to have more anchor points into
the door panel and avoid injuries that may be caused by the
knobs detaching from the door panels.
Install handles according to manufacturer’s instructions.
The door handles should be installed prior to mounting the doors in order to help hold the panels. Decorative handles not included.
Install the handle on the outside of the door during this step. Handle should be
mounted at a height to comfortably allow the user to pull the bed down.
MAKE SURE TO MIRROR measurement for left and right doors.
Vertical handle Knob
x2
Horizontal handle
x2
Right door
(once installed) Left door
(once installed)
Handles to be installed in
upper 1/3 of the doors
Do not put handle screw hole closer
than 65mm (2.5in) from the edge of
each door panel to avoid interference
with other components.
Bottom
Height adjustable screw
32mm
11/4”
32mm
11/4”
Page 11

wall bed cabinet.
The door is too much
inside of the wall bed
cabinet.
The door is too much
outside of the wall bed
cabinet.
VALIDATING THE DOOR & BRACKET PLACEMENT
9
With the help of another person, hook on 1 door to vali-
date the depth placement of the door. See graphics below
for expected results.
See next step for how to adjust according to the results.
For this step x 2
Do NOT let go of the door or frame, the
pistons are not fully installed yet and it
will freefall which could result in injury
or death.
TIP-OVER HAZARD
Serious or fatal crushing
injuries can occur from
furniture tip-over. To
prevent, furniture MUST
be permanently xed to
the wall.
Page 12

VALIDATING THE DOOR & BRACKET PLACEMENT
10
With the help of another person, lightly loosen theN
screws installed on step 1 and reposition the brackets by
shifting lightly towards the back of the front to get a door
that is alligned with the cabinet.
Once the door is aligned, tighen the Nscrews and add the S
wood screws.
Sx 6
(Installed at step 1)
Move bracket towards the back or
the front according to results from
the previous step.
Once placement is achieved and the
the door is alligned to the cabinet
side, tighen the Nscrews.
Remove the door, lower the mechanism
and add the Swood screws to lock
your desired adjustment permanently.
Page 13

INSTALLING THE STOPPER
Install the permanent stopper on the inside top of the cabinet
of the cabinet.
*Permanent stopper should be set back from the cabinet
edge by the same thickness as the door used.
Temporary stoppers EE
Stopper
Install temporary stoppers EE onto the top corners of the bed
cabinet.
INSTALLING THE PISTONS TO THE CABINET
Tilt the frame inside past the edge of the cabinet to install the pistons
on the mounting brackets.
Vx2
11
12
* Please make sure that the nuts are fully tightened to prevent
loosening when operating the wall bed mechanism.
The pistons are now installed, therefore,
do NOT operate the bed without the
help of another person. Do NOT let go
of the mechanism. If you let go, the bed
frame WILL snap up suddenly and
could cause serious injury or death.
Page 14

INSTALLING THE LEGS
With bed closed on temporary stoppers, attach legs to bed frame with V. Do not over tighten.
13.1
Install tube between both legs.
13.2
V=
=
CC
L
x2
x4
I=
P=
x4
I
13
Page 15

INSTALLING THE DOORS
Close the bed back onto the temporary stoppers EE. Hook the door brackets
the doors on the frame and adjust with bracket screws if needed.
14.1
Attach the doors to the frame with all of the screws provided (multiple holes in frame
available) while putting weight on the frame to keep the bed open. We recommend
to have someone else sit on the frame during this step.
R
S
R
S
For this step x 2
x 72
x 32
NOTE: The use of a foam/very
light mattress is NOT
recommended for this product.
-
14.2
14
Once the doors are hooked on, if necessary, you can adjust the angles and height
of each door with bracket ‘’K’’. Adjust each bracket until:
- the doors open and close well;
- have an even gap on each side;
- doors are lined up with the cabinet.
Turn the screw
counter clockwise
to loosen
=Door will go down
Turn the screw
clockwise
to tighten
=Door will go up
Note that ends are rounded so
that doors can slide left - right for
a better adjustment.
Page 16
The pistons are now installed,
therefore, the bed will NOT stay down
without the weight of the mattress.
You MUST have another person hold
down or sit on the bed to avoid the risk
of serious injury or death from the bed
slamming shut.
The pistons are now installed,
therefore, the bed will NOT stay down
without the weight of the mattress.
You MUST have another person hold
down or sit on the bed to avoid the risk
of serious injury or death from the bed
slamming shut.

INSTALLING REMAINING FRAME SUPPORTS
Attach the two remaining frame supports to the doors.
Keep weight on the frame during this step.
x 16
x 2
15
S
E
For this step x 2
The pistons are now installed,
therefore, the bed will NOT stay down
without the weight of the mattress.
You MUST have another person hold
down or sit on the bed to avoid the risk
of serious injury or death from the bed
slamming shut.
INSTALLING THE MECHANISM COVER (OPTIONAL ACCESSORY PURCHASED SEPARATELY)
16
FF
GG
Lower the inner curve of the FF bracket onto the mounting plate F and line up the angled side. Secure in place with wood
screws Y. Slide on the mechanism cover GG and secure in place with the little set screw in the back.
Y x20
Page 17

Did you purchase the comfort slat option?
If yes, please refer to the instructions included in the comfort slat kit.
Optional 5-ply poplar slats to support
the mattress:
- Easy to install;
- Can be purchased later on;
- Added comfort;
- Extends the life of the mattress;
- Improves air ow around the mattress.
- hypoallergenic
Did you know? You can also use a plywood option.
lt is possible to use the mechanism without anything between the mattress and
the mechanism depending on the mattress that will be used. Please validate
any questions you may have regarding your mattress to the mattress manufacturer.
Use 10mm (3⁄8’’) or 12.5mm (1⁄2’’) plywood. Cut the sheet 6mm (1⁄4’’) smaller
than the inside of the frame. For the mechanism to function in an optimal
manner, the panel should have a weight of approximately 30-35lbs.
Secure in place using the holes on the lower tube of the outside frame.
Use screws in accordance to the thichness you are using to avoid damage
to the doors.
Page 18

.
The wall bed is
assembled and
shown in lowered
position.
Pivot the leg towards
the inside of the unit.
Make sure that the
leg is fully retracted.
Pull up gently to close.
The leg serves as a
mattress retaining
system. The pistons
insure that the door
closes properly and
remains closed.
USING THE WALL BED
Before operating the
wall bed, ensure that
no object or people are
in the way to avoid
injuries or damages.
Page 19
The pistons are now installed,
therefore, the bed will NOT stay down
without the weight of the mattress.
You MUST have another person hold
down or sit on the bed to avoid the risk
of serious injury or death from the bed
slamming shut.
