Hanil SeroSpin II User manual

Operating Manual
SeroSpin II
Clinical Centrifuge
Date of Purchase
Serial No.
Place of purchase

Contact Us
If you have and questions, contact Hanil Scientific Inc. or place of purchase.
[phone]
Inquiry: [email protected]
Order: [email protected]
Tech. support: [e-mail]
The contents in this operating manual are subject to change for device improvement.
Copyright ⓒ2018 Hanil Scientific Inc. All rights reserved.
SeroSpin II
Medical Device
UM-SeroSpin II(E)(Rev.1), 20210118

CONTENTS
1. General Considerations-------------------------------------------------
1.1 Safety -3
1.2 Transport & Storage -4
1.3 Safety label -4
2. Product description-------------------------------------------------------
2.1 Structure -5
2.2 Delivery package -5
2.3 Technical specifications -6
3. Installation ----------------------------------------------------------------
3.1 Packing Inspection -7
3.2 Installation -7
3.2.1 Selecting the location -7
4. Operation ----------------------------------------------------------------
4.1 Operation panel -9
4.2 Opening and closing the lid -10
4.3 Loading tubes -10
4.4 Setting RPM/RCF -11
4.5 Setting run time -11
1.4 Electric safety information -4
5. Maintenance------------------------------------------------------------
6. Troubleshooting---------------------------------------------------------
6.1 General errors -15
3
5
7
9
3.2.2 Power connetion -8
4.7 Saving / Calling up a program -12
4.8 Start the centrifugation run -13
4.9 End the centrifugation run -13
14
5.1 Care instructions -14
5.2 Cleaning -14
15
4.6 Setting Accelation/Deceleration rate -12
5.2 Disposal-14
6.2 Error messages -16
7. Rotor ---------------------------------------------------------------------- 19
6.3 Emergency lid open -18
4.10 Short spin -13
3.3 Loading and removal of the rotor - 8

Follow precautions and all the safety requirements described on this user manual
to prevent any damage and failure of equipment and loss of lives.
1. The centrifuge should be installed on flat surface to maintain level.
2. Check the voltage to be used, before connecting the centrifuge to the power source.
3. Only use rotors, parts, and accessories provided by Hanil Scientific Inc.
Hanil Scientific Inc. is not responsible for damages of the device and accidents caused by
using parts and accessories not recommended.
4. Do not exceed the maximum rated speed of the rotor or buckets in use.
5. Make sure to prepare necessary safety measures before using samples that are toxic or
radioactivesamples or pathogenic or samples or infectious blood.
6. Substances that may generate volatile or explosive vapor can not be centrifuged.
7. The balancing work of samples should done in advance before operation.
8. To ensure safe use of the device, do not expose the device to strong acids, strong bases,
cesium, salt, or alkaline detergents.
8. If the centrifuge is contaminated by toxic or radioactive samples or infectious blood
samples, remove contaminantscompletely and take needful actions such as ventilation
or isolation of centrifuge.
9. Before operation, rotor and chamber should be dry.
10. Do not attempt to slow or stop the spinning rotor by hand.
11. Only centrifuge with rotor and rotor lid firmly tightened.
12. Do not block vents.
13. When serving the centrifuge, be sure to remove contaminants in advance.
14. Please contact the place of purchase or Hanil Scientific Inc. for product repairs.
15. According to IEC61010-2-020 maintain a 30cm “clearance envelope” around the
centrifuge while the rotor is spinning.
16. Turn the power switch off after using the device.
17. Unplug the power plug before cleaning or left unused for a long period of time.
1. General Considerations
1.1 Safety
3 l www.ihanil.com

1. General Considerations
1.2 Transport & Storage
• The device and the accessories
may only be stored in dry rooms
• Only lift and transport the
device with sufficient number of
helpers.
-Storage-
Ambient temperature 5℃~40℃
Maximum relative humidity 30%~85%
Air pressure 500~1060hpa
-Transport-
Ambient temperature -10℃~40℃
Maximum relative humidity 10%~90%
Air pressure 500~1060hpa
1.3 Safety label attached to a product
Load tubes
symmetrically.
Firmly tighten
the rotor lid.
Watch your figers
when close the lid.
Mark indicatingdanger
and warning.
Mark indicatinga place in
danger of electric shock.
1.4 Electric safety information
1. It is recommended that switchgearor circuit breakers and overcurrent protectiondevices
be installed near the equipment.
2.Use a power cord only provided with equipment.
3.Use sockets with a protective earth conductorand suitable power cord.
4.Do not use an extension cord.
5.Do not place anything on the powercable
6.Do not block vents.
7.If you have the following emergencies,shut off the power supply and unplug the
powercord from outlet and contact your place of purchase.
-Unusual noises or smell from the equipment.
-Damage or wear of a power cord.
-Breakdownof circuit breaker, fuse or safety device.
-If you spill liquid on the equipment.
-If theequipment has been damaged.
[email protected]om / [e-mail] l 4
Mark indicatingearth-
grounding

2. Product description

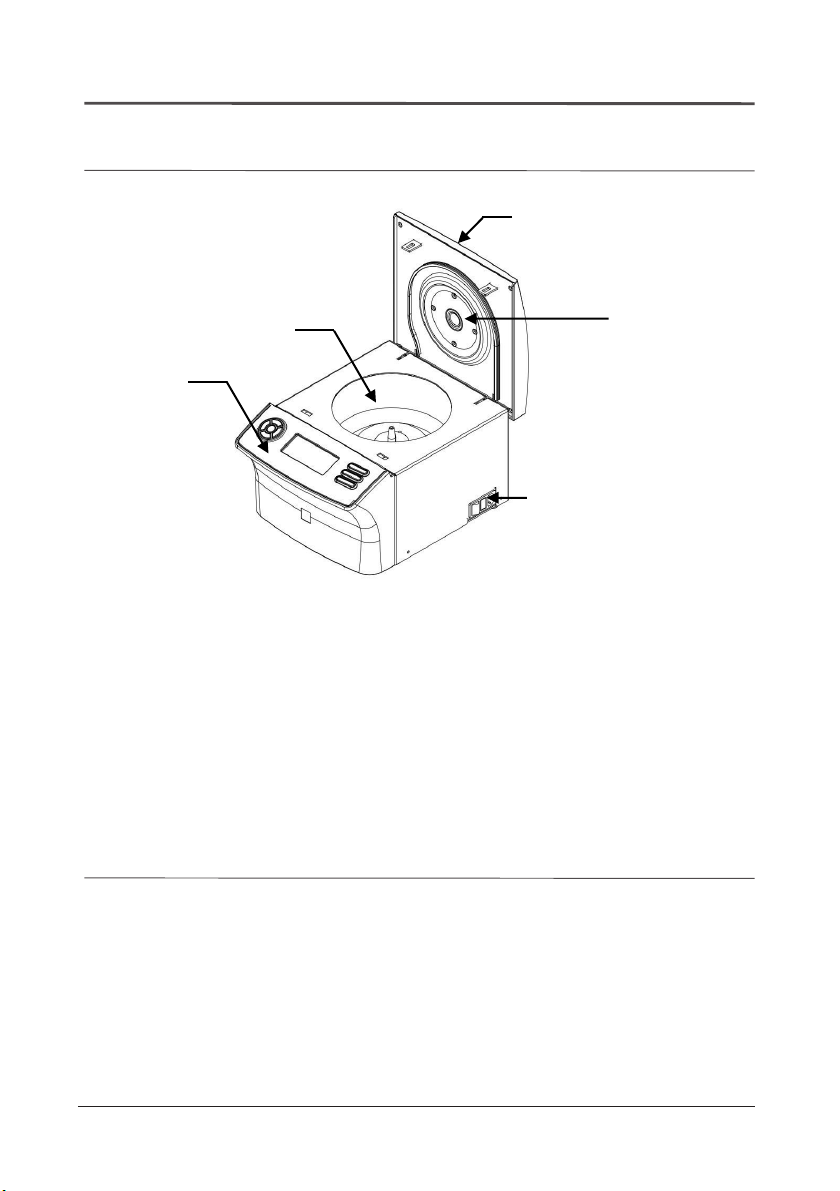

2.1 Structure
2.2 Delivery package
①SeroSpin II Main body(incl. a rotor)
②Power Cable
③Operating manual
④Power switch
⑤RPM measuring window
5 l www.ihanil.com
①Door
②Chamber
③Display&Control panel
①
③
⑤
④
②

2. Product description
2.3 Technical Specifications
[e-mail] / [email protected] l 6
Max. RPM 3,400 rpm
Max. RCF 1,118 xg
Max. Capacity 12 x 75 mm tube
ACC/DEC ramps 5/6 steps
Time control < 100 min, pulse, continuous
Program memory 10
Noise level ≤ 60 dB
Imbalance cutoff Yes
Dimension (W x D x H, mm) 293 x 380 x 242
Weight without rotor 15 kg
Power requirement 200 VA
Power input (V, Hz) 210V~240V, 50/60 Hz (110V optional)
Cat. No. SE-II

3. Installation
3.1 Packing Inspection
•Check packing conditions carefully, before unpacking.
•Contact Hanil Scientific Inc. immediately if damages found.
•Check the delivery for completeness.
•You can get contact details on packing boxes and the back of the manual.
3.2 Installation
3.2.1 Selecting the location
Installation on hard and flat ground.
• Centrifuge should be installed on hard and flat place.
• If the centrifugeis installed in an inclined place, the shaft may be bent due to the
weight of the rotor.
Goodventailation.
• For air circulation and safety, maintain a 30cm“clearance envelope”around the
centrifuge while the rotor is spinning.
Constant temperature/humidity
• Centrifuge equipped with the sensitive electronic software which is fragile with
humidity and temperature.
•Must avoid direct ray or heater and be put in the ambience of controlled temp.and air.
Avoid the corrosive gas
• Install the centrifuge in a place where corrosive gas is not generated.
• Sulfur dioxide gas and chlorine gas may cause corrosion.
Leveling
• The shaft should be put exactly vertical on the hotizontaliy flat ground by
the leveling tool
7 l www.ihanil.com

3. Installation
3.2 Installation
3.2.2 Power Connection
• Connect the device to voltage sources which correspond to the electrical
requirements on the label attached to the device.
• Use sockets with a protective earth conductor and provided powercord.
1. Connect the power cable to the power socket on the right side of the product and plug
the cord into the outlet.
2. Switch the centrifuge on using the power switch on the right side of the device.
[e-mail] / [email protected] l 8
3.3 Loading and removal of the rotor
Loading
①Clean the motor shaft and the chamber.
- When loading the rotor, the temperatureshould be 10 to 30 degrees.
②Load the rotor vertically onto the motor shaft.
Unloading
①Hold the blue handle at the center of the rotor and lift it up.
•Only use rotors, parts, and accessories provided by Hanil ScientificInc.
•Do not use scatchedor cracked rotor in use.

4. Operation

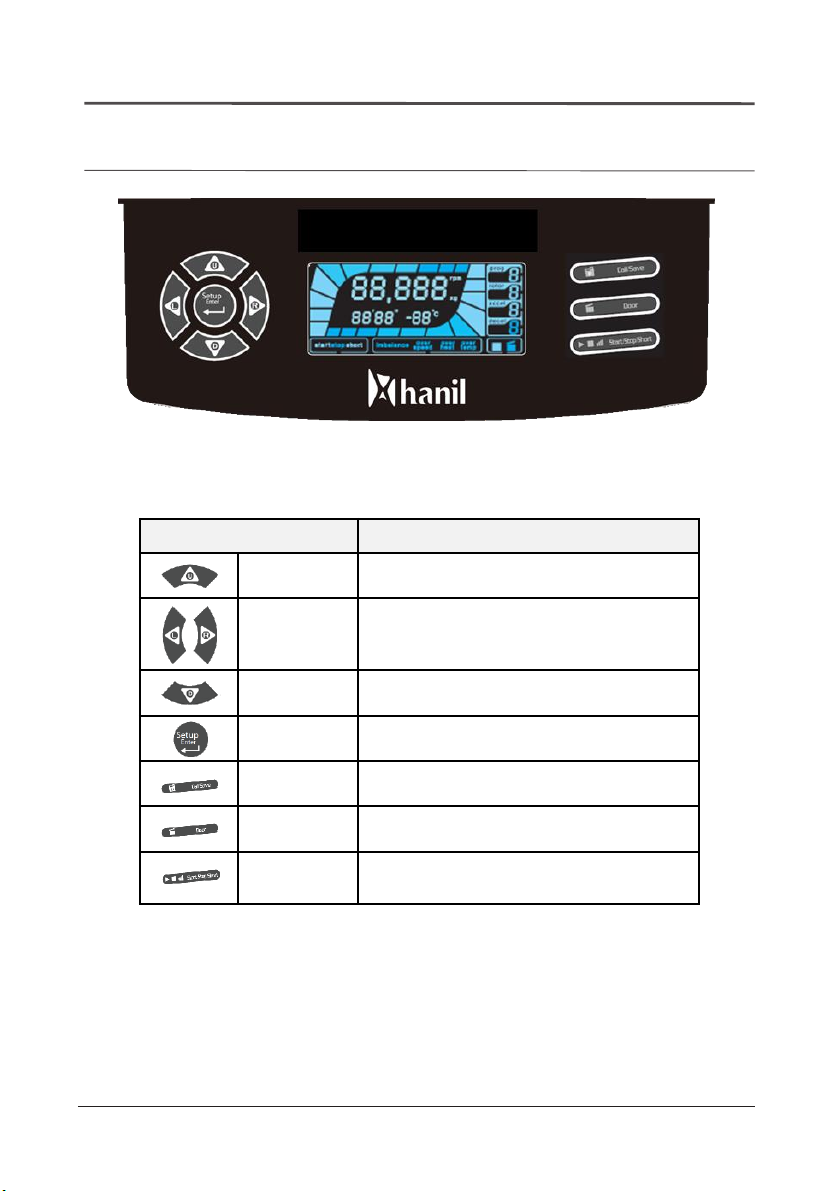

4.1 Operation Panel
Button Function
Up Set the speed or runtime
Time
Move the cursor lerf or right
Accel Set the speed or runtime
Decel Save the value
Call/Save Save or call up a program
Door Start centrifugation
Start/Stop/
Short Stop centrifugation
9 l www.ihanil.com

4. Operation
4.2 Opening and closing the Door
•The door can only be opened if the centrifugeis switched on.
•Do not reach with your fingers between the housing and door.
•Close the door completely before operation.
•Opening the door
Press the Door ( ) button.
•Closing the door
Press the edge of the lid with a light force.
4.3 Loading tubes
• Always use the same type of tube.
• Tubes should be loaded symmetrically.
• Do not exceed the maximum rated speed of the tube.
• Same volume of sample should be put on tubes.
• Check symmetric loading by balncing tubes with scales.
①Check the maximum load for each tube.
②Put tubes into rotor holes.
③Tubes located opposite each other must be the same type and contain the same quantity.
[e-mail] / [email protected] l 10

4. Operation
4.4 Setting RPM/RCF
①Press the Enter( ) button.
②Press Left ( ) or Right ( ) button to move the cursor to RPM or RCF mode.
▶RPM mode: RPM display flashes.
▶RCF mode: RCF display flashes.
③Press Up ( ) or Down ( ) button until the required RPM/RCF displayed.
④Press the Setup/Enter ( ) button to save the settings.
11 l www.ihanil.com
4.5 Setting run time
①Press the Enter( ) button.
②Press Left ( ) or Right ( ) button to move the cursor to Time mode.
▶minute setting mode: 00’ display flashes.
▶second setting mode: 00’’ display flashes.
③Press Up ( ) or Down ( ) button until the required run time displayed.
④Press the Setup/Enter ( ) button to save the settings.

4. Operation
4.6 Setting Accelation/Deceleration rate
①Press the Enter( ) button.
②Press Left ( ) or Right ( ) button to move the cursor to Accel/Decel.
▶Accelation setting mode:Accel display flashes.
▶Decelerationsetting mode:Decel display flashes.
③Press Up ( ) or Down ( ) button until the required number is displayed.
④Press the Setup/Enter ( ) button to save the settings.
[e-mail] / [email protected] l 12
4.7 Saving / Calling up a program
Saving a program
①Set the centrifugationtime/speed/Accel/Decelvalues.
②Press Call/Save ( ) button.
▶You can store 10 programs on the device: 0~9
③Select the program slot by pressing Up ( ), down ( ) button.
④Press the Enter ( ) button to save a program.
Calling up a program
①Set the centrifugationtime/speed/Accel/Decelvalues.
①Press Call/Save ( ) button.
③Select the program slot by pressing Up ( ), down ( ) button.
④Press the Enter ( ) button to save the program.

4. Operation
4.9 End the centrifugation run
①Press Start / Stop ( ) button to stop centrifugation.
4.8 Start the centrifugation run
①Press Start/Stop ( ) button.
4.10 Short spin
) more than 2sec.
13 l www.ihanil.com
The [Short] button is for when press & hold, to accelerate up to maximum
speed and decelerate when the button is not pressed.
1. Setthedesiredspeed. [Refer to. 4.4 Setting RPM/RCF]
2. PresstheShortbutton(
▶While pressing [Short], the equipment will accelerate up to maximum RPM.
▶By stop pressing the [Short], the equipment will decelerate to stop.

5. Maintenance
5.1 Care instructions
• The following procedures should be performed regulary.
①Regularly inspect the rotor chamber for check the motor shaft is nomal.
②Rotate the shaft with your hand to make sure it turns smoothly
③Use the stopwatchto check that the time setting is correct
④If you find any damages, do not use the device. Contact Hanil Scientific Inc.
5.2 Cleaning
• Before cleaning the centrifuge, be sure to switch off the device and
disconnect the power cord.
• Oustside of the device
①Clean the outside of the device with a soft and dry cloth.
②Do not use aggressive chemicals on the device such as alchol, benzene, acetone
or phenol.
③If the device is contaminated,use a mild cleaning fluid to clean.
④Make sure do not scratchthe surface of the device when cleaning it.
▶Do not use a metal sponge.
▶If the device is rusted, remove it with a mild detergent and wipe it with a dry cloth.
• Chamber
①If the rotor chamber is not dry, wipe moisture from the chamber with a dry cloth.
②Clean the chamber and motor shaft at least once a week using a mild cleaning fluid.
• Rotor
①To prevent corrosion, take out the rotor from the rotor chamber.
②If any sample is spilt inside the rotor, wash and dry the rotor well.
▶If you have any questions about cleaning your device, please contactus.
5.3 Disposal
In case of product is to be disposed of,
the local wastes laws and regulations are to be observed.
[e-mail] / [email protected] l 14

6. Troubleshooting
6.1 General errors
Problem Recommended Action
Power failure Check the power cord connection.
Check the power fuse of the device.
Device cannot be started Check the lid is closed completely.
Lid cannot be opened Press the ‘Lid open button’.
Lid cannot be closed Remove the dirt at the door latch and close the lid.
Checkthe lid latch is not damaged.
Unusual noise and vibration
Check the device whether it is installed on the hard
and flat place
Reload the rotor symmetrically.
Reload the tubes symmetrically.
Tighten the clamping of the rotor with wrench by
turning clockwise
15 l www.ihanil.com

6. Troubleshooting
6.2 Error messages
Error
code Problem Cause Recommended Action
E1 Imbalance
error
• Asymmetrical placement of tubes.
• Irregular volume of sample in
tubes.
• Loosenedrotor to the shaft.
• Swaying or operation the unstable
ground.
• Check the tightness of rotor
loading.
• Check the proper loading of
tubes.
• Check the stable ground or
worktable.
E2 Over speed
error
• 10% over the set RPM.
• Incorrect tuning of motor and
controller.
• Check controller and motor.
• Turn the device off and then
on again
E3 Motor
overheat • Motor temperature rises. • Turn the device off and then on again
E4 Moror
error • Motor failure • Turn the device off and then on again
E5
Lid
Open(opera
ting)
• Lid open while centrifugation
• Lid sensor error
• Switch power off
• Check lid latch
E7 System
error
• Error of control system
• Overload of motor
• Damage of IPM dodule
• Switch power off, restart.
E11
Motor
tempteratu
re sensor
error !
•Motor tempoerature sensor
failure
•Contact Hanil Scientific Inc.
E12 HI voltage
Error
• Motor applied voltage rises
abnormally during operation.
• Call Hanil Scientific Inc. A/S
center
If you cannot remedy an error with recommended actions, please contactHanil Scientific Inc.
[e-mail] / [email protected] l 16

6. Troubleshooting
6.2 Error messages
Error
code Problem Cause Recommended Action
E13 Low voltage
Error
•Motor applied voltage decreases
abnormally during operation. • Switch power off.
E15
RPM
Sensing
error
•Rpm sensor failure •Restart the device.
E17 communica
tion error
•Occurs when
communication between Main and
io board or between display and IO
board is broken
•Restart the device.
E20 Lid_1_sens
or error
•Lid_1_sensor failure • Restart the device.
E21 Motor_C_s
ensor error
•Motor Close sensor failure •Restart the device.
E22
Motor-
O_sensor
error
•Motor Open sensor failure •Restart the device.
17 l www.ihanil.com
Please contact us if any other error codes occur or if you are not satisfiedwith the
above method.

6. Troubleshooting
6.3 Emergency lid open
If the centrifug door cannot be opened, you can activate the emergency open manually.
1. Wait for rotor to stop before activating the emergency open.
2. Insert a wrench into the emergency release hole and turn it clockwise
until the lid is released.
[e-mail] / [email protected] l 18

7. Rotor

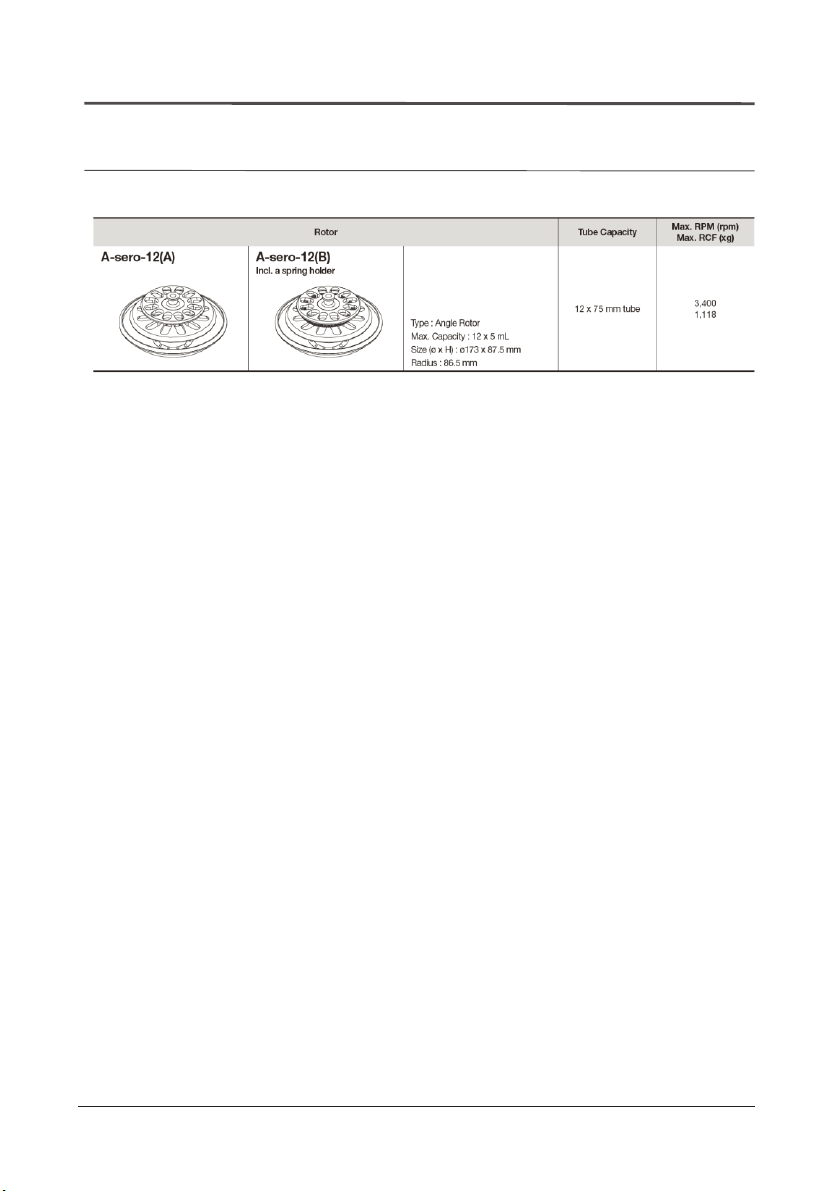

7.1 Fixed angle rotors
19 l www.ihanil.com
