Henny Penny HC-5 User manual

OPERATOR’S
MANUAL
REGISTER WARRANTY ONLINE AT WWW.HENNYPENNY.COM
HEATED HOLDING CABINET
MODEL
HC-5
HC-15
HHC-900
HHC-902
HHC-903

These are the original version controlled Henny Penny instructions for Heated Holding Cabinet
(HHC) Model HHC - 900, 902, 903 and Model HC - 5 and 15.
•HHC-900 - Full Cabinet
•HHC-902 - Stacked Cabinet
•HHC-903 - Half Size Cabinet
•HC-5 - Half Cabinet (Asian market)
•HC-15 - Full Cabinet (Asian market)
This manual is available on the Henny Penny Public website (www.hennypenny.com). Read these
instructions completely prior to installation and operation of this appliance to ensure compliance to
all required installation, operation and safety standards. Read and obey all safety messages to avoid
damage to the appliance and personal injury.
This appliance is intended for commercial use in kitchens of restaurants, bakeries, hospitals, etc. but
not for the continuous mass production of food such as in a factory setting. During use the units
airborne A-weighted emission sound pressure is below 70 db(A). All repairs must be performed by
the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Always use strain relief. The provided power cord must be installed with a strain relief in a way that if
the strain relief fails, wires L1, L2, L3 and N must draw taunt and fail first. If the supplied power cord
or an existing one becomes damaged, do not use it; rather, replace it with a known good power cord.
The power cord must be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
Proper daily, weekly, monthly, quarterly and yearly maintenance must be performed on this
appliance to ensure safe and continuous operation. This appliance must never be cleaned with a
water jet or steam cleaning tool. Cleaning brushes are shipped with the appliance and proper
cleaning instructions are included in this manual.
This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
This appliance is not intended to be operated by means of an external timer or a separate remote
control system.

Model HHC-90X/Model HC-5/15
TABLE OF CONTENTS
Section Page
Section 1. INTRODUCTION.................................................................................................... 1-1
1-1. Heated Holding Cabinet................................................................................... 1-1
1-2. Features............................................................................................................ 1-1
1-3. Proper Care ...................................................................................................... 1-2
1-4. Assistance ........................................................................................................ 1-2
1-5. Safety ............................................................................................................... 1-2
Section 2. INSTALLATION...................................................................................................... 2-1
2-1. Introduction...................................................................................................... 2-1
2-2. Unpacking........................................................................................................ 2-1
2-3. Location ........................................................................................................... 2-2
2-4. Electrical Connection....................................................................................... 2-2
2-5. Cabinet Dimensions......................................................................................... 2-4
Section 3. OPERATION............................................................................................................ 3-1
3-1. Introduction...................................................................................................... 3-1
3-2. Operating Controls and Components............................................................... 3-1
3-3. Start-Up............................................................................................................ 3-3
3-4. Operation with Product.................................................................................... 3-4
3-5. Vent Adjustment............................................................................................... 3-4
3-6. Cleaning Procedures ........................................................................................ 3-4
3-7. Operating Controls - Countdown Timers (if applicable)................................. 3-6
3-8. SimpleHold Controls (if applicable)................................................................ 3-11
3-9. Front & Rear Operating Controls-HHC-903-10CDT (if applicable)............... 3-13
Section 4. TROUBLESHOOTING............................................................................................... 4-1
4-1. Troubleshooting Guide .................................................................................... 4-1
4-2. Error Codes - Countdown Timers.................................................................... 4-2
GLOSSARY................................................................................................................ G-1
Distributor Lists - Domestic and International
Nov. 2006 i

Model HHC-90X/Model HC-5/15
SECTION 1. INTRODUCTION
May 2010 1-1
1-1. HEATED HOLDING
CABINET The Henny Penny Heated Holding Cabinet is a basic unit of food
processing equipment designed to hold hot foods at proper
temperature in commercial food operations. This cabinet keeps
hot foods humid while maintaining temperature.
As of August 16, 2005, the Waste Electrical and Electronic Equip-
ment directive went into effect for the European Union. Our
products have been evaluated to the WEEE directive. We have
also reviewed our products to determine if they comply with
the Restriction of Hazardous Substances directive (RoHS) and
have redesigned our products as needed in order to comply. To
continue compliance with these directives, this unit must not be
disposed as unsorted municipal waste. For proper disposal, please
contact your nearest Henny Penny distributor.
• Easily cleaned
• Adjustable, thermostatically controlled heat
• Lift-off doors
• Easy access to electrical components
• Moist heat
• Removable control module
• Stainless steel construction
• Full perimeter magnetic door seals
• Lift out tray racks
• HHC-900 Series UL listed
• Venting system to limit humidity levels in cabinet (units with
vent adjustment)
• Optional adjustable legs
• 200 lbs. (91 kgs) product capacity
1-2. FEATURES

Model HHC-90X/Model HC-5/15
1-3. PROPER CARE
1-2 May 2010
As in any unit of food service equipment, the Henny Penny
Heated Holding Cabinet does require care and maintenance.
Requirements for the maintenance and cleaning are contained in
this manual and must become a regular part of the operation of the
unit at all times.
1-4. ASSISTANCE Should you require outside assistance, just call your local inde-
pendent Henny Penny distributor in your area, call Henny Penny
Corp.1-800-417-8405 toll free or 1-937-456-8405, or go to Henny
Penny online at www.hennypenny.com.
1-5. SAFETY The only way to ensure safe operation of the Henny Penny Heated
Holding Cabinet is to fully understand the proper installation,
operation, and maintenance procedures. The instructions in this
manual have been prepared to aid you in learning the proper pro-
cedures. Where
information is of particular importance or is safety related, the
words
NOTICE, CAUTION, or WARNING are used. Their usage is
described below.
SAFETYALERT SYMBOL is used with DANGER, WARNING,
or CAUTION which indicates a personal injury type hazard.
NOTICE is used to highlight especially important information.
CAUTION used without the safety alert symbol indicates
a potentially hazardous situation which, if not avoided, may
result in property damage.
CAUTION used with the safety alert symbol indicates a
potentially hazardous situation which, if not avoided, may result
in minor or moderate injury.
WARNING indicates a potentially hazardous situation which,
if not avoided, could result in death or serious injury.

Model HHC-90X/Model HC-5/15
2-1. INTRODUCTION This section provides the installation instructions for the Henny
Penny Heated Holding Cabinet.
Installation of this unit should be performed only by a quali-
ed service technician.
Do not puncture the skin of the unit with drills or screws
as component damage or electrical shock could result.
2-2. UNPACKING The Henny Penny Heated Holding Cabinet has been tested, in-
spected, and expertly packed to ensure arrival at its destination in
the best possible condition. The cabinet rests on cardboard pads
that sit on a wooden skid. The racks inside the cabinet are secured
with cardboard packing. The unit is then packed inside a heavy
cardboard carton with sufcient padding to withstand normal
shipping treatment.
Any shipping damages should be noted in the presence of the
delivery agent and signed prior to his or her departure.
To remove the Henny Penny Heated Holding Cabinet from the
carton, you should:
1. Carefully cut banding straps.
2. Lift the carton off the unit.
3. Lift the unit off the cardboard padding and skid.
Take care when moving the unit to prevent personal
injury. The unit can weigh up to 500 lbs. (227 kg).
4. Open doors and remove packing from behind racks.
5. Peel off any protective covering from exterior of the cabinet.
6. The unit is now ready for location and set up.
SECTION 2. INSTALLATION
Feb. 2003 2-1

Model HHC-90X/Model HC-5/15
2-3. LOCATION The unit should be placed in an area where the doors can be
opened without interruption and loading and unloading of product
is easy. For proper operation, the cabinet must be level.
To avoid damage to the unit, do not set anything on top of the
cabinet that might close the vent holes.
2-2 May 2010
2-4. ELECTRICAL
CONNECTION The heated holding cabinet is available from the factory as a
120 VAC or 240 VAC unit for domestic use and as a 240 VAC unit
for foreign use. The data plate, located on the side of the mod-
ule, will specify the correct electrical supply. The unit requires a
grounded receptacle with a separate electrical line protected by a
fuse or circuit breaker of the proper rating. For European mar-
kets, verify the electrical plug meets the proper electrical rating
and country type. See local authorities for proper standards.
To avoid electrical shock, the cabinet must be adequately
and safely grounded (earthed) according to local electrical
codes.
(FOR EQUIPMENT WITH CE MARK ONLY!)
To prevent electric shock hazard this appliance must be
bonded to other appliances or touchable metal surfaces
in close proximity to this appliance with an equipotential
bonding conductor. This appliance is equipped with an
equipotential lug for this purpose. The equipotential lug is
marked with the following symbol
Refer to the table below for electrical ratings for the HHC-900.
Volts Watts Amps
Product Number
HHC-900
HHC-900
HHC-900
HHC-900
HHC-902 stackable
HHC-903
HHC-903
HHC-903
HHC-903
HHC-903
120
230
240
240
120
100
120
230
230
240
2086
1960
2086
3086
1586
1090
1586
1500
1960
2086
17.5
8.5
9.0
13.0
13.0
10.9
13.0
6.5
8.5
9.0

2-3
July 2018
Volts Watts Amps
Product Number
HHC-903
HC-5
HC-15
240
240
240
3086
2086
2086
13.0
9.0
9.0

Model HHC-90X/Model HC-5/15
Optional Wireway Channel (“Chimney”) Mounting Instruc-
tions
For units with the electrial supply exiting the top of the module
and running to the ceiling of the store, round, stainless steel chan-
nels are available to cover and protect the cord.

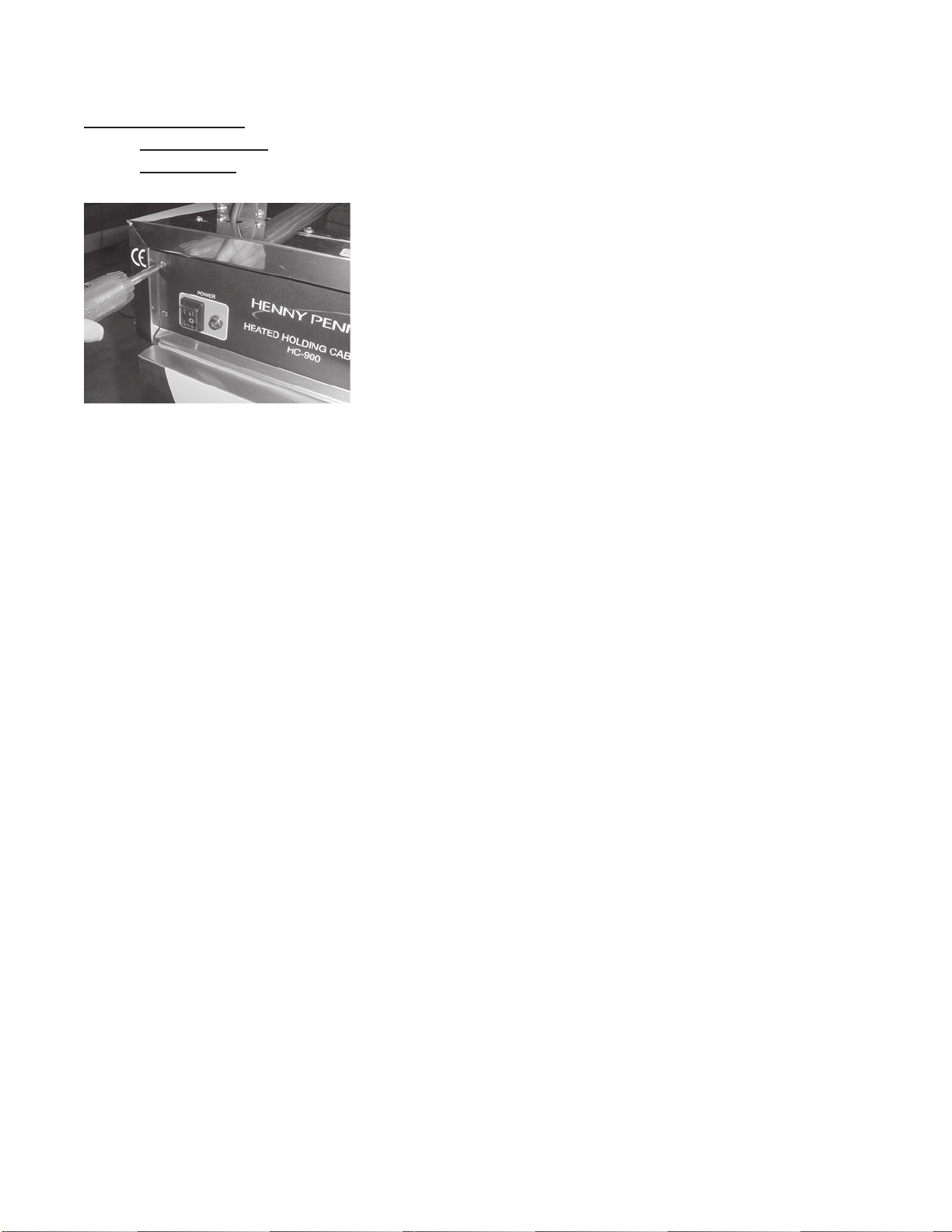

1. Using a Phillip’s-head screwdriver, remove the screws secur
ing the front panel and pull panel down to access the holes in
the top of the module. Figure 1.
2. Pull the cord through the channel to take the slack out of the
cord and then match-up the studs on the channel to the holes in
the top of the module and set the channel on the module.
3. Using the 4 nuts, shipped inside the unit, secure the channel to
the module top.
4. Reattach the front panel. Figure 3.
Figure 1
Figure 2
Figure 3
Mar. 2006 2-4
2-4. ELECTRICAL
CONNECTION
(Continued)

Model HHC-90X/Model HC-5/15
2-5. CABINET DIMENSIONS
Model HHC-900 &
Model HC-15 Model HHC-902
Model HHC-903 &
Model HC-5
2-5 May 2010

Model HHC-90X/Model HC-5/15
Aug. 2003 2-6
Model HHC-906
Model HHC-908
2.5 CABINET DIMENSIONS
(Continued)

Model HHC-90X/Model HC-5/15
SECTION 3. OPERATION
3-1. INTRODUCTION This section provides operating procedures for the heated holding
cabinets. The Introduction, Installation and Operation Sections
should be read, and all instructions should be followed before
operating the cabinet.
3-2. OPERATING
CONTROLS AND
COMPONENTS
Figures 3-1 through 3-5 identify and describe the function of all
the operating controls and the major components of the cabinet.
Feb. 2003 3-1
Figure 3-1
Figure 3-2
Figure 3-3
Figure 3-4 Figure 3-5

Model HHC-90X/Model HC-5/15
3-2 Dec. 2016
3-2. OPERATING CONTROLS AND COMPONENTS (Continued)
Fig.
No. Item No. Description Function
3-1 1 Power Switch A toggle switch that switches electrical current to the unit
3-1 2 Power Light Illuminates when the power switch is in the ON position and
the components are energized
3-1 3 Thermometer Indicates the air temperature inside the cabinet
3-1 4 Heat Light Illuminates when the thermostat turns on the heaters
3-1 5 Thermostat An electromechanical device that controls the temperature
inside the cabinet
3-2 6 Blower Motor Used to recirculate the hot humid air throughout the cabinet;
there are two blower motor assemblies in the cabinets
3-2 7 Heater
Two, open-resistance, wire type heaters that provide heat
throughout the cabinet; a standard full sized 120 VAC unit
will have 1000 watt heaters; a standard full sized 240 VAC
unit will have 1500 watt heaters; a standard 120V, HHC-903
unit will have 750 watt heaters
3-2 8 High Limit A safety device mounted next to the heater which protects the
unit from overheating
3-3 9 Fuse
A protective device that breaks the circuit when current ex-
ceeds the rated value; the fuse provides an overload protection
for the electrical components; to remove the fuse, twist and
pull the cap; the fuse is used only on the 120V/2000 watt units
3-4 10 Water Pan Holds the water for creating humidity in the cabinet
3-5 11 Venting System (Units with vent
adjustment only) Controls the humidity levels in the cabinet

Model HHC-90X/Model HC-5/15
Feb. 2003 3-3
3-3. START-UP
Step 1
Step 2
Before using the heated holding cabinet, the unit should be
thoroughly cleaned as described in the Cleaning Procedures
Section of this manual.
1. To put the unit into operation, move the power switch to the
ON position. The power light should now be illuminated and
the blowers should be in operation.
2. Remove the water pan and put approximately 1” of hot water
in the pan. Return the pan to its location.
Be sure to push the water pan in as far as it will go so that it
does not block air from the thermometer and thermostat capil-
lary tubes. This will ensure proper operation of these compo-
nents.
3. Set the thermostat at #7 or approximately 180°F (82°C).
When the heat light goes out, the unit is ready for operation.
The unit should take approximately 25-35 minutes to heat to
temperature during start up. Be sure that the temperature light
goes out before loading with product.

Model HHC-90X/Model HC-5/15
1. Place the hot product on bun pans and insert between the
cabinet racks.
2. Serve the product rst that has been in the cabinet the
longest.
3. In order to maintain a constant temperature, open the doors
only as necessary to load and unload product.
3-4. OPERATION WITH
PRODUCT
As mentioned in the Operating Controls and Component Section,
the vent system limits the humidity level of the cabinet. The vent
adjustments are very easy to follow.
The vent setting corresponds to the number of trays of product.
With one tray of product, set the vent at No. 1. With two trays of
product, set the vent at No. 2 and so on.
3-5. VENTADJUSTMENT
3-6. CLEANING
PROCEDURES Daily:
Aluminum sheet pans slowly wear as they slide in and out
of stainless steel holding rails to access product. As the pan
slides against hte rail, it can leave behind small traces of
aluminum dust or small aluminum shavings. It is important
that daily cleaning in performed to prevent aluminum dust/
shavings from getting into the product being held in the unit.
1. Turn all controls to the OFF position.
2. Disconnect the electrical supply to the cabinet.
To avoid burns, allow the unit to cool before cleaning.
3. Open the doors and remove all trays from the cabinet.
Step 3
3-4 Feb. 2003

Model HHC-90X/Model HC-5/15
3-6. CLEANING
PROCEDURES
(Continued)
Step 7
Step 9
4. Discard all warped or bent pans.
Failure to discard warped and/or bent pans may result in
metal shavings/dust contaminating food products.
5. Take the trays to a sink and clean them thoroughly.
6. Remove the water pan and clean it with a soft cloth, soap,
and water
7. Wipe the control panel with a damp cloth. Do not splash
water around the controls.
8. Clean the exterior of the cabinet with a damp cloth.
Do not use steel wool, other abrasive cleaners or
cleaners/sanitizers containing chlorine, bromine, iodine
or ammonia chemicals, as these will deteriorate the
stainless steel material and shorten the life of the unit.
Do not use a water jet (pressure sprayer) to clean
the unit, or component failure could result.
9. Open the doors and remove side racks. Clean the racks with
soap and water.
10. Clean the interior of the cabinet thoroughly with a cloth
and soap water.
10. Put the side racks and water pan back into the cabinet.
11. Leave at least one door open over night to allow the unit to
thoroughly dry out.
Feb. 2003 3-5

Model HHC-90X/Model HC-5/15
3-7. OPERATING
CONTROLS -
COUNTDOWN TIMERS
(if applicable)
These instructions are for both 13 and 5 count down timers.
Start-Up
1. Turn the power switch to the ON position.
2. The display shows the increase in temperature, indicating
the unit is heating.
3. When the preset temperature is reached, the HEAT ON LED
turns off and the display stays at the preset temperature.
Temperature Regulation
1. Press and hold the PROGRAM button.
2. The control beeps and “Prog Enter Code” shows in display.
3. Enter access code 1, 2, 3.
4. Press the INCREASE or DECREASE buttons to change the
ashing setpoint temperature.
5. Press and hold the PROGRAM button to set the temperature
and exit the programming mode.
Timer Operation
Each of the timers can be started, stopped, or cancelled, and not
affect the status of the other timers.
1. Press the desired timer button.
2. The time remaining shows in the display.
3. At end of time cycle, an alarm sounds and “0:00” is dis-
played.
4. Press the timer to stop alarm and “---” is displayed.
Press and hold an active timer to cancel.
3-6 Feb. 2003

Model HHC-90X/Model HC-5/15
3-7. OPERATING
CONTROLS -
COUNTDOWN TIMERS
(if applicable)
(Continued)
Timer Regulation - All timers can be set to a different starting
time.
1. Press and hold the PROGRAM button.
2. The control beeps and “Prog Enter Code” shows in display.
3. Enter access code 1, 2, 3.
4. Press the PROGRAM button, and “---” is displayed, along
with all the timer settings.
5. Press the desired timer and the starting time ashes.
6. Press the INCREASE and DECREASE buttons to change
the starting time.
7. Press the timer button to set the new starting time, and now
a different timer button can pressed, and it’s starting time
can be changed.
8. When nished setting timers, press and hold the PRO-
GRAM button to exit programming.
Exit the program mode at any time by pressing and holding
the PROGRAM button. Also, if no buttons are pressed for 2
minutes, programming is exited automatically.
Timing Through Power Down
If a power failure occurs while a timer is running, the timer re-
sumes the countdown when power is restored.
Feb. 2003 3-7
