Packing List
Note
• Select either an indoor antenna according to
the local radio signal strength.
• To access the Internet, you need to purchase
the required data suite. For more information,
consult your local sales agent.
Front View
Note
The figures are only for your reference. The
actual color and shape are subject to the deliv-
ered product.
Item Quantity
Main unit, handset, and coiled cord 1
Power adapter 1
Antenna (Optional) 1
Battery (Rechargeable) 1
Certificate of Quality 1
User Guide 1
Item Description
1 Screen Display information.
2 Left soft key Select the option displayed on the
lower left corner of the screen.
3 Scroll keys Access the shortcut screen in standby
mode.
4 Right soft key Select the option displayed on the
lower right corner of the screen.
5 OK key Access the main menu in standy
mode.
6 Shortcut keys Speed dial a phone number.
1
910
11
12
13
14
8
7
6
5
4
3
2

2
Rear View
7 Call/Redial
key
• Make or answer a call.
•View dialed calls in standby mode.
8 Antenna Receive signals.
9 # key • Press and hold it to switch between
the silent and normal profiles.
• Switch on/off the input mode of T9.
• Mark/unmark a record.
10 Mute • During a call, press this key to mute
your voice.
11 Handsfree
key
•Make/answer a call without lifting the
handset.
• Cancel the dialing that is in hands-
free mode.
• End the call that is in handsfree
mode.
12 End key • End a call or reject an incoming call.
•Press and hold it to power on or off.
• Return to the standby mode.
13 * key • Press and hold it to lock the
keyboard in standby mode.
• Switch between different input meth-
ods in text input mode.
14 Number keys Enter numbers and characters.
Item Description
No. Item NO. Item
1Wall-mounting brack-
ets
2Main unit spiral cord
jack
3Battery container 4 SIM card slot
5Battery port 6Data port
1
2
3
6
54

3

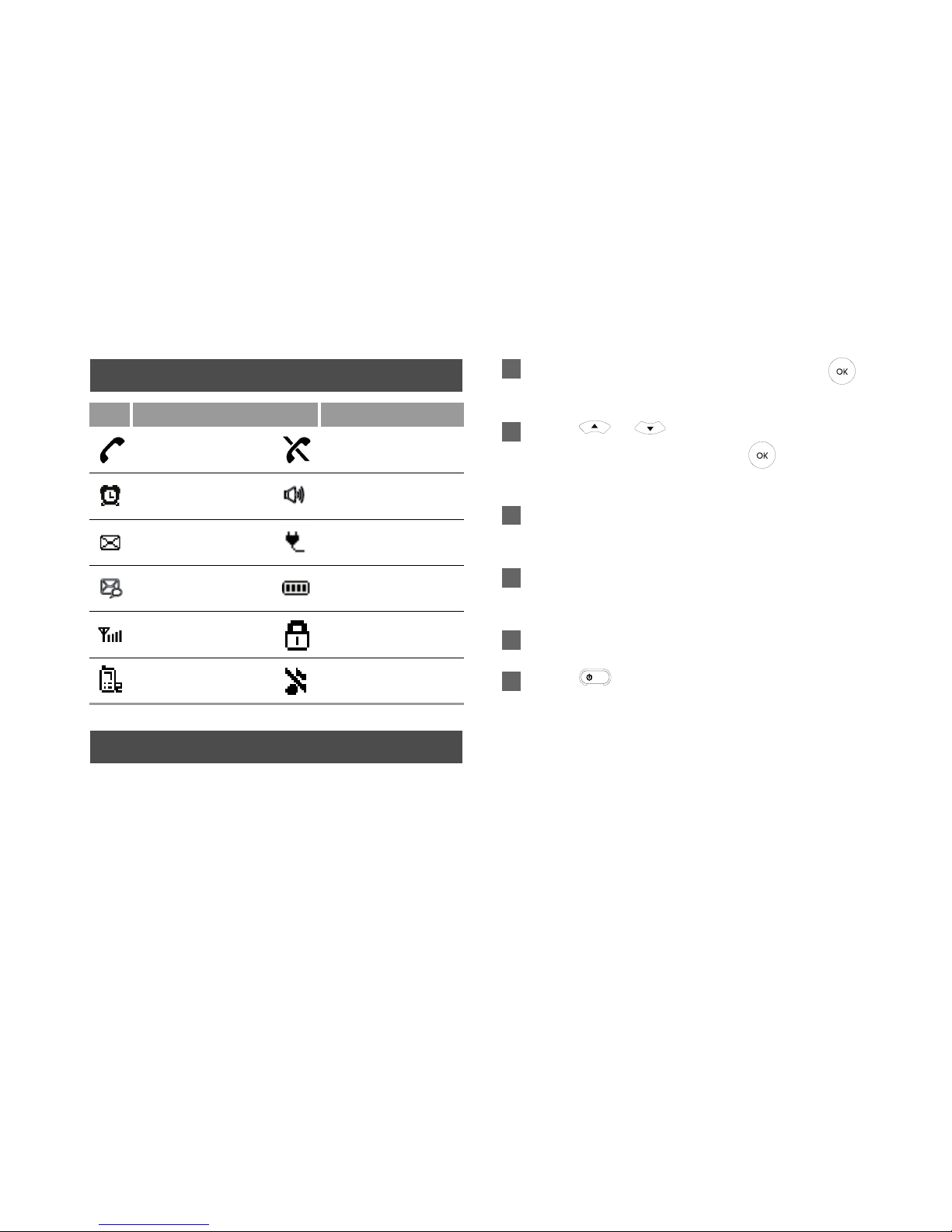

Screen Icons
Introduction to Menus
Your FWT provides an extensive range of functions.
You can use these functions by navigating the follow-
ing menus: Contacts, Messages, Call log, Tools,
Profiles and Settings.
1In the standby mode, press left soft key or to
display the main menu.
2Press or to move around the menus,
and then press left soft key or to select
items.
3If the menu contains further submenus, repeat
Step 2.
4Use the selected function according to the
prompts on the screen.
5Select Back to return to the previous menu.
6Press to return to the standby mode.
Icon Description Icon Description
Calling No service
Alarm clock is on Hands-free mode
Message received Powered by the
power adapter
Voice message
received
Battery power level
Network signal
strength
Keypad lock
Line 2 is selected In silent profile.

4
2Installation
Note
Before installing or removing the battery, indoor
antenna or SIM card, switch off the FWT and
disconnect the FWT from the power adapter.
Installing the Battery
Note
• When the ambient temperature exceeds the
temparature allowed for charging, the system
will stop charging the battery.
• When the power adapter is in use, the FWT
will automatically charge the battery and stop
it after the battery is fully charged.
• Take the battery out of the FWT if the FWT is
left unused for a long period.
• Make sure that the battery has been charged
for more than 8 hours before it supplies
power for the FWT at the first time. The
charging time depends on the environmental
temperature and the age of the battery.
• For a battery that is not in use for a long time,
you need to activate it, that is, charge and
discharge the battery for two to three times.
Insert the connection cable of the battery into the bat-
tery port, make sure the insert direction is correct,
and then place the battery into the battery container.

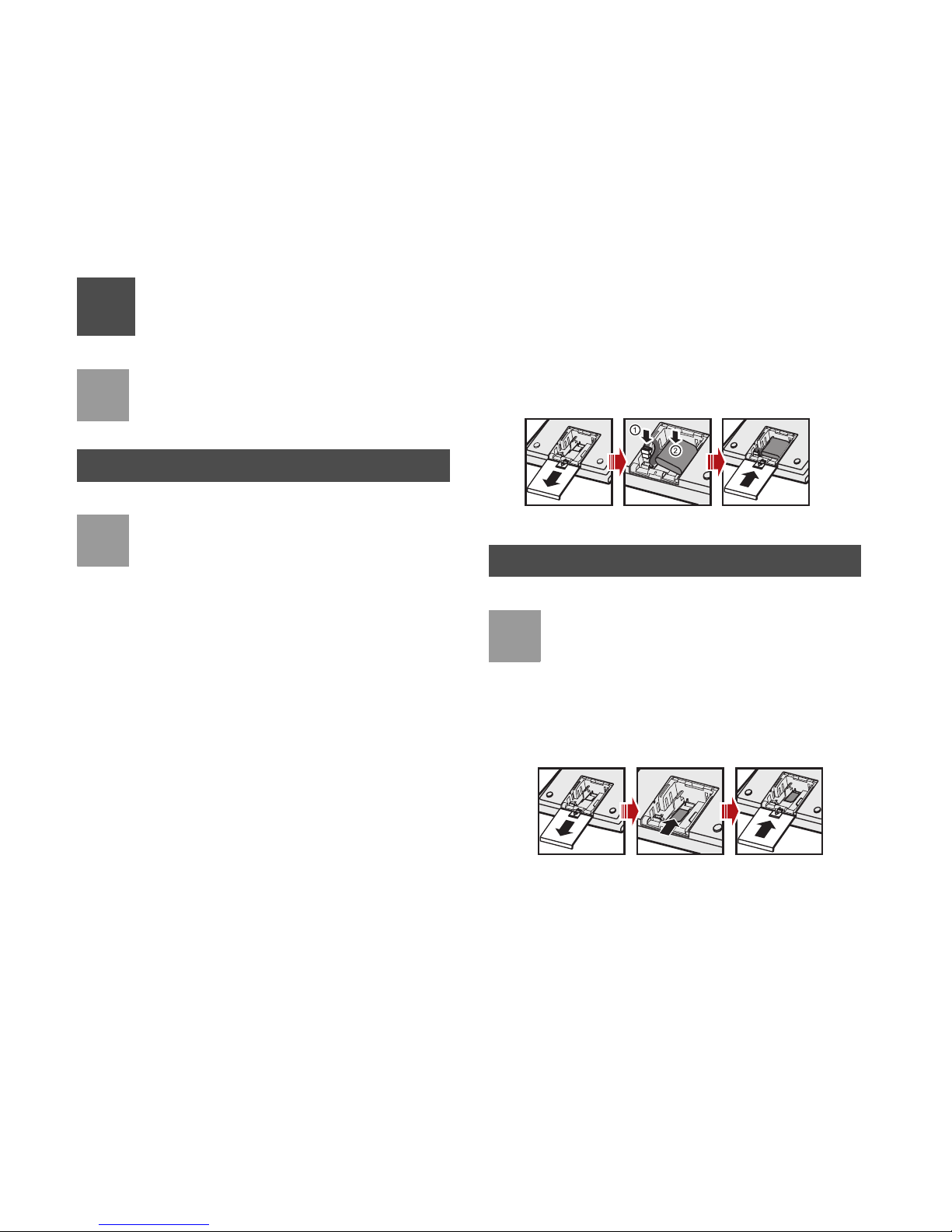

Installing the SIM Card
Note
The SIM card is easily to be damaged by scars
on the contact area or overbending, so you
should insert or remove it gently.
Insert the card to the card slot. Put the side with the
bevelled corner of the card backwards and the side
with the contact area of the card downwards. Make
sure the card is completely inserted into the slot.

5
Installing the Power Adapter
1Make sure that the FWT is switched off.
2Insert one end of the power adapter into the DC
input port, and the other end into the power sup-
ply jack.
In normal condition, use an external power adapter
and a battery. Use the battery only in the case that
the electricity failsand the external power adapter is
unavailable. If the battery level is low, the communi-
cation may be affected. It is recommended that you
charge the battery for 15 minutes before making or
receiving calls.
Installing the Indoor Antenna
1Make sure that the FWT is switchedoff.
2Align the indoor antenna with the antenna port
on the FWT host in the correct direction, and
then screw the antenna. Make sure the connec-
tion is secure.
Connecting the FWT to a PC
Note
• Switch the FWT off and then disconnect it
from the power adapter before connecting.
• Use the data service suite provided by the
manufacturer.
The FWT can be connected to a PC to provide data
services. You can also maintain and debug the FWT
on the PC. You need to purchase the data service
suite. For details, consult your local agent.

6
Mounting the FWT
Horizontal Mounting
Place the FWT on a flat surface. Select a cool and
ventilated site for the FWT to dissipate the heat.
Vertical Mounting
1Pull out the handset retaining clip from the slot
and turn it around. Then push it back so that the
handset will not fall down when FWT is placed
vertically.
2According to the distance between the two
hooks (about 7.7cm), hammer two nails into the
wall and leave a 3-mm space at the end of nails.
3Snap the hooks to the nails.
Validating
1Press and hold to power on your FWT.
2The power icon appears normally. The
signal strength icon appears normally.
3If you can make a call, it indicates that the FWT
is installed correctly.
7.7cm

7
3Basic Operations
Making or Answering Calls
Making a Voice Call
1Enter or edit a number in one of the following
ways:
• Enter a phone number through the keypad.
• Select a number from Call Log.
• Select a number from Contacts.
2Press to dial.
3Press to end the call.
Answering or Rejecting a Call
•Instandby mode, press , or lift the handset
to answer a call. Press to end the call.
•Inhandsfree mode, press , or lift the handset to
answer a call. Press to end the call.
Operations During a Voice Call
During a voice call, you can select Options to per-
form the operations.
Text Input
Note
• Press * key to switch between input methods.
• Press # key to enable or disable T9 method.
• Press 1key to display the list of symbol.
• Press right soft key to delete the letter in front
of the cursor.
T9 Input Method
Press each key carrying the desired letter once, and
then the predictive text scheme will present the avail-
able words composed by the letters you have entered
in the drop-down list.

8
Traditional Input Method
When T9 input method is off, you can use the tradi-
tional input method.Repeatedly press the key that
carries the letter to be entered when it appears on the
screen.
"123" Numeric Input Method
In a text editing screen, press and hold the character/
number keys to enter corresponding numeric charac-
ters.
You can also press successively the * key to switch to
the "123" numeric input method, and enter corre-
sponding numeric characters by pressing the charac-
ter/number keys.
Symbol Input Method
Your FWT provides an independent symbol input
method.
For example, to enter ":" with the symbol input
method, you can just press the scroll keys to select
":" from the symbol list and then press .
Inputting Different Languages
In a text editing screen, select Options>Input lan-
guage to set the language for the text.

9
4Contacts
Making Calls from Contacts
1In the Contacts screen, select Phone or SIM.
2Select a contact and select Options > Voice
call. Alternatively, you can select Edit before
call to edit the number before making the call.
Searching for a Contact
1In the Contacts screen, select Phone or SIM.
2Select Options > Search.
3Select Options > Search, and then enter the
contact name. The contact will be displayed.
In the Phone or SIM screen, enter a string contained
in the contact name. Then the contacts whose names
contain this string are displayed.
Groups
Adding/Deleting Group Members
1In the Contacts screen, select Groups.
2Select a group and press to view the details.
3Select Options> Add. Select a contact and
press . The member you add will be dis-
played in the group member list.
To delete a group member, select a member from the
group member list, and then select Options >
Delete.
Managing a Group
1In the Contacts screen, select Groups.
2Select a group and select Options for the follow-
ing options.
•Details: view the details of a group
•Rename: change the name of a group

10
•Create message: send a text message to all
members of a group
•Delete: delete a group and all members of the
group
Note
You cannot rename or delete any group preset
in your FWT.
Other Operations
In the Contacts screen, select Phone or SIM . Then
select Options for the following options.
•Details: view the details of a contact
•Edit before call: edit the number before making a call
•Create message: send a message to the selected con-
tact
•New: create a new contact
•Voice call: make a voice call
•Search: enter the contact name you are searching for
•Copy to SIM/Copy to phone: copy one or more con-
tacts from your FWT to the SIM card or from your SIM
card to the FWT
•Copy Marked To Phone/Copy Marked To SIM: copy
the marked contacts to the FWT or to the SIM card
•Speed Dial Number: assign often-used numbers to
speed dialing keys "2" to "9"
•Delete: delete the selected contact
•Mark/Unmark: mark/unmark a record or all records in
your FWT and SIM card
•Settings: sort the contacts in the FWT and the SIM
card or to set an alert before saving
In Contacts screen, select one of the following
options.
•Phone: view the contacts in the FWT
•SIM: view the contacts in the SIM card
•Groups: view the groups of the contacts
•Copy all: copy all the contacts from your FWT to the
SIM card or from your SIM card to the FWT
•Delete all: delete all the contacts from your FWT or
from your SIM card
•Memory status: view the memory status of both your
FWT and SIM card

11
5Messages
Text Messages
The maximum number of English letters in a single
text message is 160. If the characters you entered
exceed this limit, the text is divided into two or more
continuous messages when it is sent.
Creating a Text Message
1Select Messages > Write SMS from the menu .
2In the message editing screen, select Options:
•Send: send the message
•Insert number: insert a phone number saved in
the FWT or the SIM card
•Common phrases: speed up the text entry
•T9 Switch: enable or disable T9 input method
•Input mode: select the input method
•Input language: select an input language
3After editing, press to access Edit num-
bers.
• Enter the phone number, and then press to
send the message.
• Select Options > Groupsor Contacts to choose
a number and send the message.
• Select Options > Save to drafts to save the mes-
sage.
SMS Mailboxes
Inbox
You can save the received messages in Inbox.
1Select Messages > Inbox to view the
messages and then press to view the
details.
a read message in the SIM card memory
an unread message in the SIM card memory
a read message in the FWT memory
an unread message in the FWT memory
a message report

12
2Reply or call back.
•Press to reply with a text message.
• Press to call back by a voice call.
3select Options for the following operations.
•Reply: reply the message
•Forward: forward the message
•Edit before call: edit the number
•Save number: save the numbers retrieved from
an SMS to the FWT or SIM memory or an existing
entry in the contacts
•Delete: delete the message
Drafts
The Draft box is used to store the messages that you
save and that fail to be sent.
Sent
The Sent box is used to store the messages that are
sent.
1Select Messages > Sent to select a message
and to view the details.
2Forward or make a call.
•Press to forward a text message.
•Press to make a voice call.
SMS Settings
1Select Messages > Settings on the menu.
2Set the parameters related to messages:
atext message saved to the FWT.
atext message saved to the SIM card.
a text message that are sent and saved to
the FWT.
a text message that are sent and saved to
the SIM card.

13
•Message center: You can set your FWT to
retrieve the message center number from the SIM
card or the FWT. If you delete the information by
accident, contact your service provider.
•Valid period: The time within which a message
can be kept in the message center after it is sent.
•Auto save: You can set that the message is
saved automatically to Sent after it is sent.
•Save to: To set the position for saving messages.
•Status report: You can set it to On or Off. If you
set it to On, the network send you the report on
whether the message reaches the recipient.
•Concatenated SMS: You can set it to On or Off. If
you set it to Off, you cannot edit and send mes-
sages longer than the limit of a single SMS.
•Voice Mail number:You need to apply for the
voice mail services from your network operator.
After setting the correct number provided by your
network operator, after press and hold the 1 key in
standby mode, the FWT dials the voice mail num-
ber automatically.You can select Messages > Set-
tings> Voice Mail number to set the number.
•Common phrases:Your FWT is preset with some
commonly used phrases for automatical replying
and sending messages when you are answering a
call. You can select Messages > Settings> Com-
mon phrases to edit the phrases.
Delete All
You can select Messages > Delete all to delete the
messages in Inbox, Sent or Drafts.

14
6Call Log
The last dialed calls, received calls and missed calls
are saved automatically.
Making Calls from Call Log
1Select Call Log and then press the up/down
scroll key to switch between Missed, Recived
and Dialed.
2Select a record. Press to make a voice call.
3Select Options for the following options.
•Edit before call: edit the number before making a
call
•Create Message: send a SMS
•Save number: save the number of the selected
record to the FWT, the SIM card, or an existing
contact
•Voice Call: make a voice call
•Details: view the details of the selected record
•Delete: delete the selected record
•Mark/Unmark: mark/unmark a record or all
records
Other Operations
Calls Status
Select Call Log > Calls status to display the infor-
mation about voice calls, and data services. In the
voice call, and data screen, you can select Reset to
clear all records.
Delete All
Select Call Log > Delete all to delete the records of
All calls, Missed, Received, or Dialed.

15
7Tools
Alarms
Setting Alarm Clocks
Select an alarm. Press , and then you can set it.
Prompt Interface for an Alarm
When it is time for an alarm clock to ring, the tone
sounds and a prompt is displayed. Press any key to
stop it, or select snooze or stop the prompt.
If your FWT is powered off, the alarm can still ring.
When it rings, you can choose to power on the FWT.
Stopping the Alarm Clock
Select an alarm clock from the list, and press the left
soft key to deactivate it.
Calendar
Select Tools > Calendar and select Options. You
can perform the Go to... operation to go to a certain
date directly from the month view screen.
Calculator
Select Tools > Calculator on the main menu.
• Press the numeric keys to enter the figures.
• Press the scroll key to enter the operators.
• Press the left soft key to clear.
• Press the right soft key to exit Calculator.
• Press the # key to enter a radix point.
• Press to enter an equal mark.
World Time
Select Tools > World Time on the main menu.
You can view the time of important cities around the
world. To switch among the time zones, press the left/
right scroll key.
If the daylight saving time (DST) is used in your city,
you need to set the FWT to DST. Then, you can get
the right local time. To set the FWT to DST, switch to
the desired time zone and then select Options > Set
Time Zone.

16
8Profiles
Selecting a Profile
1In the Profiles screen, select a profile.
2Activate the selected profile.
• Press to activate it.
• Select Options and select On to activate it.
Editing a Profile
1In the Profiles screen, select a profile.
2Select Options and select Edit to set it.
•Voice call tone: Select a ring tone for incoming
calls.
•Message tone: Select a message tone.
•Tone volume: Adjust the volume of rings.
•Key tone volume: Adjust the volume of keys.
•Prompt tone volume: Adjust the volume of
prompts.
•On-off tone: Activate or deactivate the power-on
and power-off tones.
Note
• You can select a profile, and then select
Options and select Rename to change the
name of the profile.
• You cannot rename any profile preset in your
FWT.

17
9Settings
Note
Please use an external power adapter and a
battery together when you set the FWT.
Phone settings
In the Settings screen, select Phone settings.
•Phone Language: Select a language. You can also
select Auto to set it to be the same as the language
that is used in your SIM card.
•Input Language: Set the language used to enter text.
•Date and Time: Change the system time for the FWT.
•Date Format: Change the display format of the date.
•Shortcuts: Assign the frequently used functions to the
keys as shortcut keys.
•Keypad lock period: After enabling the auto keypad
lock function, you can set the keypad lock period. If
there is no operation on the FWT within a preset period
of time, the keypad is locked automatically. You can
press the * key, then press to unlock the keypad.
Note
If the FWT is not used for a long time with no
adapter or battery, you may need to set the time
after switching the FWT on.
Display Settings
In the Settings screen, select Display Settings.
•Contrast: Set the contrast level of the display.
•Backlight time: Set the delay time of backlight.
•Greeting message: Enter a greeting message that
appears on the screen when you power on your FWT.
Call Settings
Minute Alert
If the function is activated, your FWT notifies you of
the call duration by giving an alert several seconds
before the end of each minute.
Auto Dial
If the function is activated, the number you key in is
dialed automatically at the time you set.
Call Forwarding
When you can not to answer the phone or you want
to forward a call, you can use this function.

18
Call Barring
You can restrict and allow all outgoing calls by acti-
vating this function.
Call Waiting
When you are in a conversation, you can answer a
third call by activating this function.
The function is network-dependent. For more infor-
mation, consult your service provider.
Calling ID
This function allows you to select whether to display
your number on the phone of the party who calls you.
The function is network-dependent. For more infor-
mation, consult your service provider.
Select Line
It is used to set the call line for your FWT. Two
options are available: Line 1 and Line 2.
My Number
With this function, you can save your own numbers
on the SIM card. You can select Options to edit or
delete the records.
Call Barring Password
This function is used to change the password for call
barring. Select Call barring password from the Call
settings screen. Now you can change the call bar-
ring password.
Note
The old call barring password is provided by
your network operator if it is the first time for
you to change the password.
Network
You can change the settings for the network. Select
Settings > Network for following options: Mode,
Select network.
