HunterDouglas Vignette Series Parts list manual

Installation •Operation •Care
Vignette®Modern Roman Shades
Tiered™Style
EasyRise™, LiteRise®, and UltraGlide®
Operating Systems

CONTENTS
Questions?
Call the Hunter Douglas Customer Information Center at
1-888-501-8364.
Getting Started:
Product View — Vignette®Tiered™Style Shades.................................1
Product View — Vignette Tiered Style Top-Down/Bottom-Up Shades....2
Tools and Fasteners Needed ..............................................................3
Installation:
Installation Overview .........................................................................4
Mount the Installation Brackets — Inside Mount.................................5
Mount the Installation Brackets — Outside Mount ..............................6
Mount the Installation Brackets — EndMount ....................................8
Install the Shade ...............................................................................8
Attach the Universal Cord Tensioner — EasyRise™Shades Only .........9
Cord Adjustment — UltraGlide®Shades Only......................................9
Attach the Magnetic Hold-Down Brackets (Optional) .........................10
Operation:
Operate the Shade .........................................................................11
Troubleshooting ..............................................................................13
Care:
Removing the Shade .......................................................................15
Cleaning Procedures .......................................................................15
Child Safety:
Cord Loop Shades...........................................................................17
Warning .........................................................................................17
© 2015 Hunter Douglas. All rights reserved. All trademarks used herein are the property of Hunter Douglas.

GETTING STARTED
1
Product View — Tiered™Style Shades
Not Shown: Two-On-One Headrail Shade
Installation Brackets
UltraGlide
®
LiteRise
®
Handle
End
Caps
Magnetic Hold-Down Bracket
(Optional)
F
abric-Covered
Headrail
Cord
Loop
Cord
T
ensioner
and
Bracket
EasyRise
™

2
GETTING STARTED

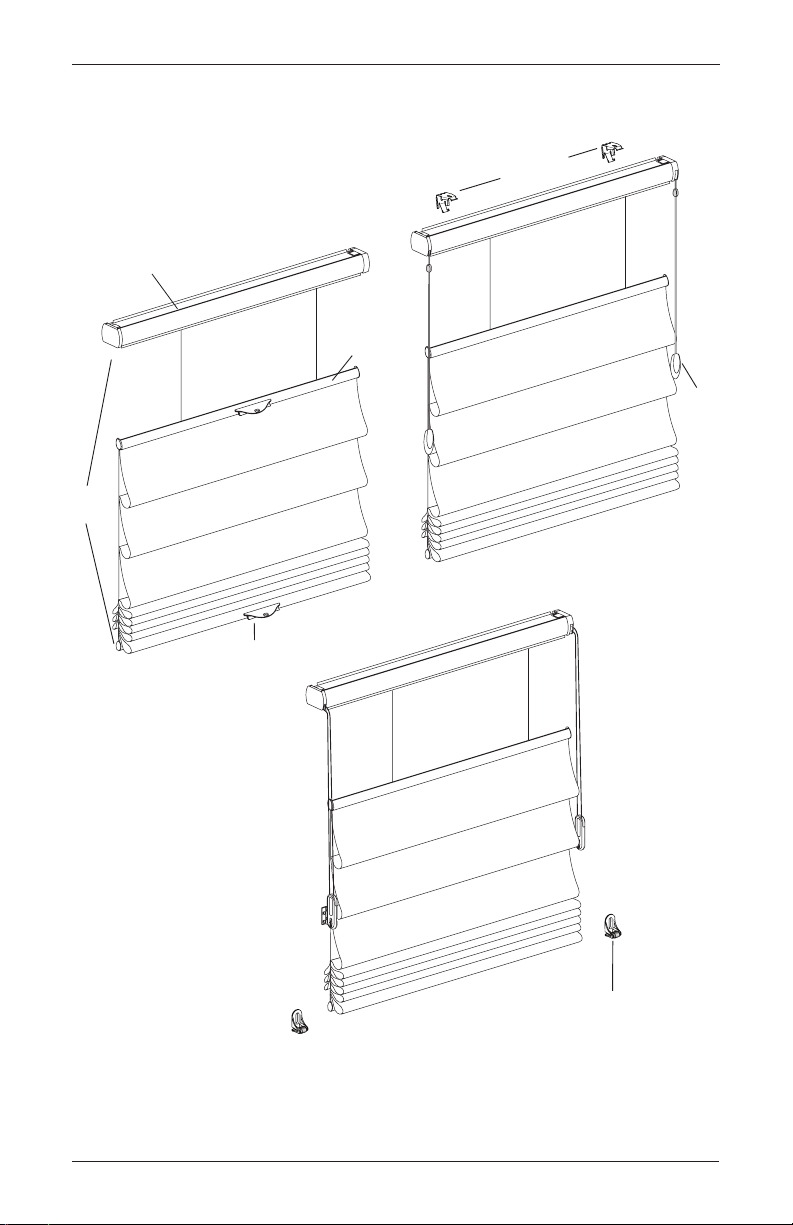

Product View — Tiered™Style Top-Down/Bottom-Up Shades
Installation
Brackets
EasyRise™
Top-Down/Bottom Up
UltraGlide®
Top-Down/Bottom Up
Handle
Magnetic
Hold-Down
Bracket
(Optional)
Headrail
T
assel
Cord
Loop
Cord
Tensioner
and
Bracket
End
Caps
Middle Rail
LiteRise®
Top-Down/Bottom Up

GETTING STARTED
3
Thank you for purchasing Hunter Douglas Vignette®Tiered™Modern Roman Shades. With
proper installation, operation and care, your new shades will provide years of beauty and
performance.
Please thoroughly review this instruction booklet and the enclosed packing list before beginning
the installation. If your shade has a protective plastic cover on the fabric-covered headrail, keep
the plastic in place until the shade is installed.
Tools and Fasteners Needed
■Flat blade and Phillips screwdrivers
■Measuring tape and pencil
■Level (laser level is recommended)
■Power drill,
3
/ 32 " drill bit, and
1
/ 4 " hex driver
In addition, you will need fasteners designed to work with your specific mounting surface(s).
■#6 Hex Head Screws (Provided). Two 1
1
/ 2 " screws are provided per installation bracket.
■Longer Hex Head Screws (Not Provided). If using spacer blocks, use #6 screws long
enough for a secure attachment. Add
1
/ 2 " length for each spacer block.
■Speed Nuts and Screws (Provided). Extension brackets come with speed nuts and screws.
■Drywall Anchors (Not Provided). Use drywall anchors when mounting into drywall.
Speed Nut
and Screw
(Two Provided with
Each Extension Bracket)
#6 x 1
1
/ 2 "
Hex Head Screw
(Provided)
Longer #6 Hex Head Screw
for Use with Spacer Blocks
(Not Provided)

INSTALLATION
4
Installation Overview
■Your order will include the correct number of installation brackets for your shade width, as
shown in the table below.
Mounting Types and Window Terminology
If the installation brackets are mounted correctly, the rest of the installation process follows
easily. To prepare for this important first step, review the mounting types and basic window
terminology illustrated below.
■Refer to the appropriate page below based on your order:
➤Inside Mount — Page 5
➤Outside Mount — Page 6
➤End Mount — Page 8
Installation
Bracket
Shade Width
Brackets
Required
12" – 38" 2
38
1
/ 8 "–72" 3
72
1
/ 8 " – 96" 4
96
1
/ 8 " – 120" 5
120
1
/ 8 " – 140" 6
Outside Mount
Shade mounts outside
window opening.
Inside Mount
Shade fits within
window opening.
Collectively, the sill and
jambs are called the
“window casement.”
Molding
Head Jamb
Sill
Jamb Jamb

INSTALLATION
5
Mount the Installation Brackets — Inside Mount
■Mark 2" from each jamb for bracket location.
➤If more than two installation brackets came with your order, space additional bracket(s)
evenly between the two end brackets. Mount into wood whenever possible.
■Center the brackets on your marks and mark the location of the screw holes.
➤The minimum casement depth
required for installation brackets
(including the rear fabric fold
clearance) is 1
5
/ 8 " for standard
Tiered™or 1
7
/ 8 " for Tiered Architella®.
➤The minimum casement depth
required for a fully recessed mountis
2
3
/ 4 " for standard Tiered or 3" for
Tiered Architella.
➤For rear fabric fold clearance, there
must be
3
/ 4 " clearance behind the
bracket for standard Tiered or 1"
clearance behind the bracket
for Tiered Architella.
IMPORTANT: The front edges of the
installation brackets must be aligned to
eachother.

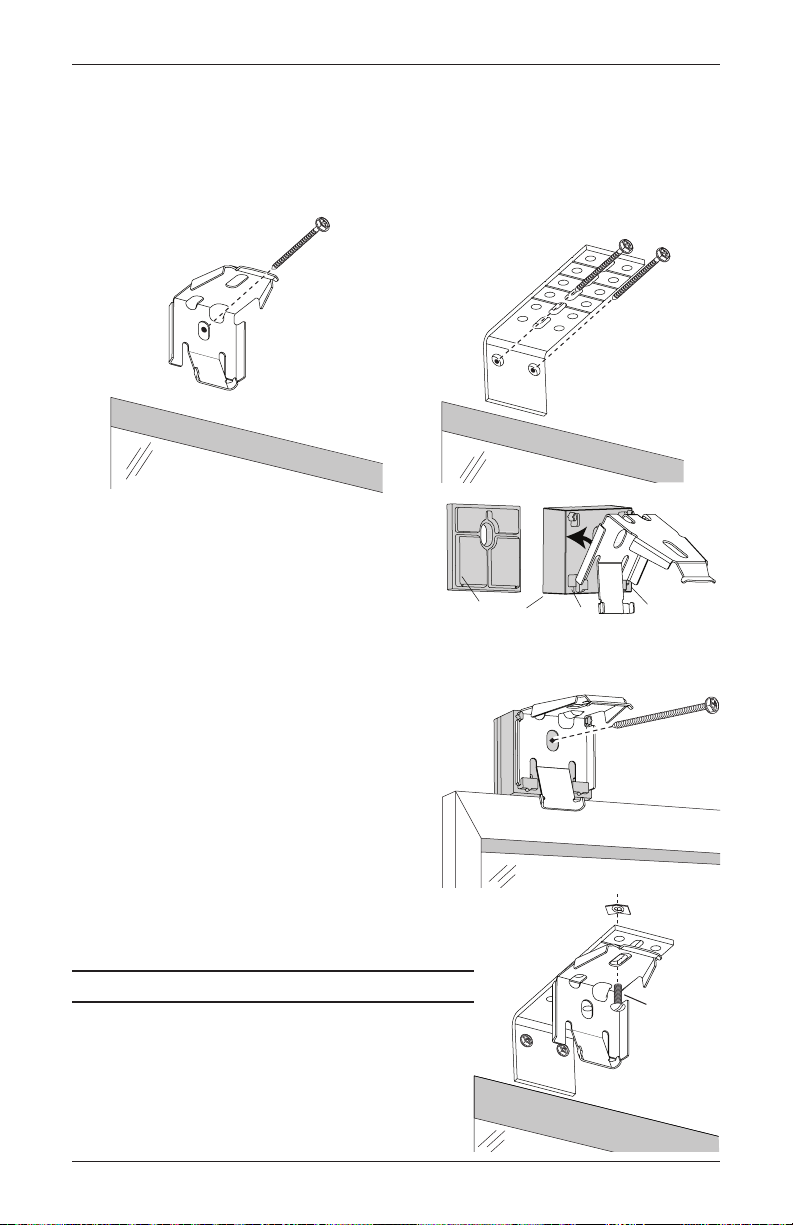

■Drill the screw holes using a
3
/ 32 " drill bit.
CAUTION: Use drywall anchors when
mounting into drywall.
■Use a level to check that the mounting surface is level.
Shim the brackets if necessary.
■Attach the installation brackets using the screws provided.
Proceed to “Install the Shade” on page8.
Space Evenly
2"
Installation Brackets
Space Evenly
Jambs
Jambs
2"
2"
Fully Recessed
Mounting Depth
Standard Tiered Fabric = 2
3
/ 4 "
Tiered Architella Fabric = 3"
Standard Vignette
Tiered
Raised Folds
3
/ 4 "1"
Vignette Tiered
Architella
1"
Raised Folds
UltraGlide

INSTALLATION
6

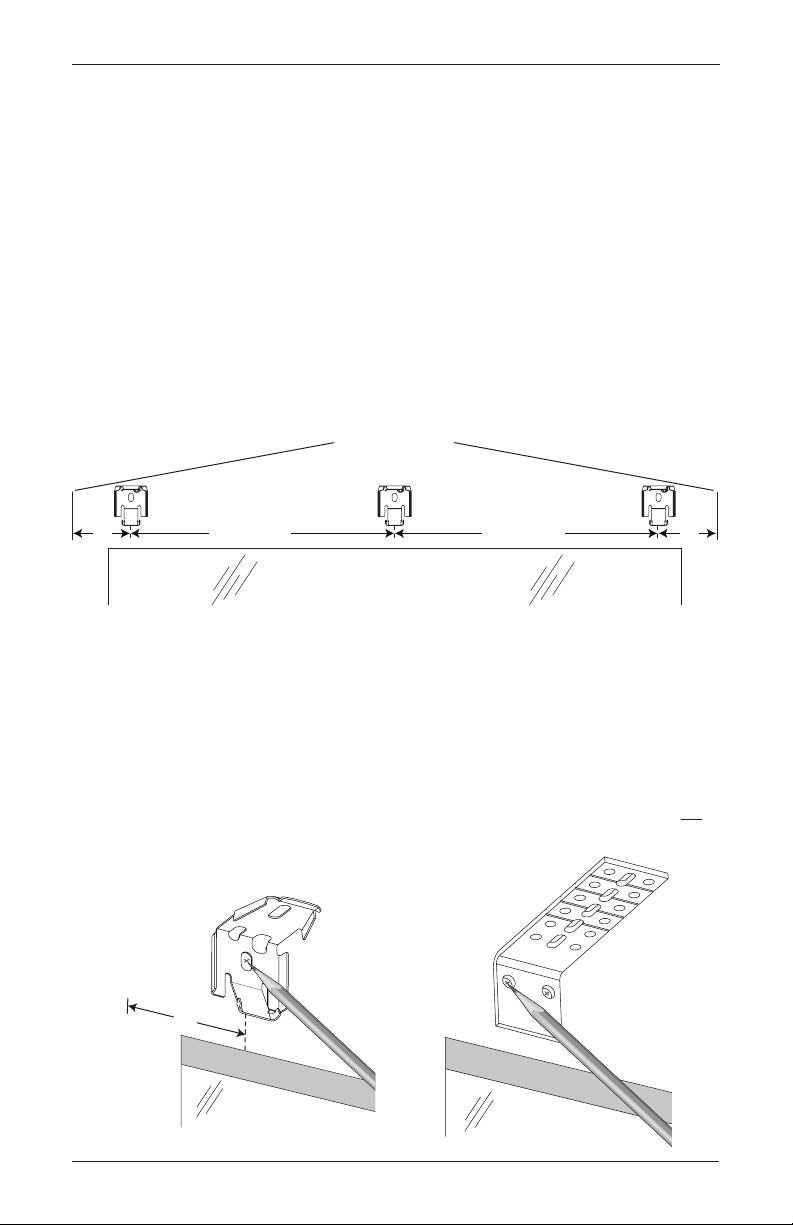

Mount the Installation Brackets — Outside Mount
IMPORTANT: Spacer blocks are recommended to project the installation brackets away from
the mounting surface for rear fabric clearance. Add
3
/ 4 " for standard Tiered™or 1" for Tiered
Architella®.
■Center the shade over the window opening at the desired height. Use a pencil to lightly mark
each end of the headrail on the mounting surface.
➤Alternatively, measure the width of the headrail and use that width to mark the headrail
end points over the window opening.
■Mark 2" from each end of the headrail.
➤If more than two installation brackets came with your order, space them evenly between
the two end brackets and mark their location. Mount into wood whenever possible.
■Center the brackets on your marks, then mark each of the screwholes.
➤A minimum 1" flat vertical surface is required to mount the brackets.
➤The top of the installation brackets or extension brackets should be at the desired shade
height. The brackets should be level and aligned.
➤When using extension brackets, mark two screw holes per bracket.
CAUTION: The rear of the brackets must be flush against a flat mounting surface. Do not
mount brackets oncurved molding.
Headrail End Marks
Window Opening
2" 2"
Space EvenlySpace Evenly
Headrail
End Mark
2"

INSTALLATION
7
■Drill the screw holes using a
3
/ 32 " drill bit.
CAUTION: Use drywall anchors when mounting into drywall.
■Attach the installation or extension brackets using the screws provided.
IMPORTANT: The front edges of the installation brackets must be level and aligned to
each other.
■If using the recommended spacer blocks, first
attach the installation bracket to a
1
/ 2 " spacer
block before stacking additional spacer blocks
together.
➤Insert the legs of the installation bracket into
the tabs on the spacer block.
➤Then rotate the installation bracket back.
■Attach the spacer blocks/installation bracket
to a flat vertical mounting surface with
#6mounting screws long enough for asecure
installation.
➤A maximum of 1
1
/ 2 " of spacer blocks per
installation bracket is allowed.
■If using extension brackets, attach an installation
bracket to the underside of each extension
bracket using the provided screws and speed nuts.
Proceed to “Install the Shade” on page8.
Spacer
blocks may
be stacked.
TabTab
Spacer
Blocks
Installation
Bracket
Speed Nut
Screw

INSTALLATION
8

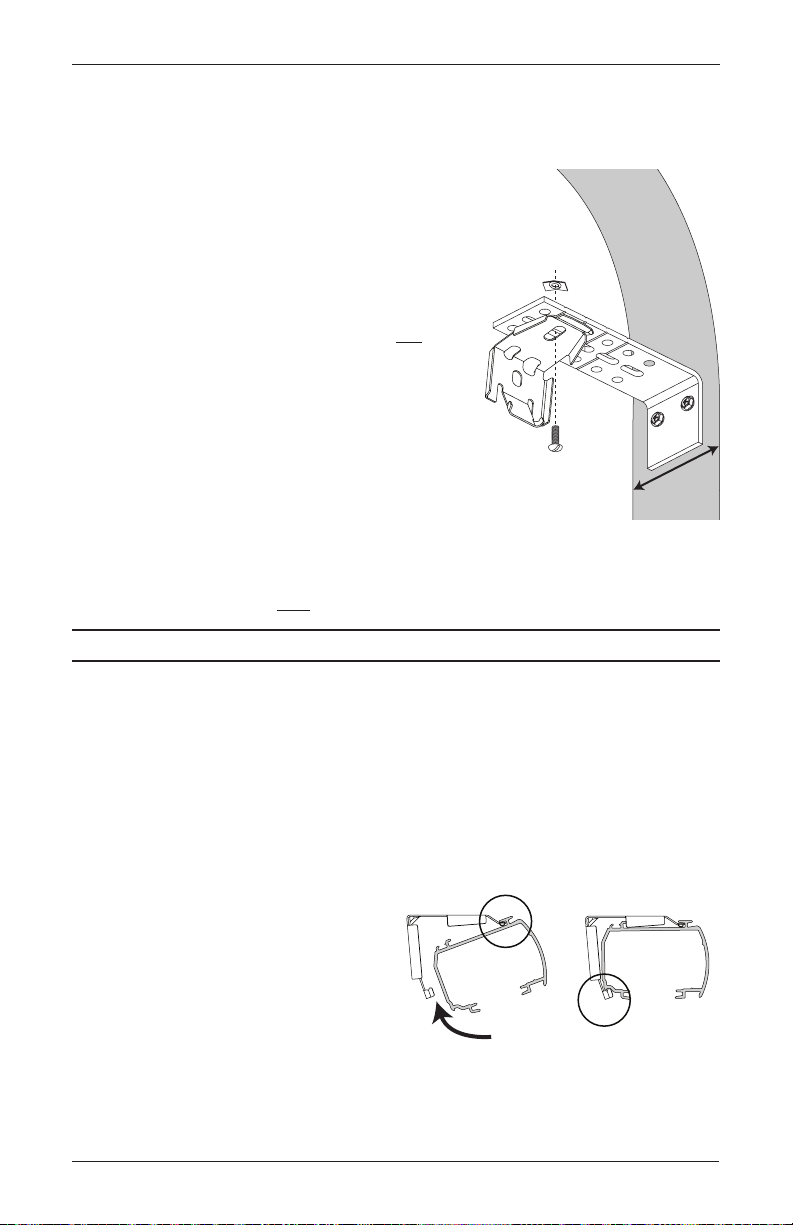

Mount the Installation Brackets — EndMount
End mount the headrail when conventional mounting techniques will not work — for example,
in an arched window. Allow for rear fabric clearance.
■Mount the extension brackets on a surface at least 1
1
/ 2 " wide.
➤The top of the extension brackets should be at the
desired shade height. The brackets should be level
and aligned.
CAUTION: The rear of the extension brackets must
be flush against a flat mounting surface. Do not
mount the extension brackets onthe curved surface
of the arch opening.
■Mark two screw holes per bracket.
■Attach the extension brackets using the screwsprovided.
IMPORTANT: Use a level to check that the mounting
surface is level. Shim the brackets if necessary.
■Attach the installation brackets to the underside of the extension brackets using the
provided screws and speednuts.
CAUTION: Both brackets must be installed at the same depth and height.
Proceed to “Install the Shade” below.
Install the Shade
■Peel back the top edge of the protective covering from the top of the headrail.
■Lower the fabric about 6" before installing the shade.
IMPORTANT: To avoid damage to the fabric, make sure the fabric is not caught between
the headrail and the installation bracket.
■Position the shade so that the front faces you.
■Slip the headrail into the installation
brackets so the front of the bracket slides
under the front groove on the top of
theheadrail.
■Gently roll the back of the headrail up and
push back to snap it into the bracket.
■Remove the protective covering from the
headrail.
Speed
Nut
Screw
1
1
/ 2 "
Minimum
Headrail
Bracket
Front of the bracket
fits under groove.
Back of the
headrail snaps
into the bracket.

INSTALLATION
9

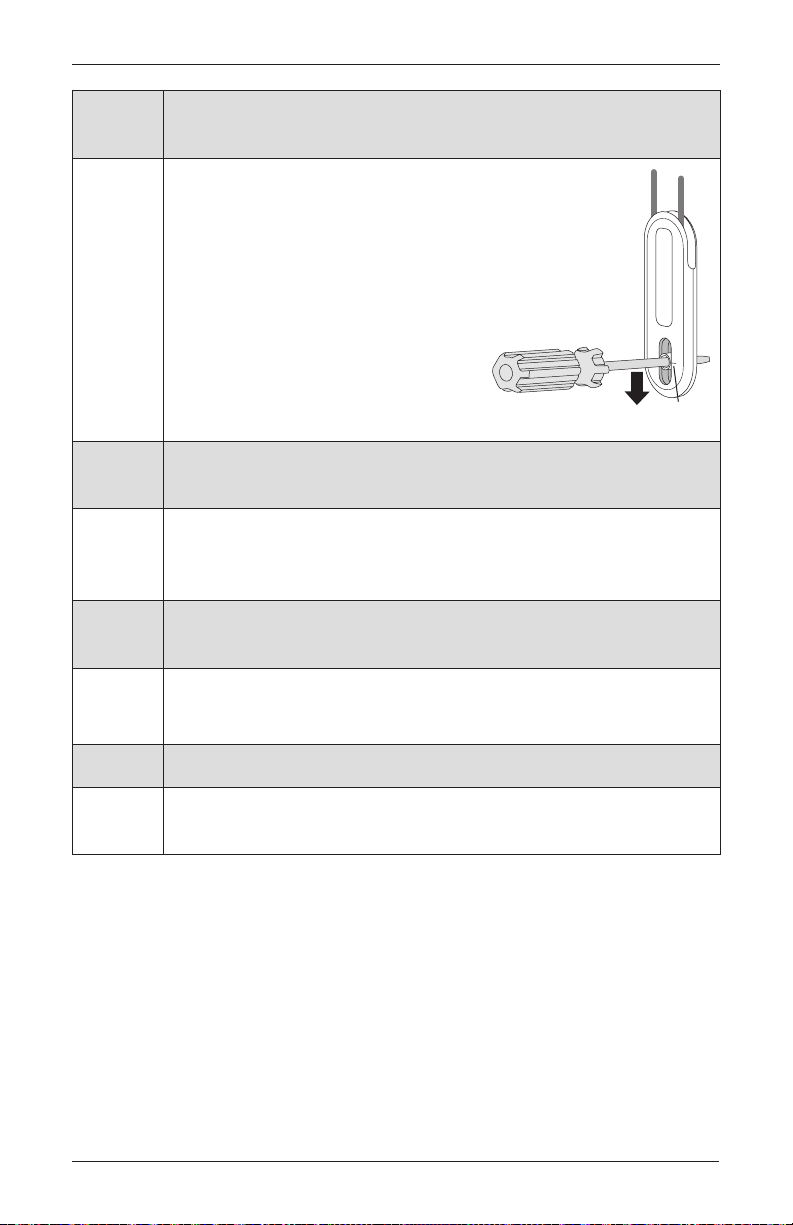

Attach the Universal Cord Tensioner — EasyRise™Shades Only
Before you proceed, you must first slide the cord tensioner(s) to the bottom of the cordloop.
■Insert a small screwdriver, punch, or awl through the screw hole at the bottom
of the cord tensioner.
■Move the screw hole down to the indicator line to release the safety
mechanism.
■Slide the cord tensioner down to the bottom of the cordloop.
■Attach the cord tensioner(s) according to the instructions
provided with the Universal Cord Tensioner Installation Kit.
WARNING: It is imperative that the cord tensioner(s) be properly secured to
the wall or window frame to reduce children’s access to the cord loop.
Young children can strangle in cord loops. They can also wrap cords around
their necks and strangle.
CAUTION: The shade will not operate properly unless the cord tensioner(s)
is secured. A Universal Cord Tensioner Installation Kit has been included
with your shade. Follow the instructions in the kit to correctly secure the
cordtensioner(s).
Cord Adjustment — UltraGlide®Shades Only

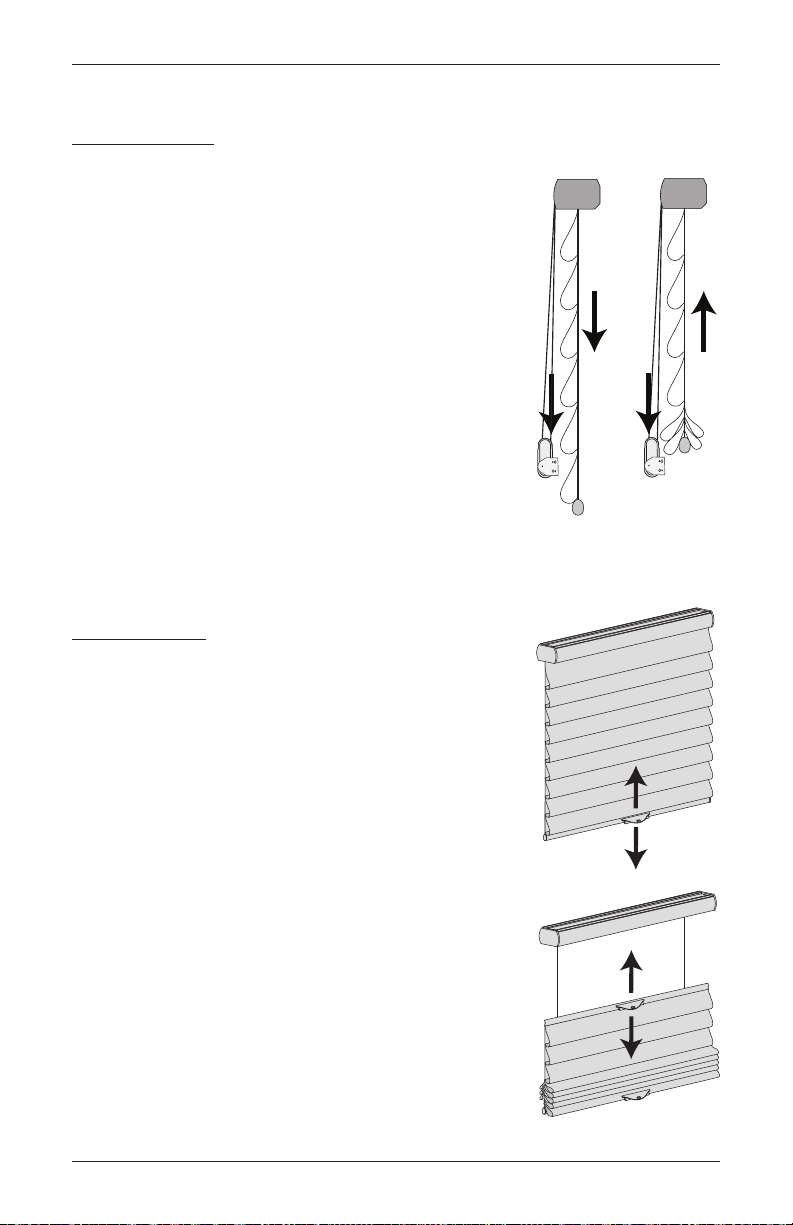

Adjusting the tassel to eye level will decrease the amount of pulls needed to raise and lower
theshade. This will also enhance child and pet safety.
To Shorten the Tassel Cord
■Grasp both parts of the tassel (the colored cover and the
frosted body).
■Squeeze the tassel cover with your thumb and forefinger
(at the “s” in the HunterDouglas logo).
■Separate and slide the tassel cover off from the tassel body.
■Pull out the knotted end of the tasselcord.
■Tie the cord at the desired shorter length using a double knot.
■Trim the tassel cord below the knot.
■Pull the trimmed knot up inside the tassel.
■Squeeze the tassel cover while sliding it back onto the tassel body.
IMPORTANT: After reassembling, be sure there are no gaps between the two components.
Check that they do not pull apart easily. The tassel cover should be securely seated into the
tassel body.
Screw
Hole
Indicator
Line
Tassel
Cover
Tassel
Cord
Tassel
Body

INSTALLATION
10
Attach the Magnetic Hold-Down Brackets (Optional)
■Lower the shade until it is fully lowered.
■Attach the magnetic hold-down bracket onto the bottom rail just
inside the end cap, oriented as shown.
■Mark the screw location using one of the mounting options shown
below.
➤The screw should be placed in the middle of the channel. This
will allow for adjustment.
■Drill the screw holes using a
3
/ 32 " drill bit.
CAUTION: Use drywall anchors when mounting into drywall.
■Attach the hold-down brackets to the mounting surface using
the screws provided.
■If necessary, adjust the bracket height by loosening the screw and
sliding the bracket up or down.
Hold-Down
Bracket
End
Cap
Outside Mount
Preferred Alternate
Inside Mount
Preferred Alternate
Adjust the
bracket
using the
channel.

OPERATION
11
Operate the Shade
EasyRise™Shades
To Lower the Shade:
■Pull down on the rear cord of the cord loop to lower the shade.
IMPORTANT: If the cord tensioner moves with the cord, you
have not secured it to the wall or window frame. You must do
so for the shade to operate properly. See the Universal Cord
Tensioner Installation Instructions in the kit included with
yourshade.
To Raise the Shade:
■Pull down on the front cord of the cord loop to raise the shade.
Top-Down/Bottom-Up Shades:
■The left cord controls the bottom rail. The right cord controls
the middle rail.
IMPORTANT: You must first lower the bottom rail before
lowering the middle rail. Likewise, you must first raise the middle rail before raising the
bottom rail.
LiteRise®Shades
To Lower the Shade:
■Slowly and steadily pull down on the bottom rail handle.
To Raise the Shade:
■Slowly and steadily push up on the bottom rail handle. Allow
the shade to stack evenly.
Top-Down/Bottom-Up Shades:
■Raise or lower the middle rail by slowly and steadily pushing
up or pulling down on the middle rail handle.
IMPORTANT: You must first lower the bottom rail before
lowering the middle rail. Likewise, you must first raise the
middle rail before raising the bottom rail.
Lower Raise

OPERATION
12
UltraGlide®Shades
CAUTION: To avoid damage to the shade or personal injury, do not let go of the cord until it is
fully retracted.
To Lower the Shade:
■Pull the cord toward the center of the shade
at a 45° angle. A locking mechanism at the
top of the cord releases with a “click”. The
shade automatically lowers as you allow the
cord to retract, releasing the tension.
■To stop the shade while lowering, move the
cord back toward the vertical position and
give a slight downward pull, until the locking
mechanism engages.
■If the shade hits an obstruction as it is lowered, it will stop and the internal cords may
become misaligned. This may cause the shade to be angled or tilted when fully raised. If this
occurs, do the following:
➤Raise the shade slightly.
➤Lower the shade completely to the sill. In some cases, pull gently on the bottom rail to
get it to drop completely.
IMPORTANT: If the shade is tilted when fully raised, do not pull harder on the cord. It does
not correct the tilt and may make it worse. See “Troubleshooting” starting on page13.
NOTE: On inside mount shades, the bottom rail and fabric folds may rest on the sill.
To Raise the Shade:
■Pull the cord straight down using short
evenstrokes.
➤With each stroke the shade partially raises.
➤Allow the cord to retract after each
downward stroke.
➤Use multiple strokes until the shade
reaches the desired position.
NOTE: Tiered™UltraGlide shades stop below
the first fold in the fuly raised position to provide clearance for cord operation.
Top-Down/Bottom-Up Shades:
■Theleft cord controls the bottom rail. Theright cord controls the middle rail.
IMPORTANT: You must first lower the bottom rail before lowering the middle rail. Likewise,
you must first raise the middle rail before raising the bottom rail.
To Lower:
Pull the cord
toward the
center, click
and release.
To Raise:
Pull the
cord straight
down with
short strokes.
Allow the cord to retract between strokes.
To stop the shade while lowering, move the cord
back toward the vertical position and give a slight
downward pull, engaging the locking mechanism.
To Lower:
Pull the cord
toward the
center, click
and release.
To Raise:
Pull the
cord straight
down with
short strokes.
Allow the cord to retract between strokes.
To stop the shade while lowering, move the cord
back toward the vertical position and give a slight
downward pull, engaging the locking mechanism.

OPERATION
13
Troubleshooting
Problem The shade is hard to raise or lower, or will not raise or lower.
Solution Check that the headrail and installation brackets are level and aligned in the
window. Level the headrail by shimming the installation brackets, if necessary.
Make sure the fabric is not caught in the installationbrackets.
EasyRise™shades: Check that the cord tensioner is mounted correctly.
See Universal Cord Tensioner Installation Instructions in the kit included with
your shade.
EasyRise shades: Check that cord loop is not pinched or tangled.
UltraGlide®shades: As you pull the cord, check that the cord is clearing the
fabric folds.
LiteRise®shades: Pull down on the handle to engage the shade for operation.
Problem The fabric folds gather unevenly or seem to wrinkle.
Solution Slowly lower the shade and raise the shade again.
NOTE: This is inherent on narrow shades when fully stacked.
Problem The shade will not snap into the installation brackets.
Solution Check that the installation brackets are aligned and level. Level the headrail by
shimming the installation brackets, if necessary.
Check that the headrail is properly aligned in the installation brackets, see
“Install the Shade” on page 8.
Check that the fabric is not caught in the brackets.
Problem The front fabric appears to cling to the back fabric.
Solution Lightly apply a static spray for home furnishings. Follow the manufacturer’s
directions. If necessary, reapply the static spray each time the shade is
professionally cleaned. Allow the shade to dry in the fully lowered position.

OPERATION
14
Problem EasyRise™shades only: The universal cord tensioner has climbed to the
headrail.
Solution Pull down on the spring to relieve tension and pull the
universal cord tensioner to the bottom of the cord loop.
Properly mount the cord tensioner. See “Attach the
Universal Cord Tensioner — EasyRise Shades Only”
on page 9 and/ or the instructions included with
your Universal Cord Tensioner Installation Kit.
Problem EasyRise shades only: The shade raises at different rates when the cord is
pulled.
Solution Depending on the size and weight of the shades, the clutch ratios may be
different. More cord travel is required with larger shades than with smaller
shades. This is completely normal, and not a defect of the product.
Problem The shade raises or lowers unevenly, or the bottom rail is uneven when fully
raised.
Solution Check that the headrail is level. Level the headrail by shimming the installation
brackets, if necessary.
Problem UltraGlide®shades only: Shades do not stack fully to the top.
Solution Check that the headrail is level. Level the headrail by shimming the installation
brackets, if necessary.
Universal
Cord
Tensioner
Indicator
Line

CARE
15
Removing the Shade
■While holding the headrail, lower the shade
approximately 4".
■Push back on the bottom tab of the installation
bracket using your thumb or a flat blade
screwdriver to release the bottom edge of
theheadrail.
■After releasing the bottom edge, roll the back of the
headrail down and out from the bracket.
Cleaning Procedures
Vignette®Modern Roman Shades are made of an anti-static, dust-resistant fabric which repels
dirt and dust. For most fabrics, the options below are available if your shade needs cleaning.
Dusting
■Regular light dusting with a feather duster is all the cleaning needed in most circumstances.
Vacuuming
■Use a hand-held vacuum with low suction for more thorough dust removal.
Compressed Air / Hair Dryer (Cool Setting)
■Blow dirt and debris from within the fabric folds using clean, compressed air.
Spot-Cleaning
■Prepare a solution of warm water and mild detergent.
■Dampen a clean cloth in the solution and wring it out.
■Place a dry, clean cloth behind the spot between the face fabric and the back fabric.
■Dab the spot with the dampened cloth until it is removed. Non-oil-based baby wipes may be
used on more stubborn stains. Do not rub the fabric.
■Allow the shade to dry in the completely lowered position.
Back of
Shade
Push back against
the tab using
your thumb or flat
blade screwdriver.
Roll the headrail
down and out
from the bracket.
Tab➊
➋

CARE
16
Ultrasonic Cleaning
Vignette®Modern Roman Shades can be ultrasonically cleaned by a professional.
CAUTION: Do not ultrasonically clean the headrail, midrail, or bottom rail fabric; or any room-
darkening shades.
■Specify that a mild detergent solution be used.
■Never immerse the fabric-covered headrail or bottom rail into the solution.
■Allow the shade to dry in the completely lowered position.
Injection / Extraction Cleaning
Vignette Modern Roman Shades can be cleaned by a professional using the injection/extraction
method of deep cleaning.
CAUTION: Do not use the injection/extraction method of deep cleaning on the headrail or
bottom rail fabric.
■Specify the dry cleaning method only.
■Pretreat heavy stains.
Steaming
CAUTION: Do not steam the headrail, midrail, or bottom rail fabric.
■Steam the face fabric from the bottom to the top, making sure to get steam under each
fabric fold. Be careful not to saturate the fabric with steam.
■Allow the shade to dry completely before raising it.
A Note on Textiles
As with all textiles, Vignette fabrics are subject to some inherent variations in the fabric weave.
Subtle dye-lot variations, puckering, or wrinkling fall within textile industry standards and should
be considered as normal, acceptable quality. Additionally, there will be slight differences in
pattern alignment from the fabric on the rails to the fabric of the shade, which do not detract
from the product’s appeal.
Variations in color and or pattern are unique characteristics that contribute to the classic beauty
of theshade.

CHILD SAFETY
17
Warning
For more safety information call 1-888-501-8364
in the U.S. or 1-866-662-0666 in Canada.
WARNING
■Young children can STRANGLE in cord loops. They can also wrap cords around
their necks and STRANGLE.
■Always keep cords out of the reach of children.
■Move cribs, playpens and other furniture away from cords. Children can climb
furniture to get to cords.
■Do not tie cords together. Make sure cords do not twist together and create aloop.
Cord Loop Shades
■Attach the cord tensioner on the cord loop to the wall or window
casement. See “Attach the Universal Cord Tensioner (UCT)” on
page 9. This can prevent children from pulling cord loops around
their necks.
■Hunter Douglas provides a cord tensioner installation kit with
instructions for attaching the cord tensioner. For the shade to
operate properly, the cord tensioner must be correctly mounted
and secured.
■Fasteners provided in the cord tensioner installation kit may not
be appropriate for all mounting surfaces. Use appropriate anchors
for the mounting surface conditions.
■Only Hunter Douglas supplied cord tensioners and hardware
should be used. Replacement parts may be obtained by
contacting theHunter Douglas Customer Information Center
at 1-888-501-8364.
NOTE: The warning labels on the bottom rails of corded window coverings contain
important safety information. These warning labels are designed to be permanent, in
accordance with the industry’s safety standards, and must not be removed.

5106149000
The Hunter Douglas®Lifetime Guarantee is an expression of our desire to provide a thoroughly satisfying
experience when selecting, purchasing and living with your window fashion products. If you are not thoroughly
satisfied, simply contact Hunter Douglas at [phone] or visit hunterdouglas.com. In support of this policy
of consumer satisfaction, we offer our Lifetime Limited Warranty as described below.
NOTE:In no event shall Hunter Douglas or its licensed fabricators/distributors be liable or responsible for incidental
or consequential damages or for any other indirect damage, loss, cost or expense. Some states do not allow the exclusion or
limitation of incidental or consequential damages, so the above exclusion or limitation may not apply to you. This warranty
gives you specific legal rights, and you may also have other rights which vary from state to state.
Different warranty periods and terms apply for commercial products and applications.
Hunter Douglas (or its licensed fabricator/distributor) will repair or replace the
window fashion product or components found to be defective.
COVERED
BY ALIFETIME LIMITEDWA RRANTY
• Hunter Douglas window fashion products are
covered for defects in materials, workmanship
or failure to operate for as long as the original
retail purchaser owns the product (unless shorter
periods are provided below).
• All internal mechanisms.
• Components and brackets.
• Fabric delamination.
• Operational cords for a full 7 years from the
date of purchase.
• Repairs and/or replacements will be made with
like or similar parts or products.
• Hunter Douglas motorization components are
covered for 5 years from the date of purchase.
NOT COVERED
BY ALIFETIME LIMITEDWA RRANTY
• Any conditions caused by normal wear and tear.
• Abuse, accidents, misuse or alterations to the
product.
• Exposure to the elements (sun damage, wind,
water/moisture) and discoloration or fading
over time.
• Failure to follow our instructions with respect
to measurement, proper installation, cleaning
or maintenance.
• Shipping charges, cost of removal and reinstallation.
TO OBTAIN WARRANTY SERVICE
1. Contact your original dealer (place of purchase) for warranty assistance.
2. Visit hunterdouglas.com for additional warranty information, frequently asked questions and access to service locations.
3. Contact Hunter Douglas at [phone] for technical support, certain parts free of charge, for assistance in obtaining
warranty service or for further explanation of our warranty.
5/15
