Installation •Operation •Care
Vignette®Modern Roman Shades
Rolling Style Duolite®Shades
PowerView®Motorization

CONTENTS
Getting Started:
Product View ................................................................ 1
Tools and Fasteners Needed .......................................... 2
Installation:
Installation Overview ..................................................... 3
STEP 1 — Mount the Installation Brackets ..................... 3
STEP 2 — Remove the Shipping Clips ........................... 7
STEP 3 — Install the Shade .......................................... 8
STEP 4 — Connect the Power Source............................ 9
Operation:
Operate the Shade ...................................................... 13
Using the PowerView®Remote..................................... 14
Resetting the Shade (If Necessary) ............................... 15
Troubleshooting .......................................................... 16
Care:
Removing the Shade ................................................... 19
Cleaning Procedures ................................................... 19
Declarations .............................................................. 21
Warranty.........................................................Back Cover
Questions?
Call Hunter Douglas Consumer Support at 1-888-501-8364.
© 2018 Hunter Douglas. All rights reserved. All trademarks used herein are the property of Hunter Douglas or
their respective owners.

GETTING STARTED
1
Product View
Battery
Wand
Battery
Wand Clips
Installation
Brackets
Power Cable*
Front Shade
Bottom Rail Bottom Rail
Weight Clips
Bottom Rail
Weight
Spacer
Blocks
*The power cable, PowerView®motor, and programming button are always located on the right side of
the headrail.
Remote
Back P
anel
Bottom Rail
Front
Shade
Front
Shade
Bottom
Rail
Back P
anel
Programming
Button*
Headrail
Rear of Front Shade
Wire Saddle

2
GETTING STARTED
Thank you for purchasing Hunter Douglas Vignette®Modern Roman Shades Duolite®with
PowerView®Motorization. With proper installation, operation, and care, your new shades will
provide years of beauty and performance.
Please thoroughly review this instruction booklet and the enclosed packing list before beginning
the installation. For information regarding operation and programming, refer to the guide
included with your remote control.
Tools and Fasteners Needed
■Flat blade and Phillips screwdrivers
■Level (laser level is recommended)
■Measuring tape and pencil
■Power drill,
3
/ 32 " drill bit, and
1
/ 4 " hex driver
In addition, you will need fasteners designed to work with your specific mounting surface(s).
■#6 Hex Head Screws (Provided). Two 1
1
/ 2 " screws are provided per installation bracket.
■Longer Hex Head Screws (Not Provided). If using spacer blocks, use #6 screws long
enough for a secure attachment.
■Speed Nuts and Screws (Provided). Extension brackets are supplied with screws and
speed nuts.
■Drywall Anchors (Not Provided). Use drywall anchors when mounting into drywall.
Speed Nut
and Screw
(Two Provided with
Each Extension Bracket)
#6 x 1
1
/ 2 "
Hex Head Screw
(Provided)
Longer #6 Hex Head Screw
for Use with Spacer Blocks
(Not Provided)

INSTALLATION
3
Installation Overview
To install your shade, you will need to perform the following four steps:
STEP 1: Mount the Installation Brackets
STEP 2: Remove the Shipping Clips
STEP 3: Install the Shade
STEP 4: Connect the Power Source
STEP 1 — Mount the Installation Brackets
■Your order includes the correct number of installation brackets for your shade width, as
shown in the table below.
■Shade orders will also include spacer blocks if ordered for added clearance.
Mounting Types and Window Terminology
If the installation brackets are mounted correctly, the rest of the shade installation process
follows easily. To prepare for this important first step, review the mounting types and basic
window terminology illustrated below.
■Refer to the appropriate page below based on the mounting type chosen for your order:
➤Inside Mount — Page 4
➤Outside Mount — Page 5
Outside Mount
Shade mounts outside
window opening.
Inside Mount
Shade fits within
window opening.
Collectively, the sill and
jambs are called the
“window casement.”
Molding
Head Jamb
Sill
Jamb Jamb
Shade
Width
Brackets
Required
18" –26"2
26
1
/ 8 " –47" 3
47
1
/ 8 " –68" 4
68
1
/ 8 " –84" 5
Spacer Blocks
Installation Bracket
1
/ 2 "
1
/ 4 "

INSTALLATION
4
Mount the Installation Brackets — Inside Mount
■Measure and mark 3" in from each jamb (two bracket widths) for bracket location.
➤If more than two installation brackets came with your order, space additional bracket(s)
evenly between the two end brackets and mark the location. Mount into wood whenever
possible. Allow a minimum of 18" between bracket center lines (motor side) for
the battery wand.
Recommended Best Practice: To enhance ease of installation, position the front edge of the
installation bracket approximately
1
/ 4 " into the room.
■Center the brackets on your marks, then mark the screw hole locations.
➤The minimum casement depth for installation
brackets is 1" (1
3
/ 8 " with battery wand). Mark
the rear set of installation bracket holes with
shallow mounting depths.
➤The minimum casement depth for a fully recessed
mount is 4" (4
1
/ 2 " with battery wand). Mark the
front set of bracket holes when depth permits.
IMPORTANT: For shades with a battery wand, allow
a minimum of
3
/ 4 " clearance behind the brackets to
accommodate the wand.
■Pre-drill the screw holes using a
3
/ 32 " drill bit.
CAUTION: Use drywall anchors when mounting into drywall.
■Use a level to check that the mounting surface
is level. Shim (not provided) the brackets if
necessary.
■Attach the installation brackets using the
screws provided.
IMPORTANT: The front edges of the
installation brackets must align to each other.
For the best experience, mount the brackets
with the front lip outside the window casement.
Proceed to “STEP 2 — Remove the Shipping Clips” on page7.
3"
Minimum
Casement
Depth 1"
Minimum
1
3
/ 8 " with
Battery Wand
3"
Minimum
Casement
Depth 1"
Minimum
1
3
/ 8 " with
Battery Wand
Jamb Jamb
Window Opening
Space Evenly Space Evenly3" 3"

INSTALLATION
5
Mount the Installation Brackets — Outside Mount
■Center the headrail over the window opening at the desired height. Use a pencil to lightly
mark each end of the headrail.
➤Alternatively, measure the width of the headrail and use that width to mark the headrail
end points over the window opening.
■Measure and mark 3" from each end of the headrail.
➤If more than two installation brackets came with your order, space additional bracket(s)
evenly between the two end brackets and mark the location. Mount into wood whenever
possible. Allow a minimum of 18" between bracket center lines (motor side) for
the battery wand.
■Center the brackets on your marks, then mark the screw hole locations.
➤A minimum 1" flat vertical surface is required.
➤The top of the installation brackets should be at
the desired height. The brackets must be level
and aligned.
CAUTION: The rear of the brackets must be flush
against a flat mounting surface. Do not mount brackets
oncurved molding.
■Pre-drill the screw holes using a
3
/ 32 " drill bit.
CAUTION: Use drywall anchors when mounting into drywall.
3"
Window Opening
Space Evenly Space Evenly3" 3"
Headrail End Mark Headrail End Mark

INSTALLATION
6
■Attach the installation brackets using the screws provided.
IMPORTANT: Additional clearance is required for
PowerView®shades with the battery wand. Use a
minimum of one
1
/ 2 " and one
1
/ 4 " spacer blocks per
installation bracket to provide the clearance required
for the battery wand. See the instructions below.

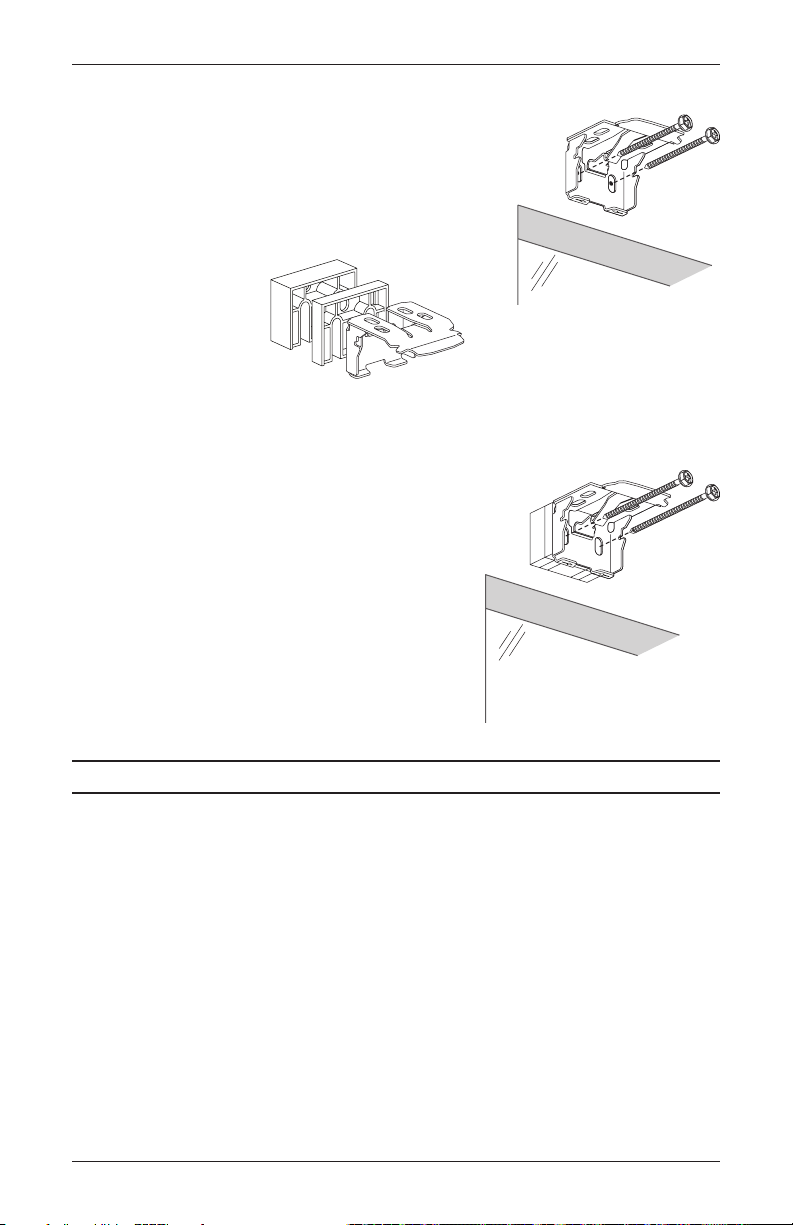

■If the shade will be powered by a battery wand: Attach the installation brackets with
both the
1
/ 4 " and
1
/ 2 " spacer blocks. Use 2" #6 hex head screws (not provided).
➤The solid side of the spacer blocks faces the
mounting surface.
➤If using additional spacer blocks for more
clearance, attach the installation brackets and
spacer blocks with #6 screws long enough for a
secure installation.
IMPORTANT: Do not add more than 1
1
/ 2 " of
clearance using spacer blocks.
IMPORTANT: The tops of the installation brackets
must be level with the front edges aligned.
Proceed to “STEP 2 — Remove the Shipping Clips” on page7.
Spacer
Blocks
Longer
Screws
3"
Spacer
Blocks
1
/ 2 "
1
/ 4 "

INSTALLATION
7

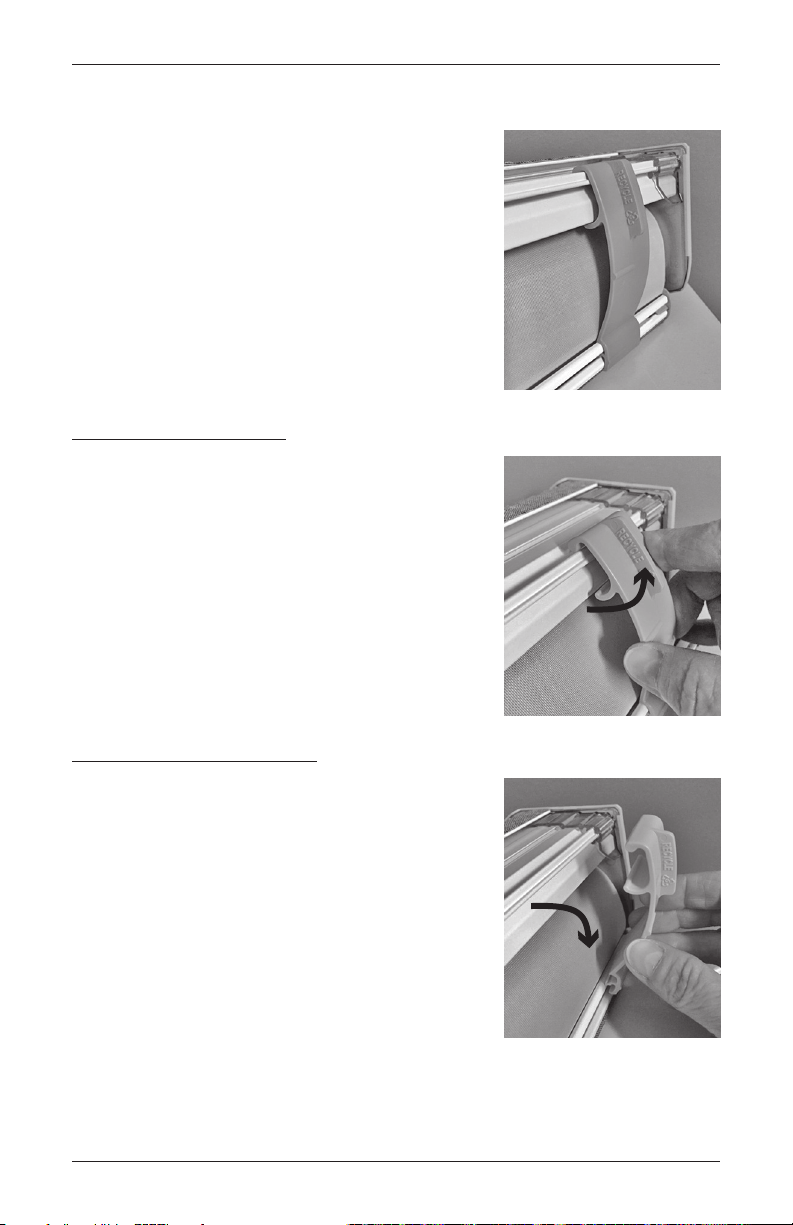

STEP 2 — Remove the Shipping Clips
Shipping clips are used to stabilize the back panel bottom
rail during shipping.
Remove the Top of the Clip
■Grasp the headrail with one hand and hold the
shipping clip with the other hand.
■Pull the top of the clip out and up to release it from
the headrail.
Remove the Bottom of the Clip
■While holding the shipping clip, grasp the back panel
bottom rail with the other hand.
■Rotate the top of the shipping clip away from the
shade. Gently pull the bottom of the clip down and
away from the bottom rail to remove.

INSTALLATION
8
STEP 3 — Install the Shade
Install the Battery Wand Clips
Attach each battery wand clip to the rear of the headrail, avoiding the installation brackets.
NOTE: The battery wand clips can simply slide to clear the installation brackets.
Mount the Headrail
CAUTION: Be sure the cables do not become
pinched by the installation brackets when
mounting the headrail.
■Peel back the protective covering from the
top of the fabric-covered headrail. Leave the
rest of the protective covering on the front
of the headrail.
■Hold the headrail so the front (curvedside)
faces you.
■Push the top edge of the headrail into the
installation brackets.
■Rotate the headrail and push back toward
the window until you hear an audible click.
The click indicates that the back edge of
the headrail is securely seated into the
bracket channel.
WARNING: Failure to snap the
headrail securely into the installation
brackets may cause the shade to
release unexpectedly.
■Gently pull on the front of the
headrail at each bracket to
ensure that the headrail is
locked into the brackets.
■Completely remove the
protective covering from the
fabric-covered headrail by
peeling the covering all the way
to one end of the headrail.
3Back of
Bracket
Headrail
Installation
Bracket
Fabric Guard
1Front of
Bracket
2Back of
Bracket

INSTALLATION
9
■STEP 4 — Connect the Power Source
NOTE: When power is connected to the motor, a green LED inside the programming button
housing will flash to indicate the shade is ready for operation.
■Refer to the appropriate page based on the ordered power source.
➤For a battery wand, see below.
➤For an optional satellite battery pack, see page 10.
➤For an optional 18V DC power supply, see page 11.
➤For an optional 18V DC power supply with daisy-chain connections, see page 12.
➤For an optional C-size satellite battery wand or large DC power supply, see the
instructions that came with the unit.
If You Have a Battery Wand...
Mount the Battery Wand into the Battery Wand Clips
■Align the battery wand with its socket
toward the motor end on the shade.
■Push the battery wand straight up into
the battery wand clips until it snaps
into place. Check to make sure the
battery wand is secure.
■Attach the wire saddle to the headrail
in the area indicated by the dashed
line above.
■Clip the power cable into the wire saddle, avoiding entanglement with brackets or the shade.
CAUTION: Be sure the cable does not become pinched by the battery wand clips during
installation. Damage or overheating of components could result.
Plug the Power Cable into the Battery Wand
■From the back of the shade headrail,
connect the power cable (from the motor
side) into the socket on the battery wand.
Proceed to “Operate the Shade” on page13.
Socket
Power
Cable
Back of Shade
Socket
Back of Shade
Wire Saddle

INSTALLATION
10

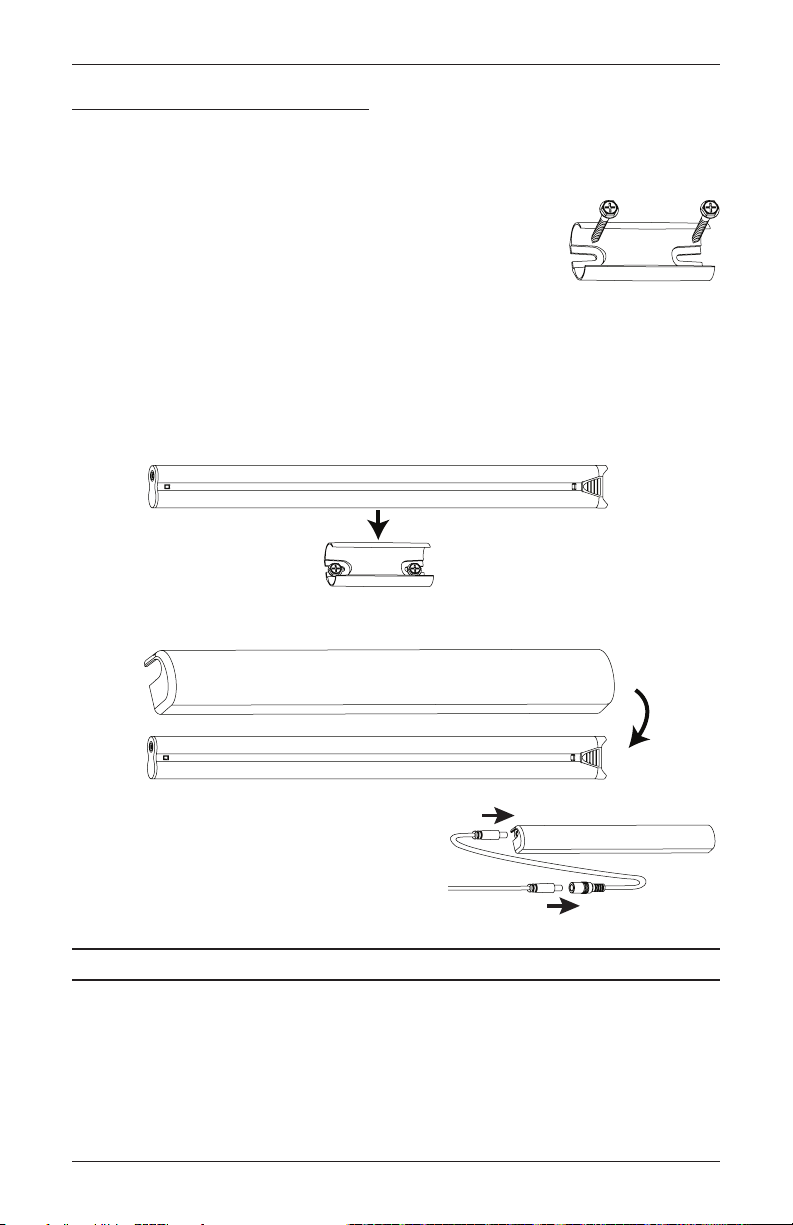

If You Have a Satellite Battery Pack...
Mount the Satellite Battery Pack
■Decide where you want to attach the wall mount bracket.
A satellite battery pack may be mounted in any orientation.
■Mark the screw holes.
■Pre-drill the screw holes using a
3
/ 32 " drill bit.
■Remove the backing from the double-sided tape on the wall mount bracket. Press the
bracket into place.
■Attach the bracket using the screws provided.
■Position the battery wand so the power cable is easily connected to the socket.
■Snap the battery wand into the bracket.
■Install the cover with the slot aligned to the socket in the battery wand.
■Plug the power cable from the shade into the
extension cable.
■Plug the other end of the extension cable into
the socket in the battery wand.
Proceed to “Operate the Shade” on page13.
Battery Wand Cover
Extension
Cable
Power Cable
from Shade
Wall Mount Bracket
Socket
Battery Wand Cover
Slot
Socket

INSTALLATION
11
If You Have an 18V DC Power Supply...
Connect the Power Supply
■Plug the power cable from the shade into
the extension cable.
■Plug the other end of the extension cable
into the 18V DC power supply.
■Plug the 18V DC power supply into a
standard outlet.
■Secure the extension cable using wire
retainers (not supplied). If hiding the cable
behind the shade, make sure it does not
impede the operation of theshade.
■Space the wire retainers approximately
15" apart along the power supply wire,
as shown.
WARNING: Keep cords and small
parts out of the reach of children.
They can wrap cords around their
necks and STRANGLE.They can
also put small parts in their mouths
and CHOKE.
WARNING: Electric shock and/or a fire hazard may occur, if not properly installed.
Proceed to “Operate the Shade” on page13.
Power Cable
from Shade
Extension
Cable
18V DC
Power
Supply
15"
Maximum
Wire Retainers

INSTALLATION
12
If You Have an 18V DC Power Supply with Daisy-Chain Connections...
The daisy-chain feature allows up to three PowerView®motorized shades to be powered by a
single 18V DC power supply. However, each shade has its own RF receiver and can operate
independently. The daisy-chain feature is only available with the 18V DC power supply option.
■Route the power cables from each shade to the connector, using extension cables if
necessary.
■Plug an extension cable into the connector and the 18V DC power supply. A two-shade
configuration is shown below.
■An additional connector and two additional extension cables are used for three shades.
Extension
Cable Connector
18V DC Power
Supply
Power
Cable
from
Shade
Extension
Cable

OPERATION
13
Operate the Shade
The shade can be operated using the programming button or the PowerView®remote. A single
control is used to operate both the front shade and the back panel. Operation is sequential. The
front shade must be fully lowered before the back panel can be lowered. Conversely, the back
panel must be fully raised before the front shade can be raised.
Test the Shade
Use the programming button to test the shade and ensure that the motor and power source
are working correctly. Each press of the programming button will initiate one of four shade
movements, in sequential order.
1. With the shade in the fully raised
position, press and release the
programming button. The front shade
moves to the fully lowered position.
If the shade does not operate, see
“Troubleshooting” on page16.
2. Press and release the programming
button a second time. The back panel
moves to the fully lowered position.
3. Press and release the programming
button a third time. The back panel
moves to the fully raised position.
4. Press and release the programming
button a fourth time. The front shade
moves to the fully raised position.

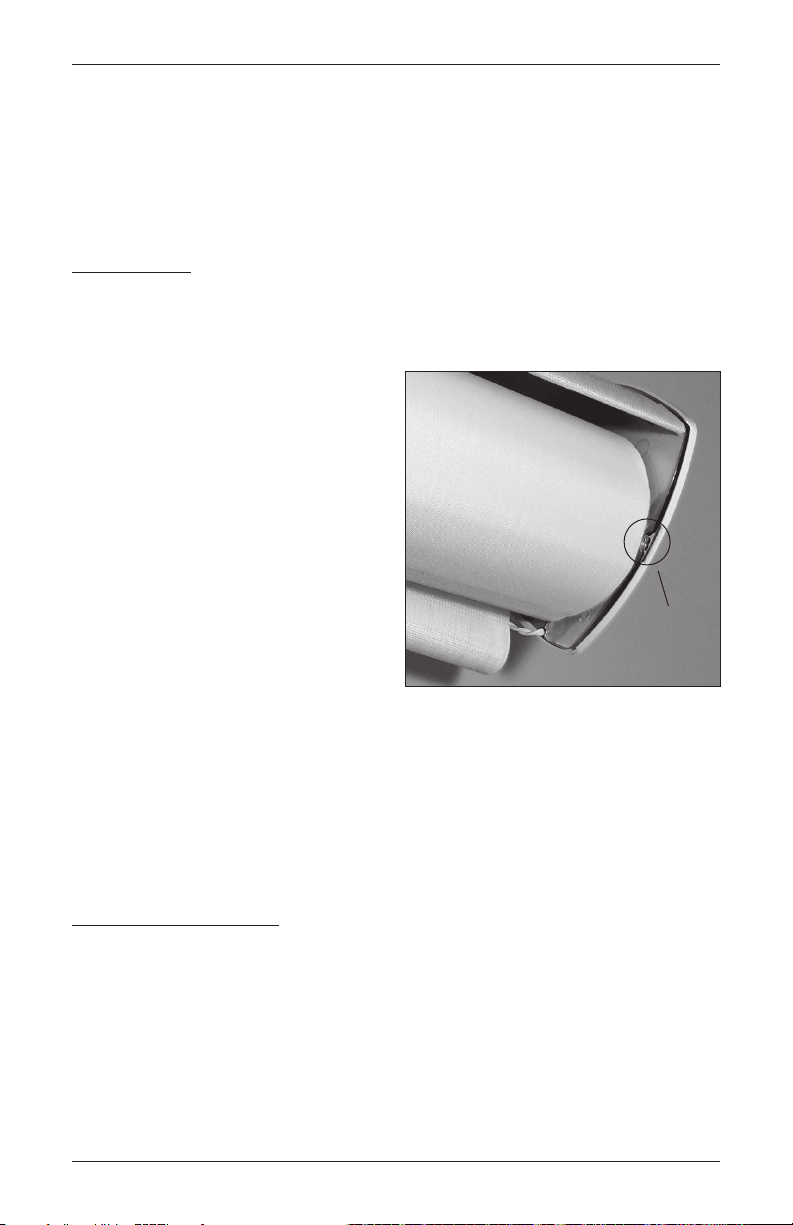

CAUTION: When raising the shade for the first time, observe how the fabric rolls up into
the headrail. It should roll up evenly. If the bottom rail is not level or the shade starts to rub
against either window jamb, immediately press the programming button to stop the shade. See
“Adjusting the Bottom Rail Weight” on page18.
Using the PowerView Hub
■Before setting up the remote, refer to the PowerView Hub Quick Start Guide.
Programming
Button

OPERATION
14
Using the PowerView®Remote
First, activate the remote by pulling both plastic tabs from the back battery compartment.
Note: If you have more than one remote, see “Adding Additional Remote(s) to the PowerView®
Shade Network” in the PowerView Motorization Remote Control Guide.
Joining a Shade to a Group
IMPORTANT: The shade will not operate using the remote until it has been joined to a group.
1. Press and hold ■STOP on the remote until the indicator lights blink (approximately 6
seconds). The remote is now in program mode.
2. Press the desired group number (1 – 6) on the remote. The backlit group number will flash to
show it is selected.
3. While pressing the programming button on the shade, press ▲OPEN on the remote. The
green light flashes once and either the front shade or back panel will move slightly twice
(up, down, or down, up) to indicate the shade has joined the group. Release the programming
button.
4. Press and hold ■STOP on the remote until the indicator lights stop blinking (approximately
6 seconds).
Basic Operation
■To wake up the remote, simply pick it up or press ■STOP. The last group(s) selected will be
highlighted and active.
■Press “all” or groups 1 – 6 to select specific shade(s) to move. Selected group button(s) will
light to show they are selected.
➤Multiple group buttons may be selected at a time.
➤To deselect a group, press the group button again. The backlight for that group button
will go out.
■Press ▼CLOSE to lower the front shade and back panel to fully closed.
■Press ▲OPEN to raise the front shade and back panel to fully open.
■Press ■STOP to stop front shade or back panel movement anywhere along its travel.
Group 1
Group 2
OPEN
(Raises the front shade and back panel)
CLOSE
(Lowers the front shade and back panel)
Group 3 Group 4
Group 5
Group 6
Favorite
(Shade position of the back panel)
LEFT ARROW
(Lowers the front shade
and raises the back panel)
RIGHT ARROW
(Lowers the front shade
and raises the back panel)
STOP
(All shade movement stops)
(Press and hold for programming mode)

OPERATION
15
■Press the left arrow or the right arrow to lower the front shade to fully closed and raise the
back panel to fully open.
■While a shade is in motion, press the opposite of shade motion (
▲ OPEN or ▼ CLOSE) to
reverse direction and move to fully open or fully closed.
■Press
♥ FAVORITE to send selected shade(s) to your preset “favorite” position. Refer to the
PowerView
®
Motorization Remote Control Guide on how to set a favorite position. The default
favorite position is the back panel at 50% open.
Further Operation and Programming Information
PowerView Pebble®Remote and/or PowerView Surface Remote Operation
For information regarding operation and programming of the PowerView remote, refer to your
PowerView Motorization Remote Control Guide or to the online PowerView Step-by-Step Guide at
hunterdouglas.com/operating-systems/motorized/powerview-motorization/manuals.
PowerView Scene Controller
For information regarding operation and programming of the PowerView Scene Controller, refer to
your PowerView Motorization Scene Controller Guide or to the online PowerView Step-by-Step Guide
at hunterdouglas.com/operating-systems/motorized/powerview-motorization/manuals.
PowerView App Operation
The PowerView Hub is required for PowerView App operation. For information regarding setup
and operation using the PowerView App, refer to the online PowerView Step-by-Step Guide at
hunterdouglas.com/operating-systems/motorized/powerview-motorization/manuals.
Resetting the Shade (If Necessary)
Calibration Reset
The calibration reset is used to recalibrate the shade’s travel limits.
1. Press and hold the programming button for approximately 6 seconds. The shade will move
slightly. Release the programming button (the light flashes red).
2. Both the front shade and back panel will raise to their fully open positions to reestablish the
upper travel limit, then lower to their fully closed positions to reestablish the lower travel limit.
The back panel will then move slightly twice (up, then down) to indicate that the travel limits were
recalibrated.
Resetting Shade Programming
The programming reset erases all shade programming from memory, including group assignments,
preventing input devices from operating the shade. The primary use is to correct group and network
assignments during installation. The reset does not affect travel limits or the favorite position.
1. Press and hold the programming button for approximately 12 seconds. The shade will move
slightly after 6 seconds, then again after 12 seconds. Release the programming button (the light
flashes red). The light then flashes a series of green and red to indicate that shade programming
is erased from memory.
2. Refer to “Joining a Shade to a Group” on page14 to program the shade to a group.

OPERATION
16
Troubleshooting
If your shade is not operating correctly:
■First review the guide that came with your control device.
■Refer to the following troubleshooting procedures for specific solutions for your shade.
If questions remain, please contact Hunter Douglas Consumer Support at 1-888-501-8364.
Problem The shade will not snap into the installation brackets.
Solution Check that the installation brackets are level and aligned. Adjust and/or shim (not
provided) to level, if necessary.
Be sure the heads of the mounting screws are flush against the installation
bracket.
Check that the headrail is completely inserted into the installation brackets. See
“STEP 3 — Install the Shade” on page8.
If the shade has a battery wand, check that the wand is not interfering with the
installation brackets.
Problem The shade does not operate when the programming button is pushed.
Solution Unplug the power cable from the motor, then plug it back in. A green LED inside
the programming button housing should flash to indicate the motor has power.
Check that the batteries in the battery wand, satellite battery pack, or C-size
satellite battery wand are correctly inserted andarefresh. See page 17 for
replacing batteries in the battery wand.
Check that the battery wand, satellite battery pack, C-size satellite battery
wand, or 18V DC power supply is securely connected to the power cable and
the cables are not pinched or caught in the headrail or installation brackets.
Problem The shade is not responding to the PowerView®remote.
Solution IMPORTANT: A shade will not operate using the remote until it has been
joined to a group.
Check that the correct group number is selected.
Check that the batteries in the remote are correctly inserted and are fresh. The
LEDs that backlight the remote should come on full bright when ■ STOP is
pressed.
Check that the battery wand, satellite battery pack, C-size satellite battery
wand, or 18V DC power supply is securely connected to the power cable and
the cables are not pinched or caught in the headrail or installation brackets.

OPERATION
17
Problem Batteries in the battery wand need to be replaced.
Solution Replace the batteries in the battery wand.
Squeeze the cap latch to release
the cap and remove the cap from
the battery wand.
Install the batteries according to
the instructions on the battery
wand label.
Press the cap on until it latches.
NOTE: Hunter Douglas recommends AA alkaline batteries for use with our
battery-powered shades. These will provide more than one year of operation,
depending on usage. Lithium and rechargeable batteries are not recommended.
Problem The front fabric appears to cling to the back fabric.
Solution Lightly apply a static spray for home furnishings. Follow the manufacturer’s
directions. Allow the shade to dry in the fully lowered position.
If necessary, reapply the static spray each time the shade is professionally
cleaned.
Problem The bottom rail does not raise completely, or lower completely, or its
location when fully lowered has migrated over time.
Solution The batteries may be low in the battery wand, satellite battery pack, or C-size
satellite battery wand. Replace the batteries. Refer to “Batteries in the battery
wand need to be replaced” above.
Check that the battery wand, satellite battery pack, C-size satellite battery
wand, or 18V DC power supply is securely connected to the power cable and
the cables are not pinched or caught in the headrail or installation brackets.
Check that there is clearance between the ends of the shade and the window
casement on inside mounts.
Check if the fabric rolls up evenly into the headrail. If not, see “Adjusting the
Bottom Rail Weight” on page18.
The shade may need to be reset. Refer to “Resetting the Shade (If Necessary)”
on page15.
For information regarding operation and programming of the PowerView
remote, refer to your PowerView Motorization Remote Control Guide or to the
online PowerView Step-by-Step Guide at hunterdouglas.com/operating-
systems/motorized/powerview-motorization/manuals.
Cap
Latch
Battery
Wand
Squeeze

OPERATION
18
Problem Adjacent shades do not roll up evenly.
Solution It is considered normal if the roll-up on adjacent shades is within
5
/ 16 " of each
other. If one shade rolls up tighter than another, repeatedly lower and raise
both shades. The shade may need to be reset. Refer to “Resetting the Shade (If
Necessary)” on page15.
Check that the shade fabric is not catching on any brackets or components.
Check that the fabric winds evenly and does not rub against the headrail. If
uneven, see “Adjusting the Bottom Rail Weight” below.
Problem The shade raises or lowers unevenly, the bottom rail is not level when fully
raised, or the fabric winds unevenly or starts to rub against one end of the
headrail.
Solution Check if the window is out-of-square by measuring the diagonals.
Check that the installation brackets are level. Shim (not provided) to level,
if necessary.
If the headrail is level and the window is square, adjust the bottom rail weight.
Adjusting the Bottom Rail Weight
To adjust, access the bottom
rail weight from the back of
the front shade.
Push up on the weight clips
to release.
Slide the weight in 1" increments, toward the side where the fabric is gathering.
Test the shade. Lower the front shade all the way and check that the bottom rail
is level. Adjust the weight until the fabric winds evenly and does not gather on
either side.
After final adjustments, slide the weight clips back into place.
Apply Skew Adjustment Tape to the Rear Roller Shade
Using the tape strips and instruction guide in the Skew Adjustment Kit included
with your order, place the tape strips onto the window side of the rear roller
shade fabric. The number of tape strips and their placement depends on the
type and severity of the skew, as explained in the instruction guide.
Move Weight to Adjust
Weight
Clip
Weight Weight
Clip
Tape
Strips
