HunterDouglas Vignette User manual

LiteRise®
UltraGlide®
EasyRise™
Vignette®Modern Roman Shades
Rolling Style
EasyRise, LiteRise, and UltraGlide
Operating Systems
Installation •Operation •Care

CONTENTS
Questions?
Call Hunter Douglas Consumer Support at 1-888-501-8364.
Getting Started:
Product View — Rolling Style EasyRise™Shades .......................... 1
Product View — Rolling Style UltraGlide®Shades.......................... 2
Product View — Rolling Style LiteRise®Shades ............................ 3
Tools and Fasteners Needed ........................................................ 4
Installation:
Installation Overview ................................................................... 5
Mount the Installation Brackets — Inside Mount........................... 6
Mount the Installation Brackets — Outside Mount ........................ 7
Mount the Installation Brackets — EndMount .............................. 8
Install the Shade ......................................................................... 9
Attach the Universal Cord Tensioner — EasyRise Shades Only ... 10
Cord Adjustment — UltraGlide Shades Only ............................... 11
Attach the Magnetic Hold-Down Brackets (Optional) ................... 12
Operation:
Operate the Shade .................................................................... 13
Troubleshooting ........................................................................ 15
Care:
Removing the Shade (If Necessary) ............................................ 18
Cleaning Procedures ................................................................. 18
Child Safety:
Warning ................................................................................... 20
Cord Loop Shades..................................................................... 20
Warranty.......................................................................Back Cover
© 2018 Hunter Douglas. All rights reserved. All trademarks used herein are the property of Hunter Douglas
or their respective owners.

GETTING STARTED
1
Product View — Rolling Style EasyRise™Shades
Not Shown: 6" Flat F
old
Magnetic
Hold-Down
Bracket
(Optional)
Headrail
Universal
Cord
Tensioner
and
Bracket
Standard
Shade
Tw
o-on-One Headrail
Shade
4" Full
Fold Fabric
Installation
Brackets

2
GETTING STARTED
Product View — Rolling Style UltraGlide®Shades
Not Shown: 6" Flat F
old
Magnetic
Hold-Down
Bracket
(Optional)
Headrail
Standard
Shade
Two-on-One Headrail
Shade
4" Full
Fold Fabric
Installation
Brackets
Tassel
Retractable
Cord

GETTING STARTED
3
Product View — Rolling Style LiteRise®Shades
Magnetic
Hold-Down
Bracket
(Optional)
Installation
Brackets
Headrail
Standard
Shade
Handle
4"Full
Fold Fabric
Not Shown: 6"Flat F
old
Tw
o-on-One Headrail
Shade

4
GETTING STARTED
Thank you for purchasing Hunter Douglas Vignette®Modern Roman Shades. With proper
installation, operation and care, your new shades will provide years of beauty and performance.
Please thoroughly review this instruction booklet and the enclosed packing list before beginning
the installation. If your shade has a protective plastic cover on the fabric-covered headrail, keep
the plastic in place until the shade is installed.
Tools and Fasteners Needed
■Flat blade and Phillips screwdrivers
■Level (laser level is recommended)
■Measuring tape and pencil
■Needle-nose pliers
■Power drill,
3
/ 32 " drill bit, and
1
/ 4 " hex driver
In addition, you will need fasteners designed to work with your specific mounting surface(s).
■#6 Hex Head Screws (Provided). Two 1
1
/ 2 " screws are provided per installation bracket.
■Longer Hex Head Screws (Not Provided). If using spacer blocks, use #6 screws long
enough for a secure attachment. Add
1
/ 2 " length for each spacer block.
■Speed Nuts and Screws (Provided). Extension brackets (for end mounts only) come with
screws and speed nuts.
■Drywall Anchors (Not Provided). Use drywall anchors when mounting into drywall.
Speed Nut
and Screw
(Two Provided with
Each Extension Bracket)
#6 x 1
1
/ 2 "
Hex Head Screw
(Provided)
Longer #6 Hex Head Screw
for Use with Spacer Blocks
(Not Provided)

INSTALLATION
5
Installation Overview
■Your order will include installation brackets specific to your shade.
➤The number of installation brackets required varies with shade width, as shown in
the table.
■Two-On-One Headrail Shades. The appropriate number of brackets are provided for
each panel.
Mounting Types and Window Terminology
If the installation brackets are mounted correctly, the rest of the installation process follows
easily. To prepare for this important first step, review the mounting types and basic window
terminology illustrated below.
■Refer to the appropriate page below based on your order:
➤Inside Mount — Page6
➤Outside Mount — Page7
➤End Mount — Page8
Installation
Bracket
Outside Mount
Shade mounts outside
window opening.
Inside Mount
Shade fits within
window opening.
Collectively, the sill and
jambs are called the
“window casement.”
Molding
Head Jamb
Sill
Jamb Jamb
Shade Width
Brackets
Required
12" – 38" 2
38
1
/ 8 "–72" 3
72
1
/ 8 " – 96" 4
96
1
/ 8 " – 120" 5
120
1
/ 8 " – 140" 6

INSTALLATION
6
Mount the Installation Brackets — Inside Mount
■Measure and mark 3" in from each jamb (two bracket widths) for bracket location.
➤If more than two installation brackets came with your order, space additional bracket(s)
evenly between the two end brackets. Mount into wood whenever possible.
Recommended Best Practice: To enhance ease of installation, position the front edge of the
installation bracket approximately
1
/ 4 " into the room.
■Two-On-One Headrail Shades. Place the installation brackets as shown in the
illustration below.
■Center the brackets on your marks and mark each of the screwholes.
➤The minimum casement depth for installation
brackets is 1". Mark the rear set of installation
bracket holes with shallow mounting depths.
➤The minimum casement depth for a fully
recessed mount is 4". Mark the front set of
bracket holes when depth permits.
IMPORTANT: The front edges of the installation
brackets must be level and aligned to eachother. For the best experience, mount the
brackets with the front lip outside the window casement.
■Pre-drill the screw holes using a
3
/ 32 " drill bit.
CAUTION: Use drywall anchors when mounting
into drywall.
■Use a level to check that the mounting surface is level.
Shim (not provided) the brackets if necessary.
■Attach the installation brackets using the screws provided.
Proceed to “Install the Shade” on page9.
Jamb Jamb
Window Opening
Space Evenly Space Evenly3" 3"
3"
Casement
Depth
3"
Casement
Depth
Jamb Jamb
Panel Split
Space Evenly Space Evenly3" 3" 3" 3"

INSTALLATION
7
Mount the Installation Brackets — Outside Mount
■Center the headrail over the window opening at the desired height. Use a pencil to lightly
mark each end of the headrail.
➤Alternatively, measure the width of the headrail and use that width to mark the headrail
end points over the window opening.
■Mark 3" from each end of the headrail.
➤If more than two installation brackets came with your order, space additional bracket(s)
evenly between the two end brackets and mark their location. Mount into wood
whenever possible.
■Two-On-One Headrail Shades. Place the installation brackets as shown in the
illustration below.
■Center the brackets on your marks and mark each of the screwholes.
➤A minimum 1" flat vertical surface is required.
➤The top of the installation brackets should be at
the desired shade height. The brackets should be
level and aligned.
CAUTION: The rear of the brackets must be flush
against a flat mounting surface. Do not mount
brackets oncurved molding.
Window Opening
Space Evenly Space Evenly3" 3"
Headrail End Mark Headrail End Mark
3"
Window Opening
Panel Split
Space Evenly Space Evenly3" 3" 3" 3"
Headrail End Mark Headrail End Mark

INSTALLATION
8
■Pre-drill the screw holes using a
3
/ 32 " drill bit.
CAUTION: Use drywall anchors when mounting
into drywall.
■Attach the installation bracket using the screws provided.
IMPORTANT: The front edges of the installation
bracketsmust be level and aligned to each other.
■If using spacer blocks, attach the spacer
block(s) and installation bracket to a flat vertical
mounting surface with #6mounting screws long
enough for asecure installation.
Spacer
Blocks
1
/ 2 "
1
/
4
"
➤A maximum of 1
1
/ 2 " of spacer blocks per installation bracket is recommended.
Proceed to “Install the Shade” on page9.
Mount the Installation Brackets — EndMount
End mount the headrail when conventional mounting techniques will not work — for example, in
an arched window.
■Mount the extension brackets on a flat vertical surface at least 1
1
/ 2 "wide.
NOTE: Minimum mounting depth for a fully recessed end mount is 4" wide.
➤The top of the extension brackets should be at the
desired shade height. The brackets should be level
and aligned.
CAUTION: The rear of the extension brackets
must be flush against a flat mounting surface. Do
not mount the extension brackets onthe curve of
the arch opening.
■Attach the installation brackets to the underside of
the extension brackets using the provided screws and
speednuts.
CAUTION: Both brackets must be installed at the
same depth and height.
Proceed to “Install the Shade” on page9.
3"
Spacer
Blocks Longer
Screws
4"
Fully Recessed
Minimum
Speed Nuts
Screws

INSTALLATION
9
Install the Shade
Mount the Headrail
■Peel back the protective covering from the
top of the fabric-covered headrail. Leave the
rest of the protective covering on the front
of the headrail.
■Hold the headrail so the front (curvedside)
faces you.
■Push the top edge of the headrail into the
installation brackets.
■Rotate the headrail and push back toward
the window until you hear an audible click.
The click indicates that the back edge of the
headrail is securely seated into the bracket
channel.
WARNING: Failure to snap the
headrail securely into the installation
brackets may cause the shade to
release unexpectedly.
■Pull on the front of the headrail
at each bracket to ensure that
the headrail is locked into the
brackets.
■Completely remove the
protective covering from the
fabric-covered headrail by
peeling the covering all the way
to one end of the headrail.
3Pull on
Headrail
Headrail
Installation
Bracket
Fabric Guard
1Front of
Bracket
2Back of
Bracket

INSTALLATION
10

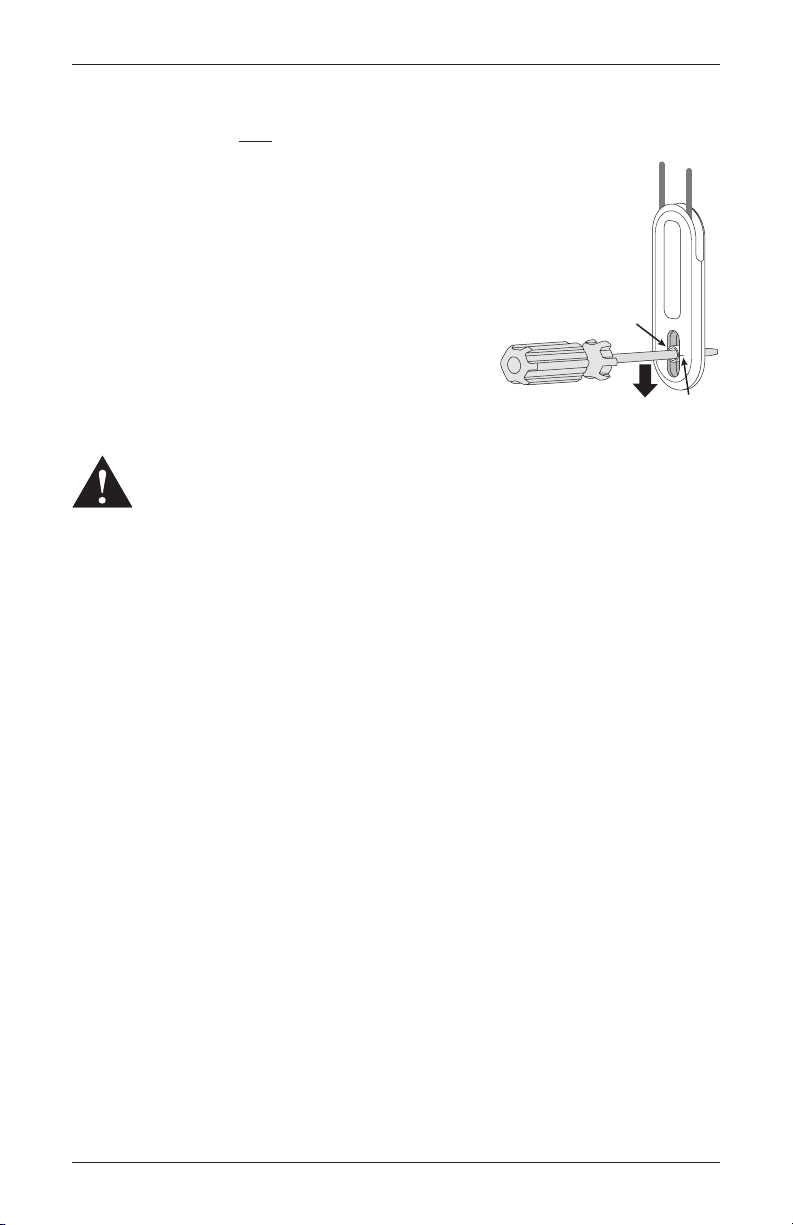

Attach the Universal Cord Tensioner — EasyRise™Shades Only
Before you proceed, you must first slide the cord tensioner(s) to the bottom of the cord loop.
■Insert a small screwdriver, punch, or awl through
the screw hole at the bottom of the cord tensioner.
■Move the screw hole down to the indicator line to
release the safety mechanism.
■Slide the cord tensioner down to the bottom of the
cord loop.
■Attach the cord tensioner(s) according to the
instructions provided with the Universal Cord
Tensioner Installation Kit.
WARNING: It is imperative that the cord tensioner(s) be properly secured to
the wall or window frame to reduce children’s access to the cord loop. Young
children can strangle in cord loops. They can also wrap cords around their
necks and strangle.
CAUTION: The shade will not operate properly unless the cord tensioner(s)
is secured. A Universal Cord Tensioner Installation Kit has been included
with your shade. Follow the instructions in the kit to correctly secure the
cordtensioner(s).
Screw
Hole
Indicator
Line

INSTALLATION
11
Cord Adjustment — UltraGlide®Shades Only
Adjusting the tassel to eye level will decrease the amount of pulls needed to raise and lower
theshade. This will also enhance child and pet safety.
To Shorten the tassel cord:
■Grasp both parts of the tassel (the colored cover and the
frosted body).
■Squeeze the tassel cover with your thumb and forefinger,
as shown.
■Separate and slide the tassel cover off from the tassel body.
■Pull out the knotted end of the tasselcord.
■Tie the cord at the desired shorter length, using a double knot.
■Trim the tassel cord below the knot.
■Pull the trimmed knot up inside the tassel.
■Squeeze the tassel cover while sliding it back onto the tassel body.
IMPORTANT: After reassembling, be sure that there are no gaps between the two
components. Check that they do not pull apart easily. The tassel cover should be securely
seated into the tassel body.
Tassel
Cover
Tassel
Cord
Tassel
Body

OPERATION
12
Attach the Magnetic Hold-Down Brackets (Optional)
■Lower the shade until it is fully lowered and rotated
back toward the window.
■Attach the magnetic hold-down brackets onto the
bottom rail just inside the end caps, oriented as
shown.
■Mark the screw locations using one of the mounting
options shown below.
➤The screw should be placed in the middle of the
channel. This will allow for adjustment.
■Pre-drill the screw holes using a
3
/ 32 " drill bit.
■Attach the hold-down brackets to the mounting surface using
the screws provided.
■If necessary, adjust the bracket height by loosening the screw
and sliding the bracket up or down.
Outside Mount
Preferred Alternate
Inside Mount
Preferred Alternate
Adjust the
bracket
up or down
using the
channel.
Magnetic
Hold-Down
Bracket
End
Cap

OPERATION
13
Operate the Shade
EasyRise™Shades
IMPORTANT: If the cord tensioner moves with the cord, you have not secured it to the wall
or window frame. You must do so for the shade to operate properly. See the Universal Cord
Tensioner Installation Instructions in the kit included with yourshade.
To Lower the Shade:
■Pull the front cord of the cord loop to lower the
shade from the top. Continue to pull until the
shade is fully lowered and rotated back toward
the window.
To Raise the Shade:
■Pull the rear cord of the cord loop to raise the
shade. Continue to pull the rear cord to raise
the shade into theheadrail.
LiteRise®Shades
For better support and smoother operation, use the handle
when raising and lowering the shade.
To Lower the Shade:
■Gently pull down on the bottom rail handle. The shade will
retract slightly to the desired position.
To Raise the Shade:
■Gently pull down on the handle to engage the shade. Then
steadily raise the shade into the headrail or retract the
shade to the desired position.
Lower Raise
Raise
F
irst Pull Down
Slightly
Lower

OPERATION
14
UltraGlide®Shades
CAUTION: To avoid damage to the shade or personal injury, do not let go of the cord until it is
fullyretracted.
To Lower the Shade:
■Using long, even strokes, pull the cord toward the center
of the shade.
➤When first lowering from the fully raised position,
it may require two or more gentle pulls to release
theshade.
■Continue to pull until the shade is fully lowered and the
fabric has moved back toward the window.
■To stop the shade at any time, stop pulling the cord
and allow it to fully retract.
To Raise the Shade:
■Using long, even strokes, pull the cord
straight down or to the outside of the
shade to raise the bottom rail.
■To stop the shade at any time, stop
pulling the cord and allow it to
fullyretract.
Non-Operable Zone
Non-Operable Zone
Lower
Shade
Lower
Shade
Non-Operable Zone
Raise
Shade
Or

OPERATION
15
Troubleshooting
Problem The shade is hard to raise or lower, or will not raise or lower.
Solution Check that the headrail and installation brackets are level and aligned in the
window. Level the headrail by shimming (not provided) the installation brackets,
if necessary.
Make sure the fabric is not caught in the installation brackets.
EasyRise™shades: Check that the cord tensioner is mounted correctly.
See Universal Cord Tensioner Installation Instructions in the kit included with
your shade.
EasyRise shades: Check that cord loop is not pinched or tangled.
UltraGlide®shades: As you pull the cord, check that the cord is clearing the
fabric folds.
LiteRise®shades: Pull down on the handle to engage the shade for operation.
Problem The shade will not snap into the installation brackets.
Solution Check that the installation brackets are aligned and level. Level the headrail by
shimming (not provided) the installation brackets, if necessary.
Check that the headrail is properly aligned and inserted into the installation
brackets. See “Install the Shade” on page 9.
Problem Two-On-One Headrail Shades Only: The center gap is not even from the top
to the bottom of the shade, interfering with the function of the shade.
Solution Ensure the entire length of the headrail is straight and level. If the center portion
of the headrail is higher than the ends, the center gap will close together. If the
center portion of the headrail is lower than the ends, the center gap increases.
If necessary, adjust the height of each bracket by moving it within the screw
slots or by using shims (not provided).

OPERATION
16
Problem The fabric folds are wrinkled, creased, or gather unevenly.
Solution Similar to clothing, Vignette®shades may require dressing throughout the life of
the shade. Dress the fabric by opening and closing your shade(s) several times
to realign the fabric folds.
The folds may also be dressed by hand with a gentle tug on each edge of the
fabric fold(s) where indentations appear.
Steaming Vignette Shades
For deeper wrinkles and creases, light steaming may be required. In lieu of
steaming, commercially available wrinkle release sprays may be used. Only the
face side of the shades should be sprayed, not the back liner. Depending on
style and fabric, slight wrinkles, puckers or other fabric variations may remain
and are inherent to this product. Do not steam the fabric on the headrail, bottom
rail, or back liners.
A “Fabric Steaming” video is available on YouTube (Vignette Modern Roman
Shades—Fabric Steaming—Hunter Douglas) and from Hunter Douglas Learning
and Development at my.hunterdouglas.com.
Problem The front fabric appears tocling to the backfabric.
Solution With the shade in the lowered position, lightly apply a static spray for home
furnishings. Follow the manufacturer’s directions on the can’s label.
Follow these steps:
1. Hold the can 6" to 8" from the fabric panel and lightly spray across the
fabric folds.
2. Raise and lower the shade 1 or 2 times to check for static reduction.
3. Allow the shade to dry in the fully lowered position.
If necessary, reapply the static spray each time the shade is professionally
cleaned.
Problem EasyRise™shades only: The universal cord tensioner has climbed to the
headrail.
Solution Pull down on the spring to relieve tension and pull the
universal cord tensioner to the bottom of the cord loop.
Properly mount the cord tensioner. See “Attach the
Universal Cord Tensioner — EasyRise™Shades Only”
on page10 and/or the instructions included with
your Universal Cord Tensioner Installation Kit.
Universal
Cord
Tensioner
Indicator
Line

OPERATION
17
Problem EasyRise™shades only: Shades raise at different rates when the cord is
pulled.
Solution Depending on the size and weight of the shades, the clutch ratios may be
different. More cord travel is required with larger shades than with smaller
shades. This is completely normal, and not a defect of the product.
Problem The shade raises or lowers unevenly, or the bottom rail is uneven when
fully raised.
Solution Check that the headrail is level. Level the headrail by shimming (not provided)
the installation brackets, if necessary.
Adjusting the Bottom Weight
Access the weight on the back of the bottom rail.
Push up on the weight clips to release.
Slide the weight in 1" increments, toward the side where fabric is gathering.
Lower the shade all the way and check that the bottom rail is level. Adjust the
weight until the fabric winds evenly and does not gather on either side.
After final adjustments, slide the weight clips back into place.
Move Weight to Adjust
Weight
Clip
Weight Weight
Clip

CARE
18
Removing the Shade (If Necessary)
■Fully raise the shade.
■While holding the headrail, place the
flat blade screwdriver on the installation
bracket’s locking tab.
➤Insert the screwdriver between the
arrows on the bottom tabs.
CAUTION: Be very careful not to tear or
damage the fabric.
■Push up to release the shade.
IMPORTANT: On longer shades, you
might need to lower the shade slightly to
access the locking tab.
Cleaning Procedures
Vignette®Modern Roman Shades are made of an anti-static, dust-resistant fabric which repels
dirt and dust. For most fabrics, the options below are available if your shade needs cleaning.
Dusting
■Regular light dusting with a feather duster is all the cleaning needed in most circumstances.
Vacuuming
■Use a hand-held vacuum with low suction for more thorough dust removal.
Compressed Air / Hair Dryer (Cool Setting)
■Blow dirt and debris from within the fabric folds using clean, compressed air.
Spot-Cleaning
■Spot clean using a sponge or delicate cloth, warm distilled water, and a mild soap solution.
Handle with care as you would any fine fabric.
■Dab the spot with the dampened cloth until it is removed. Non-oil-based baby wipes may be
used on more stubborn stains. Do not rub the fabric.
■Allow the shade to dry in the completely lowered position.
Push
Up
Locking
Tab
Arrows
