Hyco Vicenza VC1200T Specification sheet

Product Instruction Manual
Vicenza
No Glare Infrared Radiant Heater
VC1200T, VC2400T
V19.10,1

Overview
Thank you for purchasing a Vicenza no glare infrared radiant heater. Suitable for a
number of applications such as church halls, sports centres, conservatories, hospitality
environments, warehouses and similar dicult to heat situations where convection
heating would be impractical. This product is suitable for outdoor heating when under
a canopy. No glare infrared heaters are ideal for environments where bright light is
undesirable and aesthetics are important.
Key Features
• Stylish slimline black design
• No glare
• Remote control
• 24 hour timer
• Ecodesign compliant
• Open window detection
• IP44
Please fully read these instructions before commencing installation and follow to
ensure that installation and operation are simple and safe.
Do not use the heater if the power cord is damaged.
The heater must not be used if the aluminium heating panels are damaged.
Keep combustible materials such as furniture, curtains, paper and clothing a
minimum of 1.8 m from all surfaces of the heater.
The heater must not be located immediately below an electrical socket outlet.
This heater must only be connected to a power supply that corresponds to the
rating label specications.
The heater is not equipped with a device to control the room temperature. Do
not use this heater in a small room when it is occupied by person(s) not
capable of leaving the room on their own, unless constant supervision is
provided.
1. Important Safety Points
2

Do not use the heater with an extension cable.
Do not attempt to adjust the heater position whilst it is in operation, rst
disconnect the power source and allow it to cool down.
Children of less than 3 years should be kept away unless continuously
supervised.
Children aged from 3 years and less than 8 years shall not plug in, regulate or
clean the heater or perform user maintenance.
Keep the power cable from touching the heater body as the heater will get very
hot.
CAUTION — Some parts of this heater can become very hot and cause burns.
Particular attention has to be given where children and vulnerable people are
present.
The heater must be installed a minimum of 1.8 m from the ground.
2. Box Contents
Vicenza heater
Remote control
x4 horseshoe brackets, x2“H” x2 “W”
x8 wing nut bolts
x4 wing nuts
x4 wall plugs/ bolts
3

3. Installation
Wall Mounting Option
Keep combustible materials such as furniture, curtains, paper and clothing a
minimum of 1.8 m from all surfaces of the heater.
• Select a suitable location for the install and ensure the minimum spaces around the
heater are maintained to ensure good airow and safe operation of the heater (see
diagram 1). The heater must be installed a minimum of 1800 mm from the oor.
• There are two types of horseshoe bracket: “H” which are to be attached to the
heater have threaded screw holes and“W” to be attached to the wall have
unthreaded screw holes.
• Once a suitable location has been found, see diagram 2 for what will be the nal
positioning of the “H” horseshoe brackets secured on the heater. Use this as
reference for mounting the ‘”W”brackets to the wall.
Diagram 1
Diagram 2
4
Diagram 3
L1 (mm) L (mm)
VC1200T 700 900
VC2400T 1300 1800

• Drill two holes into the wall 85 mm apart from each other vertically as per diagram
3. Using the xings provided attach one of the “W”horseshoe brackets to the wall,
ensuring the tabs are facing outwards (see diagram 4). The bracket can be used as a
template if required.
• For the 1.2 kW model measure 700 mm horizontally (for the 2.4 kW model measure
1300 mm horizontally) from one tab hole to another and drill another two holes in
line with the previous two and attach the second“W” horseshoe bracket, ensuring
the tabs are facing outwards.
• Using diagram 2 for reference, take one of the “H” horseshoe brackets and feed
the tabs into the channel on the back of the unit with the tabs facing inwards.
This must be done from the side without the power cable and slide towards the
opposite end.
• Take the second “H” horseshoe bracket and feed the tabs into the channel on the
back of the unit again with the tabs facing inwards, (the distance between the
screw holes will be approximately 660 mm from the rst bracket for the 1.2 kW
model and 1260 mm for the 2.4 kW model). Note tabs on wall face outwards and
tabs on the heater face inwards so distance between tabs is smaller on the heater.
• Loosely screw the“H”brackets in place on the back of the unit using the wing
nut bolts provided and with the help of a second person lift the unit up to the
horseshoe brackets mounted on the wall to ensure they match.
• Once the brackets have been checked and the positions are correct, lower the unit
and tighten the wing nuts holding the “H” brackets on the back of the unit in place.
• With the help of the second person lift the unit up to the horseshoe brackets on
the wall, choose any two corresponding screw holes to give the desired angle.
Ensure the brackets on the wall and the unit overlap so that the wing nut bolt will
t through and secure both together, with the wing nut bolt going in from the
outside of the bracket, fasten tightly to secure with the wing nuts on the inside of
the bracket (see diagram 4).
5

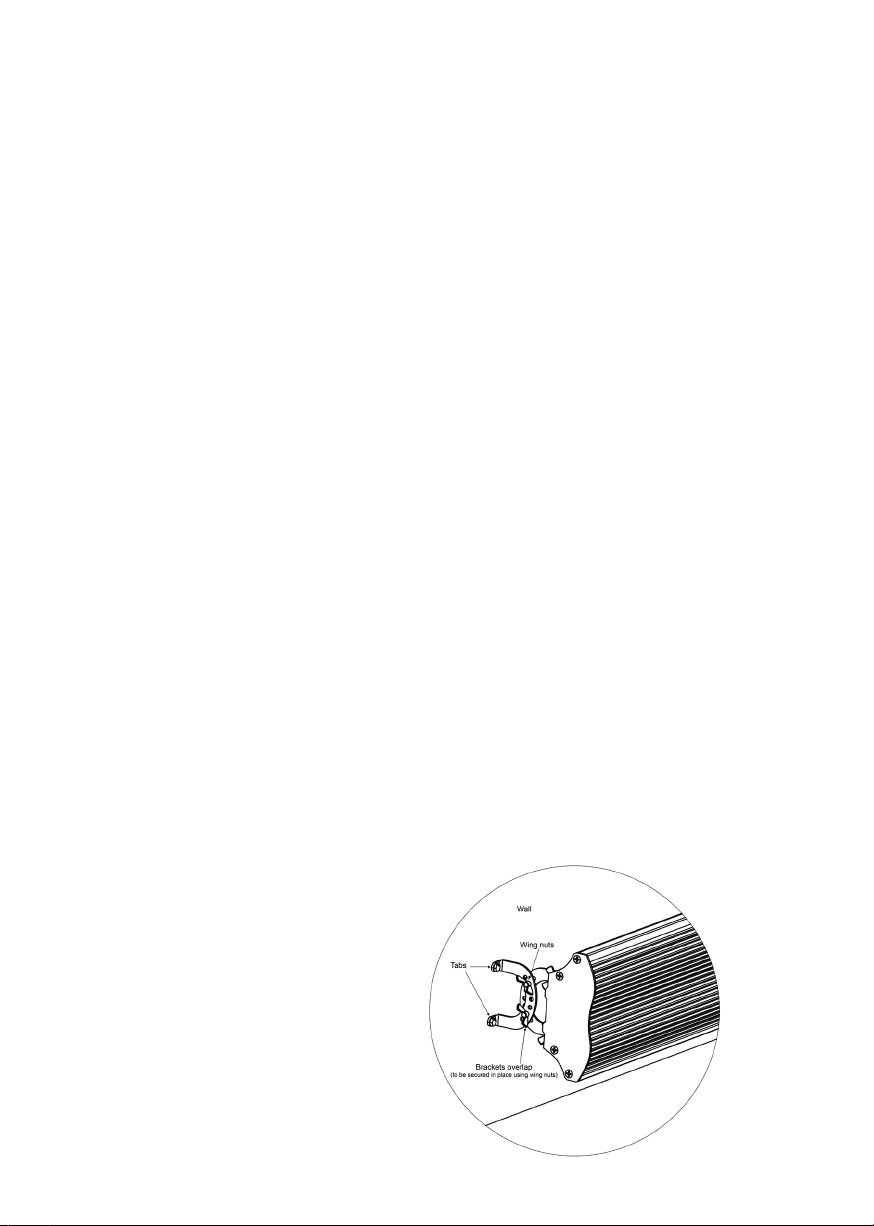

Diagram 4

Ceiling Mounting Option
Keep combustible materials such as furniture, curtains, paper and clothing a
minimum of 1.8 m from all surfaces of the heater.
• Select a suitable location for the install and ensure the minimum spaces around
the heater are maintained to ensure good airow and safe operation of the heater.
The heater must be installed a minimum of 200 mm from the wall (see diagram 6).
When mounted on the ceiling the lowest part of the heater must be a minimum of
1.8 m from the oor.
Diagram 6
• There are two types of horseshoe bracket: “H” which are to be attached to the
heater have threaded screw holes and“W” to be attached to the ceiling have
unthreaded screw holes.
• Once a suitable location has been found, see diagram 3 for what will be the nal
positioning of the “H” horseshoe brackets secured on the heater. Use this as
reference for mounting the ‘”W”brackets to the ceiling.
• Drill two holes into the ceiling 85 mm apart from each other. Using the xings
provided attach one of the“W” horseshoe brackets to the ceiling, ensuring the tabs
are facing outwards. The bracket can be used as a template if required.
• For the 1.2 kW model measure 700 mm horizontally (for the 2.4 kW model measure
1300 mm horizontally) from one tab hole to another and drill another two holes in
line with the previous two and attach the second“W” horseshoe bracket, ensuring
the tabs are facing outwards.
• Using diagram 2 for reference, take one of the “H” horseshoe brackets and feed
the tabs into the channel on the back of the unit with the tabs facing inwards.
This must be done from the side without the power cable and slide towards the
opposite end.
• Take the second “H” horseshoe bracket and feed the tabs into the channel on the
back of the unit again with the tabs facing inwards, (the distance between the
screw holes will be approximately 660 mm from the rst bracket for the 1.2 kW
model and 1260 mm for the 2.4 kW model). Note tabs on ceiling face outwards and
tabs on the heater face inwards so distance between tabs is smaller on the heater.
6

• Loosely screw the“H”brackets in place on the back of the unit using the wing
nut bolts provided and with the help of a second person lift the unit up to the
horseshoe brackets mounted on the ceiling to ensure they match.
• Once the brackets have been checked and the positions are correct, lower the unit
and tighten the wing nuts holding the “H” brackets on the back of the unit in place.
• With the help of the second person lift the unit up to the horseshoe brackets on the
ceiling, choose any two corresponding screw holes to give the most appropriate
angle. Ensure the brackets on the ceiling and the unit overlap so that the wing nut
bolts will t through and secure both together using the wing nuts, with the wing
nut bolt going in from the outside of the bracket, fasten tightly to secure with the
wing nuts on the inside of the bracket (see diagram 4).
4. Electrical Connection
Do not plug in until heater is securely xed to the wall. The heater must not be
located immediately below an electrical socket.
The heater is supplied with 1.5 m power cable and plug. Cable entry is to the right of
the unit.
5. Operation
Remote Control Overview
1. Standby on/ o button
2. Full/ Half power button
3. Lock button
4. Up button
5. Display on/ o button
6. Set button
7. Down button
7

8
Display Panel Overview
Turning the Heater On
• Switch the heater on using the red manual switch located on the side of the heater.
The actual room temperature is shown on the display panel. Switch the unit on
with the standby button on the remote. The power on indicator will light up on the
display panel. If the unit is heating the element on indicator will ash (8 segments
full power, 4 segments half power).
Setting the Temperature
• This is a radiant heater designed to heat a targeted area. It has a black bulb sensor
thermostat that allows the maximum room temperature at which the heater will
operate at to be set.
• Press the set button on the remote. ’xx°C’ will ash on the temperature/ timer
setting indicator. Use up and down buttons to select the desired maximum room
temperature setting. This will automatically save after 5 seconds and return to
operational mode.
• Once the temperature has been set the heater will remember the setting even if
turned on and o again. Press the set button and the selected temperature will be
displayed.
Setting the Timer
• Press the set button twice.‘00’ will ash on the temperature/ timer setting indicator.
Use the up and down buttons to select the time for the heater to stay on before it
switches itself o (minimum 1 hour maximum 24 hours). This will automatically
save after 5 seconds and return to operational mode. The timer on indicator will
illuminate to indicate the timer is set.
1. Actual room temperature &
temperature/ timer setting indicator
2. Lock indicator
3. Power on full/ half power indicator
4. Timer on indicator
5. Element on indicator

• Once the timer setting has been saved and the heater has returned to operational
mode press the set button twice to bring up how long is left on the timer
counting down every hour.
• Each time the heater is switched o and on the timer will reset to zero and requires
resetting. It is recommended the timer is always used to avoid energy wastage.
Locking the Unit
• In order to lock the heater, press the lock button followed by the standby button
and the LOCK indicator will show on the unit’s LED screen for 5 seconds.
• When the lock function is active it is not possible to change any settings or switch
the heater on/ o.
• The lock indicator will show whenever a button is pressed to indicate the heater is
in locked mode.
• In order to unlock press the lock button followed by the standby button again and
the LOCK indicator will disappear from the LED screen.
Display Screen On/ O
• The display button gives the option to switch the element on and temperature
indicator o.
Full/ Half Power Option
• The full/ half power button gives the option to switch between the full/ half power
setting. The power on indicator on the display panel will change from a full sun
which indicates the heater is in full power mode to a half sun which indicates the
heater is in half power mode.
Open Window Function
• When the heater is switched on and the temperature drops 3°C or more within two
minutes the open window detection will begin to work and the heater will stop
heating.
• The LED will ash and a beeping sound will be made for 5 minutes. Once sound has
stopped the LED will continue to ash until manually reset.
9

7. Specication
VC1200T VC2400T
Suppy 230v~ 50Hz 230v~ 50Hz
Power 1.2 kW 2.4 kW
IP Rating IP44 IP44
Approvals CE CE
Weight 4.0 kg 8.0 kg
Size ( h x d x w) 150 x 63 x 900 mm 150 x 63 x 1800 mm
10
Item Symbol Unit
VC1200T VC2400T
Heat output
Nominal heat output Pnom 1.2 2.4 kW
Minimum heat output (indicative) Pmin 0.6 1.2 kW
Maximum continuous heat output Pmax 1.2 2.4 kW
Auxiliary electricity consumption
At nominal heat output elmax 1.130 2.283 kW
At minimum heat output elmin 0.581 1.125 kW
In standby mode elSB 0.17 0.17 W
8. Information Requirements for Electrical Local Space Heaters
Model Identier
6. Maintenance
The heater should be inspected and cleaned periodically.
• Ensure the heater is isolated from the power supply and has fully cooled down
before commencing any cleaning of the heater.
• Use a non-abrasive, dry cloth to dust the heater as required.
• If the remote battery needs replacing it requires on CR2032 button battery.

Item VC1200T VC2400T
Type of heat input, for electrical storage local space heaters (select one)
Manual heat charge control with integrated thermostat No No
Manual heat charge control with room and/ or outdoor
temperature feedback
No No
Electronic heat charge control with room and/ or outdoor
temperature feedback
No No
Fan assisted heat output No No
Type of heat output/ room temperature control (select one)
Single stage heat output and no room temperature control No No
Two or more manual stages, no room temperature control No No
With mechanic thermostat room temperature control No No
With electronic room temperature control No No
Electronic room temperature control plus day timer Yes Yes
Electronic room temperature control plus week timer No No
Other control options (multiple selections possible)
Room temperature control, with presence detection No No
Room temperature control, with open window detection Yes Yes
With distance control option No No
With adaptive start control No No
With working time limition No No
With black bulb sensor Yes Yes
11

INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN
ACCORDANCE WITH THE EUROPEAN DIRECTIVE 2002/96/E.
At the end of its working life this equipment must not be disposed of as
household waste. It must be taken to a local authority waste collection
centre or to a dealer providing this service. Disposing of electrical and
electronic equipment separately enables its components to be recovered
and recycled to obtain signicant savings in energy and resources. In order
to underline the duty to dispose of this equipment separately, the product
is marked with a crossed out dustbin.
9. Guarantee
This product is covered by a standard parts or replacement warranty for a period of 12
months from the date of purchase. If there is a manufacturing defect within the
warranty period we will send spare parts, repair and return the unit or, at our discretion,
supply a replacement product. Incorrect installation and failure to follow correct
operating instructions are excluded. Consequential costs such as labour charges or
damage to surroundings are expressly excluded.
10. Contact Us
If you experience a problem with this product you should rst contact our service
department on 01924 225 200 before taking any further action. Experience has shown
that issues can often be resolved without the need to return or uninstall the product.
Hyco Manufacturing Ltd
Normandy Court
Express Way
Castleford, WF10 5NR
T 01924 225 200
F 01924 225 210
E [e-mail] hyco.co.uk
