iDataLink maestro Rr User manual

NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in
are the properties of their respective owners.
WARNING
Pressing the printer icon or “quick printing” this document will print
all of the guides in this compilation.
Open the Bookmarks menu and find your vehicle OR scroll
down until you find the install guide for your vehicle.
Print only the pages for your vehicle using the advanced
options in the Print menu.
Install your Maestro RR according to the guide for your vehicle.
HOW TO USE THIS INSTALL GUIDE
1
2
3
SELECT VEHICLE
PRINT PAGES NEEDED

ELECTRONICS
Click here for:
Radar Integration Installation Guide
Radar Integration Owner’s Guide for Kenwood
and JVC Radios
2016-2018
Ford EscapE
with 4,3" scrEEn
INSTALL GUIDE
RETAINS STEERING WHEEL CONTROLS, FACTORY AMPLIFIER, AND MORE!
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
PRODUCTS REQUIRED
iDatalink Maestro RR or RR2 Radio Replacement Interface
iDatalink Maestro FO2 Installation Harness
PROGRAMMED FIRMWARE
ADS-RR(SR)-FOR02B-DS
ADDITIONAL RESOURCES
Maestro RR2 Programmable Outputs Guide
OR
OPTIONAL ACCESSORIES

ADS-RR(SR)-FOR02B-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2019 2
Ford EscapE with 4,3" scrEEn 2016-2018
WELCOME
NEED HELP?
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
TABLE OF CONTENTS
Installation Instructions 3
Wiring Diagram 4
Radio Wire Reference Chart 5
Troubleshooting Table 6
1 866 427-2999
maestro.idatalink.com/support
www.12voltdata.com/forum
[email protected]

ADS-RR(SR)-FOR02B-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2019 3
Ford EscapE with 4,3" scrEEn 2016-2018
INSTALLATION INSTRUCTIONS
STEP 1
• Unbox the aftermarket radio and locate its main harness.
• Connect the wires shown on the next page from
aftermarket radio main harness to the F02 T-harness and
match the wire functions.
STEP 2
• Connect the factory harness to the F02 T-harness.
STEP 3
• Connect the screen harness to the F02 T-harness.
STEP 4
• Plug the OBDII connector into the OBDII of the vehicle.
STEP 5
• Plug the aftermarket radio harnesses into the aftermarket
radio.
• Connect the auxiliary and backup camera RCA cables into
the aftermarket radio (if equipped).
• Plug the Data cable to the data port of the aftermarket
radio.
• Insert the Audio cable into the iDatalink 3.5 mm audio
jack of the aftermarket radio (If the radio does not have a
dedicated iDatalink audio input, plug into the AUX port of
the radio).
STEP 6
• Connect all the harnesses to the Maestro RR module then
then test your installation.
2

ADS-RR(SR)-FOR02B-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2019 4
Ford EscapE with 4,3" scrEEn 2016-2018
2
AUX INAUX IN
BACKUP CAMBACKUP CAM
STEP 4 OBDII CONNECTOR
CUT AND REMOVE
THE RCA JACKS
STEP 1
MAIN
HARNESS
RCA CABLES
WIRES FROM
VEHICLE
FO2 T-HARNESS
FACTORY RADIO HARNESS
CONNECT ONLY WHEN
THERE IS NO SYNC IN
VEHICLE
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BLUE/WHITE - AMP. TURN ON (+)
PURPLE - RR SPEAKER (+)
STEP 2
STEP 5
STEP 6
ORANGE - PARKING LIGHT (+)
PURPLE/WHITE - REVERSE LIGHT (+)
LTGREEN - E-BRAKE (-)
YELLOW/BLACK - FOOT BRAKE
PINK - VEHICLE SPEED
BROWN (NOT CONNECTED)

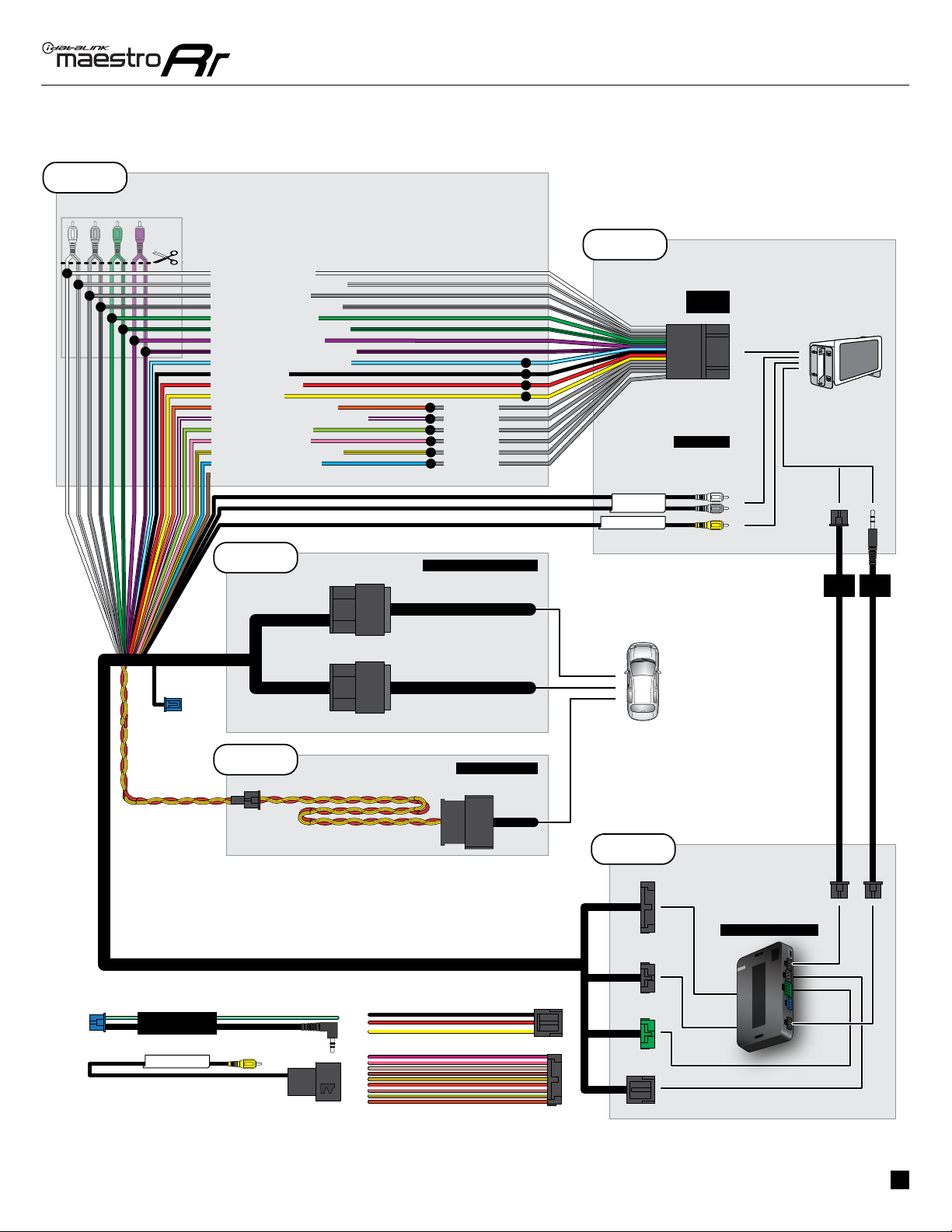

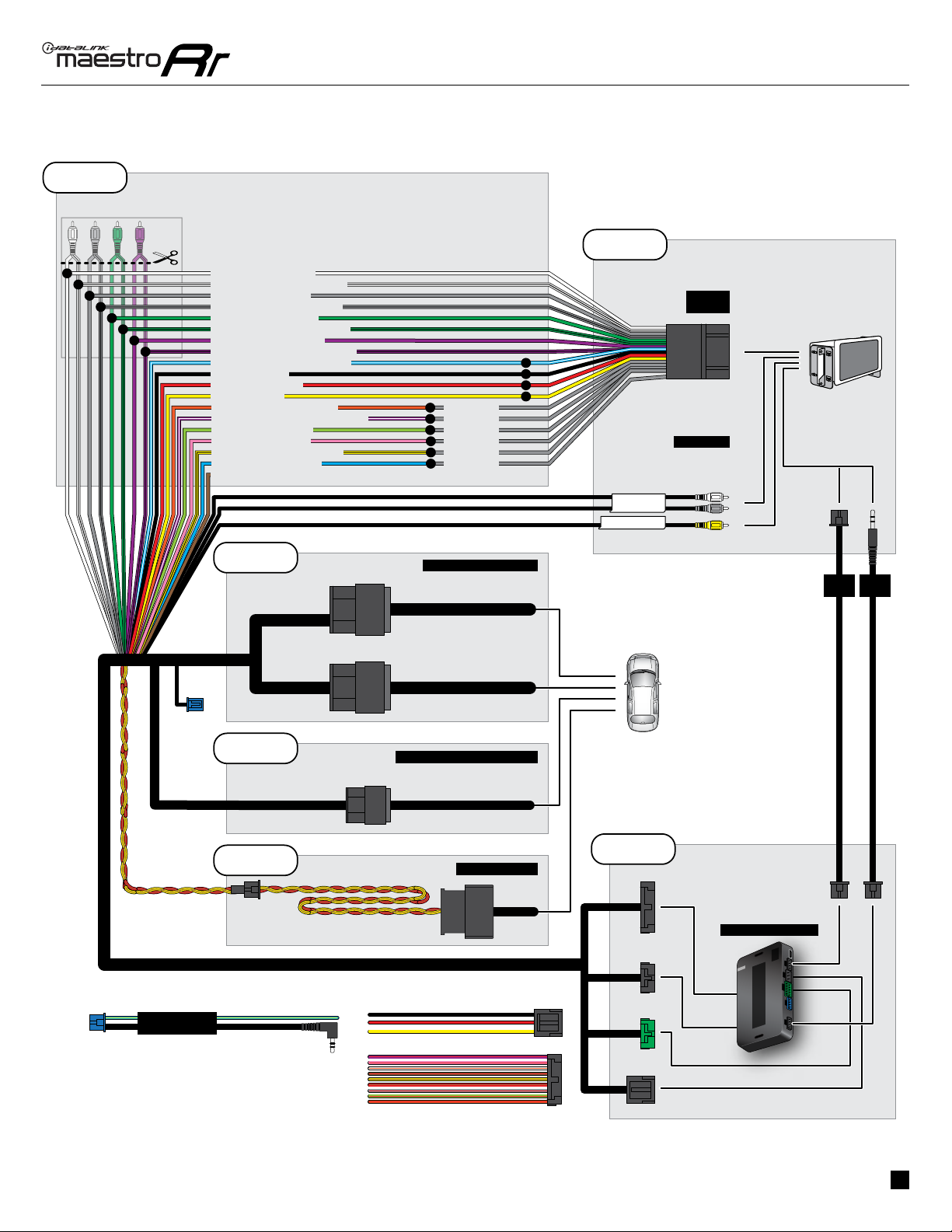

WIRING DIAGRAM
DATA
CABLE
AUDIO
CABLE
CONNECT TO
AFTERMARKET RADIO
SEE RADIO
WIRE
REFERENCE
CHART FOR
RADIO WIRE
COLORS
MAESTRO RR MODULE
STEERING WHEEL
CONTROL CABLE
NOT REQUIRED
BLUE
NC
BLUE - POWER ANTENNA
SCREEN HARNESS ABOVE RADIO
STEP 3

ADS-RR(SR)-FOR02B-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2019 5
Ford EscapE with 4,3" scrEEn 2016-2018
RADIO WIRE REFERENCE CHART
Wire
Description Polarity Wire Color on Maestro
T-Harness
Wire Color on Alpine
cable
Wire Color on Kenwood
cable
Wire Color on Pioneer
cable
Wire Color on Sony
cable
Illumination (+) Orange N/A Orange/White Orange/White Orange
Reverse Light (+) Purple/White Orange/White Purple/White Purple/White Purple/White
E-Brake (-) Lt Green Yellow/Blue Lt Green Lt Green Lt Green
Foot Brake (+) Yellow/Black Yellow/Black N/A Pink N/A
VSS (vehicle speed sensor) (DATA) Pink Green/White N/A N/A N/A
Power Antenna (+) Blue Blue Blue N/A N/A

ADS-RR(SR)-FOR02B-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2019 6
Ford EscapE with 4,3" scrEEn 2016-2018
TROUBLESHOOTING TABLE
PROBLEM SOLUTION
Gauges do not work, radio shows OBD2 Error 1 or Error 2. Ensure OBDII connector is securely attached to the OBD2 connector of the
vehicle.
If you hardwired connections at the OBDII, check connections at the OBDII
connector. Make sure the RED/BROWN wire is on PIN 6 and the YELLOW/
BROWN wire is connected to PIN 14 of the OBDII connector. Do not use
T-Taps. Soldering or military splicing methods are recommended.
Reset the RR.
The light on the Maestro is blinking RED TWICE. Ensure the 4-pin data cable is connected between the radio and the RR, and
that it is plugged into the black port on the Maestro RR. The red and blue
ports on the RR should be empty.
Make sure the correct radio model and serial number were entered during
the flash. Verify the radio’s serial number entered during the flash matches
what is listed on the radio screen. This can be found in the settings of the
radio, listed as Device Id, Device Number, or Serial Number.
The light on the Maestro is flashing RED ONCE. There is no firmware on the module; flash the RR module.
MAESTRO RR RESET PROCEDURE:
Turn the key to the OFF position, then disconnect all connectors from the module.
Press and hold the module’s programming button and connect all the connectors back to the module. Wait, the module’s LED will flash RED rapidly (this may
take up to 10 seconds).
Release the programming button. Wait, the LED will turn solid GREEN for 2 seconds to show the reset was successful.
TECHNICAL ASSISTANCE
Phone: [phone]
Email: maestr[email protected]
Web: maestro.idatalink.com/support add www.12voltdata.com/forum/
IMPORTANT: To ensure proper operation, the aftermarket radio needs to have the latest firmware from the manufacturer. Please visit the radio
manufacturer’s website and look for any updates pertaining to your radio.

ELECTRONICS
Click here for:
Radar Integration Installation Guide
Radar Integration Owner’s Guide for Kenwood
and JVC Radios
2018
Ford F-sEriEs supEr duty
XL, BasE with no cd pLayEr
INSTALL GUIDE
RETAINS STEERING WHEEL CONTROLS, FACTORY AMPLIFIER, AND MORE!
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
PRODUCTS REQUIRED
iDatalink Maestro RR or RR2 Radio Replacement Interface
iDatalink Maestro FO2 Installation Harness
PROGRAMMED FIRMWARE
ADS-RR(SR)-FOR02B-DS
ADDITIONAL RESOURCES
Maestro RR2 Programmable Outputs Guide
OR
OPTIONAL ACCESSORIES

ADS-RR(SR)-FOR02B-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2019 2
Ford F-sEriEs supEr duty XL, BasE with no cd pLayEr 2018
WELCOME
NEED HELP?
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
TABLE OF CONTENTS
Installation Instructions 3
Wiring Diagram 4
Radio Wire Reference Chart 5
Troubleshooting Table 6
1 866 427-2999
maestro.idatalink.com/support
www.12voltdata.com/forum
[email protected]

ADS-RR(SR)-FOR02B-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2019 3
Ford F-sEriEs supEr duty XL, BasE with no cd pLayEr 2018
INSTALLATION INSTRUCTIONS
STEP 1
• Unbox the aftermarket radio and locate its main harness.
• Connect the wires shown on the next page from
aftermarket radio main harness to the F02 T-harness and
match the wire functions.
STEP 2
• Connect the factory harness to the F02 T-harness.
STEP 3
• Plug the OBDII connector into the OBDII of the vehicle
(located under driver side dash).
STEP 4
• Plug the aftermarket radio harnesses into the aftermarket
radio.
• Connect the auxiliary and backup camera RCA cables into
the aftermarket radio (if equipped).
• Plug the Data cable to the data port of the aftermarket
radio.
• Insert the Audio cable into the iDatalink 3.5 mm audio
jack of the aftermarket radio (If the radio does not have a
dedicated iDatalink audio input, plug into the AUX port of
the radio).
STEP 5
• Connect all the harnesses to the Maestro RR module then
then test your installation.
1

ADS-RR(SR)-FOR02B-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2019 4
Ford F-sEriEs supEr duty XL, BasE with no cd pLayEr 2018
1
AUX INAUX IN
BACKUP CAMBACKUP CAM
BACKUP CAMBACKUP CAM
STEP 3 OBDII CONNECTOR
CUT AND REMOVE
THE RCA JACKS
STEP 1
MAIN
HARNESS
RCA CABLES
WIRES FROM
VEHICLE
FO2 T-HARNESS
FACTORY RADIO HARNESS
CONNECT ONLY WHEN
THERE IS NO SYNC IN
VEHICLE
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BLUE/WHITE - AMP. TURN ON (+)
PURPLE - RR SPEAKER (+)
STEP 2
STEP 4
STEP 5
ORANGE - PARKING LIGHT (+)
PURPLE/WHITE - REVERSE LIGHT (+)
LTGREEN - E-BRAKE (-)
YELLOW/BLACK - FOOT BRAKE
PINK - VEHICLE SPEED
BROWN (NOT CONNECTED)
WIRING DIAGRAM
DATA
CABLE
AUDIO
CABLE
CONNECT TO
AFTERMARKET RADIO
SEE RADIO
WIRE
REFERENCE
CHART FOR
RADIO WIRE
COLORS
MAESTRO RR MODULE
STEERING WHEEL
CONTROL CABLE
NOT REQUIRED
BLUE
NC
BLUE - POWER ANTENNA

ADS-RR(SR)-FOR02B-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2019 5
Ford F-sEriEs supEr duty XL, BasE with no cd pLayEr 2018
RADIO WIRE REFERENCE CHART
Wire
Description Polarity Wire Color on Maestro
T-Harness
Wire Color on Alpine
cable
Wire Color on Kenwood
cable
Wire Color on Pioneer
cable
Wire Color on Sony
cable
Illumination (+) Orange N/A Orange/White Orange/White Orange
Reverse Light (+) Purple/White Orange/White Purple/White Purple/White Purple/White
E-Brake (-) Lt Green Yellow/Blue Lt Green Lt Green Lt Green
Foot Brake (+) Yellow/Black Yellow/Black N/A Pink N/A
VSS (vehicle speed sensor) (DATA) Pink Green/White N/A N/A N/A
Power Antenna (+) Blue Blue Blue N/A N/A

ADS-RR(SR)-FOR02B-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2019 6
Ford F-sEriEs supEr duty XL, BasE with no cd pLayEr 2018
TROUBLESHOOTING TABLE
PROBLEM SOLUTION
Gauges do not work, radio shows OBD2 Error 1 or Error 2. Ensure OBDII connector is securely attached to the OBD2 connector of the
vehicle.
If you hardwired connections at the OBDII, check connections at the OBDII
connector. Make sure the RED/BROWN wire is on PIN 6 and the YELLOW/
BROWN wire is connected to PIN 14 of the OBDII connector. Do not use
T-Taps. Soldering or military splicing methods are recommended.
Reset the RR.
The light on the Maestro is blinking RED TWICE. Ensure the 4-pin data cable is connected between the radio and the RR, and
that it is plugged into the black port on the Maestro RR. The red and blue
ports on the RR should be empty.
Make sure the correct radio model and serial number were entered during
the flash. Verify the radio’s serial number entered during the flash matches
what is listed on the radio screen. This can be found in the settings of the
radio, listed as Device Id, Device Number, or Serial Number.
The light on the Maestro is flashing RED ONCE. There is no firmware on the module; flash the RR module.
MAESTRO RR RESET PROCEDURE:
Turn the key to the OFF position, then disconnect all connectors from the module.
Press and hold the module’s programming button and connect all the connectors back to the module. Wait, the module’s LED will flash RED rapidly (this may
take up to 10 seconds).
Release the programming button. Wait, the LED will turn solid GREEN for 2 seconds to show the reset was successful.
TECHNICAL ASSISTANCE
Phone: [phone]
Email: maestr[email protected]
Web: maestro.idatalink.com/support add www.12voltdata.com/forum/
IMPORTANT: To ensure proper operation, the aftermarket radio needs to have the latest firmware from the manufacturer. Please visit the radio
manufacturer’s website and look for any updates pertaining to your radio.

ELECTRONICS
Click here for:
Radar Integration Installation Guide
Radar Integration Owner’s Guide for Kenwood
and JVC Radios
2019
Ford transit
with 4,3" scrEEn
INSTALL GUIDE
RETAINS STEERING WHEEL CONTROLS, FACTORY AMPLIFIER, AND MORE!
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
PRODUCTS REQUIRED
iDatalink Maestro RR or RR2 Radio Replacement Interface
iDatalink Maestro FO2 Installation Harness
PROGRAMMED FIRMWARE
ADS-RR(SR)-FOR02B-DS
ADDITIONAL RESOURCES
Maestro RR2 Programmable Outputs Guide
OR
OPTIONAL ACCESSORIES

ADS-RR(SR)-FOR02B-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2019 2
Ford transit with 4,3" scrEEn 2019
WELCOME
NEED HELP?
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
TABLE OF CONTENTS
Installation Instructions 3
Wiring Diagram 4
Radio Wire Reference Chart 5
Troubleshooting Table 6
1 866 427-2999
maestro.idatalink.com/support
www.12voltdata.com/forum
[email protected]

ADS-RR(SR)-FOR02B-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2019 3
Ford transit with 4,3" scrEEn 2019
INSTALLATION INSTRUCTIONS
STEP 1
• Unbox the aftermarket radio and locate its main harness.
• Connect the wires shown on the next page from
aftermarket radio main harness to the F02 T-harness and
match the wire functions.
STEP 2
• Connect the factory harness to the F02 T-harness.
STEP 3
• Connect the screen harness to the F02 T-harness.
STEP 4
• Plug the OBDII connector into the OBDII of the vehicle.
STEP 5
• Plug the aftermarket radio harnesses into the aftermarket
radio.
• Connect the auxiliary and backup camera RCA cables into
the aftermarket radio (if equipped).
• Plug the Data cable to the data port of the aftermarket
radio.
• Insert the Audio cable into the iDatalink 3.5 mm audio
jack of the aftermarket radio (If the radio does not have a
dedicated iDatalink audio input, plug into the AUX port of
the radio).
STEP 6
• Connect all the harnesses to the Maestro RR module then
then test your installation.
2

ADS-RR(SR)-FOR02B-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2019 4
Ford transit with 4,3" scrEEn 2019
2
AUX INAUX IN
BACKUP CAMBACKUP CAM
STEP 4 OBDII CONNECTOR
CUT AND REMOVE
THE RCA JACKS
STEP 1
MAIN
HARNESS
RCA CABLES
WIRES FROM
VEHICLE
FO2 T-HARNESS
FACTORY RADIO HARNESS
CONNECT ONLY WHEN
THERE IS NO SYNC IN
VEHICLE
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BLUE/WHITE - AMP. TURN ON (+)
PURPLE - RR SPEAKER (+)
STEP 2
STEP 5
STEP 6
ORANGE - PARKING LIGHT (+)
PURPLE/WHITE - REVERSE LIGHT (+)
LTGREEN - E-BRAKE (-)
YELLOW/BLACK - FOOT BRAKE
PINK - VEHICLE SPEED
BROWN (NOT CONNECTED)
WIRING DIAGRAM
DATA
CABLE
AUDIO
CABLE
CONNECT TO
AFTERMARKET RADIO
SEE RADIO
WIRE
REFERENCE
CHART FOR
RADIO WIRE
COLORS
MAESTRO RR MODULE
STEERING WHEEL
CONTROL CABLE
NOT REQUIRED
BLUE
NC
BLUE - POWER ANTENNA
SCREEN HARNESS ABOVE RADIO
STEP 3

ADS-RR(SR)-FOR02B-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2019 5
Ford transit with 4,3" scrEEn 2019
RADIO WIRE REFERENCE CHART
Wire
Description Polarity Wire Color on Maestro
T-Harness
Wire Color on Alpine
cable
Wire Color on Kenwood
cable
Wire Color on Pioneer
cable
Wire Color on Sony
cable
Illumination (+) Orange N/A Orange/White Orange/White Orange
Reverse Light (+) Purple/White Orange/White Purple/White Purple/White Purple/White
E-Brake (-) Lt Green Yellow/Blue Lt Green Lt Green Lt Green
Foot Brake (+) Yellow/Black Yellow/Black N/A Pink N/A
VSS (vehicle speed sensor) (DATA) Pink Green/White N/A N/A N/A
Power Antenna (+) Blue Blue Blue N/A N/A

ADS-RR(SR)-FOR02B-DS-IG-EN maestro.idatalink.comAutomotive Data Solutions Inc. © 2019 6
Ford transit with 4,3" scrEEn 2019
TROUBLESHOOTING TABLE
PROBLEM SOLUTION
Gauges do not work, radio shows OBD2 Error 1 or Error 2. Ensure OBDII connector is securely attached to the OBD2 connector of the
vehicle.
If you hardwired connections at the OBDII, check connections at the OBDII
connector. Make sure the RED/BROWN wire is on PIN 6 and the YELLOW/
BROWN wire is connected to PIN 14 of the OBDII connector. Do not use
T-Taps. Soldering or military splicing methods are recommended.
Reset the RR.
The light on the Maestro is blinking RED TWICE. Ensure the 4-pin data cable is connected between the radio and the RR, and
that it is plugged into the black port on the Maestro RR. The red and blue
ports on the RR should be empty.
Make sure the correct radio model and serial number were entered during
the flash. Verify the radio’s serial number entered during the flash matches
what is listed on the radio screen. This can be found in the settings of the
radio, listed as Device Id, Device Number, or Serial Number.
The light on the Maestro is flashing RED ONCE. There is no firmware on the module; flash the RR module.
MAESTRO RR RESET PROCEDURE:
Turn the key to the OFF position, then disconnect all connectors from the module.
Press and hold the module’s programming button and connect all the connectors back to the module. Wait, the module’s LED will flash RED rapidly (this may
take up to 10 seconds).
Release the programming button. Wait, the LED will turn solid GREEN for 2 seconds to show the reset was successful.
TECHNICAL ASSISTANCE
Phone: [phone]
Email: maestr[email protected]
Web: maestro.idatalink.com/support add www.12voltdata.com/forum/
IMPORTANT: To ensure proper operation, the aftermarket radio needs to have the latest firmware from the manufacturer. Please visit the radio
manufacturer’s website and look for any updates pertaining to your radio.
