iDataLink maestro Rr User manual

NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in
are the properties of their respective owners.
WARNING
Pressing the printer icon or “quick printing” this document will print
all of the guides in this compilation.
Open the Bookmarks menu and find your vehicle OR scroll
down until you find the install guide for your vehicle.
Print only the pages for your vehicle using the advanced
options in the Print menu.
Install your Maestro RR according to the guide for your vehicle.
HOW TO USE THIS INSTALL GUIDE
1
2
3
SELECT VEHICLE
PRINT PAGES NEEDED

OPTIONAL ACCESSORIES PROGRAMMED FIRMWARE
ADS-RR(SR)-TOY01-DS
PRODUCTS REQUIRED
iDatalink Maestro RR Radio Replacement Interface
iDatalink Maestro TO1 Installation Harness

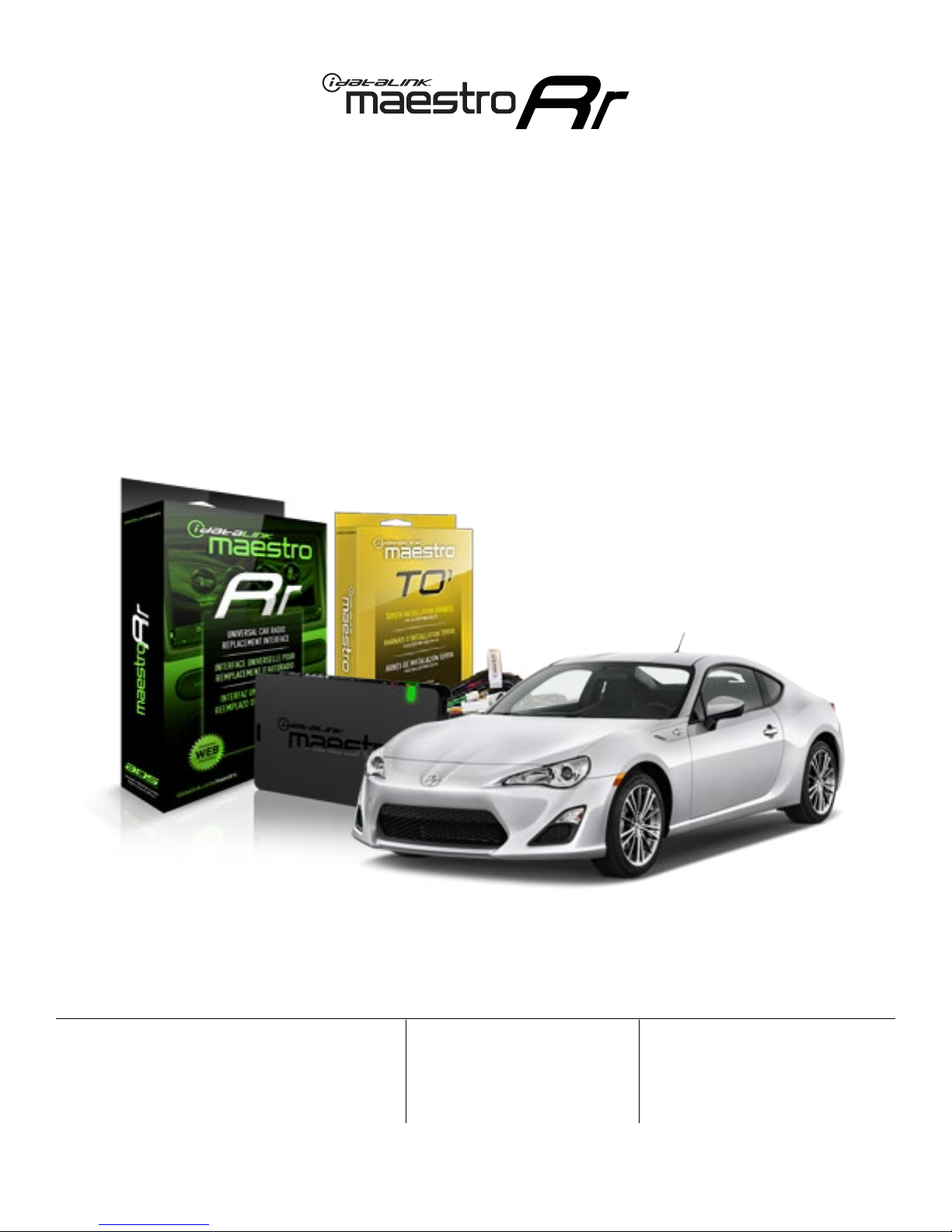

INSTALL GUIDE
SCION FRS
20132016
Retains factoRy amplifieR, steeRing wheel contRols, and moRe!
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.

ADS-RR(SR)-TOY01-DS maestro.idatalink.com
scion fR-s 2013-2016
Automotive Data Solutions Inc. © 2016 2
WELCOME
NEED HELP?
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
1 866 427-2999
[email protected]
maestro.idatalink.com/support
www.12voltdata.com/forum
TABLE OF CONTENTS
Installation Instructions 3
Wiring Diagram 4
Radio Wire Reference Chart 5
Vehicle Wire Reference Chart 6

ADS-RR(SR)-TOY01-DS maestro.idatalink.com
scion fR-s 2013-2016
Automotive Data Solutions Inc. © 2016 3
INSTALLATION INSTRUCTIONS
STEP 1
• Unbox the aftermarket radio and locate its main harness.
• Connect the wires shown on the next page from
aftermarket radio main harness to the TO1 T-harness and
match the wire functions.
• Remove the factory radio.
STEP 2
• If the vehicle is equipped with an OEM backup camera,
connect the TO1 T-harness to the backup camera harness
(see wire chart for details).
STEP 3
• Identify if your vehicle has a 20 or 28 pin secondary
connector. Assemble TO1 T-harness as shown on
wiring diagram. Connect the factory harness to the TO1
T-harness.
STEP 4
• Plug the OBDII connector into the OBDII of the vehicle,
under driver dash.
STEP 5
• Plug the aftermarket radio harnesses into the aftermarket
radio.
• Connect the backup camera RCA cable into the
aftermarket radio (if equipped).
• Connect the auxiliary RCA cables into the aftermarket radio
(if equipped).
• Plug the Data cable to the data port of the aftermarket
radio.
• Insert the Audio cable into the iDatalink 3.5 mm audio jack
of the aftermarket radio.
NOTE:
In Pioneer radios: plug Audio cable in auxiliary input of
the radio.
STEP 6
• Connect all the harnesses to the Maestro RR module then
test your installation.
TROUBLESHOOTING TIPS:
• To reset the module back its factory settings, turn the key
to the OFF position then disconnect all connectors from
the module. Press and hold the module’s programming
button and connect all the connectors back to the module.
Wait, the module’s LED will flash RED rapidly (this may
take up to 10 seconds). Release the programming button.
Wait, the LED will turn solid GREEN for 2 seconds.
• For technical assistance call 1-866-427-2999 or e-mail
“[email protected]”. Visit us at “maestro.idatalink.
com/support” and “www.12voltdata.com/forum/”
2

ADS-RR(SR)-TOY01-DS maestro.idatalink.com
scion fR-s 2013-2016
Automotive Data Solutions Inc. © 2016 4
AUX INAUX IN
C
AF
G
C
A
G
F
2
H
H
BACKUP CAMBACKUP CAM
D
D
FACTORY RADIO HARNESS
STEP 3
REVERSE CAMERA HARNESS
STEP 2
CONNECT IF EQUIPPED
MAIN
HARNESS
RCA CABLES
TO1 T-HARNESS
STEP 5
WIRES FROM
VEHICLE
CONNECT TO
AFTERMARKET RADIO
STEP 6
MAESTRO RR MODULE
DATA
CABLE
OBDII CONNECTOR
STEP 4

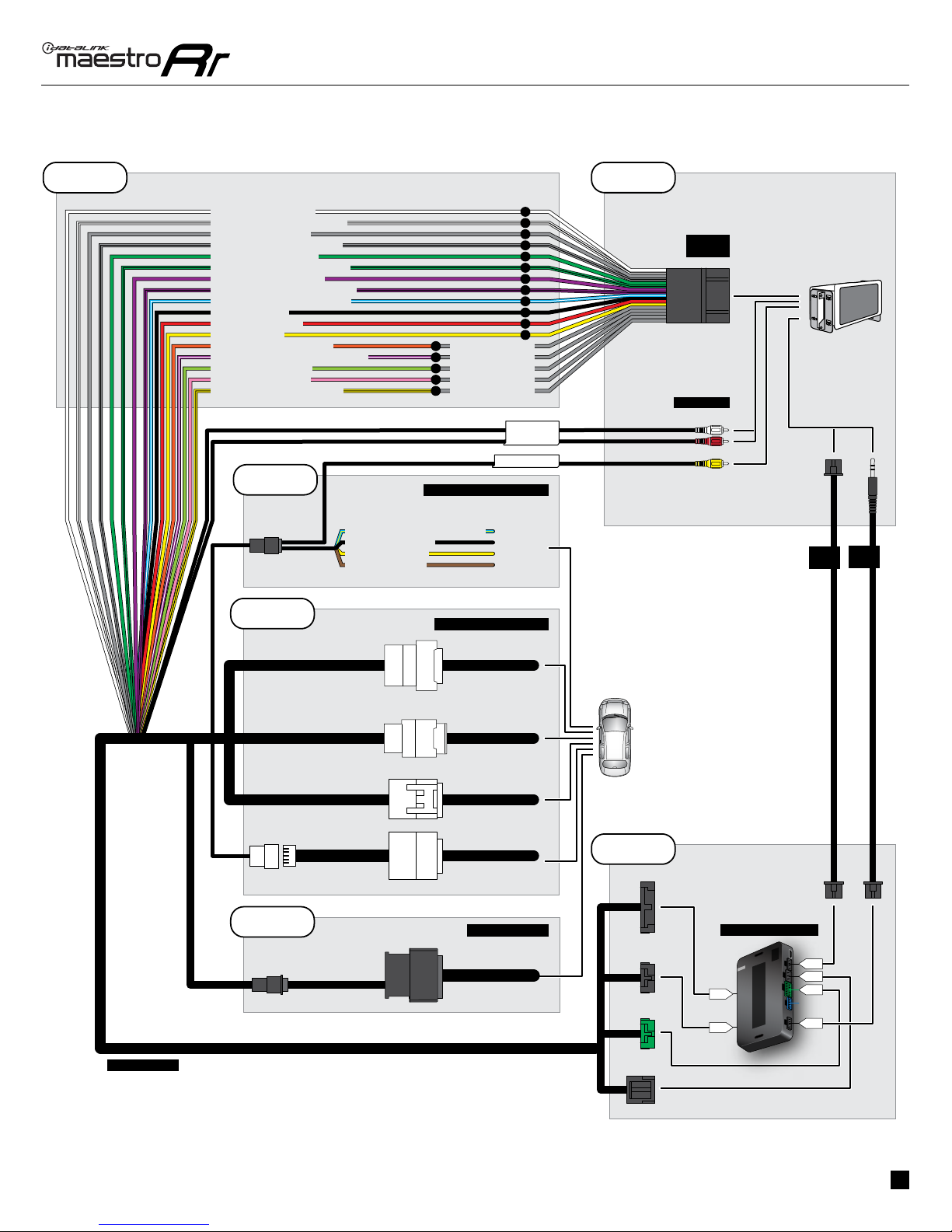

WIRING DIAGRAM without an Amplifier
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
YELLOW/BLACK - FOOT BRAKE
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+)
PINK - VEHICLE SPEED
LTGREEN - E-BRAKE (-)
BLUE/WHITE - AMP. TURN ON (+)
STEP 1
SEE AFTERMARKET
RADIO GUIDE
FOR RADIO WIRE
COLORS
SEE WIRE
CHART
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
PURPLE - RR SPEAKER (+)
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
AUDIO
CABLE
YELLOW - VIDEO (+)
BROWN - VIDEO (-)
BLUE/YELLOW - CAM. POWER (+)
BLACK - GROUND (-)
CONNECT 20 OR 28 PIN CABLE

ADS-RR(SR)-TOY01-DS maestro.idatalink.com
scion fR-s 2013-2016
Automotive Data Solutions Inc. © 2016 5
RADIO WIRE REFERENCE CHART
Wire
Description Polarity Wire Color on Maestro
T-Harness Wire Color on Alpine cable Wire Color on Kenwood cable Wire Color on Pioneer cable
Illumination (+) Orange N/A Orange/White Orange/White
Reverse Light (+) Purple/White Orange/White Purple/White Purple/White
E-Brake (-) Lt Green Yellow/Blue Lt Green Lt Green
Foot Brake (+) Yellow/Black Yellow/Black N/A N/A
VSS (vehicle speed sensor) (DATA) Pink Green/White N/A Pink

ADS-RR(SR)-TOY01-DS maestro.idatalink.com
scion fR-s 2013-2016
Automotive Data Solutions Inc. © 2016 6
VEHICLE WIRE REFERENCE CHART
REVERSE CAMERA NOT AVAILABLE / NOT PRESENT

OPTIONAL ACCESSORIES PROGRAMMED FIRMWARE
ADS-RR(SR)-TOY01-DS
PRODUCTS REQUIRED
iDatalink Maestro RR Radio Replacement Interface
iDatalink Maestro TO1 Installation Harness
INSTALL GUIDE
SCION IM
2016
Retains factoRy amplifieR, steeRing wheel contRols, and moRe!
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.

ADS-RR(SR)-TOY01-DS maestro.idatalink.com
scion im 2016
Automotive Data Solutions Inc. © 2016 2
WELCOME
NEED HELP?
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
1 866 427-2999
[email protected]
maestro.idatalink.com/support
www.12voltdata.com/forum
TABLE OF CONTENTS
Installation Instructions 3
Wiring Diagram 4
Radio Wire Reference Chart 5
Vehicle Wire Reference Chart 6

ADS-RR(SR)-TOY01-DS maestro.idatalink.com
scion im 2016
Automotive Data Solutions Inc. © 2016 3
INSTALLATION INSTRUCTIONS
STEP 1
• Unbox the aftermarket radio and locate its main harness.
• Connect the wires shown on the next page from
aftermarket radio main harness to the TO1 T-harness and
match the wire functions.
• Remove the factory radio.
STEP 2
• If the vehicle is equipped with an OEM backup camera,
connect the TO1 T-harness to the backup camera harness
(see wire chart for details).
STEP 3
• Identify if your vehicle has a 20 or 28 pin secondary
connector. Assemble TO1 T-harness as shown on
wiring diagram. Connect the factory harness to the TO1
T-harness.
STEP 4
• Plug the OBDII connector into the OBDII of the vehicle,
under driver dash.
STEP 5
• Plug the aftermarket radio harnesses into the aftermarket
radio.
• Connect the backup camera RCA cable into the
aftermarket radio (if equipped).
• Connect the auxiliary RCA cables into the aftermarket radio
(if equipped).
• Plug the Data cable to the data port of the aftermarket
radio.
• Insert the Audio cable into the iDatalink 3.5 mm audio jack
of the aftermarket radio.
NOTE:
In Pioneer radios: plug Audio cable in auxiliary input of
the radio.
STEP 6
• Connect all the harnesses to the Maestro RR module then
test your installation.
TROUBLESHOOTING TIPS:
• To reset the module back its factory settings, turn the key
to the OFF position then disconnect all connectors from
the module. Press and hold the module’s programming
button and connect all the connectors back to the module.
Wait, the module’s LED will flash RED rapidly (this may
take up to 10 seconds). Release the programming button.
Wait, the LED will turn solid GREEN for 2 seconds.
• For technical assistance call 1-866-427-2999 or e-mail
“[email protected]”. Visit us at “maestro.idatalink.
com/support” and “www.12voltdata.com/forum/”
2

ADS-RR(SR)-TOY01-DS maestro.idatalink.com
scion im 2016
Automotive Data Solutions Inc. © 2016 4
AUX INAUX IN
C
AF
G
C
A
G
F
2
H
H
BACKUP CAMBACKUP CAM
D
D
FACTORY RADIO HARNESS
STEP 3
REVERSE CAMERA HARNESS
STEP 2
CONNECT IF EQUIPPED
MAIN
HARNESS
RCA CABLES
TO1 T-HARNESS
STEP 5
WIRES FROM
VEHICLE
CONNECT TO
AFTERMARKET RADIO
STEP 6
MAESTRO RR MODULE
DATA
CABLE
OBDII CONNECTOR
STEP 4
WIRING DIAGRAM without an Amplifier
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
YELLOW/BLACK - FOOT BRAKE
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+)
PINK - VEHICLE SPEED
LTGREEN - E-BRAKE (-)
BLUE/WHITE - AMP. TURN ON (+)
STEP 1
SEE AFTERMARKET
RADIO GUIDE
FOR RADIO WIRE
COLORS
SEE WIRE
CHART
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
PURPLE - RR SPEAKER (+)
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
AUDIO
CABLE
YELLOW - VIDEO (+)
BROWN - VIDEO (-)
BLUE/YELLOW - CAM. POWER (+)
BLACK - GROUND (-)
CONNECT 20 OR 28 PIN CABLE

ADS-RR(SR)-TOY01-DS maestro.idatalink.com
scion im 2016
Automotive Data Solutions Inc. © 2016 5
RADIO WIRE REFERENCE CHART
Wire
Description Polarity Wire Color on Maestro
T-Harness Wire Color on Alpine cable Wire Color on Kenwood cable Wire Color on Pioneer cable
Illumination (+) Orange N/A Orange/White Orange/White
Reverse Light (+) Purple/White Orange/White Purple/White Purple/White
E-Brake (-) Lt Green Yellow/Blue Lt Green Lt Green
Foot Brake (+) Yellow/Black Yellow/Black N/A N/A
VSS (vehicle speed sensor) (DATA) Pink Green/White N/A Pink

ADS-RR(SR)-TOY01-DS maestro.idatalink.com
scion im 2016
Automotive Data Solutions Inc. © 2016 6
8 7 6 5 4 3 2 110 9
202122
23 14 131819
12 11
17 16 15
24
VEHICLE WIRE REFERENCE CHART
Wire
Description
Connector
Name
Connector
Color
Connector
Type Position Wire Color Polarity Wire
Location
Camera Power ~ ~ 24 pin 11 Red (+) Reverse camera harness
Ground ~ ~ 24 pin 23 Shield (-) Reverse camera harness
Video + ~ ~ 24 pin 12 Black (+) Reverse camera harness
Video - ~ ~ 24 pin 24 White (-) Reverse camera harness
REVERSE CAMERA CONNECTORS (WIRE SIDE)

OPTIONAL ACCESSORIES PROGRAMMED FIRMWARE
ADS-RR(SR)-TOY01-DS
PRODUCTS REQUIRED
iDatalink Maestro RR Radio Replacement Interface
iDatalink Maestro TO1 Installation Harness
INSTALL GUIDE
SCION IQ
20122015
Retains factoRy amplifieR, steeRing wheel contRols, and moRe!
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.

ADS-RR(SR)-TOY01-DS maestro.idatalink.com
scion iQ 2012-2015
Automotive Data Solutions Inc. © 2016 2
WELCOME
NEED HELP?
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
1 866 427-2999
[email protected]
maestro.idatalink.com/support
www.12voltdata.com/forum
TABLE OF CONTENTS
Installation Instructions 3
Wiring Diagram 4
Radio Wire Reference Chart 5
Vehicle Wire Reference Chart 6

ADS-RR(SR)-TOY01-DS maestro.idatalink.com
scion iQ 2012-2015
Automotive Data Solutions Inc. © 2016 3
INSTALLATION INSTRUCTIONS
STEP 1
• Unbox the aftermarket radio and locate its main harness.
• Connect the wires shown on the next page from
aftermarket radio main harness to the TO1 T-harness and
match the wire functions.
• Remove the factory radio.
STEP 2
• If the vehicle is equipped with an OEM backup camera,
connect the TO1 T-harness to the backup camera harness
(see wire chart for details).
STEP 3
• Identify if your vehicle has a 20 or 28 pin secondary
connector. Assemble TO1 T-harness as shown on
wiring diagram. Connect the factory harness to the TO1
T-harness.
STEP 4
• Plug the OBDII connector into the OBDII of the vehicle,
under driver dash.
STEP 5
• Plug the aftermarket radio harnesses into the aftermarket
radio.
• Connect the backup camera RCA cable into the
aftermarket radio (if equipped).
• Connect the auxiliary RCA cables into the aftermarket radio
(if equipped).
• Plug the Data cable to the data port of the aftermarket
radio.
• Insert the Audio cable into the iDatalink 3.5 mm audio jack
of the aftermarket radio.
NOTE:
In Pioneer radios: plug Audio cable in auxiliary input of
the radio.
STEP 6
• Connect all the harnesses to the Maestro RR module then
test your installation.
TROUBLESHOOTING TIPS:
• To reset the module back its factory settings, turn the key
to the OFF position then disconnect all connectors from
the module. Press and hold the module’s programming
button and connect all the connectors back to the module.
Wait, the module’s LED will flash RED rapidly (this may
take up to 10 seconds). Release the programming button.
Wait, the LED will turn solid GREEN for 2 seconds.
• For technical assistance call 1-866-427-2999 or e-mail
“[email protected]”. Visit us at “maestro.idatalink.
com/support” and “www.12voltdata.com/forum/”
2

ADS-RR(SR)-TOY01-DS maestro.idatalink.com
scion iQ 2012-2015
Automotive Data Solutions Inc. © 2016 4
AUX INAUX IN
C
AF
G
C
A
G
F
2
H
H
BACKUP CAMBACKUP CAM
D
D
FACTORY RADIO HARNESS
STEP 3
REVERSE CAMERA HARNESS
STEP 2
CONNECT IF EQUIPPED
MAIN
HARNESS
RCA CABLES
TO1 T-HARNESS
STEP 5
WIRES FROM
VEHICLE
CONNECT TO
AFTERMARKET RADIO
STEP 6
MAESTRO RR MODULE
DATA
CABLE
OBDII CONNECTOR
STEP 4
WIRING DIAGRAM without an Amplifier
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
YELLOW/BLACK - FOOT BRAKE
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+)
PINK - VEHICLE SPEED
LTGREEN - E-BRAKE (-)
BLUE/WHITE - AMP. TURN ON (+)
STEP 1
SEE AFTERMARKET
RADIO GUIDE
FOR RADIO WIRE
COLORS
SEE WIRE
CHART
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
PURPLE - RR SPEAKER (+)
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
AUDIO
CABLE
YELLOW - VIDEO (+)
BROWN - VIDEO (-)
BLUE/YELLOW - CAM. POWER (+)
BLACK - GROUND (-)
CONNECT 20 OR 28 PIN CABLE

ADS-RR(SR)-TOY01-DS maestro.idatalink.com
scion iQ 2012-2015
Automotive Data Solutions Inc. © 2016 5
RADIO WIRE REFERENCE CHART
Wire
Description Polarity Wire Color on Maestro
T-Harness Wire Color on Alpine cable Wire Color on Kenwood cable Wire Color on Pioneer cable
Illumination (+) Orange N/A Orange/White Orange/White
Reverse Light (+) Purple/White Orange/White Purple/White Purple/White
E-Brake (-) Lt Green Yellow/Blue Lt Green Lt Green
Foot Brake (+) Yellow/Black Yellow/Black N/A N/A
VSS (vehicle speed sensor) (DATA) Pink Green/White N/A Pink

ADS-RR(SR)-TOY01-DS maestro.idatalink.com
scion iQ 2012-2015
Automotive Data Solutions Inc. © 2016 6
VEHICLE WIRE REFERENCE CHART
REVERSE CAMERA NOT AVAILABLE / NOT PRESENT

OPTIONAL ACCESSORIES PROGRAMMED FIRMWARE
ADS-RR(SR)-TOY01-DS
PRODUCTS REQUIRED
iDatalink Maestro RR Radio Replacement Interface
iDatalink Maestro TO1 Installation Harness
INSTALL GUIDE
SCION TC
20072015
Retains factoRy amplifieR, steeRing wheel contRols, and moRe!
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
