61-337 Multimeter
Operation and Safety Manual
IDEAL®Test and Measurement

Introduction...................................................................3
Contacting IDEAL INDUSTRIES, INC ......................................3
Safety Information...........................................................4
Warnings..............................................................................................4-5
Cautions..................................................................................................5
Symbols...............................................................................................6-7
Operation..................................................................8-25
Identification and description of operating controls and
functions .............................................................................................8-9
Operating Features...........................................................................10-11

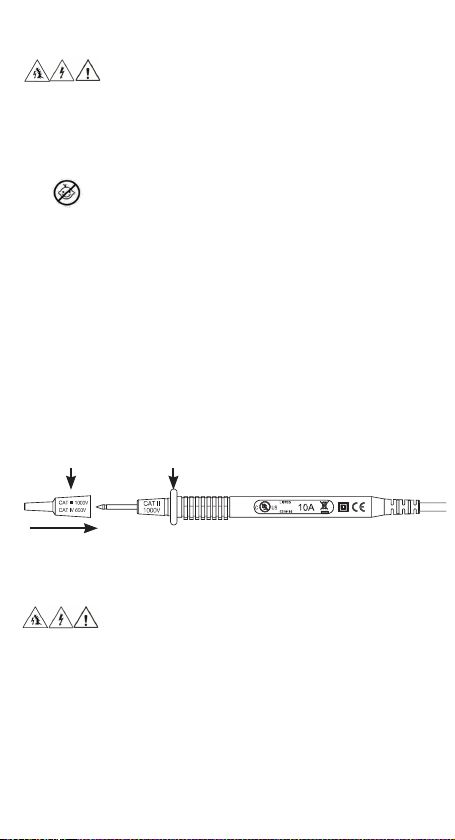

Using Test Leads...................................................................................12
Meter Operation ..............................................................................13-19
Non-Contact Voltage Testing ..........................................................13
Lead Warning..................................................................................14
Fuse Warning..................................................................................14
SEL Button......................................................................................14

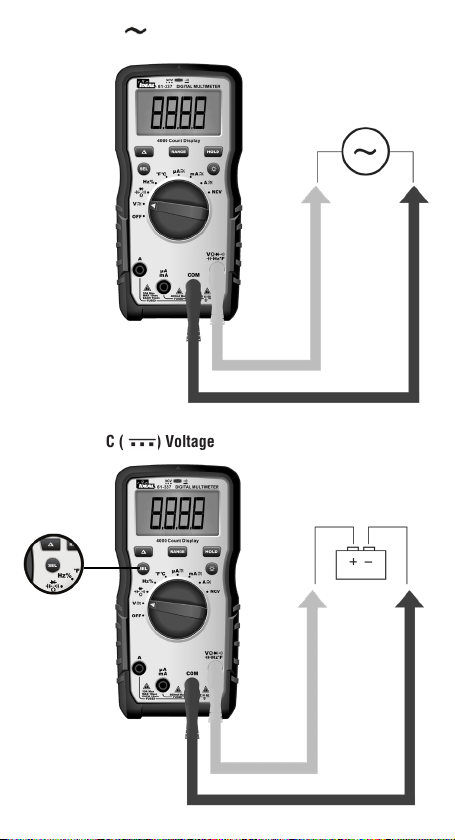

Measuring Voltage..........................................................................15

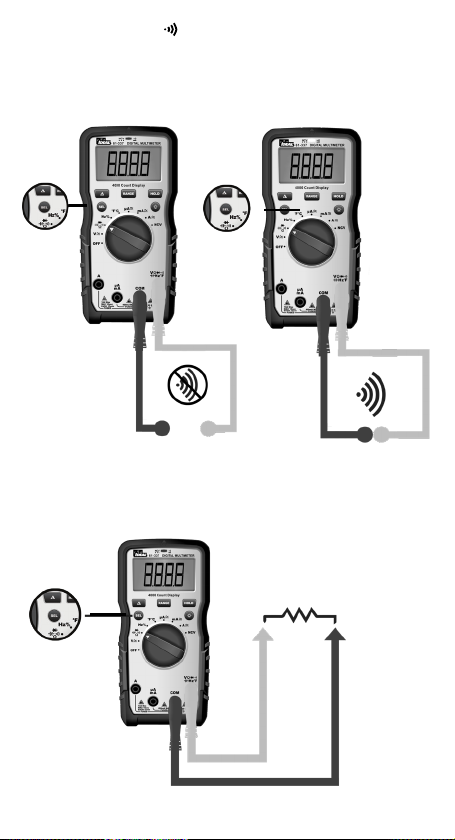

Measuring Continuity.....................................................................16
Measuring Resistance.....................................................................16

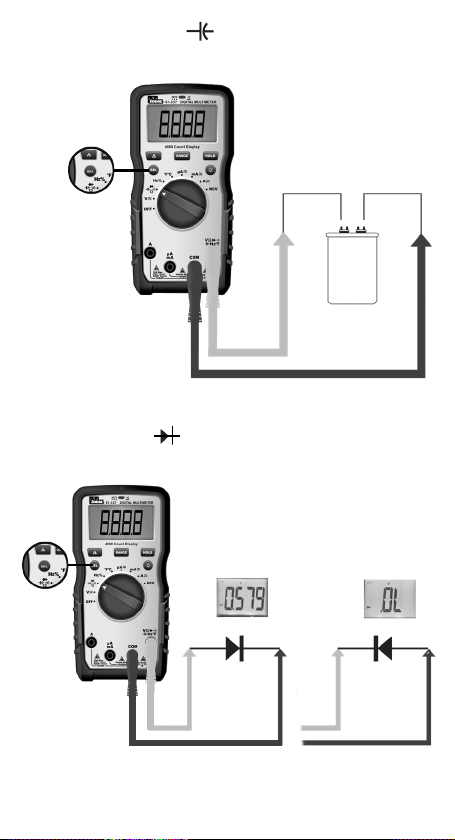

Measuring Capacitance ..................................................................17
Measuring Diodes ..........................................................................17
Measuring Frequency.....................................................................18
Measuring Temperature ..................................................................18

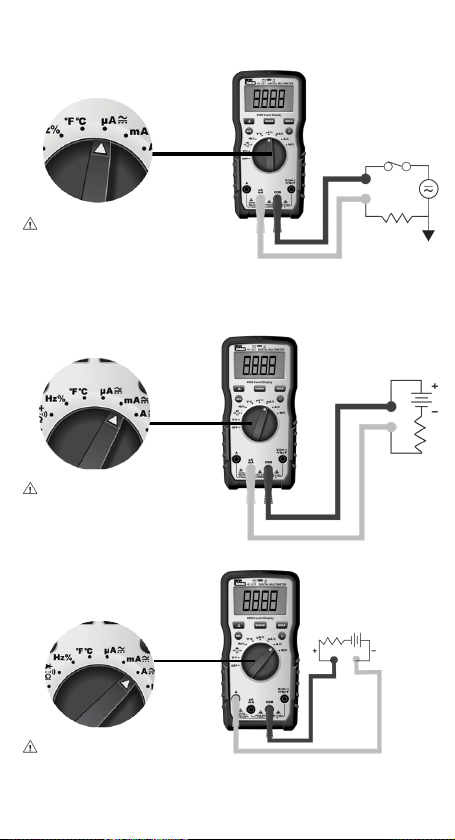

Measuring Micro Amps..................................................................19
Measuring Milli Amps....................................................................19
Measuring Amps ............................................................................19
Functions Operation Table................................................................20-21
Functions Indication Table ...............................................................22-23
Electrical Specifications ...................................................................24-25
Environmental Specifications............................................ 26
Mechanical Specifications ............................................... 26
EMC / EMI ................................................................... 26
FCC ........................................................................ 27
Safety........................................................................ 27
Maintenance and Service ............................................ 27-28
Table of Contents
2

Introduction
The IDEAL®61-337 Digital Multimeter is an auto ranging average responding
RMS meter that measures AC and DC current (amps) in series via test leads in
the designated terminals, measures voltage, frequency, resistance, continuity,
capacitance, diodes via test-leads in the designated terminal and measures

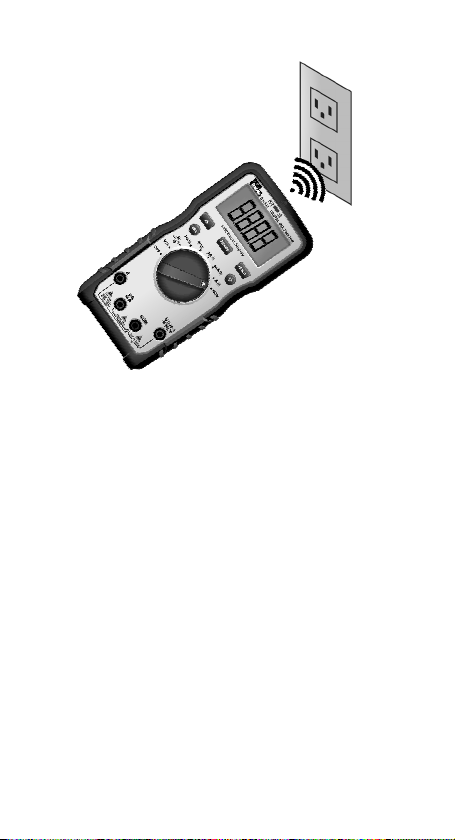

temperature via a K-Type thermocouple. It also detects the presence of voltage
between 40V to 600V AC via a non-contact sensor in the top center of the meter.
Contacting IDEAL INDUSTRIES, INC.
To contact IDEAL INDUSTRIES, INC., call one of the following telephone numbers:
IDEAL Industries USA Customer Service
• Phone Number: 800-435-0705
• Email: [email protected]
IDEAL Industries Canada Customer Service
• Phone Number: 905-683-3400
• Email: [email protected]
IDEAL Industries EMEA
• Phone Number: [phone]
• Email: eur[email protected]
IDEAL Industries Australia
• Phone Number: [phone]
• Email: [email protected]
Or visit the IDEAL Electrical Website at www.idealind.com
To register your product, find manuals, watch videos, simply scan this QR code.
3
Arc Flash and Shock Hazard, Proper PPE Required. Follow all safety procedures,
wear proper PPE in accordance to NFPA 70E. Read and fully understand the
instruction manual prior to using this product. Failure to comply can result in
serious injury or death.

Warning -Identifies conditions and actions that could result in
possible death or serious injury if the hazard is realized.
Caution - Identifies conditions and actions that could result in meter dam-
age, equipment under test damage or data loss if the hazard is realized.
WARNING
Safety Information
Arc Flash and Shock Hazard, Proper PPE Required. Follow all safety procedures,
wear proper PPE in accordance to NFPA 70E and follow the guidelines below and
the instructions in this manual when operating the meter. Failure to comply can
result in serious injury or death.
• Choking Hazard, Small Parts. Keep Away from Children. Sharp Objects
Hazard, This is not a toy. It is not for use or play by children. Keep Away
from Children. Failure to do so can result in serious injury.
• Only experienced or technically competent consumers should use this
equipment. When in doubt, call an experienced electrician to make any and
all necessary repairs or installations. At all times, perform any necessary
work on a de-energized circuit that has had its circuit breaker turned off and
has been locked out.
• Use the Meter only as specified in this manual or protection provided by the
Meter can be compromised.
• Before using or connecting the Meter, visually inspect it to ensure the cases
are not cracked and the back case is securely in place. Do not use if the
Meter appears damaged.
• Before using the test leads, inspect carefully for damaged insulation,
exposed metal or cracked probes. Check test leads for continuity. Do not use
leads if they appear damaged.
• Use only approved test leads. Do not use improvised connections that could
present a safety hazard.
• When using the probes, keep fingers behind the guard ring on the probes.
• Connect the common test lead before connecting the live test lead. When
disconnecting test leads, disconnect the live test lead first.
• This Meter is intended for use by qualified electricians. Follow NFPA 70E
Standards for Electrical Safety in the Workplace when using this Meter.
• Do not use without the batteries correctly in place and the battery door
closed and secured.
• Do not use Meter if it operates incorrectly as protection may be
compromised. When in doubt, have the Meter serviced.
• When servicing the Meter, use only specified replacement parts.
4
CAUTION

5
Arc Flash and Shock Hazard, Proper PPE Required. Follow all safety procedures,
wear proper PPE in accordance to NFPA 70E and follow the guidelines below and the
instructions in this manual when operating the meter. Failure to comply can result in
serious injury or death.
• Have the Meter serviced only by qualified service personnel.
• Do not use the Meter around explosive gas, dust, or vapor, or during
electrical storms, or in wet environments.
• When measuring, keep fingers behind the Tactile Barrier. See “The Meter”
on pg. 8 and 9.
• Do not apply more than the rated voltage, as marked on the Meter, between
the terminals or between any terminal and earth ground.
• To avoid false readings that can lead to electrical shock and injury, replace
the batteries as soon as the low battery indicator ( ) appears.
• Remove the test leads from the circuit prior to removing the battery door.
• Voltages exceeding 30VAC or 60VDC pose a shock hazard so use caution.
• Always ensure that test leads are secured so that they cannot be accidentally
snagged or tripped over.
• Do not work alone so that assistance can be rendered in an emergency.
• Use extreme caution when working around bare conductors or bus bars.
Contact with the conductor could result in electric shock.
• Adhere to local and national safety codes. Individual protective equipment
must be used to prevent shock and arc blast injury where hazardous live
conductors are exposed.
• Disconnect circuit power and discharge all high-voltage capacitors before
you measure resistance, continuity, or capacitance.
• Never operate the Meter with the back cover removed or the case open.
• Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Meter damage, equipment under test damage or data loss can occur if the following
guidelines are not adhered to.
• Use the proper terminals, function, and range for the measurement
application.
• Clean the case and accessories with a damp cloth and mild detergents only.
Do not use abrasives or solvents. Make sure the meter is completely dry
before use.
CAUTION
WARNING

Symbols & Descriptions
SYMBOL DESCRIPTION
Arc Flash and Shock Hazard
Shock Hazard
Warning or Caution
Choking Hazard
AC (Alternating Current)
DC (Direct Current)
Low Battery Indicator
Earth Ground
10 A Maximum Current Specification
CAT III IEC Measurement Category III
CAT III has protection against transients in equipment in fixed-
equipment installations such as distribution panels feeders,
and short branch circuits. Also included are lighting systems in
larger buildings.
NCV Non-Contact Voltage Sensing
NCV Non-Contact Voltage Sensing Point
AAmperage AC and DC
Hz Frequency measured via the test leads
VVoltage AC or DC
Hz% Frequency displayed as % measured with AC Voltage
6

SYMBOL DESCRIPTION
ΩOhms
Continuity
Capacitance
Diode
°F °C Temperature Degrees Fahrenheit / Celsius
LCD Liquid Crystal Display
Range Auto or Manual Range Selection
∆Delta (Relative)
Double Insulation
Do not dispose of this product as unsorted municipal waste.
It must be properly disposed of in accordance with local
regulations. Please see www.epa.gov or www.erecycle.org for
additional information.
Conforms to applicable North American Safety Standards
Conforms to applicable Australian Safety Standards
Conforms to European Directives
NOTE: The Measurement Category (CAT) and voltage rating of any combination
of test probe, test probe accessory, current clamp accessory, and the Meter is the
LOWEST rating of any individual component.
7

Identification and Description of Operating
Controls and Functions for the 61-337 Digital
Multimeter:
1. HV, & Continuity LED
2. LCD Display
3. Tactile Barrier

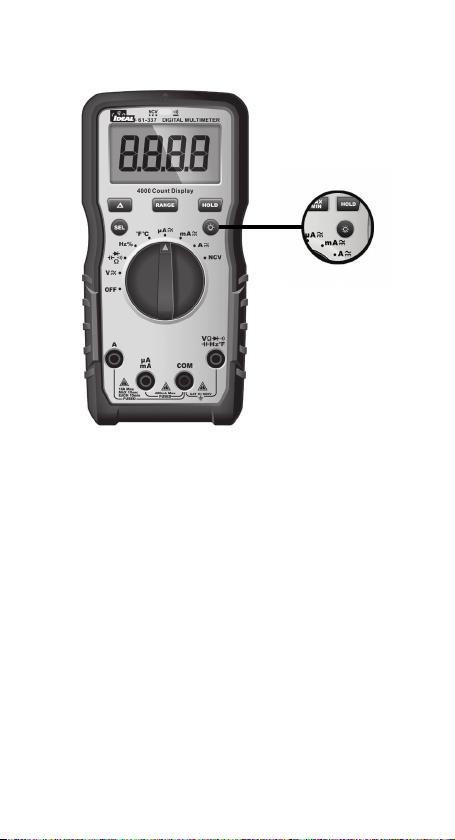

4. Backlight Button
5. Rubber Boot
6. Volts/Ohms Input Terminal
7. Common (COM) Input Terminal
8. Mili Amps, Micro Amps Input Terminal
9. Amps Input Terminal
10. Measuring Functions Dial
11. Function Select Button
12. Relative Button
13. NCV Sensing Point
14. Range
15. Hold
8
Operation

4
1
3
15
6
11
10
2
5
12
14
9
7
8
9
13

High Voltage Warning (HI-V)
The meter beeps once (for 1 second) and a red LED illuminates and remains on as
long as the voltage remains above 30V AC or DC, or when the meter’s voltage range
is exceeded.
NOTE: This feature does not work in the Ohm, capacitor, continuity or amperage
modes.
Data Hold Feature
Press the Hold button to toggle in and out of the data hold mode. “H” appears in the
upper left of the meter display when data hold is active. Use the data hold feature to
lock a measurement reading on the display. Press the Hold button again to unlock
the display and obtain a real-time reading.
REL Feature (∆)
A short press of the ‘∆’ button will activate or deactivate the REL function.
Range
The meter is auto ranging, however the user may select a specific range by pressing
the range button repeatedly.
Auto Power Off (APO) Feature Disable
The meter automatically powers itself down after about 30 minutes of no use. Press
any button, and the meter will wake up and enter the default function of that setting
before power down. To Disable APO, press and hold the SEL button while turning
the dial to any desired function. When APO is defeated, the “APO” will be removed
from the display. Turning the meter off and back on will restore the APO default.
10

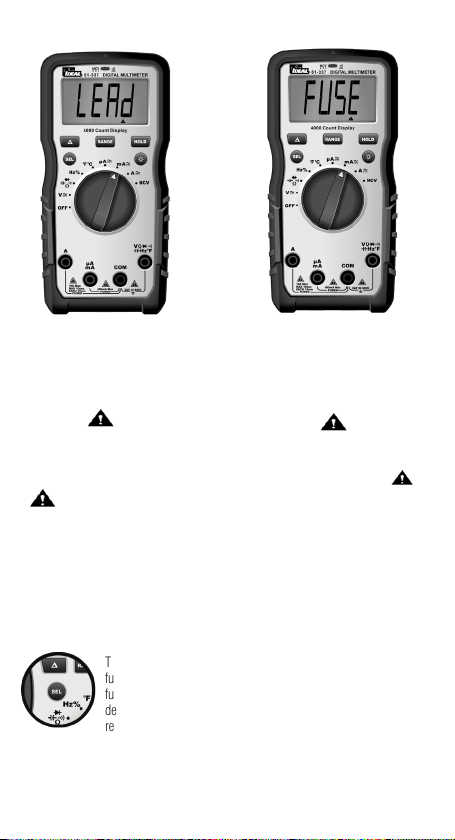

Operating Features
