CRUSHED GLASS MEDIA INSTALLATION INSTRUCTIONS
FOR USE WITH APPROVED IHP FIREPLACES
P/N 900077-07
Rev. NC 10/2014
HEARTH PRODUCTS
KITS AND ACCESSORIES
CRUSHED GLASS MEDIA KIT
Page 1 of 2
P900077-07
NOTE: TAKE CARE TO NOT COVER OR IMPEDE THE PILOT IN
PLACEMENT OF ANY GLASS MEDIA. PLACE GLASS MEDIA
AROUND THE PILOT CAREFULLY SO THAT MEDIA PARTICLES
DO NOT FALL IN AND INTERRUPT THE FLOW OR BURN OF GAS.
GENERAL INFORMATION
This document contains instructions for installing the media kits listed
in Table 1.
KIT CONTENTS
• (1) Bag, Media
• (1) Instruction Sheet
REQUIRED TOOLS
• Safety Glasses
• Protective Work Gloves
CAUTION
RISK OF PERSONAL INJURY OR PROPERTY DAMAGE.
•Neveroperatereplacewithoutlinerpanelsinstalled.
These appliances are NOT approved for operation without liner
panels.
•DoNOTabuseglassdoorsbystrikingorslammingshut.
• Neveroperatereplacewithglassdoorassembyremoved.
•Handleglassdoorassemblywithextremecare.Replacedam-
agedglassdoorassemblywithapprovedreplacementassembly
only.
• Useonlymediaapprovedforusewiththesefireplaces(asap-
plicable).Failuretouseapprovedmediamayresultinsooting,
delayedignition,orotherimproperfireplaceoperation,andmay
voidthewarranty.
WARNING
HOT GLASS WILL CAUSE BURNS.
DO NOT TOUCH GLASS UNTIL COOLED.
NEVER ALLOW CHILDREN TO TOUCH GLASS.
•InstallonlywhenreplaceisOFFandCOLD.
• FireplacesurfacesgetEXTREMELYHOT!
• TheglassonthefrontofthereplacereachesEXTREMELY
HIGHtemperaturesandcancausesevereburnsiftouched.
Evenafterthegasisturnedoff,replacesurfacesremain
extremelyhot.
• Keepchildrenawayfromanoperatingreplace.Closelysu-
pervisechildreninanyroomwhereareplaceisoperatingto
preventcontactwithglass.
NOTICE
•READ ALL STEPS BEFORE STARTING INSTALLATION.
•LEAVETHESEINSTRUCTIONSWITHTHEAPPLIANCE.
•All warnings, precautions, and instructions in the Installation
Instructions and the Care and Operation Instructions provided
with the appliance also apply to these instructions.
•If you encounter any problems, need clarification of these in-
structions, or are not qualified to properly install this kit, contact
your local distributor or dealer.
Description Cat.No. ModelNo.
CrushedGlassMedia—5-lbBag—Ebony H8412 CRSHGL-RBLK
CrushedGlassMedia—5-lbBag—Cobalt H8424 CRSHGL-RBLU
CrushedGlassMedia—5-lbBag—Platinum H8413 CRSHGL-P
CrushedGlassMedia—5-lbBag—Goldnger H8538 CRSHGL-GF
CrushedGlassMedia—5-lbBag—Copper H8539 CRSHGL-C
Table 1: Media Kits

INNOVATIVEHEARTHPRODUCTS•KITSANDACCESSORIES•CRUSHEDGLASSMEDIAINSTALLATIONINSTRUCTIONS
Page 2 of 2
GENERAL INSTALLATION INSTRUCTIONS
IMPORTANT!
•The placement of Crushed Glass Media depends on the specific
fireplace model. For directions related to your fireplace, refer to the
Care and Operation Instructions and/or the Installation Instructions
which came with your unit.
•The amount of glass medis to be used varies by model. Consult
the Care and Operation Instructions and/or the Installation Instruc-
tions that came with your fireplace for information on minimum and
maximum recommended limits.
INSTALLATION
1. Turn off the gas supply and electrical power to the fireplace.
2.EnsurethereplaceisOFFandCOLD.
3. Remove the fireplace glass door assembly, if installed (refer to the
fireplace Care and Operation Instructions or Installation Instructions).
4. Install media as shown in the Care and Operation Instructions and/
or the Installation Instructions. Figure 1 and Figure 2 are provided
for general reference to linear models.
5. Spread media evenly over the designated area. DO NOT mound up.
NOTE: For Burn-Thru units, place a thinner layer of media over the
burner area.
6. Reinstall the glass door assembly.
7. Apply electrical power and turn on the gas supply for the fireplace.
REMOVING AND CLEANING CRUSHED GLASS MEDIA
CAUTION:RISKOFPERSONALINJURY.Allow
mediatoCOMPLETELY COOL beforehandling.
1. Turn off the gas supply and electrical power to the fireplace.
2.EnsurethereplaceisOFFandCOLD.
3. Remove the fireplace glass door assembly, if installed (refer to the
fireplace Care and Operation Instructions or Installation Instructions).
4. To remove glass media from the fireplace, use a clean, dry, empty
shop vac.
Tocleanglassmedia:
1. Place media in colander or sieve, and carefully rinse under hot
water.
2. Spread media in a thin layer on a flat surface to dry.
3. Allow media to completely air dry before reinstalling.
WARNING
•Any attempt to use media not specied for your
replace conguration will result in incomplete
combustion, sooting, and poor ame quality, and
willvoidthewarranty.
•HANDLE MEDIA ONLY WHEN COOL. Turn OFF all
electricity to the appliance before removing or
installingmedia.MediagetsveryHOTduringre-
placeuseandwillremainhotuptoONEHOURafter
thegassupplyisturnedoff.
•Ifmediaisnotinstalledaccordingtotheinstalla-
tioninstructions,ameimpingementandimproper
combustion could occur, resulting in soot and/or
excessive production of carbon monoxide (CO), a
TOXICgasthatiscolorlessandodorless.
WARNING
HOT GLASS WILL CAUSE BURNS.
DO NOT TOUCH GLASS UNTIL COOLED.
NEVER ALLOW CHILDREN TO TOUCH GLASS.

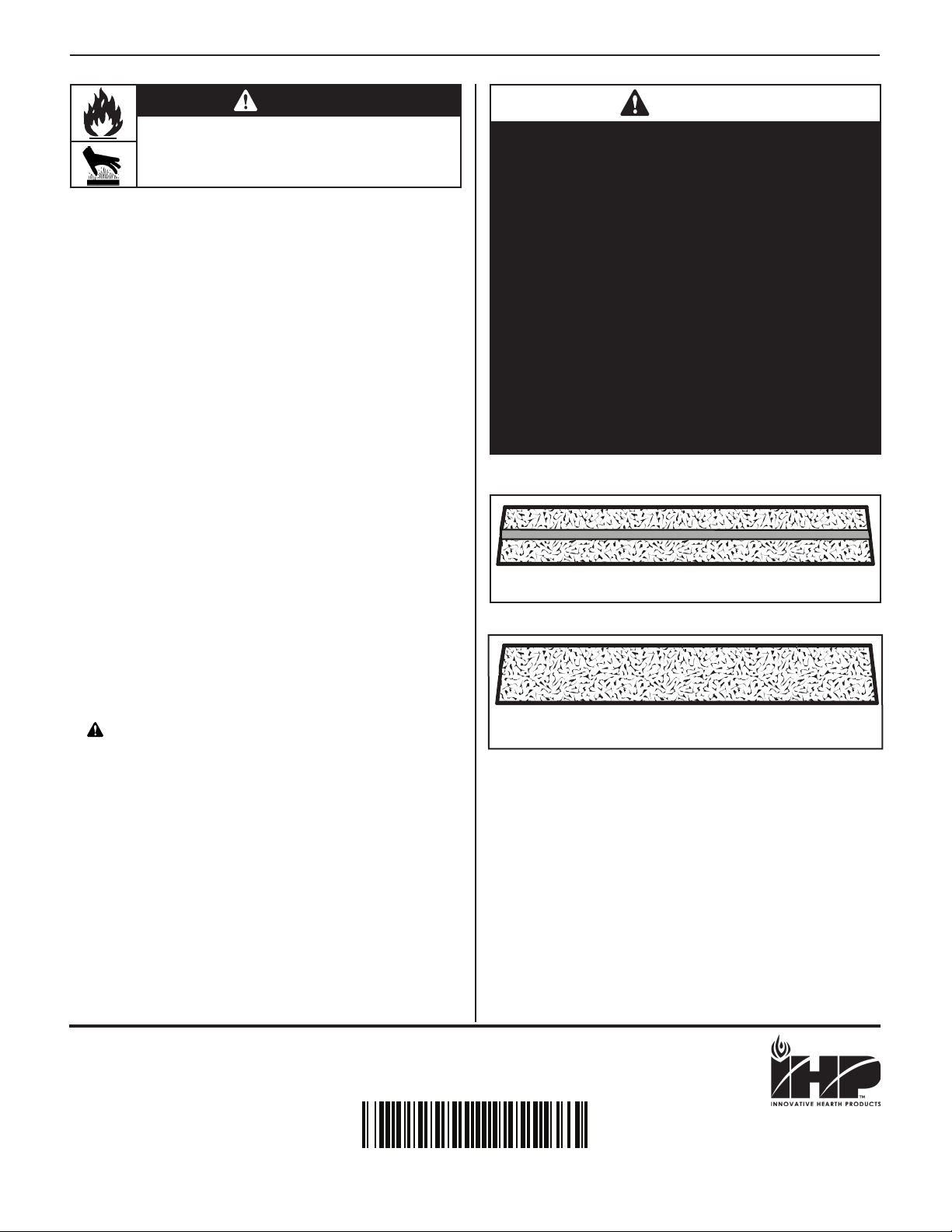

Figure1:FireplaceWithVisibleBurner
Figure2:FireplaceWithBurn-ThruMedia
